◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11272 - CYZ LHD EURO2/3/4 WITH 3STEPS ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-20 - SIDE PANEL AND STEP ▶
6-20 — SIDE PANEL AND STEP (#55680) — 88 parça

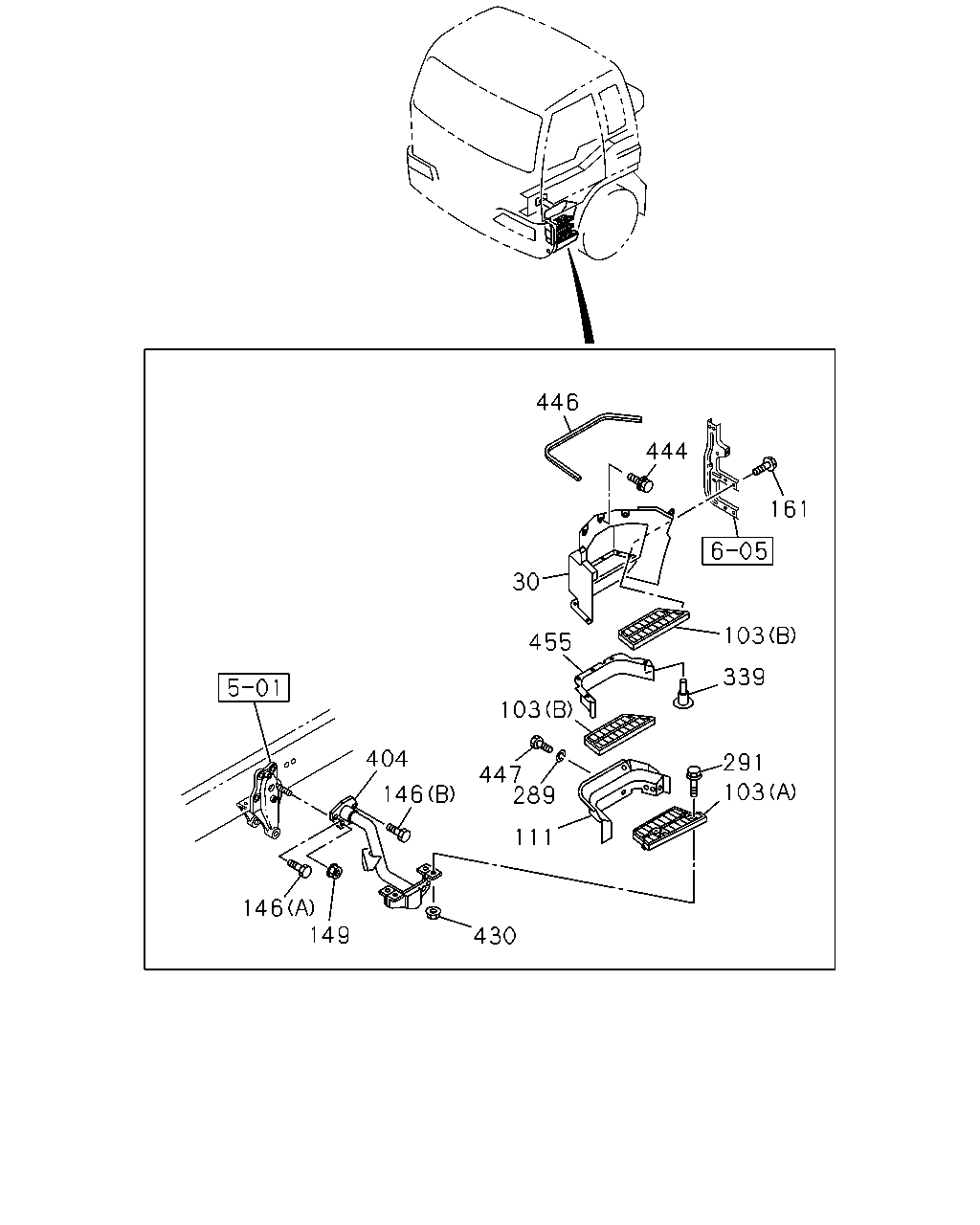

çizim 167250
446 444 161 30 103 455 339 103 404 291 447 289 103 146 111 146 149 430
BalonParca AdiParca NoAdetTipApplied Date A B
30 CLOSING; SIDE STEP 8-98157-935-0 01 1 1008- ● ●
30 CLOSING; SIDE STEP 8-98157-934-0 01 1 1008- ● ●
103 PLATE; STEP
(A) 		1-53414-181-0 01 1 1008- ● ●
103 PLATE; STEP
(B) 		1-71907-249-1 02 1 1008- ● ●
103 PLATE; STEP
(A) 		1-53414-180-0 01 1 1008- ● ●
103 PLATE; STEP
(B) 		1-71907-174-1 02 1 1008- ● ●
111 COVER; 1ST STEP 8-98167-806-0 01 1 1008- ● ●
111 COVER; 1ST STEP 8-98167-805-0 01 1 1008- ● ●
146 BOLT; STEP BRKT
(A) M12X30 FLANGE 		0-28051-230-0 02 1 1008- ● ●
146 BOLT; STEP BRKT
(B) M12X80 FLANGE 		0-28051-280-0 04 1 1008- ● ●
149 NUT; STEP BRKT
M12 FLANGE 		0-91180-212-0 02 1 1008- ● ●
161 BOLT; FIX
M8X29.5 W/LK+PL WASHER 		8-94279-218-0 16 1 1008- ● ●
289 WASHER; PL,STEP
ID=6.4 OD=18 		0-91610-706-0 08 1 1008- ● ●
291 BOLT; STEP PLATE
M8X35 FLANGE 		0-28050-835-0 08 1 1008- ● ●
339 FASTENER; SIDE
ID=6X6 OD=8 		1-09987-194-0 10 1 1008- ● ●
404 BRACKET 8-98138-224-3 01 1 1008- ● ●
404 BRACKET 8-98144-629-2 01 1 1008- ● ●
430 NUT; PANEL
M8 FLANGE 		0-91180-108-0 08 1 1008- ● ●
444 BOLT; CLOSING
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 06 1 1008- ● ●
446 FINISHER; STEP
ID=18 L=80 		1-71996-051-0 02 1 1008- ● ●
447 BOLT; PANEL
M6X12 FLANGE 		0-28050-612-0 08 1 1008- ● ●
455 PROTECTOR; STEP 8-98157-942-0 01 1 1008- ● ●
455 PROTECTOR; STEP 8-98157-943-0 01 1 1008- ● ●

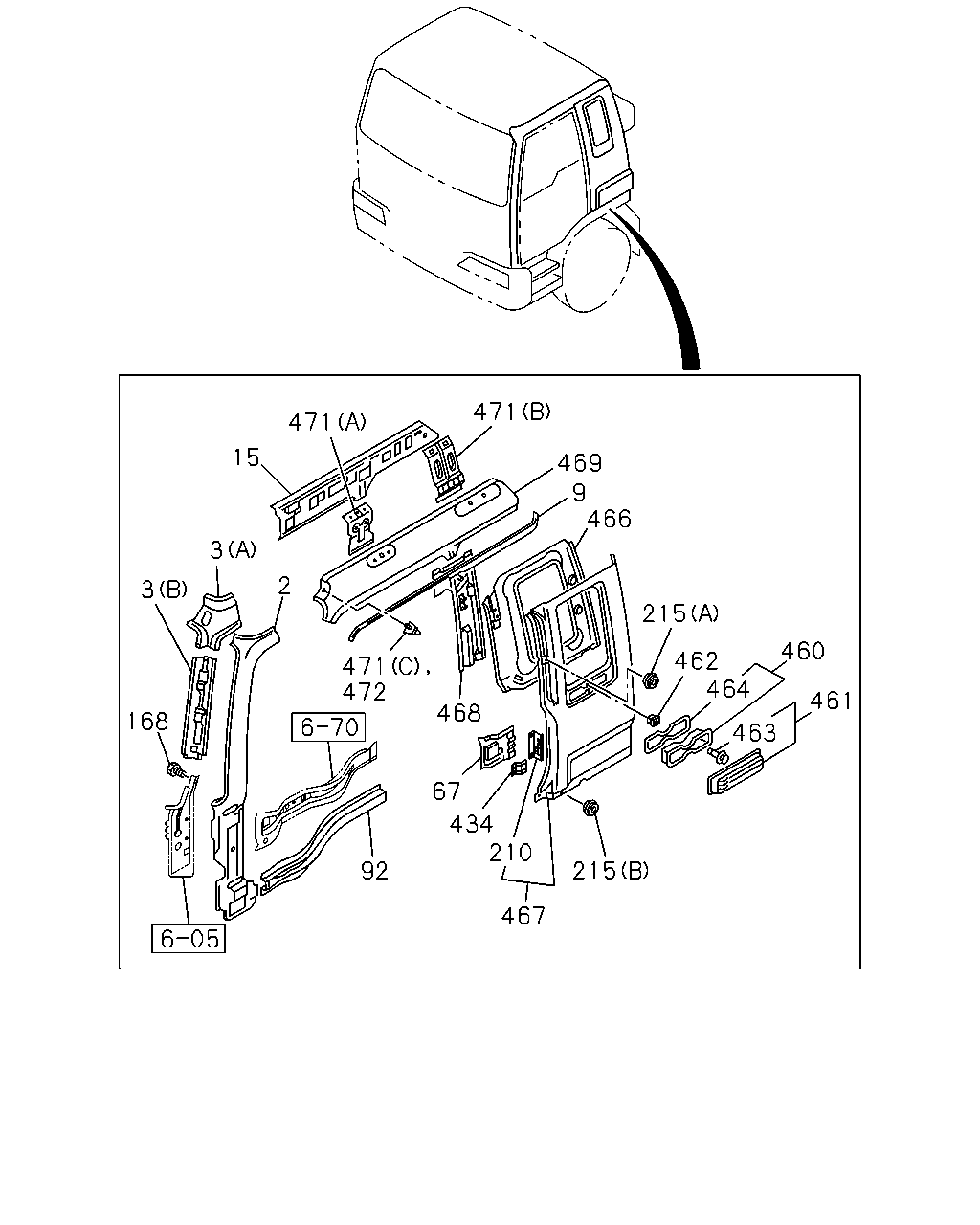

çizim 167260
471 471 15 469 9 466 3 2 3 215 460 462 464 471 472 461 468 168 463 67 434 210 215 92 467
BalonParca AdiParca NoAdetTipApplied Date A B
2 PILLAR; FRT 1-61281-410-2 01 1 1008- ● ●
2 PILLAR; FRT 1-61281-155-4 01 1 1008- ● ●
3 PANEL; CLOSING,FRT PILLAR
(A) 		1-61281-170-5 01 1 1008- ● ●
3 PANEL; CLOSING,FRT PILLAR
(B) 		1-61281-344-5 01 1 1008- ● ●
3 PANEL; CLOSING,FRT PILLAR
(A) 		1-61281-169-5 01 1 1008- ● ●
3 PANEL; CLOSING,FRT PILLAR
(B) 		1-61281-343-5 01 1 1008- ● ●
9 MOLDING; DRIP,CAB SIDE 1-61281-281-5 01 1 1008- ● ●
9 MOLDING; DRIP,CAB SIDE 1-61281-280-5 01 1 1008- ● ●
15 PANEL; CANT RAIL SIDE 1-61281-178-8 01 1 1008- ● ●
15 PANEL; CANT RAIL SIDE 1-61281-177-8 01 1 1008- ● ●
67 PANEL; INNER,RR PILLAR LWR 1-61281-195-5 01 1 1008- ● ●
67 PANEL; INNER,RR PILLAR LWR 1-61281-194-5 01 1 1008- ● ●
92 PANEL; SIDE SILL,CAB 1-61281-212-8 01 1 1008- ● ●
92 PANEL; SIDE SILL,CAB 1-61281-211-9 01 1 1008- ● ●
168 BOLT; BODY SIDE PANEL
M6X10 FLANGE 		0-28050-610-0 04 1 1008- ● ●
210 PANEL; DOOR STRIKER REINF 8-97851-446-1 01 1 1008- ● ●
215 GROMMET; RR PILLAR
(A) OD=23.5 		1-09983-101-0 02 1 1008- ● ●
215 GROMMET; RR PILLAR
(B) OD=28.5 		8-94279-711-0 02 1 1008- ● ●
434 PATCH; ASSIST GRIP 1-61270-763-1 01 1 1008- ● ●
460 VENTILATOR; BODY SIDE 1-76378-292-4 02 1 1008- ● ●
461 ORNAMENT; VENTILATOR 1-76378-303-6 01 1 1008- ● ●
461 ORNAMENT; VENTILATOR 1-76378-302-6 01 1 1008- ● ●
462 GROMMET; VENTILATOR
OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 08 1 1008- ● ●
463 PIN; ORNAMENT
D4.2X13 		1-09983-161-0 08 1 1008- ● ●
464 SEAL; VENTILATOR 1-76378-299-0 02 1 1008- ● ●
466 PANEL; INNER,BACK CORNER 1-61281-416-1 01 1 1008- ● ●
466 PANEL; INNER,BACK CORNER 1-61281-415-1 01 1 1008- ● ●
467 PANEL; OUTER,BACK CORNER 1-61281-204-4 01 1 1008- ● ●
467 PANEL; OUTER,BACK CORNER
RUSSIA EQUIPMENT(B12),CHINA EQUIPMENT(YT2) 		1-61281-477-3 01 1 1008-1205 ● ●
467 PANEL; OUTER,BACK CORNER
RUSSIA EQUIPMENT(B12),CHINA EQUIPMENT(YT2) EXC. COUNTRY ALGERIA<D2G> 		1-61281-477-3 01 1 1206- ● ●
467 PANEL; OUTER,BACK CORNER
COUNTRY ALGERIA<D2G> 		1-61281-477-3 01 1 1206- ● ●
467 PANEL; OUTER,BACK CORNER
EXC. RUSSIA EQUIPMENT(B12),CHINA EQUIPMENT(YT2) 		1-61281-203-4 01 1 1008-1205 ● ●
467 PANEL; OUTER,BACK CORNER
EXC. RUSSIA EQUIPMENT(B12),COUNTRY ALGERIA<D2G>, CHINA EQUIPMENT(YT2) 		1-61281-203-4 01 1 1206- ● ●
468 REINFORCEMENT; SEAT BELT ANCHOR 1-61281-418-2 01 1 1008- ● ●
468 REINFORCEMENT; SEAT BELT ANCHOR 1-61281-417-2 01 1 1008- ● ●
469 ROOF; SIDE 1-61281-199-8 01 1 1008- ● ●
469 ROOF; SIDE 1-61281-198-8 01 1 1008- ● ●
471 PATCH; AIR DEFLECTOR
(B) 		1-61281-202-3 01 1 1008- ● ●
471 PATCH; AIR DEFLECTOR
(A) 		1-61281-201-3 01 1 1008- ● ●
471 PATCH; AIR DEFLECTOR
(C) 		8-98132-463-0 01 1 1008- ● ●
471 PATCH; AIR DEFLECTOR
(A) 		1-61281-200-3 01 1 1008- ● ●
472 PATCH; STAY,ROOF 1-61270-943-1 01 1 1008- ● ●

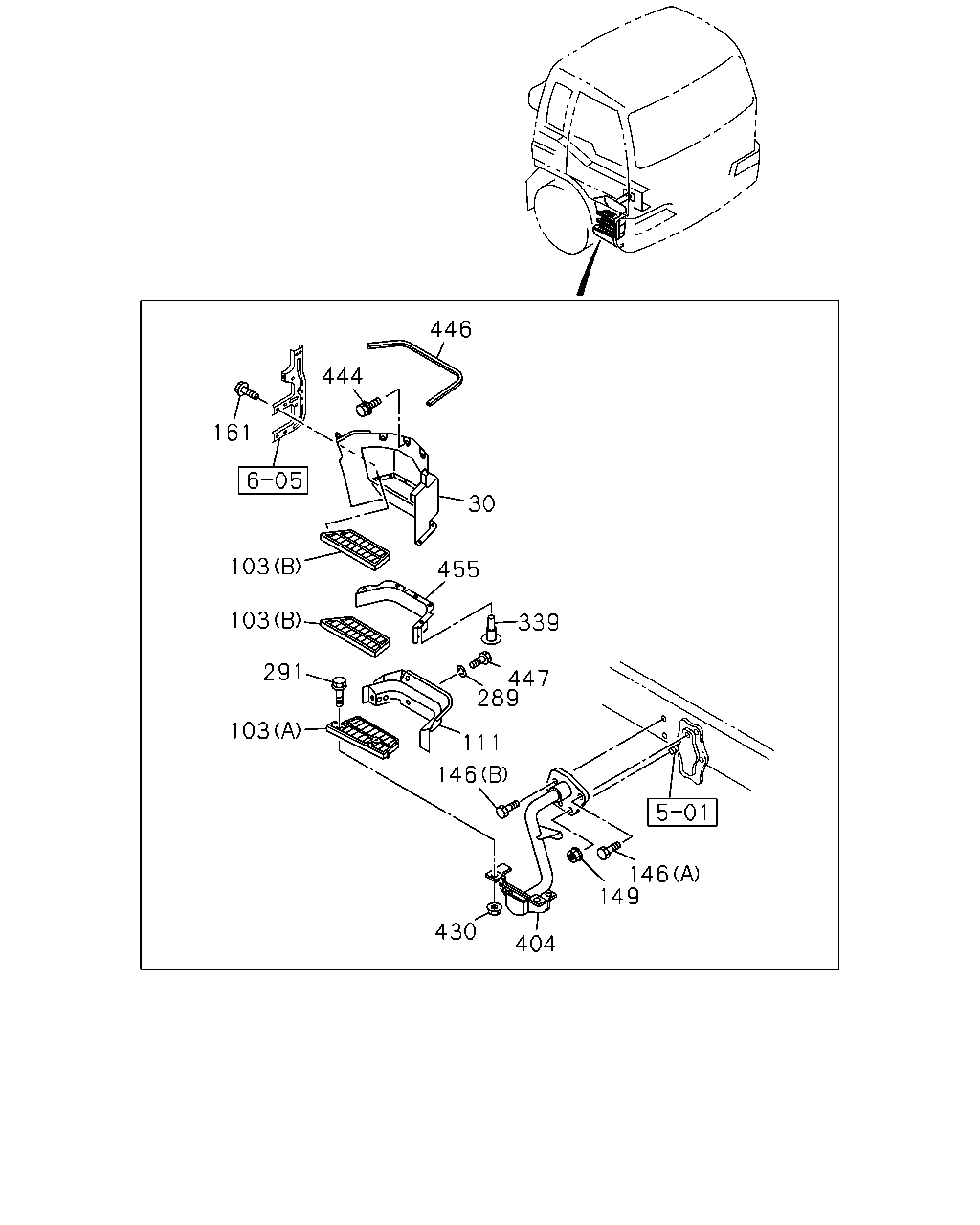

çizim 167277
446 444 161 30 103 455 103 339 291 447 289 103 111 146 146 149 430 404
BalonParca AdiParca NoAdetTipApplied Date A B
30 CLOSING; SIDE STEP 8-98157-935-0 01 1 1008- ● ●
30 CLOSING; SIDE STEP 8-98157-934-0 01 1 1008- ● ●
103 PLATE; STEP
(A) 		1-53414-181-0 01 1 1008- ● ●
103 PLATE; STEP
(B) 		1-71907-249-1 02 1 1008- ● ●
103 PLATE; STEP
(A) 		1-53414-180-0 01 1 1008- ● ●
103 PLATE; STEP
(B) 		1-71907-174-1 02 1 1008- ● ●
111 COVER; 1ST STEP 8-98167-806-0 01 1 1008- ● ●
111 COVER; 1ST STEP 8-98167-805-0 01 1 1008- ● ●
146 BOLT; STEP BRKT
(A) M12X30 FLANGE 		0-28051-230-0 02 1 1008- ● ●
146 BOLT; STEP BRKT
(B) M12X80 FLANGE 		0-28051-280-0 04 1 1008- ● ●
149 NUT; STEP BRKT
M12 FLANGE 		0-91180-212-0 02 1 1008- ● ●
161 BOLT; FIX
M8X29.5 W/LK+PL WASHER 		8-94279-218-0 16 1 1008- ● ●
289 WASHER; PL,STEP
ID=6.4 OD=18 		0-91610-706-0 08 1 1008- ● ●
291 BOLT; STEP PLATE
M8X35 FLANGE 		0-28050-835-0 08 1 1008- ● ●
339 FASTENER; SIDE
ID=6X6 OD=8 		1-09987-194-0 10 1 1008- ● ●
404 BRACKET 8-98138-224-3 01 1 1008- ● ●
404 BRACKET 8-98144-629-2 01 1 1008- ● ●
430 NUT; PANEL
M8 FLANGE 		0-91180-108-0 08 1 1008- ● ●
444 BOLT; CLOSING
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 06 1 1008- ● ●
446 FINISHER; STEP
ID=18 L=80 		1-71996-051-0 02 1 1008- ● ●
447 BOLT; PANEL
M6X12 FLANGE 		0-28050-612-0 08 1 1008- ● ●
455 PROTECTOR; STEP 8-98157-942-0 01 1 1008- ● ●
455 PROTECTOR; STEP 8-98157-943-0 01 1 1008- ● ●
