◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11272 - CYZ LHD EURO2/3/4 WITH 3STEPS ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-05 - FRONT PANEL ▶
6-05 — FRONT PANEL (#55678) — 177 parça

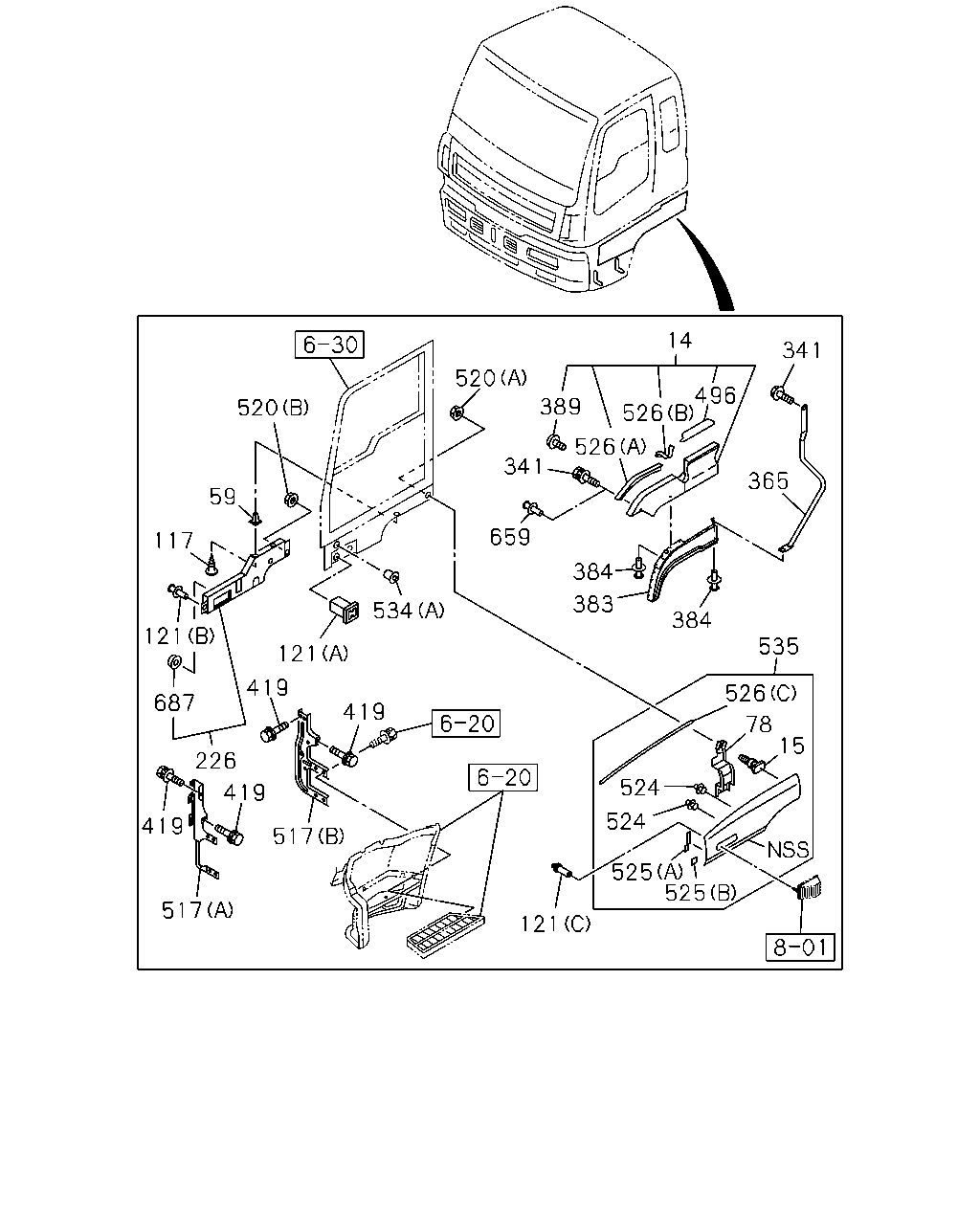

çizim 167242
520 59 117 121 687 226 419 419 517 517 419 419 534 121 520 14 341 496 526 526 389 341 659 384 383 384 365 535 526 78 15 524 524 525 525 121
BalonParca AdiParca NoAdetTipApplied Date A B
14 FENDER; FRT
BODY COLOR MARINE BLUE(890) 		8-98155-610-0 01 1 1103- ● ●
14 FENDER; FRT
BODY COLOR MARINE BLUE(890) 		8-98155-611-0 01 1 1103- ● ●
14 FENDER; FRT
BODY COLOR GOLDEN YELLOW(904),BODY COLOR POLAR WHITE(982) 		8-98155-610-0 01 1 1103- ● ●
14 FENDER; FRT
BODY COLOR GOLDEN YELLOW(904),BODY COLOR POLAR WHITE(982) 		8-98155-611-0 01 1 1103- ● ●
14 FENDER; FRT 8-98154-745-1 01 1 1008-1101 ● ●
14 FENDER; FRT
BODY COLOR ARC WHITE(729) 		8-98154-745-1 01 1 1102- ● ●
14 FENDER; FRT 8-98154-744-1 01 1 1008-1101 ● ●
14 FENDER; FRT
BODY COLOR ARC WHITE(729) 		8-98154-744-1 01 1 1102- ● ●
15 BOLT; FENDER
M6X7 		1-71268-294-0 04 1 1008- ● ●
59 GROMMET; SCREW
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 10 1 1008- ● ●
78 BRACKET; FENDER 1-71267-215-0 01 1 1008- ● ●
78 BRACKET; FENDER 1-71267-214-0 01 1 1008- ● ●
117 SCREW; COVER
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 10 1 1008- ● ●
121 GROMMET; FENDER
(B) D8X13.5 		1-09987-248-1 08 1 1008- ● ●
121 GROMMET; FENDER
(A) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 1008- ● ●
121 GROMMET; FENDER
(C) 		8-98111-356-0 02 1 1008-1306 ● ●
226 PROTECTOR; FRT 8-98109-134-1 01 1 1008-1306 ● ●
226 PROTECTOR; FRT 8-98234-710-0 01 1 1307- ● ●
226 PROTECTOR; FRT 8-98109-132-1 01 1 1008-1306 ● ●
226 PROTECTOR; FRT 8-98234-709-0 01 1 1307- ● ●
341 BOLT; FENDER TO COWL
M6X20 W/LK&PL WASHER 		1-09980-495-0 14 1 1008- ● ●
365 SUPPORT; FENDER 8-98120-232-0 01 1 1008- ● ●
365 SUPPORT; FENDER 8-98120-231-0 01 1 1008- ● ●
383 GUARD; MUD,FENDER LWR 1-71907-456-2 01 1 1008- ● ●
383 GUARD; MUD,FENDER LWR 1-71907-457-2 01 1 1008- ● ●
384 CLIP; FENDER LWR
D8X13.5 		1-09987-248-1 13 1 1008- ● ●
389 SCREW; STAND,FENDER
M6X22 		1-65481-386-0 06 1 1008- ● ●
419 BOLT; STEP
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 12 1 1008- ● ●
496 RUBBER; STEP 1-71998-862-2 01 1 1008- ● ●
496 RUBBER; STEP 1-71998-861-2 01 1 1008- ● ●
517 SUPPORT; STEP PANEL
(A) 		8-98125-815-1 01 1 1008- ● ●
517 SUPPORT; STEP PANEL
(B) 		8-98125-817-2 01 1 1008- ● ●
517 SUPPORT; STEP PANEL
(B) 		8-98125-816-2 01 1 1008- ● ●
517 SUPPORT; STEP PANEL
(A) 		8-98133-279-0 01 1 1008- ● ●
520 NUT; FENDER
(A) M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 1008- ● ●
520 NUT; FENDER
(B) M6 		8-94343-366-1 02 1 1008- ● ●
524 CLIP; FENDER COVER
D5.4X8 		1-09983-154-0 08 1 1008- ● ●
525 SEAL; FENDER
(A) 10X145 		1-71267-342-0 02 1 1008- ● ●
525 SEAL; FENDER
(B) 10X30 		8-97631-981-0 02 1 1008- ● ●
526 FINISHER; FENDER
(C) 		1-71268-275-1 02 1 1008- ● ●
526 FINISHER; FENDER
(A) 		1-71907-641-0 02 1 1008- ● ●
526 FINISHER; FENDER
(B) 		1-71907-643-0 01 1 1008- ● ●
526 FINISHER; FENDER
(B) 		1-71907-642-0 01 1 1008- ● ●
534 FASTENER
(A) ID=5.4 OD=6.8 		1-09989-021-0 08 1 1008-1302 ● ●
534 FASTENER
(A) ID=5.4 OD=6.8 		8-98241-984-0 08 1 1303- ● ●
534 FASTENER
(B) D6X12.5 		8-94146-425-0 02 1 1008- ● ●
535 FENDER; BLISTER
BODY COLOR MARINE BLUE(890) WHITE 		8-98234-066-0 01 1 1304- ● ●
535 FENDER; BLISTER
BODY COLOR MARINE BLUE(890) WHITE 		8-98234-067-0 01 1 1304- ● ●
535 FENDER; BLISTER
BODY COLOR GOLDEN YELLOW(904),BODY COLOR POLAR WHITE(982) WHITE 		8-98234-066-0 01 1 1304- ● ●
535 FENDER; BLISTER
BODY COLOR GOLDEN YELLOW(904),BODY COLOR POLAR WHITE(982) WHITE 		8-98234-067-0 01 1 1304- ● ●
535 FENDER; BLISTER
WHITE 		8-98105-664-1 01 1 1008-1303 ● ●
535 FENDER; BLISTER
WHITE 		8-98234-067-0 01 1 1304- ● ●
535 FENDER; BLISTER
WHITE 		8-98105-663-1 01 1 1008-1303 ● ●
535 FENDER; BLISTER
WHITE 		8-98234-066-0 01 1 1304- ● ●
659 CLIP; FENDER
D8X13.5 		1-09987-248-1 02 1 1008- ● ●
687 COVER; FENDER 8-98234-587-0 02 1 1307- ● ●

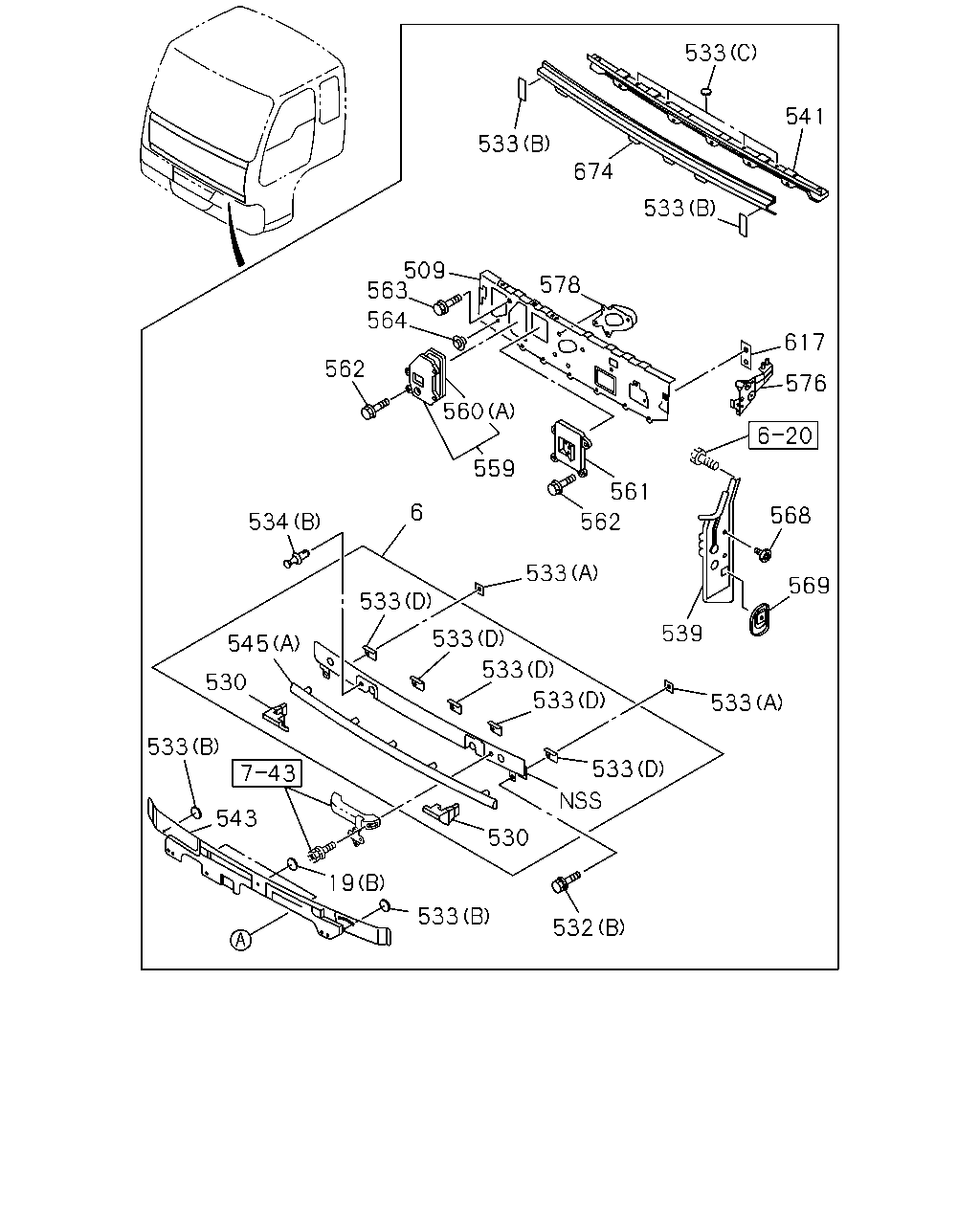

çizim 167243
533 541 533 674 533 509 563 578 564 617 562 560 576 559 561 6 568 534 562 533 569 533 533 539 545 533 530 533 533 533 533 543 530 19 533 532
BalonParca AdiParca NoAdetTipApplied Date A B
6 PANEL; FRONT 1-65472-551-3 01 1 1008- ● ●
19 SEAL; FRT SIDE PANEL
(B) OD=45 BLACK 		1-76798-017-0 03 1 1008- ● ●
19 SEAL; FRT SIDE PANEL
(C) 		1-71907-411-0 01 1 1008- ● ●
19 SEAL; FRT SIDE PANEL
(A) 		1-71907-580-1 01 1 1008-1111 ● ●
19 SEAL; FRT SIDE PANEL
(A) 		8-98208-434-0 01 1 1112- ● ●
19 SEAL; FRT SIDE PANEL
(C) 		1-71907-410-0 01 1 1008- ● ●
19 SEAL; FRT SIDE PANEL
(A) 		1-71907-579-1 01 1 1008-1111 ● ●
19 SEAL; FRT SIDE PANEL
(A) 		8-98208-433-0 01 1 1112- ● ●
509 PANEL; DASH 1-62270-496-2 01 1 1008-1210 ● ●
509 PANEL; DASH 8-98198-669-0 01 1 1211- ● ●
530 STOPPER; FRT PANEL,SIDE 1-71907-482-1 01 1 1008- ● ●
530 STOPPER; FRT PANEL,SIDE 1-71907-487-0 01 1 1008- ● ●
532 BOLT; FRT PANEL
(B) M8X20 		1-79198-002-0 02 1 1008- ● ●
532 BOLT; FRT PANEL
(C) M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 1008- ● ●
532 BOLT; FRT PANEL
(A) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 1008- ● ●
533 SEAL; FRT PANEL
(D) L=30 		1-71996-079-2 07 1 1008- ● ●
533 SEAL; FRT PANEL
(B) 20X65 		1-76778-046-3 02 1 1008- ● ●
533 SEAL; FRT PANEL
(C) OD=36 T=0.05 BLACK 		5-76777-035-0 12 1 1008- ● ●
533 SEAL; FRT PANEL
(A) 25X25 		8-94272-533-0 02 1 1008- ● ●
534 FASTENER
(A) ID=5.4 OD=6.8 		1-09989-021-0 08 1 1008-1302 ● ●
534 FASTENER
(A) ID=5.4 OD=6.8 		8-98241-984-0 08 1 1303- ● ●
534 FASTENER
(B) D6X12.5 		8-94146-425-0 02 1 1008- ● ●
539 CLOSING; PILLAR 1-61480-762-1 01 1 1008- ● ●
539 CLOSING; PILLAR 1-61480-763-1 01 1 1008- ● ●
541 PANEL; FRONT,INNER 1-61470-700-1 01 1 1008- ● ●
543 CLOSING; FRT MTG RAIL 1-61470-726-0 01 1 1008- ● ●
545 SEAL; FRT LID
(C) 		1-71907-472-0 02 1 1008- ● ●
545 SEAL; FRT LID
(A) L=2038 		1-71907-481-1 01 1 1008- ● ●
545 SEAL; FRT LID
(D) 		1-71907-578-0 02 1 1008- ● ●
545 SEAL; FRT LID
(B) OD=25 BLACK 		1-76798-019-0 01 1 1008- ● ●
559 COVER; EVAPOLATOR 1-71996-193-1 01 1 1008- ● ●
560 SEAL; COVER
(A) 		1-71998-827-1 01 1 1008- ● ●
560 SEAL; COVER
(B) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 1008-1105 ● ●
560 SEAL; COVER
(B) OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 1008-1105 ● ●
561 COVER; HEATER CORE 1-71998-993-2 01 1 1008- ● ●
562 BOLT; COVER
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 1008- ● ●
563 BOLT; DASH PANEL
M8X20 		1-79198-002-0 16 1 1008- ● ●
563 BOLT; DASH PANEL
M8X29.5 W/LK+PL WASHER 		8-94279-209-0 02 1 1008- ● ●
564 GROMMET; DASH PANEL
OD=23.5 		1-09983-101-0 02 1 1008- ● ●
568 PATCH; INST REINF 1-61480-675-2 02 1 1008- ● ●
569 PATCH; LWR GRIP 1-61480-736-2 01 1 1008- ● ●
569 PATCH; LWR GRIP 1-61480-772-0 01 1 1008- ● ●
576 FRAME; INST SIDE 1-62280-200-2 01 1 1008- ● ●
576 FRAME; INST SIDE 1-62280-201-2 01 1 1008- ● ●
578 COVER; WIPER MOTOR 1-62280-254-1 01 1 1008- ● ●
617 SEAL; DASH 1-61281-497-1 02 1 1008- ● ●
674 PANEL; UPR 1-61470-699-2 01 1 1008- ● ●

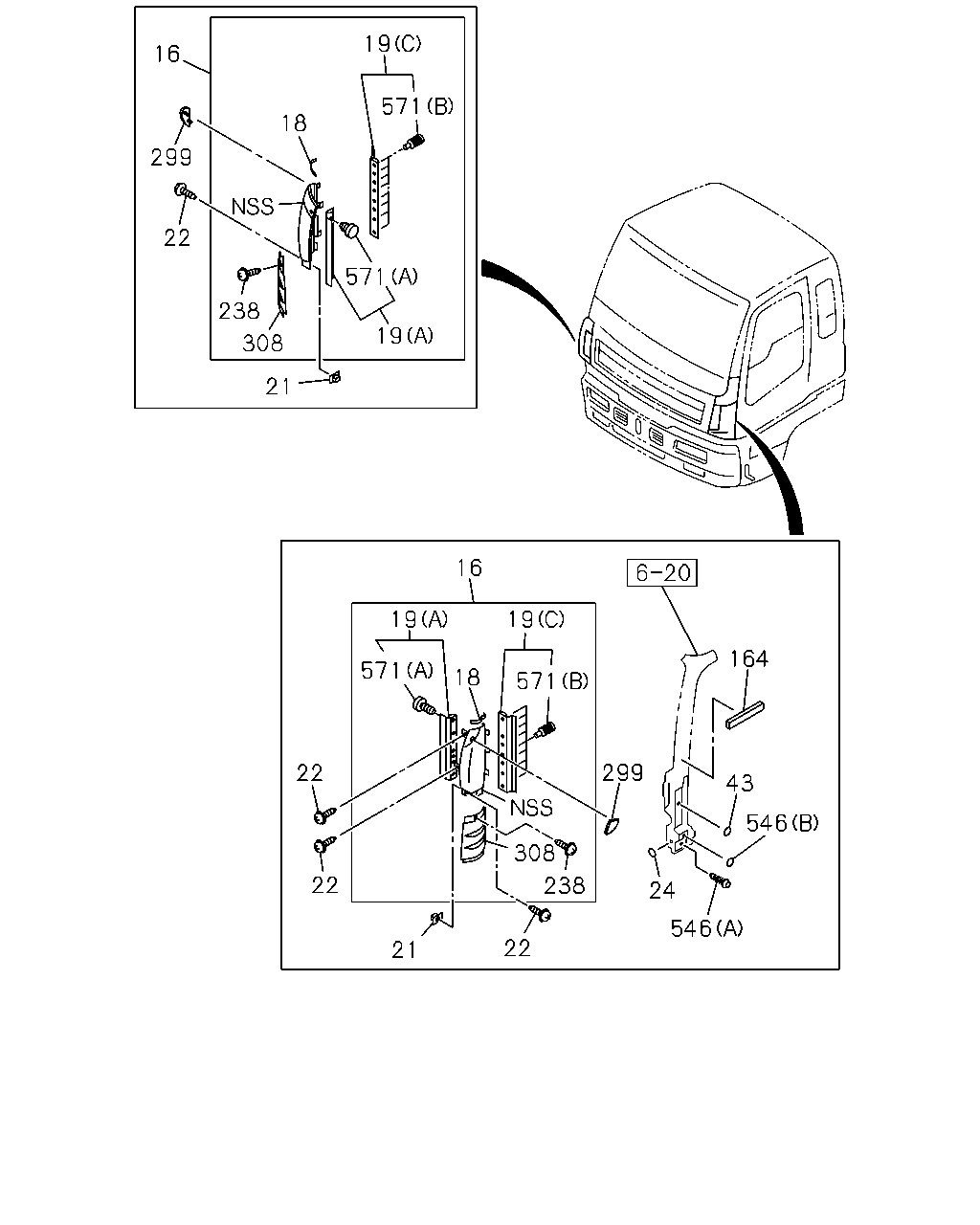

çizim 167253
19 16 571 18 299 22 571 238 19 308 21 16 19 19 164 571 18 571 299 22 43 546 308 22 238 24 546 22 21
BalonParca AdiParca NoAdetTipApplied Date A B
16 PANEL; FRONT,SIDE
WHITE 		1-65472-649-4 01 1 1008- ● ●
16 PANEL; FRONT,SIDE
WHITE 		1-65472-648-4 01 1 1008- ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL 1-71998-899-2 01 1 1008- ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL 1-71998-898-2 01 1 1008- ● ●
19 SEAL; FRT SIDE PANEL
(B) OD=45 BLACK 		1-76798-017-0 03 1 1008- ● ●
19 SEAL; FRT SIDE PANEL
(C) 		1-71907-411-0 01 1 1008- ● ●
19 SEAL; FRT SIDE PANEL
(A) 		1-71907-580-1 01 1 1008-1111 ● ●
19 SEAL; FRT SIDE PANEL
(A) 		8-98208-434-0 01 1 1112- ● ●
19 SEAL; FRT SIDE PANEL
(C) 		1-71907-410-0 01 1 1008- ● ●
19 SEAL; FRT SIDE PANEL
(A) 		1-71907-579-1 01 1 1008-1111 ● ●
19 SEAL; FRT SIDE PANEL
(A) 		8-98208-433-0 01 1 1112- ● ●
21 GROMMET; SCREW,FRT SIDE PANEL
D=10.5X7 L=10.5 M5 		1-09983-160-3 14 1 1008- ● ●
22 SCREW; FRT PANEL SIDE
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 14 1 1008-1010 ● ●
22 SCREW; FRT PANEL SIDE
M5X20 W/PL WASHER TAPPING 		8-97893-344-0 14 1 1011- ● ●
24 SEAL; FRT PANEL LWR
OD=25 BLACK 		1-76798-019-0 05 1 1008- ● ●
43 GROMMET; LOCATION HOLE,A-POST
OD=45 BLACK 		1-76798-017-0 02 1 1008- ● ●
164 SEAL; FRT PILLAR 1-71907-414-0 02 1 1008- ● ●
238 SCREW
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 06 1 1008- ● ●
299 COVER; FRT PANEL SIDE 1-71998-996-1 01 1 1008- ● ●
299 COVER; FRT PANEL SIDE 1-71998-995-1 01 1 1008- ● ●
308 PLATE; FRT PANEL 1-65472-569-1 01 1 1008- ● ●
308 PLATE; FRT PANEL 1-65472-568-1 01 1 1008- ● ●
546 PLUG; DUMMY HOLE
(A) OD=16 L=11 		1-76378-155-0 02 1 1008- ● ●
546 PLUG; DUMMY HOLE
(B) OD=25 BLACK 		1-76798-019-0 04 1 1008- ● ●
571 CLIP; SEAL
(A) 		1-09987-228-0 16 1 1008- ● ●
571 CLIP; SEAL
(B) PINK 		1-09987-256-0 08 1 1008- ● ●
571 CLIP; SEAL
(B) NATURAL 		1-09987-257-0 08 1 1008- ● ●

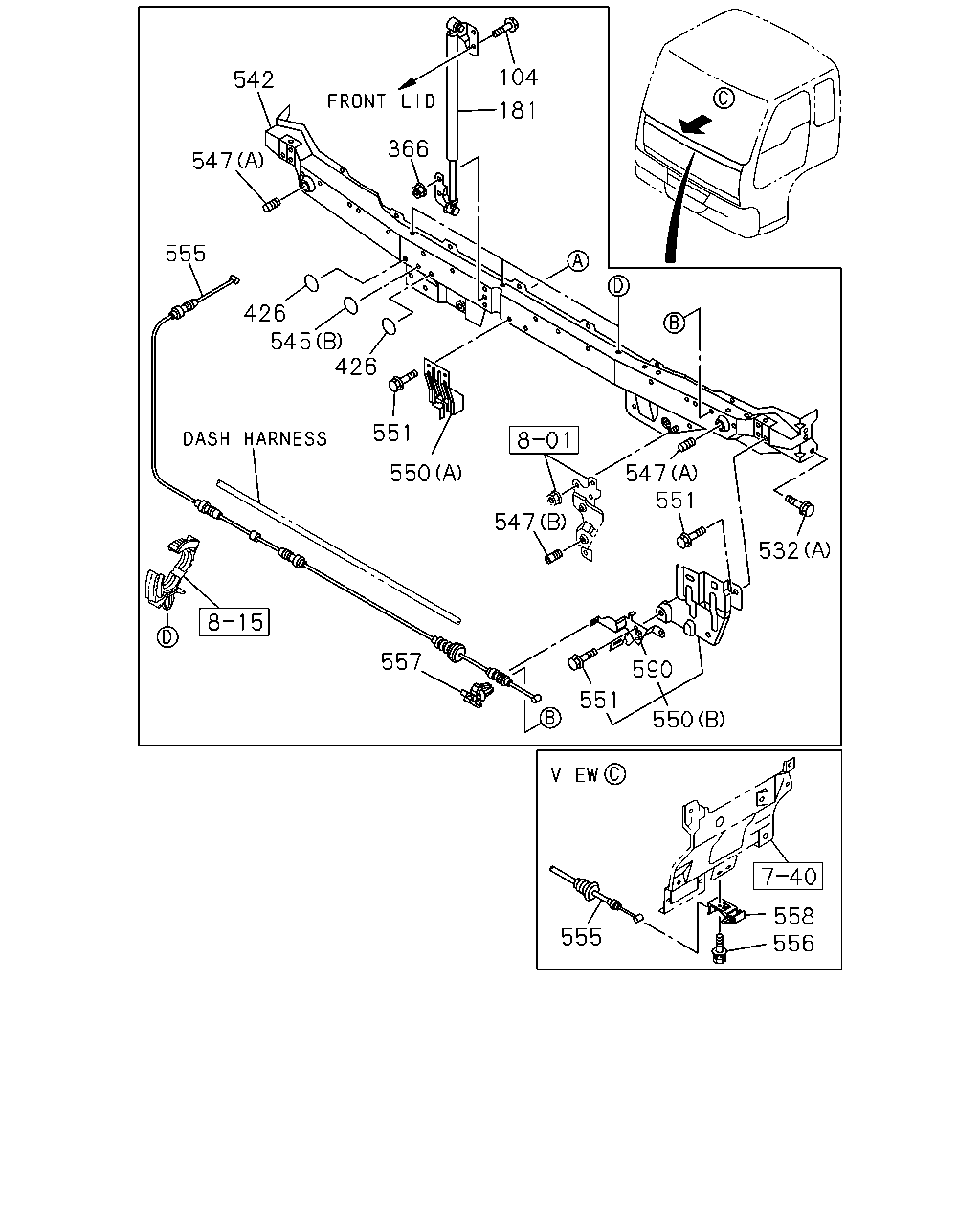

çizim 167259
104 542 181 366 547 555 426 545 426 551 550 547 551 547 532 557 590 551 550 558 556 555
BalonParca AdiParca NoAdetTipApplied Date A B
104 BOLT; SUPPORT BAR
M6X20 W/LK&PL WASHER 		8-94279-203-0 02 1 1008- ● ●
181 SUPPORT ASM; DOOR CHECK,FRT 1-71107-864-0 01 1 1008- ● ●
366 NUT; SUPPORT
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 02 1 1008- ● ●
426 GASKET
OD=25 BLACK 		1-76798-019-0 11 1 1008- ● ●
426 GASKET
OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 1008- ● ●
426 GASKET
ENGINE CONTROL COMMON RAIL(Q4R) OD=25 BLACK 		1-76798-019-0 01 1 1008- ● ●
426 GASKET
ENGINE CONTROL-B2(Q4T) OD=25 BLACK 		1-76798-019-0 02 1 1008- ● ●
532 BOLT; FRT PANEL
(B) M8X20 		1-79198-002-0 02 1 1008- ● ●
532 BOLT; FRT PANEL
(C) M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 1008- ● ●
532 BOLT; FRT PANEL
(A) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 1008- ● ●
542 RAIL; FRT MOUNTING 1-61470-722-1 01 1 1008- ● ●
545 SEAL; FRT LID
(C) 		1-71907-472-0 02 1 1008- ● ●
545 SEAL; FRT LID
(A) L=2038 		1-71907-481-1 01 1 1008- ● ●
545 SEAL; FRT LID
(D) 		1-71907-578-0 02 1 1008- ● ●
545 SEAL; FRT LID
(B) OD=25 BLACK 		1-76798-019-0 01 1 1008- ● ●
547 RUBBER; CUSHION
(B) OD=22 L=39 		1-71907-419-0 02 1 1008- ● ●
547 RUBBER; CUSHION
(C) L=1825 		1-71907-581-1 01 1 1008- ● ●
547 RUBBER; CUSHION
(A) OD=22 L=29 		8-94324-556-2 02 1 1008- ● ●
550 LOCK ASM; FRT LID
(A) 		1-79317-013-1 01 1 1008- ● ●
550 LOCK ASM; FRT LID
(B) 		1-79317-017-1 01 1 1008- ● ●
550 LOCK ASM; FRT LID
(B) 		1-79317-016-1 01 1 1008- ● ●
551 BOLT; LOCK
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 10 1 1008- ● ●
555 CABLE; FRT LID
L=2612 		1-79347-008-1 01 1 1008- ● ●
556 BOLT; CABLE
M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 1008- ● ●
557 CLIP; CABLE
ID=4.8 		8-94128-483-0 04 1 1008- ● ●
558 LEVER; FRT LID 8-97865-110-0 01 1 1008- ● ●
590 LOCK; FRT LID 1-79318-007-5 01 1 1008- ● ●
590 LOCK; FRT LID 1-79318-006-3 01 1 1008- ● ●
çizim 167266
544 547 544 560 548 545 545 545 548 532 548
BalonParca AdiParca NoAdetTipApplied Date A B
532 BOLT; FRT PANEL
(B) M8X20 		1-79198-002-0 02 1 1008- ● ●
532 BOLT; FRT PANEL
(C) M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 1008- ● ●
532 BOLT; FRT PANEL
(A) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 1008- ● ●
544 LID; FRT
BODY COLOR POLAR WHITE(982) CHEV BRAND PACKAGE<PS2> EXC. CHINA EQUIPMENT(YT2) 		1-71107-404-0 01 1 1103- ● ●
544 LID; FRT
CHEV BRAND PACKAGE<PS2> EXC. CHINA EQUIPMENT(YT2) 		1-71107-404-0 01 1 1008- ● ●
544 LID; FRT
EXC. CHEV BRAND PACKAGE<PS2>,CHINA EQUIPMENT(YT2) 		1-71107-403-0 01 1 1008- ● ●
544 LID; FRT
CHINA EQUIPMENT(YT2) 		1-71107-403-0 01 1 1008- ● ●
545 SEAL; FRT LID
(C) 		1-71907-472-0 02 1 1008- ● ●
545 SEAL; FRT LID
(A) L=2038 		1-71907-481-1 01 1 1008- ● ●
545 SEAL; FRT LID
(D) 		1-71907-578-0 02 1 1008- ● ●
545 SEAL; FRT LID
(B) OD=25 BLACK 		1-76798-019-0 01 1 1008- ● ●
547 RUBBER; CUSHION
(B) OD=22 L=39 		1-71907-419-0 02 1 1008- ● ●
547 RUBBER; CUSHION
(C) L=1825 		1-71907-581-1 01 1 1008- ● ●
547 RUBBER; CUSHION
(A) OD=22 L=29 		8-94324-556-2 02 1 1008- ● ●
548 STRIKER; FRT LID PANEL
(A) 		1-79317-003-1 01 1 1008- ● ●
548 STRIKER; FRT LID PANEL
(B) 		1-79318-008-1 02 1 1008- ● ●
560 SEAL; COVER
(A) 		1-71998-827-1 01 1 1008- ● ●
560 SEAL; COVER
(B) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 1008-1105 ● ●
560 SEAL; COVER
(B) OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 1008-1105 ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
