5-20 — BATTERY CARRIER (#55674) — 66 parça

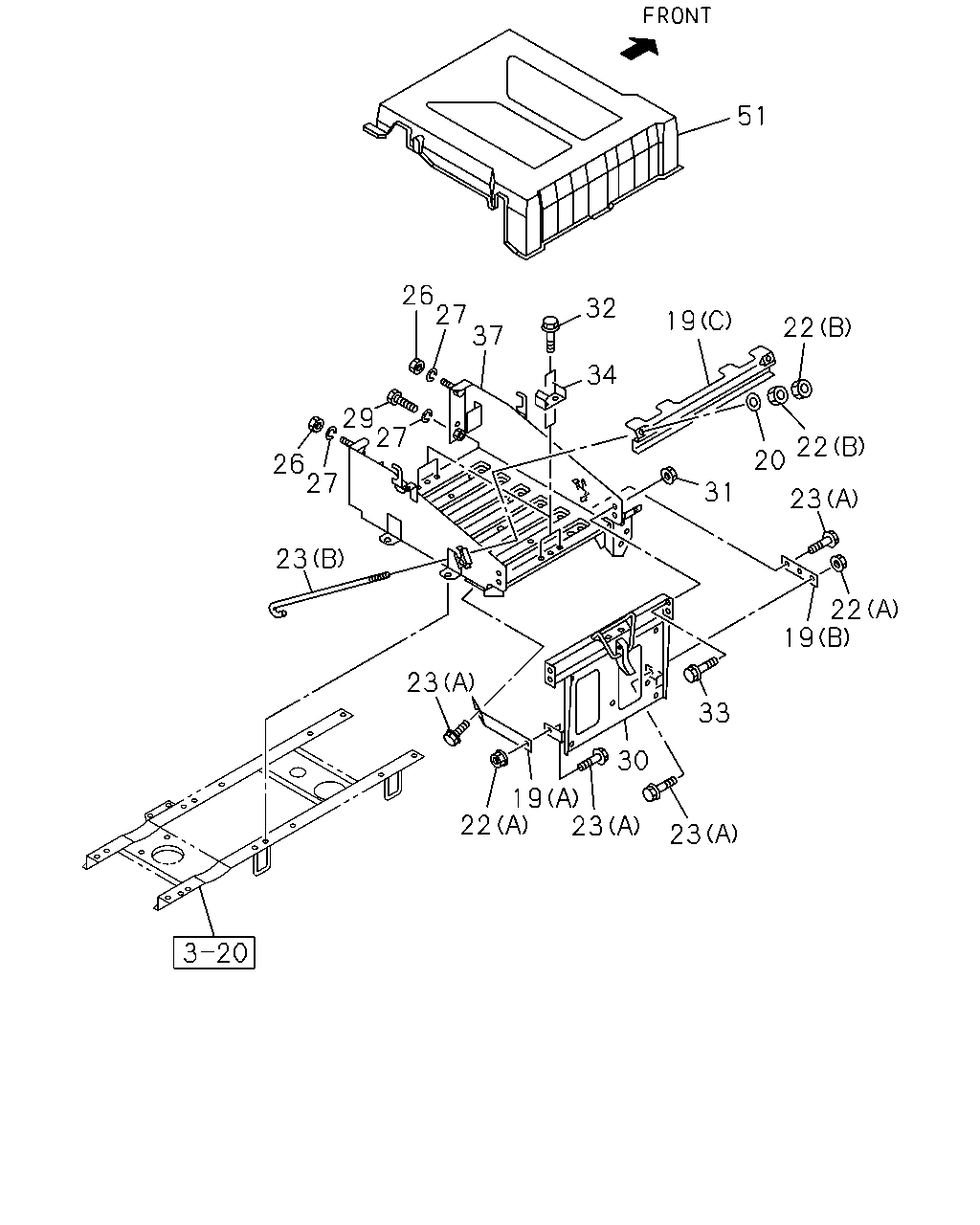

51 26 27 37 32 19 22 34 29 27 22 20 26 27 31 23 23 22 19 30 23 33 19 22 23 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
19	STAY; BATTERY (B)	1-47479-118-0	01	1	1008-	●	●
19	STAY; BATTERY (A)	1-47479-874-0	01	1	1008-	●	●
19	STAY; BATTERY (C)	1-53618-039-2	01	1	1008-	●	●
20	WASHER; PL,STAY ID=8.4 OD=22	0-91614-708-0	02	1	1008-	●	●
22	NUT; STAY (B) M8	0-91110-508-0	04	1	1008-	●	●
22	NUT; STAY (A) M8 FLANGE	0-91180-108-0	02	1	1008-	●	●
23	BOLT; STAY (A) M8X20 FLANGE	0-28650-820-0	04	1	1008-	●	●
23	BOLT; STAY (B) L=250	1-53616-108-0	02	1	1008-	●	●
26	NUT; BRKT M14	0-91110-514-0	02	1	1008-	●
26	NUT; BRKT EXC. SILENCER LAYOUT REAR VAR1<JAZ> M14	0-91110-514-0	02	1	1008-		●
26	NUT; BRKT SILENCER LAYOUT REAR VAR1<JAZ> M14	1-09440-072-0	02	1	1008-		●
27	WASHER; LK,BRKT ID=14.2	0-91510-514-0	08	1	1008-	●
27	WASHER; LK,BRKT EXC. SILENCER LAYOUT REAR VAR1<JAZ> ID=14.2	0-91510-514-0	08	1	1008-		●
27	WASHER; LK,BRKT ID=14.2	0-91510-514-0	04	1	1008-	●	●
29	BOLT; BRKT TO FRAME M14X30	0-20851-430-0	02	1	1008-	●
29	BOLT; BRKT TO FRAME EXC. SILENCER LAYOUT REAR VAR1<JAZ> M14X30	0-20851-430-0	02	1	1008-		●
29	BOLT; BRKT TO FRAME SILENCER LAYOUT REAR VAR1<JAZ> M14X45	1-09000-764-0	02	1	1008-		●
30	PLATE; BATTERY	1-53619-148-1	01	1	1008-	●	●
31	NUT; PLATE M8 FLANGE	0-91180-108-0	04	1	1008-	●	●
32	BOLT; PLATE TO SPACER BATTERY 170F51 NX250-12<PN2>,BATTERY 115F51 N120<SJ3> M8X16 FLANGE	0-28050-816-0	04	1	1008-	●	●
33	BOLT; PLATE TO BRKT M8X20 FLANGE	0-28650-820-0	04	1	1008-	●	●
34	SPACER; BATTERY BRKT BATTERY 170F51 NX250-12<PN2>,BATTERY 115F51 N120<SJ3>	1-53619-084-0	02	1	1008-	●	●
37	BRACKET; BATTERY	1-53610-159-2	01	1	1008-	●
37	BRACKET; BATTERY EXC. SILENCER LAYOUT REAR VAR1<JAZ>	1-53610-159-2	01	1	1008-		●
37	BRACKET; BATTERY SILENCER LAYOUT REAR VAR1<JAZ>	1-53610-161-3	01	1	1008-		●
51	COVER; BATTERY	1-53612-068-0	01	1	1008-	●	●

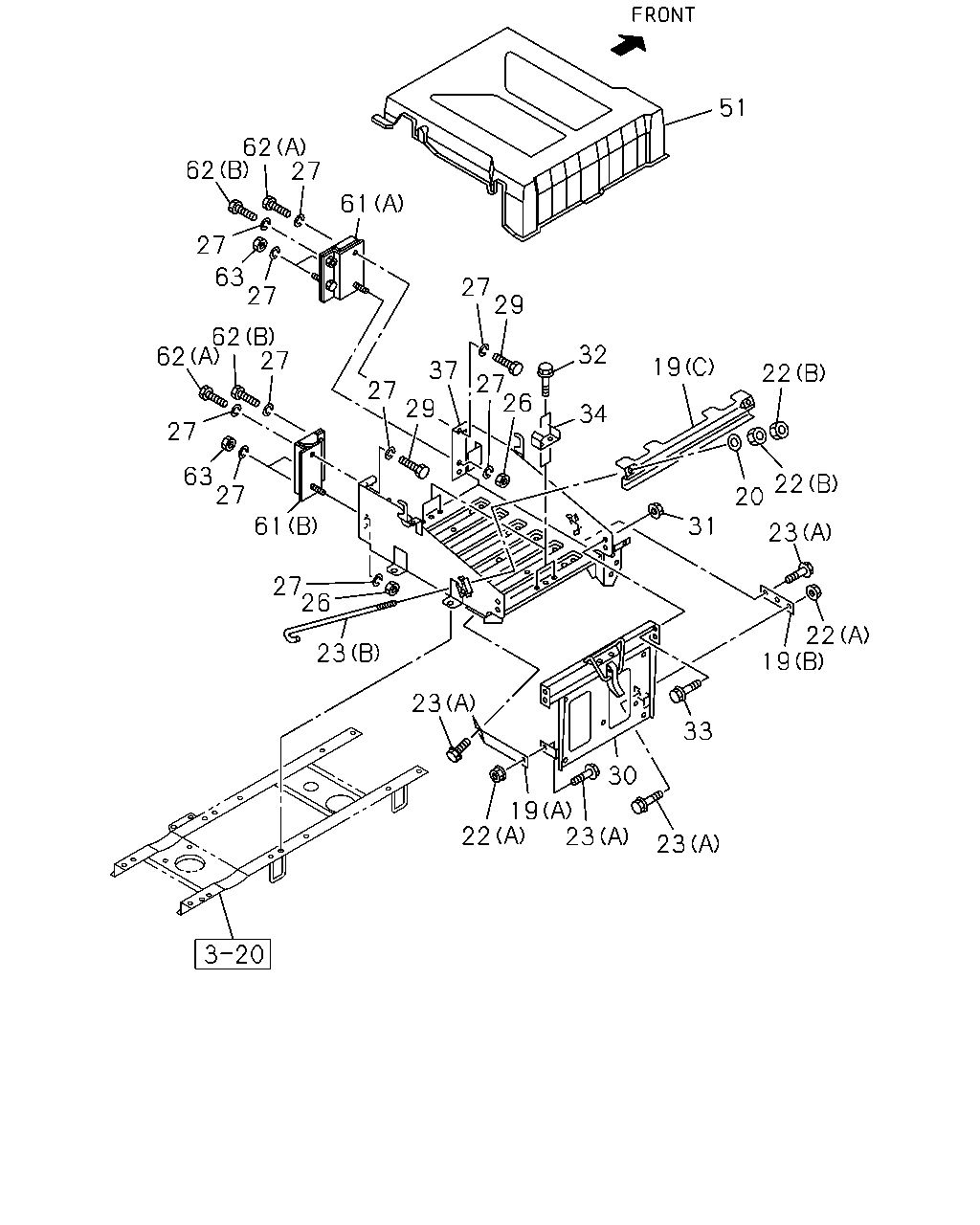

51 62 62 27 61 27 63 27 27 29 62 27 32 62 19 37 22 27 26 27 29 34 27 63 27 22 20 61 31 23 27 26 22 19 23 30 23 33 19 22 23 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
19	STAY; BATTERY (B)	1-47479-118-0	01	1	1008-	●	●
19	STAY; BATTERY (A)	1-47479-874-0	01	1	1008-	●	●
19	STAY; BATTERY (C)	1-53618-039-2	01	1	1008-	●	●
20	WASHER; PL,STAY ID=8.4 OD=22	0-91614-708-0	02	1	1008-	●	●
22	NUT; STAY (B) M8	0-91110-508-0	04	1	1008-	●	●
22	NUT; STAY (A) M8 FLANGE	0-91180-108-0	02	1	1008-	●	●
23	BOLT; STAY (A) M8X20 FLANGE	0-28650-820-0	04	1	1008-	●	●
23	BOLT; STAY (B) L=250	1-53616-108-0	02	1	1008-	●	●
26	NUT; BRKT M14	0-91110-514-0	02	1	1008-	●
26	NUT; BRKT EXC. SILENCER LAYOUT REAR VAR1<JAZ> M14	0-91110-514-0	02	1	1008-		●
26	NUT; BRKT SILENCER LAYOUT REAR VAR1<JAZ> M14	1-09440-072-0	02	1	1008-		●
27	WASHER; LK,BRKT ID=14.2	0-91510-514-0	08	1	1008-	●
27	WASHER; LK,BRKT EXC. SILENCER LAYOUT REAR VAR1<JAZ> ID=14.2	0-91510-514-0	08	1	1008-		●
27	WASHER; LK,BRKT ID=14.2	0-91510-514-0	04	1	1008-	●	●
29	BOLT; BRKT TO FRAME M14X30	0-20851-430-0	02	1	1008-	●
29	BOLT; BRKT TO FRAME EXC. SILENCER LAYOUT REAR VAR1<JAZ> M14X30	0-20851-430-0	02	1	1008-		●
29	BOLT; BRKT TO FRAME SILENCER LAYOUT REAR VAR1<JAZ> M14X45	1-09000-764-0	02	1	1008-		●
30	PLATE; BATTERY	1-53619-148-1	01	1	1008-	●	●
31	NUT; PLATE M8 FLANGE	0-91180-108-0	04	1	1008-	●	●
32	BOLT; PLATE TO SPACER BATTERY 170F51 NX250-12<PN2>,BATTERY 115F51 N120<SJ3> M8X16 FLANGE	0-28050-816-0	04	1	1008-	●	●
33	BOLT; PLATE TO BRKT M8X20 FLANGE	0-28650-820-0	04	1	1008-	●	●
34	SPACER; BATTERY BRKT BATTERY 170F51 NX250-12<PN2>,BATTERY 115F51 N120<SJ3>	1-53619-084-0	02	1	1008-	●	●
37	BRACKET; BATTERY	1-53610-159-2	01	1	1008-	●
37	BRACKET; BATTERY EXC. SILENCER LAYOUT REAR VAR1<JAZ>	1-53610-159-2	01	1	1008-		●
37	BRACKET; BATTERY SILENCER LAYOUT REAR VAR1<JAZ>	1-53610-161-3	01	1	1008-		●
51	COVER; BATTERY	1-53612-068-0	01	1	1008-	●	●
61	DISTANCE; BRKT,BATTERY MIXER TRUCK<RA2> SILENCER SINGLE VERTICAL<N28> (A)	8-98177-609-0	01	1	1008-	●
61	DISTANCE; BRKT,BATTERY (B)	1-53613-505-0	01	1	1008-	●
61	DISTANCE; BRKT,BATTERY EXC. SILENCER LAYOUT REAR VAR1<JAZ> (B)	1-53613-505-0	01	1	1008-		●
61	DISTANCE; BRKT,BATTERY MIXER TRUCK<RA2> EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-53613-489-0	01	1	1008-	●
61	DISTANCE; BRKT,BATTERY SILENCER SINGLE VERTICAL<N28> EXC. MIXER TRUCK<RA2> (A)	8-97623-013-0	01	1	1008-	●
61	DISTANCE; BRKT,BATTERY SILENCER SINGLE VERTICAL<N28> EXC. SILENCER LAYOUT REAR VAR1<JAZ> (A)	8-97623-013-0	01	1	1008-		●
61	DISTANCE; BRKT,BATTERY EXC. SILENCER SINGLE VERTICAL<N28>,MIXER TRUCK<RA2> (A)	1-53613-504-0	01	1	1008-	●
61	DISTANCE; BRKT,BATTERY EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> (A)	1-53613-504-0	01	1	1008-		●
62	BOLT; DIST TO FRAME,BATTERY (A) M14X45	1-09000-764-0	02	1	1008-	●
62	BOLT; DIST TO FRAME,BATTERY EXC. SILENCER LAYOUT REAR VAR1<JAZ> (A) M14X45	1-09000-764-0	02	1	1008-		●
62	BOLT; DIST TO FRAME,BATTERY (B) M14X60	1-09000-778-0	02	1	1008-	●
62	BOLT; DIST TO FRAME,BATTERY EXC. SILENCER LAYOUT REAR VAR1<JAZ> (B) M14X60	1-09000-778-0	02	1	1008-		●
63	NUT; DIST TO FRAME M14	1-09440-072-0	04	1	1008-	●
63	NUT; DIST TO FRAME EXC. SILENCER LAYOUT REAR VAR1<JAZ> M14	1-09440-072-0	04	1	1008-		●
