5-15 — CAB MOUNTING; CAB SIDE (#55671) — 74 parça

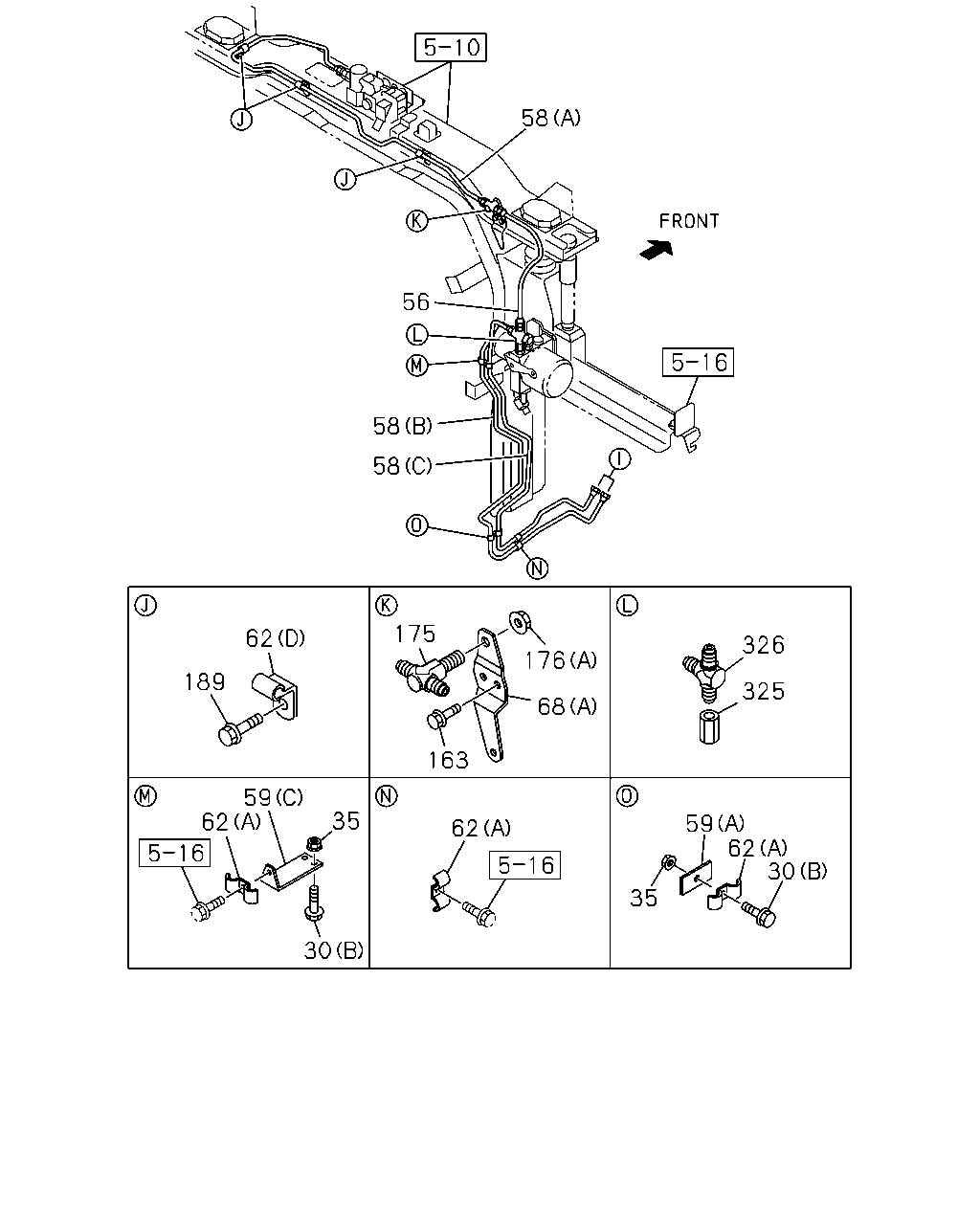

çizim 167264
58 56 58 58 62 189 59 62 35 30 62 163 175 176 68 326 325 59 62 30 35
BalonParca AdiParca NoAdetTipApplied Date A B
30 BOLT; BRKT FIX
(B) M8X20 FLANGE 		0-28650-820-0 03 1 1008- ● ●
30 BOLT; BRKT FIX
(B) M8X30 FLANGE 		0-28650-830-0 01 1 1008- ● ●
30 BOLT; BRKT FIX
(A) M12X25 FLANGE 		0-28651-225-0 01 1 1008- ● ●
35 NUT; BRKT
M8 FLANGE 		0-91180-108-0 03 1 1008- ● ●
56 HOSE; FLEX,OIL PIPE
L=400 		1-09365-060-0 01 1 1008- ● ●
58 PIPE; OIL,POWER UNIT
(B) L=1108 SERVICED BY L=1200 		1-47428-732-0 01 1 1008-1009 ● ●
58 PIPE; OIL,POWER UNIT
(B) L=1219 SERVICED BY L=1250 		1-47428-733-0 01 1 1010- ● ●
58 PIPE; OIL,POWER UNIT
(C) L=1162 SERVICED BY L=1200 		1-47428-732-0 01 1 1008- ● ●
58 PIPE; OIL,POWER UNIT
(A) L=1401 SERVICED BY L=1500 		1-47428-735-0 01 1 1008- ● ●
59 BRACKET; CLIP
(A) L=50 		1-47475-299-2 01 1 1008- ● ●
59 BRACKET; CLIP
(C) 		1-47477-317-0 01 1 1008- ● ●
59 BRACKET; CLIP
(D) 		1-47477-631-1 01 1 1008- ● ●
59 BRACKET; CLIP
(B) 		1-47479-248-0 01 1 1008- ● ●
62 CLIP; OIL PIPE
(C) ID=9X2 L=16 		0-95324-825-0 01 1 1008- ● ●
62 CLIP; OIL PIPE
(D) ID=6 H=20 L=20 		1-09700-603-0 03 1 1008- ● ●
62 CLIP; OIL PIPE
(A) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 03 1 1008- ● ●
62 CLIP; OIL PIPE
(F) ID=24 L=27 		1-09700-809-0 01 1 1008- ● ●
62 CLIP; OIL PIPE
(B) ID=21 L=30 H=40 		1-09700-991-1 03 1 1008- ● ●
62 CLIP; OIL PIPE
(E) L=140 		5-09707-031-1 02 1 1008- ● ●
68 BRACKET; UNION
(A) 		1-53458-374-1 01 1 1008- ● ●
68 BRACKET; UNION
(B) 		8-98147-166-0 01 1 1008- ● ●
163 BOLT; BRKT FIX
M8X20 FLANGE 		0-28650-820-0 02 1 1008- ● ●
175 UNION; FLEX HOSE
M12 2WAY 		1-09654-234-2 01 1 1008- ● ●
176 NUT; UNION
(A) M12 FLANGE 		0-91180-212-0 01 1 1008- ● ●
176 NUT; UNION
(B) M12 		9-09840-280-0 02 1 1008- ● ●
189 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 03 1 1008- ● ●
325 ADAPTER; PUMP
M12 & RC1/4 STRAIGHT 		1-09660-885-0 01 1 1008- ● ●
326 UNION; PUMP
M12X2 & PT1/4 3WAY 		1-09656-230-1 01 1 1008- ● ●

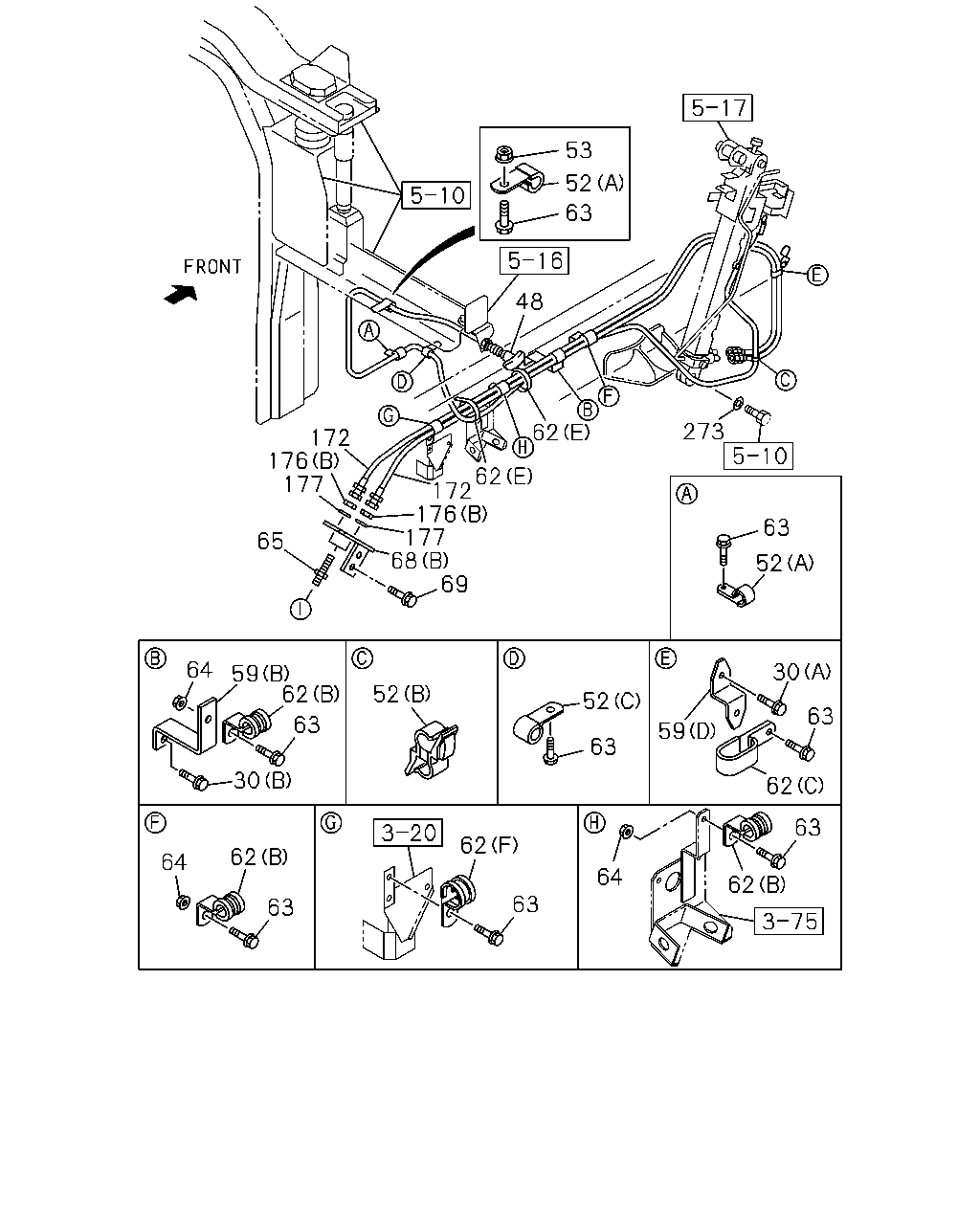

çizim 167270
53 52 63 48 62 62 172 176 177 68 69 65 177 176 172 273 63 52 30 63 62 59 52 63 52 59 64 62 63 30 64 62 63 62 63 64 62 63
BalonParca AdiParca NoAdetTipApplied Date A B
30 BOLT; BRKT FIX
(B) M8X20 FLANGE 		0-28650-820-0 03 1 1008- ● ●
30 BOLT; BRKT FIX
(B) M8X30 FLANGE 		0-28650-830-0 01 1 1008- ● ●
30 BOLT; BRKT FIX
(A) M12X25 FLANGE 		0-28651-225-0 01 1 1008- ● ●
48 CABLE ASM; CONT
L=2457 		1-62500-730-0 01 1 1008- ● ●
52 CLIP; CONT CABLE
(C) ID=7 L=20 		0-95234-635-0 01 1 1008- ● ●
52 CLIP; CONT CABLE
(A) ID=7 L=50 		0-95234-685-0 02 1 1008- ● ●
52 CLIP; CONT CABLE
(B) ID=6-10 & 10-14 		1-09709-201-1 01 1 1008- ● ●
53 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1008- ● ●
59 BRACKET; CLIP
(A) L=50 		1-47475-299-2 01 1 1008- ● ●
59 BRACKET; CLIP
(C) 		1-47477-317-0 01 1 1008- ● ●
59 BRACKET; CLIP
(D) 		1-47477-631-1 01 1 1008- ● ●
59 BRACKET; CLIP
(B) 		1-47479-248-0 01 1 1008- ● ●
62 CLIP; OIL PIPE
(C) ID=9X2 L=16 		0-95324-825-0 01 1 1008- ● ●
62 CLIP; OIL PIPE
(D) ID=6 H=20 L=20 		1-09700-603-0 03 1 1008- ● ●
62 CLIP; OIL PIPE
(A) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 03 1 1008- ● ●
62 CLIP; OIL PIPE
(F) ID=24 L=27 		1-09700-809-0 01 1 1008- ● ●
62 CLIP; OIL PIPE
(B) ID=21 L=30 H=40 		1-09700-991-1 03 1 1008- ● ●
62 CLIP; OIL PIPE
(E) L=140 		5-09707-031-1 02 1 1008- ● ●
63 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 03 1 1008- ● ●
63 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 04 1 1008- ● ●
63 BOLT; CLIP
M8X30 FLANGE 		0-28650-830-0 01 1 1008- ● ●
64 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1008- ● ●
65 UNION; OIL PIPE
M12 L=66.5 		0-92113-306-0 02 1 1008- ● ●
68 BRACKET; UNION
(A) 		1-53458-374-1 01 1 1008- ● ●
68 BRACKET; UNION
(B) 		8-98147-166-0 01 1 1008- ● ●
69 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 1008- ● ●
172 HOSE; FLEX,OIL TILT
L=1600 		8-97634-002-0 02 1 1008- ● ●
176 NUT; UNION
(A) M12 FLANGE 		0-91180-212-0 01 1 1008- ● ●
176 NUT; UNION
(B) M12 		9-09840-280-0 02 1 1008- ● ●
177 WASHER; LK,UNION
ID=12.2 		0-91510-512-0 02 1 1008- ● ●
273 WASHER; PL,OIL CYL
ID=10.5 OD=32 		0-91614-810-0 01 1 1008- ● ●

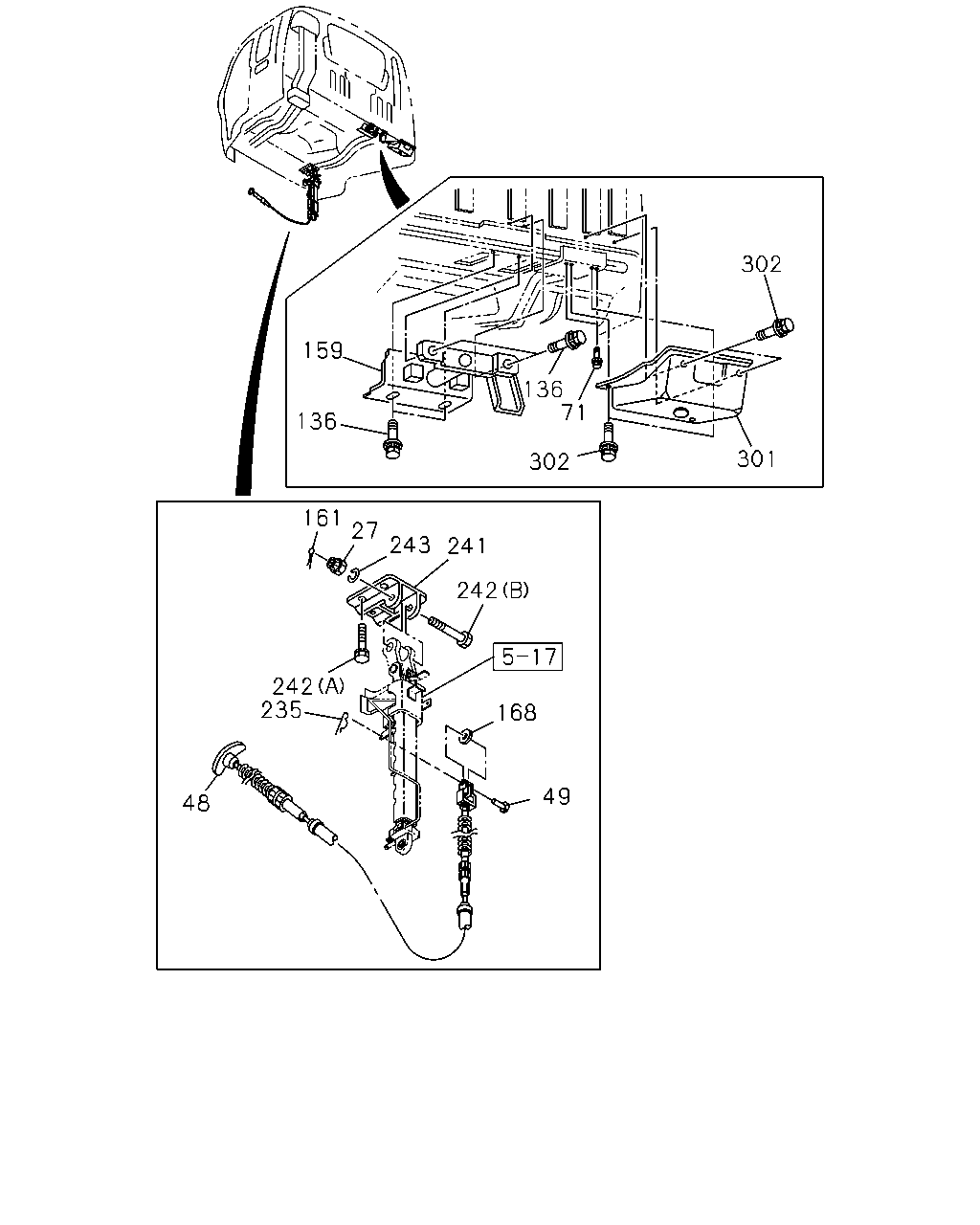

çizim 167296
302 301 302 71 136 159 136 161 27 243 241 242 168 49 242 235 48
BalonParca AdiParca NoAdetTipApplied Date A B
27 NUT; OIL CYL
M14 SLOTTED 		0-91116-514-0 01 1 1008- ● ●
48 CABLE ASM; CONT
L=2457 		1-62500-730-0 01 1 1008- ● ●
49 PIN; JAW FIX
OD=6 L=17 		0-82253-617-0 01 1 1008- ● ●
71 BOLT
M10X25 W/LK&PL WASHER 		1-09980-488-0 02 1 1008- ● ●
136 BOLT; CAB LK
M8X24.5 W/LK&PL WASHER 		8-94279-217-0 04 1 1008- ● ●
159 PIN 1-79717-627-1 01 1 1008- ● ●
161 PIN; SPLIT
OD=2.8 L=25 		0-81123-025-0 01 1 1008- ● ●
168 WASHER; PL
ID=6.4 		9-09160-506-0 01 1 1008- ● ●
235 PIN; SNAP
L=21.2 		8-94157-840-0 01 1 1008- ● ●
241 BRACKET; POWER CYL UPR,CAB TILT 1-53458-660-1 01 1 1008- ● ●
242 BOLT; POWER CYL BRKT,CAB TILT
(A) M10X30 W/SP WASHER 		1-09980-546-0 05 1 1008- ● ●
242 BOLT; POWER CYL BRKT,CAB TILT
(B) M14X70 		1-53458-633-0 01 1 1008- ● ●
243 WASHER; LK,POWER CYL BRKT
ID=14.2 		0-91510-814-0 01 1 1008- ● ●
301 BRACKET; RR MTG,CAB 1-62570-866-1 02 1 1008- ● ●
302 BOLT; BRKT,CAB
M10X25 W/LK&PL WASHER 		1-09980-488-0 08 1 1008- ● ●
