◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11272 - CYZ LHD EURO2/3/4 WITH 3STEPS ▶ 5 - Frame, Cab Mounting ▶ 5-10 - CAB MOUNTING; FRAME SIDE ▶
5-10 — CAB MOUNTING; FRAME SIDE (#55670) — 153 parça

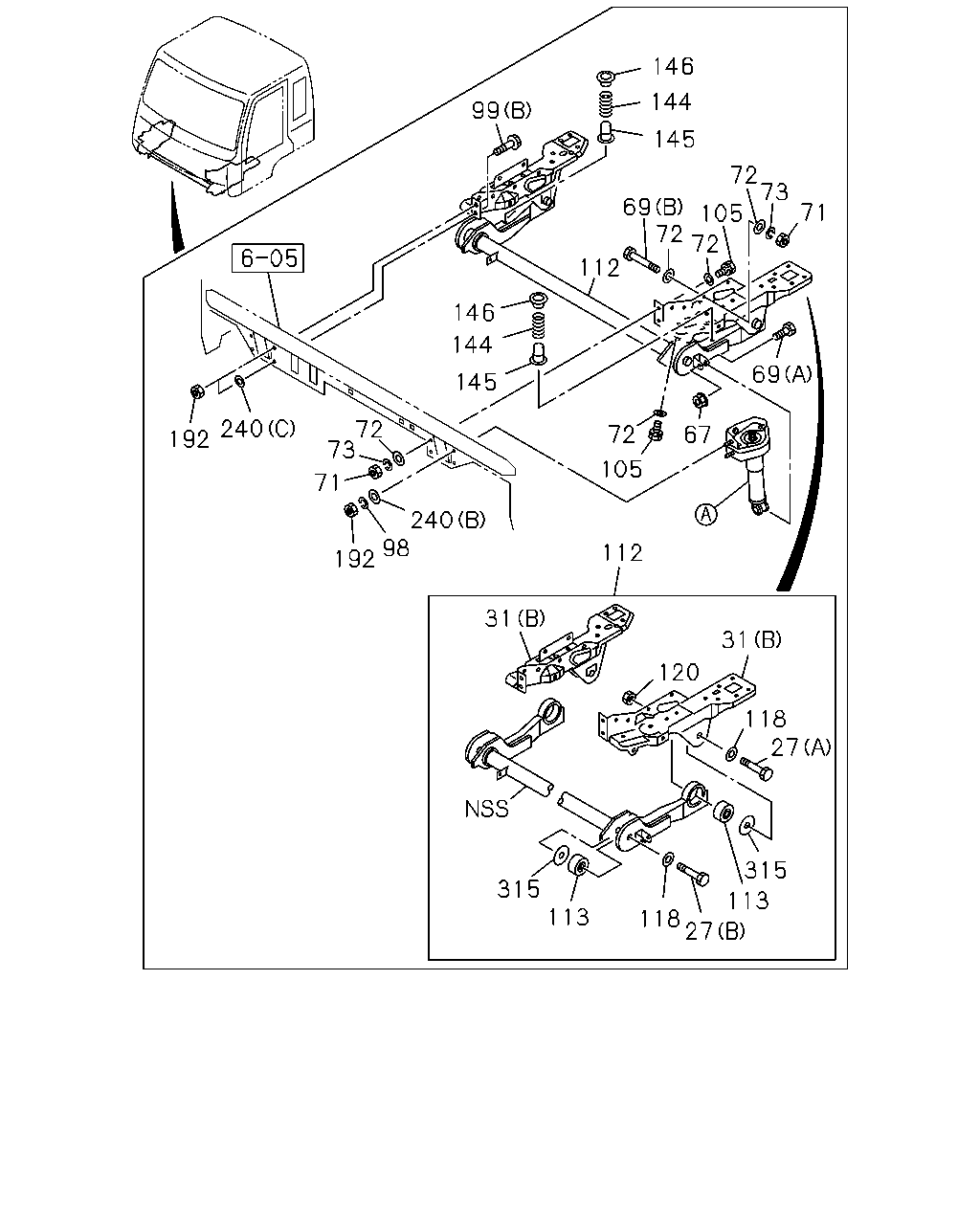

çizim 167241
146 144 145 72 73 71 105 72 72 69 99 112 146 144 145 72 73 71 240 192 192 98 240 112 105 72 67 69 31 120 31 118 27 315 113 27 118 113 315
BalonParca AdiParca NoAdetTipApplied Date A B
27 BOLT; BUSHING
(B) M18X120 		1-09000-442-1 02 1 1008- ● ●
27 BOLT; BUSHING
(A) M18X90 		9-91066-890-0 02 1 1008- ● ●
31 BRACKET; CAB
(A) 		1-44226-177-3 01 1 1008- ● ●
31 BRACKET; CAB
(B) 		1-53453-274-1 01 1 1008- ● ●
31 BRACKET; CAB
(B) 		1-53453-280-2 01 1 1008- ● ●
67 NUT; S/ABS,CAB FRT SUSPENSION
M12 FLANGE 		0-91180-212-0 02 1 1008- ● ●
69 BOLT; S/ABS,CAB FRT SUSPENSION
(A) M12X60 		0-20801-260-0 02 1 1008- ● ●
69 BOLT; S/ABS,CAB FRT SUSPENSION
(B) M10X105 		1-79198-008-1 08 1 1008- ● ●
71 NUT; BRKT TO CAB FRAME
M10 		1-09984-142-0 04 1 1008- ● ●
72 WASHER; PL,BRKT TO FRAME
ID=10.5 OD=26 T=2.6 		1-09985-184-0 23 1 1008- ● ●
73 WASHER; LK,BRKT TO CAB FRAME
ID=10 		1-09985-185-0 12 1 1008- ● ●
98 WASHER; LK,BRKT
ID=10 		1-09985-185-0 04 1 1008- ● ●
99 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 04 1 1008- ● ●
99 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 02 1 1008- ● ●
105 BOLT; BRKT TO CAB FRAME
M10X30 W/SP WASHER 		1-09980-546-0 11 1 1008- ● ●
112 ARM ASM; LINK,CAB FRT SUSP
6WF1 TC-C(1B8) 		1-53450-567-8 01 1 1008- ● ●
112 ARM ASM; LINK,CAB FRT SUSP
6WG1 TC-R(75L) 		8-97613-307-2 01 1 1008- ● ●
113 BUSHING; RUBBER,FLOATING LINK ARM,W/PI 1-53458-714-0 04 1 1008- ● ●
118 WASHER; PL,STOPPER RUBBER,LINK ARM
ID=19 OD=30 		1-09503-279-0 04 1 1008- ● ●
120 NUT; STOPPER RUBBER,LINK ARM
M18 		0-91110-518-0 02 1 1008- ● ●
144 SPRING; COIL,CAB FRT SUSPENSION 1-09580-537-0 02 1 1008- ● ●
145 RUBBER; CUSHION,CAB FRT SUSPENSION 1-53366-139-0 02 1 1008- ● ●
146 SEAT; SPRING,CAB FRT SUSPENSION 1-53366-138-0 02 1 1008- ● ●
192 NUT; BRKT FIX
M10 		1-09984-142-0 04 1 1008- ● ●
240 WASHER; PL,BRKT
(A) ID=12.5 OD=22 		0-91610-512-0 02 1 1008- ● ●
240 WASHER; PL,BRKT
(C) ID=10.5 OD=18 		1-09985-173-0 01 1 1008- ● ●
240 WASHER; PL,BRKT
(B) ID=10.5 OD=26 T=2.6 		1-09985-184-0 04 1 1008- ● ●
315 WASHER; CAB MTG
ID=34.5 		1-53458-281-1 04 1 1008- ● ●

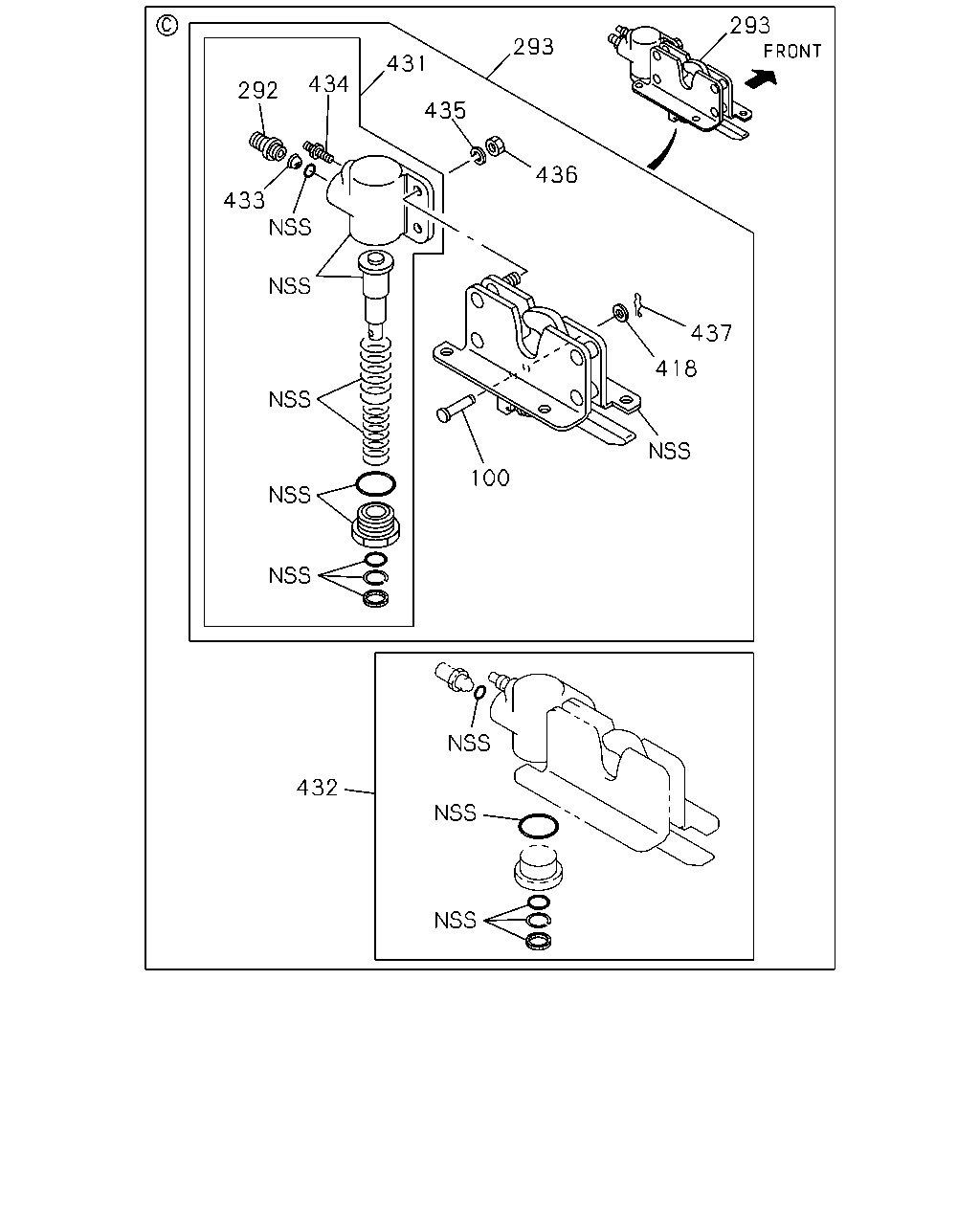

çizim 167246
293 293 431 435 436 434 292 433 437 418 100 432
BalonParca AdiParca NoAdetTipApplied Date A B
100 PIN; JOINT 1-53458-831-0 01 1 1008- ● ●
292 CONNECTOR; CAB SUSPENSION
M12 		1-53458-941-0 01 1 1008- ● ●
293 RATCH; CAB SUSP,RR 1-53458-918-0 01 1 1008- ● ●
418 WASHER; PL,PIN 1-53458-059-0 01 1 1008- ● ●
431 CYLINDER; AIR,RATCH 1-53457-013-0 01 1 1008- ● ●
432 REPAIR KIT; AIR CYL 1-85579-052-0 01 1 1008- ● ●
433 FILTER; AIR CYL 1-53458-048-0 01 1 1008- ● ●
434 SCREW; AIR BLEEDER 1-53458-529-0 01 1 1008- ● ●
435 WASHER; LK,AIR CYL
ID=10.2 		9-09150-510-0 02 1 1008- ● ●
436 NUT; AIR CYL 1-53458-528-0 02 1 1008- ● ●
437 PIN; SNAP 1-53458-526-0 01 1 1008- ● ●

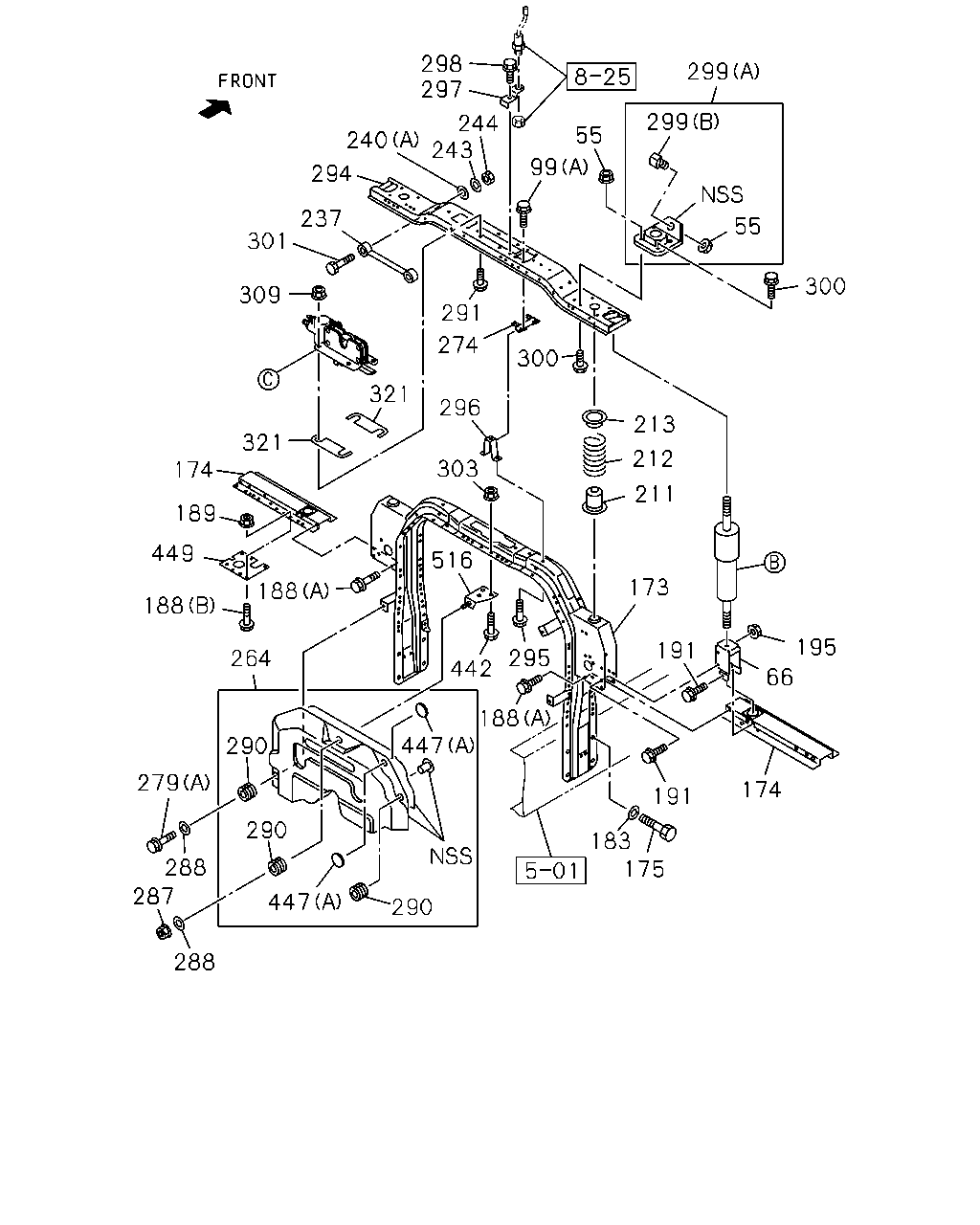

çizim 167257
299 299 55 300 213 212 211 173 191 195 66 174 191 175 183 188 295 442 516 303 296 300 274 291 99 55 298 297 244 243 240 294 237 301 309 321 321 174 189 449 188 188 264 290 279 288 287 288 290 447 290 447
BalonParca AdiParca NoAdetTipApplied Date A B
55 NUT; RUBBER
M8 FLANGE 		0-91180-108-0 06 1 1008- ● ●
66 BRACKET; S/ABS 1-53458-755-1 01 1 1008-1204 ● ●
66 BRACKET; S/ABS 8-98214-572-0 01 1 1205- ● ●
66 BRACKET; S/ABS 1-53458-786-0 01 1 1008- ● ●
99 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 04 1 1008- ● ●
99 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 02 1 1008- ● ●
173 MEMBER; CAB MTG RR
EXC. RUSSIA EQUIPMENT(B12),EURO4 SPECIFICATION<KBT> 		8-98166-348-0 01 1 1010- ● ●
173 MEMBER; CAB MTG RR 1-53450-686-3 01 1 1008-1009 ● ●
173 MEMBER; CAB MTG RR
EURO4 SPECIFICATION<KBT> 		8-98169-447-0 01 1 1010- ● ●
174 OUTRIGGER 8-98158-646-0 01 1 1008- ● ●
174 OUTRIGGER
6WF1 TC-C(1B8) 		8-98158-645-0 01 1 1008- ● ●
174 OUTRIGGER
6WG1 TC-R(75L) 		8-97614-275-1 01 1 1008- ● ●
175 BOLT; MEMBER TO FRAME
M14X40 		0-20951-440-0 08 1 1008- ● ●
183 WASHER; PL,MEMBER
ID=15 		8-98010-627-1 08 1 1008- ● ●
188 BOLT; OUTRIGGER
(B) M10X20 FLANGE 		0-28651-020-0 04 1 1008- ● ●
188 BOLT; OUTRIGGER
(A) M10X25 FLANGE 		0-28651-025-0 08 1 1008- ● ●
189 NUT; OUTRIGGER
M10 FLANGE 		0-91180-210-0 04 1 1008- ● ●
191 BOLT; BRKT FIX
M10X25 FLANGE 		0-28651-025-0 07 1 1008- ● ●
195 NUT; BRKT FIX
M10 FLANGE 		0-91180-210-0 04 1 1008- ● ●
211 RUBBER; CUSHION,S/ABS 1-53366-128-0 02 1 1008- ● ●
212 SPRING; COIL 1-09580-515-0 02 1 1008- ● ●
213 SEAT; SPR,S/ABS 1-53366-132-1 02 1 1008- ● ●
237 ROD ASM; LATERAL 1-53458-343-0 01 1 1008- ● ●
240 WASHER; PL,BRKT
(A) ID=12.5 OD=22 		0-91610-512-0 02 1 1008- ● ●
240 WASHER; PL,BRKT
(C) ID=10.5 OD=18 		1-09985-173-0 01 1 1008- ● ●
240 WASHER; PL,BRKT
(B) ID=10.5 OD=26 T=2.6 		1-09985-184-0 04 1 1008- ● ●
243 WASHER; LK,LATERAL ROD
ID=12.2 		0-91510-512-0 02 1 1008- ● ●
244 NUT; LATERAL ROD
M12 		0-91110-512-0 02 1 1008- ● ●
264 PANEL; BACK
EURO4 SPECIFICATION<KBT> 		1-53194-511-2 01 1 1008- ● ●
274 PIN 1-53458-996-0 01 1 1008- ● ●
279 BOLT
(B) M12X40 FLANGE 		0-28061-240-0 04 1 1008-1510 ● ●
279 BOLT
(B) M12X40 FLANGE 		8-98270-173-0 04 1 1511- ● ●
279 BOLT
EURO4 SPECIFICATION<KBT> (A) M8X25 FLANGE 		0-28650-825-0 02 1 1008- ● ●
287 NUT
EURO4 SPECIFICATION<KBT> M8 FLANGE 		0-91180-108-0 01 1 1008- ● ●
288 WASHER; PL
EURO4 SPECIFICATION<KBT> ID=8.4 OD=26 		0-91614-808-0 03 1 1008- ● ●
290 RUBBER; MTG
EURO4 SPECIFICATION<KBT> 		1-53459-702-1 03 1 1008- ● ●
291 BOLT; RATCH
M10X25 FLANGE 		0-28651-025-0 04 1 1008- ● ●
294 MEMBER; FLOATING 1-53454-950-3 01 1 1008- ● ●
295 BOLT; STOPPER,UPR
M10X20 FLANGE 		0-28651-020-0 02 1 1008- ● ●
296 STOPPER; UPR 1-53458-973-1 01 1 1008- ● ●
297 BRACKET; LIMIT SW 1-53458-782-0 01 1 1008- ● ●
298 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 01 1 1008- ● ●
299 RUBBER; MTG
(B) 		1-53366-155-0 02 1 1008- ● ●
299 RUBBER; MTG
(A) 		1-53366-194-0 02 1 1008- ● ●
300 BOLT; MTG RUBBER
M8X25 W/LK&PL WASHER 		1-09030-027-0 08 1 1008- ● ●
301 PIN; LATERAL ROD
M12X57.5 		1-53459-498-1 02 1 1008- ● ●
303 NUT; BRKT
EURO4 SPECIFICATION<KBT> M8 FLANGE 		0-91180-108-0 02 1 1008- ● ●
309 NUT
M10 FLANGE 		0-91180-210-0 04 1 1008- ● ●
321 SHIM; FRT CAB MTG 1-53458-629-1 04 1 1008- ● ●
442 BOLT; BRKT
EURO4 SPECIFICATION<KBT> M8X20 FLANGE 		0-28650-820-0 02 1 1008- ● ●
447 SEAL
(B) OD=25 BLACK 		1-76798-019-0 03 1 1008- ● ●
447 SEAL
EURO4 SPECIFICATION<KBT> (A) OD=45 BLACK 		1-76798-017-0 02 1 1008- ● ●
449 BRACKET; OUTRIGGER 1-53456-279-0 01 1 1008- ● ●
516 BRACKET; PANEL
EURO4 SPECIFICATION<KBT> 		1-53496-020-0 01 1 1008- ● ●
çizim 167262
202 202 203 204 205 65 204 203 70 72 69
BalonParca AdiParca NoAdetTipApplied Date A B
65 ABSORBER; SHOCK,CAB FRT SUSPENSION 1-51630-604-1 02 1 1008- ● ●
69 BOLT; S/ABS,CAB FRT SUSPENSION
(A) M12X60 		0-20801-260-0 02 1 1008- ● ●
69 BOLT; S/ABS,CAB FRT SUSPENSION
(B) M10X105 		1-79198-008-1 08 1 1008- ● ●
70 BRACKET; S/ABS,CAB FRT SUSP 1-53458-492-1 01 1 1008- ● ●
70 BRACKET; S/ABS,CAB FRT SUSP 1-53458-493-1 01 1 1008- ● ●
72 WASHER; PL,BRKT TO FRAME
ID=10.5 OD=26 T=2.6 		1-09985-184-0 23 1 1008- ● ●
202 NUT; S/ABS
(C) M10 FLANGE 		0-91180-110-0 02 1 1008- ● ●
202 NUT; S/ABS
(A) M10 		9-09110-410-0 04 1 1008- ● ●
202 NUT; S/ABS
(B) M10 		9-09111-410-0 06 1 1008- ● ●
203 WASHER; RUBBER,SHOCK
(A) ID=10.8 OD=38 T=6 		1-51631-005-0 10 1 1008- ● ●
203 WASHER; RUBBER,SHOCK
(B) ID=10 OD=38 T=5 		1-51631-104-0 02 1 1008- ● ●
204 RUBBER; CUSHION,SHOCK 1-51631-004-0 12 1 1008- ● ●
205 WASHER; RUBBER,SHOCK 1-51631-079-0 08 1 1008- ● ●

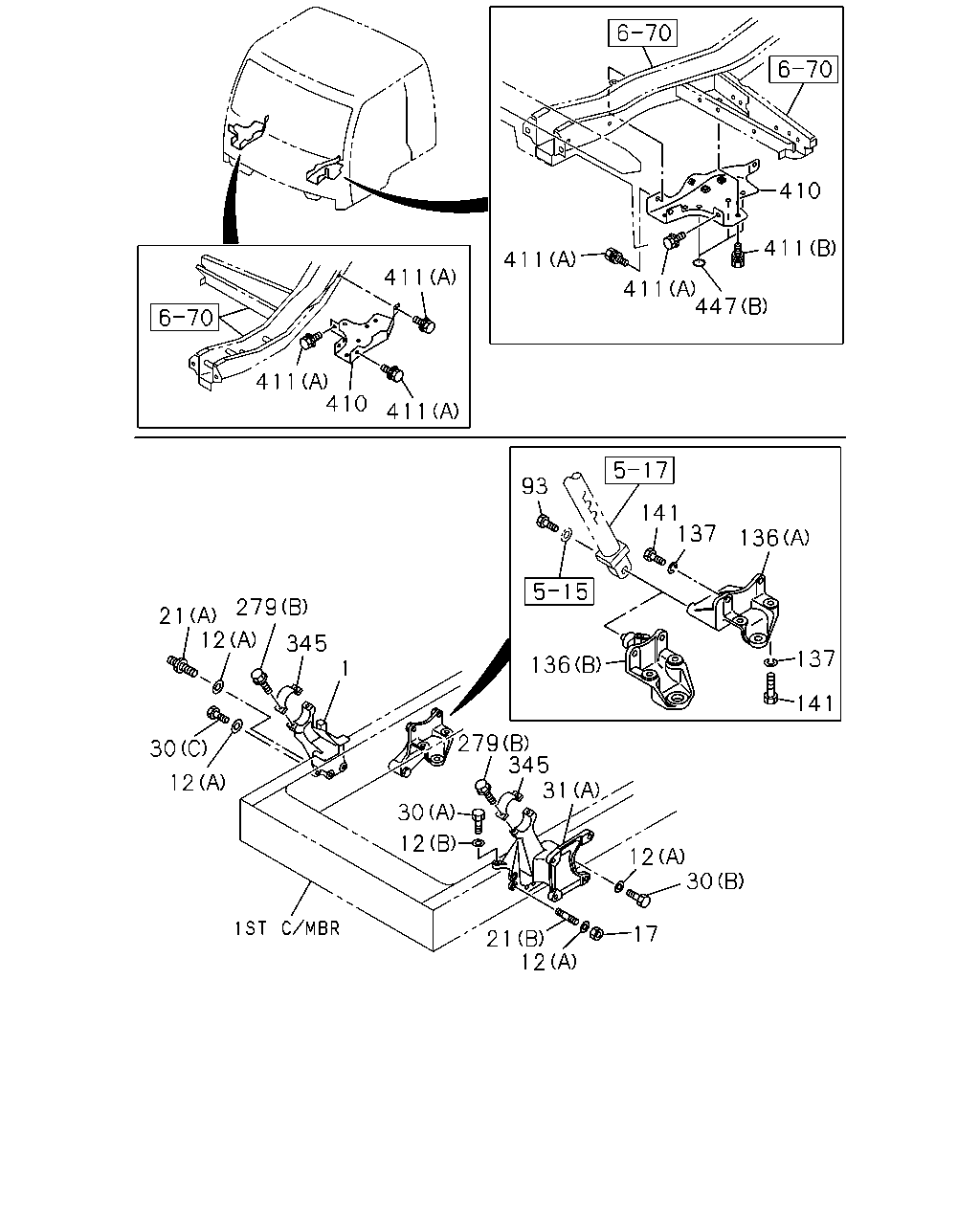

çizim 167285
411 411 410 411 411 411 447 411 410 141 137 136 137 141 136 93 279 21 12 345 1 30 12 12 30 279 345 31 12 30 17 12 21
BalonParca AdiParca NoAdetTipApplied Date A B
1 BRACKET; CAB MTG 1-53453-306-1 01 1 1008- ● ●
12 WASHER; LK,BRKT
(A) ID=16.2 		1-09503-316-0 11 1 1008- ● ●
12 WASHER; LK,BRKT
(B) ID=15 		8-98010-627-1 02 1 1008- ● ●
17 NUT; BRKT,CAB TILT
M16 		0-91110-516-0 01 1 1008- ● ●
21 STUD; BRKT,CAB TILT
(A) M10X20,M16X50 L=81 		1-09029-069-0 02 1 1008- ● ●
21 STUD; BRKT,CAB TILT
(B) M16X50 L=74 		1-09300-117-0 01 1 1008- ● ●
30 BOLT; CAB FRT FOOT
(A) M14X60 		0-20951-460-0 02 1 1008- ● ●
30 BOLT; CAB FRT FOOT
(B) M16X50 		0-20951-650-0 05 1 1008- ● ●
30 BOLT; CAB FRT FOOT
(C) M16X45 		9-92061-645-0 03 1 1008- ● ●
31 BRACKET; CAB
(A) 		1-44226-177-3 01 1 1008- ● ●
31 BRACKET; CAB
(B) 		1-53453-274-1 01 1 1008- ● ●
31 BRACKET; CAB
(B) 		1-53453-280-2 01 1 1008- ● ●
93 BOLT; PIN
M10X30 		1-09000-283-0 01 1 1008- ● ●
136 BRACKET; OIL CYL
(A) 		1-53458-903-0 01 1 1008-1112 ●
136 BRACKET; OIL CYL
WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) (A) 		1-53458-903-0 01 1 1008-1112 ●
136 BRACKET; OIL CYL
(A) 		1-53458-903-0 01 1 1201- ● ●
136 BRACKET; OIL CYL
WHEEL BASE 5500MM(55W) (B) 		1-53458-829-0 01 1 1008-1112 ●
137 WASHER; PL,BRKT
ID=15 		8-98010-627-1 04 1 1008- ● ●
141 BOLT; BRKT
M14X50 		0-20951-450-0 04 1 1008- ● ●
279 BOLT
(B) M12X40 FLANGE 		0-28061-240-0 04 1 1008-1510 ● ●
279 BOLT
(B) M12X40 FLANGE 		8-98270-173-0 04 1 1511- ● ●
279 BOLT
EURO4 SPECIFICATION<KBT> (A) M8X25 FLANGE 		0-28650-825-0 02 1 1008- ● ●
345 CAP; CAB 1-53458-336-3 02 1 1008- ● ●
410 REINFORCEMENT; CAB TILT 1-62570-864-0 01 1 1008- ● ●
410 REINFORCEMENT; CAB TILT 1-62570-939-0 01 1 1008- ● ●
411 BOLT; REINFORCEMENT
(B) M10X20 W/LK&PL WASHER 		8-94279-211-0 01 1 1008- ● ●
411 BOLT; REINFORCEMENT
(A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 06 1 1008- ● ●
447 SEAL
(B) OD=25 BLACK 		1-76798-019-0 03 1 1008- ● ●
447 SEAL
EURO4 SPECIFICATION<KBT> (A) OD=45 BLACK 		1-76798-017-0 02 1 1008- ● ●
çizim 167311
294 202 202 203 204 205 204 203 201 173 203 204 205 66 174 205 204 203 202 202
BalonParca AdiParca NoAdetTipApplied Date A B
66 BRACKET; S/ABS 1-53458-755-1 01 1 1008-1204 ● ●
66 BRACKET; S/ABS 8-98214-572-0 01 1 1205- ● ●
66 BRACKET; S/ABS 1-53458-786-0 01 1 1008- ● ●
173 MEMBER; CAB MTG RR
EXC. RUSSIA EQUIPMENT(B12),EURO4 SPECIFICATION<KBT> 		8-98166-348-0 01 1 1010- ● ●
173 MEMBER; CAB MTG RR 1-53450-686-3 01 1 1008-1009 ● ●
173 MEMBER; CAB MTG RR
EURO4 SPECIFICATION<KBT> 		8-98169-447-0 01 1 1010- ● ●
174 OUTRIGGER 8-98158-646-0 01 1 1008- ● ●
174 OUTRIGGER
6WF1 TC-C(1B8) 		8-98158-645-0 01 1 1008- ● ●
174 OUTRIGGER
6WG1 TC-R(75L) 		8-97614-275-1 01 1 1008- ● ●
201 ABSORBER ASM; SHOCK,RR MTG 1-51630-728-1 02 1 1008- ● ●
202 NUT; S/ABS
(C) M10 FLANGE 		0-91180-110-0 02 1 1008- ● ●
202 NUT; S/ABS
(A) M10 		9-09110-410-0 04 1 1008- ● ●
202 NUT; S/ABS
(B) M10 		9-09111-410-0 06 1 1008- ● ●
203 WASHER; RUBBER,SHOCK
(A) ID=10.8 OD=38 T=6 		1-51631-005-0 10 1 1008- ● ●
203 WASHER; RUBBER,SHOCK
(B) ID=10 OD=38 T=5 		1-51631-104-0 02 1 1008- ● ●
204 RUBBER; CUSHION,SHOCK 1-51631-004-0 12 1 1008- ● ●
205 WASHER; RUBBER,SHOCK 1-51631-079-0 08 1 1008- ● ●
294 MEMBER; FLOATING 1-53454-950-3 01 1 1008- ● ●
