◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10725 - EXR LHD FUEL TANK 200L+200L/400L ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-20B - MANUAL TRANSMISSION ASM AND CASE ▶
2-20B — MANUAL TRANSMISSION ASM AND CASE (#5567) — 351 parça

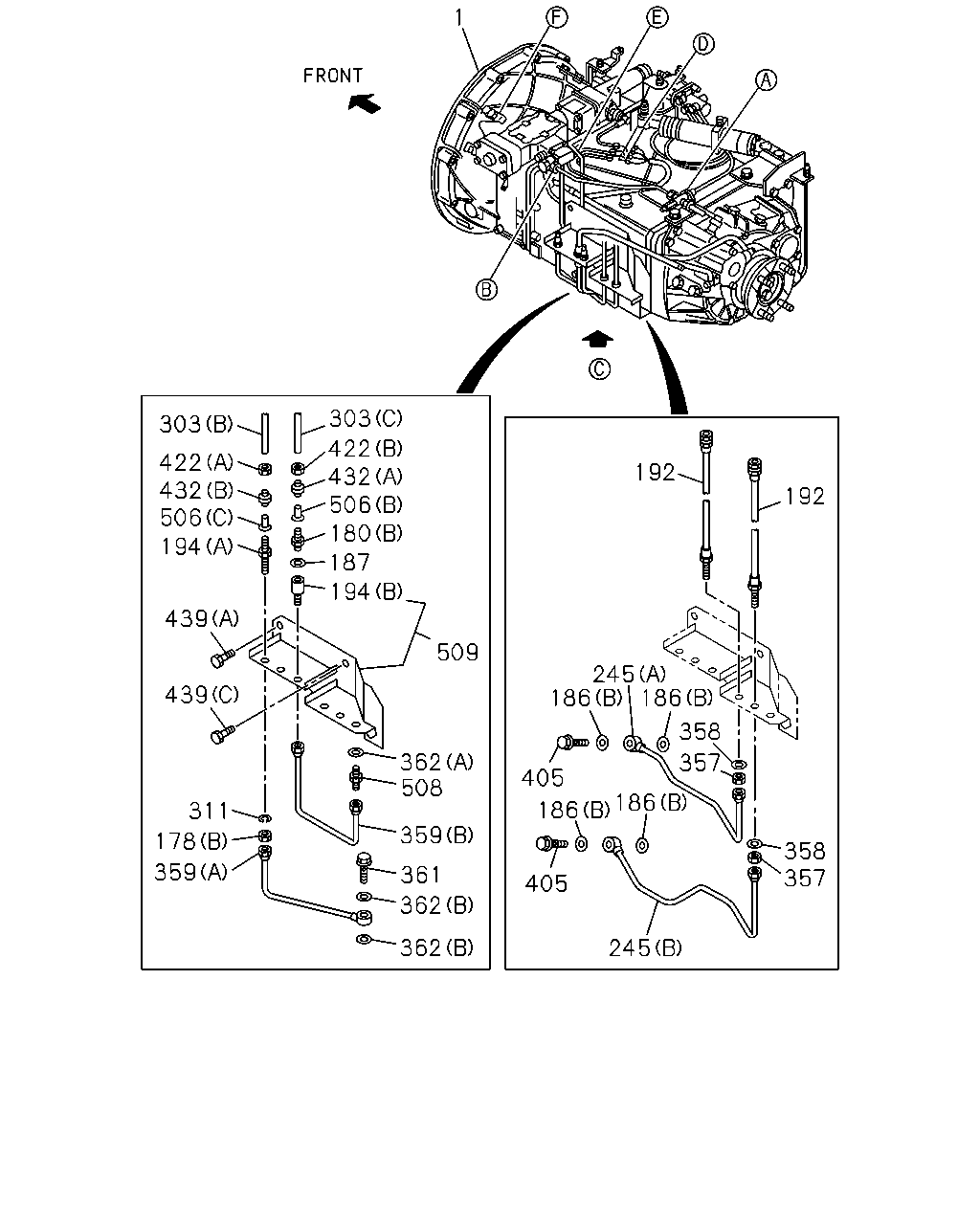

çizim 6472
1 303 303 422 432 506 180 422 432 506 194 192 192 187 194 439 509 245 186 186 439 358 362 508 357 405 186 186 311 359 178 358 357 359 361 405 362 362 245
BalonParca AdiParca NoAdetTipApplied Date A B
1 TRANSMISSION ASM; MANUAL
EXC. PTO ZF TRANS RR(BDM) 		1-33040-584-2 01 1 9603-9707 ●
1 TRANSMISSION ASM; MANUAL
EXC. PTO ZF TRANS RR(BDM) 		1-33041-634-0 01 1 9708-9904 ●
1 TRANSMISSION ASM; MANUAL
TRANS SELECT DETENT HEAVY<BFU> EXC. PTO ZF TRANS RR(BDM) 		1-33042-166-0 01 1 9905- ●
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) 		1-33040-359-2 01 1 9603-9707 ●
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) 		1-33041-633-0 01 1 9708-9904 ●
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) EXC. TRANS SELECT DETENT HEAVY<BFU> 		1-33042-011-0 01 1 9905- ●
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) TRANS SELECT DETENT HEAVY<BFU> 		1-33042-165-0 01 1 9905- ●
1 TRANSMISSION ASM; MANUAL
EXC. PTO ZF TRANS RR(BDM),TRANS SELECT DETENT HEAVY<BFU> 		1-33042-012-0 01 1 9905- ●
178 NUT; UNION
(A) M14 		9-99110-414-0 01 1 9603-9904 ●
178 NUT; UNION
(B) M14 		9-99111-414-0 01 1 9603- ●
180 CONNECTOR; NYLON TUBE
(A) 		1-09660-239-0 01 1 9603-9906 ●
180 CONNECTOR; NYLON TUBE
(A) 		1-09660-239-0 01 1 9907- ● ●
180 CONNECTOR; NYLON TUBE
(B) 		1-09660-466-0 01 1 9603-9904 ●
186 RING; SEAL
(B) ID=22 		1-32568-001-0 04 1 9603-9906 ●
186 RING; SEAL
(B) ID=22 		1-32568-001-0 04 1 9907- ● ●
186 RING; SEAL
(A) ID=22 		1-32568-002-0 02 1 9603-9906 ●
186 RING; SEAL
(A) ID=22 		1-32568-002-0 02 1 9907- ● ●
187 GASKET; CONNECTOR
ID=10.2 OD=15.2 		1-09630-083-0 01 1 9603-9904 ●
192 HOSE; FLEX,TRANS
INLET L=500 		1-09364-914-0 01 1 9603-9603 ●
192 HOSE; FLEX,TRANS
L TYPE ENG<90L> INLET L=500 		1-09364-914-0 01 1 9604-9701 ●
192 HOSE; FLEX,TRANS
INLET L=500 		1-09364-914-0 01 1 9702-9904 ●
192 HOSE; FLEX,TRANS
L TYPE ENG<90L> OUTLET L=406 		1-09364-961-0 01 1 9610-9904 ●
192 HOSE; FLEX,TRANS
L TYPE ENG<90L> OUTLET L=406 		1-09364-961-0 01 1 9905- ● ●
192 HOSE; FLEX,TRANS
L TYPE ENG<90L> INLET L=535 		1-09364-936-0 01 1 9905-9905 ●
192 HOSE; FLEX,TRANS
L TYPE ENG<90L> INLET L=535 		1-09364-936-0 01 1 9905- ● ●
192 HOSE; FLEX,TRANS
V TYPE ENG<91L> OUTLET L=410 		1-09364-935-0 01 1 9603-9609 ●
192 HOSE; FLEX,TRANS
V TYPE ENG<91L> INLET L=535 		1-09364-936-0 01 1 9604-9609 ●
192 HOSE; FLEX,TRANS
6WA1 TC-S(56L) OUTLET L=400 		1-09364-913-0 01 1 9603-9603 ●
192 HOSE; FLEX,TRANS
L TYPE ENG<90L> OUTLET L=400 		1-09364-913-0 01 1 9604-9609 ●
192 HOSE; FLEX,TRANS
6WA1 TC-S(56L) OUTLET L=400 		1-09364-913-0 01 1 9610-9701 ●
192 HOSE; FLEX,TRANS
L TYPE ENG<90L> OUTLET L=400 		1-09364-913-0 01 1 9702-9804 ●
192 HOSE; FLEX,TRANS
L TYPE ENG<90L> OUTLET L=311 		1-09364-921-0 01 1 9805-9904 ●
192 HOSE; FLEX,TRANS
V TYPE ENG<91L> INLET L=400 		1-09364-913-0 01 1 9905- ● ●
192 HOSE; FLEX,TRANS
V TYPE ENG<91L> OUTLET L=500 		1-09364-914-0 01 1 9905- ● ●
194 UNION; NYLON TUBE
(A) M14 		1-09664-230-0 01 1 9603- ●
194 UNION; NYLON TUBE
(B) 		1-09664-234-0 01 1 9603-9904 ●
245 PIPE; OIL
(A) 		1-47428-569-0 01 1 9603-9608 ●
245 PIPE; OIL
(A) 		1-49161-057-0 01 1 9609-9904 ●
245 PIPE; OIL
(A) 		1-49119-467-1 01 1 9905-9906 ●
245 PIPE; OIL
(A) 		1-49122-031-0 01 1 9907- ● ●
245 PIPE; OIL
(B) 		1-47428-570-0 01 1 9603-9608 ●
245 PIPE; OIL
(B) 		1-49161-058-0 01 1 9609-9904 ●
245 PIPE; OIL
(B) 		1-49119-468-1 01 1 9905-9906 ●
245 PIPE; OIL
(B) 		1-49119-468-1 01 1 9907- ● ●
303 TUBE; NYLON
L TYPE ENG<90L> (A) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 9905-9910 ● ●
303 TUBE; NYLON
L TYPE ENG<90L> (A) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 9911- ●
303 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0003- ● ●
303 TUBE; NYLON
(B) SERVICED BY L=30000 OD=8 		1-09369-578-0 01 1 9603-9904 ●
303 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9603-9904 ●
303 TUBE; NYLON
V TYPE ENG<91L> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9905-9910 ● ●
303 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9905-9910 ● ●
303 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9911-0002 ● ●
303 TUBE; NYLON
V TYPE ENG<91L> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9911-0002 ●
303 TUBE; NYLON
10PE1S(60L),10PE1N(61L) (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 02 1 0003- ●
303 TUBE; NYLON
(C) SERVICED BY L=2000 OD=4 		1-87410-077-0 01 1 9603-9904 ●
311 WASHER; LK
ID=14.2 		9-09150-514-0 01 1 9603- ●
357 NUT; UNION,FLEX HOSE
M22 		9-09111-522-0 02 1 9603-9906 ●
357 NUT; UNION,FLEX HOSE
M22 		9-09111-522-0 02 1 9907- ● ●
358 WASHER; LK,UNION
ID=22.5 		9-09150-522-0 02 1 9603-9906 ●
358 WASHER; LK,UNION
ID=22.5 		9-09150-522-0 02 1 9907- ● ●
359 PIPE; AIR,TRANS TO UNION
(A) 		1-49115-055-0 01 1 9603-9608 ●
359 PIPE; AIR,TRANS TO UNION
(A) 		1-49117-645-0 01 1 9609-9710 ●
359 PIPE; AIR,TRANS TO UNION
(A) 		1-49118-936-0 01 1 9711-9904 ●
359 PIPE; AIR,TRANS TO UNION
(A) 		1-49119-463-1 01 1 9905- ●
359 PIPE; AIR,TRANS TO UNION
(B) 		1-49115-949-0 01 1 9603-9608 ●
359 PIPE; AIR,TRANS TO UNION
(B) 		1-49117-647-0 01 1 9609-9710 ●
359 PIPE; AIR,TRANS TO UNION
(B) 		1-49118-938-0 01 1 9711-9904 ●
359 PIPE; AIR,TRANS TO UNION
(B) 		1-49119-464-1 01 1 9905- ●
359 PIPE; AIR,TRANS TO UNION
(C) 		1-33119-395-0 01 1 9708- ●
361 BOLT; EYE,AIR PIPE
M12X24 EYE-BOLT 		1-09675-082-0 01 1 9603-9611 ●
361 BOLT; EYE,AIR PIPE
M12X24 EYE-BOLT 		1-09675-229-0 01 1 9612- ●
362 GASKET; AIR PIPE
(A) ID=10.2 OD=15.2 		1-09630-083-0 01 1 9603- ●
362 GASKET; AIR PIPE
(B) ID=12.2 		1-09630-084-0 02 1 9603- ●
405 BOLT; EYE,OIL PIPE
M22X37 		1-09675-060-0 02 1 9603-9906 ●
405 BOLT; EYE,OIL PIPE
M22X37 		1-09675-060-0 02 1 9907- ● ●
422 NUT; SLEEVE
(B) M14 		1-09660-212-0 04 1 9603-9904 ●
422 NUT; SLEEVE
(B) M14 		1-09660-212-0 01 1 9905-9906 ●
422 NUT; SLEEVE
(B) M14 		1-09660-212-0 01 1 9907- ● ●
422 NUT; SLEEVE
(A) M14 		1-09660-767-0 01 1 9603- ●
432 SLEEVE; TUBE
(B) ID=8.15 OD=11 L=9.5 		1-09666-042-0 04 1 9603-9904 ●
432 SLEEVE; TUBE
(B) ID=8.15 OD=11 L=9.5 		1-09666-042-0 01 1 9905-9906 ●
432 SLEEVE; TUBE
(B) ID=8.15 OD=11 L=9.5 		1-09666-042-0 01 1 9907- ● ●
432 SLEEVE; TUBE
(A) ID=8.2 L=9.5 		1-09666-067-0 01 1 9603- ●
439 BOLT; BRKT
(A) M10X20 FLANGE 		0-28781-020-0 01 1 9603-9904 ●
439 BOLT; BRKT
(A) M16X35 FLANGE 		0-28881-635-0 04 1 9905-9906 ●
439 BOLT; BRKT
(A) M16X35 FLANGE 		0-28881-635-0 04 1 9907- ● ●
439 BOLT; BRKT
(B) M10X40 FLANGE 		0-28781-040-0 04 1 9603-9906 ●
439 BOLT; BRKT
(B) M10X40 FLANGE 		0-28781-040-0 04 1 9907- ● ●
439 BOLT; BRKT
(C) M16X25 FLANGE 		0-28881-625-0 02 1 9603-9904 ●
506 INSERT
(A) ID=4.5 OD=5.8 L=18 		1-09669-054-0 01 1 9603-9906 ●
506 INSERT
(A) ID=4.5 OD=5.8 L=18 		1-09669-054-0 01 1 9907- ● ●
506 INSERT
(B) ID=1.4 OD=2.0 L=18 		1-09669-100-0 01 1 9603-9904 ●
506 INSERT
(C) ID=5 OD=5.9 L=16 		1-09669-122-0 01 1 9603- ●
508 UNION; AIR
M10 & M12 STRAIGHT 		1-09664-235-0 01 1 9603- ●
509 BRACKET; PIPE 1-47477-551-0 01 1 9603-9904 ●
509 BRACKET; PIPE 1-47478-215-2 01 1 9905-9906 ●
509 BRACKET; PIPE 1-47478-215-2 01 1 9907- ● ●

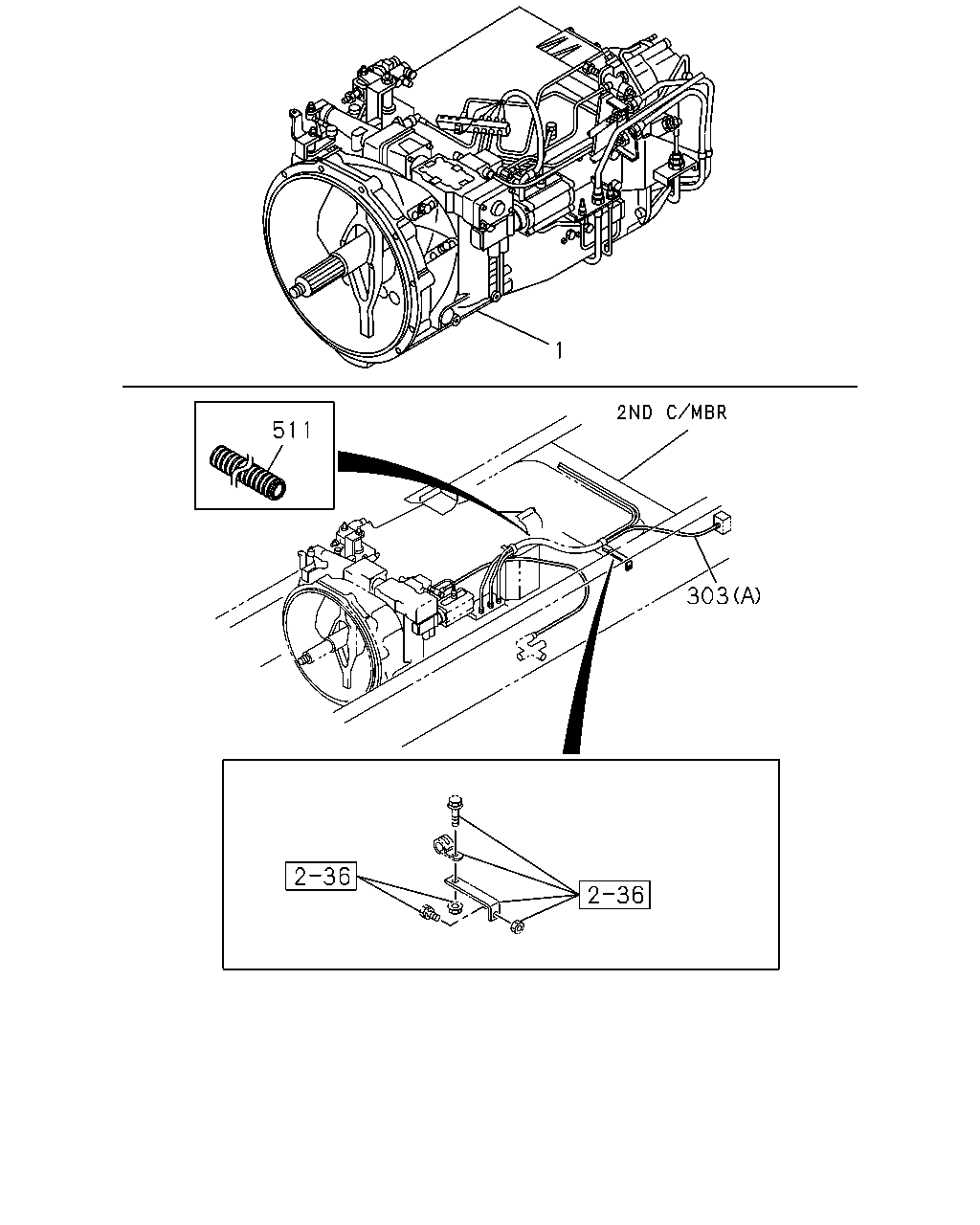

çizim 6474
1 511 303
BalonParca AdiParca NoAdetTipApplied Date A B
1 TRANSMISSION ASM; MANUAL
EXC. PTO ZF TRANS RR(BDM) 		1-33040-584-2 01 1 9603-9707 ●
1 TRANSMISSION ASM; MANUAL
EXC. PTO ZF TRANS RR(BDM) 		1-33041-634-0 01 1 9708-9904 ●
1 TRANSMISSION ASM; MANUAL
TRANS SELECT DETENT HEAVY<BFU> EXC. PTO ZF TRANS RR(BDM) 		1-33042-166-0 01 1 9905- ●
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) 		1-33040-359-2 01 1 9603-9707 ●
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) 		1-33041-633-0 01 1 9708-9904 ●
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) EXC. TRANS SELECT DETENT HEAVY<BFU> 		1-33042-011-0 01 1 9905- ●
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) TRANS SELECT DETENT HEAVY<BFU> 		1-33042-165-0 01 1 9905- ●
1 TRANSMISSION ASM; MANUAL
EXC. PTO ZF TRANS RR(BDM),TRANS SELECT DETENT HEAVY<BFU> 		1-33042-012-0 01 1 9905- ●
303 TUBE; NYLON
L TYPE ENG<90L> (A) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 9905-9910 ● ●
303 TUBE; NYLON
L TYPE ENG<90L> (A) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 9911- ●
303 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0003- ● ●
303 TUBE; NYLON
(B) SERVICED BY L=30000 OD=8 		1-09369-578-0 01 1 9603-9904 ●
303 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9603-9904 ●
303 TUBE; NYLON
V TYPE ENG<91L> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9905-9910 ● ●
303 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9905-9910 ● ●
303 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9911-0002 ● ●
303 TUBE; NYLON
V TYPE ENG<91L> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9911-0002 ●
303 TUBE; NYLON
10PE1S(60L),10PE1N(61L) (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 02 1 0003- ●
303 TUBE; NYLON
(C) SERVICED BY L=2000 OD=4 		1-87410-077-0 01 1 9603-9904 ●
511 TUBE; CORRUGATE
L TYPE ENG<90L> SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 9905-9910 ● ●
511 TUBE; CORRUGATE
L TYPE ENG<90L> SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 9911- ●
511 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-83129-335-0 AR 1 9811-9904 ●
511 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87410-085-0 AR 1 9811-9904 ●
511 TUBE; CORRUGATE
SERVICED BY L=800 ID=7 		1-83129-031-1 AR 1 9603- ● ●
511 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 AR 1 9905- ● ●

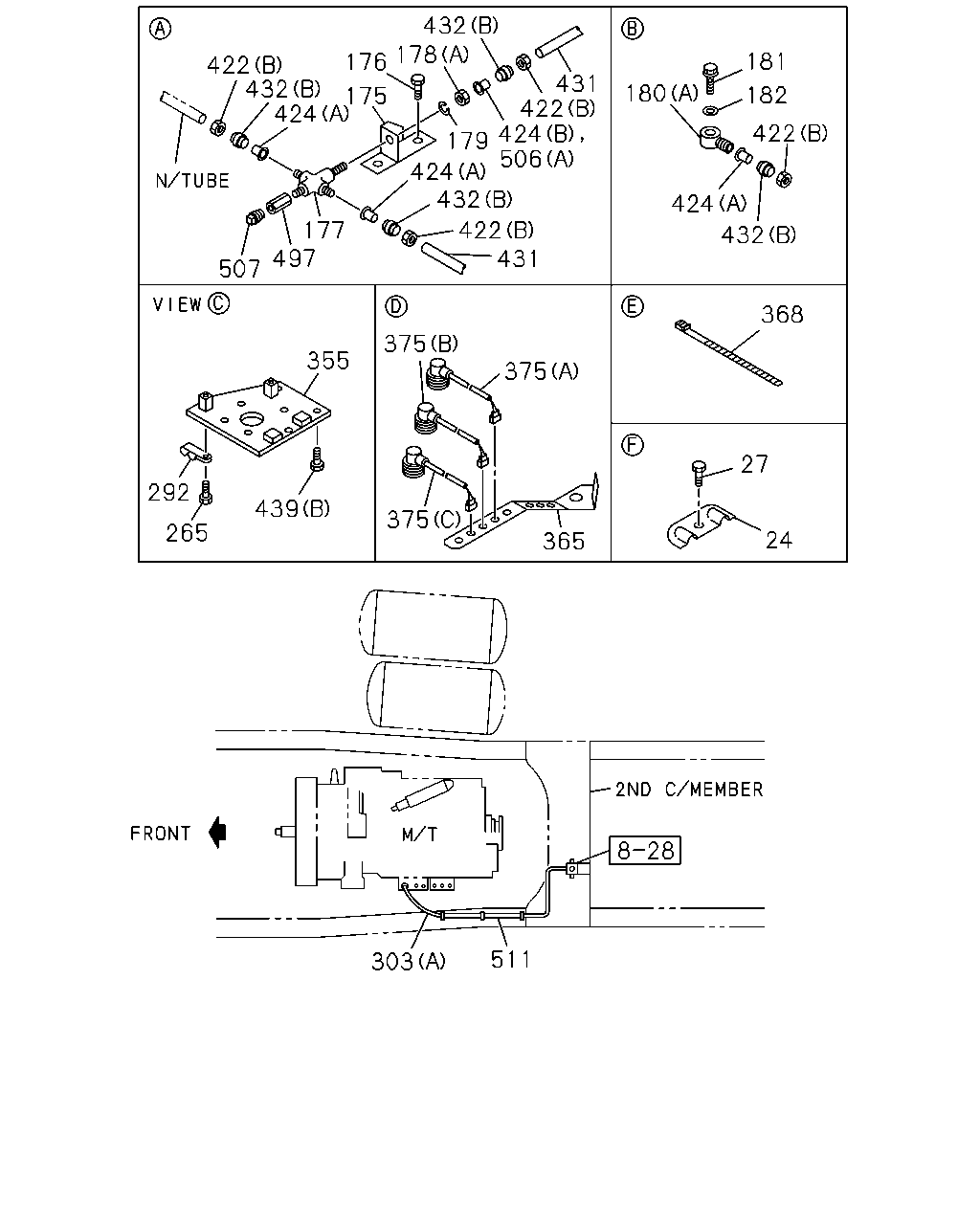

çizim 8446
432 178 181 176 422 432 424 431 422 424 506 180 182 175 422 179 424 432 424 177 497 422 431 432 507 368 375 355 375 292 27 439 375 265 24 365 511 303
BalonParca AdiParca NoAdetTipApplied Date A B
24 COVER; CHECK HOLE,DUST 1-31131-038-0 02 1 9603-9704 ●
24 COVER; CHECK HOLE,DUST 1-31131-038-0 03 1 9705-9906 ●
24 COVER; CHECK HOLE,DUST 1-31131-038-0 03 1 9907- ● ●
27 BOLT; COVER TO CLU HSG
M16X25 FLANGE 		0-28881-625-0 02 1 9603-9906 ●
27 BOLT; COVER TO CLU HSG
M16X25 FLANGE 		0-28881-625-0 02 1 9907- ● ●
175 BRACKET; UNION 1-47477-545-0 01 1 9603-9906 ●
175 BRACKET; UNION 1-47477-545-0 01 1 9907- ● ●
176 BOLT; UNION BRKT
M16X25 FLANGE 		0-28881-625-0 02 1 9603-9906 ●
176 BOLT; UNION BRKT
M16X25 FLANGE 		0-28881-625-0 02 1 9907- ● ●
177 UNION; NYLON TUBE 1-09664-070-0 01 1 9603-9904 ●
178 NUT; UNION
(A) M14 		9-99110-414-0 01 1 9603-9904 ●
178 NUT; UNION
(B) M14 		9-99111-414-0 01 1 9603- ●
179 WASHER; LK,UNION
ID=14.2 		9-09150-514-0 01 1 9603-9904 ●
180 CONNECTOR; NYLON TUBE
(A) 		1-09660-239-0 01 1 9603-9906 ●
180 CONNECTOR; NYLON TUBE
(A) 		1-09660-239-0 01 1 9907- ● ●
180 CONNECTOR; NYLON TUBE
(B) 		1-09660-466-0 01 1 9603-9904 ●
181 BOLT; EYE,NYLON TUBE
M12X40.5 M12 L=35.5 		1-09675-169-0 01 1 9603-9906 ●
181 BOLT; EYE,NYLON TUBE
M12 L=35.5 		1-09675-169-0 01 1 9907- ● ●
182 GASKET; EYE BOLT,NYLON TUBE
ID=12.2 		9-09571-412-0 01 1 9603-9906 ●
182 GASKET; EYE BOLT,NYLON TUBE
ID=12.2 		9-09571-412-0 01 1 9907- ● ●
265 BOLT; CLIP
M8X40 FLANGE 		0-28680-840-0 01 1 9603-9906 ●
265 BOLT; CLIP
M8X40 FLANGE 		0-28680-840-0 01 1 9907- ● ●
292 CLIP; OIL PIPE
ID=16 & 16 L=28 		1-09701-219-0 01 1 9603-9906 ●
292 CLIP; OIL PIPE
ID=16 & 16 L=28 		1-09701-219-0 01 1 9907- ● ●
303 TUBE; NYLON
L TYPE ENG<90L> (A) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 9905-9910 ● ●
303 TUBE; NYLON
L TYPE ENG<90L> (A) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 9911- ●
303 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0003- ● ●
303 TUBE; NYLON
(B) SERVICED BY L=30000 OD=8 		1-09369-578-0 01 1 9603-9904 ●
303 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9603-9904 ●
303 TUBE; NYLON
V TYPE ENG<91L> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9905-9910 ● ●
303 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9905-9910 ● ●
303 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9911-0002 ● ●
303 TUBE; NYLON
V TYPE ENG<91L> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9911-0002 ●
303 TUBE; NYLON
10PE1S(60L),10PE1N(61L) (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 02 1 0003- ●
303 TUBE; NYLON
(C) SERVICED BY L=2000 OD=4 		1-87410-077-0 01 1 9603-9904 ●
355 BRACKET; OIL PIPE 1-47477-465-1 01 1 9603-9904 ●
355 BRACKET; OIL PIPE 1-47478-217-1 01 1 9905-9906 ●
355 BRACKET; OIL PIPE 1-47478-217-1 01 1 9907- ● ●
365 BRACKET; HARNESS 1-82699-490-2 01 1 9603-9906 ●
365 BRACKET; HARNESS 1-82699-490-2 01 1 9907- ● ●
368 CLIP; BAND,CABLE
L=140 		5-09707-031-1 02 1 9603-9906 ●
368 CLIP; BAND,CABLE
L=140 		5-09707-031-1 02 1 9907- ● ●
375 CABLE; TRANS
(A) L=250 		1-82659-134-1 01 1 9603-9906 ●
375 CABLE; TRANS
(A) L=250 		1-82659-134-1 01 1 9907- ● ●
375 CABLE; TRANS
(B) L=580 		1-82659-135-1 01 1 9603-9906 ●
375 CABLE; TRANS
(B) L=580 		1-82659-135-1 01 1 9907- ● ●
375 CABLE; TRANS
(C) L=880 		1-82659-137-1 01 1 9603- ●
422 NUT; SLEEVE
(B) M14 		1-09660-212-0 04 1 9603-9904 ●
422 NUT; SLEEVE
(B) M14 		1-09660-212-0 01 1 9905-9906 ●
422 NUT; SLEEVE
(B) M14 		1-09660-212-0 01 1 9907- ● ●
422 NUT; SLEEVE
(A) M14 		1-09660-767-0 01 1 9603- ●
424 RING; INSERT
(A) ID=4.5 OD=5.8 L=18 		1-09669-054-0 02 1 9603-9904 ●
424 RING; INSERT
(B) ID=4.2 OD=5 L=18 		1-09669-089-0 01 1 9603-9904 ●
431 TUBE; NYLON
V TYPE ENG<91L> L=1300 SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9603-9904 ●
432 SLEEVE; TUBE
(B) ID=8.15 OD=11 L=9.5 		1-09666-042-0 04 1 9603-9904 ●
432 SLEEVE; TUBE
(B) ID=8.15 OD=11 L=9.5 		1-09666-042-0 01 1 9905-9906 ●
432 SLEEVE; TUBE
(B) ID=8.15 OD=11 L=9.5 		1-09666-042-0 01 1 9907- ● ●
432 SLEEVE; TUBE
(A) ID=8.2 L=9.5 		1-09666-067-0 01 1 9603- ●
439 BOLT; BRKT
(A) M10X20 FLANGE 		0-28781-020-0 01 1 9603-9904 ●
439 BOLT; BRKT
(A) M16X35 FLANGE 		0-28881-635-0 04 1 9905-9906 ●
439 BOLT; BRKT
(A) M16X35 FLANGE 		0-28881-635-0 04 1 9907- ● ●
439 BOLT; BRKT
(B) M10X40 FLANGE 		0-28781-040-0 04 1 9603-9906 ●
439 BOLT; BRKT
(B) M10X40 FLANGE 		0-28781-040-0 04 1 9907- ● ●
439 BOLT; BRKT
(C) M16X25 FLANGE 		0-28881-625-0 02 1 9603-9904 ●
497 ADAPTER; PLUG 1-09660-880-0 01 1 9603-9904 ●
506 INSERT
(A) ID=4.5 OD=5.8 L=18 		1-09669-054-0 01 1 9603-9906 ●
506 INSERT
(A) ID=4.5 OD=5.8 L=18 		1-09669-054-0 01 1 9907- ● ●
506 INSERT
(B) ID=1.4 OD=2.0 L=18 		1-09669-100-0 01 1 9603-9904 ●
506 INSERT
(C) ID=5 OD=5.9 L=16 		1-09669-122-0 01 1 9603- ●
507 PLUG; UNION
PT1/4 		9-99204-513-0 01 1 9603-9904 ●
511 TUBE; CORRUGATE
L TYPE ENG<90L> SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 9905-9910 ● ●
511 TUBE; CORRUGATE
L TYPE ENG<90L> SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 9911- ●
511 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-83129-335-0 AR 1 9811-9904 ●
511 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87410-085-0 AR 1 9811-9904 ●
511 TUBE; CORRUGATE
SERVICED BY L=800 ID=7 		1-83129-031-1 AR 1 9603- ● ●
511 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 AR 1 9905- ● ●

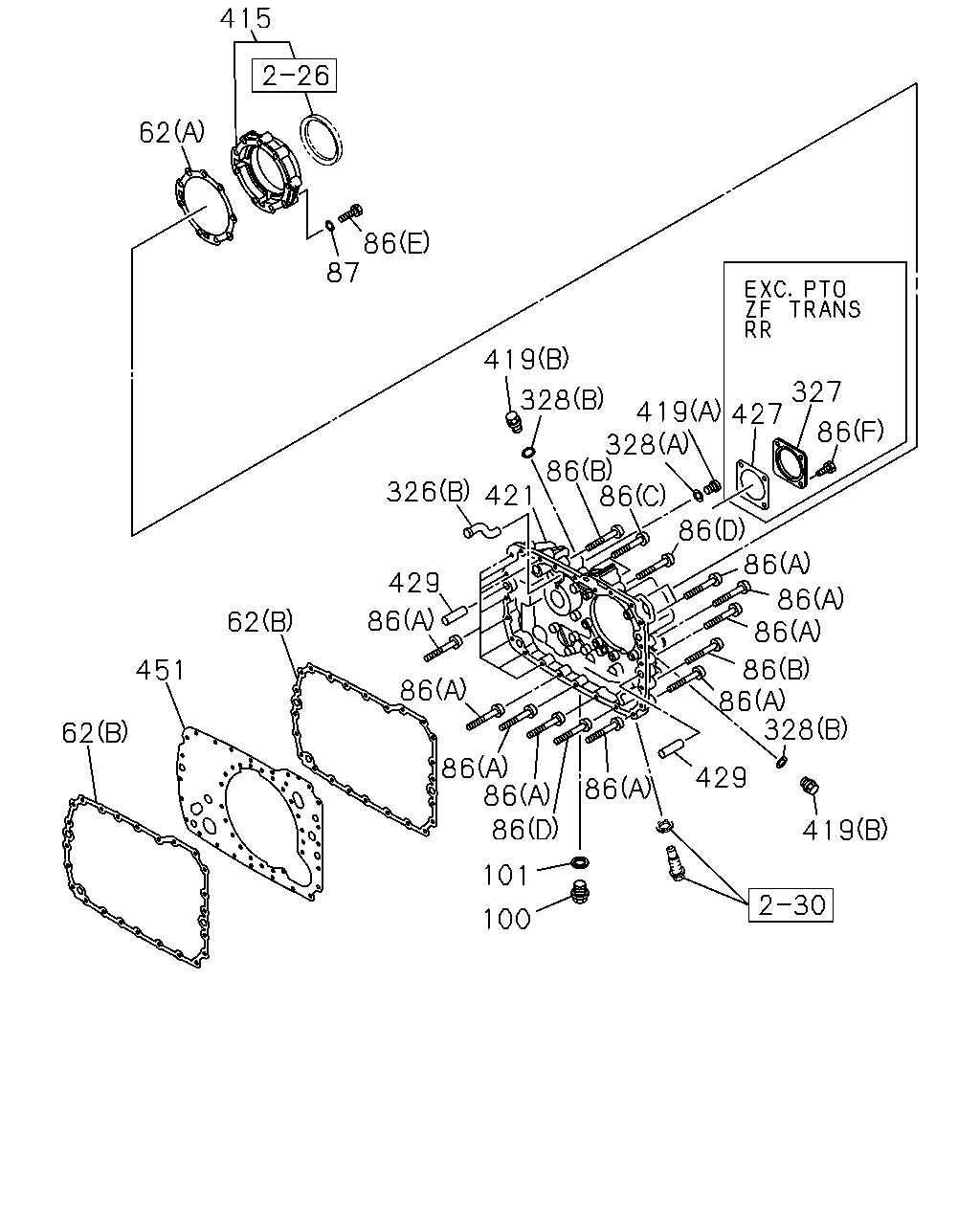

çizim 8447
415 62 86 87 419 327 427 328 419 328 86 86 86 86 86 326 421 429 86 86 86 62 86 86 328 451 86 62 86 86 86 429 86 419 101 100
BalonParca AdiParca NoAdetTipApplied Date A B
62 GASKET; RR COVER
ALSO INCLUDED IN GASKET SET(M/T). (A) 		1-33132-065-0 02 1 9603-9707 ●
62 GASKET; RR COVER
ALSO INCLUDED IN GASKET SET(M/T). EXC. PTO ZF TRANS RR(BDM) (A) 		1-33132-065-0 02 1 9708-9904 ●
62 GASKET; RR COVER
ALSO INCLUDED IN GASKET SET(M/T). (A) 		1-33139-053-0 01 1 9603- ●
62 GASKET; RR COVER
ALSO INCLUDED IN GASKET SET(M/T). PTO ZF TRANS RR(BDM) (B) 		1-33119-399-0 02 1 9708-9904 ●
62 GASKET; RR COVER
ALSO INCLUDED IN GASKET SET(M/T). (B) 		1-33119-399-0 02 1 9905- ●
86 BOLT; RR COVER
(A) 		1-33119-266-0 18 1 9603- ●
86 BOLT; RR COVER
(E) 		1-33139-054-0 09 1 9603- ●
86 BOLT; RR COVER
(B) 		1-33139-056-0 02 1 9603- ●
86 BOLT; RR COVER
(C) M10X110 		1-33139-057-0 02 1 9603- ●
86 BOLT; RR COVER
(D) M10X50 		1-33139-058-0 02 1 9603- ●
86 BOLT; RR COVER
EXC. PTO ZF TRANS RR(BDM) (F) M12X28 		1-33139-051-0 04 1 9603-9707 ●
86 BOLT; RR COVER
EXC. PTO ZF TRANS RR(BDM) (F) M12X25 		1-33119-400-0 04 1 9708-9904 ●
86 BOLT; RR COVER
ASSISTER SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) (F) M12X25 		1-33119-400-0 04 1 9905- ●
87 WASHER; LK,RR COVER 1-09469-010-0 09 1 9603- ●
100 PLUG; DRAIN RR COVER 1-33119-268-0 01 1 9603- ●
101 GASKET; DRAIN RR COVER
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-264-0 01 1 9603- ●
326 NOZZLE; OIL,OUTLET
(A) 		1-33119-282-0 01 1 9603- ●
326 NOZZLE; OIL,OUTLET
(B) 		1-33139-021-0 01 1 9603- ●
327 COVER; RR,COUNTER
EXC. PTO ZF TRANS RR(BDM) 		1-33131-165-0 01 1 9603-9904 ●
327 COVER; RR,COUNTER
ASSISTER SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) 		1-33131-165-0 01 1 9905- ●
328 GASKET; PLUG
(B) 		1-33119-249-0 02 1 9603- ●
328 GASKET; PLUG
(C) 		1-33119-264-0 03 1 9603-9707 ●
328 GASKET; PLUG
PTO ZF TRANS RR(BDM) (C) 		1-33119-264-0 02 1 9708-9904 ●
328 GASKET; PLUG
(C) 		1-33119-264-0 02 1 9905-9906 ●
328 GASKET; PLUG
(C) 		1-33119-264-0 01 1 9907- ●
328 GASKET; PLUG
(A) 		1-33139-023-0 01 1 9603- ●
328 GASKET; PLUG
EXC. PTO ZF TRANS RR(BDM) (C) 		1-33119-264-0 03 1 9708-9904 ●
415 COVER; BRG 1-33159-039-0 01 1 9603- ●
419 PLUG; RR COVER
(B) 		1-33119-171-0 02 1 9603- ●
419 PLUG; RR COVER
(A) 		1-34119-008-0 01 1 9603- ●
421 COVER; RR,TRANS 1-33131-219-0 01 1 9603-9904 ●
421 COVER; RR,TRANS 1-33131-244-0 01 1 9905- ●
427 GASKET; RR COVER
EXC. PTO ZF TRANS RR(BDM) 		1-33132-054-0 01 1 9603-9904 ●
427 GASKET; RR COVER
ASSISTER SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) 		1-33132-054-0 01 1 9905- ●
429 PIN; STRAIGHT 1-33119-265-0 07 1 9603- ●
451 PLATE; RR COVER 1-33139-055-0 01 1 9603- ●

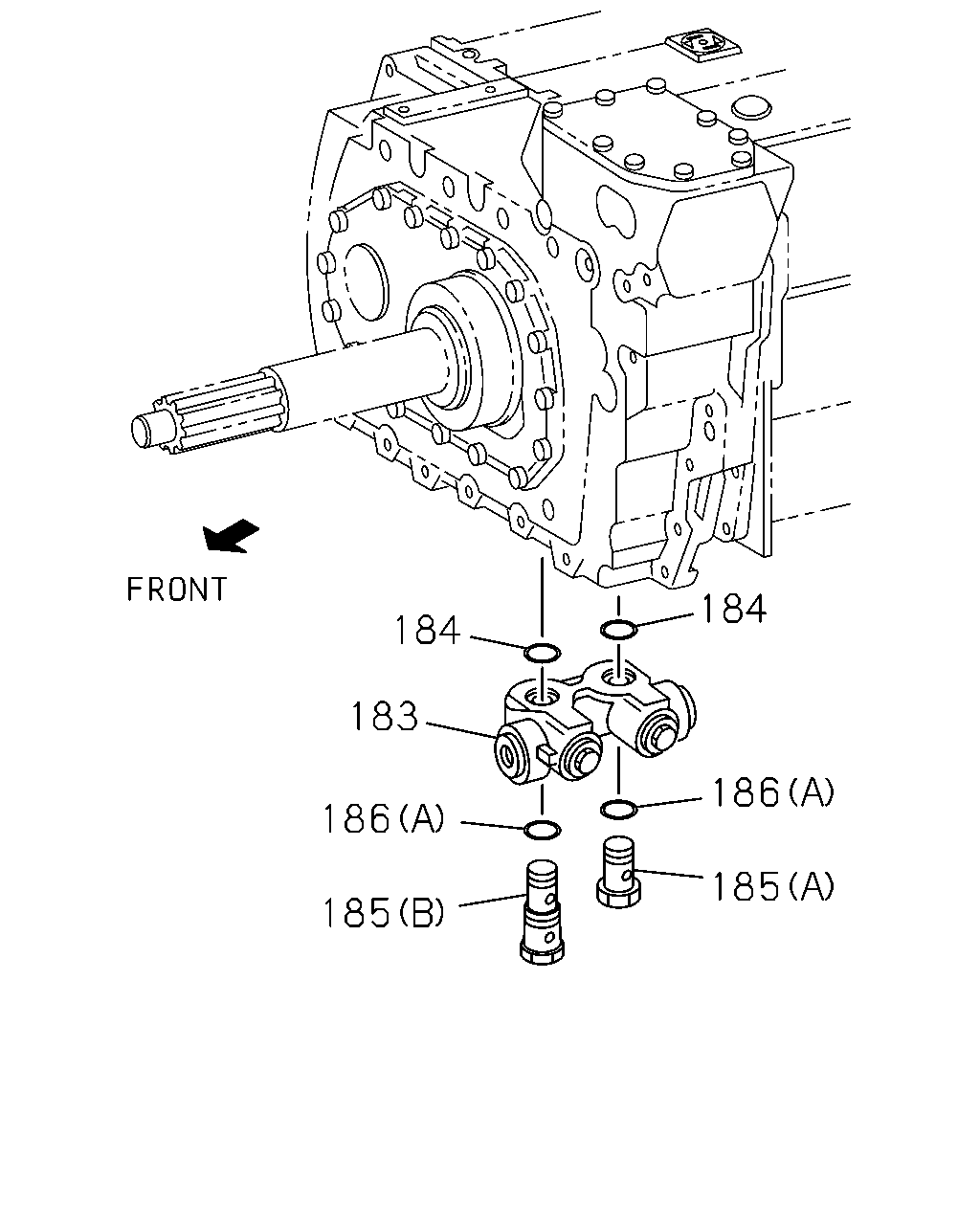

çizim 38790
184 184 183 186 186 185 185
BalonParca AdiParca NoAdetTipApplied Date A B
183 VALVE; BYPASS,TRANS 1-32569-046-0 01 1 9603-9906 ●
183 VALVE; BYPASS,TRANS 1-32569-046-0 01 1 9907- ● ●
184 GASKET; BYPASS VLV 1-32568-003-0 02 1 9603-9906 ●
184 GASKET; BYPASS VLV 1-32568-003-0 02 1 9907- ● ●
185 UNION; SCREW,BYPASS VLV
(A) M22 		1-32567-011-0 01 1 9603-9906 ●
185 UNION; SCREW,BYPASS VLV
(A) M22 		1-32567-011-0 01 1 9907- ● ●
185 UNION; SCREW,BYPASS VLV
(B) L=67 		1-32567-014-0 01 1 9603-9701 ●
185 UNION; SCREW,BYPASS VLV
(B) 		1-32567-016-0 01 1 9702-9906 ●
185 UNION; SCREW,BYPASS VLV
(B) 		1-32567-016-0 01 1 9907- ● ●
186 RING; SEAL
(B) ID=22 		1-32568-001-0 04 1 9603-9906 ●
186 RING; SEAL
(B) ID=22 		1-32568-001-0 04 1 9907- ● ●
186 RING; SEAL
(A) ID=22 		1-32568-002-0 02 1 9603-9906 ●
186 RING; SEAL
(A) ID=22 		1-32568-002-0 02 1 9907- ● ●

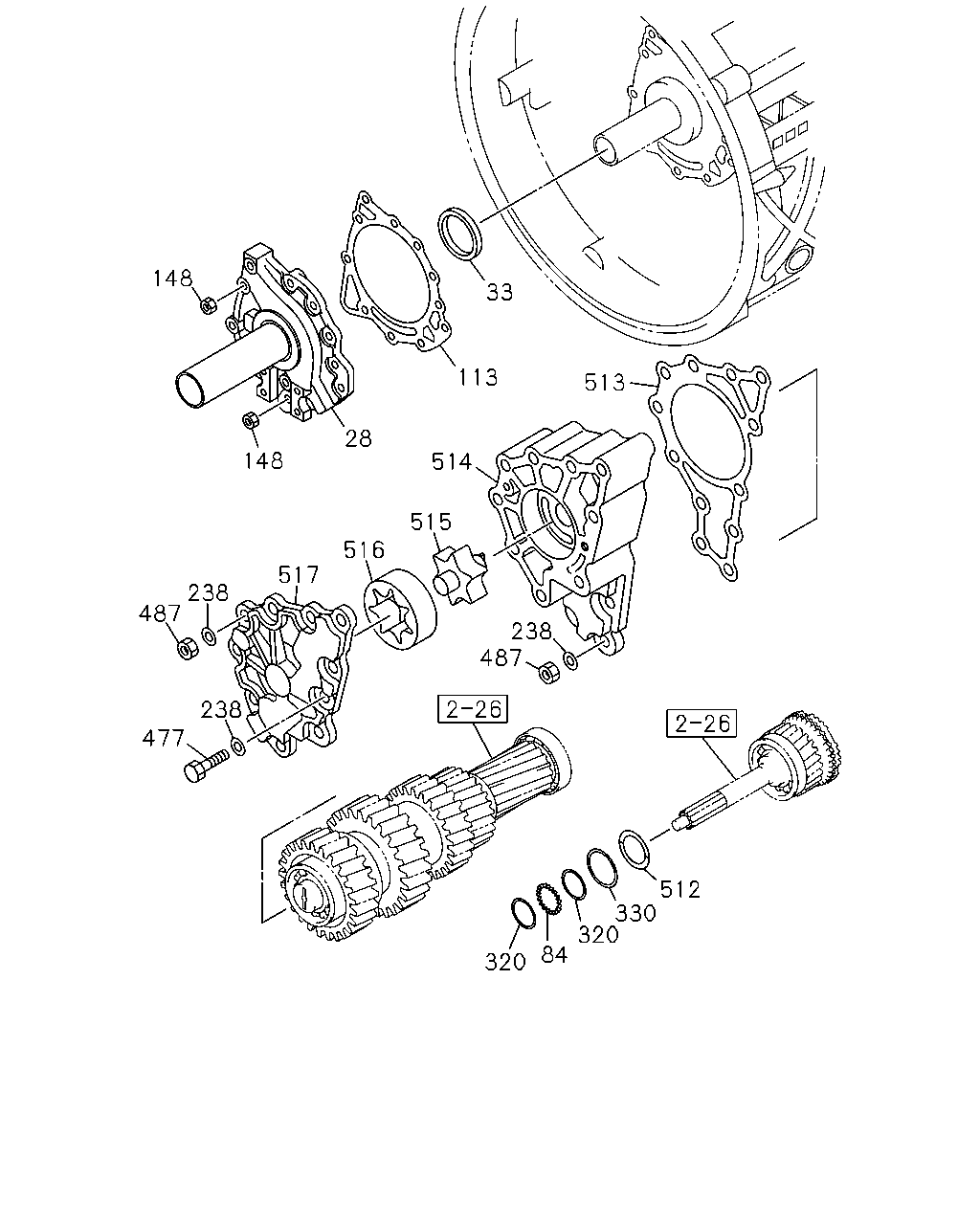

çizim 40812
148 33 113 513 28 148 514 515 516 517 238 487 238 487 238 477 512 330 320 84 320
BalonParca AdiParca NoAdetTipApplied Date A B
28 COVER; FRT,TRANS CASE 1-33121-149-0 01 1 9603-9707 ●
28 COVER; FRT,TRANS CASE
PTO ZF TRANS RR(BDM) 		1-33121-149-0 01 1 9708-9904 ●
28 COVER; FRT,TRANS CASE 1-33121-149-0 01 1 9905- ●
28 COVER; FRT,TRANS CASE
EXC. PTO ZF TRANS RR(BDM) 		1-33121-132-0 01 1 9708-9904 ●
33 SEAL; OIL,FRT COVER,T/M
ALSO INCLUDED IN GASKET SET(M/T). 		1-33219-058-0 01 1 9603-9805 ●
33 SEAL; OIL,FRT COVER,T/M
ALSO INCLUDED IN GASKET SET(M/T). 		1-33219-248-0 01 1 9806- ●
84 SPACER; COVER,TRANS 1-33129-006-0 01 1 9603- ●
113 GASKET; FRT COVER TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). 		1-33122-018-0 01 1 9603- ●
148 NUT 1-33529-056-0 11 1 9603- ●
238 WASHER; PL 1-09469-010-0 14 1 9603- ●
320 WASHER; COVER 1-33129-007-0 02 1 9603- ●
330 RING; RET 1-33219-030-0 01 1 9603-9707 ●
330 RING; RET
EXC. PTO ZF TRANS RR(BDM) 		1-33219-030-0 01 1 9708-9904 ●
477 BOLT; OIL PUMP 1-33529-055-0 02 1 9603- ●
487 NUT; COVER,OIL PUMP 1-33529-056-0 12 1 9603- ●
512 WASHER; THRUST
ASSISTER SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) T=4.20 		1-33219-144-0 AR 1 9603-9707 ●
512 WASHER; THRUST
EXC. PTO ZF TRANS RR(BDM) T=4.20 		1-33219-144-0 AR 1 9708-9904 ●
512 WASHER; THRUST
ASSISTER SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) T=4.15 		1-33219-145-0 AR 1 9603-9707 ●
512 WASHER; THRUST
EXC. PTO ZF TRANS RR(BDM) T=4.15 		1-33219-145-0 AR 1 9708-9904 ●
512 WASHER; THRUST
ASSISTER SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) T=4.10 		1-33219-146-0 AR 1 9603-9707 ●
512 WASHER; THRUST
EXC. PTO ZF TRANS RR(BDM) T=4.10 		1-33219-146-0 AR 1 9708-9904 ●
512 WASHER; THRUST
ASSISTER SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) T=4.05 		1-33219-147-0 AR 1 9603-9707 ●
512 WASHER; THRUST
EXC. PTO ZF TRANS RR(BDM) T=4.05 		1-33219-147-0 AR 1 9708-9904 ●
512 WASHER; THRUST
ASSISTER SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) T=4.00 		1-33219-148-0 AR 1 9603-9707 ●
512 WASHER; THRUST
EXC. PTO ZF TRANS RR(BDM) T=4.00 		1-33219-148-0 AR 1 9708-9904 ●
512 WASHER; THRUST
ASSISTER SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) T=3.95 		1-33219-149-0 AR 1 9603-9707 ●
512 WASHER; THRUST
EXC. PTO ZF TRANS RR(BDM) T=3.95 		1-33219-149-0 AR 1 9708-9904 ●
512 WASHER; THRUST
ASSISTER SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) T=3.90 		1-33219-150-0 AR 1 9603-9707 ●
512 WASHER; THRUST
EXC. PTO ZF TRANS RR(BDM) T=3.90 		1-33219-150-0 AR 1 9708-9904 ●
512 WASHER; THRUST
ASSISTER SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) T=3.85 		1-33219-151-0 AR 1 9603-9707 ●
512 WASHER; THRUST
EXC. PTO ZF TRANS RR(BDM) T=3.85 		1-33219-151-0 AR 1 9708-9904 ●
512 WASHER; THRUST
ASSISTER SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) T=3.80 		1-33219-152-0 AR 1 9603-9707 ●
512 WASHER; THRUST
EXC. PTO ZF TRANS RR(BDM) T=3.80 		1-33219-152-0 AR 1 9708-9904 ●
512 WASHER; THRUST
ASSISTER SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) T=3.75 		1-33219-153-0 AR 1 9603-9707 ●
512 WASHER; THRUST
EXC. PTO ZF TRANS RR(BDM) T=3.75 		1-33219-153-0 AR 1 9708-9904 ●
512 WASHER; THRUST
ASSISTER SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) T=3.70 		1-33219-154-0 AR 1 9603-9707 ●
512 WASHER; THRUST
EXC. PTO ZF TRANS RR(BDM) T=3.70 		1-33219-154-0 AR 1 9708-9904 ●
513 GASKET; HOUSING 1-34159-058-0 01 1 9603- ●
514 HOUSING; OIL PUMP 1-34155-027-0 01 1 9603- ●
515 SHAFT; OIL PUMP 1-34159-070-0 01 1 9603- ●
516 ROTOR; OIL PUMP 1-34159-060-0 01 1 9603- ●
517 COVER; OIL PUMP 1-34159-071-0 01 1 9603- ●

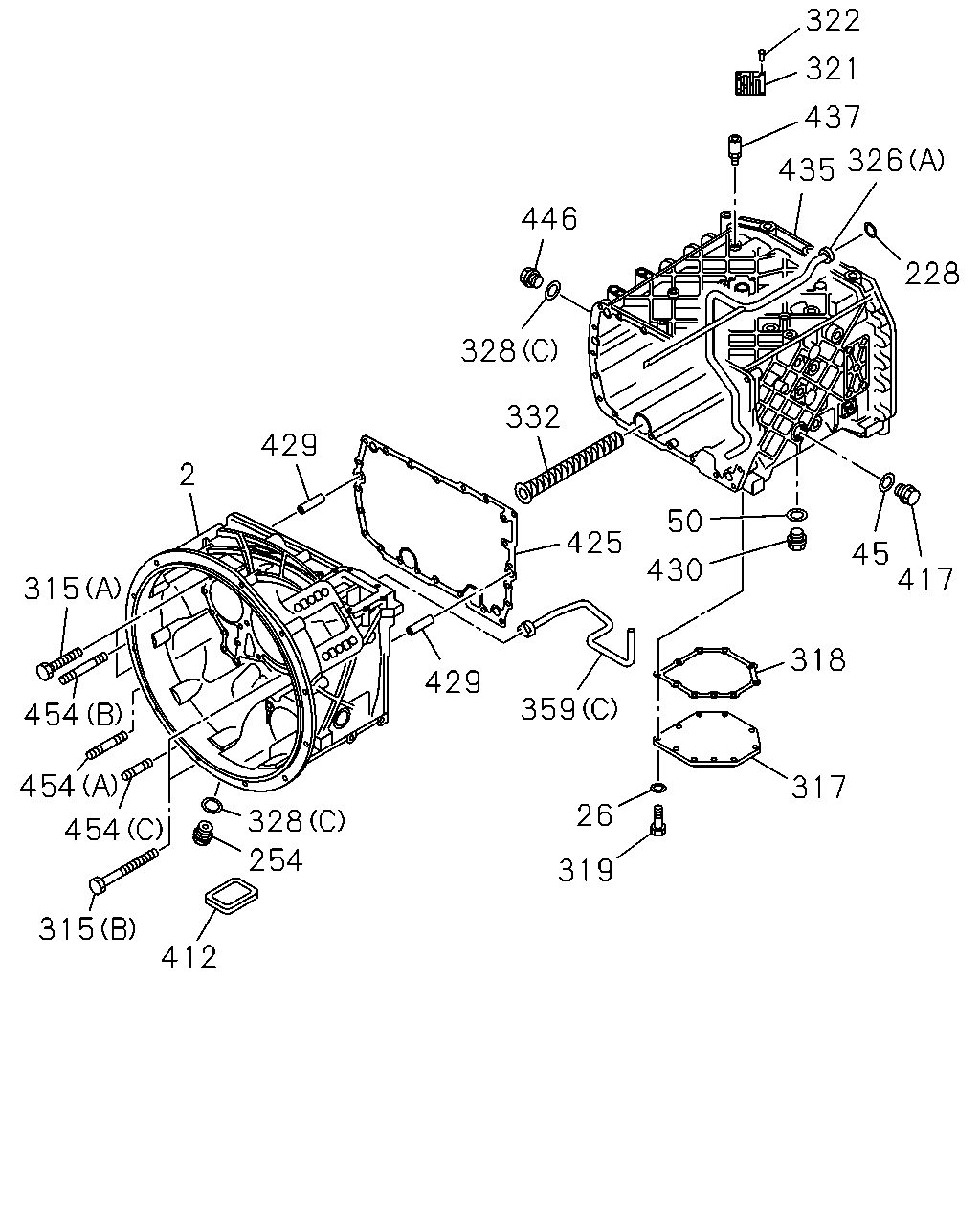

çizim 41119
322 321 437 326 435 446 228 328 332 429 2 50 425 45 417 430 315 318 429 454 359 454 317 26 328 454 254 319 315 412
BalonParca AdiParca NoAdetTipApplied Date A B
2 HOUSING; CLU 1-31111-189-0 01 1 9603-9707 ●
2 HOUSING; CLU
EXC. PTO ZF TRANS RR(BDM) 		1-31111-189-0 01 1 9708-9904 ●
2 HOUSING; CLU
PTO ZF TRANS RR(BDM) 		1-31111-194-0 01 1 9811-9904 ●
2 HOUSING; CLU 1-31111-194-0 01 1 9905- ●
26 WASHER; PL,COVER 1-09469-010-0 10 1 9603- ●
45 GASKET; FILLER PLUG
ALSO INCLUDED IN GASKET SET(M/T). PTO ZF TRANS RR(BDM) 		1-33119-264-0 01 1 9708-9904 ●
45 GASKET; FILLER PLUG
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-264-0 02 1 9905- ●
50 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-264-0 01 1 9603- ●
228 GASKET; NOZZLE 1-33119-273-0 01 1 9603- ●
254 PLUG; DRAIN,OIL 1-33119-263-0 01 1 9603-9707 ●
254 PLUG; DRAIN,OIL 1-33119-376-0 01 1 9708- ●
315 BOLT; CASE
(A) 		1-33119-266-0 15 1 9603- ●
315 BOLT; CASE
(B) 		1-33119-267-0 07 1 9603- ●
317 COVER; CASE 1-33119-274-0 01 1 9603- ●
318 GASKET; COVER 1-33119-275-0 01 1 9603-9904 ●
318 GASKET; COVER 1-33119-409-0 01 1 9905- ●
319 BOLT; COVER 1-33119-276-0 10 1 9603- ●
321 PLATE; NAME 1-33119-277-0 01 1 9603- ●
322 RIVET; NAME PLATE 1-36119-006-0 04 1 9603-9707 ●
322 RIVET; NAME PLATE
PTO ZF TRANS RR(BDM) 		1-33119-398-0 04 1 9708-9807 ●
322 RIVET; NAME PLATE 1-33119-398-0 04 1 9808- ●
322 RIVET; NAME PLATE
EXC. PTO ZF TRANS RR(BDM) 		1-33449-398-0 04 1 9708-9807 ●
326 NOZZLE; OIL,OUTLET
(A) 		1-33119-282-0 01 1 9603- ●
326 NOZZLE; OIL,OUTLET
(B) 		1-33139-021-0 01 1 9603- ●
328 GASKET; PLUG
(B) 		1-33119-249-0 02 1 9603- ●
328 GASKET; PLUG
(C) 		1-33119-264-0 03 1 9603-9707 ●
328 GASKET; PLUG
PTO ZF TRANS RR(BDM) (C) 		1-33119-264-0 02 1 9708-9904 ●
328 GASKET; PLUG
(C) 		1-33119-264-0 02 1 9905-9906 ●
328 GASKET; PLUG
(C) 		1-33119-264-0 01 1 9907- ●
328 GASKET; PLUG
(A) 		1-33139-023-0 01 1 9603- ●
328 GASKET; PLUG
EXC. PTO ZF TRANS RR(BDM) (C) 		1-33119-264-0 03 1 9708-9904 ●
332 FILTER; OIL 1-33119-157-0 01 1 9603-9707 ●
332 FILTER; OIL
PTO ZF TRANS RR(BDM) 		1-33119-370-0 01 1 9708-9904 ●
332 FILTER; OIL 1-33119-370-0 01 1 9905- ●
332 FILTER; OIL
EXC. PTO ZF TRANS RR(BDM) 		1-33119-157-0 01 1 9708-9904 ●
359 PIPE; AIR,TRANS TO UNION
(A) 		1-49115-055-0 01 1 9603-9608 ●
359 PIPE; AIR,TRANS TO UNION
(A) 		1-49117-645-0 01 1 9609-9710 ●
359 PIPE; AIR,TRANS TO UNION
(A) 		1-49118-936-0 01 1 9711-9904 ●
359 PIPE; AIR,TRANS TO UNION
(A) 		1-49119-463-1 01 1 9905- ●
359 PIPE; AIR,TRANS TO UNION
(B) 		1-49115-949-0 01 1 9603-9608 ●
359 PIPE; AIR,TRANS TO UNION
(B) 		1-49117-647-0 01 1 9609-9710 ●
359 PIPE; AIR,TRANS TO UNION
(B) 		1-49118-938-0 01 1 9711-9904 ●
359 PIPE; AIR,TRANS TO UNION
(B) 		1-49119-464-1 01 1 9905- ●
359 PIPE; AIR,TRANS TO UNION
(C) 		1-33119-395-0 01 1 9708- ●
412 CAP; CLU HSG 1-31119-022-0 01 1 9603- ●
417 PLUG; OIL FILLER,TRANS
PTO ZF TRANS RR(BDM) 		1-33119-268-0 01 1 9708-9904 ●
417 PLUG; OIL FILLER,TRANS 1-33119-268-0 02 1 9905- ●
425 GASKET; CLU HSG TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-262-0 01 1 9603- ●
429 PIN; STRAIGHT 1-33119-265-0 07 1 9603- ●
430 PLUG; OIL DRAIN 1-33119-268-0 01 1 9603- ●
435 CASE; TRANS 1-33111-275-0 01 1 9603-9904 ●
435 CASE; TRANS 1-33111-286-0 01 1 9905- ●
437 BREATHER; TRANS 1-36122-004-0 01 1 9603- ●
446 PLUG; CASE,TRANS 1-33119-268-0 02 1 9603-9707 ●
446 PLUG; CASE,TRANS
PTO ZF TRANS RR(BDM) 		1-33119-268-0 01 1 9708-9904 ●
446 PLUG; CASE,TRANS
EXC. PTO ZF TRANS RR(BDM) 		1-33119-268-0 02 1 9708-9904 ●
454 STUD; CLU HSG
PTO ZF TRANS RR(BDM) (A) M10 L=50 		1-33119-381-0 04 1 9708-9904 ●
454 STUD; CLU HSG
(A) M10 L=50 		1-33119-381-0 04 1 9905- ●
454 STUD; CLU HSG
PTO ZF TRANS RR(BDM) (B) M10 L=80 		1-33119-393-0 08 1 9708-9904 ●
454 STUD; CLU HSG
(B) M10 L=80 		1-33119-393-0 08 1 9905- ●
454 STUD; CLU HSG
PTO ZF TRANS RR(BDM) (C) M10 L=25 		1-33119-394-0 11 1 9708-9904 ●
454 STUD; CLU HSG
(C) M10 L=25 		1-33119-394-0 11 1 9905- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
