5-01 — FRAME AND OTHER PARTS (#55669) — 121 parça

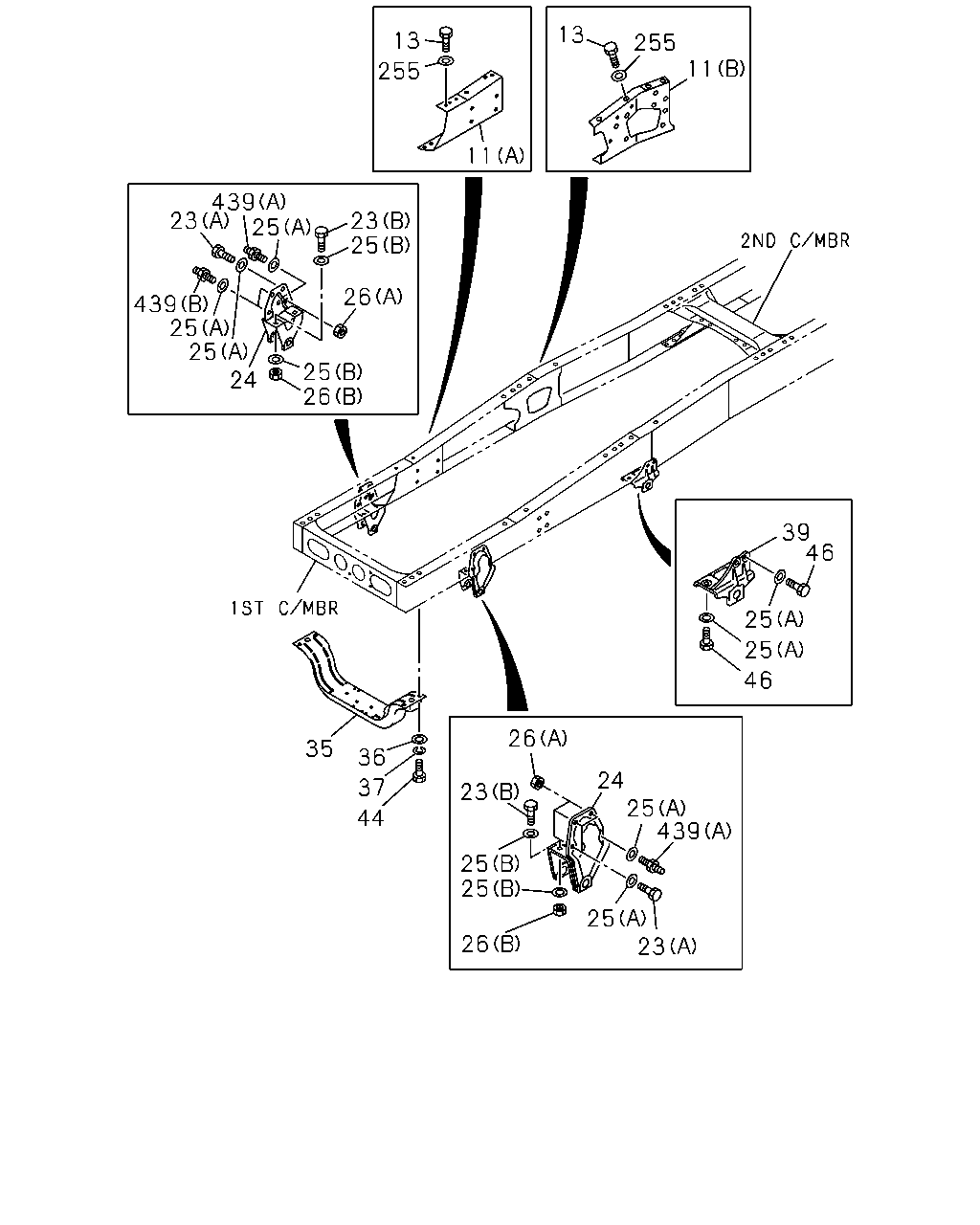

13 255 11 13 255 11 23 25 26 25 26 24 25 25 439 23 439 25 35 36 37 44 23 26 24 25 439 25 23 26 25 25 46 25 25 46 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
11	BRACKET; ENG MTG ENGINE REAR PTO(SV1) (B)	1-53239-139-1	01	1	1008-	●
11	BRACKET; ENG MTG ENGINE REAR PTO(SV1) (B)	8-97618-424-1	01	1	1008-	●
11	BRACKET; ENG MTG 6WG1 TC-R(75L) EXC. ENGINE REAR PTO(SV1) (B)	1-53239-141-1	01	1	1008-	●
11	BRACKET; ENG MTG (B)	1-53239-141-1	01	1	1008-		●	●	●
11	BRACKET; ENG MTG 6WG1 TC-R(75L) EXC. ENGINE REAR PTO(SV1) (B)	1-53239-142-1	01	1	1008-	●
11	BRACKET; ENG MTG (B)	1-53239-142-1	01	1	1008-		●	●	●
11	BRACKET; ENG MTG 6WF1 TC-C(1B8) (A)	8-98146-424-0	01	1	1008-1112	●	●
11	BRACKET; ENG MTG 6WG1 TC-R(75L) EXC. SILENCER LAYOUT REAR VAR1<JAZ> (A)	8-98146-424-0	01	1	1008-1112			●
11	BRACKET; ENG MTG 6WF1 TC-C(1B8) SILENCER LAYOUT REAR VAR1<JAZ> (A)	8-98146-424-0	01	1	1008-1112				●
11	BRACKET; ENG MTG 6WF1 TC-C(1B8) (A)	8-98146-425-0	01	1	1008-1112	●	●
11	BRACKET; ENG MTG 6WG1 TC-R(75L) EXC. SILENCER LAYOUT REAR VAR1<JAZ> (A)	8-98146-425-0	01	1	1008-1112			●
11	BRACKET; ENG MTG 6WF1 TC-C(1B8) SILENCER LAYOUT REAR VAR1<JAZ> (A)	8-98146-425-0	01	1	1008-1112				●
11	BRACKET; ENG MTG 6WG1 TC-R(75L) (A)	1-53211-399-0	01	1	1008-1112	●	●
11	BRACKET; ENG MTG 6WG1 TC-R(75L) SILENCER LAYOUT REAR VAR1<JAZ> (A)	1-53211-399-0	01	1	1008-1112			●	●
11	BRACKET; ENG MTG 6WF1 TC-C(1B8) (A)	1-53211-399-0	01	1	1008-1112			●
11	BRACKET; ENG MTG 6WF1 TC-C(1B8) EXC. SILENCER LAYOUT REAR VAR1<JAZ> (A)	1-53211-399-0	01	1	1008-1112				●
11	BRACKET; ENG MTG (A)	1-53211-399-0	01	1	1201-	●	●	●	●
11	BRACKET; ENG MTG 6WG1 TC-R(75L) (A)	1-53211-400-0	01	1	1008-1112	●	●
11	BRACKET; ENG MTG 6WG1 TC-R(75L) SILENCER LAYOUT REAR VAR1<JAZ> (A)	1-53211-400-0	01	1	1008-1112			●	●
11	BRACKET; ENG MTG 6WF1 TC-C(1B8) (A)	1-53211-400-0	01	1	1008-1112			●
11	BRACKET; ENG MTG 6WF1 TC-C(1B8) EXC. SILENCER LAYOUT REAR VAR1<JAZ> (A)	1-53211-400-0	01	1	1008-1112				●
11	BRACKET; ENG MTG (A)	1-53211-400-0	01	1	1201-	●	●	●	●
13	BOLT; BRKT,ENG MTG M14X40	0-20951-440-0	06	1	1008-	●	●
13	BOLT; BRKT,ENG MTG 6WG1 TC-R(75L) SILENCER LAYOUT REAR VAR1<JAZ> M14X40	0-20951-440-0	06	1	1008-			●
13	BOLT; BRKT,ENG MTG SILENCER LAYOUT REAR VAR1<JAZ> M14X40	0-20951-440-0	06	1	1008-				●
13	BOLT; BRKT,ENG MTG 6WG1 TC-R(75L) EXC. SILENCER LAYOUT REAR VAR1<JAZ> M14X40	0-20951-440-0	04	1	1008-			●
13	BOLT; BRKT,ENG MTG 6WF1 TC-C(1B8) M14X40	0-20951-440-0	04	1	1008-			●
13	BOLT; BRKT,ENG MTG 6WF1 TC-C(1B8) EXC. SILENCER LAYOUT REAR VAR1<JAZ> M14X40	0-20951-440-0	04	1	1008-				●
23	BOLT; BRKT,SPR (A) M14X40	0-20951-440-0	04	1	1008-	●	●	●	●
23	BOLT; BRKT,SPR (B) M16X50	0-20951-650-0	04	1	1008-	●	●	●	●
24	BRACKET; FRT SPR,FRT	1-53351-237-1	01	1	1008-	●	●	●	●
24	BRACKET; FRT SPR,FRT	1-53351-238-1	01	1	1008-	●	●	●	●
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-316-0	08	1	1008-	●	●	●	●
25	WASHER; PL,BRKT (A) ID=15	8-98010-627-1	16	1	1008-	●	●	●	●
26	NUT; BRKT,SPR (A) M14	0-91110-514-0	12	1	1008-	●	●	●	●
26	NUT; BRKT,SPR (B) M16	0-91110-516-0	04	1	1008-	●	●	●	●
35	MEMBER; UNDER	1-53174-263-2	01	1	1008-	●	●	●	●
36	WASHER; PL,UNDER MBR ID=17	9-09164-516-0	04	1	1008-	●	●	●	●
37	WASHER; LK,UNDER MBR ID=16.2	0-91510-816-0	04	1	1008-	●	●	●	●
39	BRACKET; FRT SPR,RR	1-53352-179-0	01	1	1008-	●	●	●	●
39	BRACKET; FRT SPR,RR	1-53352-180-0	01	1	1008-	●	●	●	●
44	BOLT; UNDER MBR M16X60	0-20951-660-0	04	1	1008-	●	●	●	●
46	BOLT; BRKT FIX M14X50	0-20951-450-0	08	1	1008-	●	●	●	●
255	WASHER; PL,BRKT ID=15	8-98010-627-1	06	1	1008-1112	●	●
255	WASHER; PL,BRKT ID=15	8-98010-627-1	06	1	1201-	●	●
255	WASHER; PL,BRKT SILENCER LAYOUT REAR VAR1<JAZ> ID=15	8-98010-627-1	06	1	1201-				●
255	WASHER; PL,BRKT SILENCER LAYOUT REAR VAR1<JAZ> 6WG1 TC-R(75L) ID=15	8-98010-627-1	10	1	1008-1112			●
255	WASHER; PL,BRKT SILENCER LAYOUT REAR VAR1<JAZ> ID=15	8-98010-627-1	10	1	1008-1112				●
255	WASHER; PL,BRKT SILENCER LAYOUT REAR VAR1<JAZ> 6WG1 TC-R(75L) ID=15	8-98010-627-1	10	1	1201-			●
255	WASHER; PL,BRKT 6WG1 TC-R(75L) EXC. SILENCER LAYOUT REAR VAR1<JAZ> ID=15	8-98010-627-1	08	1	1008-			●
255	WASHER; PL,BRKT 6WF1 TC-C(1B8) ID=15	8-98010-627-1	08	1	1008-			●
255	WASHER; PL,BRKT 6WF1 TC-C(1B8) EXC. SILENCER LAYOUT REAR VAR1<JAZ> ID=15	8-98010-627-1	08	1	1008-				●
439	STUD; BRKT,SPR (A) M12X35,M14X45 L=100	1-09029-075-0	02	1	1008-	●	●	●	●
439	STUD; BRKT,SPR (B) M12X25,M14X45 L=81	1-09029-103-0	02	1	1008-	●	●	●	●

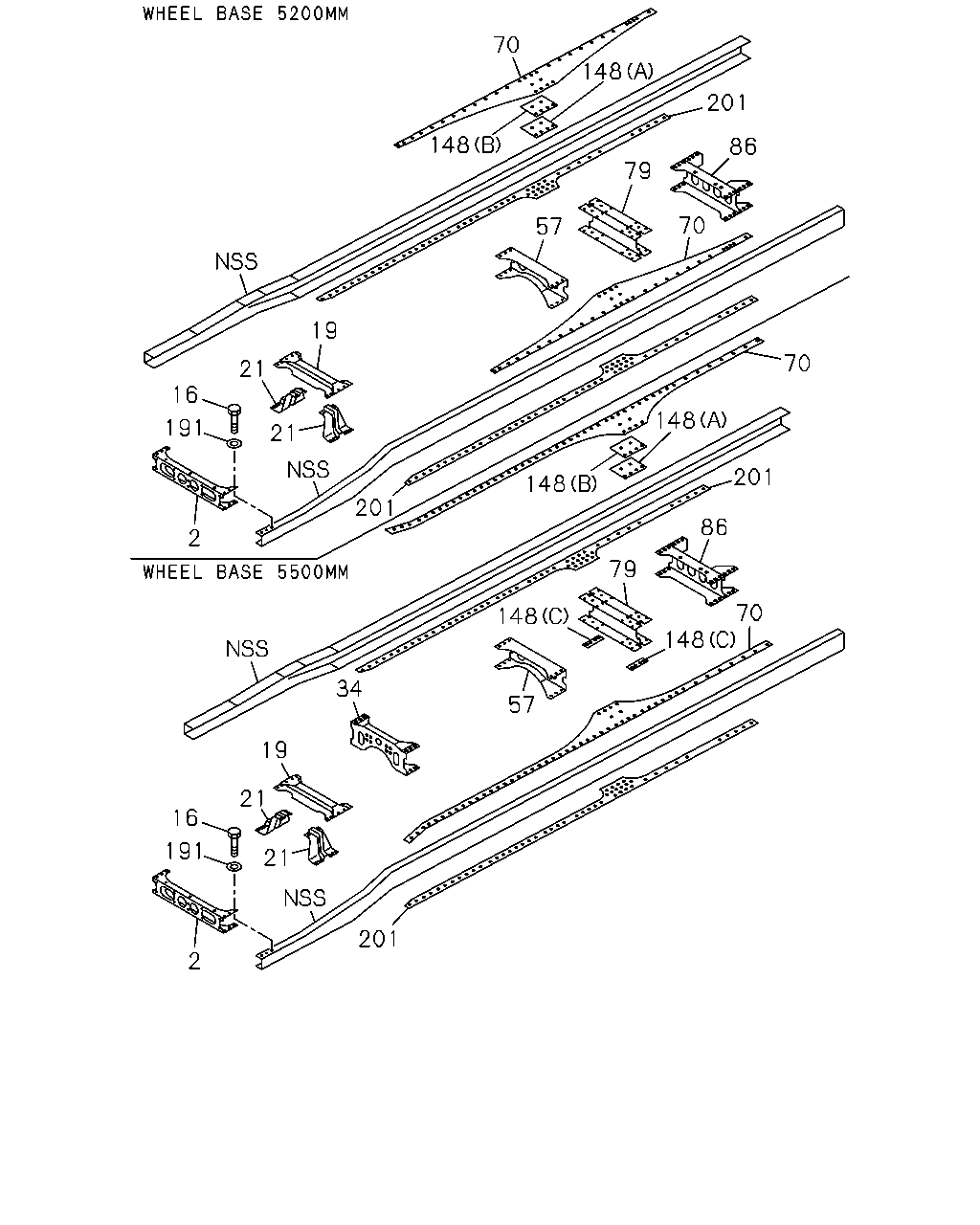

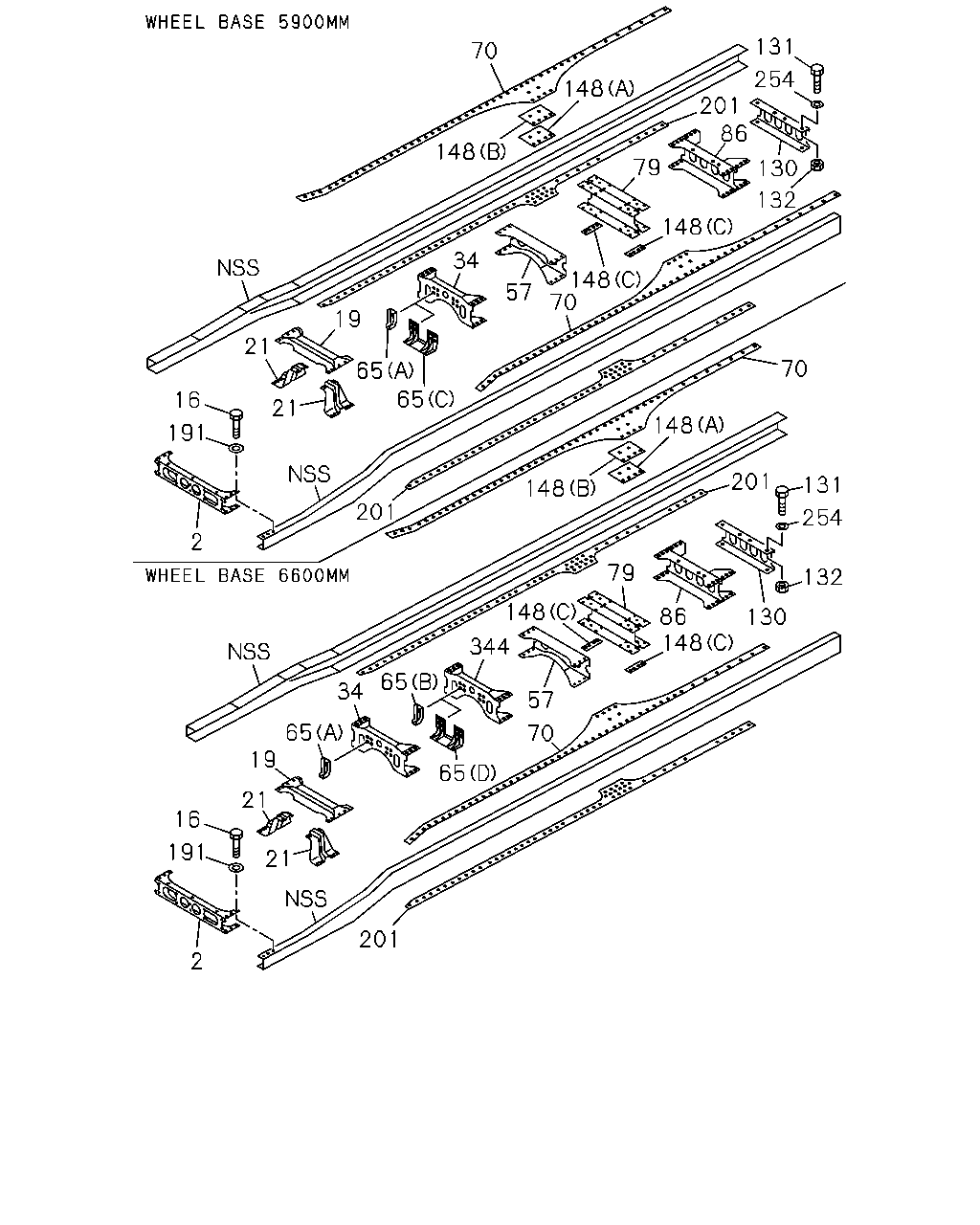

70 148 131 254 201 86 130 132 148 79 148 70 57 34 148 19 65 65 21 21 16 191 2 201 148 148 70 131 201 254 132 130 148 86 79 148 344 65 34 65 19 21 65 70 57 201 2 21 191 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	MEMBER; CROSS,1ST 6WF1 TC-C(1B8)	1-53181-975-7	01	1	1008-	●	●	●	●
2	MEMBER; CROSS,1ST 6WG1 TC-R(75L)	8-98057-315-3	01	1	1008-	●	●	●	●
16	BOLT; 1ST C/MBR TO S/MBR M14X40	0-20951-440-0	02	1	1008-	●	●	●	●
19	MEMBER; CROSS,2ND	1-53174-221-0	01	1	1008-	●	●	●	●
21	GUSSET; 2ND CROSS	1-53164-208-0	02	1	1008-	●	●	●	●
34	MEMBER; CROSS,3RD	1-53182-070-1	01	1	1008-		●	●	●
57	MEMBER; CROSS,RR SUSP FRT	1-53171-685-3	01	1	1008-	●	●	●	●
65	BRACKET; CENTER BRG MJT7S M/T(Y3E) (A) L=325	1-53271-341-0	02	1	1008-1112			●
65	BRACKET; CENTER BRG (A) L=325	1-53271-341-0	02	1	1008-1112				●
65	BRACKET; CENTER BRG MJT7S M/T(Y3E) (A) L=325	1-53271-341-0	02	1	1201-			●
65	BRACKET; CENTER BRG MJX16P M/T(Y3Z) (C)	8-98140-252-0	01	1	1008-			●
65	BRACKET; CENTER BRG MJT7S M/T(Y3E) (B) L=350	1-53271-363-0	02	1	1008-				●
65	BRACKET; CENTER BRG MJX16P M/T(Y3Z) (D)	8-98142-203-0	01	1	1008-				●
70	GUSSET; TRUNNION,UPR	8-98138-147-0	02	1	1008-	●
70	GUSSET; TRUNNION,UPR	8-98138-148-0	02	1	1008-		●
70	GUSSET; TRUNNION,UPR	8-98164-250-0	02	1	1008-			●
70	GUSSET; TRUNNION,UPR	1-53161-901-1	02	1	1008-				●
79	MEMBER; CROSS,TRUNNION ASM	1-53182-054-1	01	1	1008-	●	●	●	●
86	MEMBER; CROSS,RR SUSP RR	1-53181-134-2	01	1	1008-	●	●	●	●
130	MEMBER; CROSS,END	1-53171-876-4	01	1	1008-			●	●
131	BOLT; END C/MBR M14X40	0-20951-440-0	02	1	1008-			●	●
131	BOLT; END C/MBR M14X50	0-20951-450-0	02	1	1008-			●	●
132	NUT; END C/MBR M14	0-91110-514-0	04	1	1008-			●	●
148	SPACER; C/MBR (A) T=7.0	1-53168-486-0	02	1	1008-	●	●	●	●
148	SPACER; C/MBR (B) T=8.0	1-53168-508-0	02	1	1008-	●	●	●	●
148	SPACER; C/MBR (C)	1-53168-350-0	02	1	1008-		●	●	●
191	WASHER; PL,1ST C/MBR TO S/MBR ID=15	8-98010-627-1	02	1	1008-	●	●	●	●
201	GUSSET; C/MBR	8-98138-151-1	02	1	1008-	●
201	GUSSET; C/MBR	8-98138-152-0	02	1	1008-		●
201	GUSSET; C/MBR	8-98138-153-1	02	1	1008-			●
201	GUSSET; C/MBR	8-98141-875-1	02	1	1008-				●
254	WASHER; PL,C/MBR ID=15	8-98010-627-1	04	1	1008-			●	●
344	MEMBER; CROSS,4TH	1-53182-070-1	01	1	1008-				●

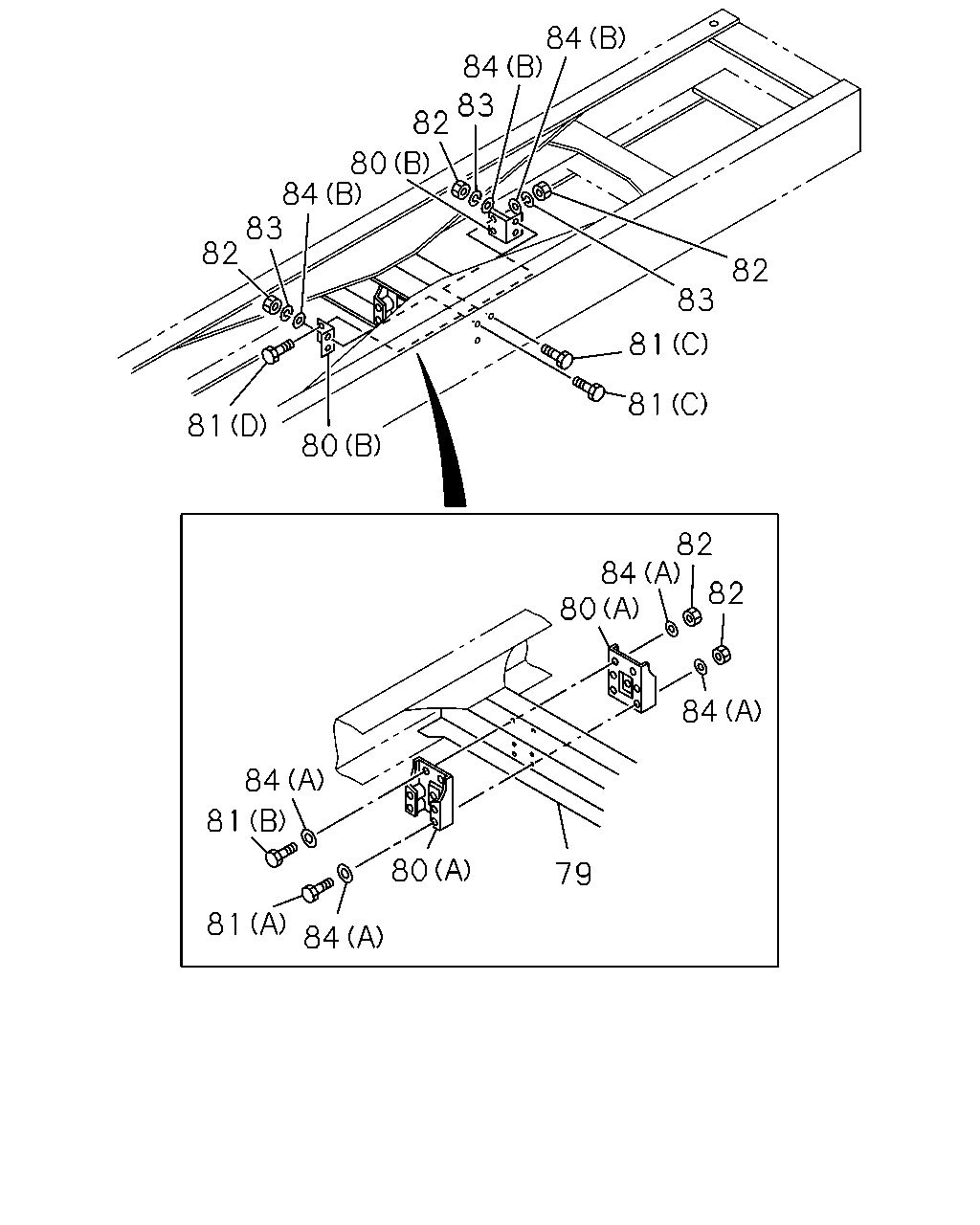

84 84 83 82 80 84 83 82 81 80 81 81 83 82 82 82 84 80 84 79 80 84 81 81 84

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
79	MEMBER; CROSS,TRUNNION ASM	1-53182-054-1	01	1	1008-	●	●	●	●
80	BRACKET; C/MBR (B)	1-53167-288-1	04	1	1008-	●	●	●	●
80	BRACKET; C/MBR (A)	1-53363-031-2	02	1	1008-	●	●	●	●
81	BOLT; BRKT (B) M14X50	0-20951-450-0	02	1	1008-	●	●	●	●
81	BOLT; BRKT (D) M14X60	0-20951-460-0	04	1	1008-	●	●	●	●
81	BOLT; BRKT (A) M14X205	1-09000-147-0	02	1	1008-	●	●	●	●
81	BOLT; BRKT (C) M14X45	9-92061-445-0	08	1	1008-	●	●	●	●
82	NUT; BRKT M14	0-91110-514-0	04	1	1008-	●	●	●	●
82	NUT; BRKT M14	0-91110-514-0	12	1	1008-	●	●	●	●
83	WASHER; LK,BRKT ID=14.2	0-91510-614-0	12	1	1008-	●	●	●	●
84	WASHER; PL,BRKT (A) ID=15	8-98010-627-1	08	1	1008-	●	●	●	●
84	WASHER; PL,BRKT (B) ID=15 OD=26	9-09164-514-0	16	1	1008-1104	●	●	●	●
84	WASHER; PL,BRKT (B) ID=15 OD=26	0-91614-514-0	16	1	1105-	●	●	●	●

70 148 148 201 86 79 70 57 19 21 16 191 21 2 201 148 148 70 201 86 79 148 70 148 57 34 19 21 16 191 21 2 201

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	MEMBER; CROSS,1ST 6WF1 TC-C(1B8)	1-53181-975-7	01	1	1008-	●	●	●	●
2	MEMBER; CROSS,1ST 6WG1 TC-R(75L)	8-98057-315-3	01	1	1008-	●	●	●	●
16	BOLT; 1ST C/MBR TO S/MBR M14X40	0-20951-440-0	02	1	1008-	●	●	●	●
19	MEMBER; CROSS,2ND	1-53174-221-0	01	1	1008-	●	●	●	●
21	GUSSET; 2ND CROSS	1-53164-208-0	02	1	1008-	●	●	●	●
34	MEMBER; CROSS,3RD	1-53182-070-1	01	1	1008-		●	●	●
57	MEMBER; CROSS,RR SUSP FRT	1-53171-685-3	01	1	1008-	●	●	●	●
70	GUSSET; TRUNNION,UPR	8-98138-147-0	02	1	1008-	●
70	GUSSET; TRUNNION,UPR	8-98138-148-0	02	1	1008-		●
70	GUSSET; TRUNNION,UPR	8-98164-250-0	02	1	1008-			●
70	GUSSET; TRUNNION,UPR	1-53161-901-1	02	1	1008-				●
79	MEMBER; CROSS,TRUNNION ASM	1-53182-054-1	01	1	1008-	●	●	●	●
86	MEMBER; CROSS,RR SUSP RR	1-53181-134-2	01	1	1008-	●	●	●	●
148	SPACER; C/MBR (A) T=7.0	1-53168-486-0	02	1	1008-	●	●	●	●
148	SPACER; C/MBR (B) T=8.0	1-53168-508-0	02	1	1008-	●	●	●	●
148	SPACER; C/MBR (C)	1-53168-350-0	02	1	1008-		●	●	●
191	WASHER; PL,1ST C/MBR TO S/MBR ID=15	8-98010-627-1	02	1	1008-	●	●	●	●
201	GUSSET; C/MBR	8-98138-151-1	02	1	1008-	●
201	GUSSET; C/MBR	8-98138-152-0	02	1	1008-		●
201	GUSSET; C/MBR	8-98138-153-1	02	1	1008-			●
201	GUSSET; C/MBR	8-98141-875-1	02	1	1008-				●
