◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11272 - CYZ LHD EURO2/3/4 WITH 3STEPS ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-80 - ROAD WHEEL ▶
4-80 — ROAD WHEEL (#55668) — 31 parça

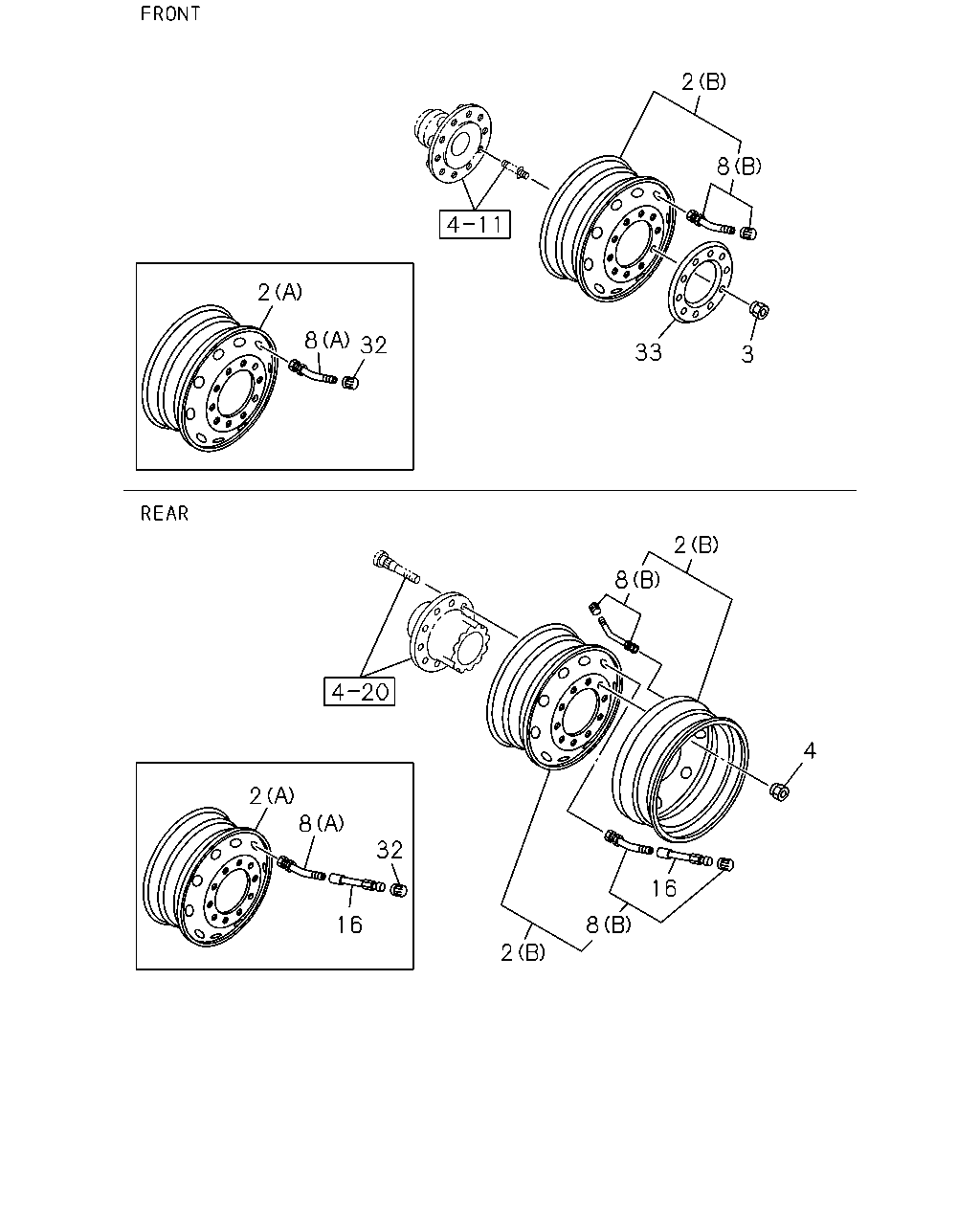

çizim 167204
2 8 33 3 2 8 32 2 8 4 16 8 2 16 32 8 2
BalonParca AdiParca NoAdetTipApplied Date A B
2 WHEEL; DISC
WHEEL 10STUD 9.00X22.5 175-14 TC(FJB) (B) FRONT 		1-42350-764-0 02 1 1008- ●
2 WHEEL; DISC
WHEEL 10STUD 9.00X22.5 175-14 TC(FJB),FT10 9.00X22.5 175-14 RR10 8.25X22.5 165-13(FJH) (B) FRONT 		1-42350-764-0 02 1 1008- ●
2 WHEEL; DISC
WHEEL 10STUD 9.00X22.5 175-14 TC(FJB) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B) SPARE 		1-42350-764-0 01 1 1008- ●
2 WHEEL; DISC
WHEEL 10STUD 9.00X22.5 175-14 TC(FJB),FT10 9.00X22.5 175-14 RR10 8.25X22.5 165-13(FJH) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B) SPARE 		1-42350-764-0 01 1 1008- ●
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) FRONT,REAR 		1-42350-730-0 10 1 1008-1205 ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) FRONT,REAR 		8-98217-247-0 10 1 1206-1407 ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) FRONT,REAR 		8-98281-497-0 10 1 1408- ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE 		1-42350-730-0 01 1 1008-1205 ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE 		8-98217-247-0 01 1 1206-1407 ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE 		8-98281-497-0 01 1 1408- ● ●
2 WHEEL; DISC
WHEEL 10STUD 9.00X22.5 175-14 TC(FJB) (B) REAR 		1-42350-764-0 08 1 1008- ● ●
2 WHEEL; DISC
FT10 9.00X22.5 175-14 RR10 8.25X22.5 165-13(FJH) (B) REAR 		1-42350-638-1 08 1 1008- ●
3 NUT; WHEEL,FRT AXLE
M22X1.5 		1-42333-055-0 20 1 1008- ● ●
4 NUT; WHEEL,RR AXLE
M22X1.5 		1-42333-055-0 40 1 1008- ● ●
8 VALVE; TIRE
WHEEL 10STUD 9.00X22.5 175-14 TC(FJB) (B) FRONT 		1-42370-041-1 02 1 1008- ●
8 VALVE; TIRE
WHEEL 10STUD 9.00X22.5 175-14 TC(FJB),FT10 9.00X22.5 175-14 RR10 8.25X22.5 165-13(FJH) (B) FRONT 		1-42370-041-1 02 1 1008- ●
8 VALVE; TIRE
WHEEL 10STUD 9.00X22.5 175-14 TC(FJB) (B) REAR 		1-42370-041-1 08 1 1008- ●
8 VALVE; TIRE
WHEEL 10STUD 9.00X22.5 175-14 TC(FJB),FT10 9.00X22.5 175-14 RR10 8.25X22.5 165-13(FJH) (B) REAR 		1-42370-041-1 08 1 1008- ●
8 VALVE; TIRE
WHEEL 10STUD 9.00X22.5 175-14 TC(FJB) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B) SPARE 		1-42370-041-1 01 1 1008- ●
8 VALVE; TIRE
WHEEL 10STUD 9.00X22.5 175-14 TC(FJB),FT10 9.00X22.5 175-14 RR10 8.25X22.5 165-13(FJH) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B) SPARE 		1-42370-041-1 01 1 1008- ●
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) FRONT,REAR 		1-42370-020-3 10 1 1008-1205 ● ●
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) FRONT,REAR 		1-42370-048-0 10 1 1206-1407 ● ●
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) FRONT,REAR 		1-42370-019-3 10 1 1408- ● ●
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE 		1-42370-020-3 01 1 1008-1205 ● ●
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE 		1-42370-048-0 01 1 1206-1407 ● ●
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE 		1-42370-019-3 01 1 1408- ● ●
16 HOLDER; TIRE VALVE,DISC WHEEL
L=170 		8-98167-052-0 04 1 1008- ● ●
32 CAP; VALVE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) FRONT,REAR 		1-42374-001-0 10 1 1008- ● ●
32 CAP; VALVE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE 		1-42374-001-0 01 1 1008- ● ●
33 COVER; WHEEL
EXC. COLOMBIA EQUIPMENT(CB7) 		1-43139-065-0 02 1 1008-1008 ● ●
33 COVER; WHEEL 1-43139-065-1 02 1 1009- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
