◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11272 - CYZ LHD EURO2/3/4 WITH 3STEPS ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶
4-50 — FRONT SUSPENSION (#55664) — 50 parça

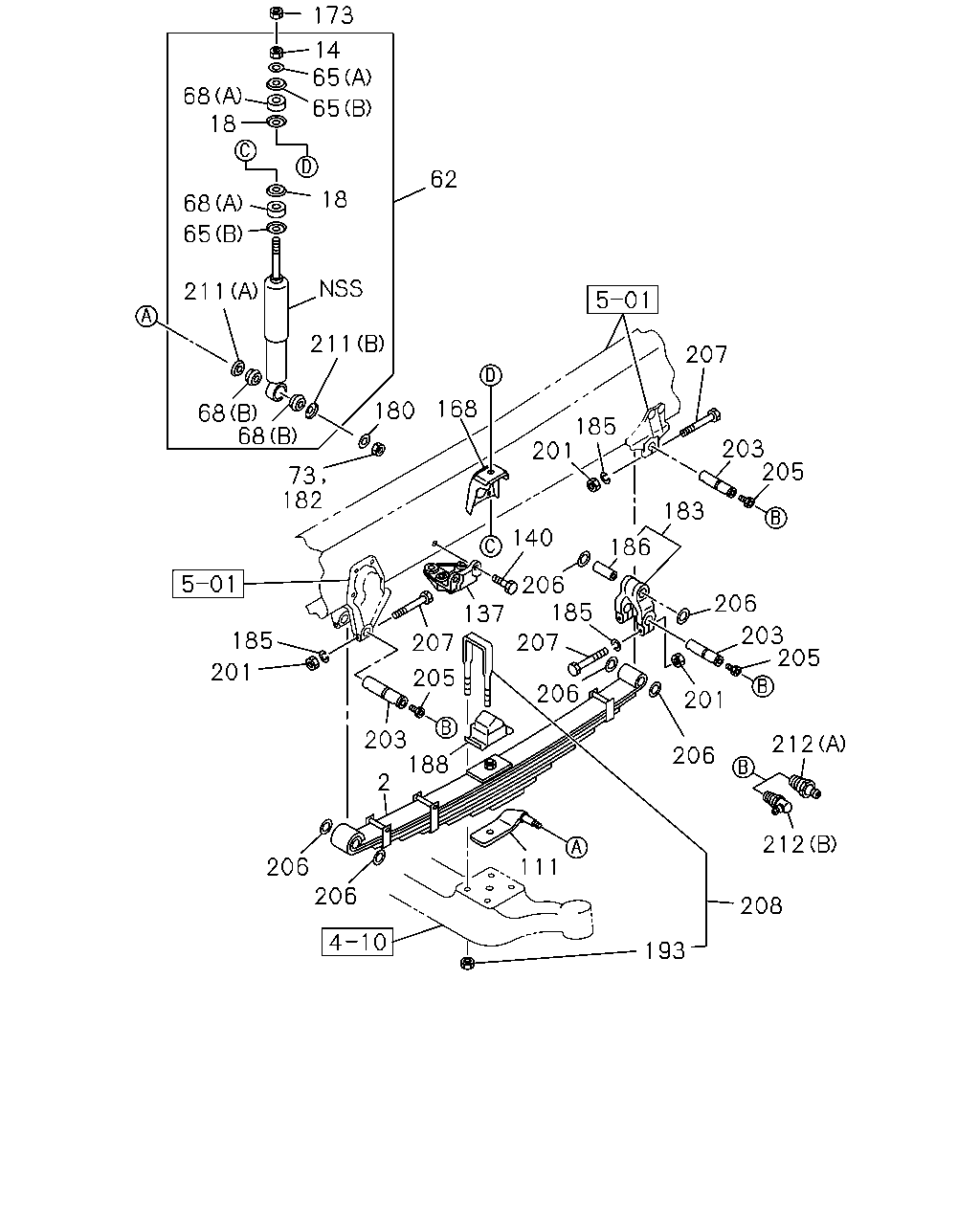

çizim 167210
173 14 65 68 18 65 62 18 68 65 211 211 207 168 180 68 68 185 201 203 205 73 182 183 140 186 206 185 206 137 203 205 185 207 207 201 205 206 201 203 188 212 206 2 212 206 111 206 208 193
BalonParca AdiParca NoAdetTipApplied Date A B
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. HEAVY DUTY PACKAGE TRUCK<RD2> EXC. MULTI LEAF SUSPENSION FRT<SAQ> 4-LEAF 		8-98157-779-0 02 1 1008- ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. HEAVY DUTY PACKAGE TRUCK<RD2>,MULTI LEAF SUSPENSION FRT<SAQ> 4-LEAF 		8-97617-349-0 02 1 1008-1407 ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. HEAVY DUTY PACKAGE TRUCK<RD2>,MULTI LEAF SUSPENSION FRT<SAQ> 4-LEAF 		8-98229-520-0 02 1 1408- ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. MULTI LEAF SUSPENSION FRT<SAQ> 8-LEAF 		8-98157-781-0 02 1 1008- ● ●
14 NUT; S/ABS,UPR
M14 		9-99111-414-0 02 1 1008- ● ●
18 WASHER; CENTERING,S/ABS
ID=24 		1-51631-067-0 04 1 1008- ● ●
62 ABSORBER ASM; SHOCK,FRT
HEAVY DUTY PACKAGE TRUCK<RD2> EXC. MULTI LEAF SUSPENSION FRT<SAQ> 		1-51630-836-0 02 1 1008- ● ●
62 ABSORBER ASM; SHOCK,FRT
EXC. HEAVY DUTY PACKAGE TRUCK<RD2>,MULTI LEAF SUSPENSION FRT<SAQ> 		1-51630-837-0 02 1 1008- ● ●
62 ABSORBER ASM; SHOCK,FRT
MULTI LEAF SUSPENSION FRT<SAQ> 		1-51630-417-0 02 1 1008- ● ●
62 ABSORBER ASM; SHOCK,FRT
MULTI LEAF SUSPENSION FRT<SAQ> BEST VALUE PARTS 		1-87610-154-0 02 1 1008- ● ●
65 WASHER; S/ABS
(A) ID=16.5 		1-09503-266-0 02 1 1008- ● ●
65 WASHER; S/ABS
(B) ID=16.5 		1-51631-068-0 04 1 1008- ● ●
68 BUSHING; S/ABS
(A) ID=16 T=25 		1-51631-069-0 04 1 1008- ● ●
68 BUSHING; S/ABS
(B) 		9-51631-026-0 04 1 1008- ● ●
73 NUT; BRKT,SHOCK
M20 		0-91110-520-0 02 1 1008- ●
73 NUT; BRKT,SHOCK
EXC. FRONT STABILIZER SHAFT<F59> M20 		0-91110-520-0 02 1 1008- ●
111 SUPPORTER; S/ABS,FRT SUSP 8-98121-195-0 01 1 1008- ●
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> 		8-98121-195-0 01 1 1008- ●
111 SUPPORTER; S/ABS,FRT SUSP 8-98121-193-0 01 1 1008- ●
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> 		8-98121-193-0 01 1 1008- ●
137 BRACKET; STAB BAR TO FRAME
WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) 		1-51781-112-0 01 1 1008-1112 ●
137 BRACKET; STAB BAR TO FRAME
6WF1 TC-C(1B8) WHEEL BASE 6600MM(66W) EXC. SILENCER LAYOUT REAR VAR1<JAZ> 		1-51781-112-0 01 1 1201- ●
137 BRACKET; STAB BAR TO FRAME
WHEEL BASE 5900MM(59W) 		1-51781-112-0 01 1 1201- ●
140 BOLT; BRKT
WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) M14X50 		0-20951-450-0 04 1 1008-1112 ●
140 BOLT; BRKT
6WF1 TC-C(1B8) WHEEL BASE 6600MM(66W) EXC. SILENCER LAYOUT REAR VAR1<JAZ> M14X50 		0-20951-450-0 04 1 1201- ●
140 BOLT; BRKT
WHEEL BASE 5900MM(59W) M14X50 		0-20951-450-0 04 1 1201- ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-616-0 02 1 1008- ● ●
173 NUT; S/ABS
M14 		0-91111-514-0 02 1 1008- ● ●
180 WASHER; PL,PIN
ID=21 		0-91610-520-0 02 1 1008- ● ●
182 NUT; S/ABS LWR
FRONT STABILIZER SHAFT<F59> M20 		0-91110-520-0 02 1 1008- ●
183 SHACKLE; FRT SUSP 1-51162-029-5 02 1 1008- ● ●
185 WASHER; LK,PIN
ID=12.2 		0-91510-612-0 12 1 1008- ● ●
186 BUSHING; SHACKLE
OD=38 		8-98081-829-0 02 1 1008- ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-085-2 02 1 1008- ● ●
193 NUT; U BOLT
M22 		0-91112-822-0 08 1 1008-1206 ● ●
193 NUT; U BOLT
M22 		8-98179-318-0 08 1 1207- ● ●
201 NUT; PIN LK
M12 		0-91110-512-0 12 1 1008- ● ●
203 PIN; SPR TO SHACKLE 1-51161-031-0 06 1 1008- ● ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 1008- ● ●
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 12 1 1008- ● ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-10856-280-0 12 1 1008- ● ●
208 U-BOLT SET; FRT SPRING
HEAVY DUTY PACKAGE TRUCK<RD2> EXC. MULTI LEAF SUSPENSION FRT<SAQ> L=230 		1-87870-269-2 04 1 1008-1206 ● ●
208 U-BOLT SET; FRT SPRING
HEAVY DUTY PACKAGE TRUCK<RD2> EXC. MULTI LEAF SUSPENSION FRT<SAQ> L=230 		1-87870-493-0 04 1 1207- ● ●
208 U-BOLT SET; FRT SPRING
EXC. HEAVY DUTY PACKAGE TRUCK<RD2>,MULTI LEAF SUSPENSION FRT<SAQ> L=210 		1-87870-380-1 04 1 1008-1206 ● ●
208 U-BOLT SET; FRT SPRING
EXC. HEAVY DUTY PACKAGE TRUCK<RD2>,MULTI LEAF SUSPENSION FRT<SAQ> L=210 		1-87870-498-0 04 1 1207- ● ●
208 U-BOLT SET; FRT SPRING
MULTI LEAF SUSPENSION FRT<SAQ> L=240 		1-87870-376-2 04 1 1008- ● ●
211 WASHER; BRKT,SHOCK
(A) ID=27 		9-51631-027-0 02 1 1008- ● ●
211 WASHER; BRKT,SHOCK
(B) ID=21 		9-51631-028-0 02 1 1008- ● ●
212 NIPPLE; GREASE,ELBOW
(A) PT1/8 STRAIGHT 		0-90301-410-0 02 1 1008- ● ●
212 NIPPLE; GREASE,ELBOW
(B) PT1/8 ELBOW 		0-90301-610-0 04 1 1008- ● ●
