4-36 — POWER STEERING CONTROL; ENGINE SIDE (#55661) — 16 parça

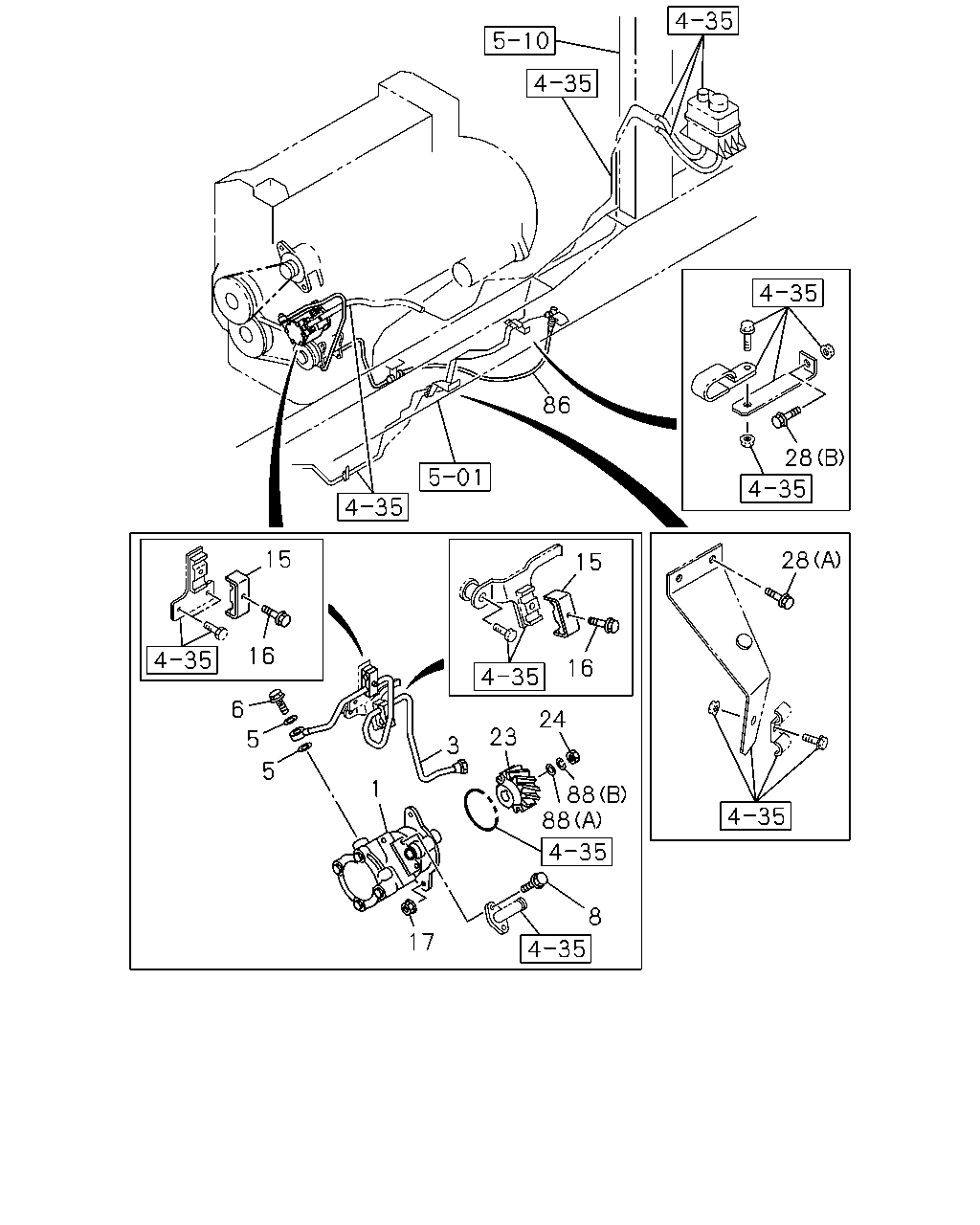

çizim 167333
86 28 15 28 15 16 16 6 24 23 5 3 5 1 88 88 8 17
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		1-19500-561-3 01 1 1008- ● ●
3 PIPE; OIL,CHARGE,P/S 1-13313-773-1 01 1 1008- ● ●
5 GASKET; EYE BOLT,POWER STRG PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=18.2 OD=24.4 		1-09630-087-0 02 1 1008- ● ●
6 BOLT; EYE,P/S PIPE
6WF1 TC-C(1B8) M18X36 		1-09675-205-0 01 1 1008- ● ●
6 BOLT; EYE,P/S PIPE
6WG1 TC-R(75L) M18X33 		1-09675-058-0 01 1 1008- ● ●
8 BOLT; OIL PIPE
M8X16 FLANGE 		0-28050-816-0 02 1 1008- ● ●
15 CLIP; OIL PIPE SUCTION 1-09701-195-3 02 1 1008- ● ●
16 BOLT; STAY,P/S OIL PUMP
M6X35 FLANGE 		0-28650-635-0 02 1 1008- ● ●
17 NUT; POWER STRG PUMP
M10 FLANGE 		0-91180-110-0 02 1 1008- ● ●
23 GEAR; OIL PUMP
Z=20 		1-19581-041-0 01 1 1008- ● ●
24 NUT; GEAR,P/S PUMP
M16 		9-19519-112-0 01 1 1008- ● ●
28 BOLT; BRKT,FLEX HOSE,P/S
(A) M8X25 FLANGE 		0-28650-825-0 02 1 1008- ● ●
28 BOLT; BRKT,FLEX HOSE,P/S
(B) M8X35 FLANGE 		0-28650-835-0 01 1 1008- ● ●
86 HOSE; FLEX,P/S
L=470 		1-09365-177-0 01 1 1008- ● ●
88 WASHER; GEAR,P/S PUMP
(A) 		1-19519-293-0 01 1 1008- ● ●
88 WASHER; GEAR,P/S PUMP
(B) 		9-09150-016-0 01 1 1008- ● ●
