Sayfa 4-35 - Isuzu EPC

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#55660) — 228 parça

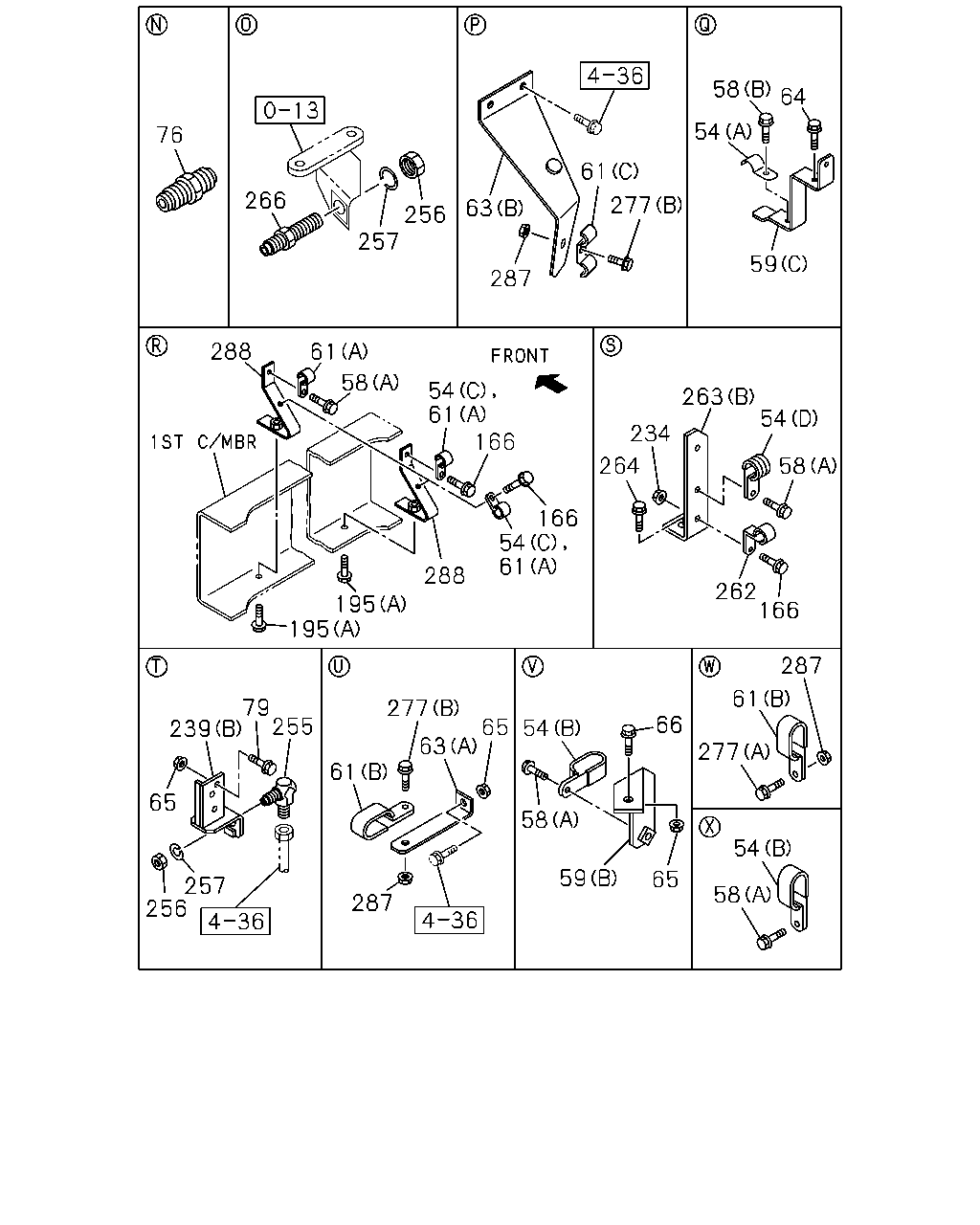

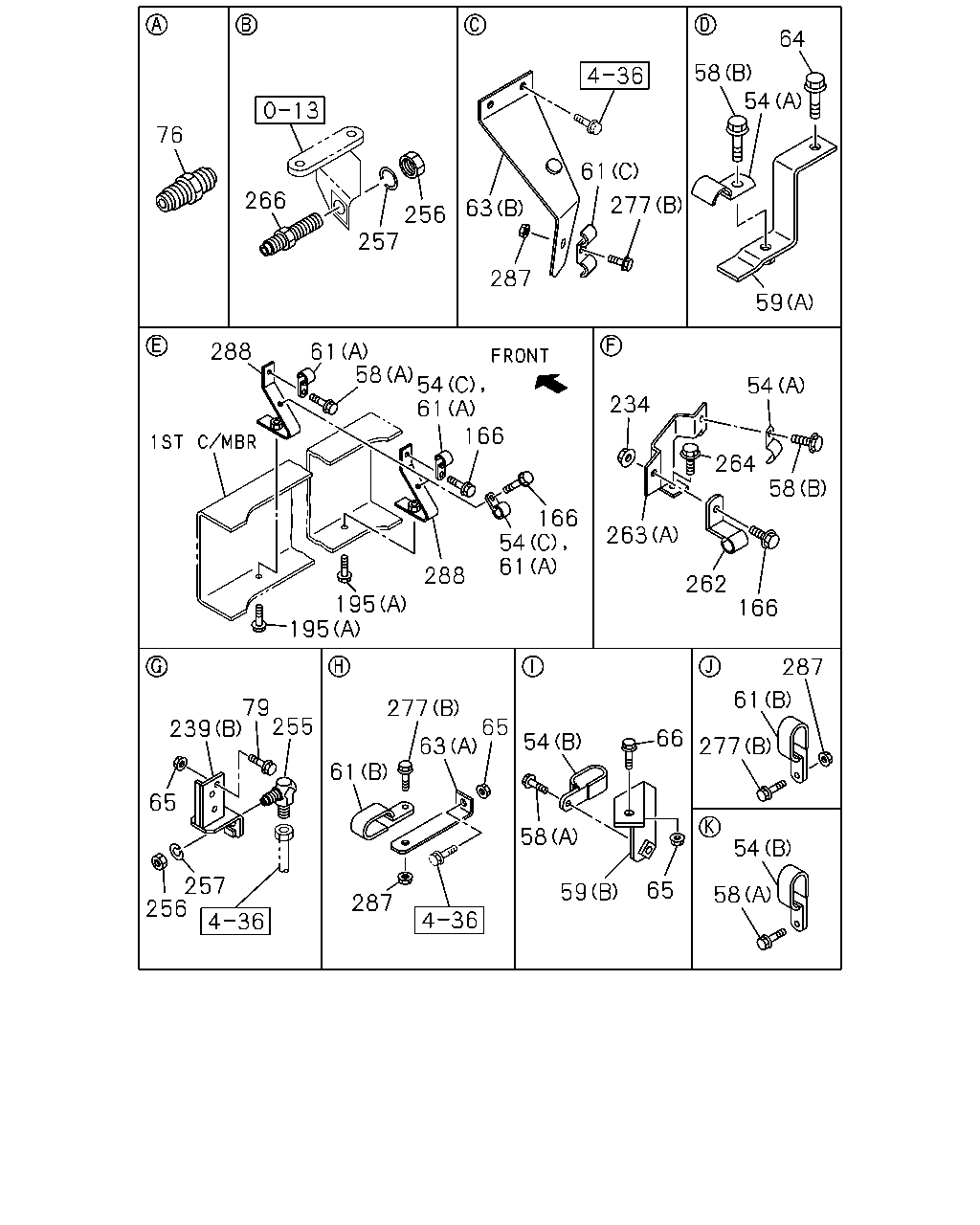

64 58 54 76 61 266 277 63 256 257 287 59 288 61 58 54 61 166 54 234 264 58 166 54 61 263 288 262 195 195 166 287 61 79 239 255 277 65 66 54 63 277 61 65 58 54 257 256 65 59 58 287

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
54	CLIP; OIL PIPE (B) ID=16X2 L=20	0-95325-535-0	02	1	1008-	●	●
54	CLIP; OIL PIPE MJT7S M/T(Y3E) (C) ID=16 L=20	0-95235-535-0	01	1	1008-	●	●
54	CLIP; OIL PIPE MJX16P M/T(Y3Z) (C) ID=16 L=20	0-95235-535-0	02	1	1008-	●	●
54	CLIP; OIL PIPE 6WF1 TC-C(1B8) (A) ID=23.6 L=35	1-09700-634-0	02	1	1008-	●	●
54	CLIP; OIL PIPE 6WG1 TC-R(75L) (A) ID=23.6 L=35	1-09700-634-0	01	1	1008-	●	●
54	CLIP; OIL PIPE 6WG1 TC-R(75L) (D) ID=26 L=27	1-09701-006-0	01	1	1008-	●	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	1008-	●	●
58	BOLT; CLIP 6WF1 TC-C(1B8) (A) M8X20 FLANGE	0-28650-820-0	02	1	1008-	●	●
58	BOLT; CLIP (A) M8X25 FLANGE	0-28650-825-0	01	1	1008-	●	●
58	BOLT; CLIP (B) M10X20 FLANGE	0-28651-020-0	01	1	1008-	●	●
58	BOLT; CLIP 6WF1 TC-C(1B8) (B) M10X25 FLANGE	0-28651-025-0	01	1	1008-	●	●
58	BOLT; CLIP 6WG1 TC-R(75L) (A) M8X20 FLANGE	0-28650-820-0	01	1	1008-	●	●
58	BOLT; CLIP 6WG1 TC-R(75L) (A) M8X20 FLANGE	0-28650-820-0	01	1	1008-	●	●
59	BRACKET; CLIP,OIL PIPE (B)	1-53441-537-0	01	1	1008-	●	●
59	BRACKET; CLIP,OIL PIPE 6WF1 TC-C(1B8) (A)	1-47477-145-0	01	1	1008-	●	●
59	BRACKET; CLIP,OIL PIPE 6WG1 TC-R(75L) (C)	1-47471-183-0	01	1	1008-	●	●
61	CLIP; OIL PIPE (A) ID=16 L=20	0-95235-535-0	01	1	1008-	●	●
61	CLIP; OIL PIPE (B) ID=16X2 L=20	0-95325-535-0	02	1	1008-	●	●
61	CLIP; OIL PIPE (C) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	1008-	●	●
63	BRACKET; CLIP,P/S (B)	1-47471-146-0	01	1	1008-	●	●
63	BRACKET; CLIP,P/S (A) L=112	1-47475-694-1	01	1	1008-	●	●
64	BOLT; CLIP BRKT M8X30 FLANGE	0-28050-830-0	01	1	1008-	●	●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	1008-	●	●
66	BOLT; BRKT,OIL PIPE M8X30 FLANGE	0-28650-830-0	01	1	1008-	●	●
76	UNION; OIL PIPE M22 L=51	0-92123-015-0	01	1	1008-	●	●
79	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	1008-	●	●
166	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1008-	●	●
166	BOLT; CLIP MJT7S M/T(Y3E) M8X20 FLANGE	0-28650-820-0	01	1	1008-	●	●
166	BOLT; CLIP MJX16P M/T(Y3Z) M8X20 FLANGE	0-28650-820-0	02	1	1008-	●	●
195	BOLT; BRKT (B) M8X12 FLANGE	0-28050-812-0	02	1	1008-	●	●
195	BOLT; BRKT (C) M10X35 FLANGE	0-28151-035-0	01	1	1008-	●	●
195	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	1008-	●	●
195	BOLT; BRKT 6WG1 TC-R(75L) (A) M8X25 FLANGE	0-28650-825-0	08	1	1008-	●	●
195	BOLT; BRKT 6WG1 TC-R(75L) (D) M10X20 FLANGE	0-28651-020-0	02	1	1008-	●	●
234	NUT; PIPE CLIP,P/S M8 FLANGE	0-91180-108-0	01	1	1008-	●	●
239	BRACKET; FLEX HOSE (B)	8-98144-458-1	01	1	1008-	●	●
239	BRACKET; FLEX HOSE 6WG1 TC-R(75L) (A)	1-21464-780-0	01	1	1008-	●	●
255	UNION; FLEX HOSE M22 & M22 ELBOW	1-09650-375-1	01	1	1008-	●	●
256	NUT; UNION M22	0-91111-522-0	01	1	1008-	●	●
256	NUT; UNION M22	0-91111-522-0	01	1	1008-	●	●
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	1008-	●	●
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	1008-	●	●
262	CLIP; P/S PIPE ID=15 H=24 L=20	1-09700-606-0	01	1	1008-	●	●
263	BRACKET; P/S PIPE 6WF1 TC-C(1B8) (A)	1-47476-483-2	01	1	1008-	●	●
263	BRACKET; P/S PIPE 6WG1 TC-R(75L) (B)	1-47471-191-1	01	1	1008-	●	●
264	BOLT; PIPE BRKT M8X30 FLANGE	0-28650-830-0	01	1	1008-	●	●
266	UNION; OIL PIPE,P/S M20 & M22 STRAIGHT	1-09654-167-1	01	1	1008-	●	●
277	BOLT; HOSE CLIP (B) M8X25 FLANGE	0-28650-825-0	03	1	1008-	●	●
277	BOLT; HOSE CLIP 6WF1 TC-C(1B8) (A) M10X25 FLANGE	0-28651-025-0	01	1	1008-	●	●
277	BOLT; HOSE CLIP 6WG1 TC-R(75L) (C) M8X20 FLANGE	0-28650-820-0	01	1	1008-	●	●
287	NUT; CLIP M8 FLANGE	0-91180-108-0	03	1	1008-	●	●
288	BRACKET; CLIP,P/S	1-47479-521-0	02	1	1008-	●	●

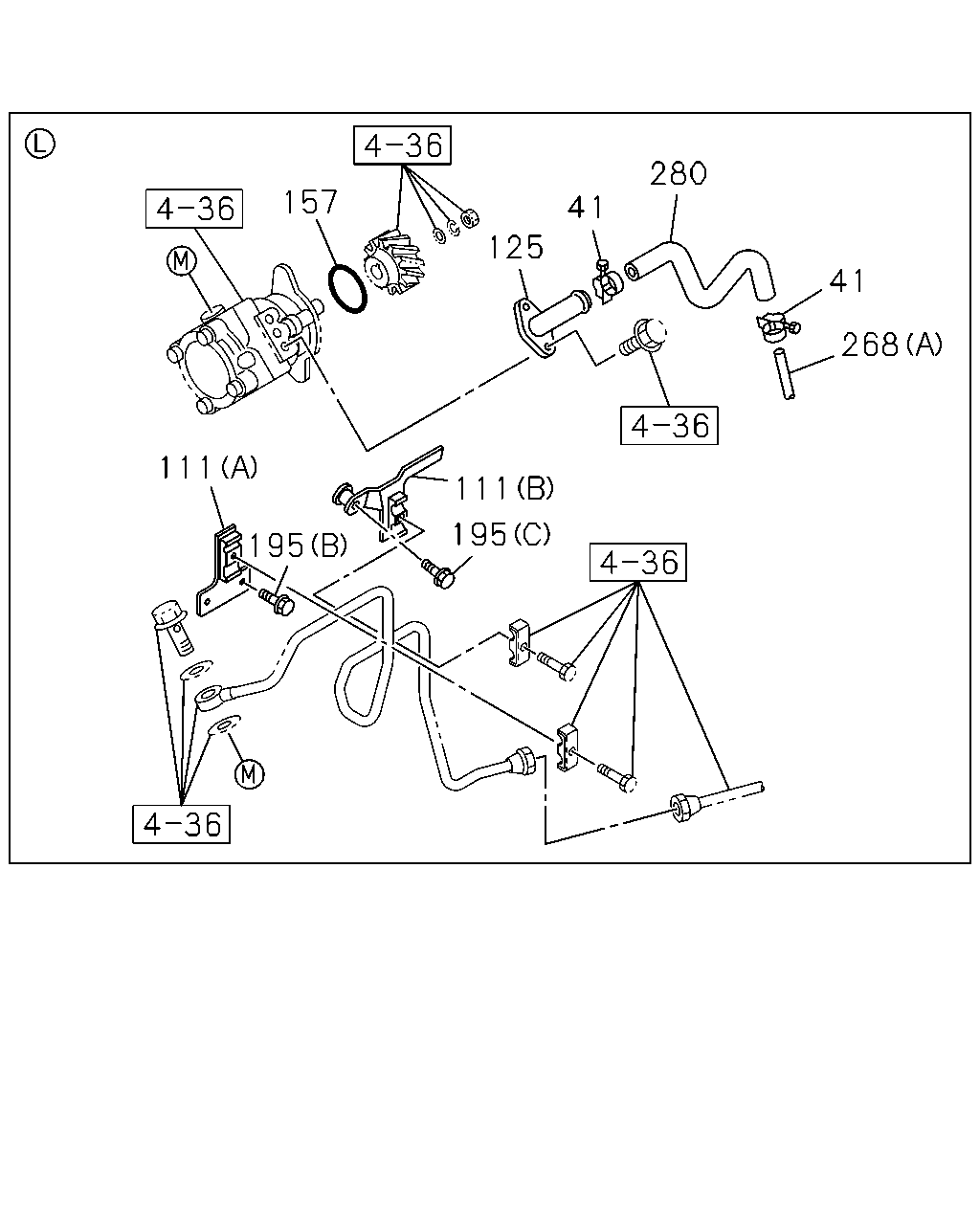

280 157 41 125 41 268 111 111 195 195

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
41	CLIP; HOSE,P/S ID=38	9-09915-041-1	02	1	1008-	●	●
111	BRACKET; OIL PIPE (A)	1-13345-186-0	01	1	1008-	●	●
111	BRACKET; OIL PIPE (B)	1-13345-187-0	01	1	1008-	●	●
125	CONNECTOR; P/S PUMP	1-13313-532-0	01	1	1008-	●	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=79.6	1-09623-421-0	01	1	1008-	●	●
195	BOLT; BRKT (B) M8X12 FLANGE	0-28050-812-0	02	1	1008-	●	●
195	BOLT; BRKT (C) M10X35 FLANGE	0-28151-035-0	01	1	1008-	●	●
195	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	1008-	●	●
195	BOLT; BRKT 6WG1 TC-R(75L) (A) M8X25 FLANGE	0-28650-825-0	08	1	1008-	●	●
195	BOLT; BRKT 6WG1 TC-R(75L) (D) M10X20 FLANGE	0-28651-020-0	02	1	1008-	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6WF1 TC-C(1B8) (A) L=1276	1-21117-830-0	01	1	1008-	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6WG1 TC-R(75L) (B) L=1340	8-98034-832-0	01	1	1008-	●	●
280	HOSE; P/S OIL PUMP,INL	1-21117-831-0	01	1	1008-	●	●

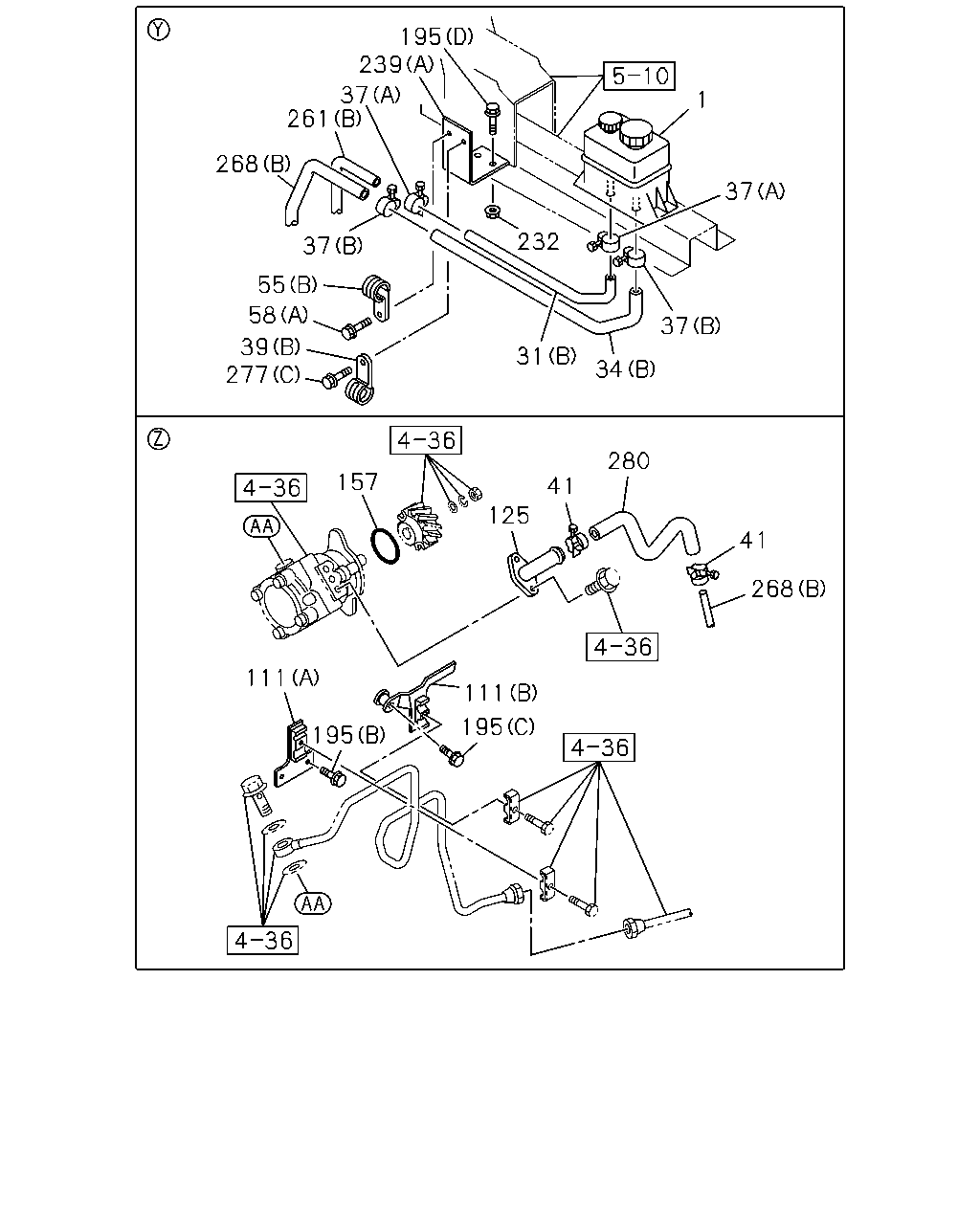

195 239 37 261 268 37 232 37 55 58 37 39 277 31 34 280 157 41 125 41 268 111 111 195 195

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
31	HOSE; P/S OIL TANK,INL 6WF1 TC-C(1B8) (A)	1-21114-284-0	01	1	1008-	●	●
31	HOSE; P/S OIL TANK,INL 6WG1 TC-R(75L) (B)	8-98034-999-0	01	1	1008-	●	●
34	HOSE; P/S OIL TANK,OUTLET 6WF1 TC-C(1B8) (A)	1-21114-283-0	01	1	1008-	●	●
34	HOSE; P/S OIL TANK,OUTLET 6WG1 TC-R(75L) (B)	8-98035-000-0	01	1	1008-	●	●
37	CLIP; HOSE,P/S (A) ID=38	9-09915-041-1	02	1	1008-	●	●
37	CLIP; HOSE,P/S (B) ID=28	9-09915-672-1	02	1	1008-	●	●
39	CLIP; FLEX HOSE 6WF1 TC-C(1B8) (A) ID=32 L=75	1-09700-702-0	01	1	1008-	●	●
39	CLIP; FLEX HOSE 6WG1 TC-R(75L) (B) ID=37 L=35	1-09701-109-0	01	1	1008-	●	●
41	CLIP; HOSE,P/S ID=38	9-09915-041-1	02	1	1008-	●	●
55	CLIP; P/S RUBBER HOSE 6WF1 TC-C(1B8) (A) ID=28 L=30	1-09700-607-1	01	1	1008-	●	●
55	CLIP; P/S RUBBER HOSE 6WG1 TC-R(75L) (B) ID=28 L=32	1-09701-107-1	01	1	1008-	●	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	1008-	●	●
58	BOLT; CLIP 6WF1 TC-C(1B8) (A) M8X20 FLANGE	0-28650-820-0	02	1	1008-	●	●
58	BOLT; CLIP (A) M8X25 FLANGE	0-28650-825-0	01	1	1008-	●	●
58	BOLT; CLIP (B) M10X20 FLANGE	0-28651-020-0	01	1	1008-	●	●
58	BOLT; CLIP 6WF1 TC-C(1B8) (B) M10X25 FLANGE	0-28651-025-0	01	1	1008-	●	●
58	BOLT; CLIP 6WG1 TC-R(75L) (A) M8X20 FLANGE	0-28650-820-0	01	1	1008-	●	●
58	BOLT; CLIP 6WG1 TC-R(75L) (A) M8X20 FLANGE	0-28650-820-0	01	1	1008-	●	●
111	BRACKET; OIL PIPE (A)	1-13345-186-0	01	1	1008-	●	●
111	BRACKET; OIL PIPE (B)	1-13345-187-0	01	1	1008-	●	●
125	CONNECTOR; P/S PUMP	1-13313-532-0	01	1	1008-	●	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=79.6	1-09623-421-0	01	1	1008-	●	●
195	BOLT; BRKT (B) M8X12 FLANGE	0-28050-812-0	02	1	1008-	●	●
195	BOLT; BRKT (C) M10X35 FLANGE	0-28151-035-0	01	1	1008-	●	●
195	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	1008-	●	●
195	BOLT; BRKT 6WG1 TC-R(75L) (A) M8X25 FLANGE	0-28650-825-0	08	1	1008-	●	●
195	BOLT; BRKT 6WG1 TC-R(75L) (D) M10X20 FLANGE	0-28651-020-0	02	1	1008-	●	●
232	NUT; BRKT 6WG1 TC-R(75L) M10 FLANGE	0-91180-210-0	02	1	1008-	●	●
239	BRACKET; FLEX HOSE (B)	8-98144-458-1	01	1	1008-	●	●
239	BRACKET; FLEX HOSE 6WG1 TC-R(75L) (A)	1-21464-780-0	01	1	1008-	●	●
261	PIPE; OIL,UNION TO HOSE 6WF1 TC-C(1B8) (A) L=2944	8-98169-745-0	01	1	1008-	●	●
261	PIPE; OIL,UNION TO HOSE 6WG1 TC-R(75L) (B)	8-98169-742-0	01	1	1008-	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6WF1 TC-C(1B8) (A) L=1276	1-21117-830-0	01	1	1008-	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6WG1 TC-R(75L) (B) L=1340	8-98034-832-0	01	1	1008-	●	●
277	BOLT; HOSE CLIP (B) M8X25 FLANGE	0-28650-825-0	03	1	1008-	●	●
277	BOLT; HOSE CLIP 6WF1 TC-C(1B8) (A) M10X25 FLANGE	0-28651-025-0	01	1	1008-	●	●
277	BOLT; HOSE CLIP 6WG1 TC-R(75L) (C) M8X20 FLANGE	0-28650-820-0	01	1	1008-	●	●
280	HOSE; P/S OIL PUMP,INL	1-21117-831-0	01	1	1008-	●	●

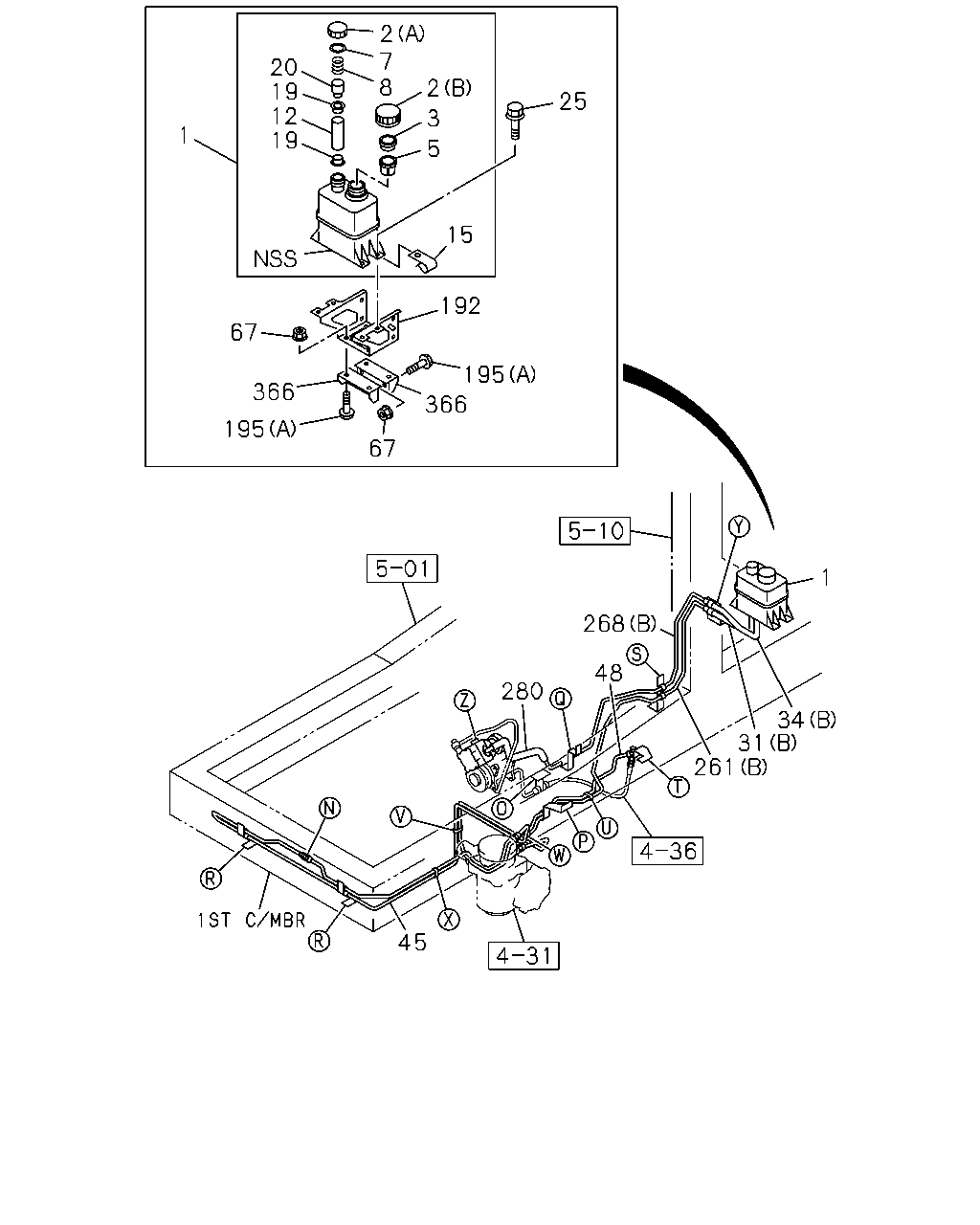

2 7 8 20 19 12 19 2 25 3 1 5 15 192 67 195 366 366 195 67 1 268 48 280 34 31 261 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S	1-21210-235-1	01	1	1008-	●	●
2	CAP; OIL TANK,P/S (A) WO/GAUGE	1-21241-003-6	01	1	1008-	●	●
2	CAP; OIL TANK,P/S (B) W/GAUGE	1-21241-006-4	01	1	1008-	●	●
3	GASKET; OIL TANK,P/S	1-21249-006-2	01	1	1008-	●	●
5	STRAINER; OIL TANK,P/S	1-21235-006-1	01	1	1008-	●	●
7	RING; GASKET,OIL TANK,P/S	1-21249-005-0	01	1	1008-	●	●
8	SPRING; OIL TANK,P/S	1-09580-599-0	01	1	1008-	●	●
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	1008-	●	●
15	PLATE; FILTER,OIL TANK	1-21249-016-0	04	1	1008-	●	●
19	SEAT; OIL TANK	1-21262-001-0	02	1	1008-	●	●
20	HOLDER; FILTER,OIL TANK,P/S	1-21239-001-2	01	1	1008-	●	●
25	BOLT; OIL TANK BRKT M8X20 FLANGE	0-28650-820-0	04	1	1008-	●	●
31	HOSE; P/S OIL TANK,INL 6WF1 TC-C(1B8) (A)	1-21114-284-0	01	1	1008-	●	●
31	HOSE; P/S OIL TANK,INL 6WG1 TC-R(75L) (B)	8-98034-999-0	01	1	1008-	●	●
34	HOSE; P/S OIL TANK,OUTLET 6WF1 TC-C(1B8) (A)	1-21114-283-0	01	1	1008-	●	●
34	HOSE; P/S OIL TANK,OUTLET 6WG1 TC-R(75L) (B)	8-98035-000-0	01	1	1008-	●	●
45	PIPE; OIL,P/S UNIT TO UNION L=2457	8-98168-560-0	01	1	1008-	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT L=1895	8-98168-559-0	01	1	1008-	●	●
67	NUT; BRKT 6WG1 TC-R(75L) M8 FLANGE	0-91180-108-0	04	1	1008-	●	●
192	BRACKET; P/S OIL TANK 6WG1 TC-R(75L)	1-21489-200-1	01	1	1008-	●	●
195	BOLT; BRKT (B) M8X12 FLANGE	0-28050-812-0	02	1	1008-	●	●
195	BOLT; BRKT (C) M10X35 FLANGE	0-28151-035-0	01	1	1008-	●	●
195	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	1008-	●	●
195	BOLT; BRKT 6WG1 TC-R(75L) (A) M8X25 FLANGE	0-28650-825-0	08	1	1008-	●	●
195	BOLT; BRKT 6WG1 TC-R(75L) (D) M10X20 FLANGE	0-28651-020-0	02	1	1008-	●	●
261	PIPE; OIL,UNION TO HOSE 6WF1 TC-C(1B8) (A) L=2944	8-98169-745-0	01	1	1008-	●	●
261	PIPE; OIL,UNION TO HOSE 6WG1 TC-R(75L) (B)	8-98169-742-0	01	1	1008-	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6WF1 TC-C(1B8) (A) L=1276	1-21117-830-0	01	1	1008-	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6WG1 TC-R(75L) (B) L=1340	8-98034-832-0	01	1	1008-	●	●
280	HOSE; P/S OIL PUMP,INL	1-21117-831-0	01	1	1008-	●	●
366	SPACER; BRKT TO MEMBER 6WG1 TC-R(75L)	1-21489-196-1	02	1	1008-	●	●

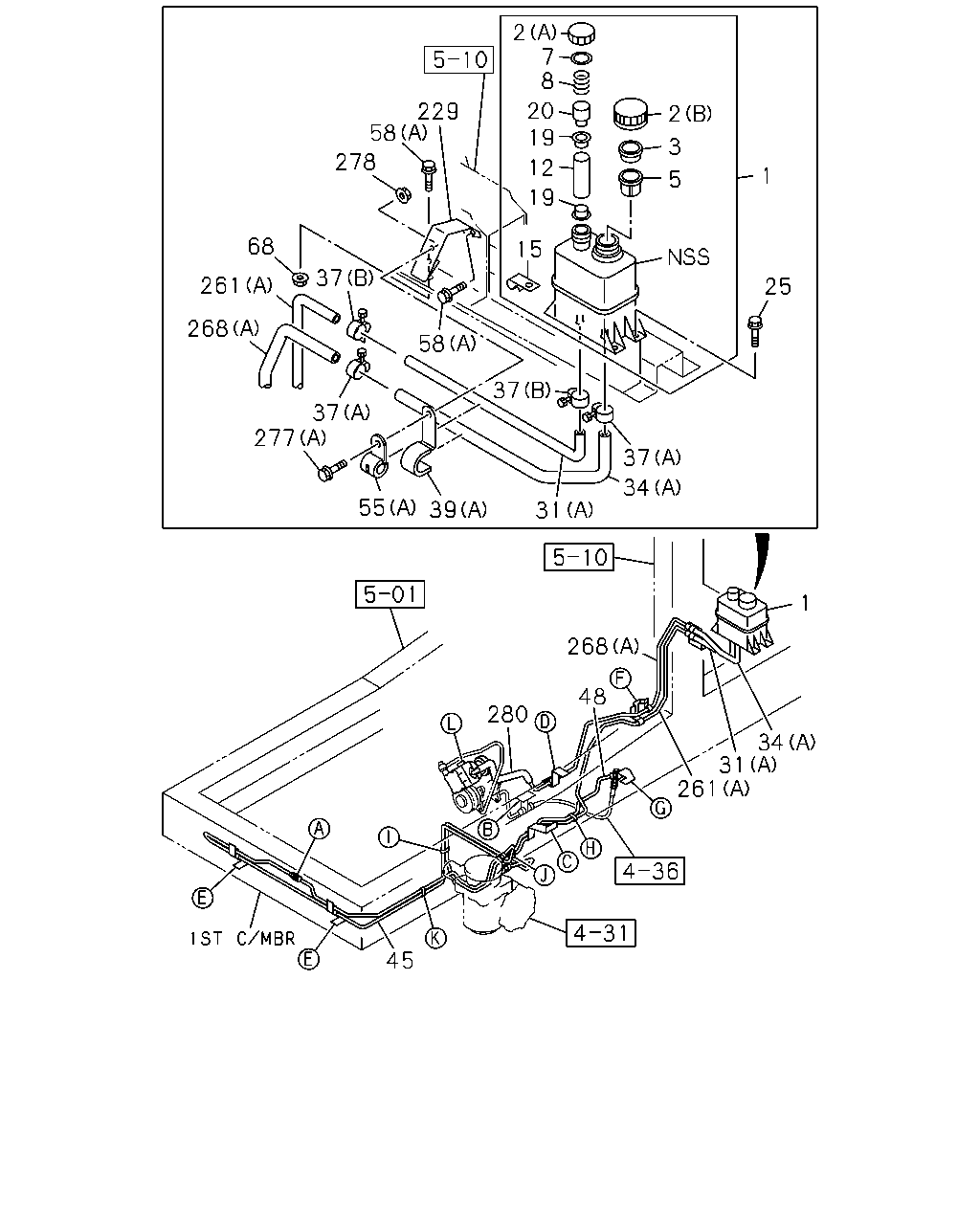

2 7 8 20 19 229 2 58 3 278 12 1 5 19 68 15 37 261 25 268 58 37 37 277 37 34 55 39 31 1 268 48 280 34 31 261 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S	1-21210-235-1	01	1	1008-	●	●
2	CAP; OIL TANK,P/S (A) WO/GAUGE	1-21241-003-6	01	1	1008-	●	●
2	CAP; OIL TANK,P/S (B) W/GAUGE	1-21241-006-4	01	1	1008-	●	●
3	GASKET; OIL TANK,P/S	1-21249-006-2	01	1	1008-	●	●
5	STRAINER; OIL TANK,P/S	1-21235-006-1	01	1	1008-	●	●
7	RING; GASKET,OIL TANK,P/S	1-21249-005-0	01	1	1008-	●	●
8	SPRING; OIL TANK,P/S	1-09580-599-0	01	1	1008-	●	●
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	1008-	●	●
15	PLATE; FILTER,OIL TANK	1-21249-016-0	04	1	1008-	●	●
19	SEAT; OIL TANK	1-21262-001-0	02	1	1008-	●	●
20	HOLDER; FILTER,OIL TANK,P/S	1-21239-001-2	01	1	1008-	●	●
25	BOLT; OIL TANK BRKT M8X20 FLANGE	0-28650-820-0	04	1	1008-	●	●
31	HOSE; P/S OIL TANK,INL 6WF1 TC-C(1B8) (A)	1-21114-284-0	01	1	1008-	●	●
31	HOSE; P/S OIL TANK,INL 6WG1 TC-R(75L) (B)	8-98034-999-0	01	1	1008-	●	●
34	HOSE; P/S OIL TANK,OUTLET 6WF1 TC-C(1B8) (A)	1-21114-283-0	01	1	1008-	●	●
34	HOSE; P/S OIL TANK,OUTLET 6WG1 TC-R(75L) (B)	8-98035-000-0	01	1	1008-	●	●
37	CLIP; HOSE,P/S (A) ID=38	9-09915-041-1	02	1	1008-	●	●
37	CLIP; HOSE,P/S (B) ID=28	9-09915-672-1	02	1	1008-	●	●
39	CLIP; FLEX HOSE 6WF1 TC-C(1B8) (A) ID=32 L=75	1-09700-702-0	01	1	1008-	●	●
39	CLIP; FLEX HOSE 6WG1 TC-R(75L) (B) ID=37 L=35	1-09701-109-0	01	1	1008-	●	●
45	PIPE; OIL,P/S UNIT TO UNION L=2457	8-98168-560-0	01	1	1008-	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT L=1895	8-98168-559-0	01	1	1008-	●	●
55	CLIP; P/S RUBBER HOSE 6WF1 TC-C(1B8) (A) ID=28 L=30	1-09700-607-1	01	1	1008-	●	●
55	CLIP; P/S RUBBER HOSE 6WG1 TC-R(75L) (B) ID=28 L=32	1-09701-107-1	01	1	1008-	●	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	1008-	●	●
58	BOLT; CLIP 6WF1 TC-C(1B8) (A) M8X20 FLANGE	0-28650-820-0	02	1	1008-	●	●
58	BOLT; CLIP (A) M8X25 FLANGE	0-28650-825-0	01	1	1008-	●	●
58	BOLT; CLIP (B) M10X20 FLANGE	0-28651-020-0	01	1	1008-	●	●
58	BOLT; CLIP 6WF1 TC-C(1B8) (B) M10X25 FLANGE	0-28651-025-0	01	1	1008-	●	●
58	BOLT; CLIP 6WG1 TC-R(75L) (A) M8X20 FLANGE	0-28650-820-0	01	1	1008-	●	●
58	BOLT; CLIP 6WG1 TC-R(75L) (A) M8X20 FLANGE	0-28650-820-0	01	1	1008-	●	●
68	NUT; CLIP,OIL PIPE 6WF1 TC-C(1B8) M8 FLANGE	0-91180-108-0	01	1	1008-	●	●
229	BRACKET; HOSE,POWER STRG 6WF1 TC-C(1B8)	1-21464-407-1	01	1	1008-	●	●
261	PIPE; OIL,UNION TO HOSE 6WF1 TC-C(1B8) (A) L=2944	8-98169-745-0	01	1	1008-	●	●
261	PIPE; OIL,UNION TO HOSE 6WG1 TC-R(75L) (B)	8-98169-742-0	01	1	1008-	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6WF1 TC-C(1B8) (A) L=1276	1-21117-830-0	01	1	1008-	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6WG1 TC-R(75L) (B) L=1340	8-98034-832-0	01	1	1008-	●	●
277	BOLT; HOSE CLIP (B) M8X25 FLANGE	0-28650-825-0	03	1	1008-	●	●
277	BOLT; HOSE CLIP 6WF1 TC-C(1B8) (A) M10X25 FLANGE	0-28651-025-0	01	1	1008-	●	●
277	BOLT; HOSE CLIP 6WG1 TC-R(75L) (C) M8X20 FLANGE	0-28650-820-0	01	1	1008-	●	●
278	NUT; HOSE CLIP 6WF1 TC-C(1B8) M10 FLANGE	0-91180-210-0	01	1	1008-	●	●
280	HOSE; P/S OIL PUMP,INL	1-21117-831-0	01	1	1008-	●	●

58 64 54 76 61 266 277 63 256 257 59 287 288 61 58 54 61 166 263 54 234 264 58 166 54 61 288 262 166 195 195 287 61 79 239 255 277 66 65 54 63 277 61 65 58 54 59 65 257 256 58 287

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
54	CLIP; OIL PIPE (B) ID=16X2 L=20	0-95325-535-0	02	1	1008-	●	●
54	CLIP; OIL PIPE MJT7S M/T(Y3E) (C) ID=16 L=20	0-95235-535-0	01	1	1008-	●	●
54	CLIP; OIL PIPE MJX16P M/T(Y3Z) (C) ID=16 L=20	0-95235-535-0	02	1	1008-	●	●
54	CLIP; OIL PIPE 6WF1 TC-C(1B8) (A) ID=23.6 L=35	1-09700-634-0	02	1	1008-	●	●
54	CLIP; OIL PIPE 6WG1 TC-R(75L) (A) ID=23.6 L=35	1-09700-634-0	01	1	1008-	●	●
54	CLIP; OIL PIPE 6WG1 TC-R(75L) (D) ID=26 L=27	1-09701-006-0	01	1	1008-	●	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	1008-	●	●
58	BOLT; CLIP 6WF1 TC-C(1B8) (A) M8X20 FLANGE	0-28650-820-0	02	1	1008-	●	●
58	BOLT; CLIP (A) M8X25 FLANGE	0-28650-825-0	01	1	1008-	●	●
58	BOLT; CLIP (B) M10X20 FLANGE	0-28651-020-0	01	1	1008-	●	●
58	BOLT; CLIP 6WF1 TC-C(1B8) (B) M10X25 FLANGE	0-28651-025-0	01	1	1008-	●	●
58	BOLT; CLIP 6WG1 TC-R(75L) (A) M8X20 FLANGE	0-28650-820-0	01	1	1008-	●	●
58	BOLT; CLIP 6WG1 TC-R(75L) (A) M8X20 FLANGE	0-28650-820-0	01	1	1008-	●	●
59	BRACKET; CLIP,OIL PIPE (B)	1-53441-537-0	01	1	1008-	●	●
59	BRACKET; CLIP,OIL PIPE 6WF1 TC-C(1B8) (A)	1-47477-145-0	01	1	1008-	●	●
59	BRACKET; CLIP,OIL PIPE 6WG1 TC-R(75L) (C)	1-47471-183-0	01	1	1008-	●	●
61	CLIP; OIL PIPE (A) ID=16 L=20	0-95235-535-0	01	1	1008-	●	●
61	CLIP; OIL PIPE (B) ID=16X2 L=20	0-95325-535-0	02	1	1008-	●	●
61	CLIP; OIL PIPE (C) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	1008-	●	●
63	BRACKET; CLIP,P/S (B)	1-47471-146-0	01	1	1008-	●	●
63	BRACKET; CLIP,P/S (A) L=112	1-47475-694-1	01	1	1008-	●	●
64	BOLT; CLIP BRKT M8X30 FLANGE	0-28050-830-0	01	1	1008-	●	●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	1008-	●	●
66	BOLT; BRKT,OIL PIPE M8X30 FLANGE	0-28650-830-0	01	1	1008-	●	●
76	UNION; OIL PIPE M22 L=51	0-92123-015-0	01	1	1008-	●	●
79	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	1008-	●	●
166	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1008-	●	●
166	BOLT; CLIP MJT7S M/T(Y3E) M8X20 FLANGE	0-28650-820-0	01	1	1008-	●	●
166	BOLT; CLIP MJX16P M/T(Y3Z) M8X20 FLANGE	0-28650-820-0	02	1	1008-	●	●
195	BOLT; BRKT (B) M8X12 FLANGE	0-28050-812-0	02	1	1008-	●	●
195	BOLT; BRKT (C) M10X35 FLANGE	0-28151-035-0	01	1	1008-	●	●
195	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	1008-	●	●
195	BOLT; BRKT 6WG1 TC-R(75L) (A) M8X25 FLANGE	0-28650-825-0	08	1	1008-	●	●
195	BOLT; BRKT 6WG1 TC-R(75L) (D) M10X20 FLANGE	0-28651-020-0	02	1	1008-	●	●
234	NUT; PIPE CLIP,P/S M8 FLANGE	0-91180-108-0	01	1	1008-	●	●
239	BRACKET; FLEX HOSE (B)	8-98144-458-1	01	1	1008-	●	●
239	BRACKET; FLEX HOSE 6WG1 TC-R(75L) (A)	1-21464-780-0	01	1	1008-	●	●
255	UNION; FLEX HOSE M22 & M22 ELBOW	1-09650-375-1	01	1	1008-	●	●
256	NUT; UNION M22	0-91111-522-0	01	1	1008-	●	●
256	NUT; UNION M22	0-91111-522-0	01	1	1008-	●	●
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	1008-	●	●
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	1008-	●	●
262	CLIP; P/S PIPE ID=15 H=24 L=20	1-09700-606-0	01	1	1008-	●	●
263	BRACKET; P/S PIPE 6WF1 TC-C(1B8) (A)	1-47476-483-2	01	1	1008-	●	●
263	BRACKET; P/S PIPE 6WG1 TC-R(75L) (B)	1-47471-191-1	01	1	1008-	●	●
264	BOLT; PIPE BRKT M8X30 FLANGE	0-28650-830-0	01	1	1008-	●	●
266	UNION; OIL PIPE,P/S M20 & M22 STRAIGHT	1-09654-167-1	01	1	1008-	●	●
277	BOLT; HOSE CLIP (B) M8X25 FLANGE	0-28650-825-0	03	1	1008-	●	●
277	BOLT; HOSE CLIP 6WF1 TC-C(1B8) (A) M10X25 FLANGE	0-28651-025-0	01	1	1008-	●	●
277	BOLT; HOSE CLIP 6WG1 TC-R(75L) (C) M8X20 FLANGE	0-28650-820-0	01	1	1008-	●	●
287	NUT; CLIP M8 FLANGE	0-91180-108-0	03	1	1008-	●	●
288	BRACKET; CLIP,P/S	1-47479-521-0	02	1	1008-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
