4-10 — FRONT AXLE (#55653) — 154 parça

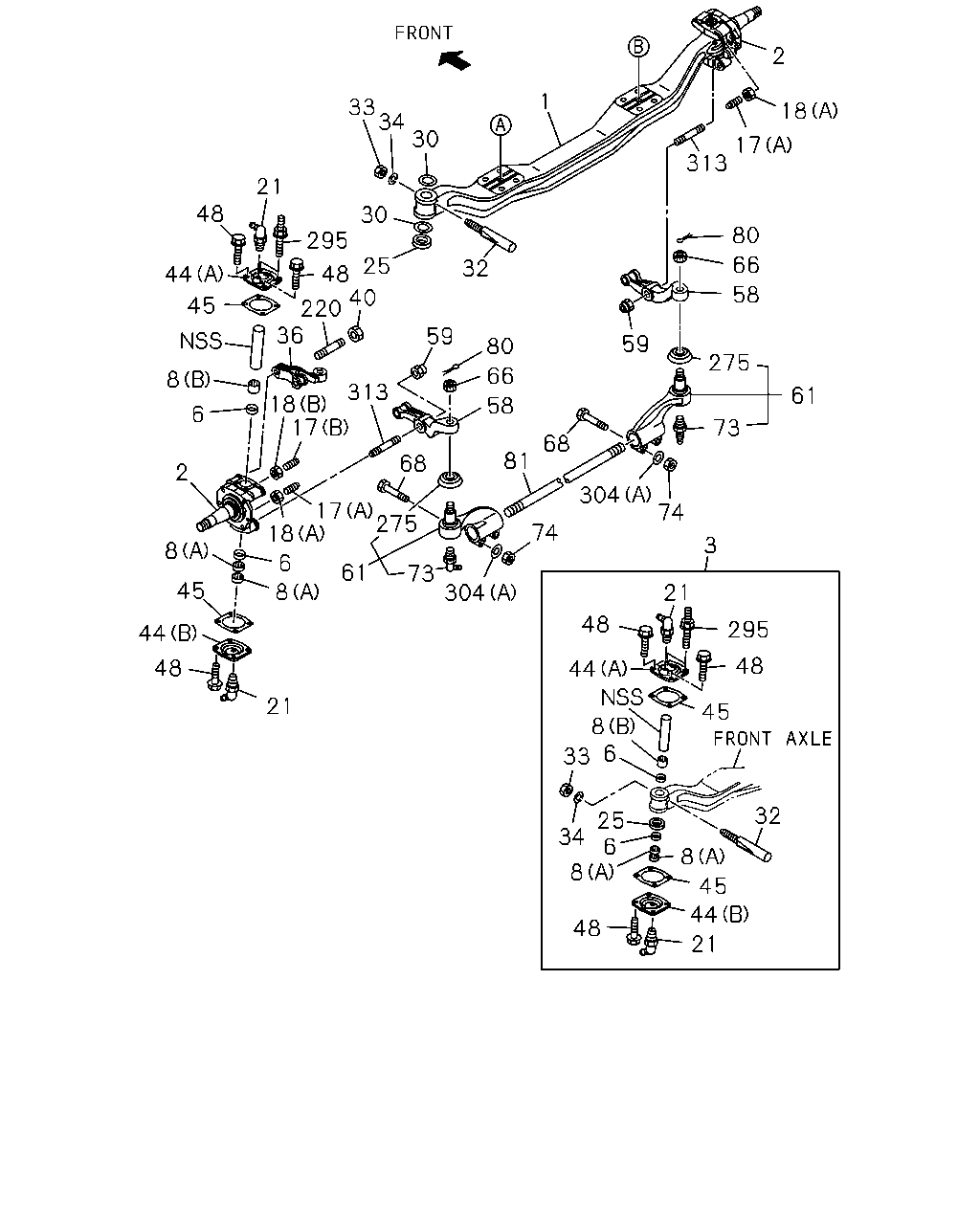

çizim 167194
2 1 33 34 30 18 17 313 21 48 30 80 295 66 25 32 48 40 220 36 44 58 45 59 59 80 275 66 8 18 17 313 61 58 6 73 68 81 68 2 304 74 17 275 74 18 3 8 6 61 73 45 8 21 304 48 295 44 48 48 44 21 45 8 6 33 32 25 6 34 8 8 45 44 48 21
BalonParca AdiParca NoAdetTipApplied Date A B
1 AXLE; FRT 1-43111-178-3 01 1 1008- ● ●
2 KNUCKLE; FRT AXLE 1-43131-120-1 01 1 1008- ● ●
2 KNUCKLE; FRT AXLE 1-43132-120-1 01 1 1008- ● ●
3 KING PIN SET 1-87831-349-3 02 1 1008- ● ●
6 SEAL; KING PIN 9-09926-024-0 04 1 1008- ● ●
8 BEARING; NEEDLE,KING PIN
(A) NTN 		9-00096-242-0 04 1 1008- ● ●
8 BEARING; NEEDLE,KING PIN
(B) NTN 		9-00096-243-0 02 1 1008- ● ●
17 BOLT; STOPPER KNUCKLE
(B) M18X53 		1-09009-066-0 01 1 1008- ● ●
17 BOLT; STOPPER KNUCKLE
(A) M18X43 		1-09009-190-0 02 1 1008- ● ●
18 NUT; STOPPER BOLT,KNUCKLE
(A) M18 		0-91110-518-0 02 1 1008- ● ●
18 NUT; STOPPER BOLT,KNUCKLE
(B) OCTAGON M18 		1-09469-011-1 01 1 1008- ● ●
21 NIPPLE; GREASE,KING PIN
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 04 1 1008- ● ●
25 BEARING; THRUST,KING PIN
NSK 		1-09829-043-2 02 1 1008- ● ●
30 WASHER; THRUST,KING PIN
T=4.875 -4.900 		1-43171-185-0 AR 1 1008- ● ●
30 WASHER; THRUST,KING PIN
T=4.900 -4.925 		1-43171-186-0 AR 1 1008- ● ●
30 WASHER; THRUST,KING PIN
T=4.925 -4.950 		1-43171-187-0 AR 1 1008- ● ●
30 WASHER; THRUST,KING PIN
T=4.950 -4.975 		1-43171-188-0 AR 1 1008- ● ●
30 WASHER; THRUST,KING PIN
T=4.975 -5.000 		1-43171-189-0 AR 1 1008- ● ●
30 WASHER; THRUST,KING PIN
T=5.000 -5.025 		1-43171-190-0 AR 1 1008- ● ●
30 WASHER; THRUST,KING PIN
T=5.025 -5.050 		1-43171-191-0 AR 1 1008- ● ●
30 WASHER; THRUST,KING PIN
T=5.050 -5.075 		1-43171-192-0 AR 1 1008- ● ●
30 WASHER; THRUST,KING PIN
T=5.075 -5.100 		1-43171-193-0 AR 1 1008- ● ●
30 WASHER; THRUST,KING PIN
T=5.100 -5.125 		1-43171-194-0 AR 1 1008- ● ●
30 WASHER; THRUST,KING PIN
T=5.125 -5.150 		1-43171-195-0 AR 1 1008- ● ●
30 WASHER; THRUST,KING PIN
T=5.150 -5.175 		1-43171-196-0 AR 1 1008- ● ●
30 WASHER; THRUST,KING PIN
T=5.175 -5.200 		1-43171-197-0 AR 1 1008- ● ●
30 WASHER; THRUST,KING PIN
T=5.200 -5.225 		1-43171-198-0 AR 1 1008- ● ●
30 WASHER; THRUST,KING PIN
T=5.225 -5.250 		1-43171-199-0 AR 1 1008- ● ●
32 BOLT; KEY,KING PIN 1-43116-002-2 02 1 1008- ● ●
33 NUT; KEY BOLT
M10 		0-91110-510-0 02 1 1008- ● ●
34 WASHER; LK,KEY BOLT
ID=10.2 		0-91510-510-0 02 1 1008- ● ●
36 ARM; KNUCKLE 1-43133-083-3 01 1 1008- ● ●
40 NUT; KNUCKLE ARM
M22 		1-09449-084-0 02 1 1008- ● ●
44 COVER; KING PIN
(A) 		8-98100-654-0 02 1 1008- ● ●
44 COVER; KING PIN
(B) 		8-98100-655-0 02 1 1008- ● ●
45 GASKET; KING PIN COVER 8-98100-656-1 04 1 1008- ● ●
48 BOLT; COVER
M10X25 FLANGE 		0-28751-025-0 12 1 1008- ● ●
58 ARM; TIE ROD 8-98145-592-0 01 1 1008- ● ●
58 ARM; TIE ROD 8-98145-593-0 01 1 1008- ● ●
59 NUT; TIE ROD ARM
M22 		1-09449-084-0 04 1 1008- ● ●
61 ROD END; TIE ROD 8-98054-851-0 01 1 1008-1009 ● ●
61 ROD END; TIE ROD 8-98096-753-0 01 1 1010-1306 ● ●
61 ROD END; TIE ROD 8-98228-106-0 01 1 1307- ● ●
61 ROD END; TIE ROD 8-98054-853-0 01 1 1008-1009 ● ●
61 ROD END; TIE ROD 8-98096-754-0 01 1 1010-1306 ● ●
61 ROD END; TIE ROD 8-98228-107-0 01 1 1307- ● ●
66 NUT; TIE ROD END
M24 		1-09442-032-0 02 1 1008- ● ●
68 BOLT; TIE ROD END
M12X65 		8-98053-922-0 04 1 1008- ● ●
73 NIPPLE; GREASE,TIE ROD END 1-43159-133-0 02 1 1010- ● ●
74 NUT; TIE ROD END
M12 		0-91110-512-0 04 1 1008- ● ●
80 PIN; SPLIT,ROD END
OD=4.6 L=35 		0-81125-035-0 02 1 1008- ● ●
81 ROD; TIE 1-43151-154-0 01 1 1008-1009 ● ●
81 ROD; TIE 8-98105-064-0 01 1 1010- ● ●
220 STUD; KNUCKLE ARM
M22X145 		1-09300-127-1 02 1 1008- ● ●
275 BOOT; ROD END,TIE 1-43159-107-0 02 1 1008-1009 ● ●
275 BOOT; ROD END,TIE 1-43159-131-0 02 1 1010-1306 ● ●
275 BOOT; ROD END,TIE 8-98229-116-0 02 1 1307- ● ●
295 STUD; COVER,KING PIN
M10X20,M10X26 L=56 		8-98010-334-0 04 1 1008- ● ●
304 WASHER; PL
(A) ID=12.5 		0-91614-512-0 04 1 1008- ● ●
304 WASHER; PL
FRONT STABILIZER SHAFT<F59> (B) ID=21 		0-91614-520-0 02 1 1008- ●
313 STUD; TIE ROD ARM
M22X145 		1-09300-127-1 04 1 1008- ● ●

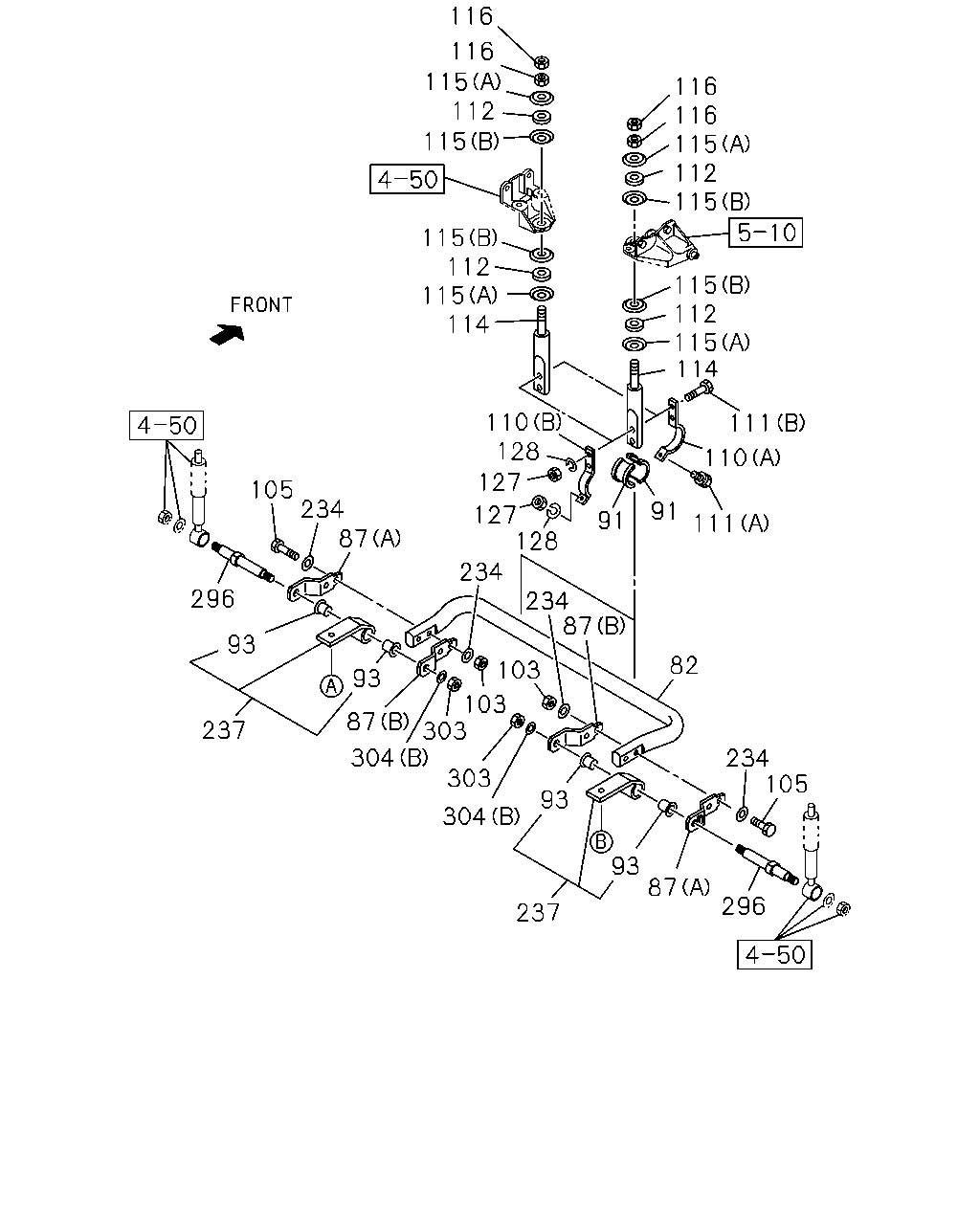

çizim 167234
116 116 115 112 116 116 115 112 115 115 115 112 115 114 115 112 115 114 110 128 111 110 127 105 234 87 91 127 128 91 111 234 296 234 87 93 82 103 93 103 303 304 87 237 234 105 303 93 304 93 87 296 237
BalonParca AdiParca NoAdetTipApplied Date A B
82 BAR; STAB,FRT SUSP
FRONT STABILIZER SHAFT<F59> 		1-51771-136-1 01 1 1008- ●
87 BRACKET; STABILIZER
FRONT STABILIZER SHAFT<F59> (A) 		8-98012-958-0 02 1 1008- ●
87 BRACKET; STABILIZER
FRONT STABILIZER SHAFT<F59> (B) 		8-98012-959-0 02 1 1008- ●
91 BUSHING; RUBBER,STAB BAR
FRONT STABILIZER SHAFT<F59> 		1-51779-087-1 04 1 1008- ●
93 BUSHING; STABILIZER
FRONT STABILIZER SHAFT<F59> 		1-51689-015-3 04 1 1008- ●
103 NUT; BRKT FIX
FRONT STABILIZER SHAFT<F59> M14 		0-91110-514-0 04 1 1008- ●
105 BOLT; BRKT FIX
FRONT STABILIZER SHAFT<F59> M14X70 		0-10956-470-0 04 1 1008- ●
110 CLAMP; STAB TO ROD
FRONT STABILIZER SHAFT<F59> (A) 		1-51789-027-2 02 1 1008- ●
110 CLAMP; STAB TO ROD
FRONT STABILIZER SHAFT<F59> (B) 		1-51789-028-1 02 1 1008- ●
111 BOLT; CLAMP TO ROD
FRONT STABILIZER SHAFT<F59> (A) M12X30 		0-20851-230-0 02 1 1008- ●
111 BOLT; CLAMP TO ROD
FRONT STABILIZER SHAFT<F59> (B) M12X50 		0-20851-250-0 04 1 1008- ●
112 BUSHING; ROD
FRONT STABILIZER SHAFT<F59> 		9-51631-039-0 04 1 1008- ●
114 ROD; STAB BAR
FRONT STABILIZER SHAFT<F59> 		1-51773-072-2 02 1 1008- ●
115 WASHER; CENTER,STAB TO FRAME
FRONT STABILIZER SHAFT<F59> (A) ID=16.5 		9-51631-040-0 04 1 1008- ●
115 WASHER; CENTER,STAB TO FRAME
FRONT STABILIZER SHAFT<F59> (B) ID=20.8 		9-51631-041-0 04 1 1008- ●
116 NUT; LK,STAB TO FRAME
FRONT STABILIZER SHAFT<F59> M14 		0-91111-514-0 04 1 1008- ●
127 NUT; CLAMP
FRONT STABILIZER SHAFT<F59> M12 		0-91110-512-0 06 1 1008- ●
128 WASHER; LK,CLAMP
FRONT STABILIZER SHAFT<F59> ID=12.2 		0-91510-812-0 06 1 1008- ●
234 WASHER; STAB
FRONT STABILIZER SHAFT<F59> ID=15 		8-98010-627-1 08 1 1008- ●
237 SUPPORT; STAB BAR
FRONT STABILIZER SHAFT<F59> 		1-51681-662-0 02 1 1008- ●
296 PIN; STAB
FRONT STABILIZER SHAFT<F59> 		8-98022-874-1 02 1 1008- ●
303 NUT; PIN
FRONT STABILIZER SHAFT<F59> M20 		0-91110-520-0 02 1 1008- ●
304 WASHER; PL
(A) ID=12.5 		0-91614-512-0 04 1 1008- ● ●
304 WASHER; PL
FRONT STABILIZER SHAFT<F59> (B) ID=21 		0-91614-520-0 02 1 1008- ●

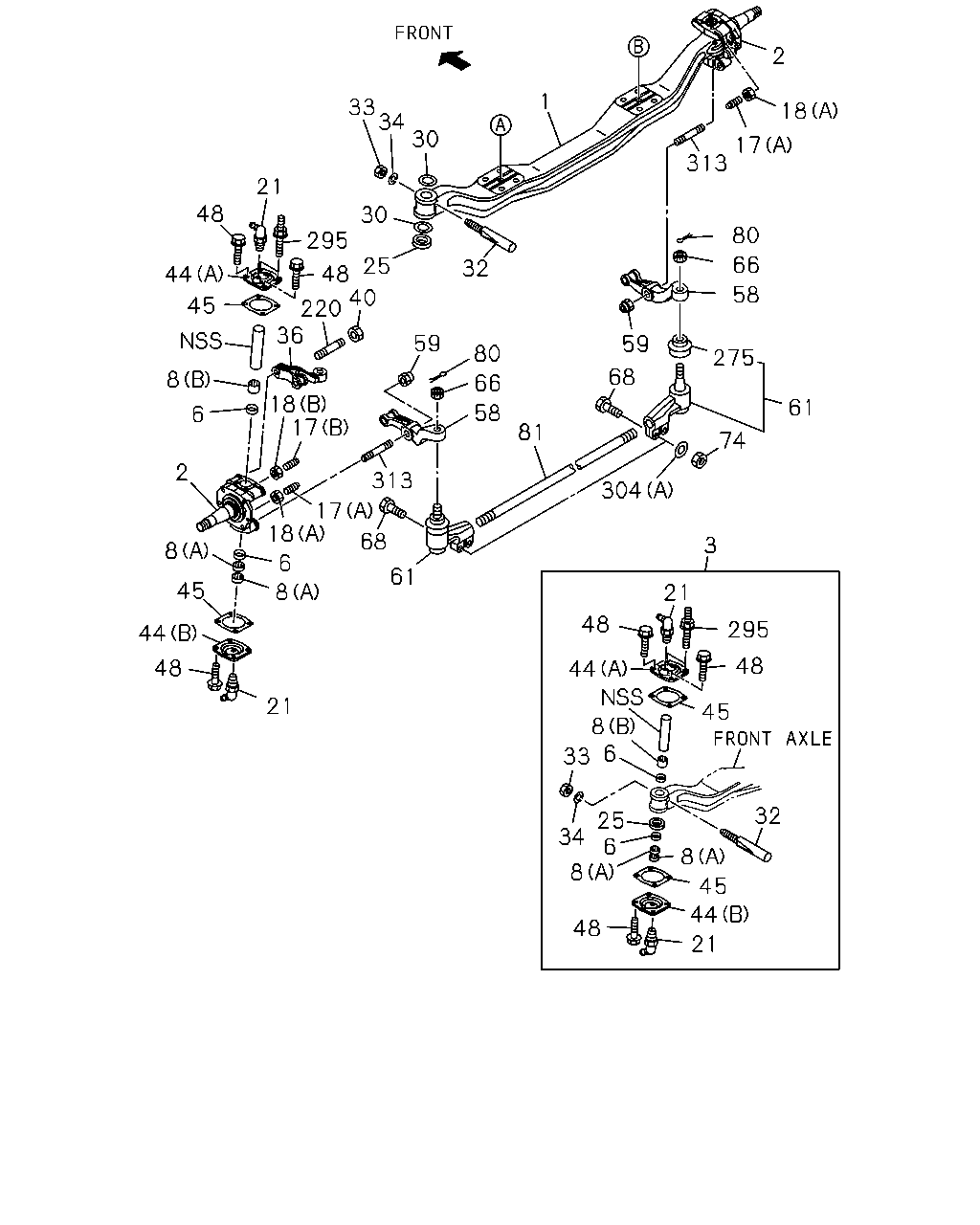

çizim 167274
2 1 33 34 30 18 17 313 21 48 30 80 295 66 25 32 48 40 220 36 44 58 45 59 59 80 275 68 8 66 18 17 61 58 6 81 74 2 313 304 17 18 68 3 8 6 61 45 8 21 48 295 44 48 48 44 21 45 8 6 33 32 25 6 34 8 8 45 44 48 21
BalonParca AdiParca NoAdetTipApplied Date A B
1 AXLE; FRT 1-43111-178-3 01 1 1008- ● ●
2 KNUCKLE; FRT AXLE 1-43131-120-1 01 1 1008- ● ●
2 KNUCKLE; FRT AXLE 1-43132-120-1 01 1 1008- ● ●
3 KING PIN SET 1-87831-349-3 02 1 1008- ● ●
6 SEAL; KING PIN 9-09926-024-0 04 1 1008- ● ●
8 BEARING; NEEDLE,KING PIN
(A) NTN 		9-00096-242-0 04 1 1008- ● ●
8 BEARING; NEEDLE,KING PIN
(B) NTN 		9-00096-243-0 02 1 1008- ● ●
17 BOLT; STOPPER KNUCKLE
(B) M18X53 		1-09009-066-0 01 1 1008- ● ●
17 BOLT; STOPPER KNUCKLE
(A) M18X43 		1-09009-190-0 02 1 1008- ● ●
18 NUT; STOPPER BOLT,KNUCKLE
(A) M18 		0-91110-518-0 02 1 1008- ● ●
18 NUT; STOPPER BOLT,KNUCKLE
(B) OCTAGON M18 		1-09469-011-1 01 1 1008- ● ●
21 NIPPLE; GREASE,KING PIN
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 04 1 1008- ● ●
25 BEARING; THRUST,KING PIN
NSK 		1-09829-043-2 02 1 1008- ● ●
30 WASHER; THRUST,KING PIN
T=4.875 -4.900 		1-43171-185-0 AR 1 1008- ● ●
30 WASHER; THRUST,KING PIN
T=4.900 -4.925 		1-43171-186-0 AR 1 1008- ● ●
30 WASHER; THRUST,KING PIN
T=4.925 -4.950 		1-43171-187-0 AR 1 1008- ● ●
30 WASHER; THRUST,KING PIN
T=4.950 -4.975 		1-43171-188-0 AR 1 1008- ● ●
30 WASHER; THRUST,KING PIN
T=4.975 -5.000 		1-43171-189-0 AR 1 1008- ● ●
30 WASHER; THRUST,KING PIN
T=5.000 -5.025 		1-43171-190-0 AR 1 1008- ● ●
30 WASHER; THRUST,KING PIN
T=5.025 -5.050 		1-43171-191-0 AR 1 1008- ● ●
30 WASHER; THRUST,KING PIN
T=5.050 -5.075 		1-43171-192-0 AR 1 1008- ● ●
30 WASHER; THRUST,KING PIN
T=5.075 -5.100 		1-43171-193-0 AR 1 1008- ● ●
30 WASHER; THRUST,KING PIN
T=5.100 -5.125 		1-43171-194-0 AR 1 1008- ● ●
30 WASHER; THRUST,KING PIN
T=5.125 -5.150 		1-43171-195-0 AR 1 1008- ● ●
30 WASHER; THRUST,KING PIN
T=5.150 -5.175 		1-43171-196-0 AR 1 1008- ● ●
30 WASHER; THRUST,KING PIN
T=5.175 -5.200 		1-43171-197-0 AR 1 1008- ● ●
30 WASHER; THRUST,KING PIN
T=5.200 -5.225 		1-43171-198-0 AR 1 1008- ● ●
30 WASHER; THRUST,KING PIN
T=5.225 -5.250 		1-43171-199-0 AR 1 1008- ● ●
32 BOLT; KEY,KING PIN 1-43116-002-2 02 1 1008- ● ●
33 NUT; KEY BOLT
M10 		0-91110-510-0 02 1 1008- ● ●
34 WASHER; LK,KEY BOLT
ID=10.2 		0-91510-510-0 02 1 1008- ● ●
36 ARM; KNUCKLE 1-43133-083-3 01 1 1008- ● ●
40 NUT; KNUCKLE ARM
M22 		1-09449-084-0 02 1 1008- ● ●
44 COVER; KING PIN
(A) 		8-98100-654-0 02 1 1008- ● ●
44 COVER; KING PIN
(B) 		8-98100-655-0 02 1 1008- ● ●
45 GASKET; KING PIN COVER 8-98100-656-1 04 1 1008- ● ●
48 BOLT; COVER
M10X25 FLANGE 		0-28751-025-0 12 1 1008- ● ●
58 ARM; TIE ROD 8-98145-592-0 01 1 1008- ● ●
58 ARM; TIE ROD 8-98145-593-0 01 1 1008- ● ●
59 NUT; TIE ROD ARM
M22 		1-09449-084-0 04 1 1008- ● ●
61 ROD END; TIE ROD 8-98054-851-0 01 1 1008-1009 ● ●
61 ROD END; TIE ROD 8-98096-753-0 01 1 1010-1306 ● ●
61 ROD END; TIE ROD 8-98228-106-0 01 1 1307- ● ●
61 ROD END; TIE ROD 8-98054-853-0 01 1 1008-1009 ● ●
61 ROD END; TIE ROD 8-98096-754-0 01 1 1010-1306 ● ●
61 ROD END; TIE ROD 8-98228-107-0 01 1 1307- ● ●
66 NUT; TIE ROD END
M24 		1-09442-032-0 02 1 1008- ● ●
68 BOLT; TIE ROD END
M12X65 		8-98053-922-0 04 1 1008- ● ●
74 NUT; TIE ROD END
M12 		0-91110-512-0 04 1 1008- ● ●
80 PIN; SPLIT,ROD END
OD=4.6 L=35 		0-81125-035-0 02 1 1008- ● ●
81 ROD; TIE 1-43151-154-0 01 1 1008-1009 ● ●
81 ROD; TIE 8-98105-064-0 01 1 1010- ● ●
220 STUD; KNUCKLE ARM
M22X145 		1-09300-127-1 02 1 1008- ● ●
275 BOOT; ROD END,TIE 1-43159-107-0 02 1 1008-1009 ● ●
275 BOOT; ROD END,TIE 1-43159-131-0 02 1 1010-1306 ● ●
275 BOOT; ROD END,TIE 8-98229-116-0 02 1 1307- ● ●
295 STUD; COVER,KING PIN
M10X20,M10X26 L=56 		8-98010-334-0 04 1 1008- ● ●
304 WASHER; PL
(A) ID=12.5 		0-91614-512-0 04 1 1008- ● ●
304 WASHER; PL
FRONT STABILIZER SHAFT<F59> (B) ID=21 		0-91614-520-0 02 1 1008- ●
313 STUD; TIE ROD ARM
M22X145 		1-09300-127-1 04 1 1008- ● ●

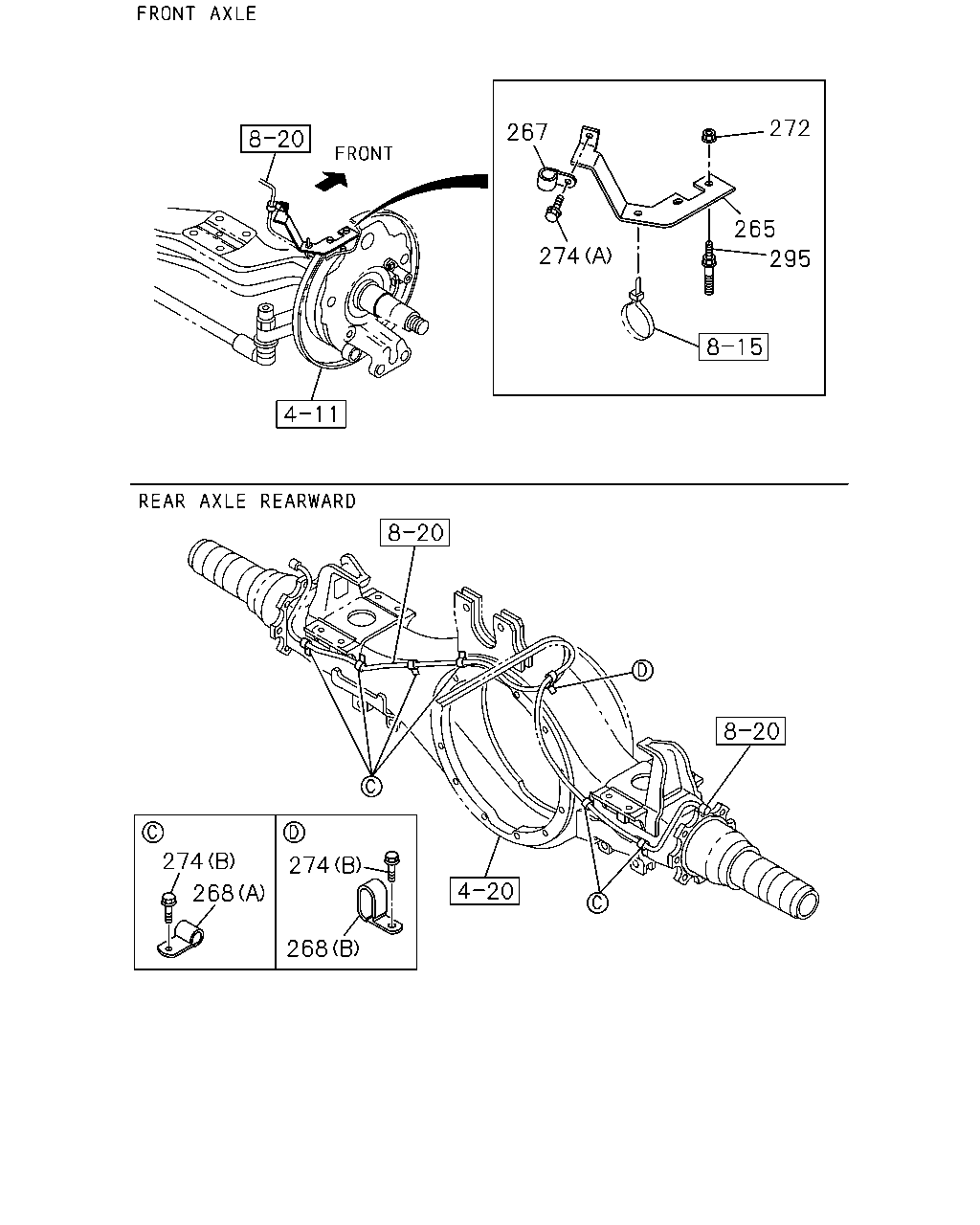

çizim 167540
272 267 265 274 295 274 274 268 268
BalonParca AdiParca NoAdetTipApplied Date A B
265 BRACKET; CLIP I BEAM 1-82698-505-0 01 1 1008- ● ●
265 BRACKET; CLIP I BEAM 1-82698-506-0 01 1 1008- ● ●
267 CLIP; HARNESS
ID=11 L=20 		0-95235-035-0 02 1 1008- ● ●
268 CLIP; HARNESS
(A) ID=11 L=20 		0-95235-035-0 06 1 1008- ● ●
268 CLIP; HARNESS
(B) ID=11X2 L=20 		1-09700-871-0 01 1 1008- ● ●
272 NUT; CLIP
M10 FLANGE 		0-91180-110-0 04 1 1008- ● ●
274 BOLT; CLIP
(B) M8X10 FLANGE 		0-28050-810-0 07 1 1008- ● ●
274 BOLT; CLIP
(A) M8X16 FLANGE 		0-28050-816-0 02 1 1008- ● ●
295 STUD; COVER,KING PIN
M10X20,M10X26 L=56 		8-98010-334-0 04 1 1008- ● ●
