Sayfa 3-78 - Isuzu EPC

3-78 — FIXING PARTS; AIR PIPING (#55649) — 529 parça

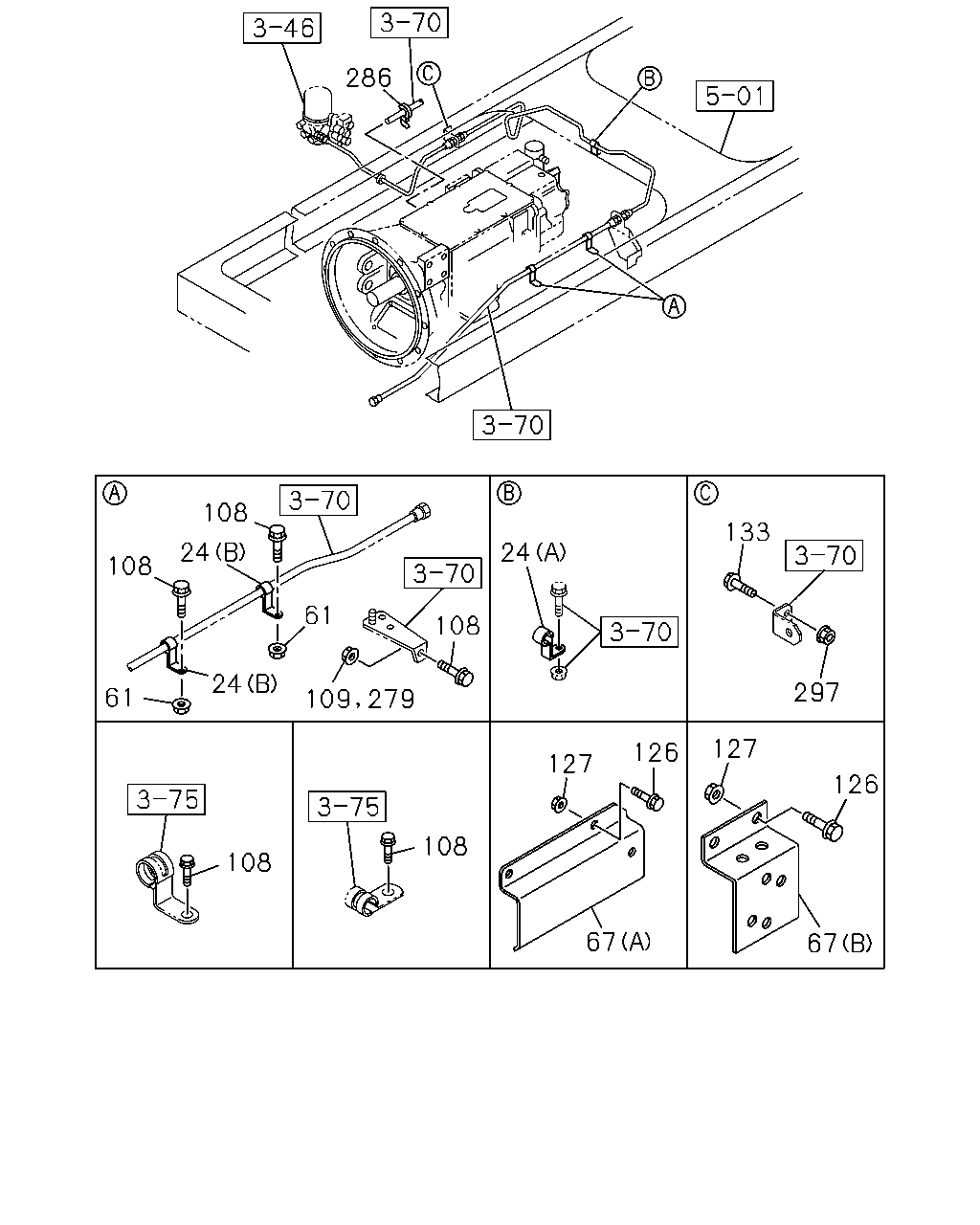

286 108 133 24 24 108 61 108 24 297 61 127 126 127 126 108 108 67 67 109 279

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	CLIP; PIPE (A) ID=15 H=24 L=20	1-09700-606-0	01	1	1008-	●	●
24	CLIP; PIPE (B) ID=25 H=30 L=35	1-09700-875-0	02	1	1008-	●	●
61	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	03	1	1008-	●	●
67	BRACKET; CLIP WHEEL BASE 5200MM(52W) RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7), GENERAL EXPORT EQUIPMENT(TAA) (A)	8-98172-056-0	01	1	1008-	●
67	BRACKET; CLIP RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7), GENERAL EXPORT EQUIPMENT(TAA) BATTERY LAYOUT REAR VAR1<NCT> (A)	8-98172-056-0	01	1	1008-		●
67	BRACKET; CLIP WHEEL BASE 5900MM(59W) RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7), GENERAL EXPORT EQUIPMENT(TAA) BATTERY LAYOUT REAR VAR1<NCT> (B)	1-82698-424-0	01	1	1008-		●
108	BOLT; TUBE CLIP MJX16P M/T(Y3Z) M8X20 FLANGE	0-28650-820-0	01	1	1008-	●	●
108	BOLT; TUBE CLIP M8X20 FLANGE	0-28650-820-0	02	1	1008-	●	●
108	BOLT; TUBE CLIP M8X20 FLANGE	0-28650-820-0	03	1	1008-	●	●
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28650-825-0	02	1	1008-	●	●
108	BOLT; TUBE CLIP M8X30 FLANGE	0-28650-830-0	04	1	1008-	●	●
108	BOLT; TUBE CLIP M8X35 FLANGE	0-28650-835-0	01	1	1008-	●	●
108	BOLT; TUBE CLIP 6WF1 TC-C(1B8) M8X25 FLANGE	0-28650-825-0	03	1	1008-	●	●
108	BOLT; TUBE CLIP 6WG1 TC-R(75L) M8X25 FLANGE	0-28650-825-0	01	1	1008-	●	●
109	NUT; TUBE CLIP MJX16P M/T(Y3Z) M8 FLANGE	0-91180-108-0	01	1	1008-	●	●
109	NUT; TUBE CLIP M8 FLANGE	0-91180-108-0	03	1	1008-	●	●
126	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	01	1	1008-	●
126	BOLT; CLIP BRKT WHEEL BASE 5200MM(52W) RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7), GENERAL EXPORT EQUIPMENT(TAA) M8X35 FLANGE	0-28650-835-0	02	1	1008-	●
126	BOLT; CLIP BRKT RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7), GENERAL EXPORT EQUIPMENT(TAA) BATTERY LAYOUT REAR VAR1<NCT> M8X35 FLANGE	0-28650-835-0	02	1	1008-		●
126	BOLT; CLIP BRKT WHEEL BASE 5900MM(59W) RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7), GENERAL EXPORT EQUIPMENT(TAA) BATTERY LAYOUT REAR VAR1<NCT> M8X35 FLANGE	0-28650-835-0	02	1	1008-		●
126	BOLT; CLIP BRKT M8X12 FLANGE	0-28050-812-0	04	1	1008-	●	●
126	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	04	1	1008-	●	●
126	BOLT; CLIP BRKT M8X35 FLANGE	0-28650-835-0	03	1	1008-	●	●
126	BOLT; CLIP BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W) M8X25 FLANGE	0-28650-825-0	02	1	1008-		●
126	BOLT; CLIP BRKT WHEEL BASE 6600MM(66W) M8X25 FLANGE	0-28650-825-0	03	1	1008-		●
127	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	05	1	1008-	●
127	NUT; CLIP BRKT RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7) M8 FLANGE	0-91180-108-0	02	1	1008-1008	●	●
127	NUT; CLIP BRKT WHEEL BASE 5200MM(52W) RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7), GENERAL EXPORT EQUIPMENT(TAA) M8 FLANGE	0-91180-108-0	02	1	1008-1008	●
127	NUT; CLIP BRKT CONCRETE PUMP<RA5> CHINA EQUIPMENT(YT2) M8 FLANGE	0-91180-108-0	02	1	1008-1008		●
127	NUT; CLIP BRKT RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7), GENERAL EXPORT EQUIPMENT(TAA) BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE	0-91180-108-0	02	1	1008-1008		●
127	NUT; CLIP BRKT WHEEL BASE 5900MM(59W) RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7), GENERAL EXPORT EQUIPMENT(TAA) BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE	0-91180-108-0	02	1	1008-1008		●
127	NUT; CLIP BRKT RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7), GENERAL EXPORT EQUIPMENT(TAA) M8 FLANGE	0-91180-108-0	02	1	1009-	●	●
127	NUT; CLIP BRKT WHEEL BASE 5200MM(52W) RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7), GENERAL EXPORT EQUIPMENT(TAA) M8 FLANGE	0-91180-108-0	02	1	1009-	●
127	NUT; CLIP BRKT RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7), GENERAL EXPORT EQUIPMENT(TAA) BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE	0-91180-108-0	02	1	1009-		●
127	NUT; CLIP BRKT WHEEL BASE 5900MM(59W) RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7), GENERAL EXPORT EQUIPMENT(TAA) BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE	0-91180-108-0	02	1	1009-		●
127	NUT; CLIP BRKT CONCRETE PUMP<RA5> CHINA EQUIPMENT(YT2) M8 FLANGE	0-91180-108-0	02	1	1009-		●
127	NUT; CLIP BRKT WHEEL BASE 5500MM(55W) M8 FLANGE	0-91180-108-0	06	1	1008-		●
127	NUT; CLIP BRKT WHEEL BASE 5900MM(59W) M8 FLANGE	0-91180-108-0	07	1	1008-		●
127	NUT; CLIP BRKT WHEEL BASE 6600MM(66W) M8 FLANGE	0-91180-108-0	09	1	1008-		●
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	1008-	●
133	BOLT; BRKT MIXER TRUCK<RA2> EURO4 SPECIFICATION<KBT> M8X20 FLANGE	0-28650-820-0	01	1	1008-1311	●
133	BOLT; BRKT MIXER TRUCK<RA2> EXC. EURO3 SPECIFICATION<NJX> M8X20 FLANGE	0-28650-820-0	01	1	1312-	●
133	BOLT; BRKT EXC. MIXER TRUCK<RA2> M6X10 FLANGE	0-28050-610-0	01	1	1008-	●
133	BOLT; BRKT M6X10 FLANGE	0-28050-610-0	01	1	1008-		●
133	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	1008-	●	●
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1008-	●	●
133	BOLT; BRKT WHEEL BASE 5200MM(52W) M8X25 FLANGE	0-28650-825-0	02	1	1008-	●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	03	1	1008-	●	●
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	05	1	1008-	●	●
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	05	1	1008-	●
133	BOLT; BRKT EXC. BATTERY LAYOUT REAR VAR1<NCT> M8X35 FLANGE	0-28650-835-0	05	1	1008-		●
133	BOLT; BRKT BATTERY LAYOUT REAR VAR1<NCT> M8X35 FLANGE	0-28650-835-0	01	1	1008-		●
133	BOLT; BRKT FULL TRAILER PIPING<Z25> M8X25 FLANGE	0-28650-825-0	01	1	1008-		●
133	BOLT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W) M8X25 FLANGE	0-28650-825-0	03	1	1008-		●
133	BOLT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W) M8X35 FLANGE	0-28650-835-0	03	1	1008-		●
133	BOLT; BRKT WHEEL BASE 6600MM(66W) EXC. BATTERY LAYOUT REAR VAR1<NCT> M8X35 FLANGE	0-28650-835-0	03	1	1008-		●
133	BOLT; BRKT WHEEL BASE 6600MM(66W) M8X25 FLANGE	0-28650-825-0	04	1	1008-		●
133	BOLT; BRKT WHEEL BASE 6600MM(66W) BATTERY LAYOUT REAR VAR1<NCT> M8X35 FLANGE	0-28650-835-0	04	1	1008-		●
279	NUT; BRKT M8 FLANGE	0-91180-108-0	11	1	1008-	●
279	NUT; BRKT EXC. BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE	0-91180-108-0	11	1	1008-		●
279	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1008-	●	●
279	NUT; BRKT BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE	0-91180-108-0	10	1	1008-		●
286	CLIP; NYLON TUBE ID=15 & 7	1-09709-311-0	01	1	1008-	●	●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	08	1	1008-	●
297	NUT; BRKT MIXER TRUCK<RA2> EURO4 SPECIFICATION<KBT> M8 FLANGE	0-91180-108-0	01	1	1008-1311	●
297	NUT; BRKT FULL TRAILER PIPING<Z25> M8 FLANGE	0-91180-108-0	01	1	1008-1311		●
297	NUT; BRKT MIXER TRUCK<RA2> EXC. EURO3 SPECIFICATION<NJX> M8 FLANGE	0-91180-108-0	01	1	1312-	●
297	NUT; BRKT FULL TRAILER PIPING<Z25> M8 FLANGE	0-91180-108-0	01	1	1312-		●
297	NUT; BRKT EXC. MIXER TRUCK<RA2> M12 FLANGE	0-91180-212-0	01	1	1008-	●
297	NUT; BRKT M12 FLANGE	0-91180-212-0	01	1	1008-		●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	05	1	1008-	●	●
297	NUT; BRKT RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7) M8 FLANGE	0-91180-108-0	02	1	1008-1008	●	●
297	NUT; BRKT CONCRETE PUMP<RA5> CHINA EQUIPMENT(YT2) M8 FLANGE	0-91180-108-0	02	1	1008-1008		●
297	NUT; BRKT RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7), GENERAL EXPORT EQUIPMENT(TAA) M8 FLANGE	0-91180-108-0	02	1	1009-	●	●
297	NUT; BRKT CONCRETE PUMP<RA5> CHINA EQUIPMENT(YT2) M8 FLANGE	0-91180-108-0	02	1	1009-		●
297	NUT; BRKT WHEEL BASE 5500MM(55W) M8 FLANGE	0-91180-108-0	10	1	1008-		●
297	NUT; BRKT WHEEL BASE 5900MM(59W) EXC. BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE	0-91180-108-0	10	1	1008-		●
297	NUT; BRKT WHEEL BASE 5900MM(59W) BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE	0-91180-108-0	11	1	1008-		●
297	NUT; BRKT WHEEL BASE 6600MM(66W) BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE	0-91180-108-0	14	1	1008-		●
297	NUT; BRKT WHEEL BASE 6600MM(66W) EXC. BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE	0-91180-108-0	12	1	1008-		●

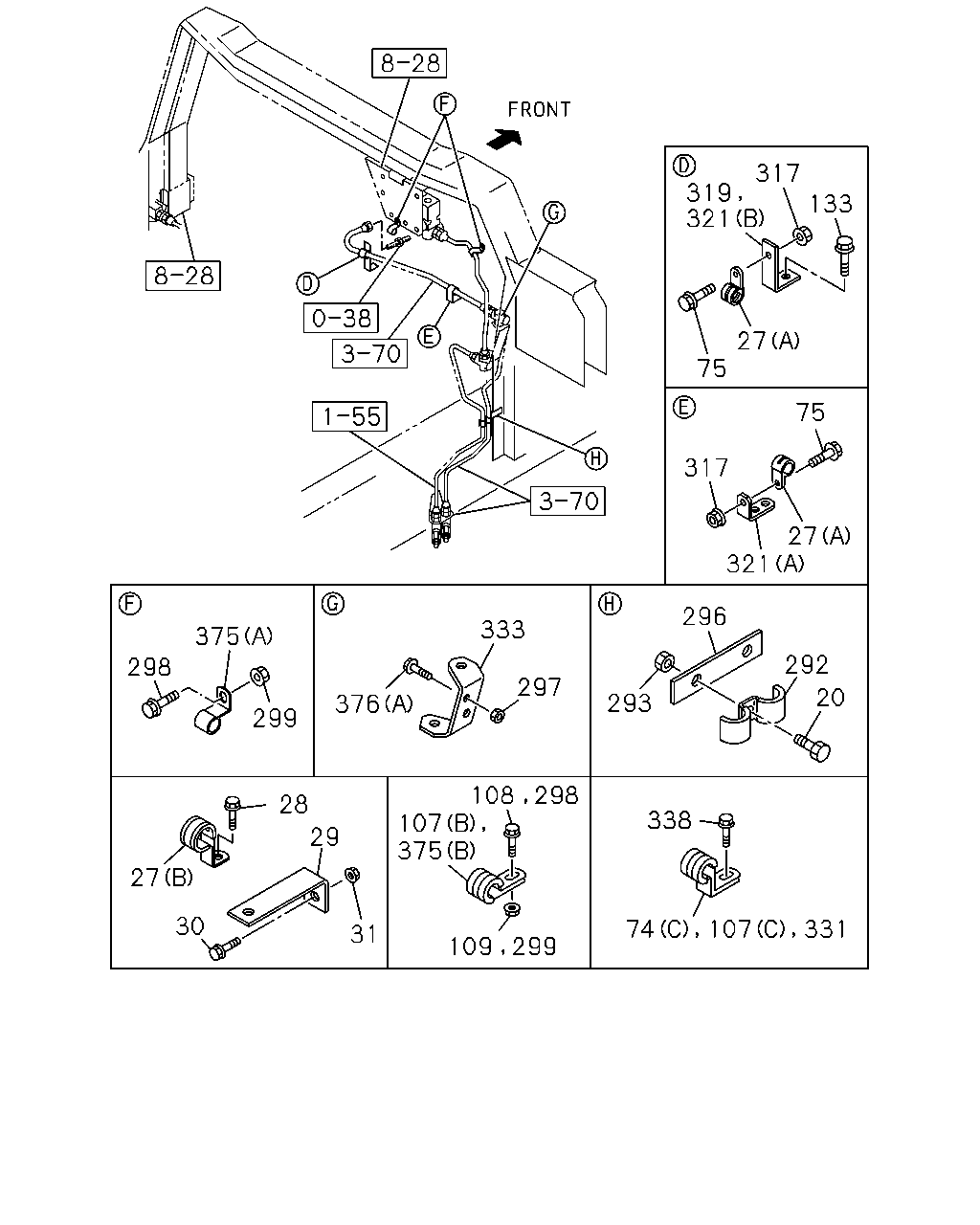

319 321 317 133 27 75 75 317 27 321 296 333 375 292 298 297 20 293 376 299 107 375 28 338 29 27 30 74 31 108 298 109 299 107 331

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
20	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	01	1	1008-	●
20	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1008-	●	●
20	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	02	1	1008-		●
27	CLIP; FLEX HOSE (B) ID=25 H=30 L=35	1-09700-875-0	02	1	1008-	●
27	CLIP; FLEX HOSE EXC. BATTERY LAYOUT REAR VAR1<NCT> (B) ID=25 H=30 L=35	1-09700-875-0	02	1	1008-		●
27	CLIP; FLEX HOSE EXC. MIXER TRUCK<RA2> (A) ID=15 L=28	1-09701-216-0	02	1	1008-	●
27	CLIP; FLEX HOSE (A) ID=15 L=28	1-09701-216-0	02	1	1008-		●
27	CLIP; FLEX HOSE BATTERY LAYOUT REAR VAR1<NCT> (A) ID=26 L=27	1-09701-006-0	01	1	1008-		●
28	BOLT; CLIP,FLEX HOSE M8X20 FLANGE	0-28650-820-0	02	1	1008-	●
28	BOLT; CLIP,FLEX HOSE EXC. BATTERY LAYOUT REAR VAR1<NCT> M8X20 FLANGE	0-28650-820-0	02	1	1008-		●
28	BOLT; CLIP,FLEX HOSE BATTERY LAYOUT REAR VAR1<NCT> M8X20 FLANGE	0-28650-820-0	01	1	1008-		●
29	BRACKET; CLIP,AIR PIPE BATTERY LAYOUT REAR VAR1<NCT> L=95	1-82699-085-0	01	1	1008-		●
30	BOLT; CLIP BRKT BATTERY LAYOUT REAR VAR1<NCT> M8X35 FLANGE	0-28650-835-0	01	1	1008-		●
31	NUT; CLIP BRKT BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE	0-91180-108-0	01	1	1008-		●
74	CLIP; NYLON TUBE FULL TRAILER PIPING<Z25> (A) L=350	1-09707-183-0	02	1	1008-		●
74	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	18	1	1008-	●
74	CLIP; NYLON TUBE (B) ID=13	1-09701-030-1	03	1	1008-	●	●
74	CLIP; NYLON TUBE (C) ID=16 H=25 L=25	1-09701-162-0	01	1	1008-	●	●
74	CLIP; NYLON TUBE (C) ID=35 H=45 L=33	1-09700-947-0	01	1	1008-		●
74	CLIP; NYLON TUBE TRAILER BRAKE HAND CONTROL(NLG) FULL TRAILER PIPING<Z25> (A) L=350	1-09707-183-0	01	1	1008-		●
74	CLIP; NYLON TUBE WHEEL BASE 5500MM(55W) (A) L=350	1-09707-183-0	19	1	1008-		●
74	CLIP; NYLON TUBE WHEEL BASE 5900MM(59W) (A) L=350	1-09707-183-0	20	1	1008-		●
74	CLIP; NYLON TUBE WHEEL BASE 6600MM(66W) BATTERY LAYOUT REAR VAR1<NCT> (A) L=350	1-09707-183-0	24	1	1008-		●
74	CLIP; NYLON TUBE WHEEL BASE 6600MM(66W) EXC. BATTERY LAYOUT REAR VAR1<NCT> (A) L=350	1-09707-183-0	22	1	1008-		●
75	BOLT; CLIP EXC. MIXER TRUCK<RA2> M8X20 FLANGE	0-28650-820-0	02	1	1008-	●
75	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	1008-		●
107	CLIP; NYLON TUBE (A) L=600	1-09707-107-1	02	1	1203-	●	●
107	CLIP; NYLON TUBE MJX16P M/T(Y3Z) (B) ID=15 L=28	1-09701-216-0	01	1	1008-	●	●
107	CLIP; NYLON TUBE MJX16P M/T(Y3Z) (D) ID=5-12 L=14.5	1-09987-221-0	02	1	1008-	●	●
107	CLIP; NYLON TUBE 6WF1 TC-C(1B8) (A) L=350	1-09707-183-0	01	1	1008-	●	●
107	CLIP; NYLON TUBE (B) ID=35 L=33	1-09700-945-0	02	1	1008-	●	●
107	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	15	1	1008-1202	●	●
107	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	13	1	1203-	●	●
107	CLIP; NYLON TUBE (B) ID=19 L=60	0-95235-896-0	01	1	1008-	●	●
107	CLIP; NYLON TUBE (C) ID=21 L=30 H=40	1-09700-991-1	01	1	1008-	●	●
107	CLIP; NYLON TUBE (C) ID=31 H=30 L=35	1-09700-994-0	02	1	1008-	●	●
107	CLIP; NYLON TUBE (C) ID=45 H=31 L=35	1-09701-308-0	02	1	1008-	●	●
108	BOLT; TUBE CLIP MJX16P M/T(Y3Z) M8X20 FLANGE	0-28650-820-0	01	1	1008-	●	●
108	BOLT; TUBE CLIP M8X20 FLANGE	0-28650-820-0	02	1	1008-	●	●
108	BOLT; TUBE CLIP M8X20 FLANGE	0-28650-820-0	03	1	1008-	●	●
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28650-825-0	02	1	1008-	●	●
108	BOLT; TUBE CLIP M8X30 FLANGE	0-28650-830-0	04	1	1008-	●	●
108	BOLT; TUBE CLIP M8X35 FLANGE	0-28650-835-0	01	1	1008-	●	●
108	BOLT; TUBE CLIP 6WF1 TC-C(1B8) M8X25 FLANGE	0-28650-825-0	03	1	1008-	●	●
108	BOLT; TUBE CLIP 6WG1 TC-R(75L) M8X25 FLANGE	0-28650-825-0	01	1	1008-	●	●
109	NUT; TUBE CLIP MJX16P M/T(Y3Z) M8 FLANGE	0-91180-108-0	01	1	1008-	●	●
109	NUT; TUBE CLIP M8 FLANGE	0-91180-108-0	03	1	1008-	●	●
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	1008-	●
133	BOLT; BRKT MIXER TRUCK<RA2> EURO4 SPECIFICATION<KBT> M8X20 FLANGE	0-28650-820-0	01	1	1008-1311	●
133	BOLT; BRKT MIXER TRUCK<RA2> EXC. EURO3 SPECIFICATION<NJX> M8X20 FLANGE	0-28650-820-0	01	1	1312-	●
133	BOLT; BRKT EXC. MIXER TRUCK<RA2> M6X10 FLANGE	0-28050-610-0	01	1	1008-	●
133	BOLT; BRKT M6X10 FLANGE	0-28050-610-0	01	1	1008-		●
133	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	1008-	●	●
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1008-	●	●
133	BOLT; BRKT WHEEL BASE 5200MM(52W) M8X25 FLANGE	0-28650-825-0	02	1	1008-	●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	03	1	1008-	●	●
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	05	1	1008-	●	●
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	05	1	1008-	●
133	BOLT; BRKT EXC. BATTERY LAYOUT REAR VAR1<NCT> M8X35 FLANGE	0-28650-835-0	05	1	1008-		●
133	BOLT; BRKT BATTERY LAYOUT REAR VAR1<NCT> M8X35 FLANGE	0-28650-835-0	01	1	1008-		●
133	BOLT; BRKT FULL TRAILER PIPING<Z25> M8X25 FLANGE	0-28650-825-0	01	1	1008-		●
133	BOLT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W) M8X25 FLANGE	0-28650-825-0	03	1	1008-		●
133	BOLT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W) M8X35 FLANGE	0-28650-835-0	03	1	1008-		●
133	BOLT; BRKT WHEEL BASE 6600MM(66W) EXC. BATTERY LAYOUT REAR VAR1<NCT> M8X35 FLANGE	0-28650-835-0	03	1	1008-		●
133	BOLT; BRKT WHEEL BASE 6600MM(66W) M8X25 FLANGE	0-28650-825-0	04	1	1008-		●
133	BOLT; BRKT WHEEL BASE 6600MM(66W) BATTERY LAYOUT REAR VAR1<NCT> M8X35 FLANGE	0-28650-835-0	04	1	1008-		●
292	CLIP; AIR PIPE ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	1008-	●	●
293	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1008-	●	●
296	BRACKET; CLIP	1-47475-648-0	01	1	1008-	●	●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	08	1	1008-	●
297	NUT; BRKT MIXER TRUCK<RA2> EURO4 SPECIFICATION<KBT> M8 FLANGE	0-91180-108-0	01	1	1008-1311	●
297	NUT; BRKT FULL TRAILER PIPING<Z25> M8 FLANGE	0-91180-108-0	01	1	1008-1311		●
297	NUT; BRKT MIXER TRUCK<RA2> EXC. EURO3 SPECIFICATION<NJX> M8 FLANGE	0-91180-108-0	01	1	1312-	●
297	NUT; BRKT FULL TRAILER PIPING<Z25> M8 FLANGE	0-91180-108-0	01	1	1312-		●
297	NUT; BRKT EXC. MIXER TRUCK<RA2> M12 FLANGE	0-91180-212-0	01	1	1008-	●
297	NUT; BRKT M12 FLANGE	0-91180-212-0	01	1	1008-		●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	05	1	1008-	●	●
297	NUT; BRKT RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7) M8 FLANGE	0-91180-108-0	02	1	1008-1008	●	●
297	NUT; BRKT CONCRETE PUMP<RA5> CHINA EQUIPMENT(YT2) M8 FLANGE	0-91180-108-0	02	1	1008-1008		●
297	NUT; BRKT RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7), GENERAL EXPORT EQUIPMENT(TAA) M8 FLANGE	0-91180-108-0	02	1	1009-	●	●
297	NUT; BRKT CONCRETE PUMP<RA5> CHINA EQUIPMENT(YT2) M8 FLANGE	0-91180-108-0	02	1	1009-		●
297	NUT; BRKT WHEEL BASE 5500MM(55W) M8 FLANGE	0-91180-108-0	10	1	1008-		●
297	NUT; BRKT WHEEL BASE 5900MM(59W) EXC. BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE	0-91180-108-0	10	1	1008-		●
297	NUT; BRKT WHEEL BASE 5900MM(59W) BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE	0-91180-108-0	11	1	1008-		●
297	NUT; BRKT WHEEL BASE 6600MM(66W) BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE	0-91180-108-0	14	1	1008-		●
297	NUT; BRKT WHEEL BASE 6600MM(66W) EXC. BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE	0-91180-108-0	12	1	1008-		●
298	BOLT; CLIP MIXER TRUCK<RA2> M8X20 FLANGE	0-28650-820-0	01	1	1008-	●
298	BOLT; CLIP MIXER TRUCK<RA2> EURO4 SPECIFICATION<KBT>,EURO2 SPECIFICATION<THN> M8X20 FLANGE	0-28650-820-0	02	1	1008-	●
299	NUT; CLIP MIXER TRUCK<RA2> M8 FLANGE	0-91180-108-0	01	1	1008-	●
299	NUT; CLIP MIXER TRUCK<RA2> EURO4 SPECIFICATION<KBT>,EURO2 SPECIFICATION<THN> M8 FLANGE	0-91180-108-0	02	1	1008-	●
317	NUT; CLIP EXC. MIXER TRUCK<RA2> M8 FLANGE	0-91180-108-0	02	1	1008-	●
317	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	1008-		●
319	BRACKET; CLIP MIXER TRUCK<RA2> EURO4 SPECIFICATION<KBT> L=75	1-47477-119-0	01	1	1008-1311	●
319	BRACKET; CLIP MIXER TRUCK<RA2> EXC. EURO3 SPECIFICATION<NJX> L=75	1-47477-119-0	01	1	1312-	●
321	BRACKET; CLIP EXC. MIXER TRUCK<RA2> (A)	1-47477-337-1	01	1	1008-	●
321	BRACKET; CLIP (A)	1-47477-337-1	01	1	1008-		●
321	BRACKET; CLIP EXC. MIXER TRUCK<RA2> (B) L=75	1-47478-328-0	01	1	1008-	●
321	BRACKET; CLIP (B) L=75	1-47478-328-0	01	1	1008-		●
331	CLIP; NYLON TUBE BATTERY LAYOUT REAR VAR1<NCT> ID=13 H=75 L=25	1-09700-601-0	02	1	1008-		●
333	BRACKET; BRK AIR PIPE	1-47477-045-0	01	1	1008-	●	●
338	BOLT; PIPE CLIP BATTERY LAYOUT REAR VAR1<NCT> M8X30 FLANGE	0-28650-830-0	02	1	1008-		●
375	CLIP; AIR PIPE MIXER TRUCK<RA2> (A) ID=6 H=20 L=20	1-09700-603-0	01	1	1008-	●
375	CLIP; AIR PIPE MIXER TRUCK<RA2> EURO4 SPECIFICATION<KBT>,EURO2 SPECIFICATION<THN> (B) ID=7 L=20	0-95234-635-0	02	1	1008-	●
376	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	1008-	●	●
376	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	04	1	1008-	●	●
376	BOLT; BRKT (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	03	1	1008-	●	●
376	BOLT; BRKT EXC. EURO4 SPECIFICATION<KBT> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	1008-	●	●

2 16 270 16 61 126 133 74 74 20 16 18 16 16 22 127 16 133 74 74 74 16 74 127 297 126 297 22 106 18 21 74 107 269 357 21 20 269 128 269

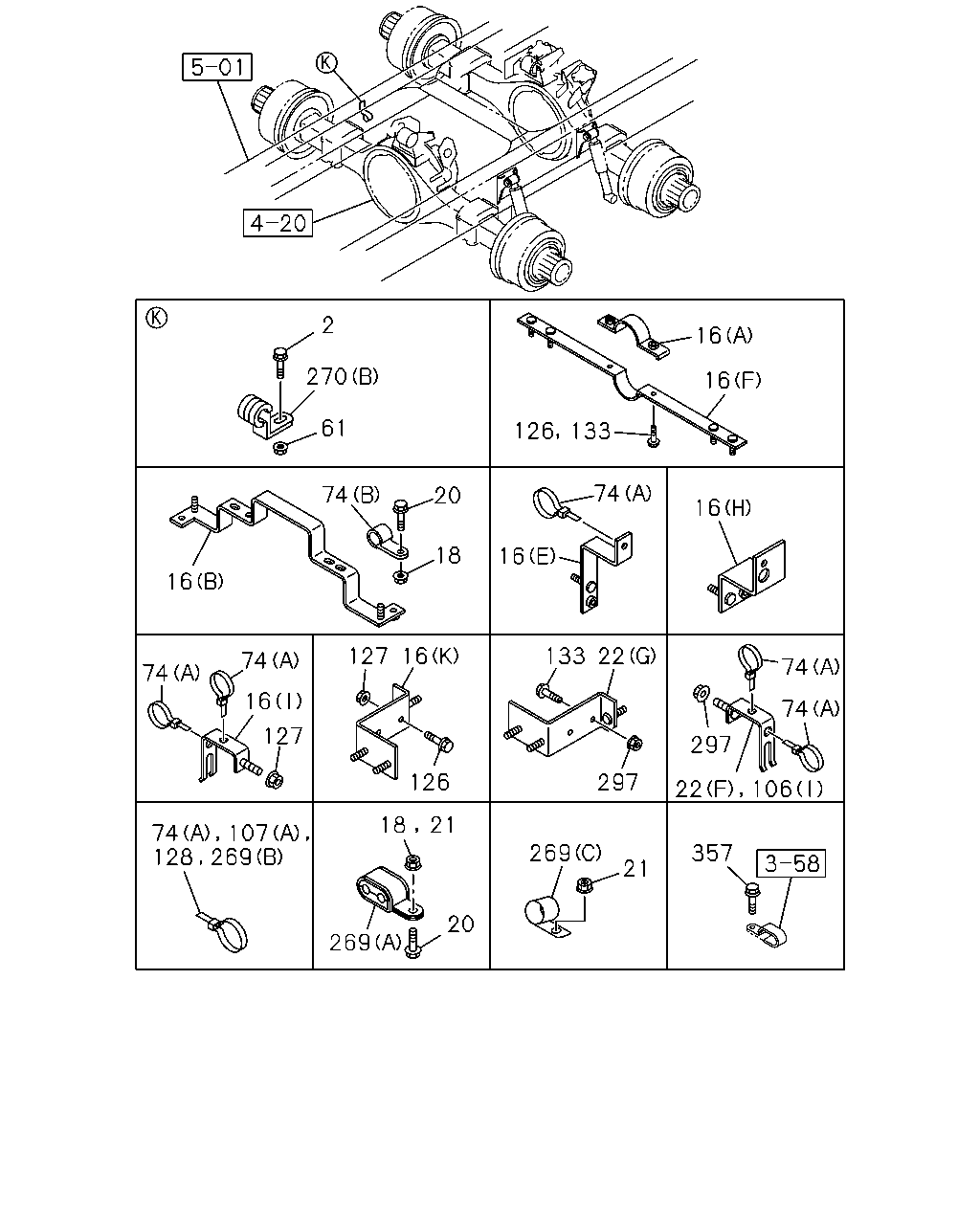

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	BOLT; CLIP FIX M8X20 FLANGE	0-28650-820-0	01	1	1008-	●	●
16	BRACKET; PIPE CLIP (I)	1-47479-381-2	01	1	1008-	●
16	BRACKET; PIPE CLIP WHEEL BASE 5500MM(55W) (I)	1-47479-381-2	01	1	1008-		●
16	BRACKET; PIPE CLIP (G)	1-47479-693-0	01	1	1008-	●
16	BRACKET; PIPE CLIP (D) L=30	1-47479-481-0	01	1	1008-	●	●
16	BRACKET; PIPE CLIP (A)	1-47479-546-0	02	1	1008-	●	●
16	BRACKET; PIPE CLIP (C)	1-47479-554-0	01	1	1008-	●	●
16	BRACKET; PIPE CLIP (F)	1-47479-720-0	02	1	1008-	●	●
16	BRACKET; PIPE CLIP (E)	1-47479-721-0	01	1	1008-	●	●
16	BRACKET; PIPE CLIP (H)	1-47479-722-1	01	1	1008-	●	●
16	BRACKET; PIPE CLIP (J)	1-47479-800-0	01	1	1008-	●	●
16	BRACKET; PIPE CLIP (B)	1-47479-898-0	01	1	1008-	●	●
16	BRACKET; PIPE CLIP (B)	1-47479-898-0	01	1	1008-	●	●
16	BRACKET; PIPE CLIP RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7) (K)	8-98142-172-0	01	1	1008-1008	●	●
16	BRACKET; PIPE CLIP CONCRETE PUMP<RA5> CHINA EQUIPMENT(YT2) (K)	8-98142-172-0	01	1	1008-1008		●
16	BRACKET; PIPE CLIP RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7), GENERAL EXPORT EQUIPMENT(TAA) (K)	8-98142-172-0	01	1	1009-	●	●
16	BRACKET; PIPE CLIP CONCRETE PUMP<RA5> CHINA EQUIPMENT(YT2) (K)	8-98142-172-0	01	1	1009-		●
16	BRACKET; PIPE CLIP WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W) (G)	1-47479-693-0	02	1	1008-		●
16	BRACKET; PIPE CLIP WHEEL BASE 5900MM(59W) (I)	1-47479-381-2	02	1	1008-		●
16	BRACKET; PIPE CLIP WHEEL BASE 6600MM(66W) (I)	1-47479-381-2	03	1	1008-		●
16	BRACKET; PIPE CLIP WHEEL BASE 6600MM(66W) (G)	1-47479-693-0	03	1	1008-		●
18	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1008-	●
18	NUT; CLIP M8 FLANGE	0-91180-108-0	03	1	1008-	●	●
18	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	1008-		●
20	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	01	1	1008-	●
20	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1008-	●	●
20	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	02	1	1008-		●
21	NUT; CLIP M8 FLANGE	0-91180-108-0	10	1	1008-	●	●
22	BRACKET; CLIP WHEEL BASE 6600MM(66W) BATTERY LAYOUT REAR VAR1<NCT> (D)	1-47479-870-0	02	1	1111-		●
22	BRACKET; CLIP (A)	1-47479-329-0	01	1	1008-	●
22	BRACKET; CLIP WHEEL BASE 5500MM(55W),WHEEL BASE 6600MM(66W) (A)	1-47479-329-0	01	1	1008-		●
22	BRACKET; CLIP (F)	1-47479-381-2	01	1	1008-	●
22	BRACKET; CLIP WHEEL BASE 5500MM(55W) (F)	1-47479-381-2	01	1	1008-		●
22	BRACKET; CLIP (E)	1-47479-693-0	01	1	1008-	●
22	BRACKET; CLIP (C) L=100 H=30	1-47477-645-2	02	1	1008-	●	●
22	BRACKET; CLIP (H)	1-47479-554-0	01	1	1008-	●	●
22	BRACKET; CLIP (B)	1-47479-800-0	01	1	1008-	●	●
22	BRACKET; CLIP (D)	1-47479-870-0	01	1	1008-1110	●	●
22	BRACKET; CLIP (D)	1-47479-870-0	01	1	1111-	●
22	BRACKET; CLIP WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W) (D)	1-47479-870-0	01	1	1111-		●
22	BRACKET; CLIP WHEEL BASE 6600MM(66W) EXC. BATTERY LAYOUT REAR VAR1<NCT> (D)	1-47479-870-0	01	1	1111-		●
22	BRACKET; CLIP RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7) (G)	8-98142-173-0	01	1	1008-1008	●	●
22	BRACKET; CLIP CONCRETE PUMP<RA5> CHINA EQUIPMENT(YT2) (G)	8-98142-173-0	01	1	1008-1008		●
22	BRACKET; CLIP RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7), GENERAL EXPORT EQUIPMENT(TAA) (G)	8-98142-173-0	01	1	1009-	●	●
22	BRACKET; CLIP CONCRETE PUMP<RA5> CHINA EQUIPMENT(YT2) (G)	8-98142-173-0	01	1	1009-		●
22	BRACKET; CLIP (I) L=130	1-47478-959-0	01	1	1008-		●
22	BRACKET; CLIP FULL TRAILER PIPING<Z25> (C) L=100 H=30	1-47477-645-2	01	1	1008-		●
22	BRACKET; CLIP WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W) (E)	1-47479-693-0	02	1	1008-		●
22	BRACKET; CLIP WHEEL BASE 5900MM(59W) (A)	1-47471-188-0	01	1	1008-		●
22	BRACKET; CLIP WHEEL BASE 5900MM(59W) (F)	1-47479-381-2	02	1	1008-		●
22	BRACKET; CLIP WHEEL BASE 6600MM(66W) (F)	1-47479-381-2	03	1	1008-		●
22	BRACKET; CLIP WHEEL BASE 6600MM(66W) (E)	1-47479-693-0	03	1	1008-		●
61	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	03	1	1008-	●	●
74	CLIP; NYLON TUBE FULL TRAILER PIPING<Z25> (A) L=350	1-09707-183-0	02	1	1008-		●
74	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	18	1	1008-	●
74	CLIP; NYLON TUBE (B) ID=13	1-09701-030-1	03	1	1008-	●	●
74	CLIP; NYLON TUBE (C) ID=16 H=25 L=25	1-09701-162-0	01	1	1008-	●	●
74	CLIP; NYLON TUBE (C) ID=35 H=45 L=33	1-09700-947-0	01	1	1008-		●
74	CLIP; NYLON TUBE TRAILER BRAKE HAND CONTROL(NLG) FULL TRAILER PIPING<Z25> (A) L=350	1-09707-183-0	01	1	1008-		●
74	CLIP; NYLON TUBE WHEEL BASE 5500MM(55W) (A) L=350	1-09707-183-0	19	1	1008-		●
74	CLIP; NYLON TUBE WHEEL BASE 5900MM(59W) (A) L=350	1-09707-183-0	20	1	1008-		●
74	CLIP; NYLON TUBE WHEEL BASE 6600MM(66W) BATTERY LAYOUT REAR VAR1<NCT> (A) L=350	1-09707-183-0	24	1	1008-		●
74	CLIP; NYLON TUBE WHEEL BASE 6600MM(66W) EXC. BATTERY LAYOUT REAR VAR1<NCT> (A) L=350	1-09707-183-0	22	1	1008-		●
106	BRACKET; TUBE CLIP (C)	1-47471-108-0	01	1	1008-	●
106	BRACKET; TUBE CLIP EXC. BATTERY LAYOUT REAR VAR1<NCT> (C)	1-47471-108-0	01	1	1008-		●
106	BRACKET; TUBE CLIP (L)	1-47479-870-0	01	1	1008-	●
106	BRACKET; TUBE CLIP EXC. BATTERY LAYOUT REAR VAR1<NCT> (L)	1-47479-870-0	01	1	1008-		●
106	BRACKET; TUBE CLIP (A)	8-98155-060-0	01	1	1008-	●
106	BRACKET; TUBE CLIP EXC. BATTERY LAYOUT REAR VAR1<NCT> (A)	8-98155-060-0	01	1	1008-		●
106	BRACKET; TUBE CLIP (B)	1-47477-514-3	01	1	1008-	●	●
106	BRACKET; TUBE CLIP (I)	1-47479-381-2	02	1	1008-	●	●
106	BRACKET; TUBE CLIP (J)	1-47479-553-0	01	1	1008-	●	●
106	BRACKET; TUBE CLIP (D)	8-98046-949-0	01	1	1008-	●	●
106	BRACKET; TUBE CLIP (E)	8-98052-408-0	01	1	1008-1412	●	●
106	BRACKET; TUBE CLIP (E)	8-98297-188-0	01	1	1501-	●	●
106	BRACKET; TUBE CLIP (F)	8-98052-410-0	01	1	1008-	●	●
106	BRACKET; TUBE CLIP (G)	8-98057-133-0	01	1	1008-	●	●
106	BRACKET; TUBE CLIP (H)	8-98061-758-0	01	1	1008-	●	●
106	BRACKET; TUBE CLIP BATTERY LAYOUT REAR VAR1<NCT> (K)	1-47479-754-0	01	1	1008-		●
107	CLIP; NYLON TUBE (A) L=600	1-09707-107-1	02	1	1203-	●	●
107	CLIP; NYLON TUBE MJX16P M/T(Y3Z) (B) ID=15 L=28	1-09701-216-0	01	1	1008-	●	●
107	CLIP; NYLON TUBE MJX16P M/T(Y3Z) (D) ID=5-12 L=14.5	1-09987-221-0	02	1	1008-	●	●
107	CLIP; NYLON TUBE 6WF1 TC-C(1B8) (A) L=350	1-09707-183-0	01	1	1008-	●	●
107	CLIP; NYLON TUBE (B) ID=35 L=33	1-09700-945-0	02	1	1008-	●	●
107	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	15	1	1008-1202	●	●
107	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	13	1	1203-	●	●
107	CLIP; NYLON TUBE (B) ID=19 L=60	0-95235-896-0	01	1	1008-	●	●
107	CLIP; NYLON TUBE (C) ID=21 L=30 H=40	1-09700-991-1	01	1	1008-	●	●
107	CLIP; NYLON TUBE (C) ID=31 H=30 L=35	1-09700-994-0	02	1	1008-	●	●
107	CLIP; NYLON TUBE (C) ID=45 H=31 L=35	1-09701-308-0	02	1	1008-	●	●
126	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	01	1	1008-	●
126	BOLT; CLIP BRKT WHEEL BASE 5200MM(52W) RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7), GENERAL EXPORT EQUIPMENT(TAA) M8X35 FLANGE	0-28650-835-0	02	1	1008-	●
126	BOLT; CLIP BRKT RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7), GENERAL EXPORT EQUIPMENT(TAA) BATTERY LAYOUT REAR VAR1<NCT> M8X35 FLANGE	0-28650-835-0	02	1	1008-		●
126	BOLT; CLIP BRKT WHEEL BASE 5900MM(59W) RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7), GENERAL EXPORT EQUIPMENT(TAA) BATTERY LAYOUT REAR VAR1<NCT> M8X35 FLANGE	0-28650-835-0	02	1	1008-		●
126	BOLT; CLIP BRKT M8X12 FLANGE	0-28050-812-0	04	1	1008-	●	●
126	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	04	1	1008-	●	●
126	BOLT; CLIP BRKT M8X35 FLANGE	0-28650-835-0	03	1	1008-	●	●
126	BOLT; CLIP BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W) M8X25 FLANGE	0-28650-825-0	02	1	1008-		●
126	BOLT; CLIP BRKT WHEEL BASE 6600MM(66W) M8X25 FLANGE	0-28650-825-0	03	1	1008-		●
127	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	05	1	1008-	●
127	NUT; CLIP BRKT RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7) M8 FLANGE	0-91180-108-0	02	1	1008-1008	●	●
127	NUT; CLIP BRKT WHEEL BASE 5200MM(52W) RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7), GENERAL EXPORT EQUIPMENT(TAA) M8 FLANGE	0-91180-108-0	02	1	1008-1008	●
127	NUT; CLIP BRKT CONCRETE PUMP<RA5> CHINA EQUIPMENT(YT2) M8 FLANGE	0-91180-108-0	02	1	1008-1008		●
127	NUT; CLIP BRKT RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7), GENERAL EXPORT EQUIPMENT(TAA) BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE	0-91180-108-0	02	1	1008-1008		●
127	NUT; CLIP BRKT WHEEL BASE 5900MM(59W) RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7), GENERAL EXPORT EQUIPMENT(TAA) BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE	0-91180-108-0	02	1	1008-1008		●
127	NUT; CLIP BRKT RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7), GENERAL EXPORT EQUIPMENT(TAA) M8 FLANGE	0-91180-108-0	02	1	1009-	●	●
127	NUT; CLIP BRKT WHEEL BASE 5200MM(52W) RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7), GENERAL EXPORT EQUIPMENT(TAA) M8 FLANGE	0-91180-108-0	02	1	1009-	●
127	NUT; CLIP BRKT RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7), GENERAL EXPORT EQUIPMENT(TAA) BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE	0-91180-108-0	02	1	1009-		●
127	NUT; CLIP BRKT WHEEL BASE 5900MM(59W) RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7), GENERAL EXPORT EQUIPMENT(TAA) BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE	0-91180-108-0	02	1	1009-		●
127	NUT; CLIP BRKT CONCRETE PUMP<RA5> CHINA EQUIPMENT(YT2) M8 FLANGE	0-91180-108-0	02	1	1009-		●
127	NUT; CLIP BRKT WHEEL BASE 5500MM(55W) M8 FLANGE	0-91180-108-0	06	1	1008-		●
127	NUT; CLIP BRKT WHEEL BASE 5900MM(59W) M8 FLANGE	0-91180-108-0	07	1	1008-		●
127	NUT; CLIP BRKT WHEEL BASE 6600MM(66W) M8 FLANGE	0-91180-108-0	09	1	1008-		●
128	CLIP; NYLON TUBE WHEEL BASE 5900MM(59W) L=350	1-09707-183-0	19	1	1008-		●
128	CLIP; NYLON TUBE WHEEL BASE 6600MM(66W) L=350	1-09707-183-0	21	1	1008-		●
128	CLIP; NYLON TUBE L=350	1-09707-183-0	17	1	1008-	●
128	CLIP; NYLON TUBE WHEEL BASE 5500MM(55W) L=350	1-09707-183-0	18	1	1008-		●
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	1008-	●
133	BOLT; BRKT MIXER TRUCK<RA2> EURO4 SPECIFICATION<KBT> M8X20 FLANGE	0-28650-820-0	01	1	1008-1311	●
133	BOLT; BRKT MIXER TRUCK<RA2> EXC. EURO3 SPECIFICATION<NJX> M8X20 FLANGE	0-28650-820-0	01	1	1312-	●
133	BOLT; BRKT EXC. MIXER TRUCK<RA2> M6X10 FLANGE	0-28050-610-0	01	1	1008-	●
133	BOLT; BRKT M6X10 FLANGE	0-28050-610-0	01	1	1008-		●
133	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	1008-	●	●
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1008-	●	●
133	BOLT; BRKT WHEEL BASE 5200MM(52W) M8X25 FLANGE	0-28650-825-0	02	1	1008-	●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	03	1	1008-	●	●
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	05	1	1008-	●	●
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	05	1	1008-	●
133	BOLT; BRKT EXC. BATTERY LAYOUT REAR VAR1<NCT> M8X35 FLANGE	0-28650-835-0	05	1	1008-		●
133	BOLT; BRKT BATTERY LAYOUT REAR VAR1<NCT> M8X35 FLANGE	0-28650-835-0	01	1	1008-		●
133	BOLT; BRKT FULL TRAILER PIPING<Z25> M8X25 FLANGE	0-28650-825-0	01	1	1008-		●
133	BOLT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W) M8X25 FLANGE	0-28650-825-0	03	1	1008-		●
133	BOLT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W) M8X35 FLANGE	0-28650-835-0	03	1	1008-		●
133	BOLT; BRKT WHEEL BASE 6600MM(66W) EXC. BATTERY LAYOUT REAR VAR1<NCT> M8X35 FLANGE	0-28650-835-0	03	1	1008-		●
133	BOLT; BRKT WHEEL BASE 6600MM(66W) M8X25 FLANGE	0-28650-825-0	04	1	1008-		●
133	BOLT; BRKT WHEEL BASE 6600MM(66W) BATTERY LAYOUT REAR VAR1<NCT> M8X35 FLANGE	0-28650-835-0	04	1	1008-		●
269	CLIP; BAND,NYLON TUBE (C) ID=13	1-09701-030-1	03	1	1008-	●	●
269	CLIP; BAND,NYLON TUBE (A) ID=11X2 L=42	1-09701-306-0	06	1	1008-	●	●
269	CLIP; BAND,NYLON TUBE (B) L=350	1-09707-183-0	02	1	1008-	●	●
270	CLIP; NYLON TUBE (B) ID=27.5 H=23 L=24	1-09700-863-0	01	1	1008-	●	●
270	CLIP; NYLON TUBE (A) ID=28 L=32	1-09701-107-1	03	1	1008-	●	●
270	CLIP; NYLON TUBE (B) ID=16 H=25 L=25	1-09701-162-0	02	1	1008-	●	●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	08	1	1008-	●
297	NUT; BRKT MIXER TRUCK<RA2> EURO4 SPECIFICATION<KBT> M8 FLANGE	0-91180-108-0	01	1	1008-1311	●
297	NUT; BRKT FULL TRAILER PIPING<Z25> M8 FLANGE	0-91180-108-0	01	1	1008-1311		●
297	NUT; BRKT MIXER TRUCK<RA2> EXC. EURO3 SPECIFICATION<NJX> M8 FLANGE	0-91180-108-0	01	1	1312-	●
297	NUT; BRKT FULL TRAILER PIPING<Z25> M8 FLANGE	0-91180-108-0	01	1	1312-		●
297	NUT; BRKT EXC. MIXER TRUCK<RA2> M12 FLANGE	0-91180-212-0	01	1	1008-	●
297	NUT; BRKT M12 FLANGE	0-91180-212-0	01	1	1008-		●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	05	1	1008-	●	●
297	NUT; BRKT RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7) M8 FLANGE	0-91180-108-0	02	1	1008-1008	●	●
297	NUT; BRKT CONCRETE PUMP<RA5> CHINA EQUIPMENT(YT2) M8 FLANGE	0-91180-108-0	02	1	1008-1008		●
297	NUT; BRKT RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7), GENERAL EXPORT EQUIPMENT(TAA) M8 FLANGE	0-91180-108-0	02	1	1009-	●	●
297	NUT; BRKT CONCRETE PUMP<RA5> CHINA EQUIPMENT(YT2) M8 FLANGE	0-91180-108-0	02	1	1009-		●
297	NUT; BRKT WHEEL BASE 5500MM(55W) M8 FLANGE	0-91180-108-0	10	1	1008-		●
297	NUT; BRKT WHEEL BASE 5900MM(59W) EXC. BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE	0-91180-108-0	10	1	1008-		●
297	NUT; BRKT WHEEL BASE 5900MM(59W) BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE	0-91180-108-0	11	1	1008-		●
297	NUT; BRKT WHEEL BASE 6600MM(66W) BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE	0-91180-108-0	14	1	1008-		●
297	NUT; BRKT WHEEL BASE 6600MM(66W) EXC. BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE	0-91180-108-0	12	1	1008-		●
357	BOLT; CLIP FIX M8X10 FLANGE	0-28050-810-0	02	1	1008-	●	●

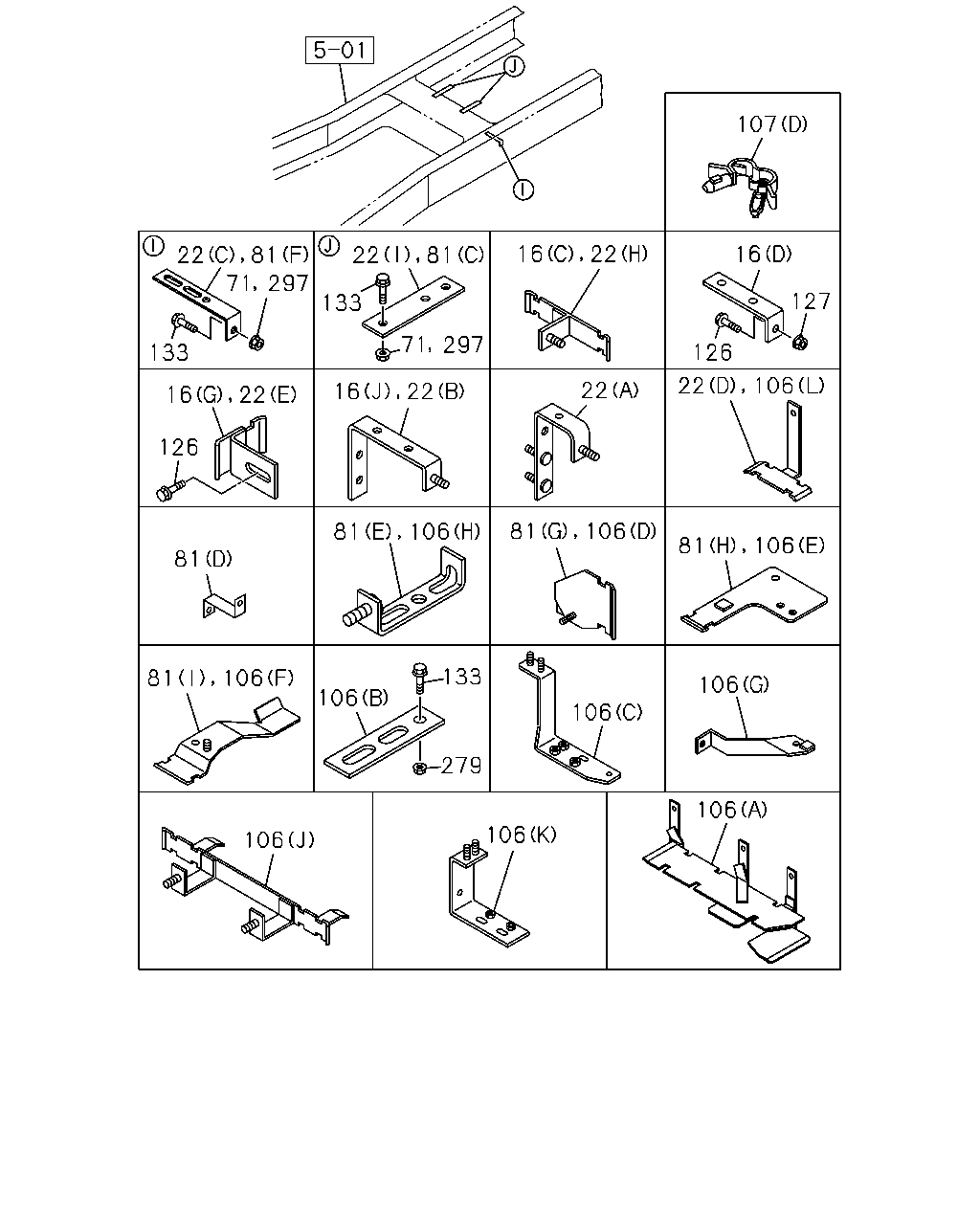

107 16 297 71 127 133 297 71 126 133 22 106 22 16 22 126 81 106 81 106 81 106 81 133 81 106 106 106 106 279 106 106 106 22 81 22 81 16 22 16 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	BRACKET; PIPE CLIP (I)	1-47479-381-2	01	1	1008-	●
16	BRACKET; PIPE CLIP WHEEL BASE 5500MM(55W) (I)	1-47479-381-2	01	1	1008-		●
16	BRACKET; PIPE CLIP (G)	1-47479-693-0	01	1	1008-	●
16	BRACKET; PIPE CLIP (D) L=30	1-47479-481-0	01	1	1008-	●	●
16	BRACKET; PIPE CLIP (A)	1-47479-546-0	02	1	1008-	●	●
16	BRACKET; PIPE CLIP (C)	1-47479-554-0	01	1	1008-	●	●
16	BRACKET; PIPE CLIP (F)	1-47479-720-0	02	1	1008-	●	●
16	BRACKET; PIPE CLIP (E)	1-47479-721-0	01	1	1008-	●	●
16	BRACKET; PIPE CLIP (H)	1-47479-722-1	01	1	1008-	●	●
16	BRACKET; PIPE CLIP (J)	1-47479-800-0	01	1	1008-	●	●
16	BRACKET; PIPE CLIP (B)	1-47479-898-0	01	1	1008-	●	●
16	BRACKET; PIPE CLIP (B)	1-47479-898-0	01	1	1008-	●	●
16	BRACKET; PIPE CLIP RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7) (K)	8-98142-172-0	01	1	1008-1008	●	●
16	BRACKET; PIPE CLIP CONCRETE PUMP<RA5> CHINA EQUIPMENT(YT2) (K)	8-98142-172-0	01	1	1008-1008		●
16	BRACKET; PIPE CLIP RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7), GENERAL EXPORT EQUIPMENT(TAA) (K)	8-98142-172-0	01	1	1009-	●	●
16	BRACKET; PIPE CLIP CONCRETE PUMP<RA5> CHINA EQUIPMENT(YT2) (K)	8-98142-172-0	01	1	1009-		●
16	BRACKET; PIPE CLIP WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W) (G)	1-47479-693-0	02	1	1008-		●
16	BRACKET; PIPE CLIP WHEEL BASE 5900MM(59W) (I)	1-47479-381-2	02	1	1008-		●
16	BRACKET; PIPE CLIP WHEEL BASE 6600MM(66W) (I)	1-47479-381-2	03	1	1008-		●
16	BRACKET; PIPE CLIP WHEEL BASE 6600MM(66W) (G)	1-47479-693-0	03	1	1008-		●
22	BRACKET; CLIP WHEEL BASE 6600MM(66W) BATTERY LAYOUT REAR VAR1<NCT> (D)	1-47479-870-0	02	1	1111-		●
22	BRACKET; CLIP (A)	1-47479-329-0	01	1	1008-	●
22	BRACKET; CLIP WHEEL BASE 5500MM(55W),WHEEL BASE 6600MM(66W) (A)	1-47479-329-0	01	1	1008-		●
22	BRACKET; CLIP (F)	1-47479-381-2	01	1	1008-	●
22	BRACKET; CLIP WHEEL BASE 5500MM(55W) (F)	1-47479-381-2	01	1	1008-		●
22	BRACKET; CLIP (E)	1-47479-693-0	01	1	1008-	●
22	BRACKET; CLIP (C) L=100 H=30	1-47477-645-2	02	1	1008-	●	●
22	BRACKET; CLIP (H)	1-47479-554-0	01	1	1008-	●	●
22	BRACKET; CLIP (B)	1-47479-800-0	01	1	1008-	●	●
22	BRACKET; CLIP (D)	1-47479-870-0	01	1	1008-1110	●	●
22	BRACKET; CLIP (D)	1-47479-870-0	01	1	1111-	●
22	BRACKET; CLIP WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W) (D)	1-47479-870-0	01	1	1111-		●
22	BRACKET; CLIP WHEEL BASE 6600MM(66W) EXC. BATTERY LAYOUT REAR VAR1<NCT> (D)	1-47479-870-0	01	1	1111-		●
22	BRACKET; CLIP RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7) (G)	8-98142-173-0	01	1	1008-1008	●	●
22	BRACKET; CLIP CONCRETE PUMP<RA5> CHINA EQUIPMENT(YT2) (G)	8-98142-173-0	01	1	1008-1008		●
22	BRACKET; CLIP RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7), GENERAL EXPORT EQUIPMENT(TAA) (G)	8-98142-173-0	01	1	1009-	●	●
22	BRACKET; CLIP CONCRETE PUMP<RA5> CHINA EQUIPMENT(YT2) (G)	8-98142-173-0	01	1	1009-		●
22	BRACKET; CLIP (I) L=130	1-47478-959-0	01	1	1008-		●
22	BRACKET; CLIP FULL TRAILER PIPING<Z25> (C) L=100 H=30	1-47477-645-2	01	1	1008-		●
22	BRACKET; CLIP WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W) (E)	1-47479-693-0	02	1	1008-		●
22	BRACKET; CLIP WHEEL BASE 5900MM(59W) (A)	1-47471-188-0	01	1	1008-		●
22	BRACKET; CLIP WHEEL BASE 5900MM(59W) (F)	1-47479-381-2	02	1	1008-		●
22	BRACKET; CLIP WHEEL BASE 6600MM(66W) (F)	1-47479-381-2	03	1	1008-		●
22	BRACKET; CLIP WHEEL BASE 6600MM(66W) (E)	1-47479-693-0	03	1	1008-		●
71	NUT; BRKT M8 FLANGE	0-91180-108-0	06	1	1008-	●	●
81	BRACKET; CLIP (C) L=150	1-47471-217-0	02	1	1008-	●	●
81	BRACKET; CLIP (F) L=100 H=30	1-47477-645-2	01	1	1008-	●	●
81	BRACKET; CLIP (D)	1-47478-113-0	02	1	1008-	●	●
81	BRACKET; CLIP (B)	1-79996-133-2	01	1	1008-	●	●
81	BRACKET; CLIP (G)	8-98046-950-0	01	1	1008-	●	●
81	BRACKET; CLIP (H)	8-98052-412-0	01	1	1008-	●	●
81	BRACKET; CLIP (I)	8-98052-414-0	01	1	1008-	●	●
81	BRACKET; CLIP (E)	8-98061-758-0	02	1	1008-	●	●
81	BRACKET; CLIP (A)	1-79996-127-2	01	1	1008-	●	●
106	BRACKET; TUBE CLIP (C)	1-47471-108-0	01	1	1008-	●
106	BRACKET; TUBE CLIP EXC. BATTERY LAYOUT REAR VAR1<NCT> (C)	1-47471-108-0	01	1	1008-		●
106	BRACKET; TUBE CLIP (L)	1-47479-870-0	01	1	1008-	●
106	BRACKET; TUBE CLIP EXC. BATTERY LAYOUT REAR VAR1<NCT> (L)	1-47479-870-0	01	1	1008-		●
106	BRACKET; TUBE CLIP (A)	8-98155-060-0	01	1	1008-	●
106	BRACKET; TUBE CLIP EXC. BATTERY LAYOUT REAR VAR1<NCT> (A)	8-98155-060-0	01	1	1008-		●
106	BRACKET; TUBE CLIP (B)	1-47477-514-3	01	1	1008-	●	●
106	BRACKET; TUBE CLIP (I)	1-47479-381-2	02	1	1008-	●	●
106	BRACKET; TUBE CLIP (J)	1-47479-553-0	01	1	1008-	●	●
106	BRACKET; TUBE CLIP (D)	8-98046-949-0	01	1	1008-	●	●
106	BRACKET; TUBE CLIP (E)	8-98052-408-0	01	1	1008-1412	●	●
106	BRACKET; TUBE CLIP (E)	8-98297-188-0	01	1	1501-	●	●
106	BRACKET; TUBE CLIP (F)	8-98052-410-0	01	1	1008-	●	●
106	BRACKET; TUBE CLIP (G)	8-98057-133-0	01	1	1008-	●	●
106	BRACKET; TUBE CLIP (H)	8-98061-758-0	01	1	1008-	●	●
106	BRACKET; TUBE CLIP BATTERY LAYOUT REAR VAR1<NCT> (K)	1-47479-754-0	01	1	1008-		●
107	CLIP; NYLON TUBE (A) L=600	1-09707-107-1	02	1	1203-	●	●
107	CLIP; NYLON TUBE MJX16P M/T(Y3Z) (B) ID=15 L=28	1-09701-216-0	01	1	1008-	●	●
107	CLIP; NYLON TUBE MJX16P M/T(Y3Z) (D) ID=5-12 L=14.5	1-09987-221-0	02	1	1008-	●	●
107	CLIP; NYLON TUBE 6WF1 TC-C(1B8) (A) L=350	1-09707-183-0	01	1	1008-	●	●
107	CLIP; NYLON TUBE (B) ID=35 L=33	1-09700-945-0	02	1	1008-	●	●
107	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	15	1	1008-1202	●	●
107	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	13	1	1203-	●	●
107	CLIP; NYLON TUBE (B) ID=19 L=60	0-95235-896-0	01	1	1008-	●	●
107	CLIP; NYLON TUBE (C) ID=21 L=30 H=40	1-09700-991-1	01	1	1008-	●	●
107	CLIP; NYLON TUBE (C) ID=31 H=30 L=35	1-09700-994-0	02	1	1008-	●	●
107	CLIP; NYLON TUBE (C) ID=45 H=31 L=35	1-09701-308-0	02	1	1008-	●	●
126	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	01	1	1008-	●
126	BOLT; CLIP BRKT WHEEL BASE 5200MM(52W) RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7), GENERAL EXPORT EQUIPMENT(TAA) M8X35 FLANGE	0-28650-835-0	02	1	1008-	●
126	BOLT; CLIP BRKT RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7), GENERAL EXPORT EQUIPMENT(TAA) BATTERY LAYOUT REAR VAR1<NCT> M8X35 FLANGE	0-28650-835-0	02	1	1008-		●
126	BOLT; CLIP BRKT WHEEL BASE 5900MM(59W) RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7), GENERAL EXPORT EQUIPMENT(TAA) BATTERY LAYOUT REAR VAR1<NCT> M8X35 FLANGE	0-28650-835-0	02	1	1008-		●
126	BOLT; CLIP BRKT M8X12 FLANGE	0-28050-812-0	04	1	1008-	●	●
126	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	04	1	1008-	●	●
126	BOLT; CLIP BRKT M8X35 FLANGE	0-28650-835-0	03	1	1008-	●	●
126	BOLT; CLIP BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W) M8X25 FLANGE	0-28650-825-0	02	1	1008-		●
126	BOLT; CLIP BRKT WHEEL BASE 6600MM(66W) M8X25 FLANGE	0-28650-825-0	03	1	1008-		●
127	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	05	1	1008-	●
127	NUT; CLIP BRKT RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7) M8 FLANGE	0-91180-108-0	02	1	1008-1008	●	●
127	NUT; CLIP BRKT WHEEL BASE 5200MM(52W) RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7), GENERAL EXPORT EQUIPMENT(TAA) M8 FLANGE	0-91180-108-0	02	1	1008-1008	●
127	NUT; CLIP BRKT CONCRETE PUMP<RA5> CHINA EQUIPMENT(YT2) M8 FLANGE	0-91180-108-0	02	1	1008-1008		●
127	NUT; CLIP BRKT RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7), GENERAL EXPORT EQUIPMENT(TAA) BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE	0-91180-108-0	02	1	1008-1008		●
127	NUT; CLIP BRKT WHEEL BASE 5900MM(59W) RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7), GENERAL EXPORT EQUIPMENT(TAA) BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE	0-91180-108-0	02	1	1008-1008		●
127	NUT; CLIP BRKT RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7), GENERAL EXPORT EQUIPMENT(TAA) M8 FLANGE	0-91180-108-0	02	1	1009-	●	●
127	NUT; CLIP BRKT WHEEL BASE 5200MM(52W) RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7), GENERAL EXPORT EQUIPMENT(TAA) M8 FLANGE	0-91180-108-0	02	1	1009-	●
127	NUT; CLIP BRKT RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7), GENERAL EXPORT EQUIPMENT(TAA) BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE	0-91180-108-0	02	1	1009-		●
127	NUT; CLIP BRKT WHEEL BASE 5900MM(59W) RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7), GENERAL EXPORT EQUIPMENT(TAA) BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE	0-91180-108-0	02	1	1009-		●
127	NUT; CLIP BRKT CONCRETE PUMP<RA5> CHINA EQUIPMENT(YT2) M8 FLANGE	0-91180-108-0	02	1	1009-		●
127	NUT; CLIP BRKT WHEEL BASE 5500MM(55W) M8 FLANGE	0-91180-108-0	06	1	1008-		●
127	NUT; CLIP BRKT WHEEL BASE 5900MM(59W) M8 FLANGE	0-91180-108-0	07	1	1008-		●
127	NUT; CLIP BRKT WHEEL BASE 6600MM(66W) M8 FLANGE	0-91180-108-0	09	1	1008-		●
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	1008-	●
133	BOLT; BRKT MIXER TRUCK<RA2> EURO4 SPECIFICATION<KBT> M8X20 FLANGE	0-28650-820-0	01	1	1008-1311	●
133	BOLT; BRKT MIXER TRUCK<RA2> EXC. EURO3 SPECIFICATION<NJX> M8X20 FLANGE	0-28650-820-0	01	1	1312-	●
133	BOLT; BRKT EXC. MIXER TRUCK<RA2> M6X10 FLANGE	0-28050-610-0	01	1	1008-	●
133	BOLT; BRKT M6X10 FLANGE	0-28050-610-0	01	1	1008-		●
133	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	1008-	●	●
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1008-	●	●
133	BOLT; BRKT WHEEL BASE 5200MM(52W) M8X25 FLANGE	0-28650-825-0	02	1	1008-	●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	03	1	1008-	●	●
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	05	1	1008-	●	●
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	05	1	1008-	●
133	BOLT; BRKT EXC. BATTERY LAYOUT REAR VAR1<NCT> M8X35 FLANGE	0-28650-835-0	05	1	1008-		●
133	BOLT; BRKT BATTERY LAYOUT REAR VAR1<NCT> M8X35 FLANGE	0-28650-835-0	01	1	1008-		●
133	BOLT; BRKT FULL TRAILER PIPING<Z25> M8X25 FLANGE	0-28650-825-0	01	1	1008-		●
133	BOLT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W) M8X25 FLANGE	0-28650-825-0	03	1	1008-		●
133	BOLT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W) M8X35 FLANGE	0-28650-835-0	03	1	1008-		●
133	BOLT; BRKT WHEEL BASE 6600MM(66W) EXC. BATTERY LAYOUT REAR VAR1<NCT> M8X35 FLANGE	0-28650-835-0	03	1	1008-		●
133	BOLT; BRKT WHEEL BASE 6600MM(66W) M8X25 FLANGE	0-28650-825-0	04	1	1008-		●
133	BOLT; BRKT WHEEL BASE 6600MM(66W) BATTERY LAYOUT REAR VAR1<NCT> M8X35 FLANGE	0-28650-835-0	04	1	1008-		●
279	NUT; BRKT M8 FLANGE	0-91180-108-0	11	1	1008-	●
279	NUT; BRKT EXC. BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE	0-91180-108-0	11	1	1008-		●
279	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1008-	●	●
279	NUT; BRKT BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE	0-91180-108-0	10	1	1008-		●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	08	1	1008-	●
297	NUT; BRKT MIXER TRUCK<RA2> EURO4 SPECIFICATION<KBT> M8 FLANGE	0-91180-108-0	01	1	1008-1311	●
297	NUT; BRKT FULL TRAILER PIPING<Z25> M8 FLANGE	0-91180-108-0	01	1	1008-1311		●
297	NUT; BRKT MIXER TRUCK<RA2> EXC. EURO3 SPECIFICATION<NJX> M8 FLANGE	0-91180-108-0	01	1	1312-	●
297	NUT; BRKT FULL TRAILER PIPING<Z25> M8 FLANGE	0-91180-108-0	01	1	1312-		●
297	NUT; BRKT EXC. MIXER TRUCK<RA2> M12 FLANGE	0-91180-212-0	01	1	1008-	●
297	NUT; BRKT M12 FLANGE	0-91180-212-0	01	1	1008-		●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	05	1	1008-	●	●
297	NUT; BRKT RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7) M8 FLANGE	0-91180-108-0	02	1	1008-1008	●	●
297	NUT; BRKT CONCRETE PUMP<RA5> CHINA EQUIPMENT(YT2) M8 FLANGE	0-91180-108-0	02	1	1008-1008		●
297	NUT; BRKT RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7), GENERAL EXPORT EQUIPMENT(TAA) M8 FLANGE	0-91180-108-0	02	1	1009-	●	●
297	NUT; BRKT CONCRETE PUMP<RA5> CHINA EQUIPMENT(YT2) M8 FLANGE	0-91180-108-0	02	1	1009-		●
297	NUT; BRKT WHEEL BASE 5500MM(55W) M8 FLANGE	0-91180-108-0	10	1	1008-		●
297	NUT; BRKT WHEEL BASE 5900MM(59W) EXC. BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE	0-91180-108-0	10	1	1008-		●
297	NUT; BRKT WHEEL BASE 5900MM(59W) BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE	0-91180-108-0	11	1	1008-		●
297	NUT; BRKT WHEEL BASE 6600MM(66W) BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE	0-91180-108-0	14	1	1008-		●
297	NUT; BRKT WHEEL BASE 6600MM(66W) EXC. BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE	0-91180-108-0	12	1	1008-		●

352 270 300 270 379 376 392 388 376 270 81 81 376 376 76 389 354 364 231 303 353 230 348 270 361 230 348 231 303

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
76	CLIP; NYLON TUBE EXC. EURO4 SPECIFICATION<KBT> ID=6 & 8.3	8-94167-742-0	01	1	1008-	●	●
81	BRACKET; CLIP (C) L=150	1-47471-217-0	02	1	1008-	●	●
81	BRACKET; CLIP (F) L=100 H=30	1-47477-645-2	01	1	1008-	●	●
81	BRACKET; CLIP (D)	1-47478-113-0	02	1	1008-	●	●
81	BRACKET; CLIP (B)	1-79996-133-2	01	1	1008-	●	●
81	BRACKET; CLIP (G)	8-98046-950-0	01	1	1008-	●	●
81	BRACKET; CLIP (H)	8-98052-412-0	01	1	1008-	●	●
81	BRACKET; CLIP (I)	8-98052-414-0	01	1	1008-	●	●
81	BRACKET; CLIP (E)	8-98061-758-0	02	1	1008-	●	●
81	BRACKET; CLIP (A)	1-79996-127-2	01	1	1008-	●	●
230	CLIP; PIPE,AIR BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL(NLG) FULL TRAILER PIPING<Z25> ID=11 & 9 L=15 & 15	1-09700-062-0	03	1	1008-		●
231	BOLT; CLIP BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL(NLG) FULL TRAILER PIPING<Z25> M6X19.5 W/LK&PL WASHER	8-94279-201-0	03	1	1008-		●
270	CLIP; NYLON TUBE (B) ID=27.5 H=23 L=24	1-09700-863-0	01	1	1008-	●	●
270	CLIP; NYLON TUBE (A) ID=28 L=32	1-09701-107-1	03	1	1008-	●	●
270	CLIP; NYLON TUBE (B) ID=16 H=25 L=25	1-09701-162-0	02	1	1008-	●	●
300	BOLT; TUBE CLIP M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	1008-	●	●
303	BOLT; PIPE CLIP M6X19.5 W/LK&PL WASHER	8-94279-201-0	06	1	1008-	●
303	BOLT; PIPE CLIP FULL TRAILER PIPING<Z25> EXC. BRAKE REGULATION ECE<NBE>,TRAILER BRAKE HAND CONTROL(NLG) M6X19.5 W/LK&PL WASHER	8-94279-201-0	06	1	1008-		●
303	BOLT; PIPE CLIP EXC. FULL TRAILER PIPING<Z25> M6X19.5 W/LK&PL WASHER	8-94279-201-0	06	1	1008-		●
303	BOLT; PIPE CLIP BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL(NLG) FULL TRAILER PIPING<Z25> M6X19.5 W/LK&PL WASHER	8-94279-201-0	03	1	1008-		●
348	CLIP; AIR PIPE ID=11 & 9 L=15 & 15	1-09700-062-0	03	1	1008-	●
348	CLIP; AIR PIPE FULL TRAILER PIPING<Z25> EXC. BRAKE REGULATION ECE<NBE>,TRAILER BRAKE HAND CONTROL(NLG) ID=11 & 9 L=15 & 15	1-09700-062-0	03	1	1008-		●
348	CLIP; AIR PIPE EXC. FULL TRAILER PIPING<Z25> ID=11 & 9 L=15 & 15	1-09700-062-0	03	1	1008-		●
348	CLIP; AIR PIPE ID=9 & 9 L=15 & 15	1-09700-061-0	03	1	1008-	●	●
352	CLIP; EXH HOSE ID=14	8-94238-572-0	02	1	1008-	●	●
353	CLIP; AIR PIPE FULL TRAILER PIPING<Z25> ID=9 L=16	0-95234-822-0	01	1	1008-		●
354	BOLT; PIPE CLIP FULL TRAILER PIPING<Z25> M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	1008-		●
361	CLIP; FLEX HOSE,AIR PRESS GAGE EXC. EURO4 SPECIFICATION<KBT> L=250	5-09707-030-1	01	1	1008-	●	●
364	CLIP; AIR PIPE FULL TRAILER PIPING<Z25> ID=8.3 & 10	8-94176-792-0	01	1	1008-		●
376	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	1008-	●	●
376	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	04	1	1008-	●	●
376	BOLT; BRKT (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	03	1	1008-	●	●
376	BOLT; BRKT EXC. EURO4 SPECIFICATION<KBT> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	1008-	●	●
379	BRACKET; NYLON TUBE	1-79996-110-2	01	1	1008-	●	●
388	SEAL L=215	1-79738-794-1	01	1	1008-	●	●
389	BRACKET; UNION EURO4 SPECIFICATION<KBT>	1-79738-795-1	01	1	1008-	●	●
389	BRACKET; UNION EXC. EURO4 SPECIFICATION<KBT>	1-79738-790-1	01	1	1008-	●	●
392	COVER; BRKT EXC. EURO4 SPECIFICATION<KBT>	1-73996-264-1	01	1	1008-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
