◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11272 - CYZ LHD EURO2/3/4 WITH 3STEPS ▶ 3 - Brakes, Brake System ▶ 3-77 - BRAKE PIPING; AIR,REAR ▶

3-77 — BRAKE PIPING; AIR,REAR (#55648) — 152 parça

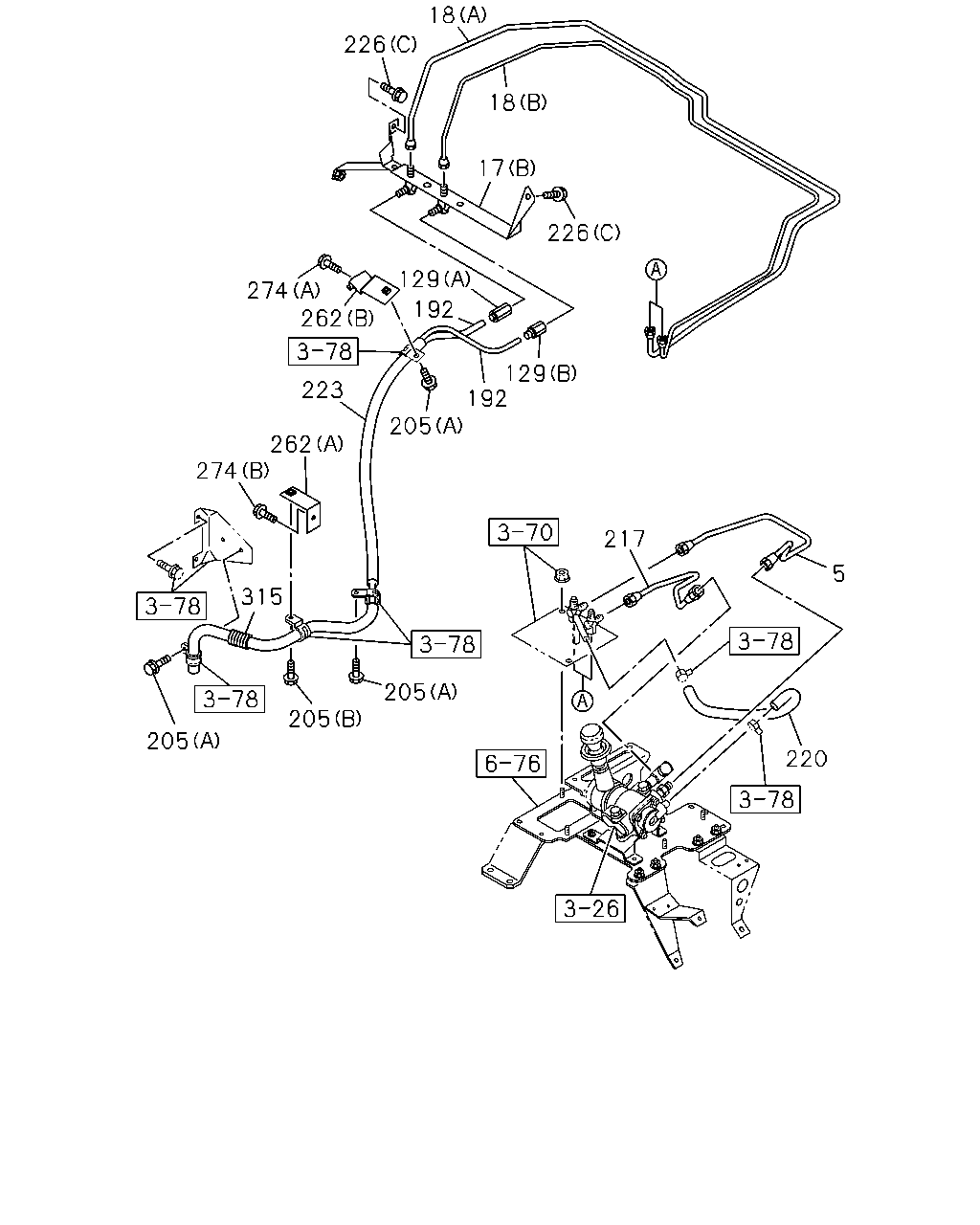

18 226 18 17 226 129 274 262 192 129 192 223 205 262 274 217 5 315 205 205 205 220

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	PIPE; AIR,UNION TO PARKING VLV	1-49118-158-0	01	1	1008-	●
5	PIPE; AIR,UNION TO PARKING VLV EXC. FULL TRAILER PIPING<Z25>	1-49118-158-0	01	1	1008-		●
17	UNION; AIR PIPE (B)	1-47470-464-3	01	1	1008-	●
17	UNION; AIR PIPE EXC. FULL TRAILER PIPING<Z25> (B)	1-47470-464-3	01	1	1008-		●
17	UNION; AIR PIPE BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL(NLG) FULL TRAILER PIPING<Z25> (A) PT3/8X2 & PT1/4 3WAY	1-09656-708-0	01	1	1008-		●
17	UNION; AIR PIPE BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL(NLG) FULL TRAILER PIPING<Z25> (B)	1-47470-656-0	01	1	1008-		●
17	UNION; AIR PIPE FULL TRAILER PIPING<Z25> EXC. BRAKE REGULATION ECE<NBE>,TRAILER BRAKE HAND CONTROL(NLG) (A) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1008-		●
17	UNION; AIR PIPE FULL TRAILER PIPING<Z25> EXC. BRAKE REGULATION ECE<NBE>,TRAILER BRAKE HAND CONTROL(NLG) (B)	8-98151-901-0	01	1	1008-		●
18	PIPE; AIR,UNION TO UNION (B) L=1931 SERVICED BY L=1950	1-47428-854-0	01	1	1008-	●
18	PIPE; AIR,UNION TO UNION EXC. FULL TRAILER PIPING<Z25> (B) L=1931 SERVICED BY L=1950	1-47428-854-0	01	1	1008-		●
18	PIPE; AIR,UNION TO UNION (A) L=2098 SERVICED BY L=2100	1-47428-882-0	01	1	1008-	●	●
18	PIPE; AIR,UNION TO UNION FULL TRAILER PIPING<Z25> (C) L=2316 SERVICED BY L=2400	1-47428-856-0	01	1	1008-		●
129	CONNECTOR; NYLON TUBE (B) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	1008-	●	●
129	CONNECTOR; NYLON TUBE FULL TRAILER PIPING<Z25> EXC. BRAKE REGULATION ECE<NBE>,TRAILER BRAKE HAND CONTROL(NLG) (B) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	1008-		●
129	CONNECTOR; NYLON TUBE (A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	1008-	●	●
129	CONNECTOR; NYLON TUBE BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL(NLG) FULL TRAILER PIPING<Z25> (B) DIN8 & M14 STRAIGHT	1-09660-874-0	02	1	1008-		●
192	TUBE; NYLON SERVICED BY L=4000 OD=6	1-87411-002-0	AR	1	1008-	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	1008-	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	1008-	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1008-	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	1008-	●	●
192	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	1008-	●	●
192	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	1008-	●	●
205	BOLT; TUBE CLIP (A) M8X16 FLANGE	0-28050-816-0	03	1	1008-	●	●
205	BOLT; TUBE CLIP (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	1008-	●	●
217	PIPE; AIR,PARKING BRK VLV TO UNION	1-49118-159-0	01	1	1008-	●
217	PIPE; AIR,PARKING BRK VLV TO UNION EXC. FULL TRAILER PIPING<Z25>	1-49118-159-0	01	1	1008-		●
217	PIPE; AIR,PARKING BRK VLV TO UNION FULL TRAILER PIPING<Z25>	1-49123-172-0	01	1	1008-		●
220	HOSE; VINYL,EXH,PARKING BRK VLV L=350 SERVICED BY L=10000	9-09914-701-0	01	1	1008-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87411-029-0	01	1	1109-	●
223	TUBE; CORRUGATE EXC. FULL TRAILER PIPING<Z25> SERVICED BY L=2000 ID=22	1-87411-029-0	01	1	1109-		●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	1008-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	1008-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87411-029-0	AR	1	1008-	●	●
223	TUBE; CORRUGATE SERVICED BY L=4000 ID=22	1-87411-030-0	AR	1	1008-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87411-031-0	AR	1	1008-	●	●
226	BOLT; UNION (A) M8X16 FLANGE	0-28050-816-0	01	1	1008-	●	●
226	BOLT; UNION (B) M8X45 FLANGE	0-28050-845-0	02	1	1008-	●	●
226	BOLT; UNION (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	1008-	●	●
262	BRACKET (A)	1-79996-143-0	01	1	1008-	●	●
262	BRACKET (B)	1-79996-258-1	01	1	1008-	●	●
274	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	01	1	1008-	●	●
274	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	1008-	●	●
315	CLIP	8-97332-148-0	01	1	1109-	●
315	CLIP EXC. FULL TRAILER PIPING<Z25>	8-97332-148-0	01	1	1109-		●
315	CLIP BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL(NLG) FULL TRAILER PIPING<Z25>	8-97332-148-0	01	1	1109-		●
315	CLIP FULL TRAILER PIPING<Z25> EXC. BRAKE REGULATION ECE<NBE>,TRAILER BRAKE HAND CONTROL(NLG)	8-97332-148-0	01	1	1109-		●

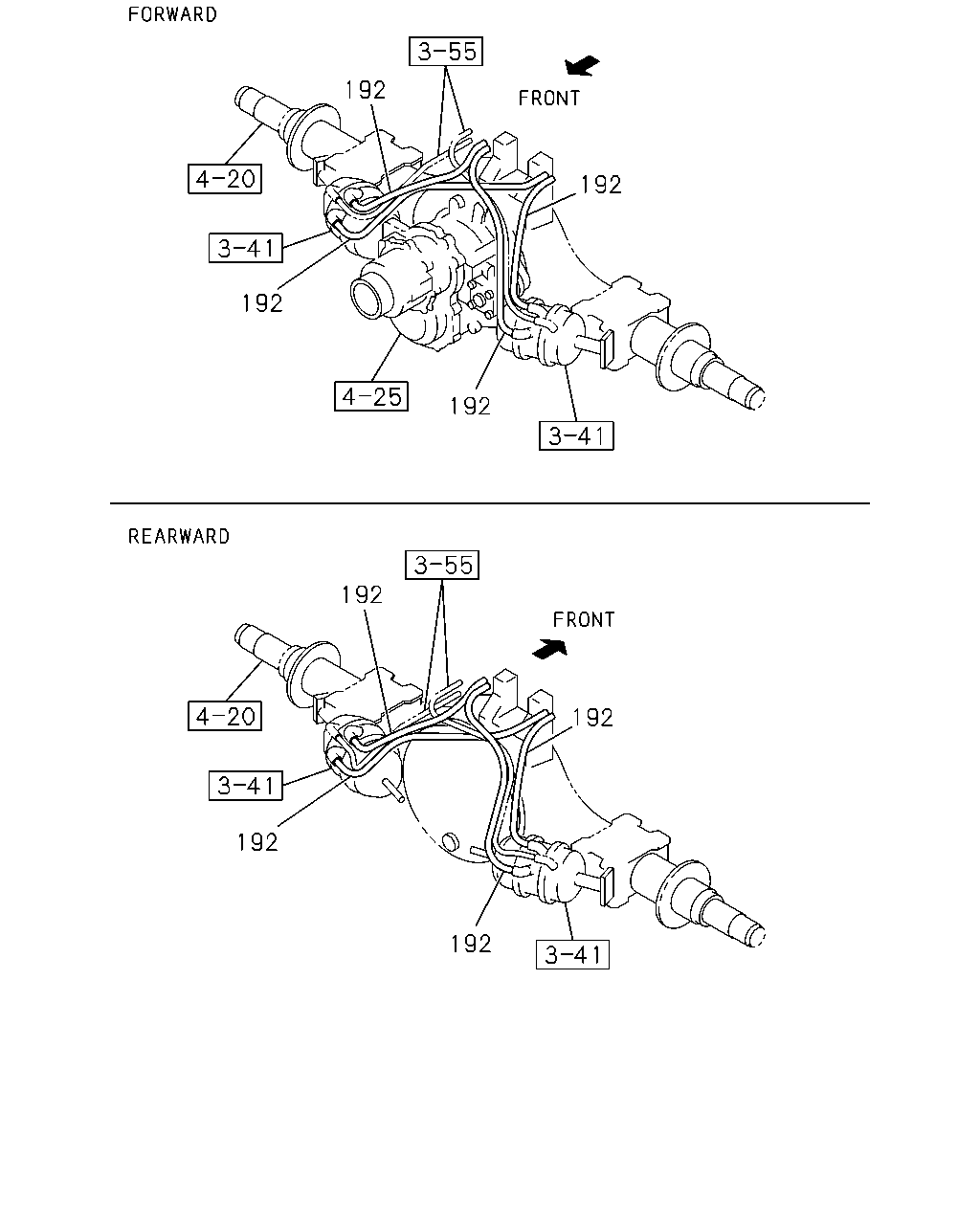

192 192 192 192 192 192 192 192

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
192	TUBE; NYLON SERVICED BY L=4000 OD=6	1-87411-002-0	AR	1	1008-	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	1008-	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	1008-	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1008-	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	1008-	●	●
192	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	1008-	●	●
192	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	1008-	●	●

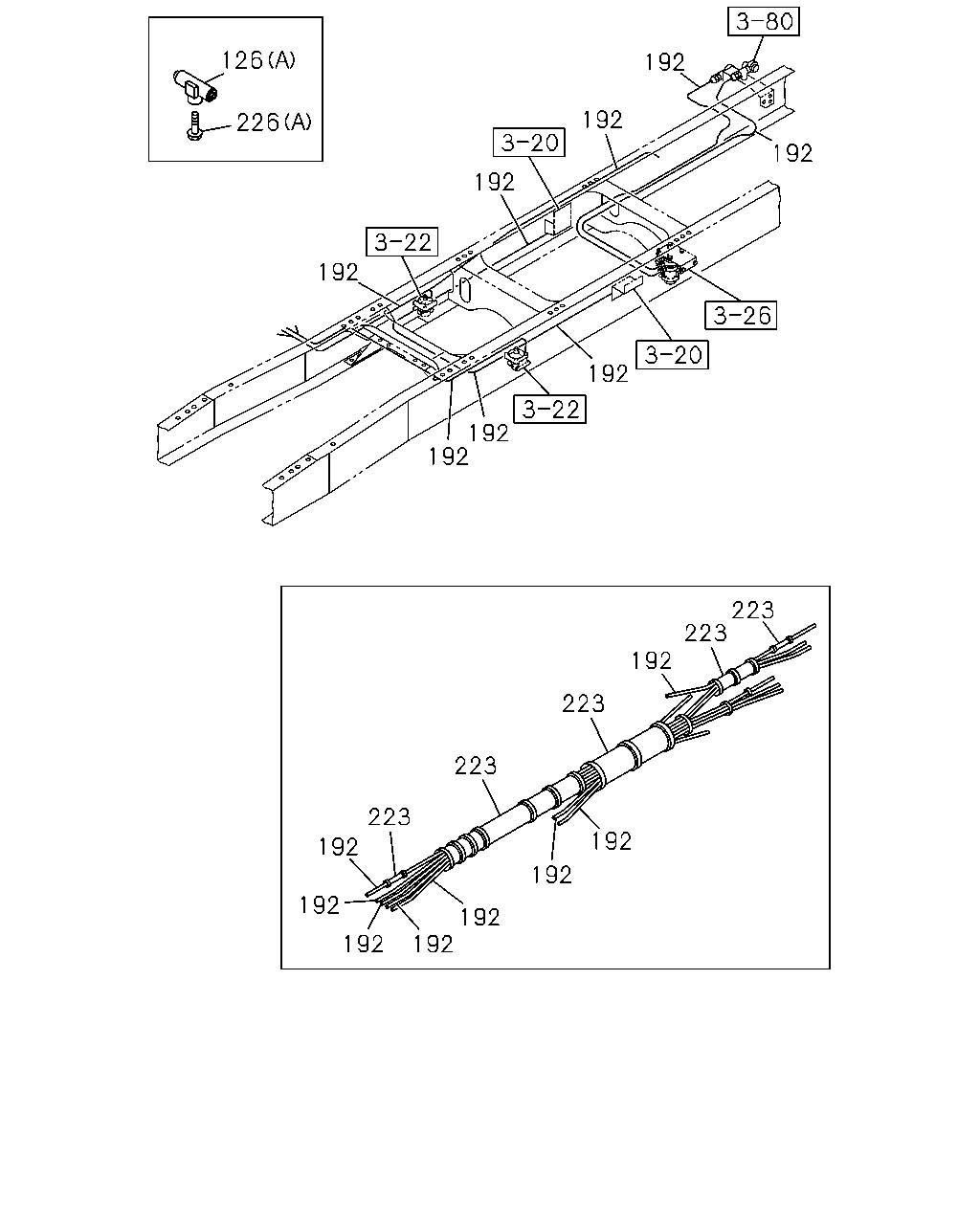

126 192 192 226 192 192 192 192 192 192 223 223 192 223 223 223 192 192 192 192 192 192 192

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
126	UNION; NYLON TUBE (A) DIN7.5X2 & M8 2WAY	1-09661-128-0	01	1	1008-	●	●
126	UNION; NYLON TUBE (B)	1-09661-612-1	01	1	1008-	●	●
126	UNION; NYLON TUBE (C) M22X2 STRAIGHT	8-98107-103-0	02	1	1008-	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=6	1-87411-002-0	AR	1	1008-	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	1008-	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	1008-	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1008-	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	1008-	●	●
192	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	1008-	●	●
192	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	1008-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87411-029-0	01	1	1109-	●
223	TUBE; CORRUGATE EXC. FULL TRAILER PIPING<Z25> SERVICED BY L=2000 ID=22	1-87411-029-0	01	1	1109-		●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	1008-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	1008-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87411-029-0	AR	1	1008-	●	●
223	TUBE; CORRUGATE SERVICED BY L=4000 ID=22	1-87411-030-0	AR	1	1008-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87411-031-0	AR	1	1008-	●	●
226	BOLT; UNION (A) M8X16 FLANGE	0-28050-816-0	01	1	1008-	●	●
226	BOLT; UNION (B) M8X45 FLANGE	0-28050-845-0	02	1	1008-	●	●
226	BOLT; UNION (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	1008-	●	●

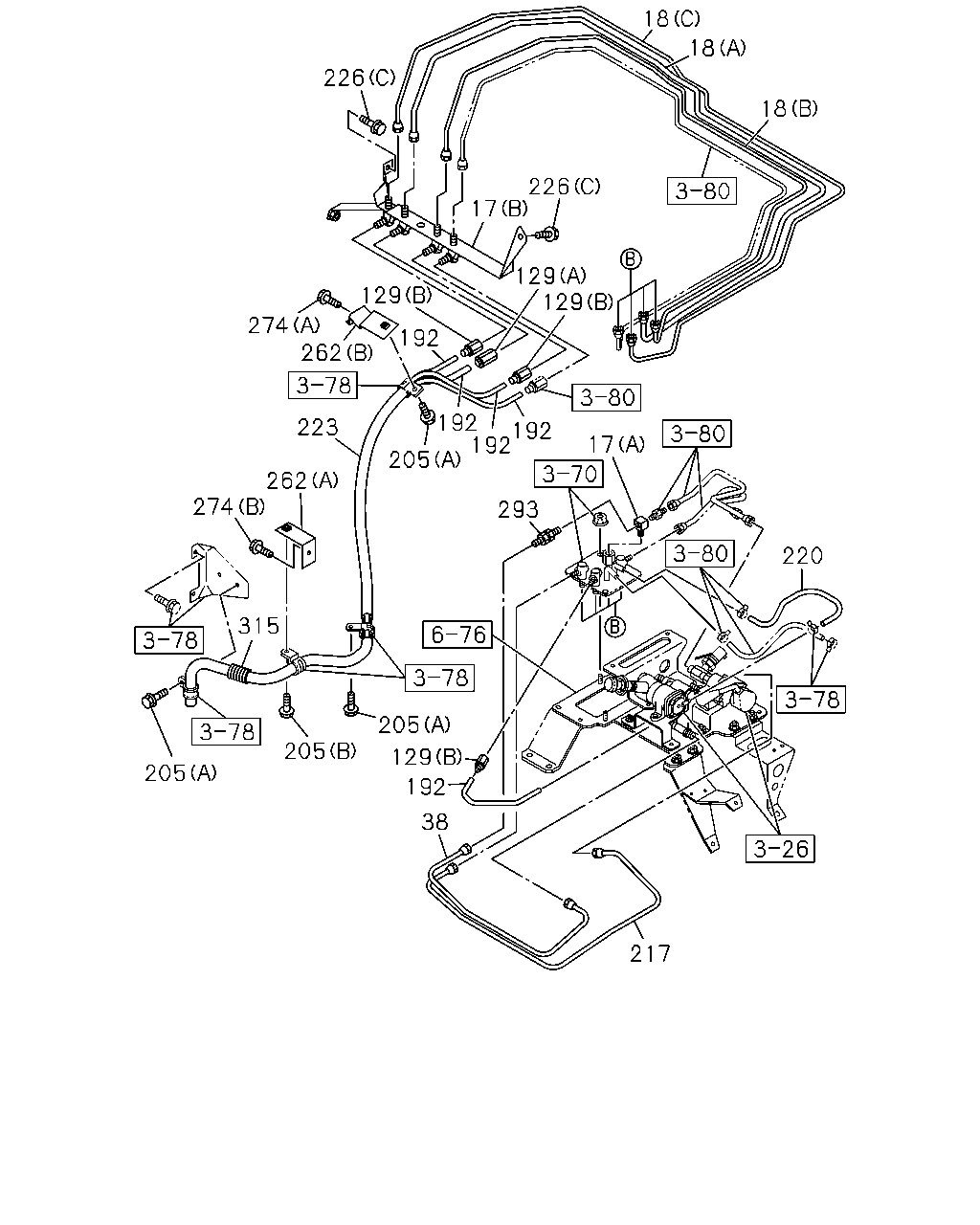

18 18 226 18 226 17 129 129 129 274 262 192 192 192 192 223 17 205 262 274 293 220 315 205 205 129 205 192 38 217

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
17	UNION; AIR PIPE (B)	1-47470-464-3	01	1	1008-	●
17	UNION; AIR PIPE EXC. FULL TRAILER PIPING<Z25> (B)	1-47470-464-3	01	1	1008-		●
17	UNION; AIR PIPE BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL(NLG) FULL TRAILER PIPING<Z25> (A) PT3/8X2 & PT1/4 3WAY	1-09656-708-0	01	1	1008-		●
17	UNION; AIR PIPE BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL(NLG) FULL TRAILER PIPING<Z25> (B)	1-47470-656-0	01	1	1008-		●
17	UNION; AIR PIPE FULL TRAILER PIPING<Z25> EXC. BRAKE REGULATION ECE<NBE>,TRAILER BRAKE HAND CONTROL(NLG) (A) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1008-		●
17	UNION; AIR PIPE FULL TRAILER PIPING<Z25> EXC. BRAKE REGULATION ECE<NBE>,TRAILER BRAKE HAND CONTROL(NLG) (B)	8-98151-901-0	01	1	1008-		●
18	PIPE; AIR,UNION TO UNION (B) L=1931 SERVICED BY L=1950	1-47428-854-0	01	1	1008-	●
18	PIPE; AIR,UNION TO UNION EXC. FULL TRAILER PIPING<Z25> (B) L=1931 SERVICED BY L=1950	1-47428-854-0	01	1	1008-		●
18	PIPE; AIR,UNION TO UNION (A) L=2098 SERVICED BY L=2100	1-47428-882-0	01	1	1008-	●	●
18	PIPE; AIR,UNION TO UNION FULL TRAILER PIPING<Z25> (C) L=2316 SERVICED BY L=2400	1-47428-856-0	01	1	1008-		●
38	PIPE; AIR,UNION TO MAG VLV FULL TRAILER PIPING<Z25>	1-49122-879-0	01	1	1008-		●
129	CONNECTOR; NYLON TUBE (B) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	1008-	●	●
129	CONNECTOR; NYLON TUBE FULL TRAILER PIPING<Z25> EXC. BRAKE REGULATION ECE<NBE>,TRAILER BRAKE HAND CONTROL(NLG) (B) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	1008-		●
129	CONNECTOR; NYLON TUBE (A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	1008-	●	●
129	CONNECTOR; NYLON TUBE BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL(NLG) FULL TRAILER PIPING<Z25> (B) DIN8 & M14 STRAIGHT	1-09660-874-0	02	1	1008-		●
192	TUBE; NYLON SERVICED BY L=4000 OD=6	1-87411-002-0	AR	1	1008-	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	1008-	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	1008-	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1008-	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	1008-	●	●
192	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	1008-	●	●
192	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	1008-	●	●
205	BOLT; TUBE CLIP (A) M8X16 FLANGE	0-28050-816-0	03	1	1008-	●	●
205	BOLT; TUBE CLIP (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	1008-	●	●
217	PIPE; AIR,PARKING BRK VLV TO UNION	1-49118-159-0	01	1	1008-	●
217	PIPE; AIR,PARKING BRK VLV TO UNION EXC. FULL TRAILER PIPING<Z25>	1-49118-159-0	01	1	1008-		●
217	PIPE; AIR,PARKING BRK VLV TO UNION FULL TRAILER PIPING<Z25>	1-49123-172-0	01	1	1008-		●
220	HOSE; VINYL,EXH,PARKING BRK VLV L=350 SERVICED BY L=10000	9-09914-701-0	01	1	1008-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87411-029-0	01	1	1109-	●
223	TUBE; CORRUGATE EXC. FULL TRAILER PIPING<Z25> SERVICED BY L=2000 ID=22	1-87411-029-0	01	1	1109-		●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	1008-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	1008-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87411-029-0	AR	1	1008-	●	●
223	TUBE; CORRUGATE SERVICED BY L=4000 ID=22	1-87411-030-0	AR	1	1008-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87411-031-0	AR	1	1008-	●	●
226	BOLT; UNION (A) M8X16 FLANGE	0-28050-816-0	01	1	1008-	●	●
226	BOLT; UNION (B) M8X45 FLANGE	0-28050-845-0	02	1	1008-	●	●
226	BOLT; UNION (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	1008-	●	●
262	BRACKET (A)	1-79996-143-0	01	1	1008-	●	●
262	BRACKET (B)	1-79996-258-1	01	1	1008-	●	●
274	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	01	1	1008-	●	●
274	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	1008-	●	●
293	VALVE; CHECK BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL(NLG) FULL TRAILER PIPING<Z25>	1-48410-479-1	01	1	1008-		●
293	VALVE; CHECK FULL TRAILER PIPING<Z25> EXC. BRAKE REGULATION ECE<NBE>,TRAILER BRAKE HAND CONTROL(NLG) PT1/4 & M16 STRAIGHT	1-09650-352-1	01	1	1008-		●
315	CLIP	8-97332-148-0	01	1	1109-	●
315	CLIP EXC. FULL TRAILER PIPING<Z25>	8-97332-148-0	01	1	1109-		●
315	CLIP BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL(NLG) FULL TRAILER PIPING<Z25>	8-97332-148-0	01	1	1109-		●
315	CLIP FULL TRAILER PIPING<Z25> EXC. BRAKE REGULATION ECE<NBE>,TRAILER BRAKE HAND CONTROL(NLG)	8-97332-148-0	01	1	1109-		●

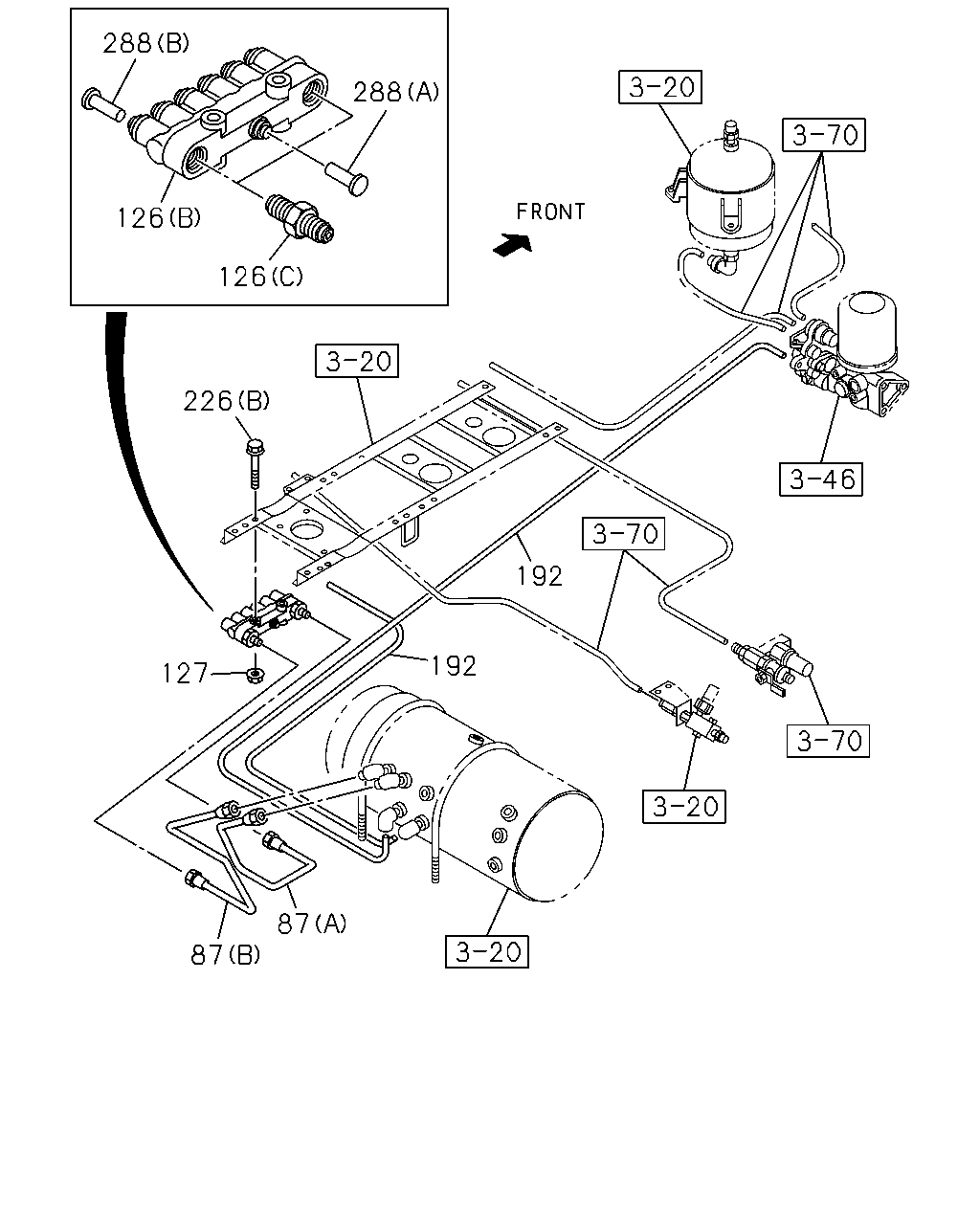

288 288 126 126 226 192 192 127 87 87

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
87	PIPE; AIR,AIR TANK TO UNION (B) L=425	1-49124-670-0	01	1	1008-	●
87	PIPE; AIR,AIR TANK TO UNION EXC. BATTERY LAYOUT REAR VAR1<NCT> (B) L=425	1-49124-670-0	01	1	1008-		●
87	PIPE; AIR,AIR TANK TO UNION (A) L=541	1-49124-671-0	01	1	1008-	●
87	PIPE; AIR,AIR TANK TO UNION EXC. BATTERY LAYOUT REAR VAR1<NCT> (A) L=541	1-49124-671-0	01	1	1008-		●
87	PIPE; AIR,AIR TANK TO UNION BATTERY LAYOUT REAR VAR1<NCT> (A) L=561	1-49124-520-0	01	1	1008-		●
87	PIPE; AIR,AIR TANK TO UNION BATTERY LAYOUT REAR VAR1<NCT> (B) L=426	1-49124-521-0	01	1	1008-		●
126	UNION; NYLON TUBE (A) DIN7.5X2 & M8 2WAY	1-09661-128-0	01	1	1008-	●	●
126	UNION; NYLON TUBE (B)	1-09661-612-1	01	1	1008-	●	●
126	UNION; NYLON TUBE (C) M22X2 STRAIGHT	8-98107-103-0	02	1	1008-	●	●
127	NUT; UNION M8 FLANGE	0-91180-108-0	02	1	1008-	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=6	1-87411-002-0	AR	1	1008-	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	1008-	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	1008-	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1008-	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	1008-	●	●
192	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	1008-	●	●
192	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	1008-	●	●
226	BOLT; UNION (A) M8X16 FLANGE	0-28050-816-0	01	1	1008-	●	●
226	BOLT; UNION (B) M8X45 FLANGE	0-28050-845-0	02	1	1008-	●	●
226	BOLT; UNION (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	1008-	●	●
288	PLUG (A) OD=6 L=27	1-09661-615-0	01	1	1008-	●	●
288	PLUG (B) OD=8 PLASTIC	1-09661-616-0	01	1	1008-	●	●

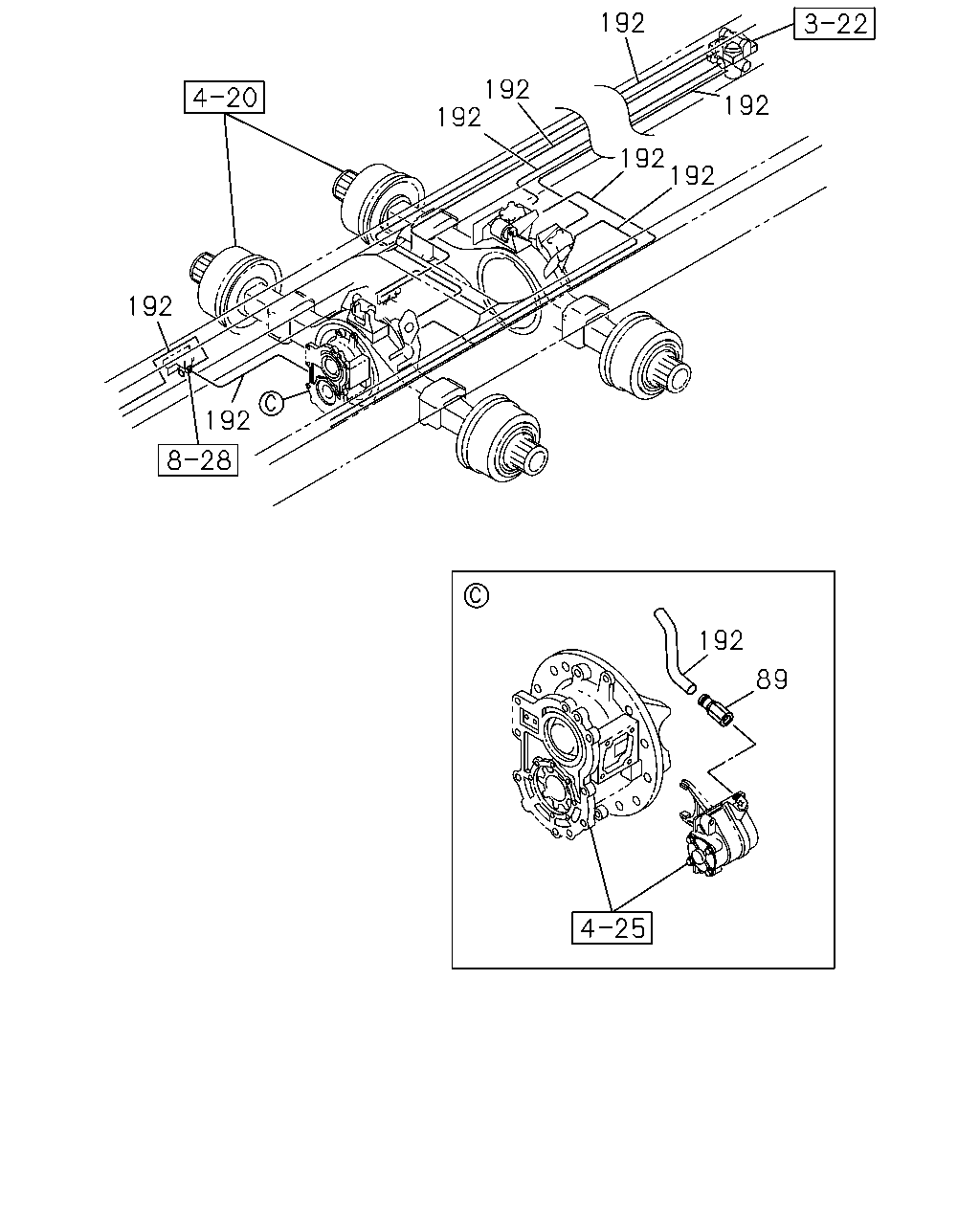

192 192 192 192 192 192 192 192 192 89

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
89	CONNECTOR; NYLON TUBE DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1008-	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=6	1-87411-002-0	AR	1	1008-	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	1008-	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	1008-	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1008-	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	1008-	●	●
192	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	1008-	●	●
192	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	1008-	●	●
