3-75 — BRAKE PIPING; AIR,FRONT (#55647) — 96 parça

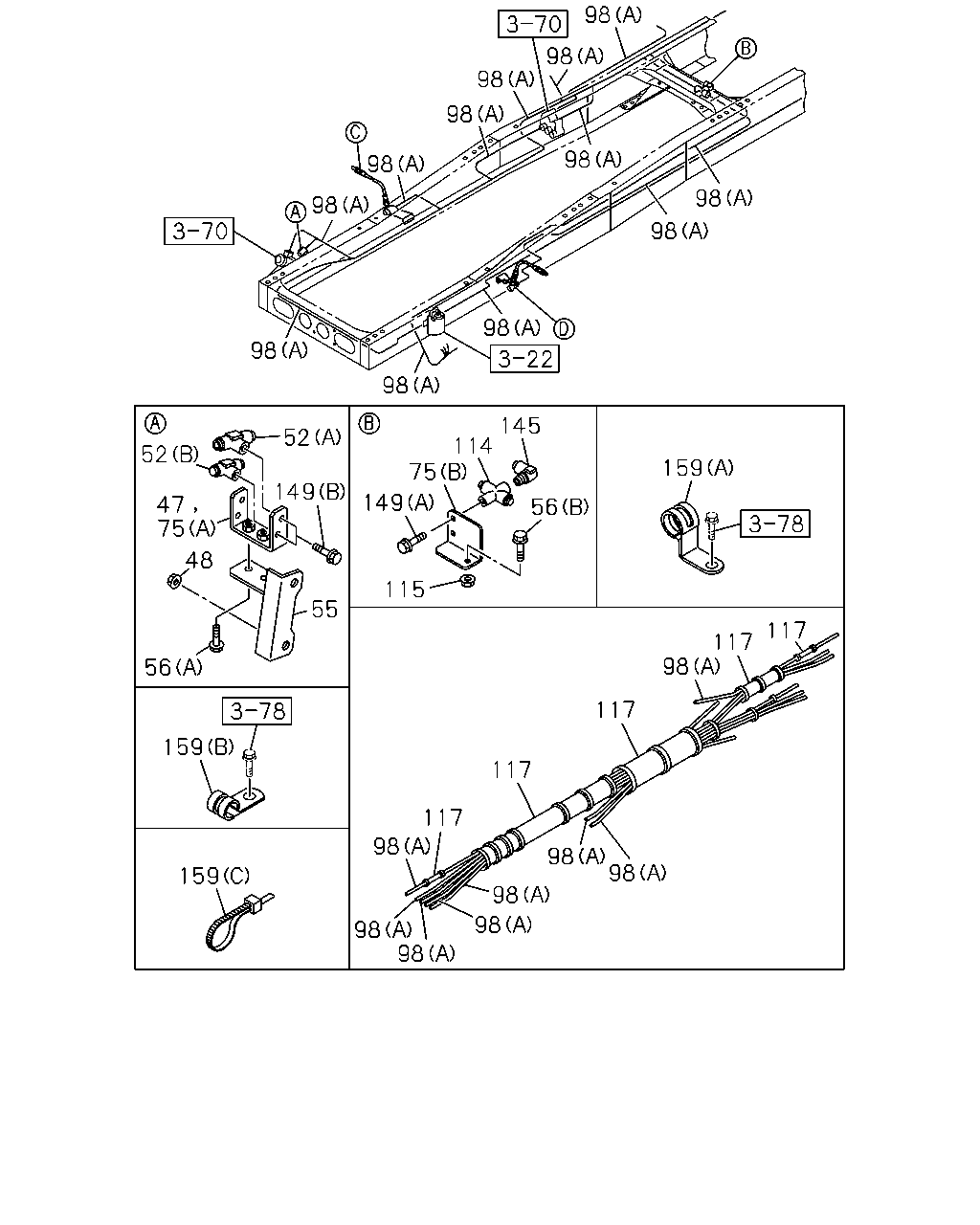

98 98 98 98 98 98 98 98 98 98 98 98 145 114 75 52 52 159 149 149 47 75 56 48 115 55 117 117 98 56 117 159 117 117 98 98 98 159 98 98 98 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
47	BRACKET; PIPE UNION TRAILER BRAKE HAND CONTROL(NLG) FULL TRAILER PIPING<Z25>	1-47471-023-0	01	1	1008-	●
48	NUT; UNION BRKT M12 FLANGE	0-91180-212-0	02	1	1008-	●	●
52	CONNECTOR; NYLON TUBE (B) DIN8X2 & M8 2WAY	1-09661-133-0	01	1	1008-		●
52	CONNECTOR; NYLON TUBE EXC. FULL TRAILER PIPING<Z25> (B) DIN8X2 & M8 2WAY	1-09661-133-0	01	1	1008-	●
52	CONNECTOR; NYLON TUBE (A) DIN7.5X2 & M8 2WAY	1-09661-128-0	01	1	1008-	●	●
52	CONNECTOR; NYLON TUBE FULL TRAILER PIPING<Z25> EXC. TRAILER BRAKE HAND CONTROL(NLG) (B) DIN8X2 & M8 2WAY	1-09661-133-0	02	1	1008-	●
52	CONNECTOR; NYLON TUBE TRAILER BRAKE HAND CONTROL(NLG) FULL TRAILER PIPING<Z25> (B) DIN8X2 & M8 2WAY	1-09661-133-0	03	1	1008-	●
55	BRACKET; TUBE UNION	1-47479-993-1	01	1	1008-	●	●
56	BOLT; UNION BRKT (C) M8X12 FLANGE	0-28050-812-0	02	1	1008-	●	●
56	BOLT; UNION BRKT (A) M8X16 FLANGE	0-28050-816-0	02	1	1008-	●	●
56	BOLT; UNION BRKT (B) M8X25 FLANGE	0-28650-825-0	01	1	1008-	●	●
75	BRACKET; UNION (C)	8-98176-142-0	01	1	1008-	●	●
75	BRACKET; UNION (D)	8-98176-152-0	01	1	1008-	●	●
75	BRACKET; UNION (A)	1-47471-023-0	01	1	1008-		●
75	BRACKET; UNION EXC. FULL TRAILER PIPING<Z25> (A)	1-47471-023-0	01	1	1008-	●
75	BRACKET; UNION FULL TRAILER PIPING<Z25> EXC. TRAILER BRAKE HAND CONTROL(NLG) (A)	1-47471-023-0	01	1	1008-	●
75	BRACKET; UNION (B)	1-47471-145-0	01	1	1008-	●	●
98	TUBE; NYLON (A) SERVICED BY L=4000 OD=6	1-87411-002-0	AR	1	1008-	●	●
98	TUBE; NYLON (A) SERVICED BY L=6000 OD=6	1-87411-003-0	AR	1	1008-	●	●
98	TUBE; NYLON (A) SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	1008-	●	●
98	TUBE; NYLON (A) SERVICED BY L=12000 OD=8	1-87411-010-0	AR	1	1008-	●	●
98	TUBE; NYLON (A) SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1008-	●	●
98	TUBE; NYLON (A) SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	1008-	●	●
98	TUBE; NYLON (A) SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	1008-	●	●
98	TUBE; NYLON (A) SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	1008-	●	●
98	TUBE; NYLON (B)	8-98169-619-0	02	1	1008-	●	●
114	UNION; NYLON TUBE DIN12X2 & R3/8 3WAY	1-09661-131-0	01	1	1008-	●	●
115	NUT; TUBE UNION M8 FLANGE	0-91180-108-0	01	1	1008-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=7	1-87411-016-0	AR	1	1008-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	1008-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	1008-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87411-027-0	AR	1	1008-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87411-029-0	AR	1	1008-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87411-031-0	AR	1	1008-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87411-033-0	AR	1	1008-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87411-035-0	AR	1	1008-	●	●
145	PLUG DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1008-	●	●
149	BOLT; UNION (B) M8X16 FLANGE	0-28050-816-0	02	1	1008-		●
149	BOLT; UNION EXC. FULL TRAILER PIPING<Z25> (B) M8X16 FLANGE	0-28050-816-0	02	1	1008-	●
149	BOLT; UNION (A) M8X12 FLANGE	0-28050-812-0	01	1	1008-	●	●
149	BOLT; UNION (C) M8X30 FLANGE	0-28650-830-0	04	1	1008-	●	●
149	BOLT; UNION FULL TRAILER PIPING<Z25> EXC. TRAILER BRAKE HAND CONTROL(NLG) (B) M8X16 FLANGE	0-28050-816-0	03	1	1008-	●
149	BOLT; UNION TRAILER BRAKE HAND CONTROL(NLG) FULL TRAILER PIPING<Z25> (B) M8X16 FLANGE	0-28050-816-0	04	1	1008-	●
159	CLIP; NYLON TUBE 6WF1 TC-C(1B8) (C) L=350	1-09707-183-0	17	1	1008-		●
159	CLIP; NYLON TUBE 6WF1 TC-C(1B8) EXC. BATTERY LAYOUT REAR VAR1<NCT> (C) L=350	1-09707-183-0	17	1	1008-	●
159	CLIP; NYLON TUBE 6WG1 TC-R(75L) (C) L=350	1-09707-183-0	20	1	1008-		●
159	CLIP; NYLON TUBE 6WG1 TC-R(75L) EXC. BATTERY LAYOUT REAR VAR1<NCT> (C) L=350	1-09707-183-0	20	1	1008-	●
159	CLIP; NYLON TUBE (B) ID=35 L=33	1-09700-945-0	01	1	1008-	●	●
159	CLIP; NYLON TUBE (A) ID=35 H=45 L=33	1-09700-947-0	01	1	1008-	●	●
159	CLIP; NYLON TUBE (A) ID=21 L=30 H=40	1-09700-991-1	01	1	1008-	●	●
159	CLIP; NYLON TUBE (A) ID=31 H=30 L=35	1-09700-994-0	01	1	1008-	●	●
159	CLIP; NYLON TUBE (A) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1008-	●	●
159	CLIP; NYLON TUBE 6WF1 TC-C(1B8) (B) ID=19 L=28	0-95235-856-0	02	1	1008-	●	●
159	CLIP; NYLON TUBE 6WF1 TC-C(1B8) BATTERY LAYOUT REAR VAR1<NCT> (C) L=350	1-09707-183-0	12	1	1008-	●
159	CLIP; NYLON TUBE 6WG1 TC-R(75L) BATTERY LAYOUT REAR VAR1<NCT> (C) L=350	1-09707-183-0	15	1	1008-	●

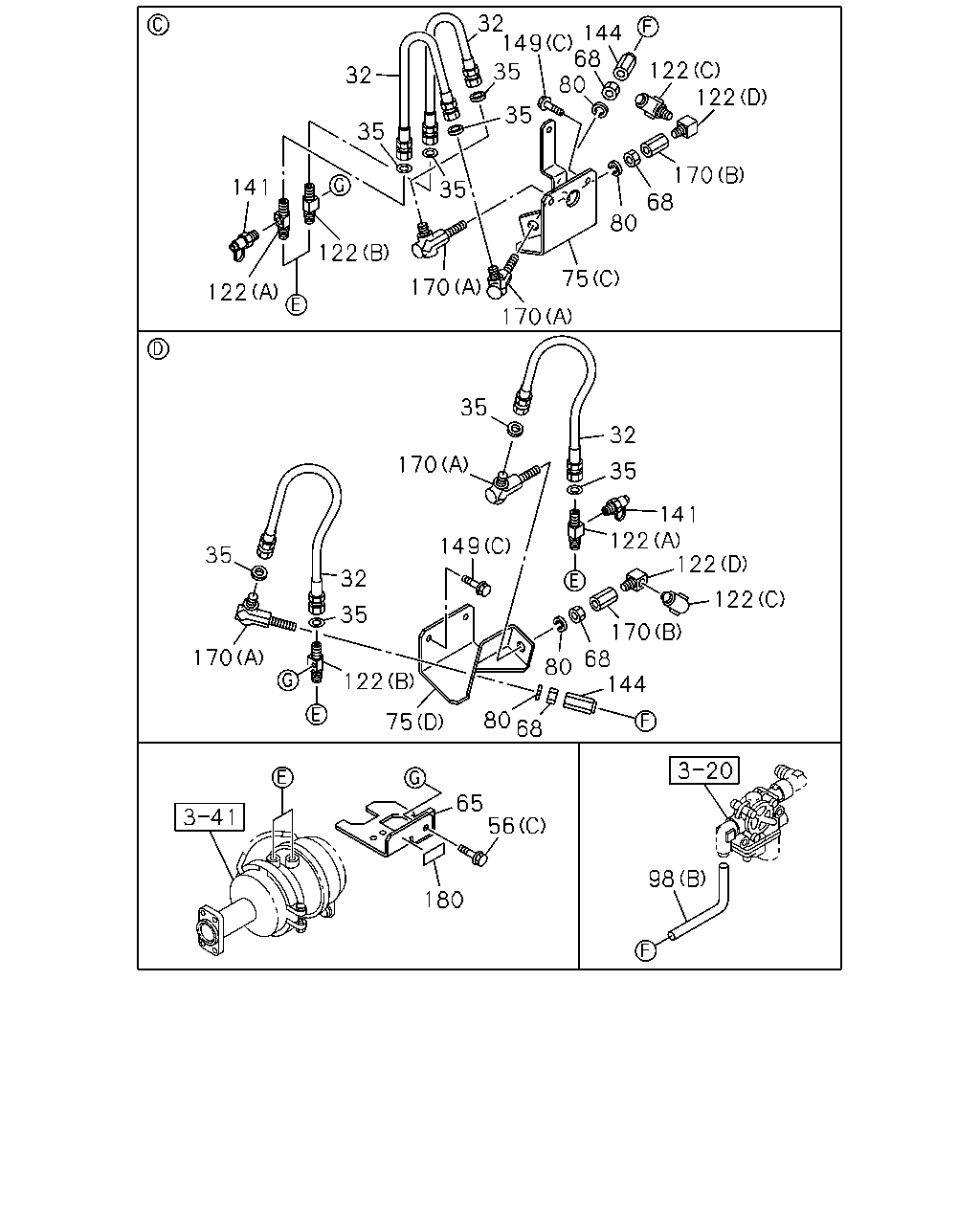

32 144 149 68 80 122 122 35 32 35 35 170 68 141 35 80 122 75 170 122 170 35 32 170 35 141 122 122 149 35 32 122 35 170 68 144 170 80 122 80 68 75 65 56 98 180

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
32	HOSE; FLEX,FRT L=470	0-57847-470-1	04	1	1008-	●	●
35	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	08	1	1008-	●	●
56	BOLT; UNION BRKT (C) M8X12 FLANGE	0-28050-812-0	02	1	1008-	●	●
56	BOLT; UNION BRKT (A) M8X16 FLANGE	0-28050-816-0	02	1	1008-	●	●
56	BOLT; UNION BRKT (B) M8X25 FLANGE	0-28650-825-0	01	1	1008-	●	●
65	BRACKET; FLEX HOSE	8-98163-032-2	01	1	1008-	●	●
65	BRACKET; FLEX HOSE	8-98163-031-2	01	1	1008-	●	●
68	NUT; UNION M20	0-91111-520-0	04	1	1008-	●	●
75	BRACKET; UNION (C)	8-98176-142-0	01	1	1008-	●	●
75	BRACKET; UNION (D)	8-98176-152-0	01	1	1008-	●	●
75	BRACKET; UNION (A)	1-47471-023-0	01	1	1008-		●
75	BRACKET; UNION EXC. FULL TRAILER PIPING<Z25> (A)	1-47471-023-0	01	1	1008-	●
75	BRACKET; UNION FULL TRAILER PIPING<Z25> EXC. TRAILER BRAKE HAND CONTROL(NLG) (A)	1-47471-023-0	01	1	1008-	●
75	BRACKET; UNION (B)	1-47471-145-0	01	1	1008-	●	●
80	WASHER; LK,UNION ID=20.2	0-91510-520-0	04	1	1008-	●	●
98	TUBE; NYLON (A) SERVICED BY L=4000 OD=6	1-87411-002-0	AR	1	1008-	●	●
98	TUBE; NYLON (A) SERVICED BY L=6000 OD=6	1-87411-003-0	AR	1	1008-	●	●
98	TUBE; NYLON (A) SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	1008-	●	●
98	TUBE; NYLON (A) SERVICED BY L=12000 OD=8	1-87411-010-0	AR	1	1008-	●	●
98	TUBE; NYLON (A) SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1008-	●	●
98	TUBE; NYLON (A) SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	1008-	●	●
98	TUBE; NYLON (A) SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	1008-	●	●
98	TUBE; NYLON (A) SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	1008-	●	●
98	TUBE; NYLON (B)	8-98169-619-0	02	1	1008-	●	●
122	CONNECTOR; FLEX HOSE (D) PT3/8 ELBOW	1-09660-696-0	02	1	1008-	●	●
122	CONNECTOR; FLEX HOSE (C) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1008-	●	●
122	CONNECTOR; FLEX HOSE (A)	8-98162-734-0	01	1	1008-	●	●
122	CONNECTOR; FLEX HOSE (B)	8-98162-735-0	01	1	1008-	●	●
122	CONNECTOR; FLEX HOSE (A)	8-98162-043-0	01	1	1008-	●	●
122	CONNECTOR; FLEX HOSE (B)	8-98162-044-0	01	1	1008-	●	●
141	CONNECTOR; TEST R1/4 & M16 TEST CONNECTOR	1-47459-013-1	02	1	1008-	●	●
144	ADAPTER DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	1008-	●	●
149	BOLT; UNION (B) M8X16 FLANGE	0-28050-816-0	02	1	1008-		●
149	BOLT; UNION EXC. FULL TRAILER PIPING<Z25> (B) M8X16 FLANGE	0-28050-816-0	02	1	1008-	●
149	BOLT; UNION (A) M8X12 FLANGE	0-28050-812-0	01	1	1008-	●	●
149	BOLT; UNION (C) M8X30 FLANGE	0-28650-830-0	04	1	1008-	●	●
149	BOLT; UNION FULL TRAILER PIPING<Z25> EXC. TRAILER BRAKE HAND CONTROL(NLG) (B) M8X16 FLANGE	0-28050-816-0	03	1	1008-	●
149	BOLT; UNION TRAILER BRAKE HAND CONTROL(NLG) FULL TRAILER PIPING<Z25> (B) M8X16 FLANGE	0-28050-816-0	04	1	1008-	●
170	UNION; FLARE (A) M20 & M20 ELBOW	1-09654-397-1	04	1	1008-	●	●
170	UNION; FLARE (B) M20 & RC3/8 STRAIGHT	1-09660-883-0	02	1	1008-	●	●
180	PLATE; CAUTION	8-98164-504-0	02	1	1008-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
