◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11272 - CYZ LHD EURO2/3/4 WITH 3STEPS ▶ 3 - Brakes, Brake System ▶ 3-70 - BRAKE PIPING; AIR,AIR MASTER ▶
3-70 — BRAKE PIPING; AIR,AIR MASTER (#55646) — 266 parça

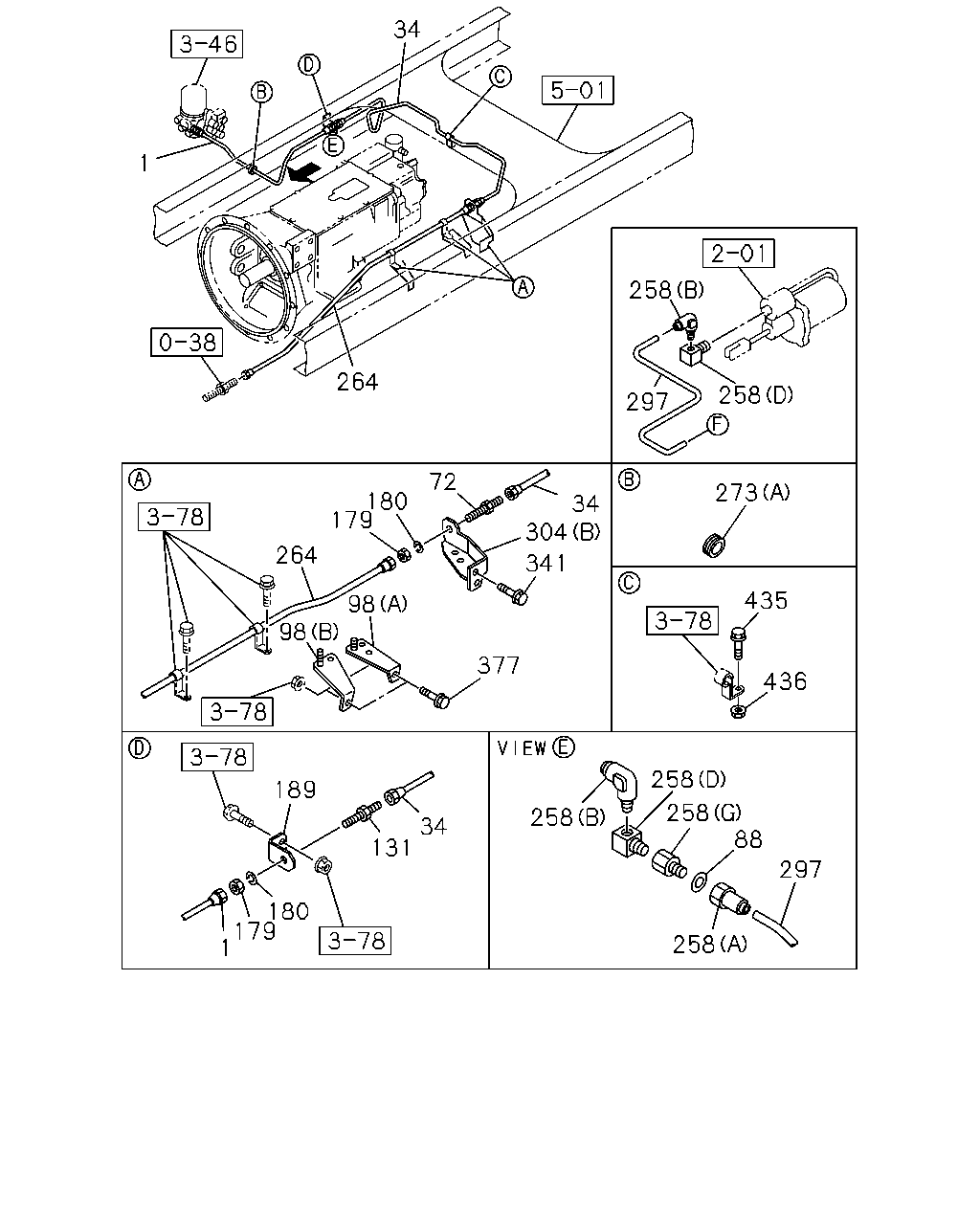

çizim 167163
34 1 258 264 258 297 72 273 180 179 34 304 264 341 435 98 98 377 436 258 189 258 88 258 34 131 297 180 179 1 258
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,AIR TANK
L=1350 		1-09363-925-0 01 1 1008- ●
1 HOSE; FLEX,AIR TANK
EXC. BATTERY LAYOUT REAR VAR1<NCT> L=1350 		1-09363-925-0 01 1 1008- ●
1 HOSE; FLEX,AIR TANK
BATTERY LAYOUT REAR VAR1<NCT> L=660 		1-09363-766-0 01 1 1008- ●
34 PIPE; AIR
L=1126 		1-49124-667-0 01 1 1008- ● ●
72 UNION; AIR PIPE
M22 		0-92123-315-0 01 1 1008- ● ●
88 GASKET; NYLON TUBE
MJT7S M/T(Y3E) CLU BOOSTER PEDAL EFFORT HEAVY<BGQ> CHINA EQUIPMENT(YT2) ID=14.2 OD=23.0 		9-09572-014-0 01 1 1111- ● ●
98 BRACKET; AIR PIPE
(B) 		1-47471-283-0 01 1 1008- ● ●
98 BRACKET; AIR PIPE
(A) 		1-47479-723-0 01 1 1008- ● ●
131 UNION; AIR PIPE
M22 		0-92123-315-0 01 1 1008- ● ●
179 NUT; UNION
M22 		0-91111-522-0 02 1 1008- ● ●
180 WASHER; LK,UNION
ID=22.5 		0-91510-522-0 02 1 1008- ● ●
189 BRACKET; FLEX HOSE
MJT7S M/T(Y3E) 		1-47479-473-0 01 1 1008- ● ●
189 BRACKET; FLEX HOSE
MJX16P M/T(Y3Z) 		8-98142-639-0 01 1 1008- ● ●
258 CONNECTOR; NYLON TUBE
MJT7S M/T(Y3E) CLU BOOSTER PEDAL EFFORT HEAVY<BGQ> CHINA EQUIPMENT(YT2) (G) 		1-48319-059-0 01 1 1111- ● ●
258 CONNECTOR; NYLON TUBE
(A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1008- ● ●
258 CONNECTOR; NYLON TUBE
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1008- ● ●
258 CONNECTOR; NYLON TUBE
(C) PT3/8 3WAY 		1-09661-300-0 01 1 1008- ● ●
258 CONNECTOR; NYLON TUBE
(D) PT3/8 & PT3/8 		1-09661-303-0 01 1 1008- ● ●
258 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) (E) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 1008- ● ●
258 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) (F) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 1008- ● ●
264 HOSE; FLEX
L=1000 		1-09363-794-0 01 1 1008- ● ●
273 GROMMET
(A) ID=28 OD=35 T=25 		1-09332-011-1 01 1 1008- ● ●
273 GROMMET
MJX16P M/T(Y3Z) (B) 		1-09332-102-0 01 1 1008- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1008- ● ●
297 TUBE; NYLON
EXC. EURO4 SPECIFICATION<KBT> SERVICED BY L=2000 OD=6 		1-87410-081-0 02 1 1008- ● ●
304 BRACKET; UNION
(A) 		1-47478-359-0 01 1 1008- ●
304 BRACKET; UNION
EXC. BATTERY LAYOUT REAR VAR1<NCT> (A) 		1-47478-359-0 01 1 1008- ●
304 BRACKET; UNION
EURO4 SPECIFICATION<KBT> BATTERY LAYOUT REAR VAR1<NCT> (A) 		1-47478-359-0 01 1 1008- ●
304 BRACKET; UNION
(B) 		8-98171-684-0 01 1 1008- ● ●
304 BRACKET; UNION
MJX16P M/T(Y3Z) (C) 		1-71117-210-0 01 1 1008- ● ●
341 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 02 1 1008- ● ●
377 BOLT; BRKT FIX
M8X35 FLANGE 		0-28650-835-0 02 1 1008- ● ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1008- ● ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1008- ● ●

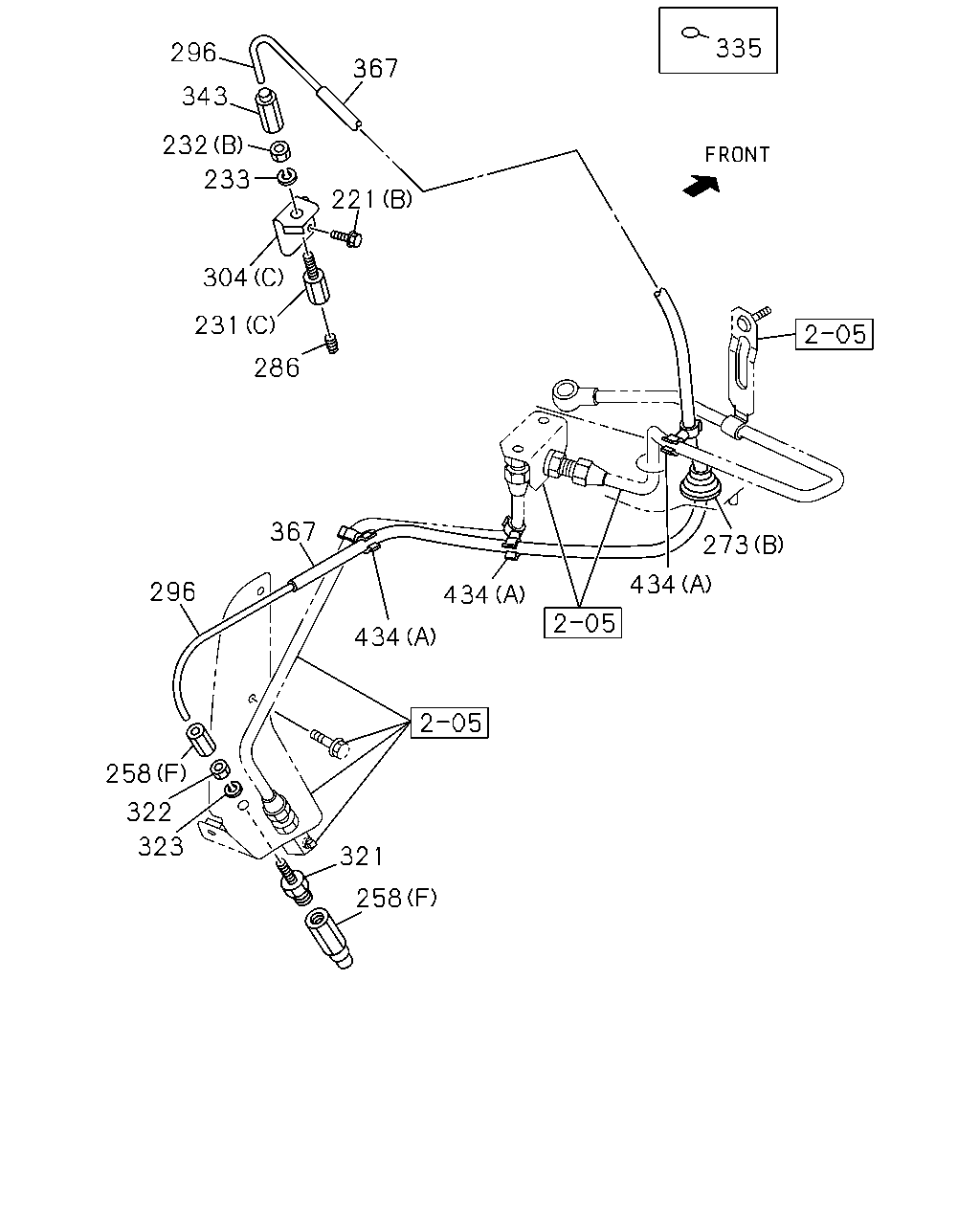

çizim 167193
335 296 367 343 232 233 221 304 231 286 367 273 434 296 434 434 258 322 323 321 258
BalonParca AdiParca NoAdetTipApplied Date A B
221 BOLT; BRKT
(A) M10X40 FLANGE 		0-28651-040-0 02 1 1008- ● ●
221 BOLT; BRKT
MJX16P M/T(Y3Z) (B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1008- ● ●
231 UNION; AIR PIPE
EXC. EURO4 SPECIFICATION<KBT> (B) M10 ELBOW 		1-09654-186-2 01 1 1008- ● ●
231 UNION; AIR PIPE
EXC. EURO4 SPECIFICATION<KBT> (A) M10 STRAIGHT 		1-09654-361-0 01 1 1008- ● ●
231 UNION; AIR PIPE
MJX16P M/T(Y3Z) (C) PT1/8 & M10 STRAIGHT 		1-09656-713-2 01 1 1008- ● ●
232 NUT; UNION,AIR PIPE
EXC. EURO4 SPECIFICATION<KBT> (A) M10 		0-91110-510-0 01 1 1008- ● ●
232 NUT; UNION,AIR PIPE
EXC. EURO4 SPECIFICATION<KBT> (B) M10 H=8 		1-09400-029-0 01 1 1008- ● ●
232 NUT; UNION,AIR PIPE
MJX16P M/T(Y3Z) (B) M10 H=8 		1-09400-029-0 01 1 1008- ● ●
233 WASHER; LK,UNION,AIR PIPE
MJX16P M/T(Y3Z) ID=10.2 		0-91510-510-0 01 1 1008- ● ●
258 CONNECTOR; NYLON TUBE
MJT7S M/T(Y3E) CLU BOOSTER PEDAL EFFORT HEAVY<BGQ> CHINA EQUIPMENT(YT2) (G) 		1-48319-059-0 01 1 1111- ● ●
258 CONNECTOR; NYLON TUBE
(A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1008- ● ●
258 CONNECTOR; NYLON TUBE
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1008- ● ●
258 CONNECTOR; NYLON TUBE
(C) PT3/8 3WAY 		1-09661-300-0 01 1 1008- ● ●
258 CONNECTOR; NYLON TUBE
(D) PT3/8 & PT3/8 		1-09661-303-0 01 1 1008- ● ●
258 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) (E) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 1008- ● ●
258 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) (F) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 1008- ● ●
273 GROMMET
(A) ID=28 OD=35 T=25 		1-09332-011-1 01 1 1008- ● ●
273 GROMMET
MJX16P M/T(Y3Z) (B) 		1-09332-102-0 01 1 1008- ● ●
286 PLUG; AIR PIPE
MJX16P M/T(Y3Z) 		9-09204-510-0 01 1 1008- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 1008- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 1008- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1008- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1008- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1008- ● ●
296 TUBE; NYLON
SERVICED BY L=8000 OD=12 		1-87411-014-0 AR 1 1008- ● ●
296 TUBE; NYLON
SERVICED BY L=12000 OD=12 		1-87411-015-0 AR 1 1008- ● ●
304 BRACKET; UNION
(A) 		1-47478-359-0 01 1 1008- ●
304 BRACKET; UNION
EXC. BATTERY LAYOUT REAR VAR1<NCT> (A) 		1-47478-359-0 01 1 1008- ●
304 BRACKET; UNION
EURO4 SPECIFICATION<KBT> BATTERY LAYOUT REAR VAR1<NCT> (A) 		1-47478-359-0 01 1 1008- ●
304 BRACKET; UNION
(B) 		8-98171-684-0 01 1 1008- ● ●
304 BRACKET; UNION
MJX16P M/T(Y3Z) (C) 		1-71117-210-0 01 1 1008- ● ●
321 JOINT; FLEX HOSE
MJX16P M/T(Y3Z) M12 L=66.5 		0-92113-306-0 01 1 1008- ● ●
322 NUT; JOINT,FLEX HOSE
MJX16P M/T(Y3Z) M12 		9-09840-280-0 01 1 1008- ● ●
323 WASHER; LK,JOINT
MJX16P M/T(Y3Z) ID=12.2 		0-91510-512-0 01 1 1008- ● ●
335 SEAL; UNION
OD=30 BLACK 		1-76798-035-0 01 1 1008- ● ●
343 UNION; NYLON TUBE
EXC. EURO4 SPECIFICATION<KBT> 		1-09660-796-1 02 1 1008- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 1008- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 1008- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 1008- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87411-031-0 AR 1 1008- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 		1-87411-033-0 AR 1 1008- ● ●
434 CLIP
EXC. EURO4 SPECIFICATION<KBT> (B) ID=10 & 10 		1-09709-221-0 01 1 1008- ● ●
434 CLIP
MJX16P M/T(Y3Z) (A) ID=8.3 & 8.3 		8-94426-175-0 03 1 1008- ● ●

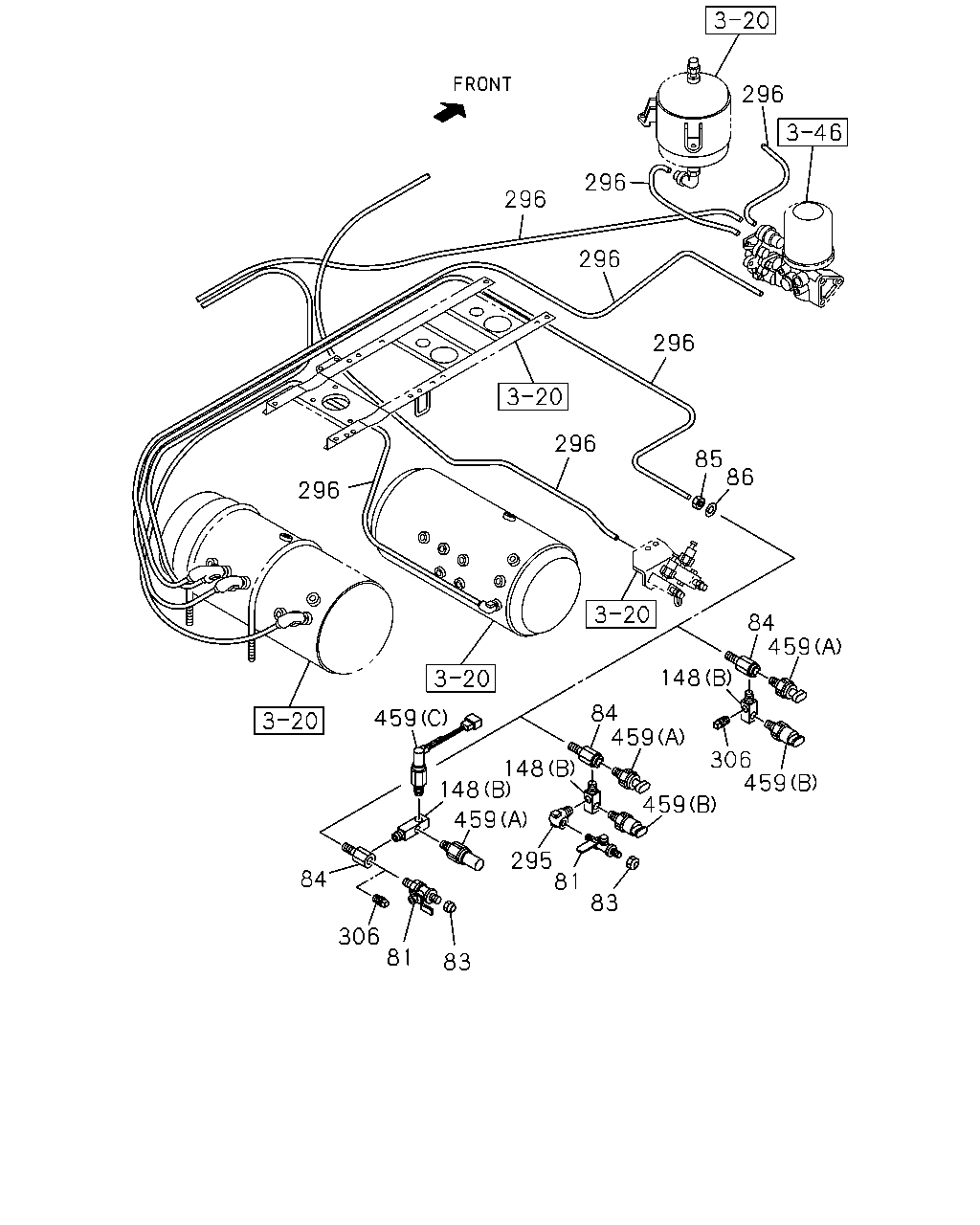

çizim 167203
296 296 296 296 296 296 85 86 296 84 459 148 84 459 459 306 459 148 148 459 459 295 81 84 83 306 81 83
BalonParca AdiParca NoAdetTipApplied Date A B
81 COCK; AIR
TIRE INFLATOR DEVICE<SG4> 		1-09680-099-0 01 1 1008- ● ●
83 CAP; AIR COCK
TIRE INFLATOR DEVICE<SG4> 		9-48319-102-0 01 1 1008- ● ●
84 UNION; NYLON TUBE 1-09661-092-0 01 1 1008- ● ●
85 NUT; UNION
M18 		0-91110-518-0 01 1 1008- ● ●
86 WASHER; LK,TUBE UNION
ID=18.2 		0-91510-518-0 01 1 1008- ● ●
148 CONNECTOR; UNION
(A) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1008- ● ●
148 CONNECTOR; UNION
(B) DIN14 & R1/4 & RC1/4 		1-09661-729-0 01 1 1008- ● ●
295 CONNECTOR; NYLON TUBE
6WG1 TC-R(75L) TIRE INFLATOR DEVICE<SG4> PT1/4 & PT1/4 2WAY 		1-09660-693-0 01 1 1008- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 1008- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 1008- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1008- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1008- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1008- ● ●
296 TUBE; NYLON
SERVICED BY L=8000 OD=12 		1-87411-014-0 AR 1 1008- ● ●
296 TUBE; NYLON
SERVICED BY L=12000 OD=12 		1-87411-015-0 AR 1 1008- ● ●
306 PLUG; NYLON TUBE
EXC. TIRE INFLATOR DEVICE<SG4> PT1/4 		9-99204-513-0 01 1 1008- ● ●
459 SWITCH; PRESS
(A) THREAD R1/4 		1-80220-023-1 01 1 1008- ● ●
459 SWITCH; PRESS
6WF1 TC-C(1B8) (B) 		1-48340-058-2 01 1 1008- ● ●
459 SWITCH; PRESS
6WG1 TC-R(75L) (C) STAMP 6.0 		8-97615-622-0 01 1 1008- ● ●
çizim 167216
434 337 337 232 231 330 334 330 232 231 343 343 297 372 120
BalonParca AdiParca NoAdetTipApplied Date A B
120 CONNECTOR; AIR PIPE 1-47470-418-2 01 1 1008- ●
120 CONNECTOR; AIR PIPE
EXC. FULL TRAILER PIPING<Z25> 		1-47470-418-2 01 1 1008- ●
120 CONNECTOR; AIR PIPE
BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL(NLG) FULL TRAILER PIPING<Z25> 		1-47470-655-0 01 1 1008- ●
120 CONNECTOR; AIR PIPE
FULL TRAILER PIPING<Z25> EXC. BRAKE REGULATION ECE<NBE>,TRAILER BRAKE HAND CONTROL(NLG) 		8-98138-506-1 01 1 1008- ●
231 UNION; AIR PIPE
EXC. EURO4 SPECIFICATION<KBT> (B) M10 ELBOW 		1-09654-186-2 01 1 1008- ● ●
231 UNION; AIR PIPE
EXC. EURO4 SPECIFICATION<KBT> (A) M10 STRAIGHT 		1-09654-361-0 01 1 1008- ● ●
231 UNION; AIR PIPE
MJX16P M/T(Y3Z) (C) PT1/8 & M10 STRAIGHT 		1-09656-713-2 01 1 1008- ● ●
232 NUT; UNION,AIR PIPE
EXC. EURO4 SPECIFICATION<KBT> (A) M10 		0-91110-510-0 01 1 1008- ● ●
232 NUT; UNION,AIR PIPE
EXC. EURO4 SPECIFICATION<KBT> (B) M10 H=8 		1-09400-029-0 01 1 1008- ● ●
232 NUT; UNION,AIR PIPE
MJX16P M/T(Y3Z) (B) M10 H=8 		1-09400-029-0 01 1 1008- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1008- ● ●
297 TUBE; NYLON
EXC. EURO4 SPECIFICATION<KBT> SERVICED BY L=2000 OD=6 		1-87410-081-0 02 1 1008- ● ●
330 WASHER; LK,UNION,AIR PIPE
EXC. EURO4 SPECIFICATION<KBT> ID=10.2 		0-91510-510-0 02 1 1008- ● ●
334 SPACER; PIPE UNION
EXC. EURO4 SPECIFICATION<KBT> ID=10.5 OD=22 T=4 		1-09503-045-0 01 1 1008- ● ●
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
EXC. EURO4 SPECIFICATION<KBT> L=720 		0-57210-720-0 02 1 1008- ● ●
343 UNION; NYLON TUBE
EXC. EURO4 SPECIFICATION<KBT> 		1-09660-796-1 02 1 1008- ● ●
372 NUT
M8 FLANGE 		0-91180-108-0 02 1 1008- ● ●
434 CLIP
EXC. EURO4 SPECIFICATION<KBT> (B) ID=10 & 10 		1-09709-221-0 01 1 1008- ● ●
434 CLIP
MJX16P M/T(Y3Z) (A) ID=8.3 & 8.3 		8-94426-175-0 03 1 1008- ● ●

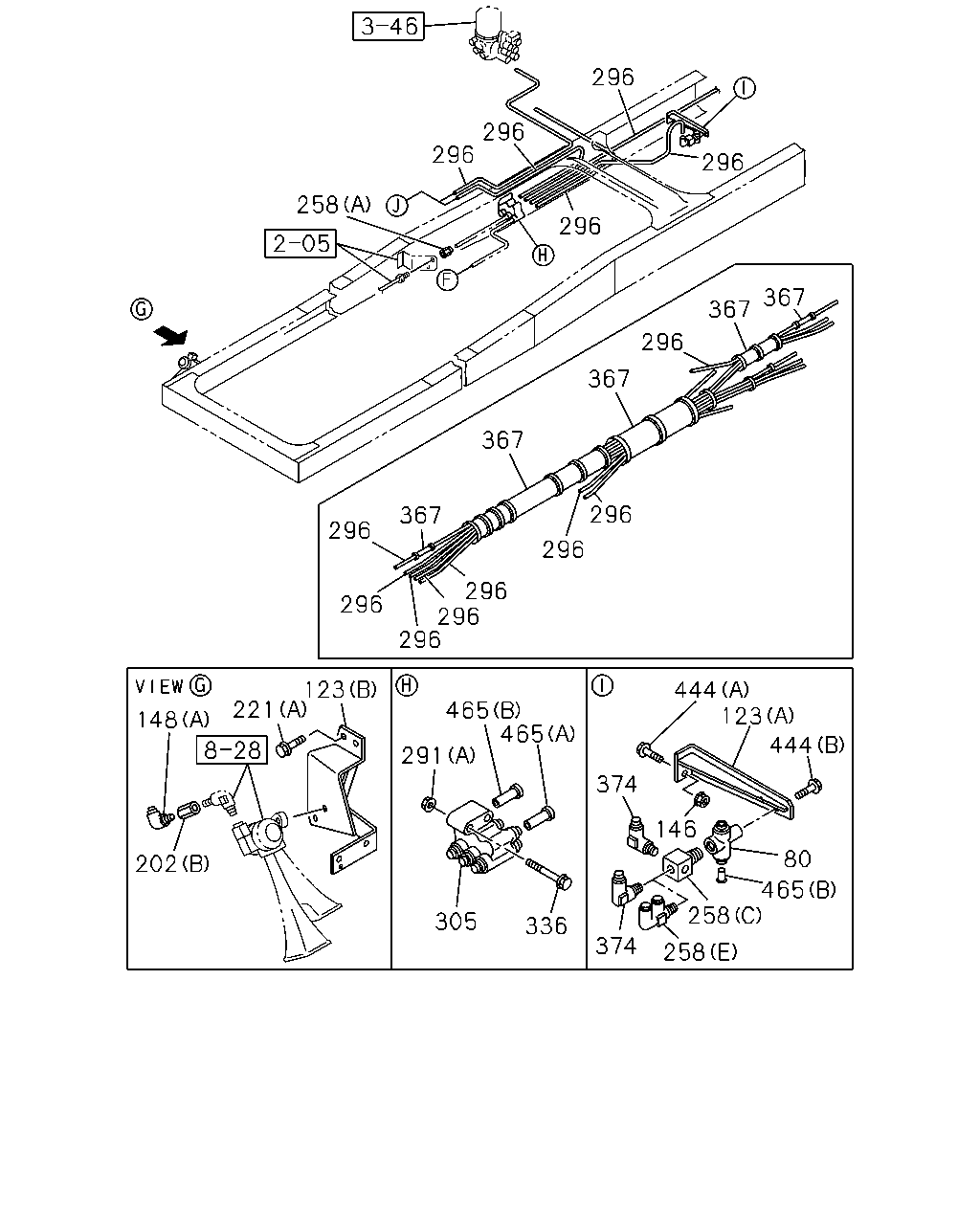

çizim 167220
296 296 296 296 258 296 367 367 296 367 367 296 367 296 296 296 296 296 296 123 444 123 221 465 465 148 444 291 374 146 80 202 465 258 305 336 374 258
BalonParca AdiParca NoAdetTipApplied Date A B
80 UNION; 3 WAY
DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 1008- ● ●
123 BRACKET; UNION
MIXER TRUCK<RA2> EURO4 SPECIFICATION<KBT>,EURO2 SPECIFICATION<THN> (C) 		1-82569-367-1 01 1 1008- ●
123 BRACKET; UNION
(A) 		1-47479-401-0 01 1 1008- ● ●
123 BRACKET; UNION
(B) 		1-53457-161-0 01 1 1008- ● ●
123 BRACKET; UNION
BATTERY LAYOUT REAR VAR1<NCT> EURO3 SPECIFICATION<NJX>,EURO2 SPECIFICATION<THN> (D) 		8-98164-194-0 01 1 1008- ●
146 NUT; UNION
M8 FLANGE 		0-91180-108-0 02 1 1008- ● ●
148 CONNECTOR; UNION
(A) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1008- ● ●
148 CONNECTOR; UNION
(B) DIN14 & R1/4 & RC1/4 		1-09661-729-0 01 1 1008- ● ●
202 ADAPTER
(A) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 1008- ●
202 ADAPTER
EXC. BATTERY LAYOUT REAR VAR1<NCT> (A) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 1008- ●
202 ADAPTER
EURO4 SPECIFICATION<KBT> BATTERY LAYOUT REAR VAR1<NCT> (A) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 1008- ●
202 ADAPTER
(B) M12 & RC1/4 STRAIGHT 		1-09660-885-0 01 1 1008- ● ●
221 BOLT; BRKT
(A) M10X40 FLANGE 		0-28651-040-0 02 1 1008- ● ●
221 BOLT; BRKT
MJX16P M/T(Y3Z) (B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1008- ● ●
258 CONNECTOR; NYLON TUBE
MJT7S M/T(Y3E) CLU BOOSTER PEDAL EFFORT HEAVY<BGQ> CHINA EQUIPMENT(YT2) (G) 		1-48319-059-0 01 1 1111- ● ●
258 CONNECTOR; NYLON TUBE
(A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1008- ● ●
258 CONNECTOR; NYLON TUBE
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1008- ● ●
258 CONNECTOR; NYLON TUBE
(C) PT3/8 3WAY 		1-09661-300-0 01 1 1008- ● ●
258 CONNECTOR; NYLON TUBE
(D) PT3/8 & PT3/8 		1-09661-303-0 01 1 1008- ● ●
258 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) (E) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 1008- ● ●
258 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) (F) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 1008- ● ●
291 NUT; UNION
(B) M12 		9-09840-280-0 02 1 1008- ●
291 NUT; UNION
EXC. BATTERY LAYOUT REAR VAR1<NCT> (B) M12 		9-09840-280-0 02 1 1008- ●
291 NUT; UNION
EURO4 SPECIFICATION<KBT> BATTERY LAYOUT REAR VAR1<NCT> (B) M12 		9-09840-280-0 02 1 1008- ●
291 NUT; UNION
(A) M8 FLANGE 		0-91180-108-0 02 1 1008- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 1008- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 1008- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1008- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1008- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1008- ● ●
296 TUBE; NYLON
SERVICED BY L=8000 OD=12 		1-87411-014-0 AR 1 1008- ● ●
296 TUBE; NYLON
SERVICED BY L=12000 OD=12 		1-87411-015-0 AR 1 1008- ● ●
305 UNION ASM; NYLON TUBE 1-09661-613-1 01 1 1008- ● ●
336 BOLT; PIPE UNION
M8X80 FLANGE 		0-28050-880-0 02 1 1008-1008 ● ●
336 BOLT; PIPE UNION
M8X70 FLANGE 		0-28050-870-0 02 1 1009- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 1008- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 1008- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 1008- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87411-031-0 AR 1 1008- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 		1-87411-033-0 AR 1 1008- ● ●
374 CONNECTOR
DIN8 & R3/8 ELBOW 		1-09660-957-0 02 1 1008- ● ●
444 BOLT; UNION
(B) M8X16 FLANGE 		0-28050-816-0 01 1 1008- ● ●
444 BOLT; UNION
(A) M8X35 FLANGE 		0-28650-835-0 02 1 1008- ● ●
465 PLUG
(B) OD=8 PLASTIC 		1-09661-616-0 01 1 1008- ● ●
465 PLUG
(B) OD=8 PLASTIC 		1-09661-616-0 01 1 1008- ● ●
465 PLUG
MJT7S M/T(Y3E) (A) OD=6 L=27 		1-09661-615-0 01 1 1008- ● ●
465 PLUG
EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) OD=6 L=27 		1-09661-615-0 01 1 1008- ● ●

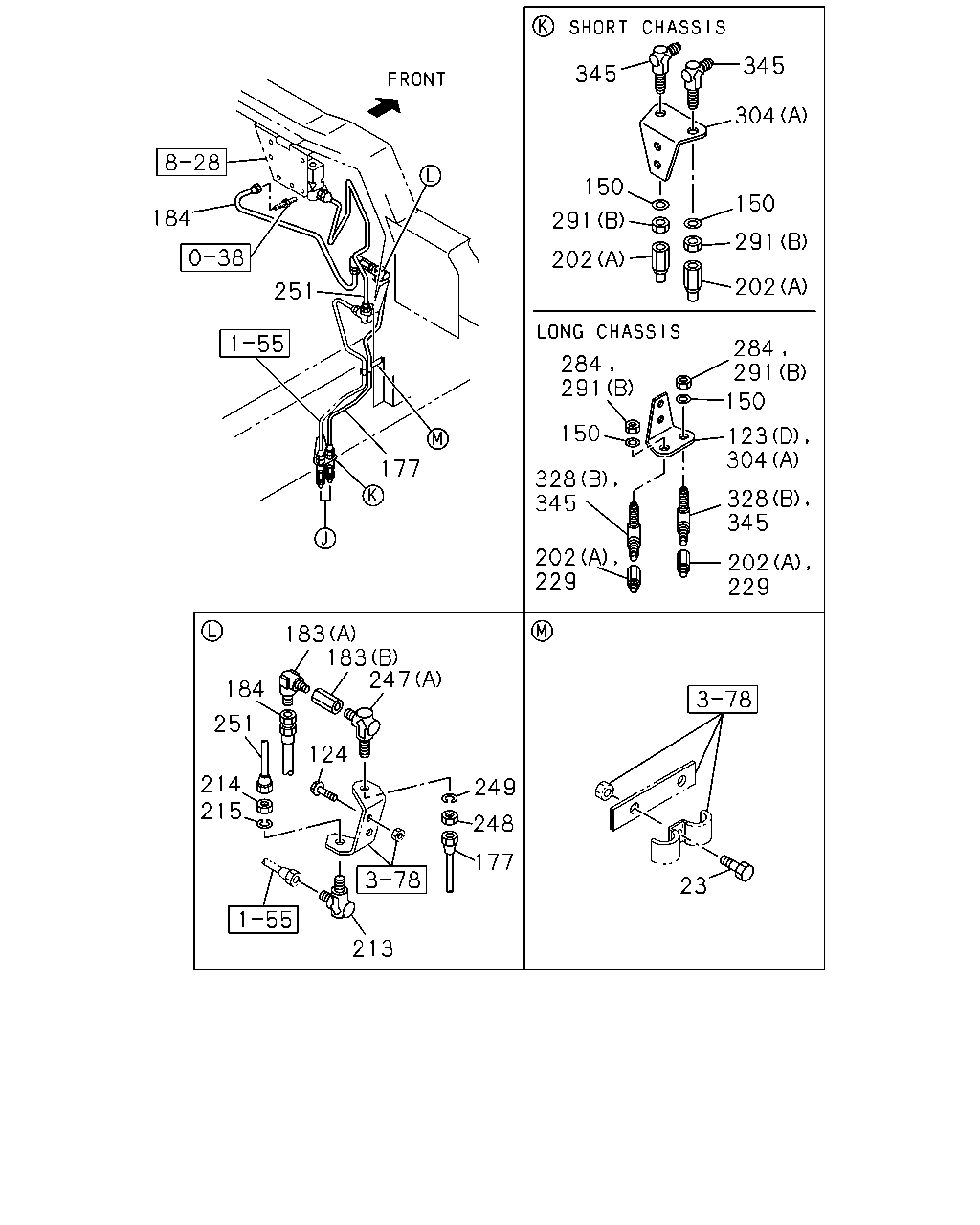

çizim 167267
345 345 304 150 150 184 291 291 202 202 251 284 291 284 291 150 150 123 304 177 328 345 328 345 202 229 202 229 183 183 247 184 251 124 214 215 249 248 177 23 213
BalonParca AdiParca NoAdetTipApplied Date A B
23 BOLT; BRKT,AIR PIPE
M8X25 FLANGE 		0-28650-825-0 01 1 1008- ● ●
123 BRACKET; UNION
MIXER TRUCK<RA2> EURO4 SPECIFICATION<KBT>,EURO2 SPECIFICATION<THN> (C) 		1-82569-367-1 01 1 1008- ●
123 BRACKET; UNION
(A) 		1-47479-401-0 01 1 1008- ● ●
123 BRACKET; UNION
(B) 		1-53457-161-0 01 1 1008- ● ●
123 BRACKET; UNION
BATTERY LAYOUT REAR VAR1<NCT> EURO3 SPECIFICATION<NJX>,EURO2 SPECIFICATION<THN> (D) 		8-98164-194-0 01 1 1008- ●
124 BOLT; BRKT
MIXER TRUCK<RA2> EURO4 SPECIFICATION<KBT>,EURO2 SPECIFICATION<THN> M8X25 FLANGE 		0-28650-825-0 04 1 1008- ●
124 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 1008- ● ●
150 WASHER; LK,UNION
ID=12.2 		0-91510-512-0 02 1 1008- ●
150 WASHER; LK,UNION
EXC. BATTERY LAYOUT REAR VAR1<NCT> ID=12.2 		0-91510-512-0 02 1 1008- ●
150 WASHER; LK,UNION
EURO4 SPECIFICATION<KBT>,EURO3 SPECIFICATION<NJX>, EURO2 SPECIFICATION<THN> BATTERY LAYOUT REAR VAR1<NCT> ID=12.2 		0-91510-512-0 02 1 1008- ●
150 WASHER; LK,UNION
MIXER TRUCK<RA2> EURO4 SPECIFICATION<KBT>,EURO2 SPECIFICATION<THN> ID=12.2 		0-91510-512-0 01 1 1008- ●
177 PIPE; AIR,UNION TO UNION
L=658 SERVICED BY L=700 		1-47428-811-0 01 1 1008- ●
177 PIPE; AIR,UNION TO UNION
EXC. BATTERY LAYOUT REAR VAR1<NCT> L=658 SERVICED BY L=700 		1-47428-811-0 01 1 1008- ●
177 PIPE; AIR,UNION TO UNION
BATTERY LAYOUT REAR VAR1<NCT> EURO3 SPECIFICATION<NJX>,EURO2 SPECIFICATION<THN> L=581 SERVICED BY L=600 		1-47428-809-0 01 1 1008- ●
177 PIPE; AIR,UNION TO UNION
EURO4 SPECIFICATION<KBT> BATTERY LAYOUT REAR VAR1<NCT> L=714 SERVICED BY L=800 		1-47428-812-0 01 1 1008- ●
183 UNION; FLEX HOSE,GOV
EXC. MIXER TRUCK<RA2> (A) M12 & PT3/8 ELBOW 		1-09650-436-0 01 1 1008- ●
183 UNION; FLEX HOSE,GOV
(A) M12 & PT3/8 ELBOW 		1-09650-436-0 01 1 1008- ●
183 UNION; FLEX HOSE,GOV
EXC. MIXER TRUCK<RA2> (B) M12 & RC3/8 STRAIGHT 		1-09660-879-0 01 1 1008- ●
183 UNION; FLEX HOSE,GOV
(B) M12 & RC3/8 STRAIGHT 		1-09660-879-0 01 1 1008- ●
184 HOSE; FLEX,AIR GOV
MIXER TRUCK<RA2> L=370 		1-09363-771-0 01 1 1008- ●
184 HOSE; FLEX,AIR GOV
EXC. MIXER TRUCK<RA2> L=740 		1-09363-675-0 01 1 1008- ●
184 HOSE; FLEX,AIR GOV
L=740 		1-09363-675-0 01 1 1008- ●
202 ADAPTER
(A) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 1008- ●
202 ADAPTER
EXC. BATTERY LAYOUT REAR VAR1<NCT> (A) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 1008- ●
202 ADAPTER
EURO4 SPECIFICATION<KBT> BATTERY LAYOUT REAR VAR1<NCT> (A) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 1008- ●
202 ADAPTER
(B) M12 & RC1/4 STRAIGHT 		1-09660-885-0 01 1 1008- ● ●
213 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 01 1 1008- ● ●
214 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 1008- ● ●
215 WASHER; LK,UNION,AIR PIPE
ID=12.2 		0-91510-512-0 01 1 1008- ● ●
229 ADAPTER; NYLON TUBE
BATTERY LAYOUT REAR VAR1<NCT> EURO3 SPECIFICATION<NJX>,EURO2 SPECIFICATION<THN> DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 1008- ●
247 UNION; AIR PIPE
MIXER TRUCK<RA2> (B) M12 L=66.5 		0-92113-306-0 01 1 1008- ●
247 UNION; AIR PIPE
EXC. MIXER TRUCK<RA2> (A) M12 ELBOW 		0-92125-206-0 01 1 1008- ●
247 UNION; AIR PIPE
(A) M12 ELBOW 		0-92125-206-0 01 1 1008- ●
248 NUT; PIPE UNION
M12 		9-09840-280-0 01 1 1008- ● ●
249 WASHER; LK,PIPE UNION
ID=12.2 		0-91510-512-0 01 1 1008- ● ●
251 PIPE; AIR,UNION TO MAG VLV
L=375 		1-49124-511-0 01 1 1008- ● ●
284 NUT; UNION
MIXER TRUCK<RA2> EURO4 SPECIFICATION<KBT>,EURO2 SPECIFICATION<THN> M12 		9-09840-280-0 01 1 1008- ●
284 NUT; UNION
BATTERY LAYOUT REAR VAR1<NCT> EURO3 SPECIFICATION<NJX>,EURO2 SPECIFICATION<THN> M12 		9-09840-280-0 02 1 1008- ●
291 NUT; UNION
(B) M12 		9-09840-280-0 02 1 1008- ●
291 NUT; UNION
EXC. BATTERY LAYOUT REAR VAR1<NCT> (B) M12 		9-09840-280-0 02 1 1008- ●
291 NUT; UNION
EURO4 SPECIFICATION<KBT> BATTERY LAYOUT REAR VAR1<NCT> (B) M12 		9-09840-280-0 02 1 1008- ●
291 NUT; UNION
(A) M8 FLANGE 		0-91180-108-0 02 1 1008- ● ●
304 BRACKET; UNION
(A) 		1-47478-359-0 01 1 1008- ●
304 BRACKET; UNION
EXC. BATTERY LAYOUT REAR VAR1<NCT> (A) 		1-47478-359-0 01 1 1008- ●
304 BRACKET; UNION
EURO4 SPECIFICATION<KBT> BATTERY LAYOUT REAR VAR1<NCT> (A) 		1-47478-359-0 01 1 1008- ●
304 BRACKET; UNION
(B) 		8-98171-684-0 01 1 1008- ● ●
304 BRACKET; UNION
MJX16P M/T(Y3Z) (C) 		1-71117-210-0 01 1 1008- ● ●
328 UNION; AIR PIPE
MIXER TRUCK<RA2> EURO4 SPECIFICATION<KBT>,EURO2 SPECIFICATION<THN> (A) M12 2WAY 		1-09654-059-2 01 1 1008- ●
328 UNION; AIR PIPE
BATTERY LAYOUT REAR VAR1<NCT> EURO3 SPECIFICATION<NJX>,EURO2 SPECIFICATION<THN> (B) M12 ELBOW 		0-92125-206-0 02 1 1008- ●
345 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 02 1 1008- ●
345 UNION; AIR PIPE
EXC. BATTERY LAYOUT REAR VAR1<NCT> M12 ELBOW 		0-92125-206-0 02 1 1008- ●
345 UNION; AIR PIPE
EURO4 SPECIFICATION<KBT> BATTERY LAYOUT REAR VAR1<NCT> M12 ELBOW 		0-92125-206-0 02 1 1008- ●

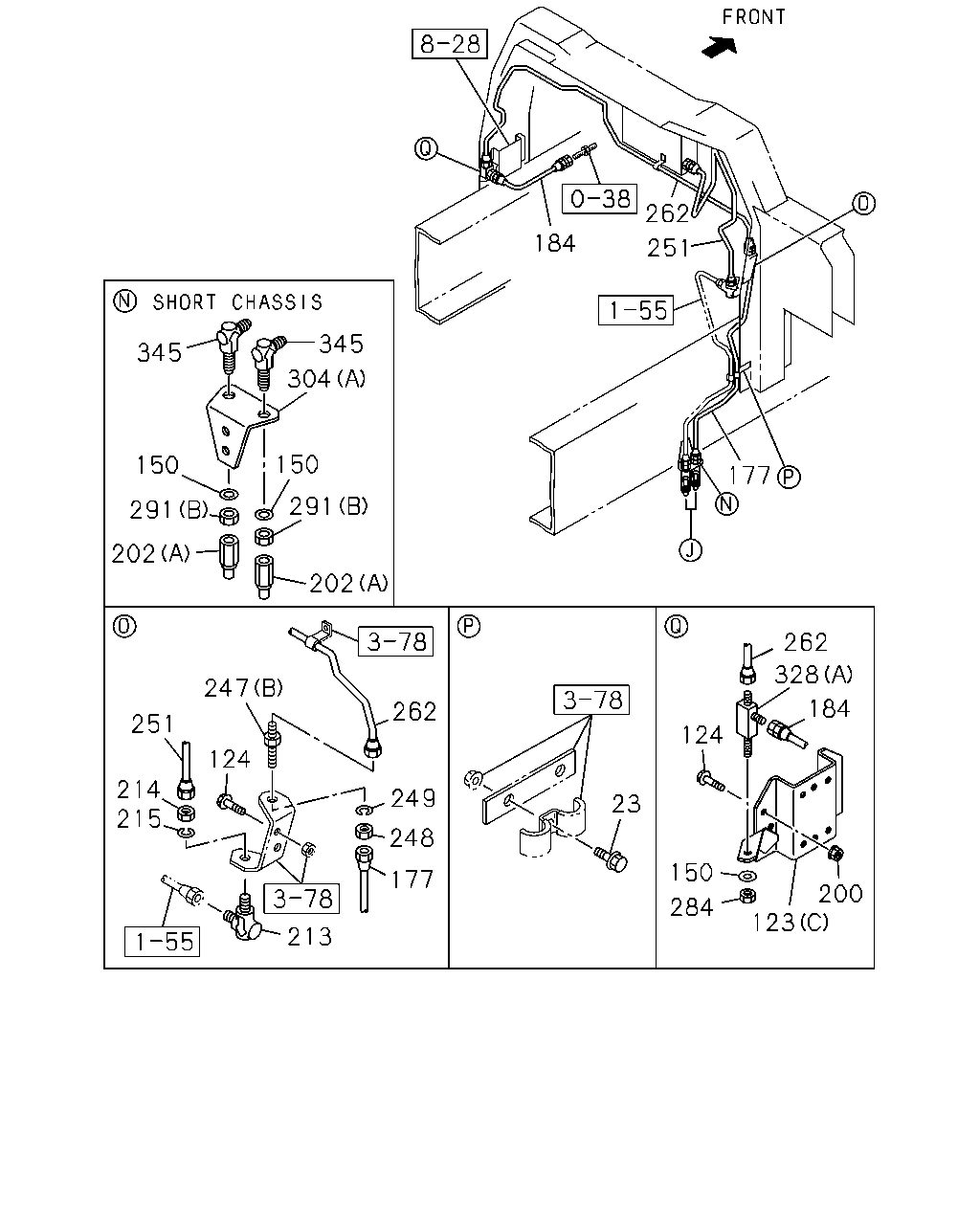

çizim 167268
262 184 251 345 345 304 150 150 177 291 291 202 202 262 328 247 184 262 251 124 124 214 215 249 23 248 150 177 200 123 284 213
BalonParca AdiParca NoAdetTipApplied Date A B
23 BOLT; BRKT,AIR PIPE
M8X25 FLANGE 		0-28650-825-0 01 1 1008- ● ●
123 BRACKET; UNION
MIXER TRUCK<RA2> EURO4 SPECIFICATION<KBT>,EURO2 SPECIFICATION<THN> (C) 		1-82569-367-1 01 1 1008- ●
123 BRACKET; UNION
(A) 		1-47479-401-0 01 1 1008- ● ●
123 BRACKET; UNION
(B) 		1-53457-161-0 01 1 1008- ● ●
123 BRACKET; UNION
BATTERY LAYOUT REAR VAR1<NCT> EURO3 SPECIFICATION<NJX>,EURO2 SPECIFICATION<THN> (D) 		8-98164-194-0 01 1 1008- ●
124 BOLT; BRKT
MIXER TRUCK<RA2> EURO4 SPECIFICATION<KBT>,EURO2 SPECIFICATION<THN> M8X25 FLANGE 		0-28650-825-0 04 1 1008- ●
124 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 1008- ● ●
150 WASHER; LK,UNION
ID=12.2 		0-91510-512-0 02 1 1008- ●
150 WASHER; LK,UNION
EXC. BATTERY LAYOUT REAR VAR1<NCT> ID=12.2 		0-91510-512-0 02 1 1008- ●
150 WASHER; LK,UNION
EURO4 SPECIFICATION<KBT>,EURO3 SPECIFICATION<NJX>, EURO2 SPECIFICATION<THN> BATTERY LAYOUT REAR VAR1<NCT> ID=12.2 		0-91510-512-0 02 1 1008- ●
150 WASHER; LK,UNION
MIXER TRUCK<RA2> EURO4 SPECIFICATION<KBT>,EURO2 SPECIFICATION<THN> ID=12.2 		0-91510-512-0 01 1 1008- ●
177 PIPE; AIR,UNION TO UNION
L=658 SERVICED BY L=700 		1-47428-811-0 01 1 1008- ●
177 PIPE; AIR,UNION TO UNION
EXC. BATTERY LAYOUT REAR VAR1<NCT> L=658 SERVICED BY L=700 		1-47428-811-0 01 1 1008- ●
177 PIPE; AIR,UNION TO UNION
BATTERY LAYOUT REAR VAR1<NCT> EURO3 SPECIFICATION<NJX>,EURO2 SPECIFICATION<THN> L=581 SERVICED BY L=600 		1-47428-809-0 01 1 1008- ●
177 PIPE; AIR,UNION TO UNION
EURO4 SPECIFICATION<KBT> BATTERY LAYOUT REAR VAR1<NCT> L=714 SERVICED BY L=800 		1-47428-812-0 01 1 1008- ●
184 HOSE; FLEX,AIR GOV
MIXER TRUCK<RA2> L=370 		1-09363-771-0 01 1 1008- ●
184 HOSE; FLEX,AIR GOV
EXC. MIXER TRUCK<RA2> L=740 		1-09363-675-0 01 1 1008- ●
184 HOSE; FLEX,AIR GOV
L=740 		1-09363-675-0 01 1 1008- ●
200 NUT; BRKT
MIXER TRUCK<RA2> EURO4 SPECIFICATION<KBT>,EURO2 SPECIFICATION<THN> M8 FLANGE 		0-91180-108-0 04 1 1008- ●
202 ADAPTER
(A) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 1008- ●
202 ADAPTER
EXC. BATTERY LAYOUT REAR VAR1<NCT> (A) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 1008- ●
202 ADAPTER
EURO4 SPECIFICATION<KBT> BATTERY LAYOUT REAR VAR1<NCT> (A) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 1008- ●
202 ADAPTER
(B) M12 & RC1/4 STRAIGHT 		1-09660-885-0 01 1 1008- ● ●
213 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 01 1 1008- ● ●
214 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 1008- ● ●
215 WASHER; LK,UNION,AIR PIPE
ID=12.2 		0-91510-512-0 01 1 1008- ● ●
247 UNION; AIR PIPE
MIXER TRUCK<RA2> (B) M12 L=66.5 		0-92113-306-0 01 1 1008- ●
247 UNION; AIR PIPE
EXC. MIXER TRUCK<RA2> (A) M12 ELBOW 		0-92125-206-0 01 1 1008- ●
247 UNION; AIR PIPE
(A) M12 ELBOW 		0-92125-206-0 01 1 1008- ●
248 NUT; PIPE UNION
M12 		9-09840-280-0 01 1 1008- ● ●
249 WASHER; LK,PIPE UNION
ID=12.2 		0-91510-512-0 01 1 1008- ● ●
251 PIPE; AIR,UNION TO MAG VLV
L=375 		1-49124-511-0 01 1 1008- ● ●
262 PIPE; AIR,UNION TO FLEX
MIXER TRUCK<RA2> EURO3 SPECIFICATION<NJX>,EURO2 SPECIFICATION<THN> 		1-49124-345-0 01 1 1008-1107 ●
262 PIPE; AIR,UNION TO FLEX
MIXER TRUCK<RA2> EURO3 SPECIFICATION<NJX>,EURO2 SPECIFICATION<THN> 		8-98196-478-0 01 1 1108-1311 ●
262 PIPE; AIR,UNION TO FLEX
MIXER TRUCK<RA2> EURO3 SPECIFICATION<NJX>,EURO2 SPECIFICATION<THN> 		8-98130-033-0 01 1 1312- ●
262 PIPE; AIR,UNION TO FLEX
MIXER TRUCK<RA2> EURO4 SPECIFICATION<KBT> 		1-49124-942-0 01 1 1008- ●
284 NUT; UNION
MIXER TRUCK<RA2> EURO4 SPECIFICATION<KBT>,EURO2 SPECIFICATION<THN> M12 		9-09840-280-0 01 1 1008- ●
284 NUT; UNION
BATTERY LAYOUT REAR VAR1<NCT> EURO3 SPECIFICATION<NJX>,EURO2 SPECIFICATION<THN> M12 		9-09840-280-0 02 1 1008- ●
291 NUT; UNION
(B) M12 		9-09840-280-0 02 1 1008- ●
291 NUT; UNION
EXC. BATTERY LAYOUT REAR VAR1<NCT> (B) M12 		9-09840-280-0 02 1 1008- ●
291 NUT; UNION
EURO4 SPECIFICATION<KBT> BATTERY LAYOUT REAR VAR1<NCT> (B) M12 		9-09840-280-0 02 1 1008- ●
291 NUT; UNION
(A) M8 FLANGE 		0-91180-108-0 02 1 1008- ● ●
304 BRACKET; UNION
(A) 		1-47478-359-0 01 1 1008- ●
304 BRACKET; UNION
EXC. BATTERY LAYOUT REAR VAR1<NCT> (A) 		1-47478-359-0 01 1 1008- ●
304 BRACKET; UNION
EURO4 SPECIFICATION<KBT> BATTERY LAYOUT REAR VAR1<NCT> (A) 		1-47478-359-0 01 1 1008- ●
304 BRACKET; UNION
(B) 		8-98171-684-0 01 1 1008- ● ●
304 BRACKET; UNION
MJX16P M/T(Y3Z) (C) 		1-71117-210-0 01 1 1008- ● ●
328 UNION; AIR PIPE
MIXER TRUCK<RA2> EURO4 SPECIFICATION<KBT>,EURO2 SPECIFICATION<THN> (A) M12 2WAY 		1-09654-059-2 01 1 1008- ●
328 UNION; AIR PIPE
BATTERY LAYOUT REAR VAR1<NCT> EURO3 SPECIFICATION<NJX>,EURO2 SPECIFICATION<THN> (B) M12 ELBOW 		0-92125-206-0 02 1 1008- ●
345 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 02 1 1008- ●
345 UNION; AIR PIPE
EXC. BATTERY LAYOUT REAR VAR1<NCT> M12 ELBOW 		0-92125-206-0 02 1 1008- ●
345 UNION; AIR PIPE
EURO4 SPECIFICATION<KBT> BATTERY LAYOUT REAR VAR1<NCT> M12 ELBOW 		0-92125-206-0 02 1 1008- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
