Sayfa 3-41 - Isuzu EPC

3-41 — REAR BRAKE POWER CHAMBER (#55642) — 80 parça

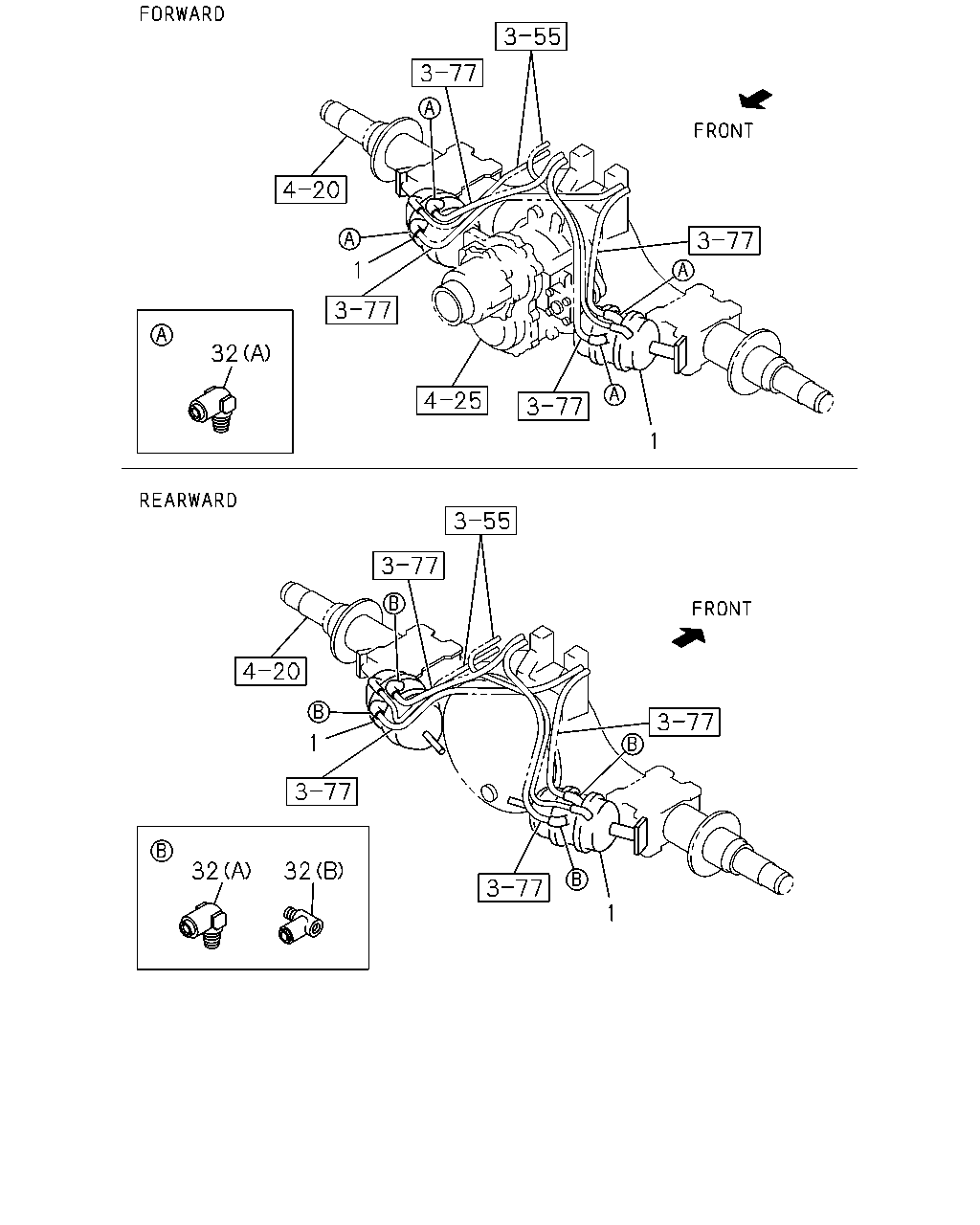

1 32 1 1 32 32 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CHAMBER ASM; SPRING RR BRK AIR D410 WEDGE-220-24/30<B9R> FORWARD RH,REARWARD LH	1-87412-097-0	02	1	1008-	●
1	CHAMBER ASM; SPRING RR BRK AIR D410 WEDGE-220-24/30<B9R> FORWARD LH,REARWARD RH	1-87412-098-0	02	1	1008-	●
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	1-87412-101-0	02	1	1008-		●
1	CHAMBER ASM; SPRING RR BRK AIR D410 WEDGE-220-30/30<B9V> FORWARD RH,REARWARD LH	1-87412-101-0	02	1	1008-	●
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	1-87412-102-0	02	1	1008-		●
1	CHAMBER ASM; SPRING RR BRK AIR D410 WEDGE-220-30/30<B9V> FORWARD LH,REARWARD RH	1-87412-102-0	02	1	1008-	●
32	CONNECTOR; SPR CHAMBER (A) DIN12 & R3/8 ELBOW	1-09660-959-0	07	1	1008-	●	●
32	CONNECTOR; SPR CHAMBER (B) DIN12 & RC1/4 & R3/8 3WAY	1-09661-132-0	01	1	1008-	●	●

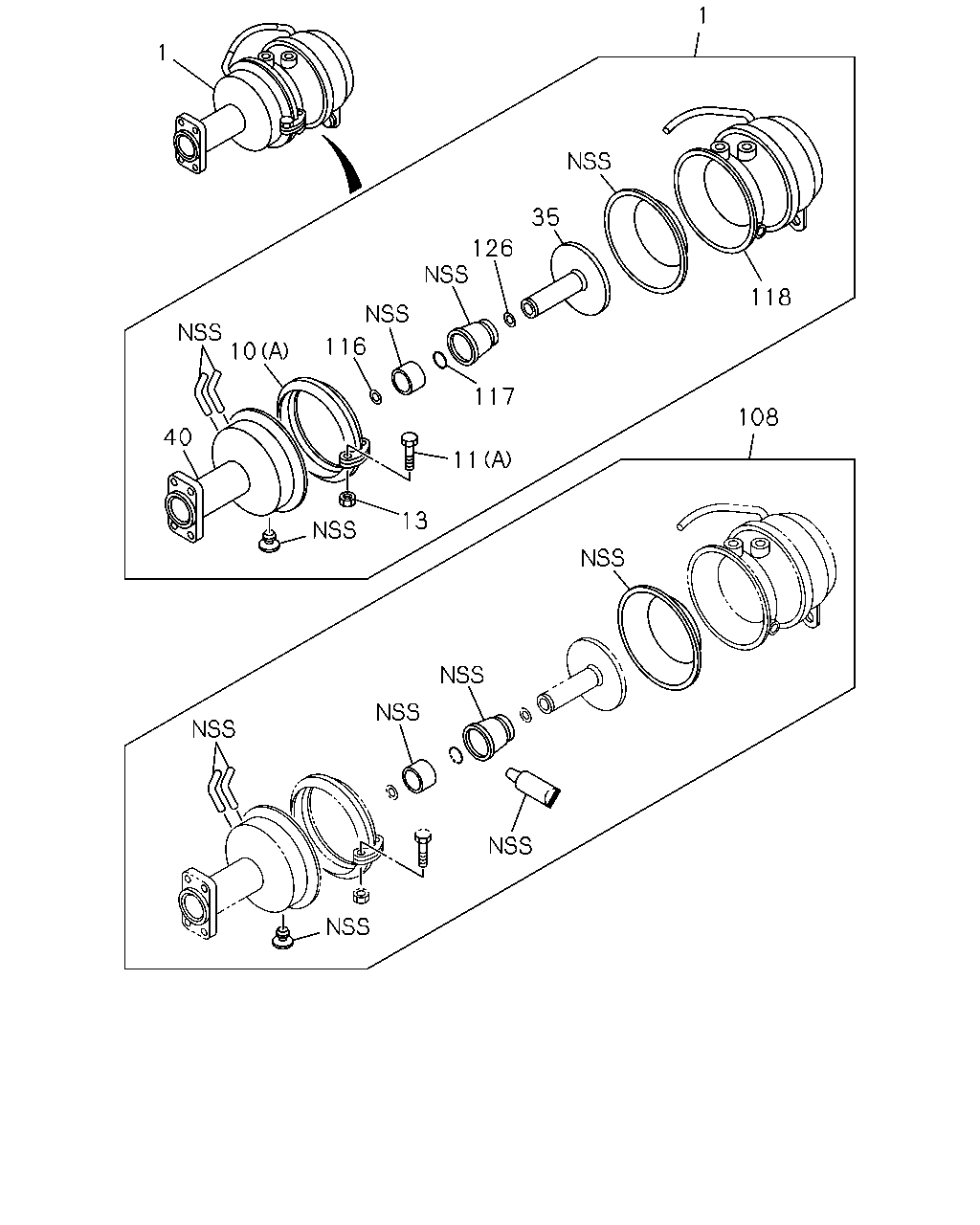

1 1 35 126 118 10 116 117 108 40 11 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CHAMBER ASM; SPRING RR BRK AIR D410 WEDGE-220-24/30<B9R> FORWARD RH,REARWARD LH	1-87412-097-0	02	1	1008-	●
1	CHAMBER ASM; SPRING RR BRK AIR D410 WEDGE-220-24/30<B9R> FORWARD LH,REARWARD RH	1-87412-098-0	02	1	1008-	●
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	1-87412-101-0	02	1	1008-		●
1	CHAMBER ASM; SPRING RR BRK AIR D410 WEDGE-220-30/30<B9V> FORWARD RH,REARWARD LH	1-87412-101-0	02	1	1008-	●
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	1-87412-102-0	02	1	1008-		●
1	CHAMBER ASM; SPRING RR BRK AIR D410 WEDGE-220-30/30<B9V> FORWARD LH,REARWARD RH	1-87412-102-0	02	1	1008-	●
10	RING; CLAMP,SPR CHAMBER RR BRK AIR D410 WEDGE-220-24/30<B9R> (B)	1-48269-256-0	04	1	1008-	●
10	RING; CLAMP,SPR CHAMBER (A)	1-48269-150-0	04	1	1008-		●
10	RING; CLAMP,SPR CHAMBER RR BRK AIR D410 WEDGE-220-30/30<B9V> (A)	1-48269-150-0	04	1	1008-	●
11	BOLT; CLAMP RING RR BRK AIR D410 WEDGE-220-24/30<B9R> (B)	1-48269-257-0	04	1	1008-	●
11	BOLT; CLAMP RING (A)	1-48269-146-0	08	1	1008-		●
11	BOLT; CLAMP RING RR BRK AIR D410 WEDGE-220-30/30<B9V> (A)	1-48269-146-0	08	1	1008-	●
13	NUT; CLAMP RING RR BRK AIR D410 WEDGE-220-24/30<B9R>	1-48269-147-0	04	1	1008-	●
13	NUT; CLAMP RING	1-48269-147-0	08	1	1008-		●
13	NUT; CLAMP RING RR BRK AIR D410 WEDGE-220-30/30<B9V>	1-48269-147-0	08	1	1008-	●
35	PLATE; ROD END,SPR CHAMBER RR BRK AIR D410 WEDGE-220-24/30<B9R>	8-98146-974-0	04	1	1008-	●
35	PLATE; ROD END,SPR CHAMBER	8-98146-975-0	04	1	1008-		●
35	PLATE; ROD END,SPR CHAMBER RR BRK AIR D410 WEDGE-220-30/30<B9V>	8-98146-975-0	04	1	1008-	●
40	COVER ASM; LWR,SPR CHAMBER RR BRK AIR D410 WEDGE-220-24/30<B9R> FORWARD RH,REARWARD LH	1-48251-140-1	02	1	1008-	●
40	COVER ASM; LWR,SPR CHAMBER RR BRK AIR D410 WEDGE-220-24/30<B9R> FORWARD LH,REARWARD RH	1-48251-141-1	02	1	1008-	●
40	COVER ASM; LWR,SPR CHAMBER FORWARD RH,REARWARD LH	1-48251-155-1	02	1	1008-		●
40	COVER ASM; LWR,SPR CHAMBER RR BRK AIR D410 WEDGE-220-30/30<B9V> FORWARD RH,REARWARD LH	1-48251-155-1	02	1	1008-	●
40	COVER ASM; LWR,SPR CHAMBER FORWARD LH,REARWARD RH	1-48251-156-1	02	1	1008-		●
40	COVER ASM; LWR,SPR CHAMBER RR BRK AIR D410 WEDGE-220-30/30<B9V> FORWARD LH,REARWARD RH	1-48251-156-1	02	1	1008-	●
108	REPAIR KIT; SPR CHAMBER RR BRK AIR D410 WEDGE-220-24/30<B9R>	8-98146-982-0	04	1	1008-	●
108	REPAIR KIT; SPR CHAMBER	8-98146-983-0	04	1	1008-		●
108	REPAIR KIT; SPR CHAMBER RR BRK AIR D410 WEDGE-220-30/30<B9V>	8-98146-983-0	04	1	1008-	●
116	GUIDE; SPR CHAMBER	8-98146-963-0	04	1	1008-	●	●
117	RING; SPR CHAMBER	8-98146-966-0	04	1	1008-	●	●
118	CHAMBER; PIGGY BACK RR BRK AIR D410 WEDGE-220-24/30<B9R> FORWARD RH,REARWARD LH	1-87412-113-0	02	1	1008-	●
118	CHAMBER; PIGGY BACK RR BRK AIR D410 WEDGE-220-24/30<B9R> FORWARD LH,REARWARD RH	1-87412-114-0	02	1	1008-	●
118	CHAMBER; PIGGY BACK FORWARD RH,REARWARD LH	1-87412-115-0	02	1	1008-		●
118	CHAMBER; PIGGY BACK RR BRK AIR D410 WEDGE-220-30/30<B9V> FORWARD RH,REARWARD LH	1-87412-115-0	02	1	1008-	●
118	CHAMBER; PIGGY BACK FORWARD LH,REARWARD RH	1-87412-116-0	02	1	1008-		●
118	CHAMBER; PIGGY BACK RR BRK AIR D410 WEDGE-220-30/30<B9V> FORWARD LH,REARWARD RH	1-87412-116-0	02	1	1008-	●
126	SHIM	8-98146-965-0	AR	1	1008-	●	●

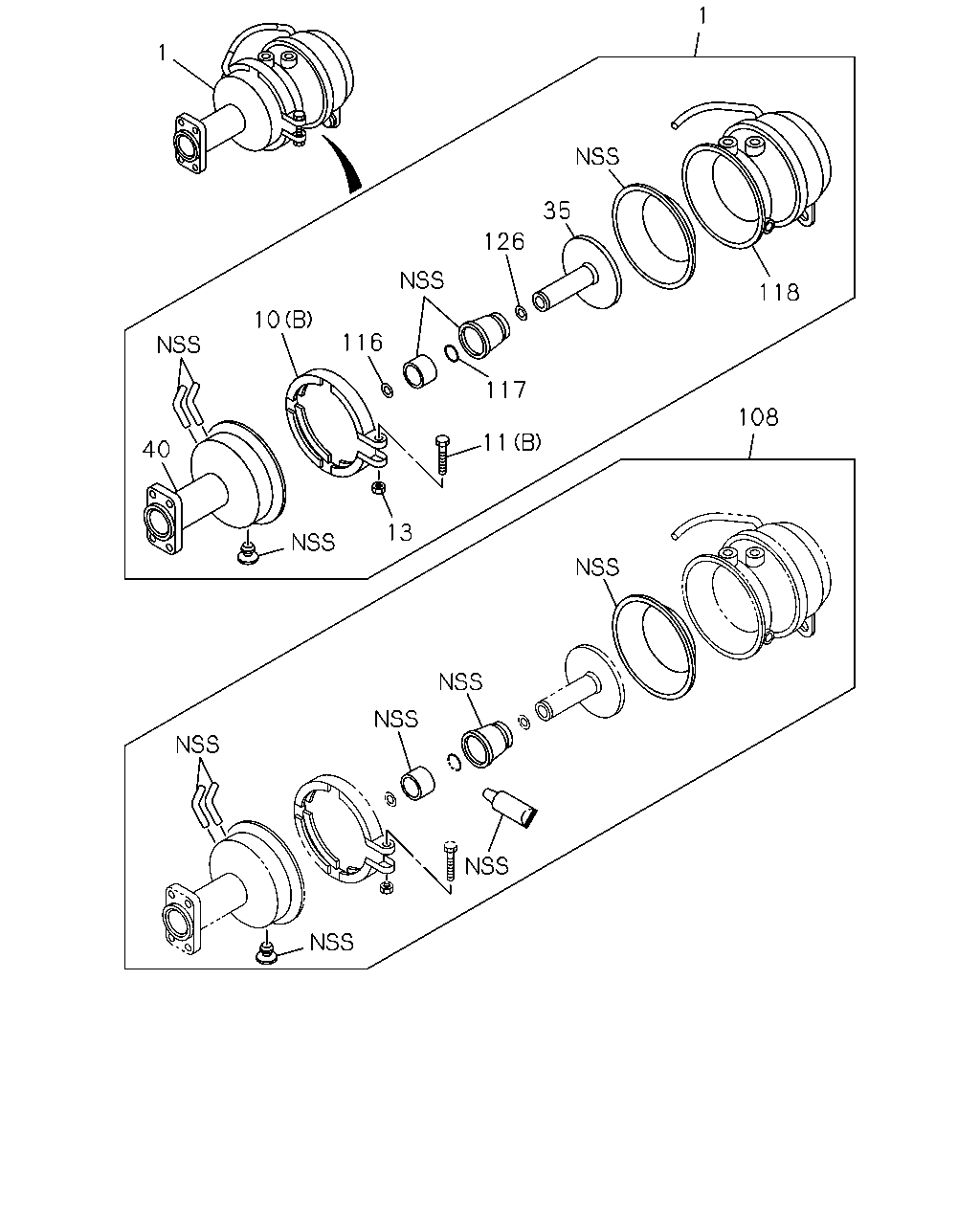

1 1 35 126 118 10 116 117 108 11 40 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CHAMBER ASM; SPRING RR BRK AIR D410 WEDGE-220-24/30<B9R> FORWARD RH,REARWARD LH	1-87412-097-0	02	1	1008-	●
1	CHAMBER ASM; SPRING RR BRK AIR D410 WEDGE-220-24/30<B9R> FORWARD LH,REARWARD RH	1-87412-098-0	02	1	1008-	●
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	1-87412-101-0	02	1	1008-		●
1	CHAMBER ASM; SPRING RR BRK AIR D410 WEDGE-220-30/30<B9V> FORWARD RH,REARWARD LH	1-87412-101-0	02	1	1008-	●
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	1-87412-102-0	02	1	1008-		●
1	CHAMBER ASM; SPRING RR BRK AIR D410 WEDGE-220-30/30<B9V> FORWARD LH,REARWARD RH	1-87412-102-0	02	1	1008-	●
10	RING; CLAMP,SPR CHAMBER RR BRK AIR D410 WEDGE-220-24/30<B9R> (B)	1-48269-256-0	04	1	1008-	●
10	RING; CLAMP,SPR CHAMBER (A)	1-48269-150-0	04	1	1008-		●
10	RING; CLAMP,SPR CHAMBER RR BRK AIR D410 WEDGE-220-30/30<B9V> (A)	1-48269-150-0	04	1	1008-	●
11	BOLT; CLAMP RING RR BRK AIR D410 WEDGE-220-24/30<B9R> (B)	1-48269-257-0	04	1	1008-	●
11	BOLT; CLAMP RING (A)	1-48269-146-0	08	1	1008-		●
11	BOLT; CLAMP RING RR BRK AIR D410 WEDGE-220-30/30<B9V> (A)	1-48269-146-0	08	1	1008-	●
13	NUT; CLAMP RING RR BRK AIR D410 WEDGE-220-24/30<B9R>	1-48269-147-0	04	1	1008-	●
13	NUT; CLAMP RING	1-48269-147-0	08	1	1008-		●
13	NUT; CLAMP RING RR BRK AIR D410 WEDGE-220-30/30<B9V>	1-48269-147-0	08	1	1008-	●
35	PLATE; ROD END,SPR CHAMBER RR BRK AIR D410 WEDGE-220-24/30<B9R>	8-98146-974-0	04	1	1008-	●
35	PLATE; ROD END,SPR CHAMBER	8-98146-975-0	04	1	1008-		●
35	PLATE; ROD END,SPR CHAMBER RR BRK AIR D410 WEDGE-220-30/30<B9V>	8-98146-975-0	04	1	1008-	●
40	COVER ASM; LWR,SPR CHAMBER RR BRK AIR D410 WEDGE-220-24/30<B9R> FORWARD RH,REARWARD LH	1-48251-140-1	02	1	1008-	●
40	COVER ASM; LWR,SPR CHAMBER RR BRK AIR D410 WEDGE-220-24/30<B9R> FORWARD LH,REARWARD RH	1-48251-141-1	02	1	1008-	●
40	COVER ASM; LWR,SPR CHAMBER FORWARD RH,REARWARD LH	1-48251-155-1	02	1	1008-		●
40	COVER ASM; LWR,SPR CHAMBER RR BRK AIR D410 WEDGE-220-30/30<B9V> FORWARD RH,REARWARD LH	1-48251-155-1	02	1	1008-	●
40	COVER ASM; LWR,SPR CHAMBER FORWARD LH,REARWARD RH	1-48251-156-1	02	1	1008-		●
40	COVER ASM; LWR,SPR CHAMBER RR BRK AIR D410 WEDGE-220-30/30<B9V> FORWARD LH,REARWARD RH	1-48251-156-1	02	1	1008-	●
108	REPAIR KIT; SPR CHAMBER RR BRK AIR D410 WEDGE-220-24/30<B9R>	8-98146-982-0	04	1	1008-	●
108	REPAIR KIT; SPR CHAMBER	8-98146-983-0	04	1	1008-		●
108	REPAIR KIT; SPR CHAMBER RR BRK AIR D410 WEDGE-220-30/30<B9V>	8-98146-983-0	04	1	1008-	●
116	GUIDE; SPR CHAMBER	8-98146-963-0	04	1	1008-	●	●
117	RING; SPR CHAMBER	8-98146-966-0	04	1	1008-	●	●
118	CHAMBER; PIGGY BACK RR BRK AIR D410 WEDGE-220-24/30<B9R> FORWARD RH,REARWARD LH	1-87412-113-0	02	1	1008-	●
118	CHAMBER; PIGGY BACK RR BRK AIR D410 WEDGE-220-24/30<B9R> FORWARD LH,REARWARD RH	1-87412-114-0	02	1	1008-	●
118	CHAMBER; PIGGY BACK FORWARD RH,REARWARD LH	1-87412-115-0	02	1	1008-		●
118	CHAMBER; PIGGY BACK RR BRK AIR D410 WEDGE-220-30/30<B9V> FORWARD RH,REARWARD LH	1-87412-115-0	02	1	1008-	●
118	CHAMBER; PIGGY BACK FORWARD LH,REARWARD RH	1-87412-116-0	02	1	1008-		●
118	CHAMBER; PIGGY BACK RR BRK AIR D410 WEDGE-220-30/30<B9V> FORWARD LH,REARWARD RH	1-87412-116-0	02	1	1008-	●
126	SHIM	8-98146-965-0	AR	1	1008-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
