3-34 — BRAKE VALVE; AIR (#55640) — 30 parça

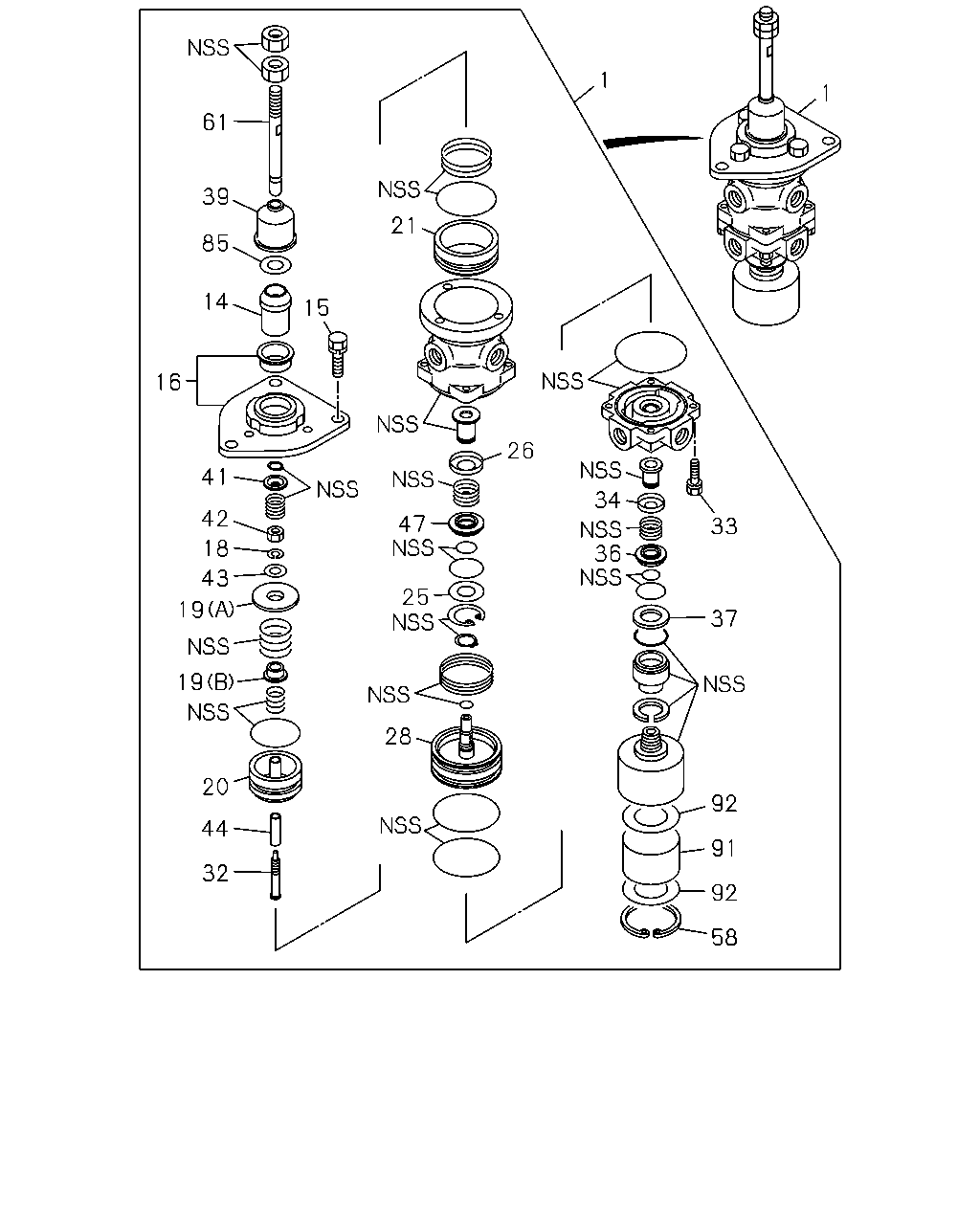

çizim 167154
1 1 61 39 21 85 14 15 16 26 41 34 42 47 33 36 18 43 25 19 37 19 28 20 92 44 91 32 92 58
BalonParca AdiParca NoAdetTipApplied Date A B
1 VALVE; BRK 8-98139-251-1 01 1 1008- ● ●
14 PLUNGER; BRK VLV 1-48119-365-0 01 1 1008- ● ●
15 BOLT; PLATE,BRK VLV 1-48119-232-1 03 1 1008- ● ●
16 PLATE; MTG,BRKT VLV 1-48119-364-2 01 1 1008- ● ●
18 WASHER; LK,SEAT,BRK VLV 1-48199-024-0 01 1 1008- ● ●
19 SEAT; SPRING,BRK VLV
(B) 		1-48119-370-1 01 1 1008- ● ●
19 SEAT; SPRING,BRK VLV
(A) 		1-48119-371-0 01 1 1008- ● ●
20 PISTON; UPR,BRK VLV 1-48119-318-0 01 1 1008- ● ●
21 BUSHING; UPR BODY 1-48119-317-0 01 1 1008- ● ●
25 WASHER; PISTON,BRK VLV 1-48129-149-0 01 1 1008- ● ●
26 RETAINER; VLV,BRK VLV 1-48122-003-0 01 1 1008- ● ●
28 PISTON; LWR,BRK VLV 1-48119-337-0 01 1 1008- ● ●
32 SCREW; BRK VLV 1-48119-323-0 01 1 1008- ● ●
33 BOLT; BODY,BRK VLV 1-48129-068-0 04 1 1008- ● ●
34 RETAINER; VLV,BRK VLV 1-48122-010-0 01 1 1008- ● ●
36 RETAINER; GASKET,BRK VLV 1-48129-298-0 01 1 1008- ● ●
37 WASHER; VLV LWR,BRK VLV 1-48129-321-0 01 1 1008- ● ●
39 BOOT; PLUNGER,BRK VLV 1-48119-438-0 01 1 1008- ● ●
41 PLATE; STEM,BRK VLV 1-48129-167-0 01 1 1008- ● ●
42 NUT; SPR SEAT,BRK VLV 1-48199-025-0 01 1 1008- ● ●
43 WASHER; SPR SEAT,BRK VLV 1-48129-170-0 01 1 1008- ● ●
44 SLEEVE; PISTON,BRK VLV 1-48119-322-0 01 1 1008- ● ●
47 RETAINER; GASKET,BRK VLV 1-48129-297-0 01 1 1008- ● ●
58 RING; RET,EXH,BRK VLV 8-98140-079-0 01 1 1008- ● ●
61 ROD; PUSH,BRK VLV 1-48119-363-0 01 1 1008- ● ●
85 WASHER; PUSH ROD 1-48119-366-0 01 1 1008- ● ●
91 FILTER; SILENCER 8-98140-078-0 01 1 1008- ● ●
92 PLATE; FILTER 8-98140-077-0 02 1 1008- ● ●

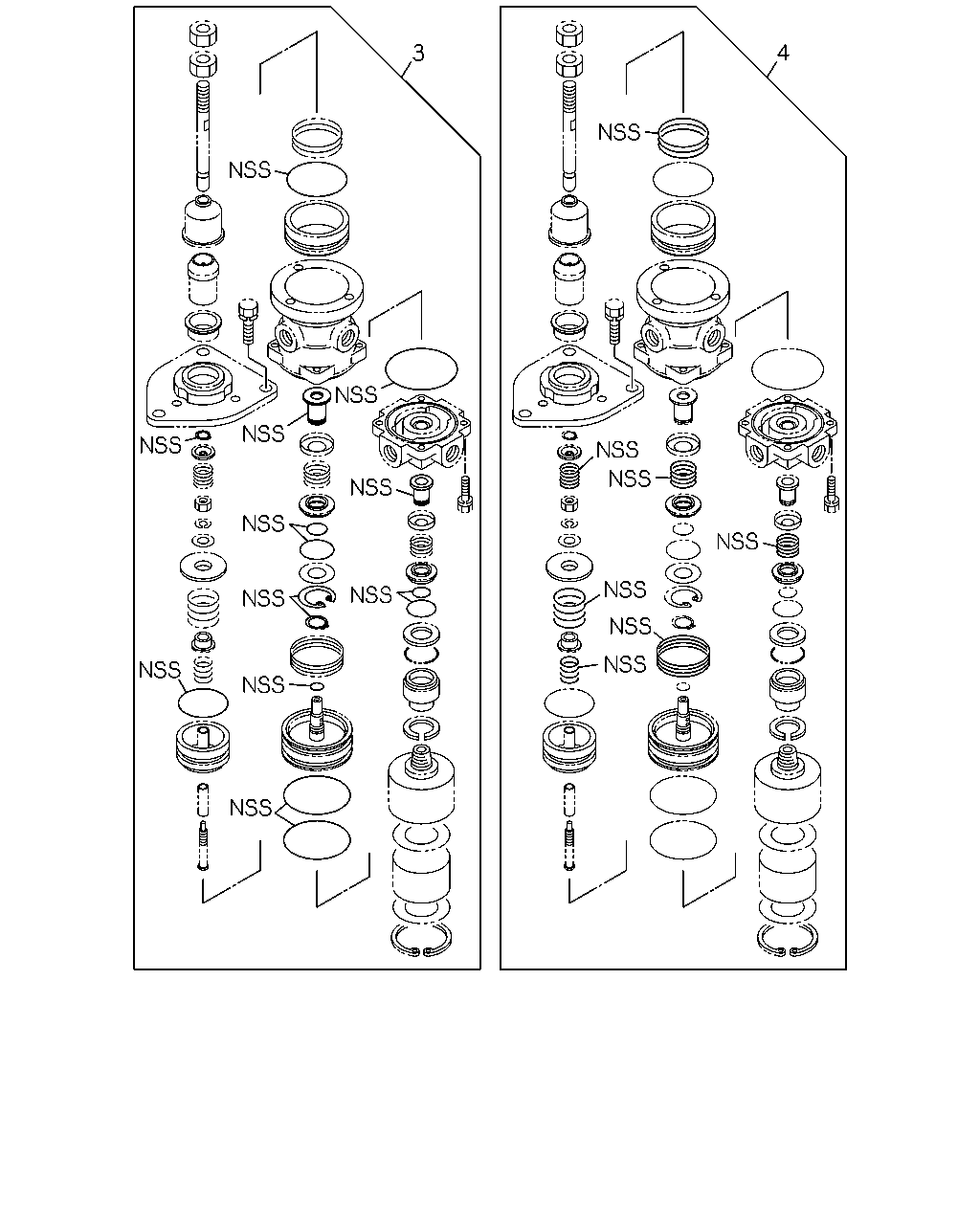

çizim 167185
3 4
BalonParca AdiParca NoAdetTipApplied Date A B
3 REPAIR KIT; RUBBER,BRK VLV 8-98140-081-0 01 1 1008- ● ●
4 REPAIR KIT; SPRING,BRK VLV 1-85576-179-0 01 1 1008- ● ●
