Sayfa 3-22 - Isuzu EPC

3-22 — AIR CONTROL PARTS (#55637) — 210 parça

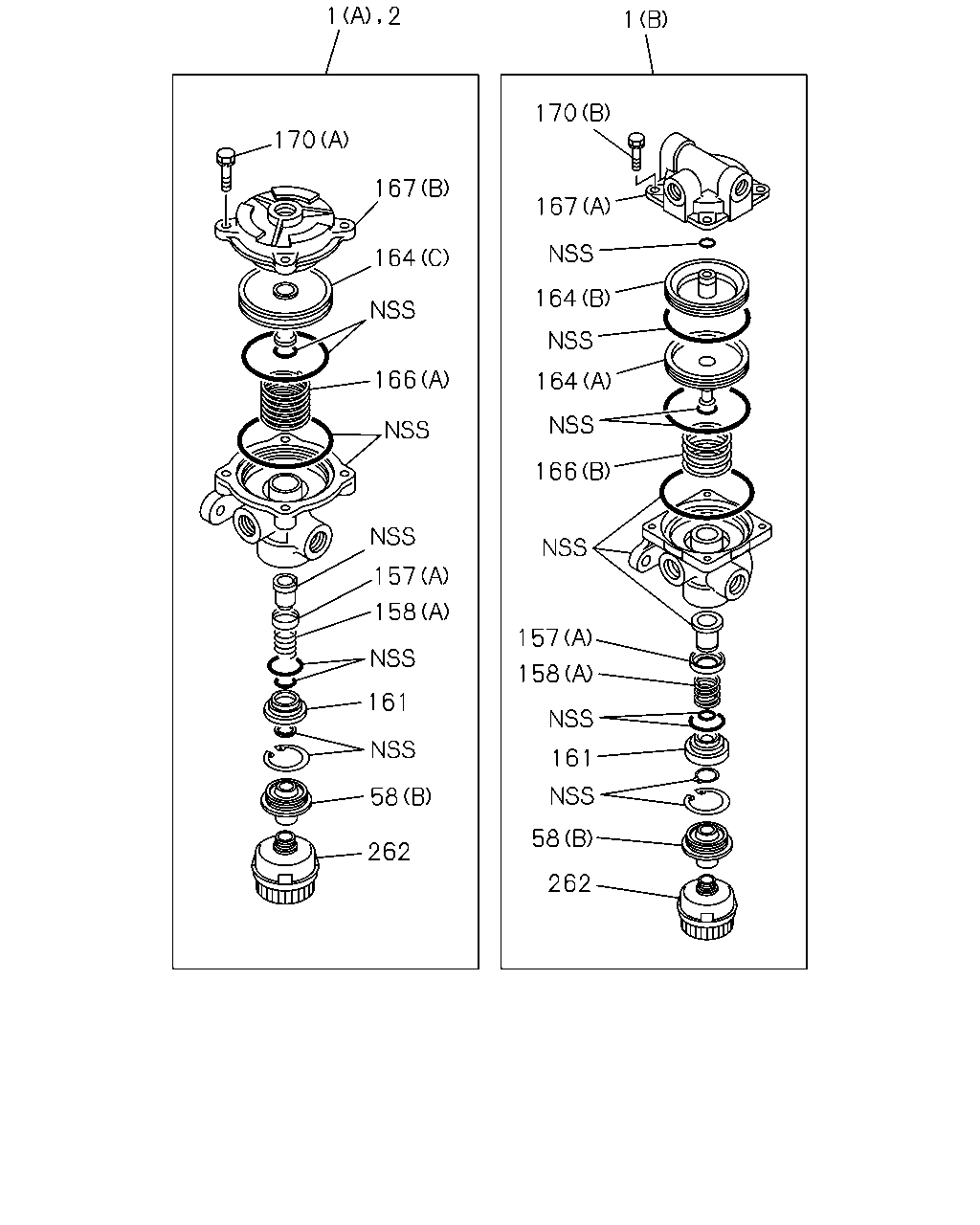

2 1 1 170 170 167 167 164 164 166 164 166 157 158 157 158 161 161 58 58 262 262

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	VALVE; RELAY RWD RR (A)	1-48210-997-0	01	1	1008-	●	●
1	VALVE; RELAY RWD RR (B)	1-48240-469-0	01	1	1008-	●	●
2	VALVE; RELAY	1-48210-997-0	01	1	1008-	●	●
58	ADAPTER (B) M22 ADAPTER	1-48219-154-0	01	1	1008-	●	●
58	ADAPTER (B) M22 ADAPTER	1-48219-154-0	01	1	1008-	●	●
58	ADAPTER (B) M22 ADAPTER	1-48219-154-0	01	1	1008-	●
58	ADAPTER (A) PT3/8	1-48319-058-0	01	1	1008-	●	●
58	ADAPTER (A) PT3/8	1-48319-058-0	01	1	1008-	●
157	RETAINER; VALVE (A)	1-48213-002-0	01	1	1008-	●	●
157	RETAINER; VALVE (A)	1-48213-002-0	01	1	1008-	●	●
157	RETAINER; VALVE (A)	1-48213-002-0	01	1	1008-	●
157	RETAINER; VALVE (B)	1-48419-020-0	01	1	1008-1008	●	●
157	RETAINER; VALVE (B)	1-48419-020-0	03	1	1009-	●	●
157	RETAINER; VALVE (C)	1-48419-036-0	02	1	1008-1008	●	●
157	RETAINER; VALVE CHINA EQUIPMENT(YT2) (C)	1-48419-036-0	02	1	1008-1008	●
157	RETAINER; VALVE CHINA EQUIPMENT(YT2) EXC. CONCRETE PUMP<RA5> (C)	1-48419-036-0	02	1	1008-1008		●
157	RETAINER; VALVE CHINA EQUIPMENT(YT2) (C)	1-48419-020-0	02	1	1009-	●
157	RETAINER; VALVE CHINA EQUIPMENT(YT2) EXC. CONCRETE PUMP<RA5> (C)	1-48419-020-0	02	1	1009-		●
158	SPRING; VALVE CHINA EQUIPMENT(YT2) (B)	9-48419-003-0	02	1	1008-	●
158	SPRING; VALVE CHINA EQUIPMENT(YT2) EXC. CONCRETE PUMP<RA5> (B)	9-48419-003-0	02	1	1008-		●
158	SPRING; VALVE (A)	1-47819-089-0	01	1	1008-	●	●
158	SPRING; VALVE (A)	1-47819-089-0	01	1	1008-	●	●
158	SPRING; VALVE (A)	1-47819-089-0	01	1	1008-	●
158	SPRING; VALVE (B)	9-48419-003-0	03	1	1008-	●	●
161	GUIDE; VALVE	1-48129-014-0	01	1	1008-	●	●
161	GUIDE; VALVE	1-48129-014-0	01	1	1008-	●	●
161	GUIDE; VALVE	1-48129-014-0	01	1	1008-	●
164	PISTON; RELAY VALVE (A)	1-48219-032-0	01	1	1008-	●	●
164	PISTON; RELAY VALVE (B)	1-48219-047-0	01	1	1008-	●	●
164	PISTON; RELAY VALVE (C)	1-48219-071-0	01	1	1008-	●	●
164	PISTON; RELAY VALVE (C)	1-48219-071-0	01	1	1008-	●
166	SPRING; PISTON (A)	1-47819-090-0	01	1	1008-	●	●
166	SPRING; PISTON (A)	1-47819-090-0	01	1	1008-	●
166	SPRING; PISTON (B)	1-48219-048-0	01	1	1008-	●	●
167	COVER; VALVE (A)	1-48219-050-1	01	1	1008-	●	●
167	COVER; VALVE (B)	1-48219-070-0	01	1	1008-	●	●
167	COVER; VALVE (B)	1-48219-070-0	01	1	1008-	●
167	COVER; VALVE (C)	8-98043-421-0	02	1	1008-	●	●
170	SCREW; COVER TO BODY (A)	1-48219-039-0	04	1	1008-	●	●
170	SCREW; COVER TO BODY (A)	1-48219-039-0	04	1	1008-	●
170	SCREW; COVER TO BODY (B)	1-48219-041-0	04	1	1008-	●	●
262	SILENCER; RELAY VALVE CHINA EQUIPMENT(YT2)	1-48219-149-0	02	1	1008-	●
262	SILENCER; RELAY VALVE CHINA EQUIPMENT(YT2) EXC. CONCRETE PUMP<RA5>	1-48219-149-0	02	1	1008-		●
262	SILENCER; RELAY VALVE	1-48219-149-0	01	1	1008-	●	●
262	SILENCER; RELAY VALVE	1-48219-149-0	01	1	1008-	●	●
262	SILENCER; RELAY VALVE	1-48219-149-0	04	1	1008-	●	●
262	SILENCER; RELAY VALVE	1-48219-149-0	02	1	1009-	●	●

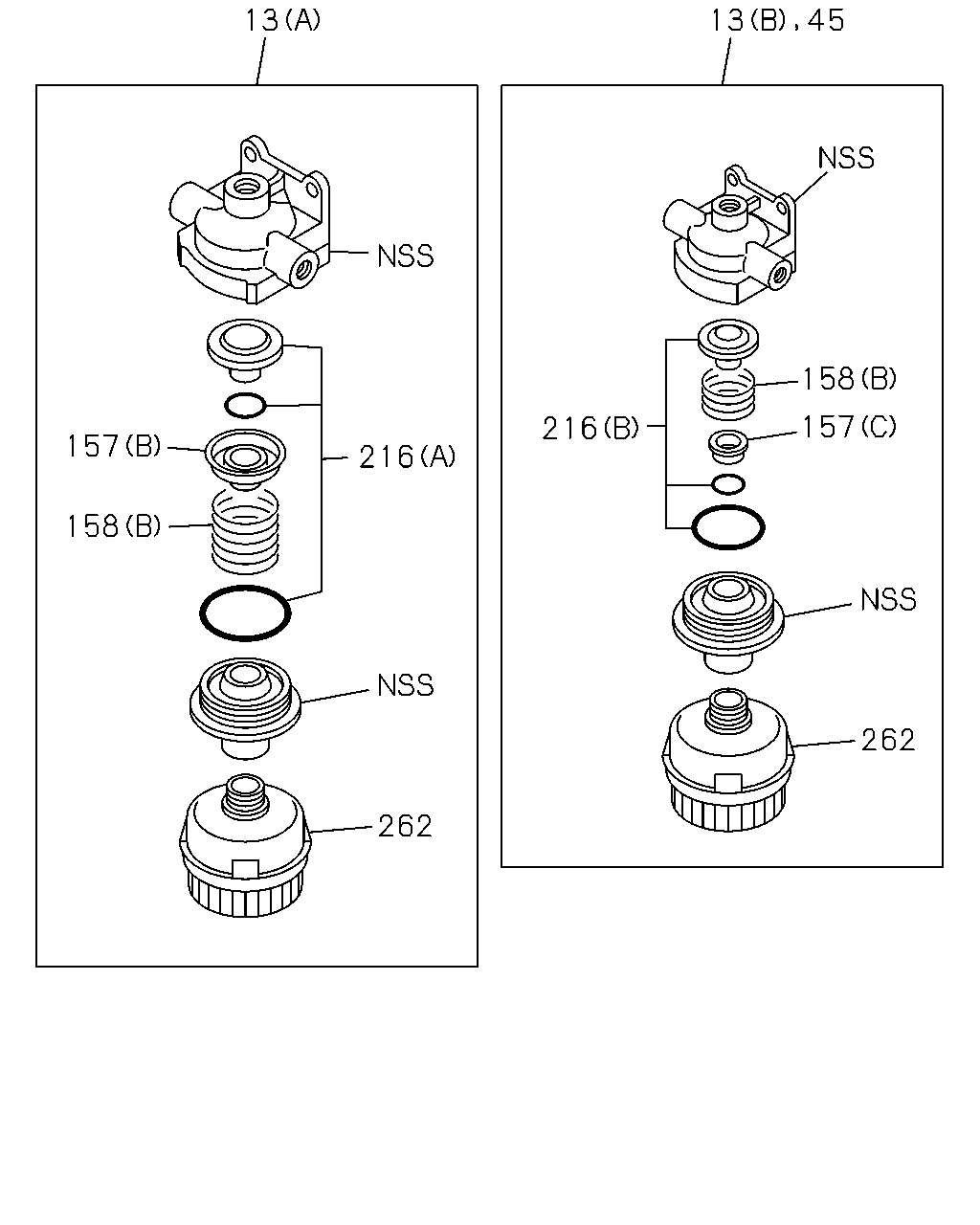

13 158 157 216 157 216 158 262 262 13 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	VALVE ASM; QUICK RELEASE CHINA EQUIPMENT(YT2) (B)	1-48410-733-0	02	1	1008-1008	●
13	VALVE ASM; QUICK RELEASE CHINA EQUIPMENT(YT2) EXC. CONCRETE PUMP<RA5> (B)	1-48410-733-0	02	1	1008-1008		●
13	VALVE ASM; QUICK RELEASE CHINA EQUIPMENT(YT2) (B)	8-98170-207-0	02	1	1009-	●
13	VALVE ASM; QUICK RELEASE CHINA EQUIPMENT(YT2) EXC. CONCRETE PUMP<RA5> (B)	8-98170-207-0	02	1	1009-		●
13	VALVE ASM; QUICK RELEASE (A)	1-48410-726-1	01	1	1008-	●	●
45	VALVE; QUICK RELEASE	1-48410-733-0	02	1	1008-1008	●	●
45	VALVE; QUICK RELEASE	8-98170-207-0	02	1	1009-	●	●
157	RETAINER; VALVE (A)	1-48213-002-0	01	1	1008-	●	●
157	RETAINER; VALVE (A)	1-48213-002-0	01	1	1008-	●	●
157	RETAINER; VALVE (A)	1-48213-002-0	01	1	1008-	●
157	RETAINER; VALVE (B)	1-48419-020-0	01	1	1008-1008	●	●
157	RETAINER; VALVE (B)	1-48419-020-0	03	1	1009-	●	●
157	RETAINER; VALVE (C)	1-48419-036-0	02	1	1008-1008	●	●
157	RETAINER; VALVE CHINA EQUIPMENT(YT2) (C)	1-48419-036-0	02	1	1008-1008	●
157	RETAINER; VALVE CHINA EQUIPMENT(YT2) EXC. CONCRETE PUMP<RA5> (C)	1-48419-036-0	02	1	1008-1008		●
157	RETAINER; VALVE CHINA EQUIPMENT(YT2) (C)	1-48419-020-0	02	1	1009-	●
157	RETAINER; VALVE CHINA EQUIPMENT(YT2) EXC. CONCRETE PUMP<RA5> (C)	1-48419-020-0	02	1	1009-		●
158	SPRING; VALVE CHINA EQUIPMENT(YT2) (B)	9-48419-003-0	02	1	1008-	●
158	SPRING; VALVE CHINA EQUIPMENT(YT2) EXC. CONCRETE PUMP<RA5> (B)	9-48419-003-0	02	1	1008-		●
158	SPRING; VALVE (A)	1-47819-089-0	01	1	1008-	●	●
158	SPRING; VALVE (A)	1-47819-089-0	01	1	1008-	●	●
158	SPRING; VALVE (A)	1-47819-089-0	01	1	1008-	●
158	SPRING; VALVE (B)	9-48419-003-0	03	1	1008-	●	●
216	REPAIR KIT; QUICK RELEASE VLV (A)	1-85576-235-0	01	1	1008-1109	●	●
216	REPAIR KIT; QUICK RELEASE VLV (A)	1-85576-484-0	01	1	1110-	●	●
216	REPAIR KIT; QUICK RELEASE VLV (B)	1-85579-062-0	02	1	1008-1008	●	●
216	REPAIR KIT; QUICK RELEASE VLV CHINA EQUIPMENT(YT2) (B)	1-85579-062-0	02	1	1008-1008	●
216	REPAIR KIT; QUICK RELEASE VLV CHINA EQUIPMENT(YT2) EXC. CONCRETE PUMP<RA5> (B)	1-85579-062-0	02	1	1008-1008		●
216	REPAIR KIT; QUICK RELEASE VLV (B)	8-98171-596-0	02	1	1009-	●	●
216	REPAIR KIT; QUICK RELEASE VLV CHINA EQUIPMENT(YT2) (B)	8-98171-596-0	02	1	1009-	●
216	REPAIR KIT; QUICK RELEASE VLV CHINA EQUIPMENT(YT2) EXC. CONCRETE PUMP<RA5> (B)	8-98171-596-0	02	1	1009-		●
216	REPAIR KIT; QUICK RELEASE VLV (B)	8-98171-596-0	02	1	1009-	●	●
262	SILENCER; RELAY VALVE CHINA EQUIPMENT(YT2)	1-48219-149-0	02	1	1008-	●
262	SILENCER; RELAY VALVE CHINA EQUIPMENT(YT2) EXC. CONCRETE PUMP<RA5>	1-48219-149-0	02	1	1008-		●
262	SILENCER; RELAY VALVE	1-48219-149-0	01	1	1008-	●	●
262	SILENCER; RELAY VALVE	1-48219-149-0	01	1	1008-	●	●
262	SILENCER; RELAY VALVE	1-48219-149-0	04	1	1008-	●	●
262	SILENCER; RELAY VALVE	1-48219-149-0	02	1	1009-	●	●

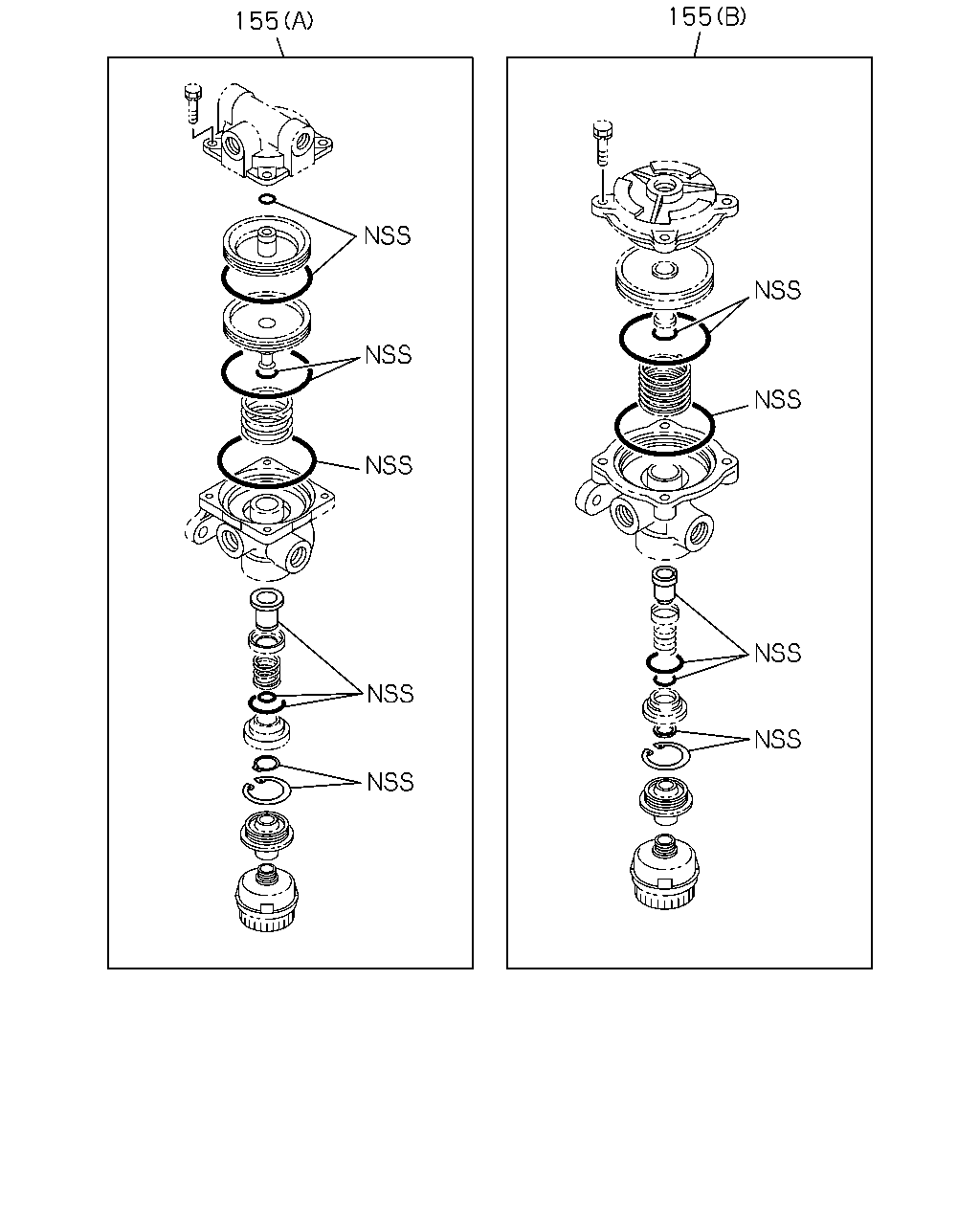

155 155

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
155	REPAIR KIT; RELAY VALVE (B)	1-85576-294-0	01	1	1008-	●	●
155	REPAIR KIT; RELAY VALVE (B)	1-85576-294-0	01	1	1008-	●
155	REPAIR KIT; RELAY VALVE (A)	1-85576-453-0	01	1	1008-	●	●

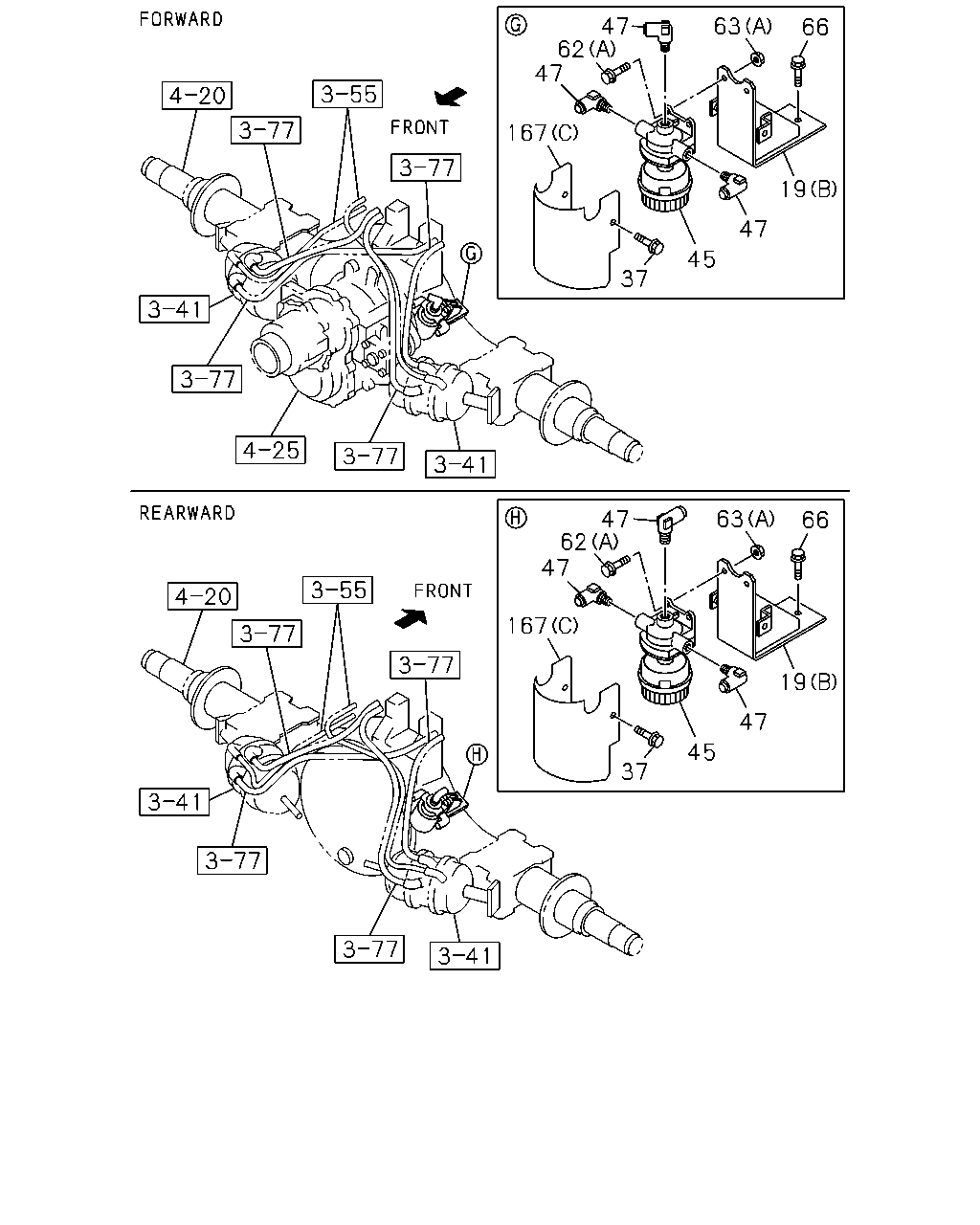

47 62 47 63 66 167 19 47 45 37 63 47 62 47 66 167 19 47 45 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
19	BRACKET; QUICK RELEASE VLV CHINA EQUIPMENT(YT2) (C)	8-98142-172-0	01	1	1008-	●
19	BRACKET; QUICK RELEASE VLV CHINA EQUIPMENT(YT2) EXC. CONCRETE PUMP<RA5> (C)	8-98142-172-0	01	1	1008-		●
19	BRACKET; QUICK RELEASE VLV CHINA EQUIPMENT(YT2) (D)	8-98142-173-0	01	1	1008-	●
19	BRACKET; QUICK RELEASE VLV CHINA EQUIPMENT(YT2) EXC. CONCRETE PUMP<RA5> (D)	8-98142-173-0	01	1	1008-		●
19	BRACKET; QUICK RELEASE VLV (A)	1-47471-014-0	01	1	1008-	●	●
19	BRACKET; QUICK RELEASE VLV (B)	1-47471-390-0	02	1	1008-	●	●
37	BOLT; COVER M8X10 FLANGE	0-28050-810-0	04	1	1008-	●	●
45	VALVE; QUICK RELEASE	1-48410-733-0	02	1	1008-1008	●	●
45	VALVE; QUICK RELEASE	8-98170-207-0	02	1	1009-	●	●
47	CONNECTOR; RELAY VLV,CONT DIN12 & R3/8 ELBOW	1-09660-959-0	06	1	1008-	●	●
62	BOLT; BRKT FIX (A) M8X25 FLANGE	0-28650-825-0	04	1	1008-	●	●
62	BOLT; BRKT FIX (B) M10X35 FLANGE	0-28651-035-0	02	1	1008-	●	●
63	NUT; BRKT FIX (A) M8 FLANGE	0-91180-108-0	04	1	1008-	●	●
63	NUT; BRKT FIX (B) M10 FLANGE	0-91180-210-0	02	1	1008-	●	●
66	BOLT; BRKT,RELAY VLV RR M8X16 FLANGE	0-28050-816-0	04	1	1008-	●	●
167	COVER; VALVE (A)	1-48219-050-1	01	1	1008-	●	●
167	COVER; VALVE (B)	1-48219-070-0	01	1	1008-	●	●
167	COVER; VALVE (B)	1-48219-070-0	01	1	1008-	●
167	COVER; VALVE (C)	8-98043-421-0	02	1	1008-	●	●

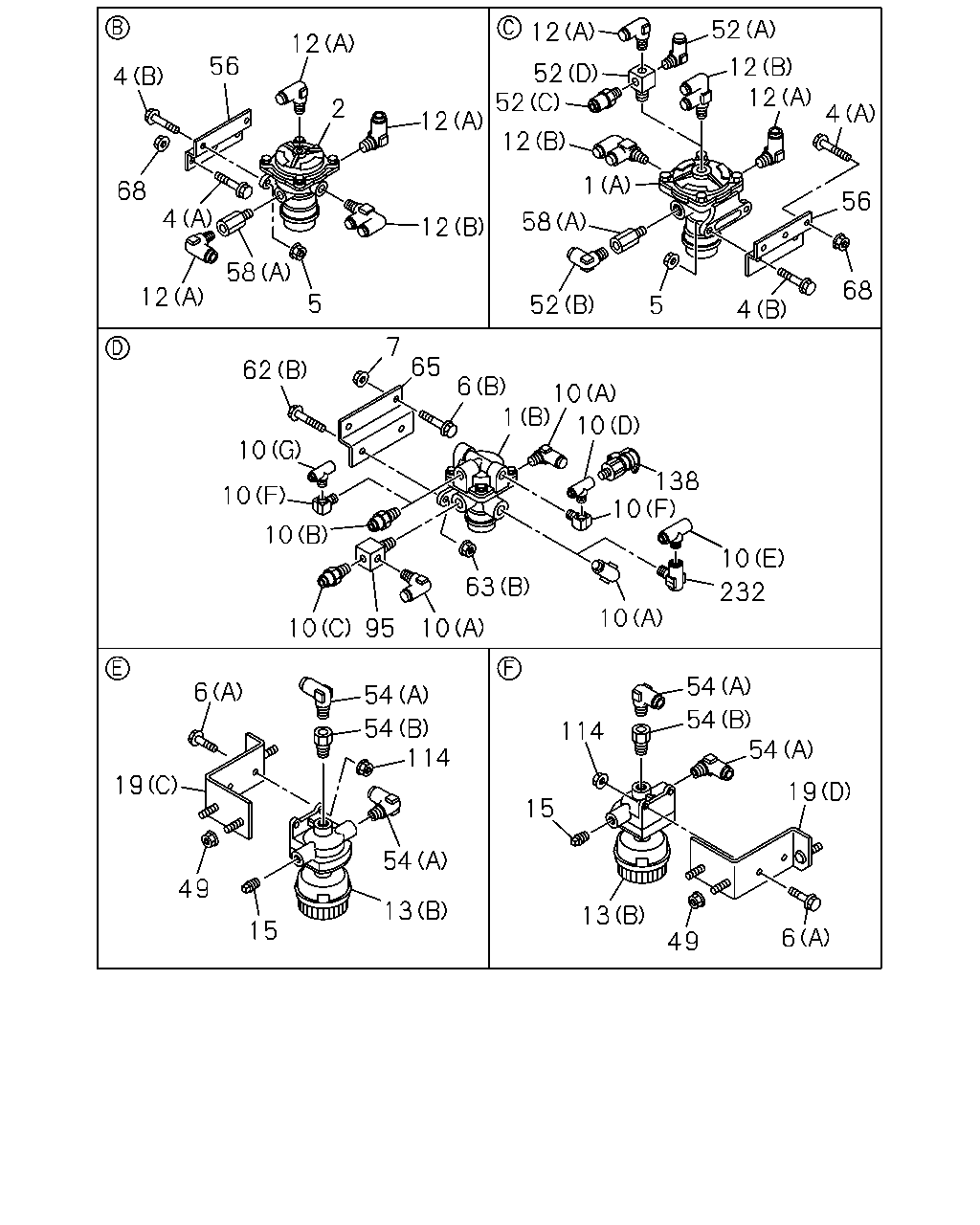

52 12 12 56 12 12 52 52 4 2 4 12 12 1 68 56 4 58 12 58 68 12 5 52 5 4 7 65 62 6 10 1 10 10 138 10 10 10 10 63 232 10 10 95 10 54 6 54 54 54 54 114 114 19 19 15 54 49 13 13 15 6 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	VALVE; RELAY RWD RR (A)	1-48210-997-0	01	1	1008-	●	●
1	VALVE; RELAY RWD RR (B)	1-48240-469-0	01	1	1008-	●	●
2	VALVE; RELAY	1-48210-997-0	01	1	1008-	●	●
4	BOLT; RELAY VLV TO BRKT (A) M8X35 FLANGE	0-28650-835-0	04	1	1008-	●	●
4	BOLT; RELAY VLV TO BRKT (B) M10X35 FLANGE	0-28651-035-0	02	1	1008-	●	●
4	BOLT; RELAY VLV TO BRKT (B) M10X35 FLANGE	0-28651-035-0	02	1	1008-	●
5	NUT M10 FLANGE	0-91180-210-0	02	1	1008-	●	●
5	NUT M10 FLANGE	0-91180-210-0	02	1	1008-	●
6	BOLT; VLV CHINA EQUIPMENT(YT2) (A) M8X25 FLANGE	0-28650-825-0	04	1	1008-	●
6	BOLT; VLV CHINA EQUIPMENT(YT2) EXC. CONCRETE PUMP<RA5> (A) M8X25 FLANGE	0-28650-825-0	04	1	1008-		●
6	BOLT; VLV (A) M8X25 FLANGE	0-28650-825-0	02	1	1008-	●	●
6	BOLT; VLV (B) M8X35 FLANGE	0-28650-835-0	02	1	1008-	●	●
7	NUT; RELAY VLV M8 FLANGE	0-91180-108-0	02	1	1008-	●	●
10	CONNECTOR (A) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1008-	●
10	CONNECTOR EXC. FULL TRAILER PIPING<Z25> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1008-		●
10	CONNECTOR (B) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	1008-	●
10	CONNECTOR EXC. FULL TRAILER PIPING<Z25> (B) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	1008-		●
10	CONNECTOR 6WF1 TC-C(1B8) (F) PT3/8 ELBOW	1-09660-696-0	01	1	1008-	●
10	CONNECTOR 6WG1 TC-R(75L) FULL TRAILER PIPING<Z25> (F) PT3/8 ELBOW	1-09660-696-0	01	1	1008-		●
10	CONNECTOR 6WF1 TC-C(1B8) EXC. FULL TRAILER PIPING<Z25> (F) PT3/8 ELBOW	1-09660-696-0	01	1	1008-		●
10	CONNECTOR (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1008-	●	●
10	CONNECTOR (D) DIN8 & R3/8 & RC1/4 3WAY	8-97620-116-0	01	1	1008-	●	●
10	CONNECTOR FULL TRAILER PIPING<Z25> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1008-		●
10	CONNECTOR FULL TRAILER PIPING<Z25> (G) DIN8X2 & R3/8 3WAY	1-09660-996-0	01	1	1008-		●
10	CONNECTOR FULL TRAILER PIPING<Z25> (E) DIN12X2 & R3/8 3WAY	1-09661-005-0	01	1	1008-		●
10	CONNECTOR 6WF1 TC-C(1B8) FULL TRAILER PIPING<Z25> (F) PT3/8 ELBOW	1-09660-696-0	02	1	1008-		●
12	CONNECTOR; RELAY VLV (B) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	02	1	1008-	●
12	CONNECTOR; RELAY VLV EXC. FULL TRAILER PIPING<Z25> (B) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	02	1	1008-		●
12	CONNECTOR; RELAY VLV (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1008-	●	●
12	CONNECTOR; RELAY VLV (A) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1008-	●	●
12	CONNECTOR; RELAY VLV (B) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	1008-	●	●
12	CONNECTOR; RELAY VLV FULL TRAILER PIPING<Z25> (B) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	1008-		●
13	VALVE ASM; QUICK RELEASE CHINA EQUIPMENT(YT2) (B)	1-48410-733-0	02	1	1008-1008	●
13	VALVE ASM; QUICK RELEASE CHINA EQUIPMENT(YT2) EXC. CONCRETE PUMP<RA5> (B)	1-48410-733-0	02	1	1008-1008		●
13	VALVE ASM; QUICK RELEASE CHINA EQUIPMENT(YT2) (B)	8-98170-207-0	02	1	1009-	●
13	VALVE ASM; QUICK RELEASE CHINA EQUIPMENT(YT2) EXC. CONCRETE PUMP<RA5> (B)	8-98170-207-0	02	1	1009-		●
13	VALVE ASM; QUICK RELEASE (A)	1-48410-726-1	01	1	1008-	●	●
15	PLUG; VALVE CHINA EQUIPMENT(YT2) PT3/8	9-09204-517-0	02	1	1008-	●
15	PLUG; VALVE CHINA EQUIPMENT(YT2) EXC. CONCRETE PUMP<RA5> PT3/8	9-09204-517-0	02	1	1008-		●
19	BRACKET; QUICK RELEASE VLV CHINA EQUIPMENT(YT2) (C)	8-98142-172-0	01	1	1008-	●
19	BRACKET; QUICK RELEASE VLV CHINA EQUIPMENT(YT2) EXC. CONCRETE PUMP<RA5> (C)	8-98142-172-0	01	1	1008-		●
19	BRACKET; QUICK RELEASE VLV CHINA EQUIPMENT(YT2) (D)	8-98142-173-0	01	1	1008-	●
19	BRACKET; QUICK RELEASE VLV CHINA EQUIPMENT(YT2) EXC. CONCRETE PUMP<RA5> (D)	8-98142-173-0	01	1	1008-		●
19	BRACKET; QUICK RELEASE VLV (A)	1-47471-014-0	01	1	1008-	●	●
19	BRACKET; QUICK RELEASE VLV (B)	1-47471-390-0	02	1	1008-	●	●
49	NUT; QUICK RELEASE VLV CHINA EQUIPMENT(YT2) M8 FLANGE	0-91180-108-0	04	1	1008-	●
49	NUT; QUICK RELEASE VLV CHINA EQUIPMENT(YT2) EXC. CONCRETE PUMP<RA5> M8 FLANGE	0-91180-108-0	04	1	1008-		●
52	CONNECTOR; RELAY VLV FULL TRAILER PIPING<Z25> (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1008-		●
52	CONNECTOR; RELAY VLV FULL TRAILER PIPING<Z25> (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1008-		●
52	CONNECTOR; RELAY VLV FULL TRAILER PIPING<Z25> (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1008-		●
52	CONNECTOR; RELAY VLV FULL TRAILER PIPING<Z25> (D) PT3/8 4WAY	1-09661-489-0	01	1	1008-		●
54	CONNECTOR; QUICK RELEASE VLV CHINA EQUIPMENT(YT2) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	1008-	●
54	CONNECTOR; QUICK RELEASE VLV CHINA EQUIPMENT(YT2) EXC. CONCRETE PUMP<RA5> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	1008-		●
54	CONNECTOR; QUICK RELEASE VLV CHINA EQUIPMENT(YT2) (B) PT3/8	1-09664-210-0	02	1	1008-	●
54	CONNECTOR; QUICK RELEASE VLV CHINA EQUIPMENT(YT2) EXC. CONCRETE PUMP<RA5> (B) PT3/8	1-09664-210-0	02	1	1008-		●
54	CONNECTOR; QUICK RELEASE VLV (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	1008-	●	●
56	BRACKET; RELAY VLV	1-47479-328-0	01	1	1008-	●	●
56	BRACKET; RELAY VLV	1-47479-328-0	01	1	1008-	●
58	ADAPTER (B) M22 ADAPTER	1-48219-154-0	01	1	1008-	●	●
58	ADAPTER (B) M22 ADAPTER	1-48219-154-0	01	1	1008-	●	●
58	ADAPTER (B) M22 ADAPTER	1-48219-154-0	01	1	1008-	●
58	ADAPTER (A) PT3/8	1-48319-058-0	01	1	1008-	●	●
58	ADAPTER (A) PT3/8	1-48319-058-0	01	1	1008-	●
62	BOLT; BRKT FIX (A) M8X25 FLANGE	0-28650-825-0	04	1	1008-	●	●
62	BOLT; BRKT FIX (B) M10X35 FLANGE	0-28651-035-0	02	1	1008-	●	●
63	NUT; BRKT FIX (A) M8 FLANGE	0-91180-108-0	04	1	1008-	●	●
63	NUT; BRKT FIX (B) M10 FLANGE	0-91180-210-0	02	1	1008-	●	●
65	BRACKET; RELAY VLV RR	1-47479-328-0	01	1	1008-	●	●
68	NUT; RELAY VLV TO BRKT M8 FLANGE	0-91180-108-0	04	1	1008-	●	●
95	UNION; AIR VLV PT3/8 3WAY	1-09661-300-0	01	1	1008-	●	●
114	NUT; VLV CHINA EQUIPMENT(YT2) M8 FLANGE	0-91180-108-0	04	1	1008-	●
114	NUT; VLV CHINA EQUIPMENT(YT2) EXC. CONCRETE PUMP<RA5> M8 FLANGE	0-91180-108-0	04	1	1008-		●
114	NUT; VLV M8 FLANGE	0-91180-108-0	02	1	1008-	●	●
138	SWITCH; RELAY VALVE 6WF1 TC-C(1B8)	1-48340-067-0	01	1	1008-	●	●
138	SWITCH; RELAY VALVE 6WG1 TC-R(75L) STAMP 2.0	8-98010-856-2	01	1	1008-	●	●
232	VALVE; CHECK FULL TRAILER PIPING<Z25>	1-48320-031-1	01	1	1008-		●

74 114 6 19 54 54 64 13 48 276

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	BOLT; VLV CHINA EQUIPMENT(YT2) (A) M8X25 FLANGE	0-28650-825-0	04	1	1008-	●
6	BOLT; VLV CHINA EQUIPMENT(YT2) EXC. CONCRETE PUMP<RA5> (A) M8X25 FLANGE	0-28650-825-0	04	1	1008-		●
6	BOLT; VLV (A) M8X25 FLANGE	0-28650-825-0	02	1	1008-	●	●
6	BOLT; VLV (B) M8X35 FLANGE	0-28650-835-0	02	1	1008-	●	●
13	VALVE ASM; QUICK RELEASE CHINA EQUIPMENT(YT2) (B)	1-48410-733-0	02	1	1008-1008	●
13	VALVE ASM; QUICK RELEASE CHINA EQUIPMENT(YT2) EXC. CONCRETE PUMP<RA5> (B)	1-48410-733-0	02	1	1008-1008		●
13	VALVE ASM; QUICK RELEASE CHINA EQUIPMENT(YT2) (B)	8-98170-207-0	02	1	1009-	●
13	VALVE ASM; QUICK RELEASE CHINA EQUIPMENT(YT2) EXC. CONCRETE PUMP<RA5> (B)	8-98170-207-0	02	1	1009-		●
13	VALVE ASM; QUICK RELEASE (A)	1-48410-726-1	01	1	1008-	●	●
19	BRACKET; QUICK RELEASE VLV CHINA EQUIPMENT(YT2) (C)	8-98142-172-0	01	1	1008-	●
19	BRACKET; QUICK RELEASE VLV CHINA EQUIPMENT(YT2) EXC. CONCRETE PUMP<RA5> (C)	8-98142-172-0	01	1	1008-		●
19	BRACKET; QUICK RELEASE VLV CHINA EQUIPMENT(YT2) (D)	8-98142-173-0	01	1	1008-	●
19	BRACKET; QUICK RELEASE VLV CHINA EQUIPMENT(YT2) EXC. CONCRETE PUMP<RA5> (D)	8-98142-173-0	01	1	1008-		●
19	BRACKET; QUICK RELEASE VLV (A)	1-47471-014-0	01	1	1008-	●	●
19	BRACKET; QUICK RELEASE VLV (B)	1-47471-390-0	02	1	1008-	●	●
48	BOLT; QUICK RELEASE VLV M8X35 FLANGE	0-28650-835-0	02	1	1008-	●	●
54	CONNECTOR; QUICK RELEASE VLV CHINA EQUIPMENT(YT2) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	1008-	●
54	CONNECTOR; QUICK RELEASE VLV CHINA EQUIPMENT(YT2) EXC. CONCRETE PUMP<RA5> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	1008-		●
54	CONNECTOR; QUICK RELEASE VLV CHINA EQUIPMENT(YT2) (B) PT3/8	1-09664-210-0	02	1	1008-	●
54	CONNECTOR; QUICK RELEASE VLV CHINA EQUIPMENT(YT2) EXC. CONCRETE PUMP<RA5> (B) PT3/8	1-09664-210-0	02	1	1008-		●
54	CONNECTOR; QUICK RELEASE VLV (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	1008-	●	●
64	PROTECTOR; QUICK RELEASE VALVE	8-98043-421-0	01	1	1008-	●	●
74	CONNECTOR; 3WAY DIN8 & DIN12 & R3/8 3WAY	1-09660-821-0	01	1	1008-	●	●
114	NUT; VLV CHINA EQUIPMENT(YT2) M8 FLANGE	0-91180-108-0	04	1	1008-	●
114	NUT; VLV CHINA EQUIPMENT(YT2) EXC. CONCRETE PUMP<RA5> M8 FLANGE	0-91180-108-0	04	1	1008-		●
114	NUT; VLV M8 FLANGE	0-91180-108-0	02	1	1008-	●	●
276	BOLT; PROTECTOR M8X20 FLANGE	0-28650-820-0	02	1	1008-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
