◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10725 - EXR LHD FUEL TANK 200L+200L/400L ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-08A - CLUTCH MASTER CYLINDER ▶
2-08A — CLUTCH MASTER CYLINDER (#5563) — 44 parça

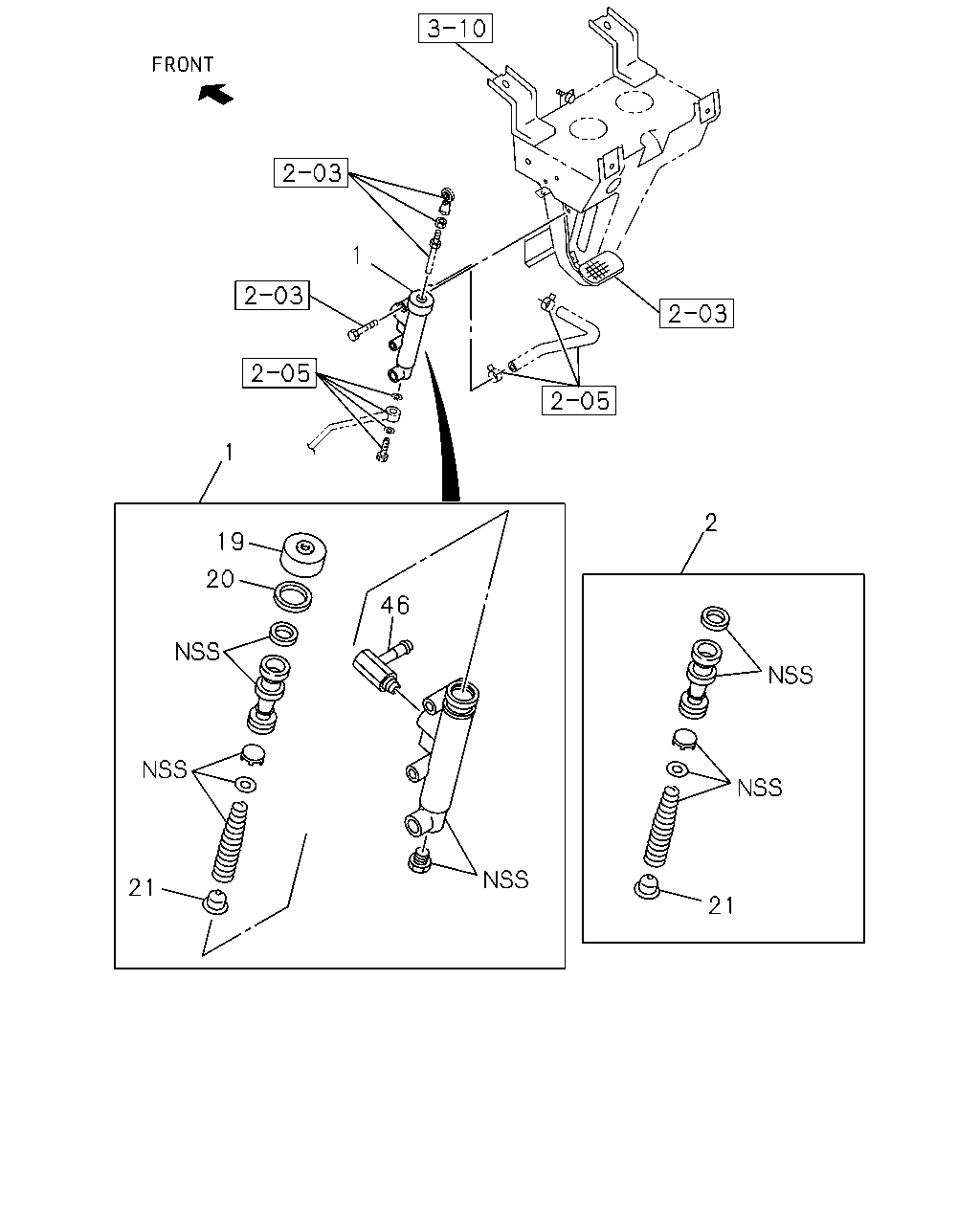

çizim 40959
1 2 19 20 46 21 21
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 CYLINDER ASM; CLUTCH MASTER
ISUZU M/T<X9A> 		1-47500-239-1 01 1 9603-9904 ●
1 CYLINDER ASM; CLUTCH MASTER
ISUZU M/T<X9A> 		1-47500-239-2 01 1 9905- ● ● ●
1 CYLINDER ASM; CLUTCH MASTER
ZF M/T<X9E> 		1-47500-241-2 01 1 9603-9904 ●
1 CYLINDER ASM; CLUTCH MASTER
ZF M/T<X9E> 		1-47500-241-3 01 1 9905- ● ● ●
2 REPAIR KIT; CLU M/CYL
ISUZU M/T<X9A> 		1-85572-010-0 01 1 9603-9904 ●
2 REPAIR KIT; CLU M/CYL
ISUZU M/T<X9A> 		1-85572-010-0 01 1 9905- ● ● ●
2 REPAIR KIT; CLU M/CYL
ZF M/T<X9E> 		1-47550-046-0 01 1 9603-9904 ●
2 REPAIR KIT; CLU M/CYL
ZF M/T<X9E> 		1-47550-046-0 01 1 9905- ● ● ●
19 BOOT; CLU M/CYL
ISUZU M/T<X9A> 		9-47545-032-0 01 1 9603-9904 ●
19 BOOT; CLU M/CYL
ISUZU M/T<X9A> 		9-47545-032-0 01 1 9905- ● ● ●
19 BOOT; CLU M/CYL
ZF M/T<X9E> 		1-47545-011-0 01 1 9603-9904 ●
19 BOOT; CLU M/CYL
ZF M/T<X9E> 		1-47545-011-0 01 1 9905- ● ● ●
20 RING; SNAP,BODY
ISUZU M/T<X9A> OD=26.9 		9-09180-125-0 01 1 9603-9904 ●
20 RING; SNAP,BODY
ISUZU M/T<X9A> OD=26.9 		9-09180-125-0 01 1 9905- ● ● ●
20 RING; SNAP,BODY
ZF M/T<X9E> 		1-47515-009-0 01 1 9603-9904 ●
20 RING; SNAP,BODY
ZF M/T<X9E> 		1-47515-009-0 01 1 9905- ● ● ●
21 VALVE; CHECK 1-47565-004-0 01 1 9603-9904 ●
21 VALVE; CHECK 1-47565-004-0 01 1 9905- ● ● ●
46 CONNECTOR; PIPE
ISUZU M/T<X9A> 		1-47559-016-0 01 1 9603-9904 ●
46 CONNECTOR; PIPE
ISUZU M/T<X9A> 		1-47559-016-0 01 1 9905- ● ● ●
46 CONNECTOR; PIPE
ZF M/T<X9E> 		1-47517-003-0 01 1 9603-9904 ●
46 CONNECTOR; PIPE
ZF M/T<X9E> 		1-47517-003-0 01 1 9905- ● ● ●

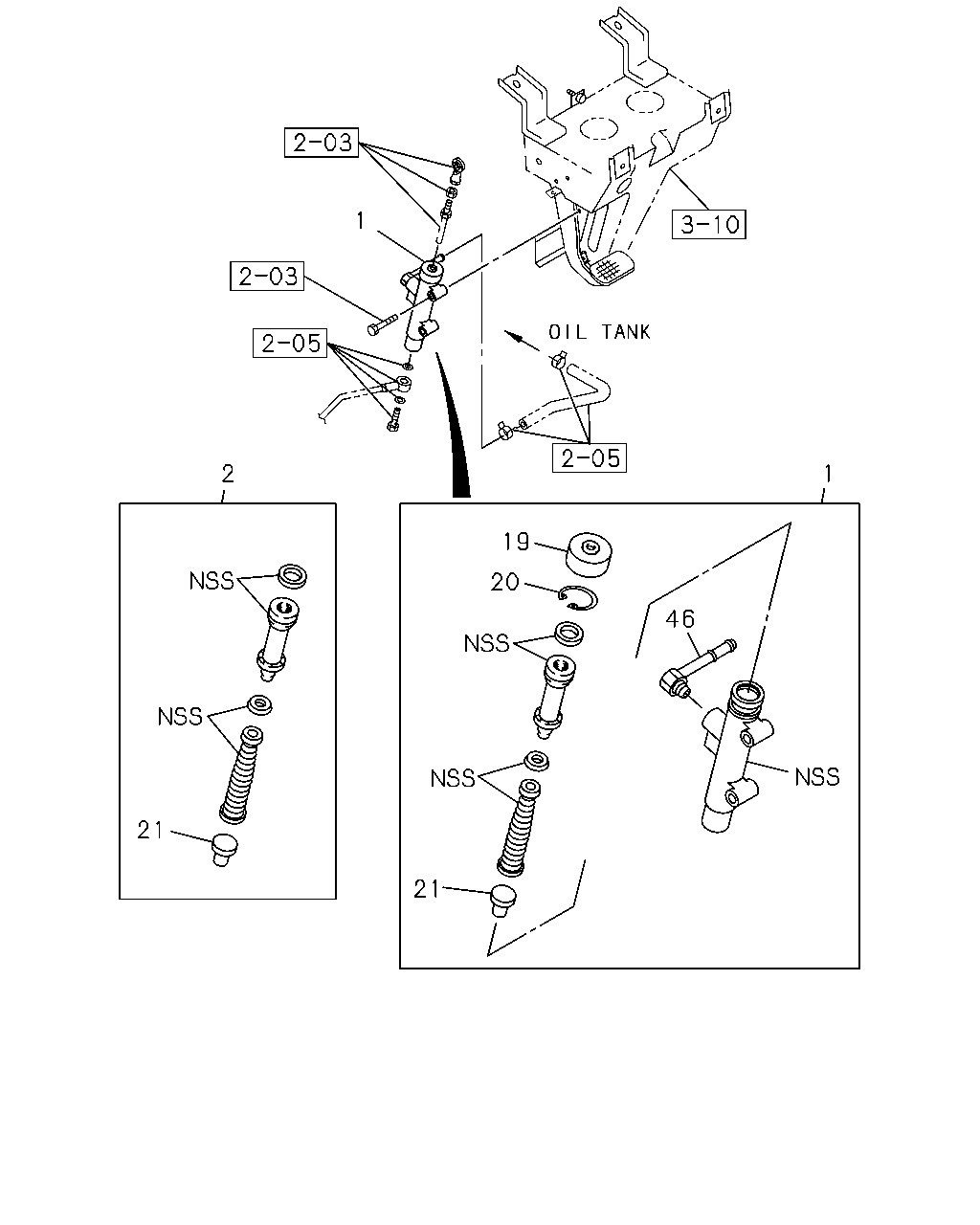

çizim 41269
2 1 19 20 46 21 21
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 CYLINDER ASM; CLUTCH MASTER
ISUZU M/T<X9A> 		1-47500-239-1 01 1 9603-9904 ●
1 CYLINDER ASM; CLUTCH MASTER
ISUZU M/T<X9A> 		1-47500-239-2 01 1 9905- ● ● ●
1 CYLINDER ASM; CLUTCH MASTER
ZF M/T<X9E> 		1-47500-241-2 01 1 9603-9904 ●
1 CYLINDER ASM; CLUTCH MASTER
ZF M/T<X9E> 		1-47500-241-3 01 1 9905- ● ● ●
2 REPAIR KIT; CLU M/CYL
ISUZU M/T<X9A> 		1-85572-010-0 01 1 9603-9904 ●
2 REPAIR KIT; CLU M/CYL
ISUZU M/T<X9A> 		1-85572-010-0 01 1 9905- ● ● ●
2 REPAIR KIT; CLU M/CYL
ZF M/T<X9E> 		1-47550-046-0 01 1 9603-9904 ●
2 REPAIR KIT; CLU M/CYL
ZF M/T<X9E> 		1-47550-046-0 01 1 9905- ● ● ●
19 BOOT; CLU M/CYL
ISUZU M/T<X9A> 		9-47545-032-0 01 1 9603-9904 ●
19 BOOT; CLU M/CYL
ISUZU M/T<X9A> 		9-47545-032-0 01 1 9905- ● ● ●
19 BOOT; CLU M/CYL
ZF M/T<X9E> 		1-47545-011-0 01 1 9603-9904 ●
19 BOOT; CLU M/CYL
ZF M/T<X9E> 		1-47545-011-0 01 1 9905- ● ● ●
20 RING; SNAP,BODY
ISUZU M/T<X9A> OD=26.9 		9-09180-125-0 01 1 9603-9904 ●
20 RING; SNAP,BODY
ISUZU M/T<X9A> OD=26.9 		9-09180-125-0 01 1 9905- ● ● ●
20 RING; SNAP,BODY
ZF M/T<X9E> 		1-47515-009-0 01 1 9603-9904 ●
20 RING; SNAP,BODY
ZF M/T<X9E> 		1-47515-009-0 01 1 9905- ● ● ●
21 VALVE; CHECK 1-47565-004-0 01 1 9603-9904 ●
21 VALVE; CHECK 1-47565-004-0 01 1 9905- ● ● ●
46 CONNECTOR; PIPE
ISUZU M/T<X9A> 		1-47559-016-0 01 1 9603-9904 ●
46 CONNECTOR; PIPE
ISUZU M/T<X9A> 		1-47559-016-0 01 1 9905- ● ● ●
46 CONNECTOR; PIPE
ZF M/T<X9E> 		1-47517-003-0 01 1 9603-9904 ●
46 CONNECTOR; PIPE
ZF M/T<X9E> 		1-47517-003-0 01 1 9905- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
