2-53 — TRANSMISSION OIL COOLER SYSTEM (#55629) — 151 parça

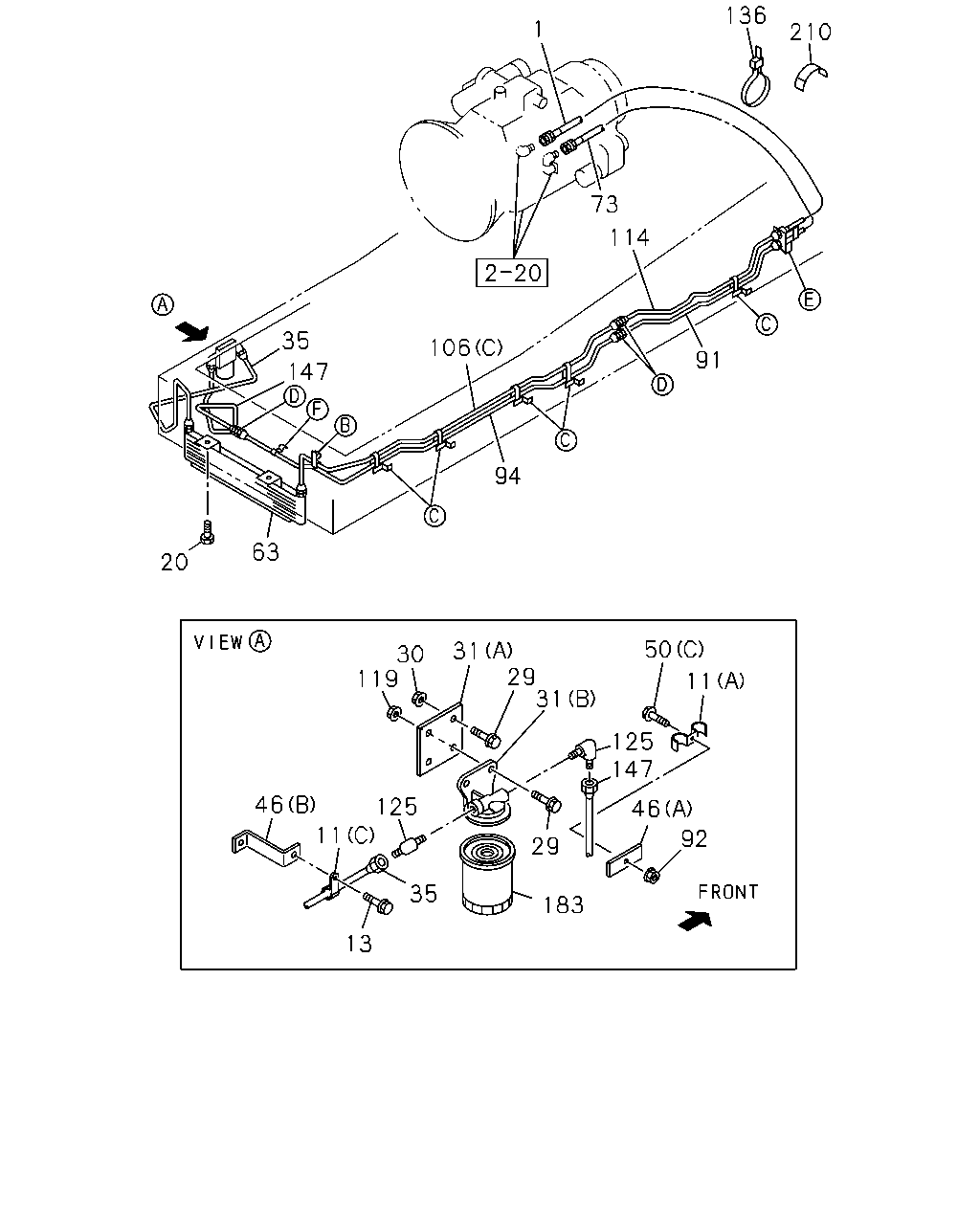

136 1 210 73 114 35 106 91 147 94 63 20 50 31 29 31 30 119 11 125 147 46 125 11 46 92 29 35 183 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; ATF MJT7S M/T(Y3E) L=430	1-09364-872-0	01	1	1008-	●	●
1	HOSE; ATF MJX16P M/T(Y3Z) L=600	1-09365-232-0	01	1	1008-	●	●
11	CLIP; PIPE MJT7S M/T(Y3E) (A) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	01	1	1008-	●	●
11	CLIP; PIPE 6WG1 TC-R(75L) MJT7S M/T(Y3E) (A) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	01	1	1008-	●	●
11	CLIP; PIPE MJT7S M/T(Y3E) (B) ID=16 & 11 L=21.5 & 21.5	1-09700-924-0	02	1	1008-	●	●
11	CLIP; PIPE MJT7S M/T(Y3E) (D) ID=11X2 L=20	9-09535-036-0	05	1	1008-	●	●
11	CLIP; PIPE MJX16P M/T(Y3Z) (F) ID=16X2 L=20	0-95325-535-0	01	1	1008-	●	●
11	CLIP; PIPE MJX16P M/T(Y3Z) (F) ID=16X2 L=20	0-95325-535-0	04	1	1008-	●	●
11	CLIP; PIPE MJX16P M/T(Y3Z) (E) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	1008-	●	●
11	CLIP; PIPE 6WG1 TC-R(75L) MJT7S M/T(Y3E) (C) ID=11X2 L=20	0-95325-035-0	01	1	1008-	●	●
13	BOLT; BRKT 6WG1 TC-R(75L) MJT7S M/T(Y3E) M8X35 FLANGE	0-28650-835-0	01	1	1008-	●	●
20	BOLT; COOLER TO BRKT M10X20 FLANGE	0-28051-020-0	02	1	1008-	●	●
29	BOLT; FILTER TO BRKT M8X35 FLANGE	0-28650-835-0	04	1	1008-	●	●
29	BOLT; FILTER TO BRKT MJT7S M/T(Y3E) M10X30 FLANGE	0-28651-030-0	02	1	1008-	●	●
30	NUT; BRKT MJT7S M/T(Y3E) M10 FLANGE	0-91180-210-0	02	1	1008-	●	●
31	BRACKET; OIL FILTER MJT7S M/T(Y3E) (B)	1-33119-222-0	01	1	1008-	●	●
31	BRACKET; OIL FILTER MJT7S M/T(Y3E) (A)	1-47471-155-0	01	1	1008-	●	●
35	PIPE; OIL,OIL COOLER TO FILTER 6WF1 TC-C(1B8) MJT7S M/T(Y3E) L=787	1-49167-386-0	01	1	1008-	●	●
35	PIPE; OIL,OIL COOLER TO FILTER 6WG1 TC-R(75L) MJT7S M/T(Y3E) L=1167	8-98169-343-0	01	1	1008-	●	●
46	BRACKET; OIL PIPE MJT7S M/T(Y3E) (A) L=50	1-47475-299-2	01	1	1008-	●	●
46	BRACKET; OIL PIPE 6WG1 TC-R(75L) MJT7S M/T(Y3E) (A) L=50	1-47475-299-2	01	1	1008-	●	●
46	BRACKET; OIL PIPE 6WG1 TC-R(75L) MJT7S M/T(Y3E) (B)	1-46147-101-0	01	1	1008-	●	●
50	BOLT; CLIP (A) M8X25 FLANGE	0-28650-825-0	05	1	1008-	●	●
50	BOLT; CLIP MJT7S M/T(Y3E) (C) M8X16 FLANGE	0-28050-816-0	01	1	1008-	●	●
50	BOLT; CLIP 6WG1 TC-R(75L) MJT7S M/T(Y3E) (C) M8X16 FLANGE	0-28050-816-0	01	1	1008-	●	●
50	BOLT; CLIP MJT7S M/T(Y3E) (B) M8X20 FLANGE	0-28650-820-0	02	1	1008-	●	●
50	BOLT; CLIP MJX16P M/T(Y3Z) (B) M8X20 FLANGE	0-28650-820-0	01	1	1008-	●	●
50	BOLT; CLIP 6WG1 TC-R(75L) MJT7S M/T(Y3E) (A) M8X25 FLANGE	0-28650-825-0	01	1	1008-	●	●
63	COOLER; OIL	1-21700-394-0	01	1	1008-1405	●	●
63	COOLER; OIL	8-98269-766-0	01	1	1406-	●	●
73	HOSE; FLEX,TRANS MJT7S M/T(Y3E) L=430	1-09364-872-0	01	1	1008-	●	●
73	HOSE; FLEX,TRANS MJX16P M/T(Y3Z) L=530	1-09365-248-0	01	1	1008-	●	●
91	PIPE; OIL,FLEX HOSE TO UNION MJT7S M/T(Y3E) MIXER TRUCK<RA2> L=768	8-98170-741-0	01	1	1008-	●
91	PIPE; OIL,FLEX HOSE TO UNION MJT7S M/T(Y3E) EXC. MIXER TRUCK<RA2> L=775	8-98168-253-0	01	1	1008-	●
91	PIPE; OIL,FLEX HOSE TO UNION MJT7S M/T(Y3E) L=775	8-98168-253-0	01	1	1008-		●
91	PIPE; OIL,FLEX HOSE TO UNION MJX16P M/T(Y3Z) L=918	8-98145-195-0	01	1	1008-	●	●
92	NUT; CLIP MJT7S M/T(Y3E) M8 FLANGE	0-91180-108-0	01	1	1008-	●	●
92	NUT; CLIP 6WG1 TC-R(75L) MJT7S M/T(Y3E) M8 FLANGE	0-91180-108-0	01	1	1008-	●	●
94	PIPE; OIL,UNION TO UNION MJT7S M/T(Y3E) L=2325 SERVICED BY L=2500	1-47428-883-0	01	1	1008-	●	●
106	PIPE ASM; OIL,COOLER TO UNION MJT7S M/T(Y3E) (C) L=1747 SERVICED BY L=1783	1-47428-881-0	01	1	1008-	●	●
106	PIPE ASM; OIL,COOLER TO UNION MJX16P M/T(Y3Z) (B) L=1731	8-98158-373-0	01	1	1008-	●	●
106	PIPE ASM; OIL,COOLER TO UNION MJX16P M/T(Y3Z) (A) L=2313	8-98158-374-0	01	1	1008-	●	●
114	PIPE; OIL,UNION TO FLEX HOSE MJT7S M/T(Y3E) MIXER TRUCK<RA2> L=861 SERVICED BY L=900	1-47428-873-0	01	1	1008-	●
114	PIPE; OIL,UNION TO FLEX HOSE MJT7S M/T(Y3E) EXC. MIXER TRUCK<RA2> L=857	8-98145-198-0	01	1	1008-	●
114	PIPE; OIL,UNION TO FLEX HOSE MJT7S M/T(Y3E) L=857	8-98145-198-0	01	1	1008-		●
114	PIPE; OIL,UNION TO FLEX HOSE MJX16P M/T(Y3Z) L=860	8-98169-359-0	01	1	1008-	●	●
119	NUT; FILTER TO BRKT MJT7S M/T(Y3E) M10 FLANGE	0-91180-210-0	02	1	1008-	●	●
125	CONNECTOR; OIL FILTER MJT7S M/T(Y3E) M16 & PT1/4 ELBOW	0-92134-310-0	02	1	1008-	●	●
136	CLIP; FLEX HOSE L=350	1-09707-183-0	01	1	1008-	●	●
147	PIPE; OIL,UNION TO FILTER 6WF1 TC-C(1B8) MJT7S M/T(Y3E) L=739 SERVICED BY L=800	1-47428-872-0	01	1	1008-	●	●
147	PIPE; OIL,UNION TO FILTER 6WG1 TC-R(75L) MJT7S M/T(Y3E) L=1209 SERVICED BY L=1250	1-47428-876-0	01	1	1008-	●	●
183	CARTRIDGE; OIL FILTER MJT7S M/T(Y3E)	8-94459-700-1	01	1	1008-	●	●
210	BAND; FLEX HOSE L=175	1-09707-178-0	01	1	1008-	●	●

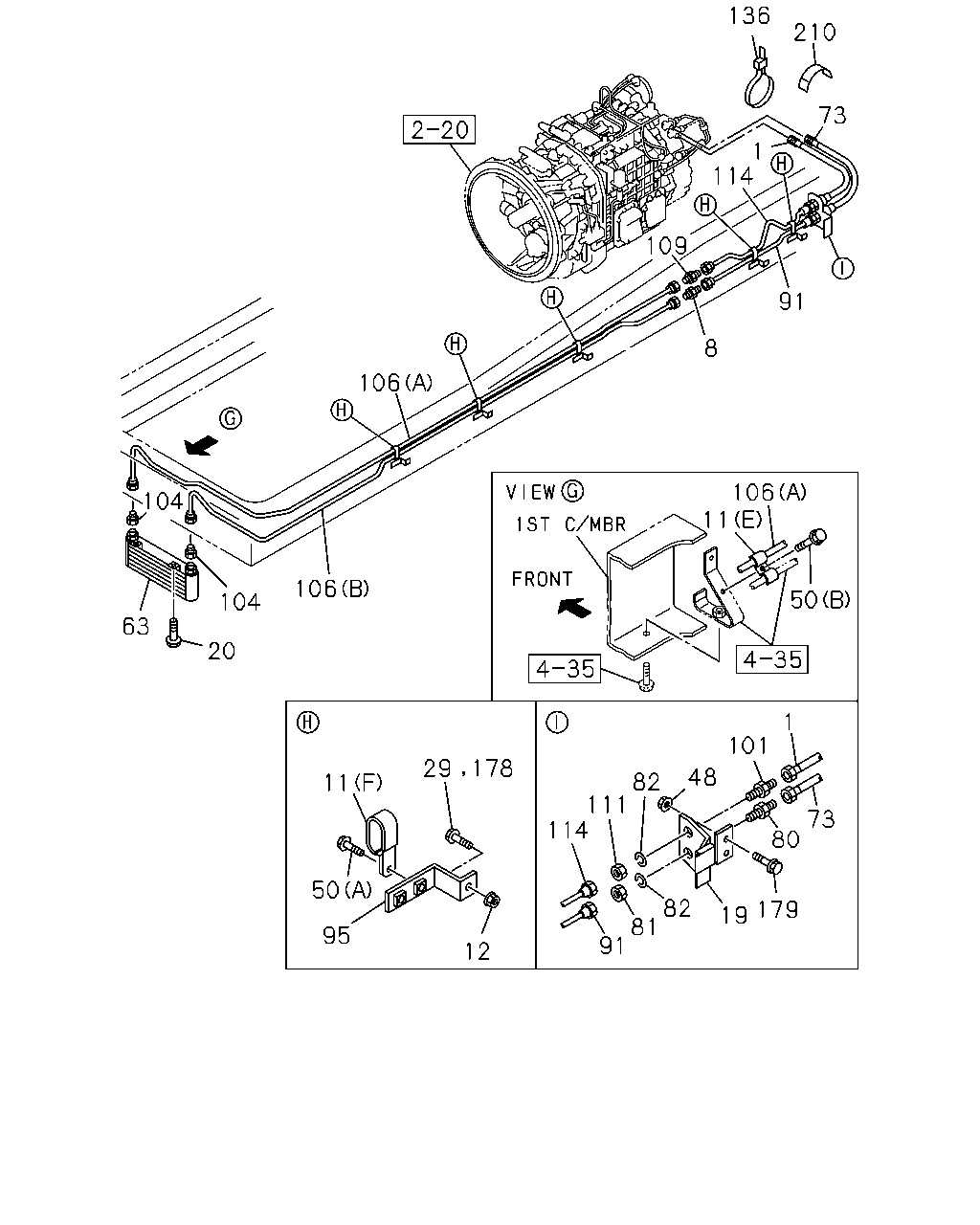

136 210 73 1 114 109 91 8 106 104 106 11 106 50 104 63 20 1 101 29 178 48 82 111 114 11 73 80 50 82 81 91 179 19 95 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; ATF MJT7S M/T(Y3E) L=430	1-09364-872-0	01	1	1008-	●	●
1	HOSE; ATF MJX16P M/T(Y3Z) L=600	1-09365-232-0	01	1	1008-	●	●
8	UNION MJT7S M/T(Y3E) M16 STRAIGHT L=42	0-92123-010-0	01	1	1008-	●	●
8	UNION MJX16P M/T(Y3Z) M22 L=51	0-92123-015-0	01	1	1008-	●	●
11	CLIP; PIPE MJT7S M/T(Y3E) (A) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	01	1	1008-	●	●
11	CLIP; PIPE 6WG1 TC-R(75L) MJT7S M/T(Y3E) (A) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	01	1	1008-	●	●
11	CLIP; PIPE MJT7S M/T(Y3E) (B) ID=16 & 11 L=21.5 & 21.5	1-09700-924-0	02	1	1008-	●	●
11	CLIP; PIPE MJT7S M/T(Y3E) (D) ID=11X2 L=20	9-09535-036-0	05	1	1008-	●	●
11	CLIP; PIPE MJX16P M/T(Y3Z) (F) ID=16X2 L=20	0-95325-535-0	01	1	1008-	●	●
11	CLIP; PIPE MJX16P M/T(Y3Z) (F) ID=16X2 L=20	0-95325-535-0	04	1	1008-	●	●
11	CLIP; PIPE MJX16P M/T(Y3Z) (E) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	1008-	●	●
11	CLIP; PIPE 6WG1 TC-R(75L) MJT7S M/T(Y3E) (C) ID=11X2 L=20	0-95325-035-0	01	1	1008-	●	●
12	NUT; BRKT M8 FLANGE	0-91180-108-0	05	1	1008-	●	●
12	NUT; BRKT 6WG1 TC-R(75L) MJT7S M/T(Y3E) M8 FLANGE	0-91180-108-0	01	1	1008-	●	●
19	BRACKET; FLEX HOSE MJT7S M/T(Y3E)	1-47479-559-0	01	1	1008-	●	●
19	BRACKET; FLEX HOSE MJX16P M/T(Y3Z)	1-47479-561-1	01	1	1008-	●	●
20	BOLT; COOLER TO BRKT M10X20 FLANGE	0-28051-020-0	02	1	1008-	●	●
29	BOLT; FILTER TO BRKT M8X35 FLANGE	0-28650-835-0	04	1	1008-	●	●
29	BOLT; FILTER TO BRKT MJT7S M/T(Y3E) M10X30 FLANGE	0-28651-030-0	02	1	1008-	●	●
48	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1008-	●	●
50	BOLT; CLIP (A) M8X25 FLANGE	0-28650-825-0	05	1	1008-	●	●
50	BOLT; CLIP MJT7S M/T(Y3E) (C) M8X16 FLANGE	0-28050-816-0	01	1	1008-	●	●
50	BOLT; CLIP 6WG1 TC-R(75L) MJT7S M/T(Y3E) (C) M8X16 FLANGE	0-28050-816-0	01	1	1008-	●	●
50	BOLT; CLIP MJT7S M/T(Y3E) (B) M8X20 FLANGE	0-28650-820-0	02	1	1008-	●	●
50	BOLT; CLIP MJX16P M/T(Y3Z) (B) M8X20 FLANGE	0-28650-820-0	01	1	1008-	●	●
50	BOLT; CLIP 6WG1 TC-R(75L) MJT7S M/T(Y3E) (A) M8X25 FLANGE	0-28650-825-0	01	1	1008-	●	●
63	COOLER; OIL	1-21700-394-0	01	1	1008-1405	●	●
63	COOLER; OIL	8-98269-766-0	01	1	1406-	●	●
73	HOSE; FLEX,TRANS MJT7S M/T(Y3E) L=430	1-09364-872-0	01	1	1008-	●	●
73	HOSE; FLEX,TRANS MJX16P M/T(Y3Z) L=530	1-09365-248-0	01	1	1008-	●	●
80	UNION; FLEX HOSE MJX16P M/T(Y3Z) M22 & M22 STRAIGHT	1-09654-204-2	01	1	1008-	●	●
81	NUT; UNION MJX16P M/T(Y3Z) M22	0-91111-522-0	01	1	1008-	●	●
82	WASHER; LK,UNION MJX16P M/T(Y3Z) ID=22.5	0-91510-522-0	02	1	1008-	●	●
91	PIPE; OIL,FLEX HOSE TO UNION MJT7S M/T(Y3E) MIXER TRUCK<RA2> L=768	8-98170-741-0	01	1	1008-	●
91	PIPE; OIL,FLEX HOSE TO UNION MJT7S M/T(Y3E) EXC. MIXER TRUCK<RA2> L=775	8-98168-253-0	01	1	1008-	●
91	PIPE; OIL,FLEX HOSE TO UNION MJT7S M/T(Y3E) L=775	8-98168-253-0	01	1	1008-		●
91	PIPE; OIL,FLEX HOSE TO UNION MJX16P M/T(Y3Z) L=918	8-98145-195-0	01	1	1008-	●	●
95	BRACKET; CLIP	1-47479-482-0	05	1	1008-	●	●
101	UNION; FLEX HOSE MJX16P M/T(Y3Z) M22 & M22 STRAIGHT	1-09654-204-2	01	1	1008-	●	●
104	CONNECTOR; COOLER MJX16P M/T(Y3Z)	1-09654-398-0	02	1	1008-	●	●
106	PIPE ASM; OIL,COOLER TO UNION MJT7S M/T(Y3E) (C) L=1747 SERVICED BY L=1783	1-47428-881-0	01	1	1008-	●	●
106	PIPE ASM; OIL,COOLER TO UNION MJX16P M/T(Y3Z) (B) L=1731	8-98158-373-0	01	1	1008-	●	●
106	PIPE ASM; OIL,COOLER TO UNION MJX16P M/T(Y3Z) (A) L=2313	8-98158-374-0	01	1	1008-	●	●
109	UNION MJT7S M/T(Y3E) M16 STRAIGHT L=42	0-92123-010-0	02	1	1008-	●	●
109	UNION MJX16P M/T(Y3Z) M22 L=51	0-92123-015-0	01	1	1008-	●	●
111	NUT; UNION MJX16P M/T(Y3Z) M22	0-91111-522-0	01	1	1008-	●	●
114	PIPE; OIL,UNION TO FLEX HOSE MJT7S M/T(Y3E) MIXER TRUCK<RA2> L=861 SERVICED BY L=900	1-47428-873-0	01	1	1008-	●
114	PIPE; OIL,UNION TO FLEX HOSE MJT7S M/T(Y3E) EXC. MIXER TRUCK<RA2> L=857	8-98145-198-0	01	1	1008-	●
114	PIPE; OIL,UNION TO FLEX HOSE MJT7S M/T(Y3E) L=857	8-98145-198-0	01	1	1008-		●
114	PIPE; OIL,UNION TO FLEX HOSE MJX16P M/T(Y3Z) L=860	8-98169-359-0	01	1	1008-	●	●
136	CLIP; FLEX HOSE L=350	1-09707-183-0	01	1	1008-	●	●
178	BOLT; BRKT,CLIP M8X35 FLANGE	0-28650-835-0	01	1	1008-	●	●
179	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	1008-	●	●
210	BAND; FLEX HOSE L=175	1-09707-178-0	01	1	1008-	●	●

11 50 29 178 12 50 12 11 95 1 48 117 116 114 8 109 73 179 77 76 91 19 50 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; ATF MJT7S M/T(Y3E) L=430	1-09364-872-0	01	1	1008-	●	●
1	HOSE; ATF MJX16P M/T(Y3Z) L=600	1-09365-232-0	01	1	1008-	●	●
8	UNION MJT7S M/T(Y3E) M16 STRAIGHT L=42	0-92123-010-0	01	1	1008-	●	●
8	UNION MJX16P M/T(Y3Z) M22 L=51	0-92123-015-0	01	1	1008-	●	●
11	CLIP; PIPE MJT7S M/T(Y3E) (A) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	01	1	1008-	●	●
11	CLIP; PIPE 6WG1 TC-R(75L) MJT7S M/T(Y3E) (A) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	01	1	1008-	●	●
11	CLIP; PIPE MJT7S M/T(Y3E) (B) ID=16 & 11 L=21.5 & 21.5	1-09700-924-0	02	1	1008-	●	●
11	CLIP; PIPE MJT7S M/T(Y3E) (D) ID=11X2 L=20	9-09535-036-0	05	1	1008-	●	●
11	CLIP; PIPE MJX16P M/T(Y3Z) (F) ID=16X2 L=20	0-95325-535-0	01	1	1008-	●	●
11	CLIP; PIPE MJX16P M/T(Y3Z) (F) ID=16X2 L=20	0-95325-535-0	04	1	1008-	●	●
11	CLIP; PIPE MJX16P M/T(Y3Z) (E) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	1008-	●	●
11	CLIP; PIPE 6WG1 TC-R(75L) MJT7S M/T(Y3E) (C) ID=11X2 L=20	0-95325-035-0	01	1	1008-	●	●
12	NUT; BRKT M8 FLANGE	0-91180-108-0	05	1	1008-	●	●
12	NUT; BRKT 6WG1 TC-R(75L) MJT7S M/T(Y3E) M8 FLANGE	0-91180-108-0	01	1	1008-	●	●
19	BRACKET; FLEX HOSE MJT7S M/T(Y3E)	1-47479-559-0	01	1	1008-	●	●
19	BRACKET; FLEX HOSE MJX16P M/T(Y3Z)	1-47479-561-1	01	1	1008-	●	●
29	BOLT; FILTER TO BRKT M8X35 FLANGE	0-28650-835-0	04	1	1008-	●	●
29	BOLT; FILTER TO BRKT MJT7S M/T(Y3E) M10X30 FLANGE	0-28651-030-0	02	1	1008-	●	●
48	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1008-	●	●
50	BOLT; CLIP (A) M8X25 FLANGE	0-28650-825-0	05	1	1008-	●	●
50	BOLT; CLIP MJT7S M/T(Y3E) (C) M8X16 FLANGE	0-28050-816-0	01	1	1008-	●	●
50	BOLT; CLIP 6WG1 TC-R(75L) MJT7S M/T(Y3E) (C) M8X16 FLANGE	0-28050-816-0	01	1	1008-	●	●
50	BOLT; CLIP MJT7S M/T(Y3E) (B) M8X20 FLANGE	0-28650-820-0	02	1	1008-	●	●
50	BOLT; CLIP MJX16P M/T(Y3Z) (B) M8X20 FLANGE	0-28650-820-0	01	1	1008-	●	●
50	BOLT; CLIP 6WG1 TC-R(75L) MJT7S M/T(Y3E) (A) M8X25 FLANGE	0-28650-825-0	01	1	1008-	●	●
73	HOSE; FLEX,TRANS MJT7S M/T(Y3E) L=430	1-09364-872-0	01	1	1008-	●	●
73	HOSE; FLEX,TRANS MJX16P M/T(Y3Z) L=530	1-09365-248-0	01	1	1008-	●	●
76	NUT; FLEX HOSE MJT7S M/T(Y3E) M16	0-91111-516-0	01	1	1008-	●	●
77	WASHER; LK MJT7S M/T(Y3E) ID=16.2	0-91510-516-0	01	1	1008-	●	●
91	PIPE; OIL,FLEX HOSE TO UNION MJT7S M/T(Y3E) MIXER TRUCK<RA2> L=768	8-98170-741-0	01	1	1008-	●
91	PIPE; OIL,FLEX HOSE TO UNION MJT7S M/T(Y3E) EXC. MIXER TRUCK<RA2> L=775	8-98168-253-0	01	1	1008-	●
91	PIPE; OIL,FLEX HOSE TO UNION MJT7S M/T(Y3E) L=775	8-98168-253-0	01	1	1008-		●
91	PIPE; OIL,FLEX HOSE TO UNION MJX16P M/T(Y3Z) L=918	8-98145-195-0	01	1	1008-	●	●
95	BRACKET; CLIP	1-47479-482-0	05	1	1008-	●	●
109	UNION MJT7S M/T(Y3E) M16 STRAIGHT L=42	0-92123-010-0	02	1	1008-	●	●
109	UNION MJX16P M/T(Y3Z) M22 L=51	0-92123-015-0	01	1	1008-	●	●
114	PIPE; OIL,UNION TO FLEX HOSE MJT7S M/T(Y3E) MIXER TRUCK<RA2> L=861 SERVICED BY L=900	1-47428-873-0	01	1	1008-	●
114	PIPE; OIL,UNION TO FLEX HOSE MJT7S M/T(Y3E) EXC. MIXER TRUCK<RA2> L=857	8-98145-198-0	01	1	1008-	●
114	PIPE; OIL,UNION TO FLEX HOSE MJT7S M/T(Y3E) L=857	8-98145-198-0	01	1	1008-		●
114	PIPE; OIL,UNION TO FLEX HOSE MJX16P M/T(Y3Z) L=860	8-98169-359-0	01	1	1008-	●	●
116	NUT; BRKT,FLEX HOSE MJT7S M/T(Y3E) M16	0-91111-516-0	01	1	1008-	●	●
117	WASHER; LK,FLEX HOSE MJT7S M/T(Y3E) ID=16.2	0-91510-516-0	01	1	1008-	●	●
178	BOLT; BRKT,CLIP M8X35 FLANGE	0-28650-835-0	01	1	1008-	●	●
179	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	1008-	●	●
