◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11272 - CYZ LHD EURO2/3/4 WITH 3STEPS ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-30 - GEAR SHIFTER AND QUADRANT BOX ▶
2-30 — GEAR SHIFTER AND QUADRANT BOX (#55623) — 342 parça

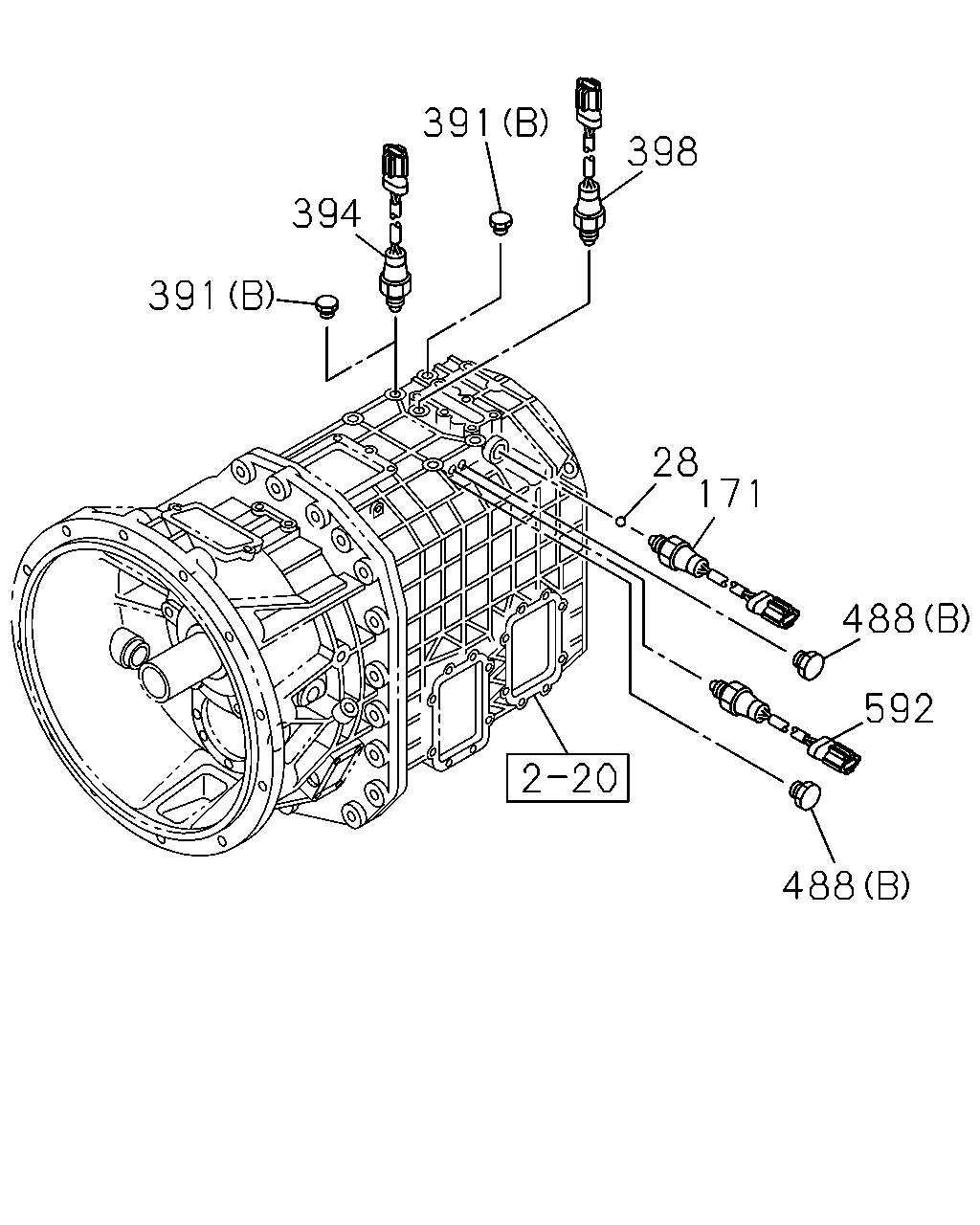

çizim 167182
391 398 394 391 28 171 488 592 488
BalonParca AdiParca NoAdetTipApplied Date A B
28 BALL; INTER LK 9-00097-501-0 04 1 1008- ●
28 BALL; INTER LK 9-00097-501-0 02 1 1008- ●
171 SWITCH; NEUTRAL 8-98166-989-0 01 1 1008-1109 ● ●
171 SWITCH; NEUTRAL 8-97640-725-0 01 1 1110- ● ●
391 PLUG; SW HOLE
(A) M12X9 		9-99202-312-0 01 1 1008-1304 ●
391 PLUG; SW HOLE
(A) M12X9 		0-92002-412-0 01 1 1305- ●
391 PLUG; SW HOLE
EURO3 SPECIFICATION<NJX> CHINA EQUIPMENT(YT2) (B) M14X9 		8-98042-944-0 02 1 1008- ●
391 PLUG; SW HOLE
COLOMBIA EQUIPMENT(CB7),GENERAL EXPORT EQUIPMENT(TAA) (B) M14X9 		8-98042-944-0 02 1 1008- ●
391 PLUG; SW HOLE
EURO4 SPECIFICATION<KBT> CHINA EQUIPMENT(YT2) (B) M14X9 		8-98042-944-0 01 1 1008- ●
391 PLUG; SW HOLE
RUSSIA EQUIPMENT(B12) (B) M14X9 		8-98042-944-0 01 1 1008- ●
394 SWITCH; RANGE CHANGE
EURO4 SPECIFICATION<KBT> CHINA EQUIPMENT(YT2) 		8-98042-853-0 01 1 1008-1209 ●
394 SWITCH; RANGE CHANGE
RUSSIA EQUIPMENT(B12) 		8-98042-853-0 01 1 1008-1209 ●
394 SWITCH; RANGE CHANGE
EURO4 SPECIFICATION<KBT> CHINA EQUIPMENT(YT2) 		8-98228-482-0 01 1 1210- ●
394 SWITCH; RANGE CHANGE
RUSSIA EQUIPMENT(B12) 		8-98228-482-0 01 1 1210- ●
398 SWITCH; REV LAMP 8-98042-853-0 01 1 1008-1209 ● ●
398 SWITCH; REV LAMP 8-98228-482-0 01 1 1210- ● ●
488 PLUG; AIR CYL
(B) M14X9 		8-98042-944-0 02 1 1008- ●
488 PLUG; AIR CYL
(A) 		9-09204-510-0 01 1 1008- ●
488 PLUG; AIR CYL
(C) PT1/4 		9-99204-513-0 01 1 1008- ●
592 SWITCH; POSITION 8-98042-853-0 01 1 1008-1209 ●
592 SWITCH; POSITION 8-98228-482-0 01 1 1210- ●

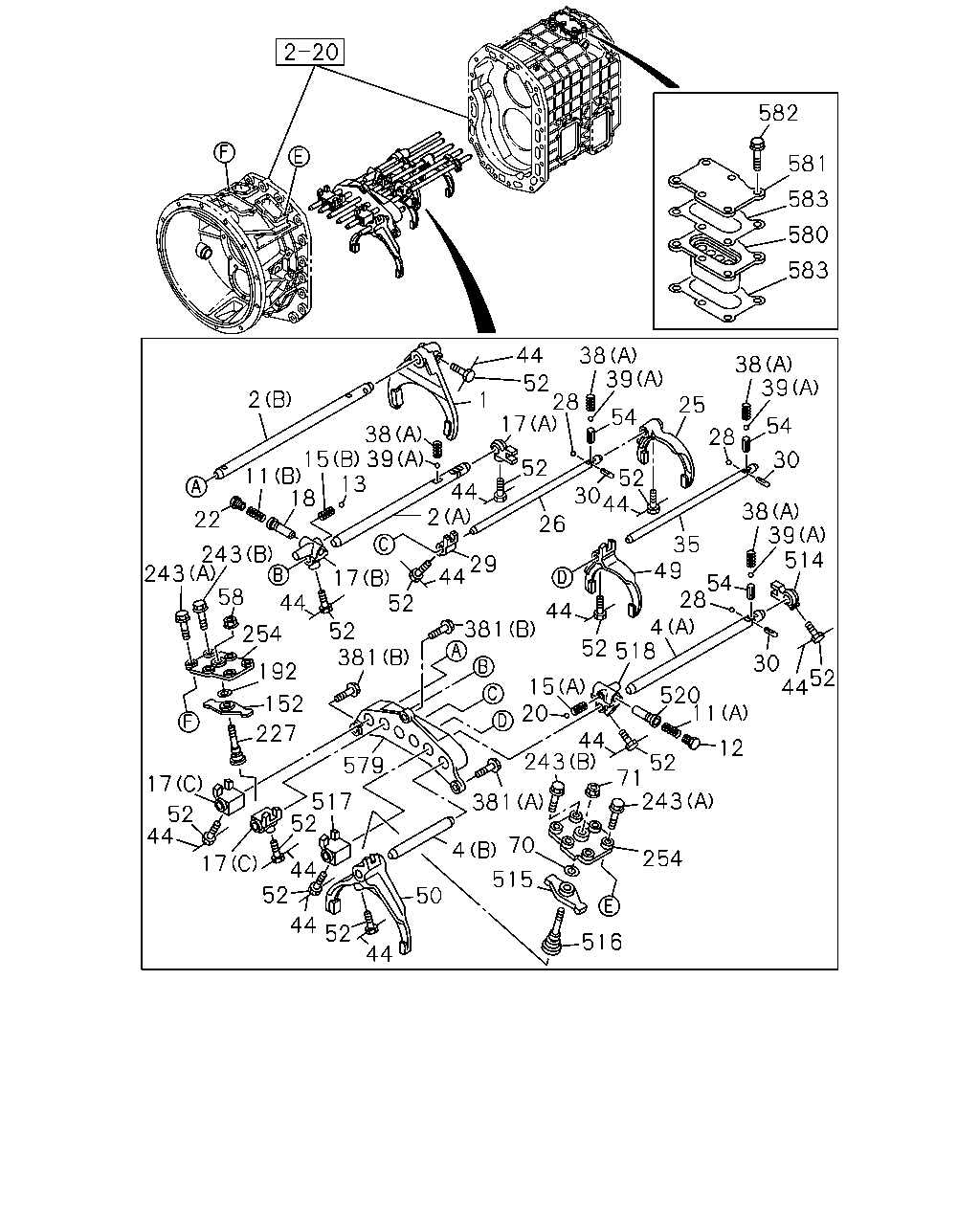

çizim 167202
582 581 583 580 583 44 38 52 39 28 38 39 28 2 1 25 54 17 54 38 11 13 18 30 52 52 30 44 44 2 38 39 514 22 26 35 49 243 243 58 29 44 17 52 54 28 4 52 518 44 44 254 381 52 381 192 30 52 44 15 20 520 11 152 227 44 243 12 579 52 71 243 17 517 52 381 52 44 70 4 254 44 52 17 515 50 44 52 516 44 15 39
BalonParca AdiParca NoAdetTipApplied Date A B
1 ARM; SHIFT,1ST & REV 1-33511-579-0 01 1 1008- ●
2 ROD; SHIFT,1ST & REV
(A) 		1-33531-438-0 01 1 1008- ●
2 ROD; SHIFT,1ST & REV
(B) 		1-33531-456-0 01 1 1008- ●
4 ROD; SHIFT,6TH
(A) 		1-33531-443-1 01 1 1008- ●
4 ROD; SHIFT,6TH
(B) 		1-33531-445-0 01 1 1008- ●
11 SPRING; RETURN,SHIFT SLEEVE
(B) 		1-09580-444-0 01 1 1008- ●
11 SPRING; RETURN,SHIFT SLEEVE
(A) 		9-09941-160-0 01 1 1008-1510 ●
11 SPRING; RETURN,SHIFT SLEEVE
(A) 		8-98294-206-0 01 1 1511- ●
12 CAP; RETURN SPR,SHIFT BLOCK 1-33516-039-1 01 1 1008- ●
13 BALL; LK,SHIFT SLEEVE 9-00097-509-0 01 1 1008- ●
15 SPRING; LK,SHIFT SLEEVE
(B) 		1-09580-438-0 01 1 1008- ●
15 SPRING; LK,SHIFT SLEEVE
(A) 		9-09941-007-0 01 1 1008- ●
17 BLOCK; SHIFT,1ST & REV
(A) 		1-33511-202-3 01 1 1008- ●
17 BLOCK; SHIFT,1ST & REV
(B) 		1-33511-552-1 01 1 1008- ●
17 BLOCK; SHIFT,1ST & REV
(C) 		1-33511-557-0 02 1 1008- ●
18 SLEEVE; 1ST & REV,SHIFT BLOCK 1-33516-022-1 01 1 1008- ●
20 BALL; DETENT SLEEVE 9-00097-509-0 01 1 1008- ●
22 CAP; RETURN SPR,SHIFT BLOCK 1-33516-039-1 01 1 1008- ●
25 ARM; SHIFT,2ND & 3RD 1-33511-435-0 01 1 1008- ●
26 ROD; SHIFT,2ND & 3RD 1-33531-440-1 01 1 1008- ●
28 BALL; INTER LK 9-00097-501-0 04 1 1008- ●
28 BALL; INTER LK 9-00097-501-0 02 1 1008- ●
29 BLOCK; SHIFT,2ND & 3RD 1-33511-376-1 01 1 1008- ●
30 PIN; INTER LK 9-33534-003-0 03 1 1008- ● ●
35 ROD; SHIFT,4TH & 5TH BLOCK 1-33531-442-1 01 1 1008- ●
38 SPRING; DETENT
(A) 		1-09580-379-0 04 1 1008- ●
38 SPRING; DETENT
(B) 		1-09580-374-0 01 1 1008- ●
38 SPRING; DETENT
(D) 		1-09580-379-0 03 1 1008- ●
38 SPRING; DETENT
(C) YELLOW 		1-09580-574-0 01 1 1008- ●
38 SPRING; DETENT
CHINA EQUIPMENT(YT2) (C) YELLOW 		1-09580-574-0 01 1 1008- ●
38 SPRING; DETENT
RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7), GENERAL EXPORT EQUIPMENT(TAA) (C) BLUE 		1-09580-580-0 01 1 1008- ●
39 BALL; DETENT
(A) 		1-09843-012-0 04 1 1008- ● ●
39 BALL; DETENT
(B) 		9-00097-013-0 01 1 1008- ●
44 WIRE; LK
L=180 		1-09780-024-0 10 1 1008- ●
44 WIRE; LK
L=200 		9-08351-020-0 02 1 1008- ●
44 WIRE; LK
L=200 		9-08351-020-0 07 1 1008- ●
49 ARM; SHIFT,4TH & 5TH 1-33511-466-1 01 1 1008- ●
50 ARM; SHIFT,6TH 1-33511-550-0 01 1 1008- ●
52 BOLT; SHIFT ARM
M12X20 W/HOLE 		1-09052-038-0 12 1 1008- ●
52 BOLT; SHIFT ARM
M12X20 W/HOLE 		1-09052-038-0 07 1 1008- ●
54 PIN; SPR,SHIFT BLOCK 1-09748-014-0 03 1 1008- ● ●
58 NUT
M12 FLANGE 		0-91180-212-0 01 1 1008- ●
70 WASHER; PL,SHIFT LEVER
ID=16.5 		9-09857-042-0 01 1 1008- ●
71 NUT; SHIFT LEVER
M12 FLANGE 		0-91180-212-0 01 1 1008- ●
152 LEVER; RELAY,SELECT 1-33511-560-1 01 1 1008- ●
192 WASHER; PL
ID=16.5 		9-09857-042-0 01 1 1008- ●
192 WASHER; PL 1-09503-310-0 04 1 1008- ●
227 SPINDLE; 1ST & REV 1-33519-104-0 01 1 1008- ●
243 BOLT; COVER
(A) M10X30 FLANGE 		0-28151-030-0 08 1 1008- ●
243 BOLT; COVER
(B) M10X28 FLANGE REAMER 		8-97365-375-0 04 1 1008- ●
243 BOLT; COVER
(C) M8X35 FLANGE 		0-28650-835-0 10 1 1008- ●
254 COVER; LEVER 1-33141-054-0 02 1 1008- ●
381 BOLT
(A) M10X35 FLANGE 		0-28751-035-0 01 1 1008- ● ●
381 BOLT
(B) M10X34 FLANGE REAMER 		1-09040-091-1 02 1 1008- ● ●
381 BOLT
(C) 		1-09044-111-0 04 1 1008- ●
514 BLOCK; 6-7 SETTING 1-33511-605-0 01 1 1008- ●
515 LEVER; SHIFT,6TH & 7TH 1-33511-560-1 01 1 1008- ●
516 SPINDLE; 6TH & 7TH 1-33519-104-0 01 1 1008- ●
517 BLOCK; SHIFT,6TH & 7TH 1-33511-557-0 01 1 1008- ●
518 BLOCK ASM; SHIFT,6TH & 7TH 1-33511-558-1 01 1 1008- ●
520 SLEEVE; 6TH & 7TH 1-33516-022-1 01 1 1008- ●
579 BLOCK; SHIFT,ROD GUIDE 1-33539-065-1 01 1 1008- ●
579 BLOCK; SHIFT,ROD GUIDE 1-33539-066-2 01 1 1008- ●
580 BLOCK; INTERLOCK 1-33539-064-1 01 1 1008- ● ●
581 COVER; BLOCK 1-33141-056-0 01 1 1008- ● ●
582 BOLT; SPRING GUIDE
M10X35 FLANGE 		0-28151-035-0 06 1 1008- ● ●
583 GASKET; SPRING GUIDE 1-33142-047-0 02 1 1008- ● ●

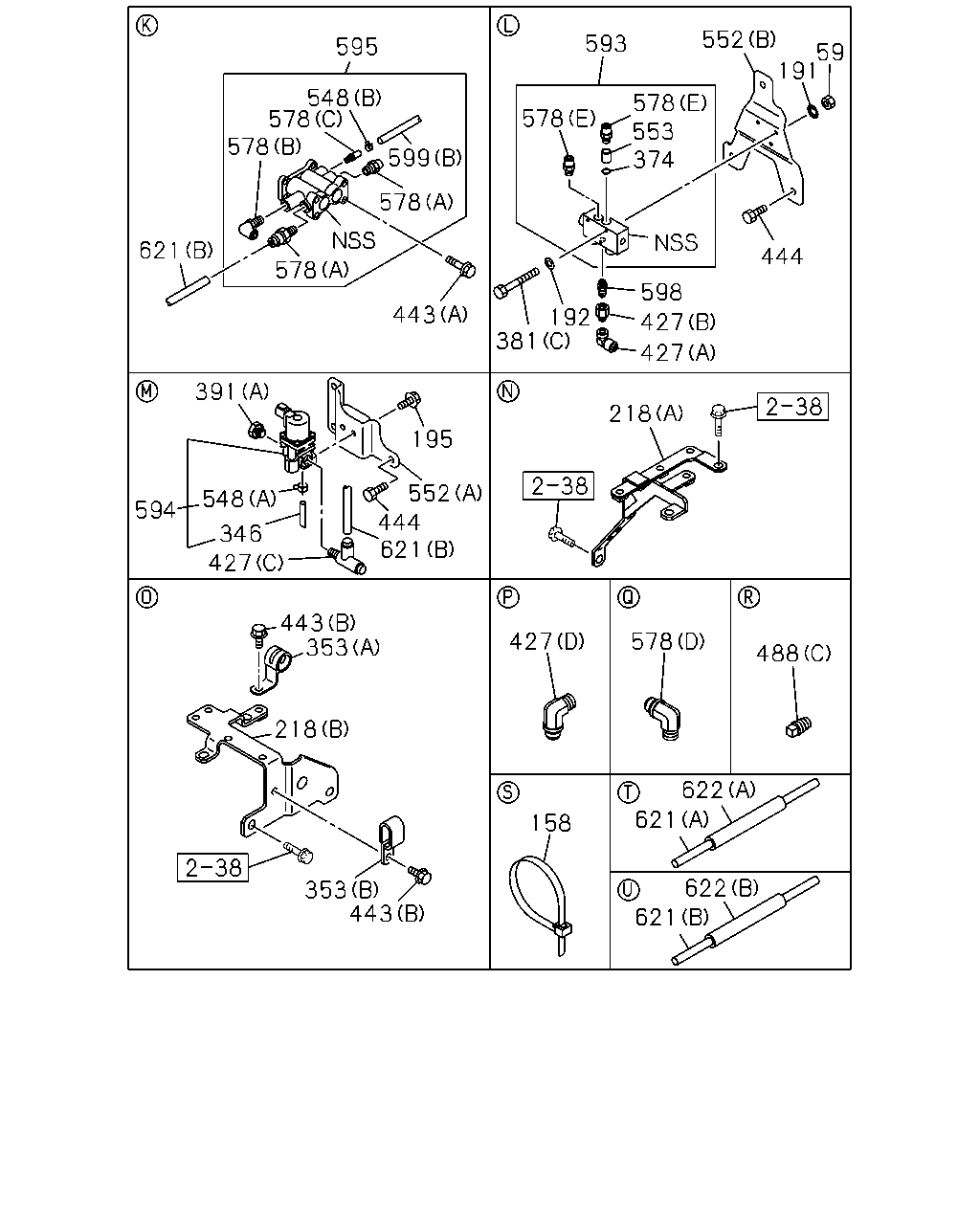

çizim 167502
595 548 578 578 621 578 578 599 391 594 548 346 427 621 444 552 195 443 353 218 353 443 158 621 622 621 622 427 578 488 218 381 192 427 427 598 444 374 578 553 578 593 552 59 443 191
BalonParca AdiParca NoAdetTipApplied Date A B
59 NUT 1-09440-068-0 04 1 1008- ●
158 CLIP; HARNESS
L=140 		5-09707-031-1 02 1 1008- ●
191 WASHER; LK 1-09503-311-0 04 1 1008- ●
192 WASHER; PL
ID=16.5 		9-09857-042-0 01 1 1008- ●
192 WASHER; PL 1-09503-310-0 04 1 1008- ●
195 BOLT
M10X25 FLANGE 		0-28751-025-0 02 1 1008- ●
195 BOLT
M8X16 FLANGE 		0-28050-816-0 02 1 1008- ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(C) 		1-82699-639-1 02 1 1008- ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(A) 		1-82698-350-0 01 1 1008- ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(B) 		1-82698-490-0 01 1 1008- ●
346 HOSE; AIR
ID=6 OD=9 L=150 		1-33739-872-0 01 1 1402- ●
353 CLIP; AIR HOSE
(A) ID=20 H=23 L=27 		1-09700-861-0 01 1 1008- ●
353 CLIP; AIR HOSE
(B) ID=16X2 L=40 		9-09535-576-0 01 1 1008- ●
374 GASKET
ALSO INCLUDED IN GASKET SET(M/T). 		1-09661-390-0 01 1 1008- ●
381 BOLT
(A) M10X35 FLANGE 		0-28751-035-0 01 1 1008- ● ●
381 BOLT
(B) M10X34 FLANGE REAMER 		1-09040-091-1 02 1 1008- ● ●
381 BOLT
(C) 		1-09044-111-0 04 1 1008- ●
391 PLUG; SW HOLE
(A) M12X9 		9-99202-312-0 01 1 1008-1304 ●
391 PLUG; SW HOLE
(A) M12X9 		0-92002-412-0 01 1 1305- ●
391 PLUG; SW HOLE
EURO3 SPECIFICATION<NJX> CHINA EQUIPMENT(YT2) (B) M14X9 		8-98042-944-0 02 1 1008- ●
391 PLUG; SW HOLE
COLOMBIA EQUIPMENT(CB7),GENERAL EXPORT EQUIPMENT(TAA) (B) M14X9 		8-98042-944-0 02 1 1008- ●
391 PLUG; SW HOLE
EURO4 SPECIFICATION<KBT> CHINA EQUIPMENT(YT2) (B) M14X9 		8-98042-944-0 01 1 1008- ●
391 PLUG; SW HOLE
RUSSIA EQUIPMENT(B12) (B) M14X9 		8-98042-944-0 01 1 1008- ●
427 CONNECTOR; NYLON TUBE
(D) DIN8 & R1/4 ELBOW 		1-09660-649-1 02 1 1008- ●
427 CONNECTOR; NYLON TUBE
(A) DIN8 ELBOW 		1-09660-924-1 01 1 1008- ●
427 CONNECTOR; NYLON TUBE
(B) M12 		1-09660-931-1 01 1 1008- ●
427 CONNECTOR; NYLON TUBE
(C) DIN8X2 & R3/8 3WAY 		1-09660-997-0 01 1 1008- ●
443 BOLT; CLIP
(B) M8X16 FLANGE 		0-28050-816-0 02 1 1008- ●
443 BOLT; CLIP
(A) M8X90 FLANGE 		0-28050-890-0 04 1 1008- ●
444 BOLT; CLIP
M10X25 FLANGE 		0-28751-025-0 06 1 1008- ●
488 PLUG; AIR CYL
(B) M14X9 		8-98042-944-0 02 1 1008- ●
488 PLUG; AIR CYL
(A) 		9-09204-510-0 01 1 1008- ●
488 PLUG; AIR CYL
(C) PT1/4 		9-99204-513-0 01 1 1008- ●
548 CLIP; HOSE
(A) ID=7.8 		8-94246-958-0 11 1 1008-1401 ●
548 CLIP; HOSE
(A) ID=7.8 		8-94246-958-0 01 1 1402- ●
548 CLIP; HOSE
(B) 		1-33712-028-0 01 1 1008- ●
552 BRACKET
(A) 		1-33719-082-0 01 1 1008- ●
552 BRACKET
(B) 		1-33719-083-0 01 1 1008- ●
553 ADAPTER; AIR 1-09661-389-0 01 1 1008- ●
578 CONNECTOR
(D) DIN8 & R1/4 ELBOW 		1-09660-649-1 02 1 1008- ●
578 CONNECTOR
(E) 		1-09661-292-0 02 1 1008- ●
578 CONNECTOR
(A) 		1-33712-023-0 02 1 1008- ●
578 CONNECTOR
(B) 		1-33712-024-0 01 1 1008- ●
578 CONNECTOR
(C) 		1-33712-026-0 01 1 1008- ●
593 VALVE; SPLITTER 1-33712-009-0 01 1 1008- ●
594 VALVE; MAGNETIC,AIR 1-82564-069-0 01 1 1008- ●
595 VALVE; RANGE 1-33712-029-1 01 1 1008- ●
598 UNION
M10 & M12 STRAIGHT 		1-09664-235-0 01 1 1008- ●
599 TUBE; NYLON
(A) 		1-09377-036-1 01 1 1008- ●
599 TUBE; NYLON
(B) 		1-33712-027-0 01 1 1008- ●
621 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 02 1 1008- ●
621 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 03 1 1008- ●
622 TUBE; CORRUGATE
(A) SERVICED BY L=2000 ID=10 		1-87410-088-0 02 1 1008- ●
622 TUBE; CORRUGATE
(B) SERVICED BY L=2000 ID=10 		1-87411-019-0 02 1 1008- ●

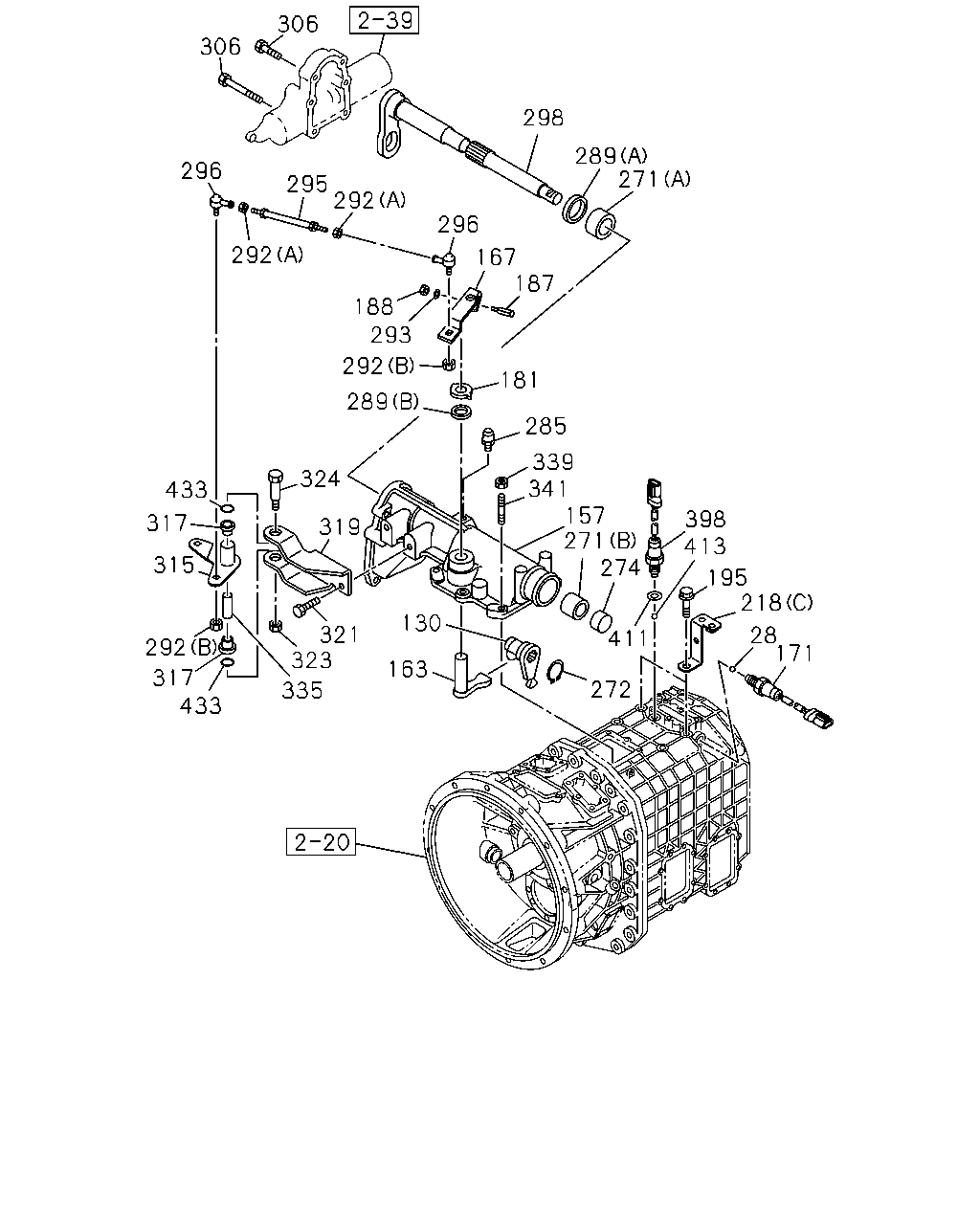

çizim 167524
306 306 298 289 271 296 295 292 296 292 167 187 188 293 292 181 289 285 339 341 157 271 274 324 433 398 413 317 315 319 195 218 130 411 292 321 323 28 171 163 317 272 335 433
BalonParca AdiParca NoAdetTipApplied Date A B
28 BALL; INTER LK 9-00097-501-0 04 1 1008- ●
28 BALL; INTER LK 9-00097-501-0 02 1 1008- ●
130 LEVER; SHIFT,INTERNAL 1-33521-124-0 01 1 1008- ●
130 LEVER; SHIFT,INTERNAL 1-33521-189-0 01 1 1008- ●
157 BOX; QUAD,TRANS 1-33541-507-3 01 1 1008-1311 ●
157 BOX; QUAD,TRANS 8-98231-390-0 01 1 1312- ●
157 BOX; QUAD,TRANS 1-33541-534-0 01 1 1008- ●
163 LEVER; SELECT,INTERNAL 1-33522-162-1 01 1 1008- ●
163 LEVER; SELECT,INTERNAL 1-33522-171-1 01 1 1008- ●
167 LEVER; SELECT,EXTERNAL 1-33521-163-0 01 1 1008- ●
167 LEVER; SELECT,EXTERNAL 1-33521-190-0 01 1 1008-1506 ●
167 LEVER; SELECT,EXTERNAL 8-98232-015-0 01 1 1507- ●
171 SWITCH; NEUTRAL 8-98166-989-0 01 1 1008-1109 ● ●
171 SWITCH; NEUTRAL 8-97640-725-0 01 1 1110- ● ●
181 WASHER; PL,SELECT LEVER
OD=40 		1-09532-008-0 01 1 1008- ● ●
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 1008- ● ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-062-1 01 1 1008- ● ●
195 BOLT
M10X25 FLANGE 		0-28751-025-0 02 1 1008- ●
195 BOLT
M8X16 FLANGE 		0-28050-816-0 02 1 1008- ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(C) 		1-82699-639-1 02 1 1008- ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(A) 		1-82698-350-0 01 1 1008- ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(B) 		1-82698-490-0 01 1 1008- ●
271 BUSHING; QUAD BOX
(B) ID=20 OD=23 		1-33549-016-0 01 1 1008- ● ●
271 BUSHING; QUAD BOX
(A) ID=28 OD=32 		1-33549-104-0 01 1 1008- ● ●
272 RING; SNAP,QUAD BOX 1-09588-175-0 01 1 1008- ●
272 RING; SNAP,QUAD BOX 1-09588-213-0 01 1 1008- ●
274 COVER; SHAFT,QUAD BOX 9-33545-017-1 01 1 1008- ●
274 COVER; SHAFT,QUAD BOX 1-33545-010-0 01 1 1008- ●
285 BREATHER; AIR,QUAD BOX 1-33149-008-0 01 1 1008- ●
285 BREATHER; AIR,QUAD BOX 1-33149-003-0 01 1 1008- ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30 		1-09625-386-0 01 1 1008- ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-647-0 01 1 1008- ● ●
292 NUT; LINK ROD
(A) M8 		0-91111-508-0 02 1 1008- ● ●
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 1008- ● ●
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		0-91610-708-0 01 1 1008- ● ●
295 ROD; LINK,RELAY LEVER 9-08400-816-0 01 1 1008- ●
295 ROD; LINK,RELAY LEVER 1-33652-924-0 01 1 1008- ●
296 ROD END 1-09760-108-0 02 1 1008- ● ●
298 SHAFT; SHIFT LEVER 1-33522-180-0 01 1 1008- ●
298 SHAFT; SHIFT LEVER 1-33522-196-0 01 1 1008- ●
306 BOLT; SHIFT ASSISTOR
M10X45 FLANGE 		0-28151-045-0 02 1 1008- ● ●
306 BOLT; SHIFT ASSISTOR
M10X80 FLANGE 		0-28151-080-0 04 1 1008- ● ●
315 LEVER; SELECT 1-33651-754-0 01 1 1008- ● ●
317 BUSHING; LEVER 1-09330-119-0 02 1 1008- ● ●
319 BRACKET; SELECT LEVER 1-33657-753-0 01 1 1008- ● ●
321 BOLT; BRKT,RELAY LEVER
M10X22 FLANGE 		0-28181-022-0 02 1 1008- ● ●
323 NUT; LK,SELECT LEVER 1-33659-219-0 01 1 1008- ● ●
324 BOLT; SHAFT
M10X60 FLANGE 		0-28081-060-0 01 1 1008- ● ●
335 COLLAR; DIST,RELAY LEVER ASM 1-33659-220-0 01 1 1008- ● ●
339 NUT; QUAD BOX
M10 FLANGE 		0-91180-210-0 06 1 1008- ●
339 NUT; QUAD BOX
M10 FLANGE 		0-91180-210-0 05 1 1008- ●
341 STUD; QUAD BOX
M10X25 L=40 		0-44011-025-0 06 1 1008- ●
341 STUD; QUAD BOX
M10X35 L=50 		0-44011-035-0 05 1 1008- ●
398 SWITCH; REV LAMP 8-98042-853-0 01 1 1008-1209 ● ●
398 SWITCH; REV LAMP 8-98228-482-0 01 1 1210- ● ●
411 GASKET; REV LAMP SW
ALSO INCLUDED IN GASKET SET(M/T). ID=14.2 		8-94462-114-0 01 1 1008- ●
413 BALL; BACK SW 9-00097-013-0 01 1 1008- ●
433 GASKET; BUSHING 1-09623-636-0 02 1 1008- ● ●

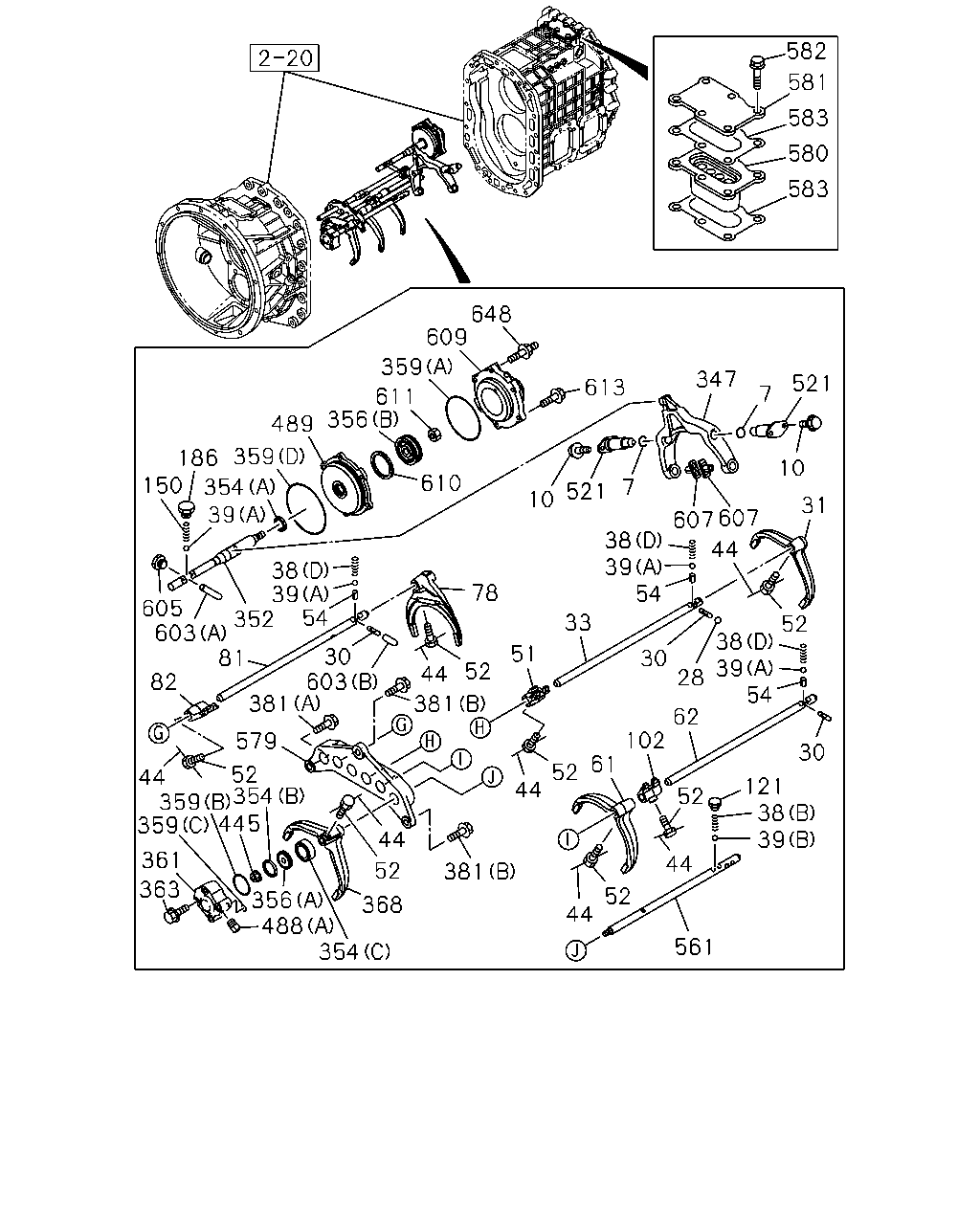

çizim 167526
582 581 583 580 583 648 609 359 347 521 613 7 611 356 489 359 186 150 10 610 354 39 7 521 10 31 38 39 54 44 38 39 81 78 605 603 33 52 38 39 54 51 30 603 381 30 52 44 28 82 381 62 102 579 30 61 52 44 52 354 359 121 38 39 44 52 44 361 44 52 381 363 488 354 52 368 44 561 352 607 607 359 445 356
BalonParca AdiParca NoAdetTipApplied Date A B
7 GASKET; SPINDLE
ALSO INCLUDED IN GASKET SET(M/T). ID=24.4 		1-09623-057-0 02 1 1008- ●
10 BOLT; SPINDLE
M10X30 FLANGE 		0-28751-030-0 04 1 1008- ●
28 BALL; INTER LK 9-00097-501-0 04 1 1008- ●
28 BALL; INTER LK 9-00097-501-0 02 1 1008- ●
30 PIN; INTER LK 9-33534-003-0 03 1 1008- ● ●
31 ARM; SHIFT,LOW & 2ND 1-33511-587-0 01 1 1008- ●
33 ROD; SHIFT,LOW & 2ND 1-33531-458-0 01 1 1008- ●
38 SPRING; DETENT
(A) 		1-09580-379-0 04 1 1008- ●
38 SPRING; DETENT
(B) 		1-09580-374-0 01 1 1008- ●
38 SPRING; DETENT
(D) 		1-09580-379-0 03 1 1008- ●
38 SPRING; DETENT
(C) YELLOW 		1-09580-574-0 01 1 1008- ●
38 SPRING; DETENT
CHINA EQUIPMENT(YT2) (C) YELLOW 		1-09580-574-0 01 1 1008- ●
38 SPRING; DETENT
RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7), GENERAL EXPORT EQUIPMENT(TAA) (C) BLUE 		1-09580-580-0 01 1 1008- ●
39 BALL; DETENT
(A) 		1-09843-012-0 04 1 1008- ● ●
39 BALL; DETENT
(B) 		9-00097-013-0 01 1 1008- ●
44 WIRE; LK
L=180 		1-09780-024-0 10 1 1008- ●
44 WIRE; LK
L=200 		9-08351-020-0 02 1 1008- ●
44 WIRE; LK
L=200 		9-08351-020-0 07 1 1008- ●
51 BLOCK; SHIFT,1ST & 2ND 1-33511-617-0 01 1 1008- ●
52 BOLT; SHIFT ARM
M12X20 W/HOLE 		1-09052-038-0 12 1 1008- ●
52 BOLT; SHIFT ARM
M12X20 W/HOLE 		1-09052-038-0 07 1 1008- ●
54 PIN; SPR,SHIFT BLOCK 1-09748-014-0 03 1 1008- ● ●
61 ARM; SHIFT,3RD & 4TH 1-33511-586-0 01 1 1008- ●
62 ROD; SHIFT,3RD & 4TH 1-33531-459-0 01 1 1008- ●
78 ARM; SHIFT,REV 1-33511-589-0 01 1 1008- ●
81 ROD; SHIFT,REV BLOCK 1-33531-457-0 01 1 1008- ●
82 BLOCK; SHIFT,REV 1-33511-600-0 01 1 1008- ●
102 BLOCK; SHIFT,3RD & 4TH 1-33511-615-0 01 1 1008- ●
121 PLUG; DETENT SPR
M16X12 		0-92002-416-0 01 1 1008- ●
121 PLUG; DETENT SPR
M14X9 		8-98042-944-0 02 1 1008- ●
150 SPRING; DETENT BALL 1-09580-379-0 01 1 1008- ●
186 PLUG; SHIFTER ROD
M16X12 		0-92002-416-0 01 1 1008- ●
347 ARM; SHIFT,RANGE CHANGE 1-33511-585-0 01 1 1008- ●
352 ROD; SHIFT,RANGE CHANGE 1-33531-482-0 01 1 1008- ●
354 SEAL; AIR CYL
(A) 		1-19387-056-0 01 1 1008- ●
354 SEAL; AIR CYL
(B) 		1-33739-978-0 01 1 1008- ●
354 SEAL; AIR CYL
(C) 		1-33739-981-0 01 1 1008- ●
356 PISTON; AIR CYL
(A) 		1-33551-017-0 01 1 1008- ●
356 PISTON; AIR CYL
(B) 		1-33551-025-0 01 1 1008- ●
359 GASKET; AIR CYL
(A) ID=124.6 		1-09623-468-0 01 1 1008- ●
359 GASKET; AIR CYL
(B) ID=55.6 		8-98075-598-0 01 1 1008- ●
359 GASKET; AIR CYL
(C) ID=6.8 		9-09565-107-0 01 1 1008- ●
359 GASKET; AIR CYL
(D) ID=144.4 		9-09920-735-0 01 1 1008- ●
361 CYLINDER; AIR,SHIFT 1-33561-019-0 01 1 1008- ●
363 BOLT; AIR CYL
M10X60 FLANGE 		8-98169-763-0 04 1 1008- ●
368 ARM; SHIFT,SPLITTER GEAR 1-33511-588-0 01 1 1008-1510 ●
368 ARM; SHIFT,SPLITTER GEAR 8-98318-482-0 01 1 1511- ●
381 BOLT
(A) M10X35 FLANGE 		0-28751-035-0 01 1 1008- ● ●
381 BOLT
(B) M10X34 FLANGE REAMER 		1-09040-091-1 02 1 1008- ● ●
381 BOLT
(C) 		1-09044-111-0 04 1 1008- ●
445 NUT; SHIFT CYL
M12 LOCK NUT FLANGE 		0-91380-012-0 01 1 1008- ●
488 PLUG; AIR CYL
(B) M14X9 		8-98042-944-0 02 1 1008- ●
488 PLUG; AIR CYL
(A) 		9-09204-510-0 01 1 1008- ●
488 PLUG; AIR CYL
(C) PT1/4 		9-99204-513-0 01 1 1008- ●
489 COVER; AIR CYL 1-33569-052-0 01 1 1008- ●
521 SPINDLE; 6TH 1-33519-131-0 02 1 1008- ●
561 ROD; SHIFT 1-33531-466-0 01 1 1008- ●
579 BLOCK; SHIFT,ROD GUIDE 1-33539-065-1 01 1 1008- ●
579 BLOCK; SHIFT,ROD GUIDE 1-33539-066-2 01 1 1008- ●
580 BLOCK; INTERLOCK 1-33539-064-1 01 1 1008- ● ●
581 COVER; BLOCK 1-33141-056-0 01 1 1008- ● ●
582 BOLT; SPRING GUIDE
M10X35 FLANGE 		0-28151-035-0 06 1 1008- ● ●
583 GASKET; SPRING GUIDE 1-33142-047-0 02 1 1008- ● ●
603 ROD; INTER LK
(B) L=49 		1-33534-005-0 01 1 1008- ●
603 ROD; INTER LK
(A) L=77 		1-33534-010-0 01 1 1008- ●
605 PLUG; INTER LK
M18X12 		0-92002-418-0 01 1 1008- ●
607 PIECE; SHIFT 1-33518-010-0 02 1 1008- ●
609 BODY; AIR,CYL 1-33561-018-0 01 1 1008- ●
610 SEAL; PISTON 1-33738-054-0 01 1 1008- ●
611 NUT; SHAFT 8-97324-304-0 01 1 1008- ●
613 BOLT; AIR CYL
M10X45 FLANGE 		0-28151-045-0 03 1 1008- ●
648 STUD; AIR CYL
M10X20,M10X45 L=75 		8-98010-335-0 03 1 1008- ●

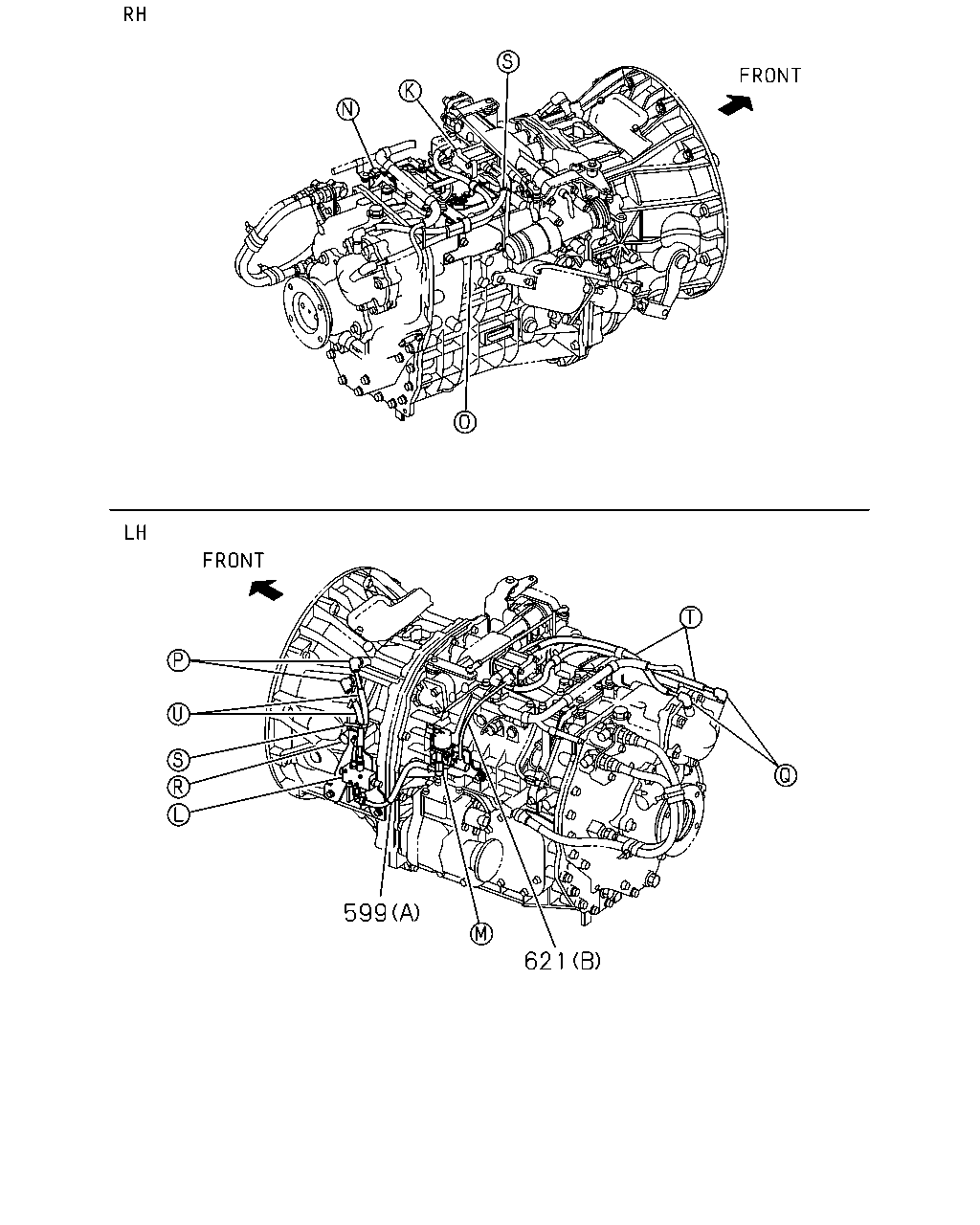

çizim 167529
599 621
BalonParca AdiParca NoAdetTipApplied Date A B
599 TUBE; NYLON
(A) 		1-09377-036-1 01 1 1008- ●
599 TUBE; NYLON
(B) 		1-33712-027-0 01 1 1008- ●
621 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 02 1 1008- ●
621 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 03 1 1008- ●

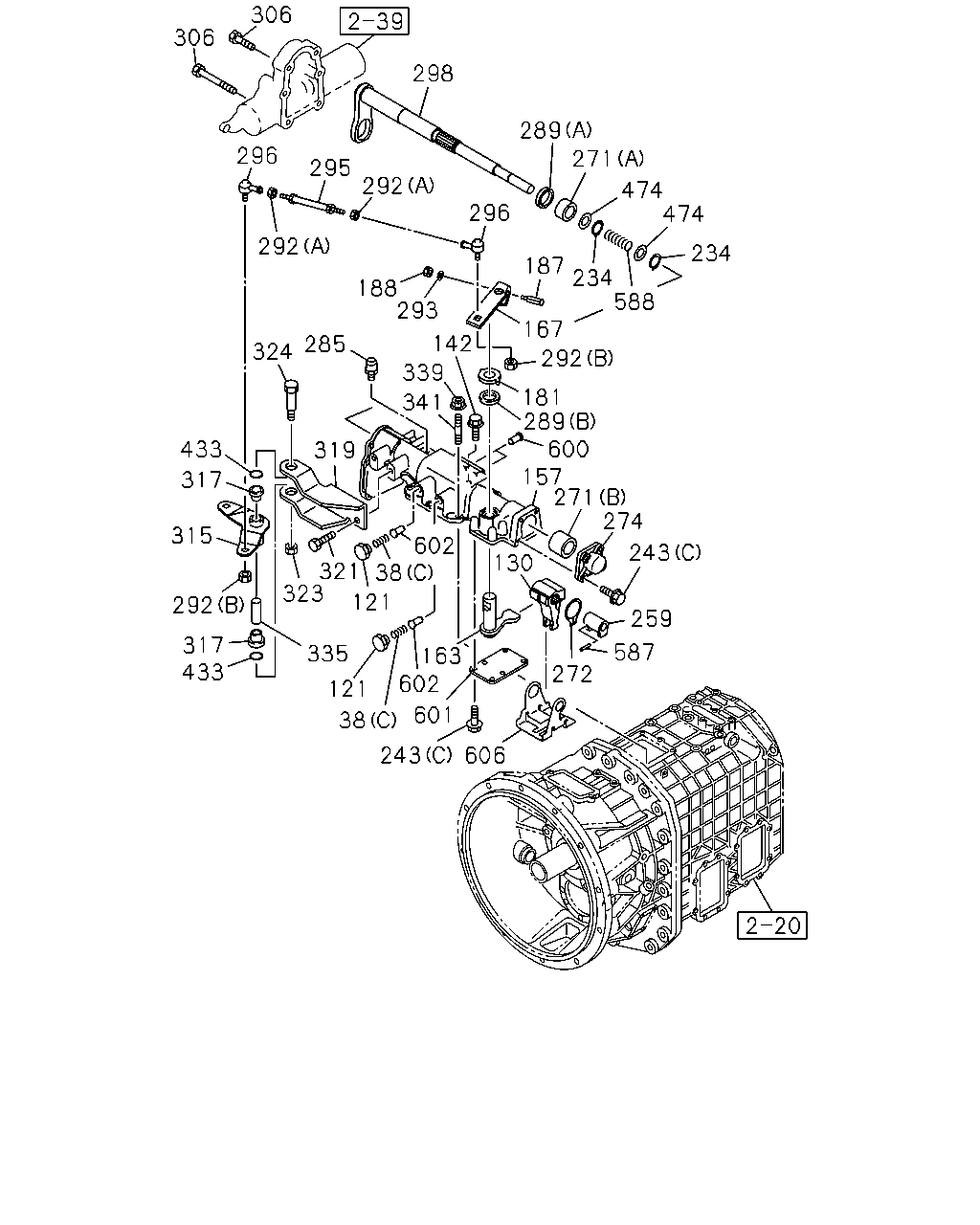

çizim 167530
306 306 298 289 296 271 295 292 474 474 296 292 234 187 234 588 188 293 142 167 285 324 292 339 181 289 600 157 271 274 341 433 319 317 602 38 130 315 243 321 323 121 292 259 317 433 163 602 587 335 272 121 601 38 243 606
BalonParca AdiParca NoAdetTipApplied Date A B
38 SPRING; DETENT
(A) 		1-09580-379-0 04 1 1008- ●
38 SPRING; DETENT
(B) 		1-09580-374-0 01 1 1008- ●
38 SPRING; DETENT
(D) 		1-09580-379-0 03 1 1008- ●
38 SPRING; DETENT
(C) YELLOW 		1-09580-574-0 01 1 1008- ●
38 SPRING; DETENT
CHINA EQUIPMENT(YT2) (C) YELLOW 		1-09580-574-0 01 1 1008- ●
38 SPRING; DETENT
RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7), GENERAL EXPORT EQUIPMENT(TAA) (C) BLUE 		1-09580-580-0 01 1 1008- ●
121 PLUG; DETENT SPR
M16X12 		0-92002-416-0 01 1 1008- ●
121 PLUG; DETENT SPR
M14X9 		8-98042-944-0 02 1 1008- ●
130 LEVER; SHIFT,INTERNAL 1-33521-124-0 01 1 1008- ●
130 LEVER; SHIFT,INTERNAL 1-33521-189-0 01 1 1008- ●
142 BOLT; QUAD BOX
M10X30 FLANGE 		0-28751-030-0 01 1 1008- ●
157 BOX; QUAD,TRANS 1-33541-507-3 01 1 1008-1311 ●
157 BOX; QUAD,TRANS 8-98231-390-0 01 1 1312- ●
157 BOX; QUAD,TRANS 1-33541-534-0 01 1 1008- ●
163 LEVER; SELECT,INTERNAL 1-33522-162-1 01 1 1008- ●
163 LEVER; SELECT,INTERNAL 1-33522-171-1 01 1 1008- ●
167 LEVER; SELECT,EXTERNAL 1-33521-163-0 01 1 1008- ●
167 LEVER; SELECT,EXTERNAL 1-33521-190-0 01 1 1008-1506 ●
167 LEVER; SELECT,EXTERNAL 8-98232-015-0 01 1 1507- ●
181 WASHER; PL,SELECT LEVER
OD=40 		1-09532-008-0 01 1 1008- ● ●
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 1008- ● ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-062-1 01 1 1008- ● ●
234 RING; SNAP
ID=14.7 		0-91800-616-0 02 1 1008- ●
243 BOLT; COVER
(A) M10X30 FLANGE 		0-28151-030-0 08 1 1008- ●
243 BOLT; COVER
(B) M10X28 FLANGE REAMER 		8-97365-375-0 04 1 1008- ●
243 BOLT; COVER
(C) M8X35 FLANGE 		0-28650-835-0 10 1 1008- ●
259 GUIDE; SELECT,CONT BOX 1-33519-135-0 01 1 1008- ●
271 BUSHING; QUAD BOX
(B) ID=20 OD=23 		1-33549-016-0 01 1 1008- ● ●
271 BUSHING; QUAD BOX
(A) ID=28 OD=32 		1-33549-104-0 01 1 1008- ● ●
272 RING; SNAP,QUAD BOX 1-09588-175-0 01 1 1008- ●
272 RING; SNAP,QUAD BOX 1-09588-213-0 01 1 1008- ●
274 COVER; SHAFT,QUAD BOX 9-33545-017-1 01 1 1008- ●
274 COVER; SHAFT,QUAD BOX 1-33545-010-0 01 1 1008- ●
285 BREATHER; AIR,QUAD BOX 1-33149-008-0 01 1 1008- ●
285 BREATHER; AIR,QUAD BOX 1-33149-003-0 01 1 1008- ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30 		1-09625-386-0 01 1 1008- ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-647-0 01 1 1008- ● ●
292 NUT; LINK ROD
(A) M8 		0-91111-508-0 02 1 1008- ● ●
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 1008- ● ●
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		0-91610-708-0 01 1 1008- ● ●
295 ROD; LINK,RELAY LEVER 9-08400-816-0 01 1 1008- ●
295 ROD; LINK,RELAY LEVER 1-33652-924-0 01 1 1008- ●
296 ROD END 1-09760-108-0 02 1 1008- ● ●
298 SHAFT; SHIFT LEVER 1-33522-180-0 01 1 1008- ●
298 SHAFT; SHIFT LEVER 1-33522-196-0 01 1 1008- ●
306 BOLT; SHIFT ASSISTOR
M10X45 FLANGE 		0-28151-045-0 02 1 1008- ● ●
306 BOLT; SHIFT ASSISTOR
M10X80 FLANGE 		0-28151-080-0 04 1 1008- ● ●
315 LEVER; SELECT 1-33651-754-0 01 1 1008- ● ●
317 BUSHING; LEVER 1-09330-119-0 02 1 1008- ● ●
319 BRACKET; SELECT LEVER 1-33657-753-0 01 1 1008- ● ●
321 BOLT; BRKT,RELAY LEVER
M10X22 FLANGE 		0-28181-022-0 02 1 1008- ● ●
323 NUT; LK,SELECT LEVER 1-33659-219-0 01 1 1008- ● ●
324 BOLT; SHAFT
M10X60 FLANGE 		0-28081-060-0 01 1 1008- ● ●
335 COLLAR; DIST,RELAY LEVER ASM 1-33659-220-0 01 1 1008- ● ●
339 NUT; QUAD BOX
M10 FLANGE 		0-91180-210-0 06 1 1008- ●
339 NUT; QUAD BOX
M10 FLANGE 		0-91180-210-0 05 1 1008- ●
341 STUD; QUAD BOX
M10X25 L=40 		0-44011-025-0 06 1 1008- ●
341 STUD; QUAD BOX
M10X35 L=50 		0-44011-035-0 05 1 1008- ●
433 GASKET; BUSHING 1-09623-636-0 02 1 1008- ● ●
474 WASHER; SPRING STOPPER 9-09160-716-0 02 1 1008- ●
587 PIN; SHIFT GUIDE 9-08160-420-0 01 1 1008- ●
588 SPRING; RETURN,QUADRANT BOX 1-09580-576-0 01 1 1008- ●
600 PLUNGER; VLV 1-33263-037-0 02 1 1008- ●
601 COVER; SHAFT,SELECT 1-33545-011-0 01 1 1008- ●
602 PLUNGER; DETENT 1-33263-037-0 02 1 1008- ●
606 INHIBITOR 1-33529-116-0 01 1 1008- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
