2-07 — CLUTCH BOOSTER; MINIPACK (#55617) — 150 parça

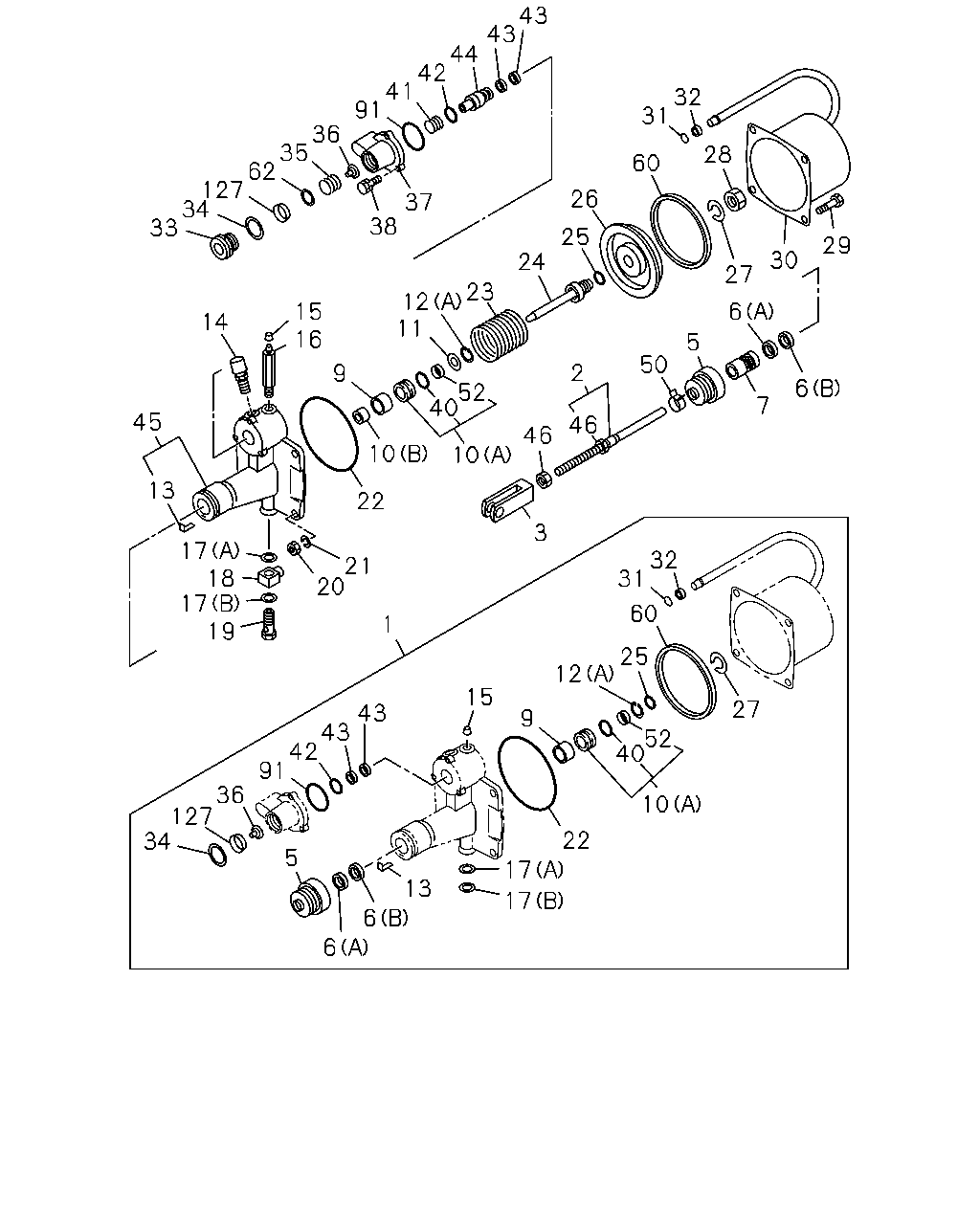

43 43 44 42 41 91 32 31 36 35 62 127 34 33 28 60 26 37 38 25 29 30 24 27 23 12 11 6 15 16 14 5 50 2 9 6 52 40 7 45 46 46 10 10 13 22 3 17 18 17 19 32 31 21 20 60 1 25 12 15 27 43 43 42 91 9 52 40 36 127 34 10 22 17 5 13 17 6 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	REPAIR KIT; CLU BOOSTER CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>	1-31829-523-0	01	1	1008-	●
1	REPAIR KIT; CLU BOOSTER EXC. CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>	1-31829-501-0	01	1	1008-	●
1	REPAIR KIT; CLU BOOSTER	1-31829-560-0	01	1	1008-		●
2	ROD; PUSH,CLU BOOSTER	1-31824-233-0	01	1	1008-	●
2	ROD; PUSH,CLU BOOSTER	1-31824-227-0	01	1	1008-		●
3	CLEVIS; PUSH ROD,CLU BOOSTER	1-31829-287-0	01	1	1008-	●	●
5	GUARD; PISTON,CLU BOOSTER	1-31829-503-0	01	1	1008-	●
5	GUARD; PISTON,CLU BOOSTER	1-31829-555-0	01	1	1008-		●
6	GASKET; PISTON CUP,CLU BOOSTER (A)	1-31829-055-0	01	1	1008-	●	●
6	GASKET; PISTON CUP,CLU BOOSTER (B)	1-31829-056-0	01	1	1008-	●	●
7	PISTON; CLU BOOSTER	1-31821-048-0	01	1	1008-	●	●
9	GASKET; PISTON CUP,CLU BOOSTER	1-31829-251-0	01	1	1008-	●	●
10	RETAINER; PISTON,CLU BOOSTER (A)	1-31829-285-0	01	1	1008-	●	●
10	RETAINER; PISTON,CLU BOOSTER (B)	1-31829-428-0	01	1	1008-	●	●
11	WASHER; PISTON,CLU BOOSTER	1-31829-105-0	01	1	1008-	●	●
12	RING; RET,CLU BOOSTER (A)	1-31829-142-0	01	1	1008-	●	●
12	RING; RET,CLU BOOSTER (B)	8-94415-036-0	01	1	1008-		●
13	PIN; SPR	1-31829-109-0	01	1	1008-	●
14	COVER; EXH,CLU BOOSTER	1-31829-564-0	01	1	1008-	●
14	COVER; EXH,CLU BOOSTER	1-31829-366-0	01	1	1008-		●
15	PROTECTOR; END PLATE,CLU BOOSTER	9-83335-044-0	01	1	1008-	●	●
16	PLUG; END PLATE,CLU BOOSTER	9-83331-704-0	01	1	1008-	●	●
17	GASKET; CONN,CLU BOOSTER (A)	9-09920-267-0	01	1	1008-	●	●
17	GASKET; CONN,CLU BOOSTER (B)	9-09920-268-0	01	1	1008-	●	●
18	CONNECTOR; END PLATE,CLU BOOSTER	1-31829-248-0	01	1	1008-	●	●
19	BOLT; EYE,END PLATE,CLU BOOSTER	9-83315-047-0	01	1	1008-	●	●
20	NUT; END PLATE TO SHELL,CLU BOOSTER M10	9-09111-410-0	04	1	1008-	●	●
21	WASHER; END PLATE TO SHELL,CLU BOOSTER ID=10.2	9-09150-510-0	04	1	1008-	●	●
22	GASKET; END PLATE TO SHELL,CLU BOOSTER	1-31829-281-0	01	1	1008-	●	●
23	SPRING; SHELL,CLU BOOSTER	1-31829-350-0	01	1	1008-	●
23	SPRING; SHELL,CLU BOOSTER	1-31829-554-0	01	1	1008-		●
24	ROD; PUSH,CLU BOOSTER	1-31824-158-0	01	1	1008-	●
24	ROD; PUSH,CLU BOOSTER	1-31824-224-0	01	1	1008-		●
25	GASKET; PUSH ROD,CLU BOOSTER	1-31829-277-0	01	1	1008-	●	●
26	PISTON; SHELL,CLU BOOSTER	1-31821-072-0	01	1	1008-	●
26	PISTON; SHELL,CLU BOOSTER	1-31821-050-0	01	1	1008-		●
27	SPRING; CLU BOOSTER	1-31829-291-0	01	1	1008-	●	●
28	NUT; PUSH ROD,CLU BOOSTER	1-31829-290-0	01	1	1008-	●	●
29	BOLT; END PLATE TO SHELL,CLU BOOSTER	9-83315-099-0	04	1	1008-	●	●
30	SHELL; CYL,CLU BOOSTER	1-31811-117-0	01	1	1008-	●
30	SHELL; CYL,CLU BOOSTER	1-31811-128-0	01	1	1008-		●
31	GASKET; SHELL,CLU BOOSTER	1-31829-279-0	01	1	1008-	●	●
32	BUSHING; SHELL,CLU BOOSTER	1-31829-280-0	01	1	1008-	●	●
33	CONNECTOR; UPR,VLV,CLU BOOSTER CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>	1-31829-214-0	01	1	1008-	●
33	CONNECTOR; UPR,VLV,CLU BOOSTER EXC. CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>	1-31829-448-0	01	1	1008-	●
33	CONNECTOR; UPR,VLV,CLU BOOSTER	1-31829-448-0	01	1	1008-		●
34	GASKET; CONN,CLU BOOSTER	1-31829-053-0	01	1	1008-	●	●
35	SPRING; POPPET VLV,CLU BOOSTER CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>	1-31829-451-0	01	1	1008-	●
35	SPRING; POPPET VLV,CLU BOOSTER	1-31829-451-0	01	1	1008-		●
35	SPRING; POPPET VLV,CLU BOOSTER EXC. CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>	1-31829-537-0	01	1	1008-	●
36	VALVE; POPPET,CLU BOOSTER CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>	1-31829-452-0	01	1	1008-	●
36	VALVE; POPPET,CLU BOOSTER	1-31829-452-0	01	1	1008-		●
36	VALVE; POPPET,CLU BOOSTER EXC. CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>	1-31829-536-0	01	1	1008-	●
37	BODY; UPR,VLV,CLU BOOSTER	1-31811-085-0	01	1	1008-	●	●
38	SCREW; UPR VLV TO END PLATE,CLU BOOSTE	9-83315-113-0	03	1	1008-	●	●
40	GASKET; PISTON,CLU BOOSTER	1-31829-037-0	01	1	1008-	●	●
41	SPRING; DIAPH,CLU BOOSTER	1-31829-458-0	01	1	1008-	●	●
42	GASKET; FITTING,CLU BOOSTER CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>	1-31829-123-0	01	1	1008-	●
42	GASKET; FITTING,CLU BOOSTER EXC. CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>	1-31829-148-0	01	1	1008-	●
42	GASKET; FITTING,CLU BOOSTER	1-31829-148-0	01	1	1008-		●
43	GASKET; UPR VLV,CLU BOOSTER	1-31829-060-0	02	1	1008-	●	●
44	PISTON; UPR VLV,CLU BOOSTER CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>	1-31821-089-0	01	1	1008-	●
44	PISTON; UPR VLV,CLU BOOSTER EXC. CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>	1-31821-058-0	01	1	1008-	●
44	PISTON; UPR VLV,CLU BOOSTER	1-31821-058-0	01	1	1008-		●
45	PLATE; END,CLU BOOSTER CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>	1-31811-138-0	01	1	1008-	●
45	PLATE; END,CLU BOOSTER EXC. CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>	1-31811-067-0	01	1	1008-	●
45	PLATE; END,CLU BOOSTER	1-31811-133-0	01	1	1008-		●
46	NUT; PUSH ROD,CLU BOOSTER M10	9-09111-410-0	02	1	1008-	●	●
50	CLAMP; PISTON GUARD,CLU BOOSTER	1-31829-504-0	01	1	1008-	●
52	SEAL; OIL,END PLATE,CLU BOOSTER	1-47819-027-0	01	1	1008-		●
60	GASKET; SHELL,CLU BOOSTER	1-31829-454-0	01	1	1008-	●
60	GASKET; SHELL,CLU BOOSTER	1-31829-292-0	01	1	1008-		●
62	RETAINER; POPPET	1-31829-489-0	01	1	1008-	●
91	GASKET; CLU BOOSTER	1-31829-103-0	01	1	1008-	●	●
127	FILTER; POPPET CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>	1-31829-495-0	01	1	1008-	●
127	FILTER; POPPET EXC. CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>	1-31829-488-0	01	1	1008-	●

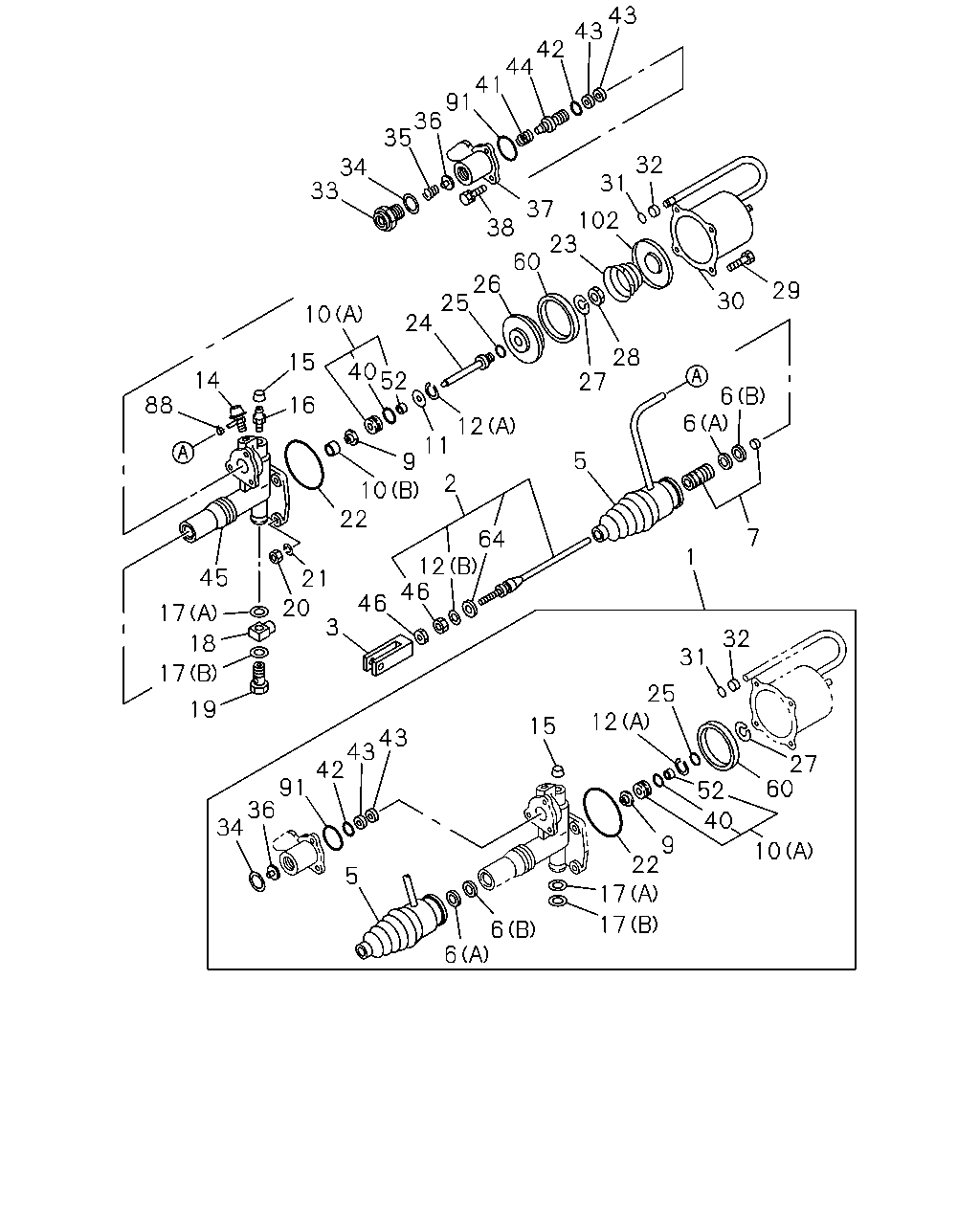

43 43 42 44 41 91 36 35 32 34 33 31 37 102 23 60 38 26 25 24 29 30 10 28 27 15 40 52 14 6 88 16 6 12 11 5 9 10 22 2 7 64 12 46 1 45 21 46 20 17 3 32 18 31 17 25 19 12 15 43 43 42 27 60 91 36 34 52 40 9 22 17 10 5 17 6 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	REPAIR KIT; CLU BOOSTER CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>	1-31829-523-0	01	1	1008-	●
1	REPAIR KIT; CLU BOOSTER EXC. CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>	1-31829-501-0	01	1	1008-	●
1	REPAIR KIT; CLU BOOSTER	1-31829-560-0	01	1	1008-		●
2	ROD; PUSH,CLU BOOSTER	1-31824-233-0	01	1	1008-	●
2	ROD; PUSH,CLU BOOSTER	1-31824-227-0	01	1	1008-		●
3	CLEVIS; PUSH ROD,CLU BOOSTER	1-31829-287-0	01	1	1008-	●	●
5	GUARD; PISTON,CLU BOOSTER	1-31829-503-0	01	1	1008-	●
5	GUARD; PISTON,CLU BOOSTER	1-31829-555-0	01	1	1008-		●
6	GASKET; PISTON CUP,CLU BOOSTER (A)	1-31829-055-0	01	1	1008-	●	●
6	GASKET; PISTON CUP,CLU BOOSTER (B)	1-31829-056-0	01	1	1008-	●	●
7	PISTON; CLU BOOSTER	1-31821-048-0	01	1	1008-	●	●
9	GASKET; PISTON CUP,CLU BOOSTER	1-31829-251-0	01	1	1008-	●	●
10	RETAINER; PISTON,CLU BOOSTER (A)	1-31829-285-0	01	1	1008-	●	●
10	RETAINER; PISTON,CLU BOOSTER (B)	1-31829-428-0	01	1	1008-	●	●
11	WASHER; PISTON,CLU BOOSTER	1-31829-105-0	01	1	1008-	●	●
12	RING; RET,CLU BOOSTER (A)	1-31829-142-0	01	1	1008-	●	●
12	RING; RET,CLU BOOSTER (B)	8-94415-036-0	01	1	1008-		●
14	COVER; EXH,CLU BOOSTER	1-31829-564-0	01	1	1008-	●
14	COVER; EXH,CLU BOOSTER	1-31829-366-0	01	1	1008-		●
15	PROTECTOR; END PLATE,CLU BOOSTER	9-83335-044-0	01	1	1008-	●	●
16	PLUG; END PLATE,CLU BOOSTER	9-83331-704-0	01	1	1008-	●	●
17	GASKET; CONN,CLU BOOSTER (A)	9-09920-267-0	01	1	1008-	●	●
17	GASKET; CONN,CLU BOOSTER (B)	9-09920-268-0	01	1	1008-	●	●
18	CONNECTOR; END PLATE,CLU BOOSTER	1-31829-248-0	01	1	1008-	●	●
19	BOLT; EYE,END PLATE,CLU BOOSTER	9-83315-047-0	01	1	1008-	●	●
20	NUT; END PLATE TO SHELL,CLU BOOSTER M10	9-09111-410-0	04	1	1008-	●	●
21	WASHER; END PLATE TO SHELL,CLU BOOSTER ID=10.2	9-09150-510-0	04	1	1008-	●	●
22	GASKET; END PLATE TO SHELL,CLU BOOSTER	1-31829-281-0	01	1	1008-	●	●
23	SPRING; SHELL,CLU BOOSTER	1-31829-350-0	01	1	1008-	●
23	SPRING; SHELL,CLU BOOSTER	1-31829-554-0	01	1	1008-		●
24	ROD; PUSH,CLU BOOSTER	1-31824-158-0	01	1	1008-	●
24	ROD; PUSH,CLU BOOSTER	1-31824-224-0	01	1	1008-		●
25	GASKET; PUSH ROD,CLU BOOSTER	1-31829-277-0	01	1	1008-	●	●
26	PISTON; SHELL,CLU BOOSTER	1-31821-072-0	01	1	1008-	●
26	PISTON; SHELL,CLU BOOSTER	1-31821-050-0	01	1	1008-		●
27	SPRING; CLU BOOSTER	1-31829-291-0	01	1	1008-	●	●
28	NUT; PUSH ROD,CLU BOOSTER	1-31829-290-0	01	1	1008-	●	●
29	BOLT; END PLATE TO SHELL,CLU BOOSTER	9-83315-099-0	04	1	1008-	●	●
30	SHELL; CYL,CLU BOOSTER	1-31811-117-0	01	1	1008-	●
30	SHELL; CYL,CLU BOOSTER	1-31811-128-0	01	1	1008-		●
31	GASKET; SHELL,CLU BOOSTER	1-31829-279-0	01	1	1008-	●	●
32	BUSHING; SHELL,CLU BOOSTER	1-31829-280-0	01	1	1008-	●	●
33	CONNECTOR; UPR,VLV,CLU BOOSTER CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>	1-31829-214-0	01	1	1008-	●
33	CONNECTOR; UPR,VLV,CLU BOOSTER EXC. CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>	1-31829-448-0	01	1	1008-	●
33	CONNECTOR; UPR,VLV,CLU BOOSTER	1-31829-448-0	01	1	1008-		●
34	GASKET; CONN,CLU BOOSTER	1-31829-053-0	01	1	1008-	●	●
35	SPRING; POPPET VLV,CLU BOOSTER CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>	1-31829-451-0	01	1	1008-	●
35	SPRING; POPPET VLV,CLU BOOSTER	1-31829-451-0	01	1	1008-		●
35	SPRING; POPPET VLV,CLU BOOSTER EXC. CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>	1-31829-537-0	01	1	1008-	●
36	VALVE; POPPET,CLU BOOSTER CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>	1-31829-452-0	01	1	1008-	●
36	VALVE; POPPET,CLU BOOSTER	1-31829-452-0	01	1	1008-		●
36	VALVE; POPPET,CLU BOOSTER EXC. CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>	1-31829-536-0	01	1	1008-	●
37	BODY; UPR,VLV,CLU BOOSTER	1-31811-085-0	01	1	1008-	●	●
38	SCREW; UPR VLV TO END PLATE,CLU BOOSTE	9-83315-113-0	03	1	1008-	●	●
40	GASKET; PISTON,CLU BOOSTER	1-31829-037-0	01	1	1008-	●	●
41	SPRING; DIAPH,CLU BOOSTER	1-31829-458-0	01	1	1008-	●	●
42	GASKET; FITTING,CLU BOOSTER CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>	1-31829-123-0	01	1	1008-	●
42	GASKET; FITTING,CLU BOOSTER EXC. CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>	1-31829-148-0	01	1	1008-	●
42	GASKET; FITTING,CLU BOOSTER	1-31829-148-0	01	1	1008-		●
43	GASKET; UPR VLV,CLU BOOSTER	1-31829-060-0	02	1	1008-	●	●
44	PISTON; UPR VLV,CLU BOOSTER CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>	1-31821-089-0	01	1	1008-	●
44	PISTON; UPR VLV,CLU BOOSTER EXC. CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>	1-31821-058-0	01	1	1008-	●
44	PISTON; UPR VLV,CLU BOOSTER	1-31821-058-0	01	1	1008-		●
45	PLATE; END,CLU BOOSTER CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>	1-31811-138-0	01	1	1008-	●
45	PLATE; END,CLU BOOSTER EXC. CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>	1-31811-067-0	01	1	1008-	●
45	PLATE; END,CLU BOOSTER	1-31811-133-0	01	1	1008-		●
46	NUT; PUSH ROD,CLU BOOSTER M10	9-09111-410-0	02	1	1008-	●	●
52	SEAL; OIL,END PLATE,CLU BOOSTER	1-47819-027-0	01	1	1008-		●
60	GASKET; SHELL,CLU BOOSTER	1-31829-454-0	01	1	1008-	●
60	GASKET; SHELL,CLU BOOSTER	1-31829-292-0	01	1	1008-		●
64	WASHER; PUSH ROD ID=10.5 OD=22	9-09164-610-0	01	1	1008-		●
88	CLAMP; HOSE,CLU BOOSTER	1-31829-063-0	01	1	1008-		●
91	GASKET; CLU BOOSTER	1-31829-103-0	01	1	1008-	●	●
102	PLATE; BOOSTER	1-31829-559-0	01	1	1008-		●
