Isuzu WW
▶
TRUCKS
▶
CYZ
▶
11272 - CYZ LHD EURO2/3/4 WITH 3STEPS
▶
2 - Clutch, Transmission, Trans Axle
▶
2-05 - CLUTCH PIPING
▶
2-05 — CLUTCH PIPING
(#55616) — 90 parça
Tümü
A - CYZ6MC
B - CYZ6MF
◀
[205A] CAB SIDE NO.2 (24 parça)
[205A] FRAME SIDE NO.2 (29 parça)
[205A] CAB SIDE NO.1 (17 parça)
[205A] FRAME SIDE NO.1 (11 parça)
[205A] T/M SIDE (9 parça)
▶

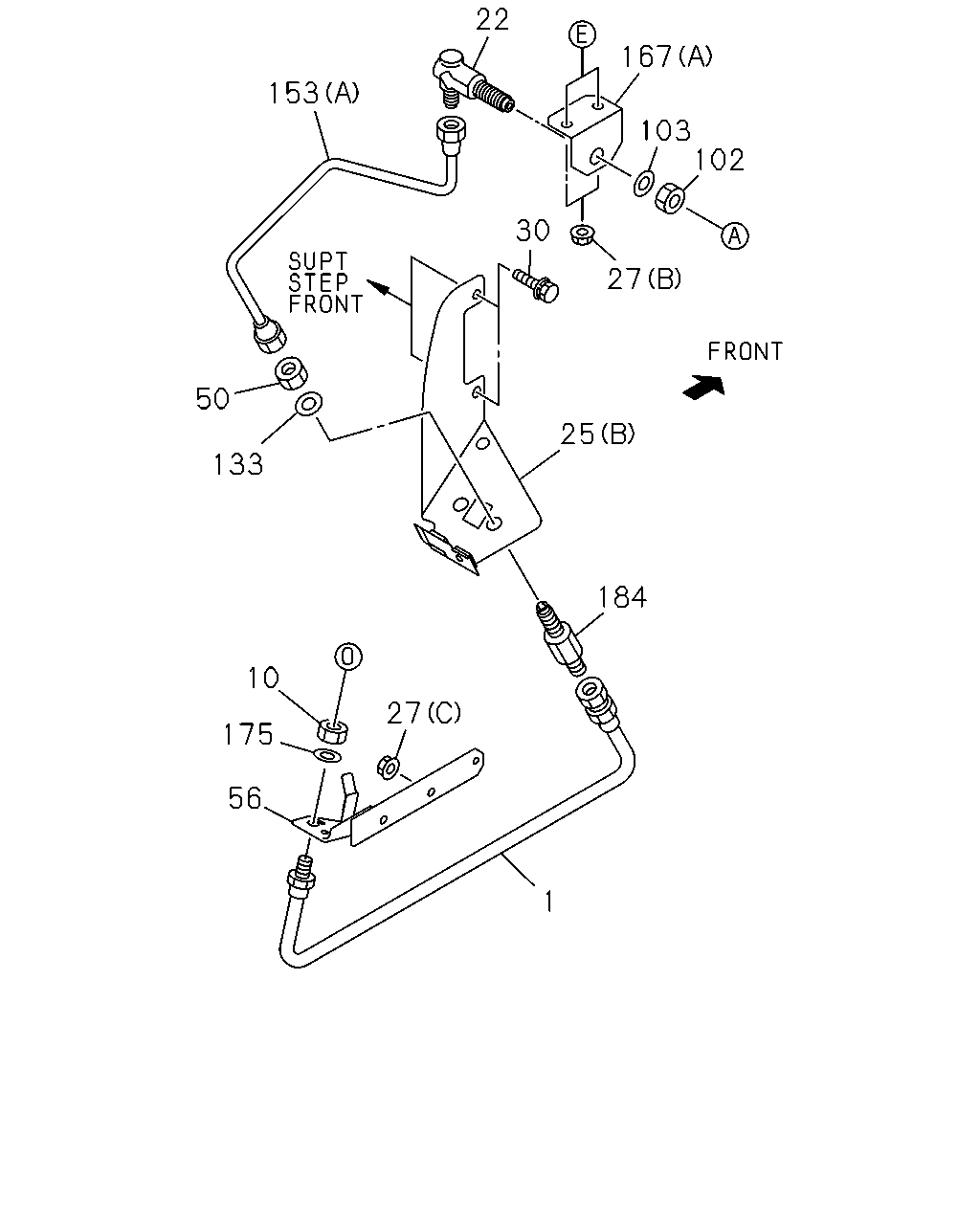

22
167
153
103
102
30
27
50
25
133
184
10
27
175
56
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
HOSE; FLEX,CLU CONT
L=520
8-98072-340-0
01
1
1008-
●
●
10
NUT; FLEX HOSE,CLU CONT
M14
0-91111-514-0
01
1
1008-
●
●
22
UNION; CLU PIPE
M14 ELBOW
0-92125-208-0
01
1
1008-
●
●
25
BRACKET; OIL PIPE
(A) L=50
1-47475-299-2
02
1
1008-
●
●
25
BRACKET; OIL PIPE
(B)
1-71907-726-0
01
1
1008-
●
●
27
NUT; BRKT
(C) M10 FLANGE
0-91180-210-0
02
1
1008-
●
●
27
NUT; BRKT
(A) M6 FLANGE W/RUBBER
1-09984-180-0
01
1
1008-
●
●
27
NUT; BRKT
(B) M8 CUTTING NUT W/FLANGE
1-09985-340-0
04
1
1008-
●
●
30
BOLT; BRKT
M8X35 FLANGE
0-28650-835-0
01
1
1008-
●
●
30
BOLT; BRKT
M8X24.5 W/LK&PL WASHER
8-98059-720-0
02
1
1008-
●
●
50
NUT; UNION
M14
0-91111-514-0
01
1
1008-
●
●
56
BRACKET; FLEX HOSE
8-98176-093-0
01
1
1008-
●
●
102
NUT; FLEX HOSE,CLU CONT
M14
0-91111-514-0
01
1
1008-
●
●
103
WASHER; LK,FLEX HOSE,CLU CONT
ID=14.2
0-91510-514-0
01
1
1008-
●
●
133
WASHER; LK,UNION
ID=14.2
0-91510-514-0
01
1
1008-
●
●
153
PIPE ASM; CLU,UNION TO FLEX
(A) L=501 SERVICED BY L=550
1-47426-377-0
01
1
1008-
●
●
153
PIPE ASM; CLU,UNION TO FLEX
MJT7S M/T(Y3E) (B) L=2052 SERVICED BY L=2150
1-47428-770-0
01
1
1008-1110
●
●
153
PIPE ASM; CLU,UNION TO FLEX
MJT7S M/T(Y3E) (B) L=2052 SERVICED BY L=2150
1-47428-770-0
01
1
1111-
●
●
153
PIPE ASM; CLU,UNION TO FLEX
MJX16P M/T(Y3Z) (B) L=2112 SERVICED BY L=2150
1-47428-770-0
01
1
1008-1110
●
●
153
PIPE ASM; CLU,UNION TO FLEX
MJX16P M/T(Y3Z) (B) L=2112 SERVICED BY L=2150
1-47428-770-0
01
1
1111-
●
●
167
BRACKET; UNION
(B)
1-71117-207-1
01
1
1008-
●
●
167
BRACKET; UNION
(A)
1-71907-376-1
01
1
1008-
●
●
175
WASER; LK,FLEX HOSE,CLU CONT
ID=14.2
0-91510-514-0
01
1
1008-
●
●
184
UNION; FLEX HOSE
STRAIGHT 2WAY
1-09654-435-0
01
1
1008-
●
●
29
28
29
28
25
34
26
33
35
117
4
44
45
46
42
106
36
115
116
37
43
31
32
30
33
29
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
4
CLIP; FLEX HOSE,CLU CONT
ID=16 H=25 L=25
1-09701-162-0
01
1
1008-
●
●
25
BRACKET; OIL PIPE
(A) L=50
1-47475-299-2
02
1
1008-
●
●
25
BRACKET; OIL PIPE
(B)
1-71907-726-0
01
1
1008-
●
●
26
NUT; CLIP,OIL PIPE
M8 FLANGE
0-91180-108-0
02
1
1008-
●
●
28
CLIP; OIL PIPE
(B) ID=8 H=20 L=20
1-09700-604-0
01
1
1008-
●
●
28
CLIP; OIL PIPE
(A) ID=16 & 9 L=18 & 17
1-09700-669-0
02
1
1008-
●
●
29
BOLT; CLIP,OIL PIPE
M8X16 FLANGE
0-28050-816-0
02
1
1008-
●
●
29
BOLT; CLIP,OIL PIPE
M8X30 FLANGE
0-28650-830-0
01
1
1008-
●
●
30
BOLT; BRKT
M8X35 FLANGE
0-28650-835-0
01
1
1008-
●
●
30
BOLT; BRKT
M8X24.5 W/LK&PL WASHER
8-98059-720-0
02
1
1008-
●
●
31
NUT; BRKT
M8 FLANGE
0-91180-108-0
01
1
1008-
●
●
32
BRACKET; CLIP OIL PIPE
1-47479-482-0
01
1
1008-
●
●
33
CLIP; OIL PIPE
(B) ID=9 L=20
0-95234-835-0
01
1
1008-
●
●
33
CLIP; OIL PIPE
(A) ID=8 H=20 L=20
1-09700-604-0
06
1
1008-
●
●
34
BOLT; PIPE CLIP
M8X25 FLANGE
0-28650-825-0
01
1
1008-
●
●
34
BOLT; PIPE CLIP
M8X35 FLANGE
0-28650-835-0
06
1
1008-
●
●
35
NUT; PIPE CLIP
M8 FLANGE
0-91180-108-0
06
1
1008-
●
●
36
BRACKET; CLIP
(B)
1-47475-689-0
01
1
1008-
●
●
36
BRACKET; CLIP
(A)
1-71117-191-1
01
1
1008-
●
●
37
BOLT; CLIP BRKT
M10X20 FLANGE
0-28151-020-0
01
1
1008-
●
●
42
BRACKET; FLEX HOSE,CLU CONT
MJT7S M/T(Y3E)
1-47471-203-0
01
1
1008-
●
●
43
BOLT; BRKT,FLEX HOSE,CLU BOOSTER
MJT7S M/T(Y3E) M8X35 FLANGE
0-28650-835-0
02
1
1008-
●
●
44
NUT; BRKT,FLEX HOSE,CLU BOOSTER
MJT7S M/T(Y3E) M8 FLANGE
0-91180-108-0
02
1
1008-
●
●
45
NUT; FLEX HOSE,CLU CONT
M12
9-09840-280-0
01
1
1008-
●
●
46
WASHER; LK,FLEX HOSE,CLU CONT
ID=12.2
0-91510-512-0
01
1
1008-
●
●
106
UNION; OIL PIPE
M14 STRAIGHT
0-92113-008-0
02
1
1008-
●
●
115
NUT; FLEX HOSE,CLU CONT
M14
0-91111-514-0
01
1
1008-
●
●
116
WASHER; FLEX HOSE,CLU CONT
ID=14.2
0-91510-514-0
01
1
1008-
●
●
117
BOLT; CLIP,FLEX HOSE
M8X16 FLANGE
0-28050-816-0
01
1
1008-
●
●

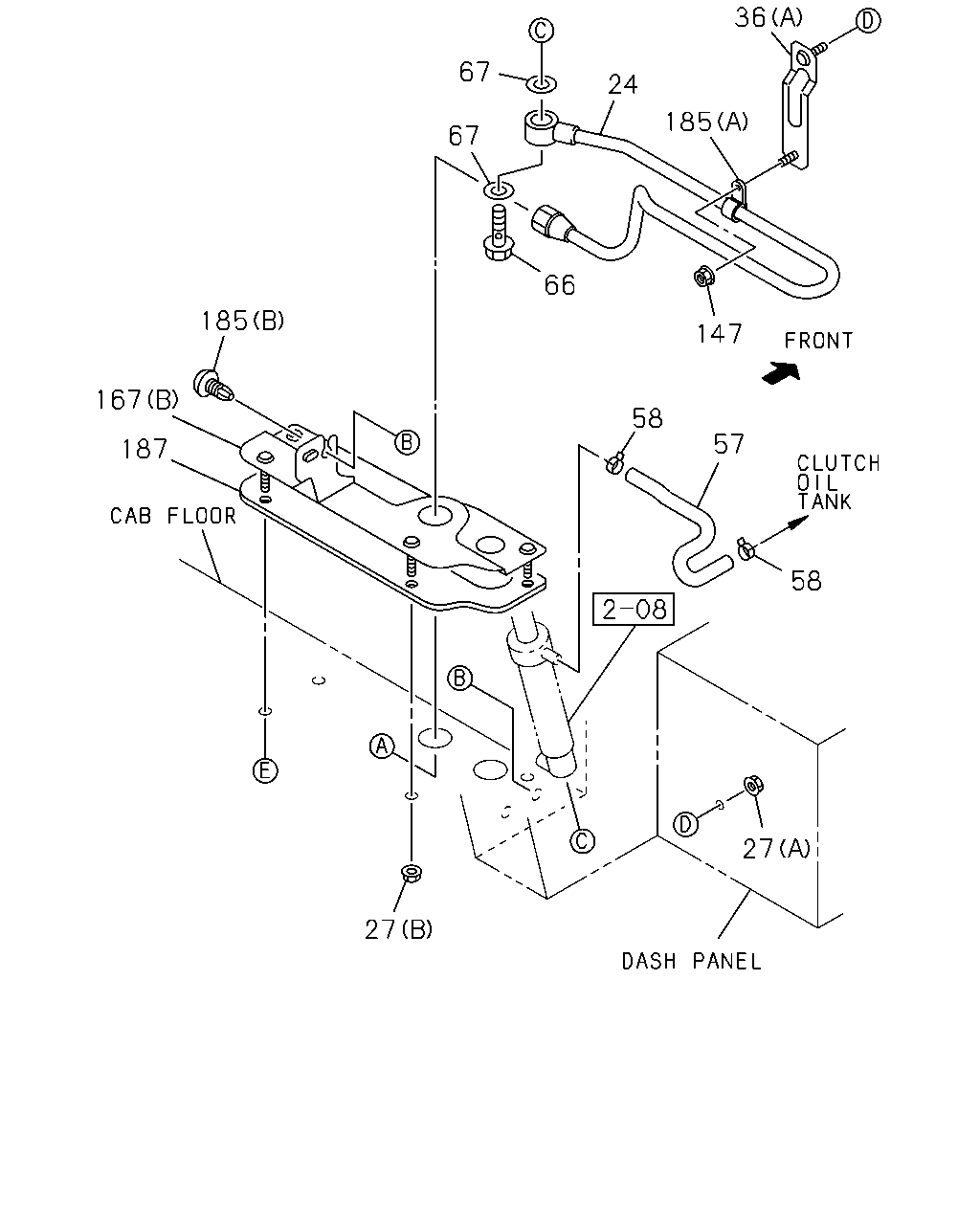

36
67
24
185
67
66
185
147
167
58
57
187
58
27
27
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
24
PIPE ASM; CLU,M/CYL TO UNION
L=621
1-47428-362-1
01
1
1008-
●
●
27
NUT; BRKT
(C) M10 FLANGE
0-91180-210-0
02
1
1008-
●
●
27
NUT; BRKT
(A) M6 FLANGE W/RUBBER
1-09984-180-0
01
1
1008-
●
●
27
NUT; BRKT
(B) M8 CUTTING NUT W/FLANGE
1-09985-340-0
04
1
1008-
●
●
36
BRACKET; CLIP
(B)
1-47475-689-0
01
1
1008-
●
●
36
BRACKET; CLIP
(A)
1-71117-191-1
01
1
1008-
●
●
57
HOSE; CLU M/CYL TO OIL TANK
1-47427-312-0
01
1
1008-
●
●
58
CLIP; RUBBER HOSE TO M/CYL
ID=14
8-94238-572-0
02
1
1008-
●
●
66
BOLT; EYE JOINT,CLU M/CYL
M14X30 EYE-BOLT
8-98037-827-0
01
1
1008-
●
●
67
GASKET; EYE JOINT,CLU M/CYL
ID=14.2 OD=19.2
1-09630-085-0
02
1
1008-1312
●
●
67
GASKET; EYE JOINT,CLU M/CYL
ID=14.2 OD=19.2
8-98251-345-0
02
1
1401-
●
●
147
NUT; CLIP FIX
M8 CUTTING NUT W/FLANGE
1-09985-340-0
01
1
1008-
●
●
167
BRACKET; UNION
(B)
1-71117-207-1
01
1
1008-
●
●
167
BRACKET; UNION
(A)
1-71907-376-1
01
1
1008-
●
●
185
CLIP; BRKT
(A) ID=11 L=16
0-95235-025-0
01
1
1008-
●
●
185
CLIP; BRKT
(B) D8X13.5
1-09987-248-1
01
1
1008-
●
●
187
SEAL; BRKT
1-71117-209-2
01
1
1008-
●
●

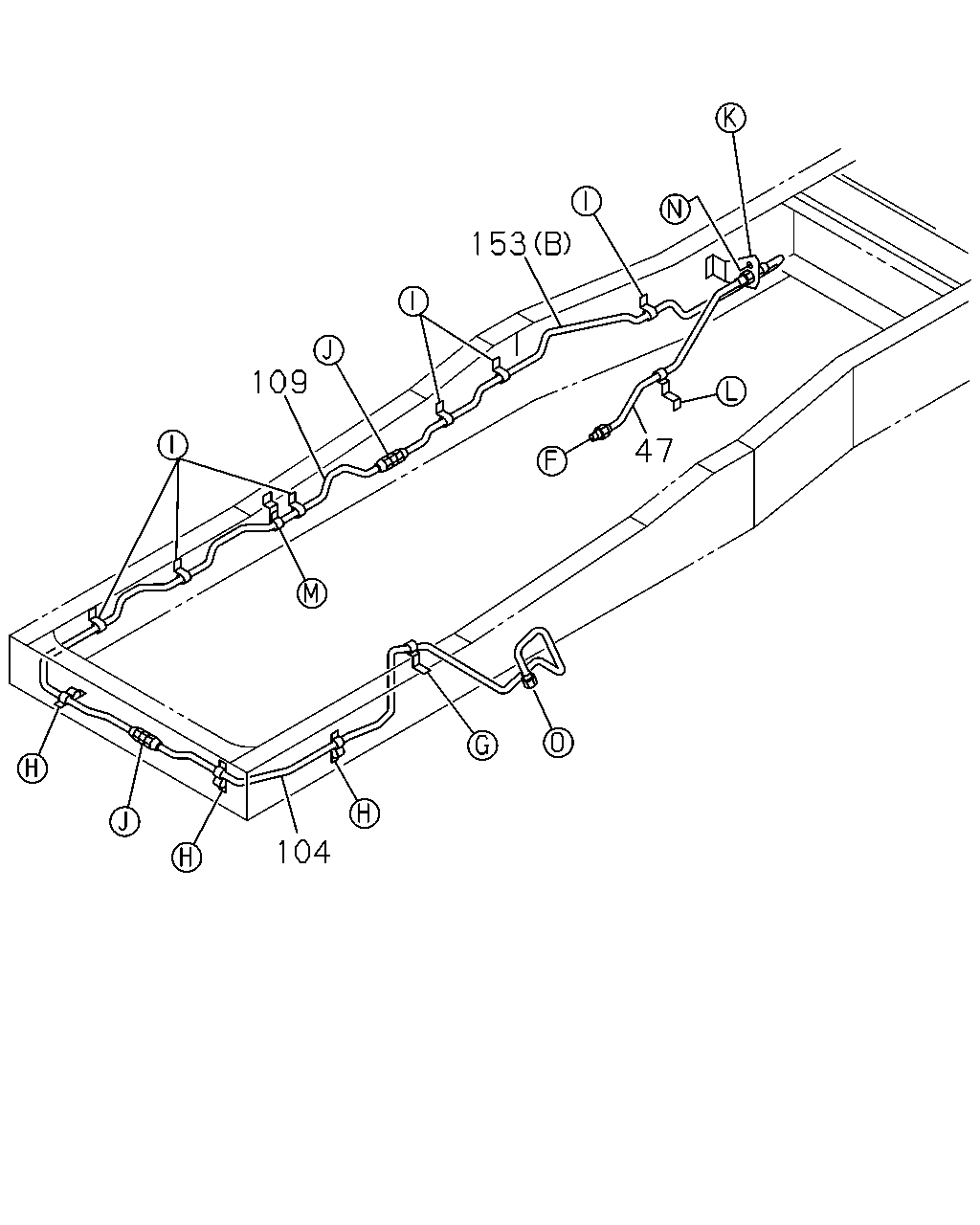

153
109
47
104
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
47
HOSE; FLEX,CLU CONT
MJT7S M/T(Y3E) MIXER TRUCK<RA2> L=550
1-09364-434-0
01
1
1008-
●
47
HOSE; FLEX,CLU CONT
MJT7S M/T(Y3E) EXC. MIXER TRUCK<RA2> L=600
1-09364-705-0
01
1
1008-
●
47
HOSE; FLEX,CLU CONT
MJT7S M/T(Y3E) L=600
1-09364-705-0
01
1
1008-
●
47
HOSE; FLEX,CLU CONT
MJX16P M/T(Y3Z) L=700
1-09364-456-0
01
1
1008-
●
●
104
PIPE; OIL,FLEX HOSE TO CONNECTOR
L=1240 SERVICED BY L=1250
1-47428-764-0
01
1
1008-
●
●
109
PIPE; AIR,UNION TO UNION
L=1693 SERVICED BY L=1700
1-47428-767-0
01
1
1008-
●
●
153
PIPE ASM; CLU,UNION TO FLEX
(A) L=501 SERVICED BY L=550
1-47426-377-0
01
1
1008-
●
●
153
PIPE ASM; CLU,UNION TO FLEX
MJT7S M/T(Y3E) (B) L=2052 SERVICED BY L=2150
1-47428-770-0
01
1
1008-1110
●
●
153
PIPE ASM; CLU,UNION TO FLEX
MJT7S M/T(Y3E) (B) L=2052 SERVICED BY L=2150
1-47428-770-0
01
1
1111-
●
●
153
PIPE ASM; CLU,UNION TO FLEX
MJX16P M/T(Y3Z) (B) L=2112 SERVICED BY L=2150
1-47428-770-0
01
1
1008-1110
●
●
153
PIPE ASM; CLU,UNION TO FLEX
MJX16P M/T(Y3Z) (B) L=2112 SERVICED BY L=2150
1-47428-770-0
01
1
1111-
●
●

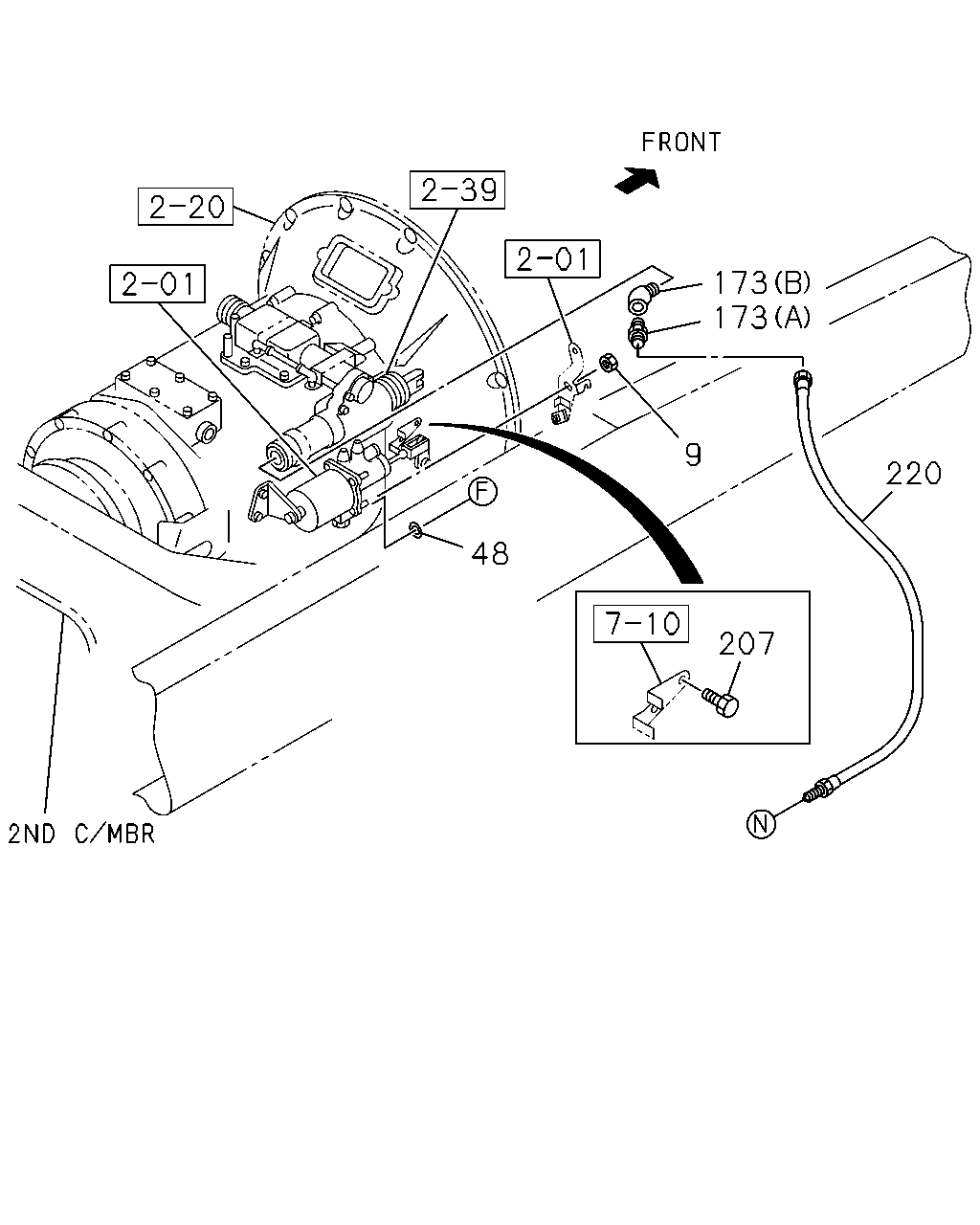

173
173
9
220
48
207
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
9
NUT; BRKT,FLEX HOSE
MJT7S M/T(Y3E) M10 FLANGE
0-91180-210-0
02
1
1008-
●
●
48
GASKET; FLEX HOSE,CLU CONT
ID=10.2 OD=16.0
9-09571-410-0
01
1
1008-
●
●
173
CONNECTOR
(A) M12 & PT1/4 STRAIGHT
1-09650-074-1
01
1
1008-
●
●
173
CONNECTOR
(B) R1/4 & RC1/4
1-09664-211-0
01
1
1008-
●
●
207
BOLT; CLIP
MJX16P M/T(Y3Z) M10X16 FLANGE
0-28151-016-0
02
1
1008-
●
●
220
HOSE; FLEX,POWER ASSIST
MJT7S M/T(Y3E) MIXER TRUCK<RA2> L=300
1-09363-608-0
01
1
1008-
●
220
HOSE; FLEX,POWER ASSIST
MJT7S M/T(Y3E) EXC. MIXER TRUCK<RA2> L=350
1-09363-624-0
01
1
1008-
●
220
HOSE; FLEX,POWER ASSIST
MJT7S M/T(Y3E) L=350
1-09363-624-0
01
1
1008-
●
220
HOSE; FLEX,POWER ASSIST
MJX16P M/T(Y3Z) L=400
1-09363-606-0
01
1
1008-
●
●
