◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11161 - FSR(SOUTH AFRICA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-84 - BACK TRIM ▶
6-84 — BACK TRIM (#55611) — 12 parça

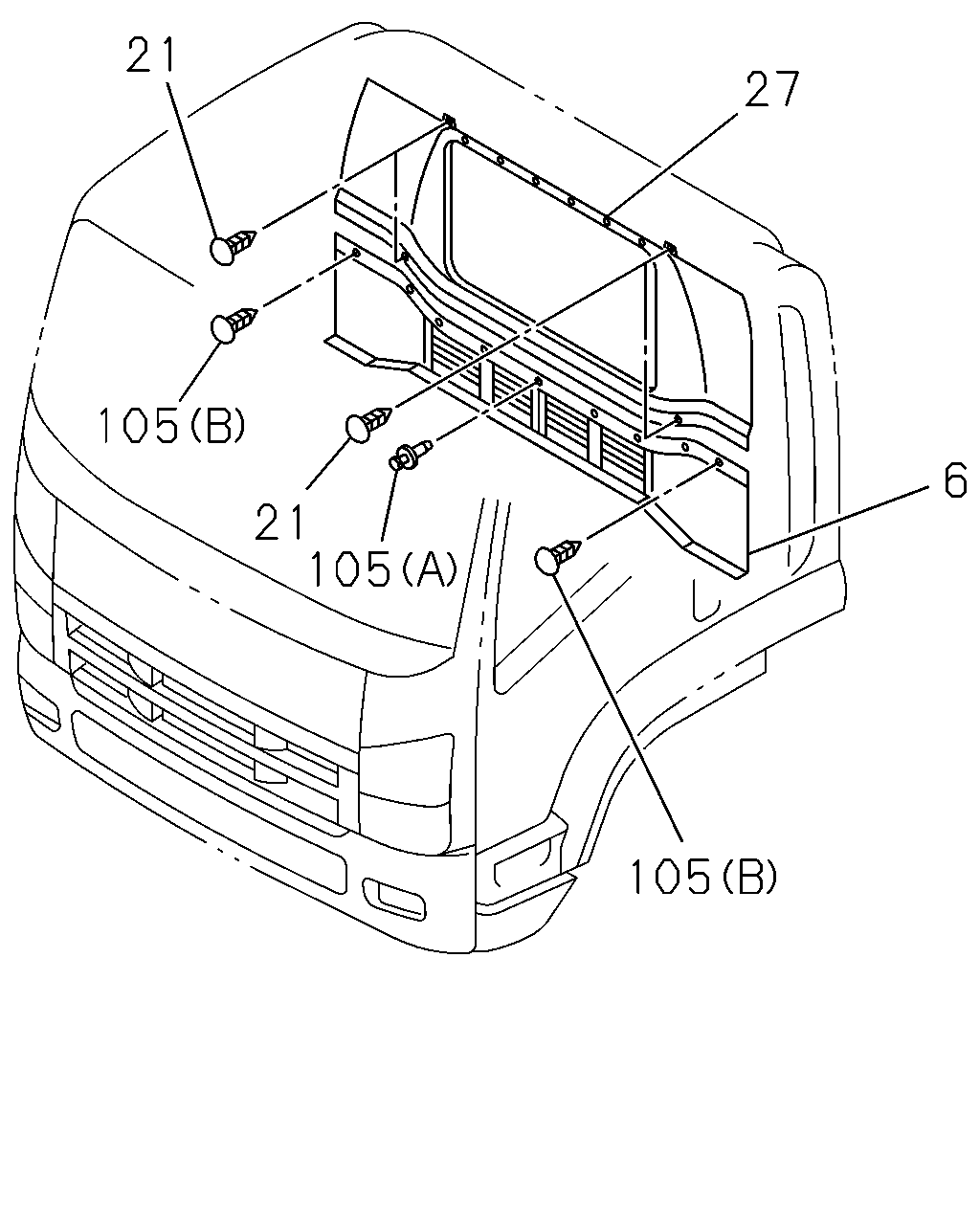

çizim 162433
21 27 105 6 21 105 105
BalonParca AdiParca NoAdetTipApplied Date
6 MAT; SILENCER,CAB BACK
INSULATION ACOUSTICAL PKG DELETE<BS3> GRAY 		8-97422-490-1 01 1 1012-
6 MAT; SILENCER,CAB BACK
GRAY 		8-97407-457-1 01 1 1001-1011
6 MAT; SILENCER,CAB BACK
EXC. INSULATION ACOUSTICAL PKG DELETE<BS3> GRAY 		8-97407-457-1 01 1 1012-
21 RETAINER; TRIM,BED ROOM
GRAY 		8-97407-467-0 04 1 1001-
27 COVER; TRIM,BACK
INSULATION ACOUSTICAL PKG DELETE<BS3> ROUND CURTAIN RAIL<EDH> DARK GRAY 		8-97422-493-1 01 1 1012-
27 COVER; TRIM,BACK
INSULATION ACOUSTICAL PKG DELETE<BS3> EXC. ROUND CURTAIN RAIL<EDH> DARK GRAY 		8-97422-492-1 01 1 1012-
27 COVER; TRIM,BACK
ROUND CURTAIN RAIL<EDH> DARK GRAY 		8-97407-465-2 01 1 1001-1011
27 COVER; TRIM,BACK
ROUND CURTAIN RAIL<EDH> EXC. INSULATION ACOUSTICAL PKG DELETE<BS3> DARK GRAY 		8-97407-465-2 01 1 1012-
27 COVER; TRIM,BACK
EXC. ROUND CURTAIN RAIL<EDH> DARK GRAY 		8-97407-463-2 01 1 1001-1011
27 COVER; TRIM,BACK
EXC. INSULATION ACOUSTICAL PKG DELETE<BS3>,ROUND CURTAIN RAIL<EDH> DARK GRAY 		8-97407-463-2 01 1 1012-
105 CLIP; BACK TRIM
(B) GRAY 		8-97407-467-0 02 1 1001-
105 CLIP; BACK TRIM
(A) GRAY 		8-97408-022-0 07 1 1001-
