6-52 — REAR DOOR LOCK AND HANDLE (#55601) — 26 parça

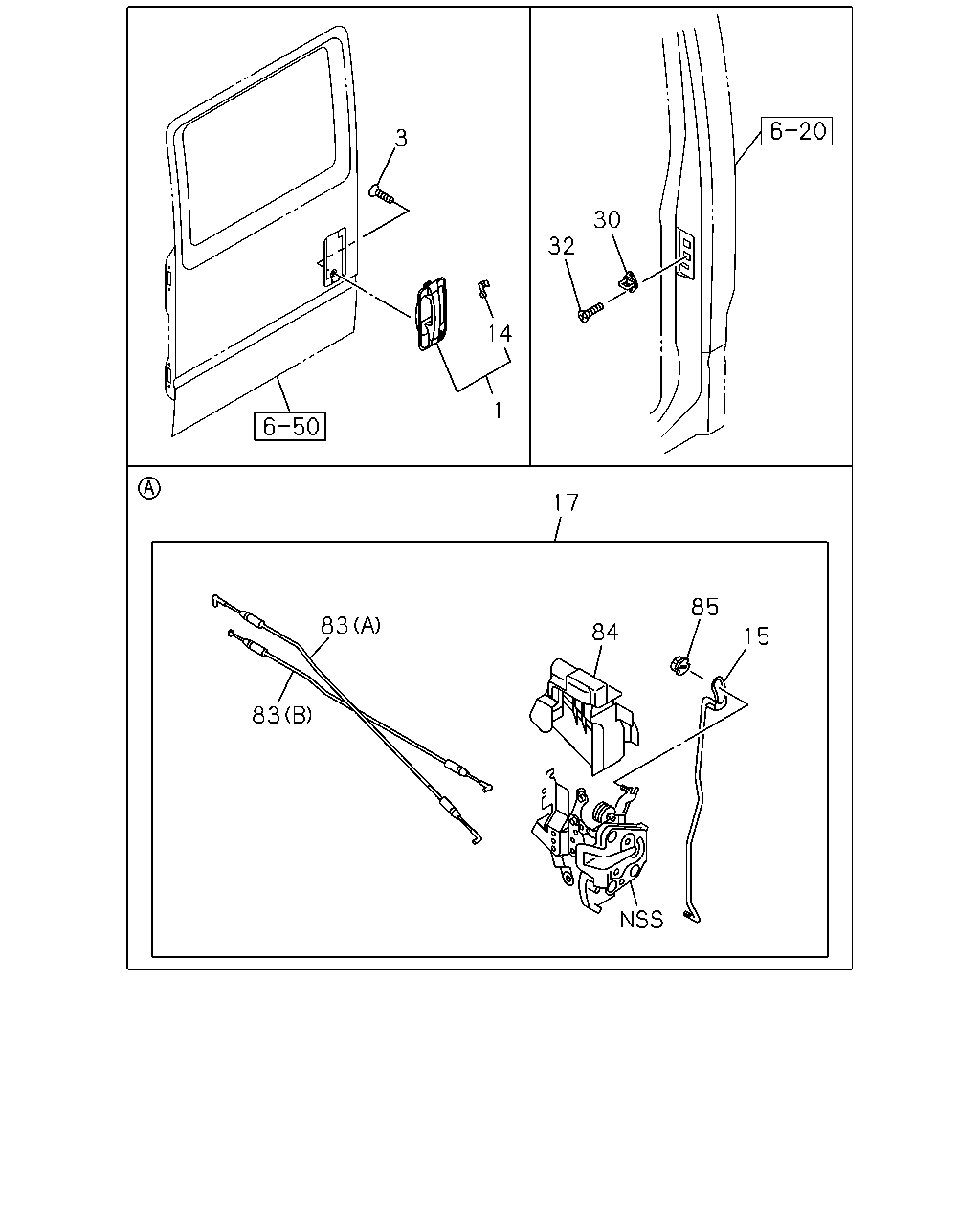

3 30 32 14 1 17 85 83 84 15 83

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HANDLE; OUTSIDE,RR DOOR	8-98040-992-2	01	1	1001-
1	HANDLE; OUTSIDE,RR DOOR	8-98040-991-2	01	1	1001-
3	BOLT; DOOR OUTSIDE HANDLE M6X10 FLANGE SOU	0-28050-610-0	04	1	1001-
14	HOLDER; DOOR LK ROD WHITE SOU	8-97333-303-0	01	1	1001-
14	HOLDER; DOOR LK ROD BLACK	8-98095-813-0	01	1	1001-
15	LINK; RR DOOR LK	8-98058-336-0	01	1	1001-
15	LINK; RR DOOR LK	8-98058-335-0	01	1	1001-
17	LOCK; DOOR,RR DOOR	8-98006-867-2	01	1	1001-
17	LOCK; DOOR,RR DOOR	8-98006-865-2	01	1	1001-
30	STRIKER; RR DOOR	8-98029-173-2	02	1	1001-
32	SCREW; DOOR STRIKER M8X20 CK-HEAD	8-98004-343-2	04	1	1001-
83	CABLE ASM; LOCK CONTROL (B)	8-98058-345-0	02	1	1001-
83	CABLE ASM; LOCK CONTROL (A)	8-98058-344-0	01	1	1001-
83	CABLE ASM; LOCK CONTROL (A)	8-98058-342-0	01	1	1001-
84	COVER; DOOR LOCK	8-98058-239-0	01	1	1001-
84	COVER; DOOR LOCK	8-98058-238-0	01	1	1001-
85	SNAP; RR DOOR LOCK BLUE	8-98058-227-0	02	1	1001-
85	SNAP; RR DOOR LOCK NATURAL	8-98058-226-0	02	1	1001-

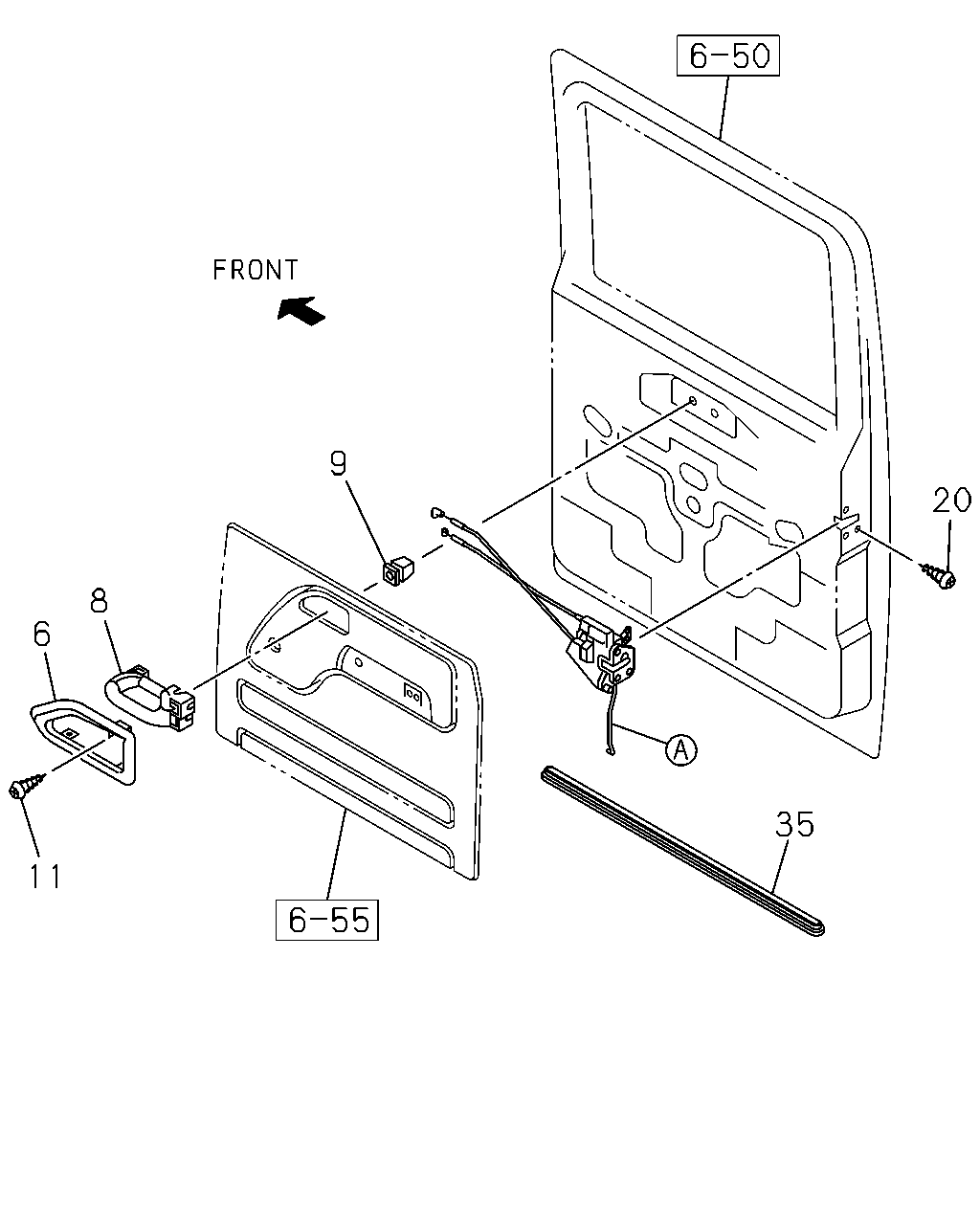

9 20 8 6 35 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	BEZEL; INSIDE HANDLE,DOOR LOCK DARK GRAY	8-97405-312-0	01	1	1001-
6	BEZEL; INSIDE HANDLE,DOOR LOCK DARK GRAY	8-97405-311-0	01	1	1001-
8	HANDLE; INSIDE,RR DOOR DARK GRAY	8-97409-816-0	01	1	1001-
8	HANDLE; INSIDE,RR DOOR DARK GRAY	8-97409-817-0	01	1	1001-
9	GROMMET; SCREW,INSIDE HANDLE D=8.6X7.7 L=7.5 SOU	8-94279-078-0	02	1	1001-
11	SCREW; INSIDE HANDLE M5X16 TAPPING HEXALOBULAR	0-72380-516-0	02	1	1001-
20	SCREW; DOOR LK M6X14.5	8-98004-342-0	06	1	1001-
35	PLUG; RR DOOR LWR HOLE	8-98009-201-4	02	1	1001-
