Sayfa 2-05B - Isuzu EPC

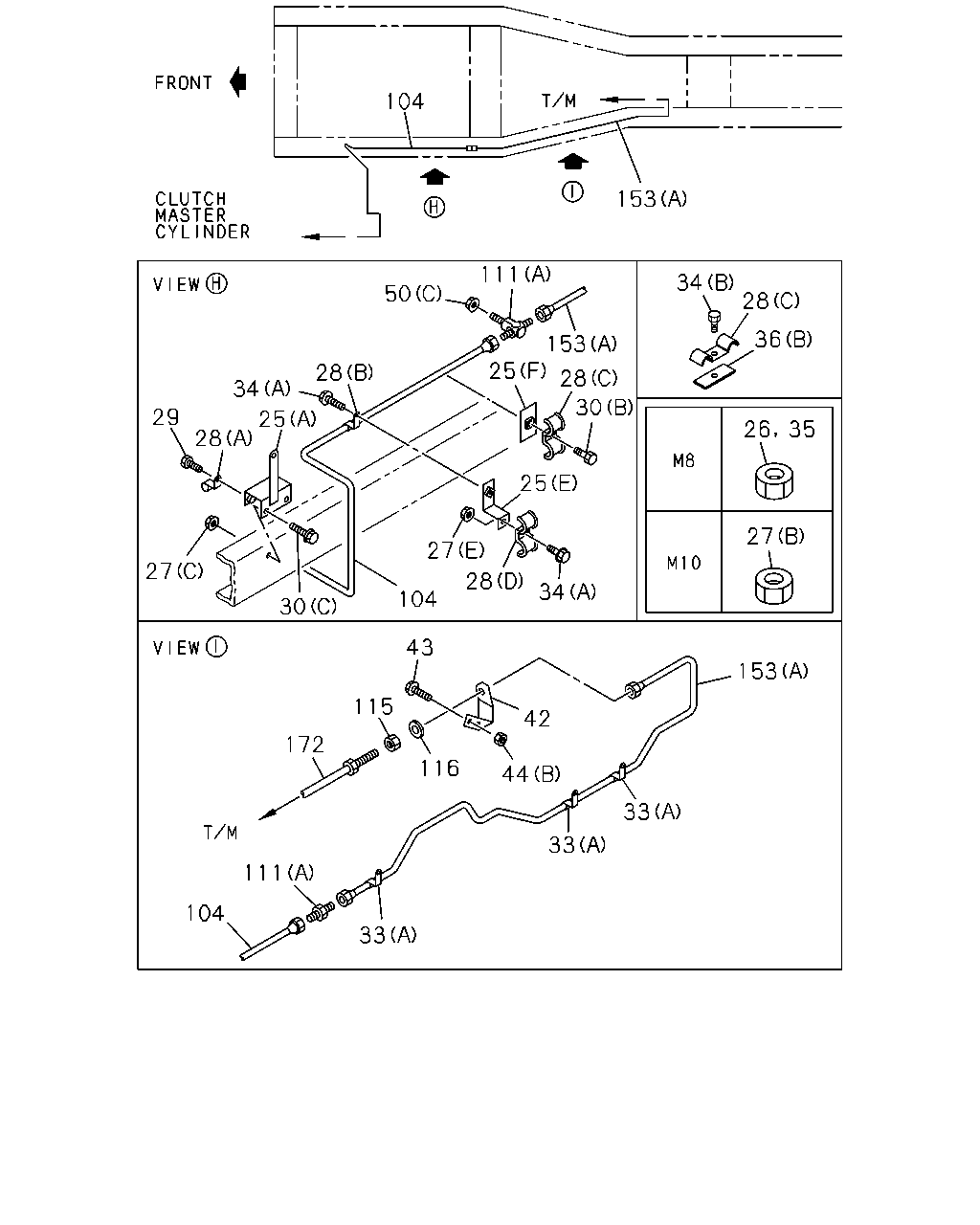

2-05B — CLUTCH PIPING (#5560) — 362 parça

104 153 111 34 28 50 36 153 25 28 28 34 30 29 25 26 35 28 25 27 27 27 28 34 104 30 43 153 115 42 172 116 44 33 33 111 104 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
25	BRACKET; OIL PIPE (A)	1-47477-748-0	01	1	9603-9702	●
25	BRACKET; OIL PIPE (A)	1-47477-935-1	01	1	9703-9904	●
25	BRACKET; OIL PIPE (A)	1-47477-935-2	01	1	9905-	●	●
25	BRACKET; OIL PIPE (B)	1-71907-377-3	01	1	9603-9904	●
25	BRACKET; OIL PIPE (B)	1-71907-377-3	01	1	9905-	●	●
25	BRACKET; OIL PIPE (D)	1-47477-498-1	01	1	9603-9906	●
25	BRACKET; OIL PIPE (D)	1-47477-498-1	01	1	9907-	●	●
25	BRACKET; OIL PIPE (C)	1-47477-499-1	01	1	9603-9906	●
25	BRACKET; OIL PIPE (C)	1-47477-499-1	01	1	9907-	●	●
25	BRACKET; OIL PIPE (E)	1-47478-406-0	01	1	9905-9906	●
25	BRACKET; OIL PIPE (E)	1-47478-406-0	01	1	9907-	●	●
25	BRACKET; OIL PIPE L TYPE ENG<90L> (F) L=50	1-47475-299-2	01	1	9603-9904	●
25	BRACKET; OIL PIPE L TYPE ENG<90L> (F) L=50	1-47475-299-2	01	1	9905-	●	●
25	BRACKET; OIL PIPE L TYPE ENG<90L> (E)	1-47475-881-0	01	1	9603-9904	●
25	BRACKET; OIL PIPE L TYPE ENG<90L> (E)	1-47475-881-0	01	1	9905-	●	●
26	NUT; CLIP,OIL PIPE L TYPE ENG<90L> M8	9-09110-508-0	02	1	9603-9606	●
26	NUT; CLIP,OIL PIPE L TYPE ENG<90L> M8 FLANGE	0-91150-108-0	02	1	9607-9904	●
26	NUT; CLIP,OIL PIPE L TYPE ENG<90L> M8 FLANGE	0-91150-108-0	02	1	9905-0002	●	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	01	1	0003-	●	●
26	NUT; CLIP,OIL PIPE V TYPE ENG<91L> M8	9-09110-508-0	01	1	9603-9606	●
26	NUT; CLIP,OIL PIPE V TYPE ENG<91L> M8 FLANGE	0-91150-108-0	01	1	9607-9904	●
26	NUT; CLIP,OIL PIPE V TYPE ENG<91L> M8 FLANGE	0-91150-108-0	01	1	9905-9907	●	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	01	1	9908-0002	●	●
26	NUT; CLIP,OIL PIPE L TYPE ENG<90L> M8 FLANGE	0-91150-108-0	02	1	0003-	●	●
27	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	9603-9904	●
27	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	9905-	●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9603-9904	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9905-	●	●
27	NUT; BRKT (D) M8 FLANGE	8-94279-517-0	04	1	9603-9611	●
27	NUT; BRKT (D) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	9612-9904	●
27	NUT; BRKT (D) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	9905-	●	●
27	NUT; BRKT (C) M8	9-09110-408-0	02	1	9603-9606	●
27	NUT; BRKT (C) M8 FLANGE	0-91150-108-0	02	1	9607-9904	●
27	NUT; BRKT (C) M8 FLANGE	0-91150-108-0	02	1	9905-	●	●
27	NUT; BRKT L TYPE ENG<90L> (E) M8	9-09110-508-0	01	1	9603-9606	●
27	NUT; BRKT L TYPE ENG<90L> (E) M8 FLANGE	0-91150-108-0	01	1	9607-9904	●
27	NUT; BRKT L TYPE ENG<90L> (E) M8 FLANGE	0-91150-108-0	01	1	9905-	●	●
28	CLIP; OIL PIPE (A) ID=9 L=20	9-09524-835-0	01	1	9603-9904	●
28	CLIP; OIL PIPE (A) ID=9 L=20	9-09524-835-0	01	1	9905-	●	●
28	CLIP; OIL PIPE (B) ID=8 H=20 L=20	1-09700-604-0	01	1	9603-9904	●
28	CLIP; OIL PIPE (B) ID=8 H=20 L=20	1-09700-604-0	01	1	9905-0002	●	●
28	CLIP; OIL PIPE V TYPE ENG<91L> (B) ID=8 H=20 L=20	1-09700-604-0	01	1	0003-	●	●
28	CLIP; OIL PIPE L TYPE ENG<90L> (C) ID=16 & 9 L=18 & 17	1-09700-669-0	01	1	9603-9904	●
28	CLIP; OIL PIPE L TYPE ENG<90L> (C) ID=16 & 9 L=18 & 17	1-09700-669-0	01	1	9905-	●	●
28	CLIP; OIL PIPE L TYPE ENG<90L> (D) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	9603-9904	●
28	CLIP; OIL PIPE L TYPE ENG<90L> (D) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	9905-9907	●	●
28	CLIP; OIL PIPE L TYPE ENG<90L> (D) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	9908-	●	●
28	CLIP; OIL PIPE L TYPE ENG<90L> (D) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	9908-	●	●
29	BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28080-820-0	01	1	9603-9606	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	01	1	9607-9904	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	01	1	9905-	●	●
29	BOLT; CLIP,OIL PIPE M8X16 FLANGE	0-28080-816-0	04	1	9603-9904	●
29	BOLT; CLIP,OIL PIPE M8X16 FLANGE	0-28080-816-0	05	1	9905-9906	●
29	BOLT; CLIP,OIL PIPE M8X16 FLANGE	0-28080-816-0	05	1	9907-	●	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28080-825-0	01	1	9603-9606	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	01	1	9607-0002	●
29	BOLT; CLIP,OIL PIPE V TYPE ENG<91L> M8X30 FLANGE	0-28680-830-0	01	1	0003-	●	●
29	BOLT; CLIP,OIL PIPE M8X40 FLANGE	0-28680-840-0	01	1	9603-9904	●
29	BOLT; CLIP,OIL PIPE L TYPE ENG<90L> M8X16 FLANGE	0-28080-816-0	02	1	9603-9606	●
29	BOLT; CLIP,OIL PIPE L TYPE ENG<90L> M8X20 FLANGE	0-28680-820-0	02	1	9607-9904	●
29	BOLT; CLIP,OIL PIPE L TYPE ENG<90L> M8X20 FLANGE	0-28680-820-0	02	1	9905-0002	●	●
29	BOLT; CLIP,OIL PIPE L TYPE ENG<90L> M8X20 FLANGE	0-28680-820-0	01	1	9908-0002	●	●
29	BOLT; CLIP,OIL PIPE L TYPE ENG<90L> M8X20 FLANGE	0-28680-820-0	01	1	0003-	●	●
30	BOLT; BRKT (C) M8X30 FLANGE	0-28080-830-0	02	1	9603-9606	●
30	BOLT; BRKT (C) M8X35 FLANGE	0-28680-835-0	02	1	9607-9904	●
30	BOLT; BRKT (C) M8X35 FLANGE	0-28680-835-0	02	1	9905-	●	●
30	BOLT; BRKT (A) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9603-9904	●
30	BOLT; BRKT (A) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9905-	●	●
30	BOLT; BRKT L TYPE ENG<90L> (B) M8X25 FLANGE	0-28080-825-0	01	1	9603-9606	●
30	BOLT; BRKT L TYPE ENG<90L> (B) M8X30 FLANGE	0-28680-830-0	01	1	9607-9904	●
30	BOLT; BRKT L TYPE ENG<90L> (B) M8X30 FLANGE	0-28680-830-0	01	1	9905-	●	●
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9905-9907	●	●
33	CLIP; OIL PIPE L TYPE ENG<90L> (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9905-9907	●	●
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9908-	●	●
33	CLIP; OIL PIPE V TYPE ENG<91L> (A) ID=8 H=20 L=20	1-09700-604-0	03	1	9603-9904	●
33	CLIP; OIL PIPE V TYPE ENG<91L> (A) ID=8 H=20 L=20	1-09700-604-0	03	1	9905-	●	●
33	CLIP; OIL PIPE L TYPE ENG<90L> (A) ID=8 H=20 L=20	1-09700-604-0	02	1	9603-9904	●
33	CLIP; OIL PIPE L TYPE ENG<90L> (A) ID=8 H=20 L=20	1-09700-604-0	02	1	9908-	●
34	BOLT; PIPE CLIP L TYPE ENG<90L> (B) M8X30 FLANGE	0-28680-830-0	02	1	9908-	●
34	BOLT; PIPE CLIP V TYPE ENG<91L> (A) M8X25 FLANGE	0-28080-825-0	03	1	9603-9606	●
34	BOLT; PIPE CLIP V TYPE ENG<91L> (A) M8X30 FLANGE	0-28680-830-0	03	1	9607-9904	●
34	BOLT; PIPE CLIP V TYPE ENG<91L> (A) M8X30 FLANGE	0-28680-830-0	03	1	9905-	●	●
34	BOLT; PIPE CLIP L TYPE ENG<90L> (A) M8X25 FLANGE	0-28080-825-0	02	1	9603-9606	●
34	BOLT; PIPE CLIP L TYPE ENG<90L> (A) M8X30 FLANGE	0-28680-830-0	02	1	9607-9904	●
34	BOLT; PIPE CLIP (A) M8X30 FLANGE	0-28680-830-0	01	1	9905-9907	●	●
34	BOLT; PIPE CLIP L TYPE ENG<90L> (A) M8X30 FLANGE	0-28680-830-0	01	1	9905-9907	●	●
34	BOLT; PIPE CLIP (A) M8X30 FLANGE	0-28680-830-0	01	1	9908-	●	●
35	NUT; PIPE CLIP L TYPE ENG<90L> M8	9-09110-508-0	02	1	9603-9606	●
35	NUT; PIPE CLIP L TYPE ENG<90L> M8 FLANGE	0-91150-108-0	02	1	9607-9904	●
35	NUT; PIPE CLIP V TYPE ENG<91L> M8	9-09110-508-0	03	1	9603-9606	●
35	NUT; PIPE CLIP V TYPE ENG<91L> M8 FLANGE	0-91150-108-0	03	1	9607-9904	●
35	NUT; PIPE CLIP 10PE1S(60L),10PE1N(61L) M8 FLANGE	0-91150-108-0	03	1	9905-	●	●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	01	1	9905-9907	●	●
35	NUT; PIPE CLIP L TYPE ENG<90L> M8 FLANGE	0-91150-108-0	01	1	9905-9907	●	●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	01	1	9908-	●	●
35	NUT; PIPE CLIP L TYPE ENG<90L> M8 FLANGE	0-91150-108-0	02	1	9908-	●	●
36	BRACKET; CLIP (A)	1-71117-191-1	01	1	9603-9904	●
36	BRACKET; CLIP (A)	1-71117-191-1	01	1	9905-	●	●
36	BRACKET; CLIP L TYPE ENG<90L> (B) L=50	1-47475-299-2	01	1	9908-	●	●
42	BRACKET; FLEX HOSE,CLU CONT	1-47477-563-0	01	1	9603-9802	●
42	BRACKET; FLEX HOSE,CLU CONT EXC. FUEL TANK 400L<SDH>	1-47477-563-0	01	1	9803-9904	●
42	BRACKET; FLEX HOSE,CLU CONT	1-47477-563-0	01	1	9905-0102	●
42	BRACKET; FLEX HOSE,CLU CONT 6WA1 TC-S(56L) FUEL TANK 400L<SDH>	1-47478-141-0	01	1	9803-9904	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28680-830-0	02	1	9607-9904	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X25 FLANGE	0-28080-825-0	02	1	9603-9606	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER (B) M8	9-09110-508-0	02	1	9603-9606	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER (B) M8 FLANGE	0-91150-108-0	02	1	9607-9904	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER (B) M8 FLANGE	0-91150-108-0	02	1	9905-0102	●	●
50	NUT; UNION (A) M14	9-99111-414-0	01	1	9603-9904	●
50	NUT; UNION (A) M14	9-99111-414-0	01	1	9905-	●	●
50	NUT; UNION (B) M10 H=8	1-09400-029-0	01	1	9603-9606	●
50	NUT; UNION (B) M12	9-09840-280-0	01	1	9607-9906	●
50	NUT; UNION (B) M12	9-09840-280-0	01	1	9907-	●	●
50	NUT; UNION (C) M12 FLANGE	0-91150-212-0	01	1	9905-9905	●
50	NUT; UNION L TYPE ENG<90L> (C) M12 FLANGE	0-91150-212-0	01	1	9906-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L TYPE ENG<90L> L=2213	1-47429-325-0	01	1	9603-9904	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L TYPE ENG<90L> L=2143	1-49164-307-0	01	1	9905-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR V TYPE ENG<91L> L=1616 SERVICED BY L=1700	1-47426-391-0	01	1	9603-9904	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR V TYPE ENG<91L> L=1616 SERVICED BY L=1700	1-47426-391-0	01	1	9905-	●	●
111	UNION; OIL PIPE (B) M8 & M10 STRAIGHT	1-09654-369-0	01	1	9603-9606	●
111	UNION; OIL PIPE (B) M8 & M12 STRAIGHT	1-09654-383-0	01	1	9607-9906	●
111	UNION; OIL PIPE (B) M8 & M12 STRAIGHT	1-09654-383-0	01	1	9907-	●	●
111	UNION; OIL PIPE (A) M14 STRAIGHT	9-09223-008-1	01	1	9603-9904	●
111	UNION; OIL PIPE (A) M14 2WAY	1-09654-176-2	01	1	9905-9905	●
111	UNION; OIL PIPE L TYPE ENG<90L> (A) M14 2WAY	1-09654-176-2	01	1	9906-	●	●
111	UNION; OIL PIPE V TYPE ENG<91L> (A) M14 STRAIGHT	9-09223-008-1	01	1	9908-	●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9603-9904	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9905-	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9603-9904	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9905-	●	●
153	PIPE ASM; CLU,UNION TO FLEX (B) L=490	1-47428-363-0	01	1	9603-9904	●
153	PIPE ASM; CLU,UNION TO FLEX (B) L=490	1-47428-363-0	01	1	9905-	●	●
153	PIPE ASM; CLU,UNION TO FLEX L TYPE ENG<90L> (A) L=1283 SERVICED BY L=1400	1-47426-389-0	01	1	9603-9603	●
153	PIPE ASM; CLU,UNION TO FLEX L TYPE ENG<90L> (A) L=1250 SERVICED BY L=1400	1-47426-389-0	01	1	9604-9904	●
153	PIPE ASM; CLU,UNION TO FLEX L TYPE ENG<90L> (A) L=1021	1-49164-666-0	01	1	9908-	●	●
153	PIPE ASM; CLU,UNION TO FLEX V TYPE ENG<91L> (A) L=1806 SERVICED BY L=1950	1-47426-393-0	01	1	9603-9603	●
153	PIPE ASM; CLU,UNION TO FLEX V TYPE ENG<91L> (A) L=1776 SERVICED BY L=1800	1-47426-392-0	01	1	9604-9904	●
153	PIPE ASM; CLU,UNION TO FLEX V TYPE ENG<91L> (A) L=897	1-49164-397-0	01	1	9905-9907	●	●
153	PIPE ASM; CLU,UNION TO FLEX V TYPE ENG<91L> (A) L=1453 SERVICED BY L=1550	1-47426-390-0	01	1	9908-	●	●
172	HOSE; FLEX,CLU BOOSTER L TYPE ENG<90L> L=400	1-09364-263-0	01	1	9603-9904	●
172	HOSE; FLEX,CLU BOOSTER L TYPE ENG<90L> L=470	1-09364-929-0	01	1	9905-	●	●
172	HOSE; FLEX,CLU BOOSTER V TYPE ENG<91L>	1-09364-316-0	01	1	9603-9904	●
172	HOSE; FLEX,CLU BOOSTER V TYPE ENG<91L> L=400	1-09364-263-0	01	1	9905-	●	●

106 172 4 29 25 51 50 81 29 25 206 191 158 111 92 53 133 53 95 132 29 128 190 53 206 147 63 206 53 207 52 206

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	CLIP; FLEX HOSE,CLU CONT L=140	5-09707-031-0	01	1	9603-9605	●
25	BRACKET; OIL PIPE (A)	1-47477-748-0	01	1	9603-9702	●
25	BRACKET; OIL PIPE (A)	1-47477-935-1	01	1	9703-9904	●
25	BRACKET; OIL PIPE (A)	1-47477-935-2	01	1	9905-	●	●
25	BRACKET; OIL PIPE (B)	1-71907-377-3	01	1	9603-9904	●
25	BRACKET; OIL PIPE (B)	1-71907-377-3	01	1	9905-	●	●
25	BRACKET; OIL PIPE (D)	1-47477-498-1	01	1	9603-9906	●
25	BRACKET; OIL PIPE (D)	1-47477-498-1	01	1	9907-	●	●
25	BRACKET; OIL PIPE (C)	1-47477-499-1	01	1	9603-9906	●
25	BRACKET; OIL PIPE (C)	1-47477-499-1	01	1	9907-	●	●
25	BRACKET; OIL PIPE (E)	1-47478-406-0	01	1	9905-9906	●
25	BRACKET; OIL PIPE (E)	1-47478-406-0	01	1	9907-	●	●
25	BRACKET; OIL PIPE L TYPE ENG<90L> (F) L=50	1-47475-299-2	01	1	9603-9904	●
25	BRACKET; OIL PIPE L TYPE ENG<90L> (F) L=50	1-47475-299-2	01	1	9905-	●	●
25	BRACKET; OIL PIPE L TYPE ENG<90L> (E)	1-47475-881-0	01	1	9603-9904	●
25	BRACKET; OIL PIPE L TYPE ENG<90L> (E)	1-47475-881-0	01	1	9905-	●	●
29	BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28080-820-0	01	1	9603-9606	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	01	1	9607-9904	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	01	1	9905-	●	●
29	BOLT; CLIP,OIL PIPE M8X16 FLANGE	0-28080-816-0	04	1	9603-9904	●
29	BOLT; CLIP,OIL PIPE M8X16 FLANGE	0-28080-816-0	05	1	9905-9906	●
29	BOLT; CLIP,OIL PIPE M8X16 FLANGE	0-28080-816-0	05	1	9907-	●	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28080-825-0	01	1	9603-9606	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	01	1	9607-0002	●
29	BOLT; CLIP,OIL PIPE V TYPE ENG<91L> M8X30 FLANGE	0-28680-830-0	01	1	0003-	●	●
29	BOLT; CLIP,OIL PIPE M8X40 FLANGE	0-28680-840-0	01	1	9603-9904	●

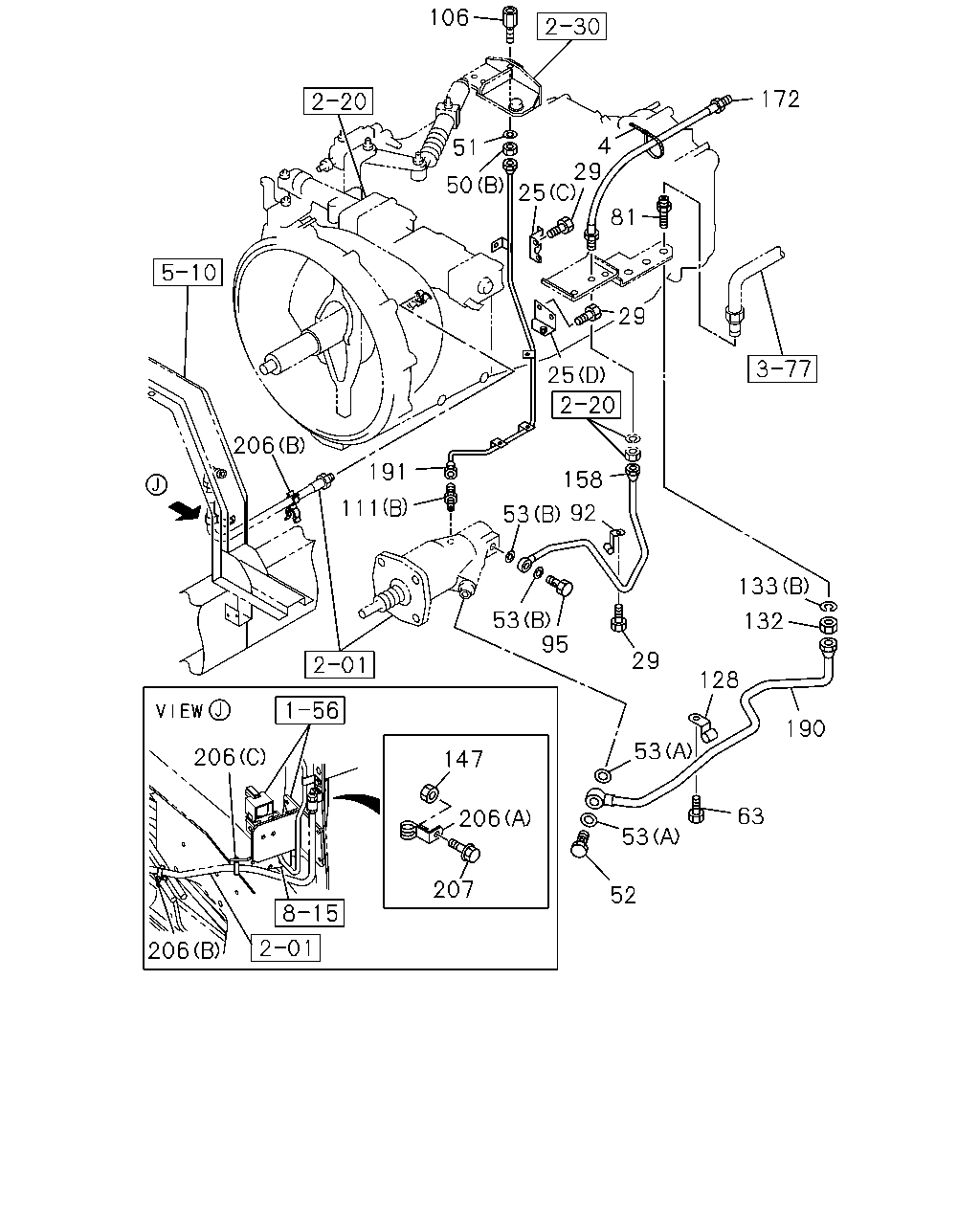

29	BOLT; CLIP,OIL PIPE L TYPE ENG<90L> M8X16 FLANGE	0-28080-816-0	02	1	9603-9606	●
29	BOLT; CLIP,OIL PIPE L TYPE ENG<90L> M8X20 FLANGE	0-28680-820-0	02	1	9607-9904	●
29	BOLT; CLIP,OIL PIPE L TYPE ENG<90L> M8X20 FLANGE	0-28680-820-0	02	1	9905-0002	●	●
29	BOLT; CLIP,OIL PIPE L TYPE ENG<90L> M8X20 FLANGE	0-28680-820-0	01	1	9908-0002	●	●
29	BOLT; CLIP,OIL PIPE L TYPE ENG<90L> M8X20 FLANGE	0-28680-820-0	01	1	0003-	●	●
50	NUT; UNION (A) M14	9-99111-414-0	01	1	9603-9904	●
50	NUT; UNION (A) M14	9-99111-414-0	01	1	9905-	●	●
50	NUT; UNION (B) M10 H=8	1-09400-029-0	01	1	9603-9606	●
50	NUT; UNION (B) M12	9-09840-280-0	01	1	9607-9906	●
50	NUT; UNION (B) M12	9-09840-280-0	01	1	9907-	●	●
50	NUT; UNION (C) M12 FLANGE	0-91150-212-0	01	1	9905-9905	●
50	NUT; UNION L TYPE ENG<90L> (C) M12 FLANGE	0-91150-212-0	01	1	9906-	●	●
51	WASHER; LK ID=10.2	9-09150-510-0	01	1	9603-9606	●
51	WASHER; LK ID=12.2	9-09150-512-0	01	1	9607-9906	●
51	WASHER; LK ID=12.2	9-09150-512-0	01	1	9907-	●	●
52	BOLT; EYE,AIR PIPE M16X30	1-09675-026-0	01	1	9603-9906	●
52	BOLT; EYE,AIR PIPE M16X30	1-09675-026-0	01	1	9907-	●	●
53	GASKET; JOINT BOLT (A) ID=16.2	1-09630-086-0	02	1	9603-9906	●
53	GASKET; JOINT BOLT (A) ID=16.2	1-09630-086-0	02	1	9907-	●	●
53	GASKET; JOINT BOLT (B) ID=14.2 OD=20.0	9-09571-414-0	02	1	9603-9906	●
53	GASKET; JOINT BOLT (B) ID=14.2 OD=20.0	9-09571-414-0	02	1	9907-	●	●
63	BOLT; CLIP,PIPE M8X16 FLANGE	0-28080-816-0	01	1	9603-9906	●
63	BOLT; CLIP,PIPE M8X16 FLANGE	0-28080-816-0	01	1	9907-	●	●
81	UNION; AIR PIPE	1-09664-233-0	01	1	9603-9906	●
81	UNION; AIR PIPE	1-09664-233-0	01	1	9907-	●	●
92	CLIP; OIL PIPE ID=9 H=32 L=24	1-09701-221-0	01	1	9603-9904	●
92	CLIP; OIL PIPE ID=9 L=32	9-09524-865-0	01	1	9905-9906	●
92	CLIP; OIL PIPE ID=9 L=32	9-09524-865-0	01	1	9907-	●	●
95	BOLT; EYE,OIL PIPE M14X27 FLANGE	1-09675-086-0	01	1	9603-9906	●
95	BOLT; EYE,OIL PIPE M14X27 FLANGE	1-09675-086-0	01	1	9907-	●	●
106	UNION; OIL PIPE	1-09654-368-0	01	1	9603-9606	●
106	UNION; OIL PIPE	1-09654-384-0	01	1	9607-9906	●
106	UNION; OIL PIPE	1-09654-384-0	01	1	9907-	●	●
111	UNION; OIL PIPE (B) M8 & M10 STRAIGHT	1-09654-369-0	01	1	9603-9606	●
111	UNION; OIL PIPE (B) M8 & M12 STRAIGHT	1-09654-383-0	01	1	9607-9906	●
111	UNION; OIL PIPE (B) M8 & M12 STRAIGHT	1-09654-383-0	01	1	9907-	●	●
111	UNION; OIL PIPE (A) M14 STRAIGHT	9-09223-008-1	01	1	9603-9904	●
111	UNION; OIL PIPE (A) M14 2WAY	1-09654-176-2	01	1	9905-9905	●
111	UNION; OIL PIPE L TYPE ENG<90L> (A) M14 2WAY	1-09654-176-2	01	1	9906-	●	●
111	UNION; OIL PIPE V TYPE ENG<91L> (A) M14 STRAIGHT	9-09223-008-1	01	1	9908-	●	●
128	CLIP; AIR PIPE ID=13 H=18 L=20	1-09701-232-0	01	1	9603-9904	●
128	CLIP; AIR PIPE ID=13	1-09701-030-1	01	1	9905-9906	●
128	CLIP; AIR PIPE ID=13	1-09701-030-1	01	1	9907-	●	●
132	NUT; UNION,AIR PIPE M20	9-99111-420-0	01	1	9603-9812	●
133	WASHER; LK,UNION (A) ID=14.2	9-09150-514-0	01	1	9603-9904	●
133	WASHER; LK,UNION (A) ID=14.2	9-09150-514-0	01	1	9905-	●	●
133	WASHER; LK,UNION (B) ID=20.2	9-09150-520-0	01	1	9603-9810	●
147	NUT; CLIP FIX M8 FLANGE	8-94279-517-0	01	1	9603-9611	●
147	NUT; CLIP FIX M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	9612-9904	●
147	NUT; CLIP FIX M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	9905-	●	●
147	NUT; CLIP FIX M8 FLANGE	0-91150-208-0	01	1	9705-9904	●	●
147	NUT; CLIP FIX M8 FLANGE	0-91150-208-0	01	1	9905-	●
158	PIPE; OIL,FLEX HOSE TO CLU BOOSTER	1-47428-571-0	01	1	9603-9608	●
158	PIPE; OIL,FLEX HOSE TO CLU BOOSTER	1-49161-059-0	01	1	9609-9904	●
158	PIPE; OIL,FLEX HOSE TO CLU BOOSTER	1-49119-466-2	01	1	9905-9906	●
158	PIPE; OIL,FLEX HOSE TO CLU BOOSTER	1-49119-466-2	01	1	9907-	●	●
172	HOSE; FLEX,CLU BOOSTER L TYPE ENG<90L> L=400	1-09364-263-0	01	1	9603-9904	●
172	HOSE; FLEX,CLU BOOSTER L TYPE ENG<90L> L=470	1-09364-929-0	01	1	9905-	●	●
172	HOSE; FLEX,CLU BOOSTER V TYPE ENG<91L>	1-09364-316-0	01	1	9603-9904	●
172	HOSE; FLEX,CLU BOOSTER V TYPE ENG<91L> L=400	1-09364-263-0	01	1	9905-	●	●
190	PIPE; AIR,UNION TO MINIPAC	1-49115-023-0	01	1	9603-9608	●
190	PIPE; AIR,UNION TO MINIPAC	1-49161-065-0	01	1	9609-9904	●
190	PIPE; AIR,UNION TO MINIPAC	1-49119-465-1	01	1	9905-9906	●
190	PIPE; AIR,UNION TO MINIPAC	1-49119-465-1	01	1	9907-	●	●
191	PIPE; OIL,UNION TO MINIPAC	1-47429-328-0	01	1	9603-9606	●
191	PIPE; OIL,UNION TO MINIPAC	1-47429-927-0	01	1	9607-9904	●
191	PIPE; OIL,UNION TO MINIPAC	1-49163-427-0	01	1	9905-9906	●
191	PIPE; OIL,UNION TO MINIPAC	1-49163-427-0	01	1	9907-	●	●
206	CLIP; TUBE (A) ID=16 H=30 L=30	1-09701-080-0	01	1	9705-9901	●
206	CLIP; TUBE (A) ID=18 L=28 H=30	1-09701-110-0	01	1	9902-	●
206	CLIP; TUBE (B) ID=13 & 12	8-94178-797-0	01	1	9705-	●
206	CLIP; TUBE L TYPE ENG<90L> (C) ID=13-18 L=14.5	1-09709-290-0	01	1	0008-	●	●
207	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	01	1	9705-	●

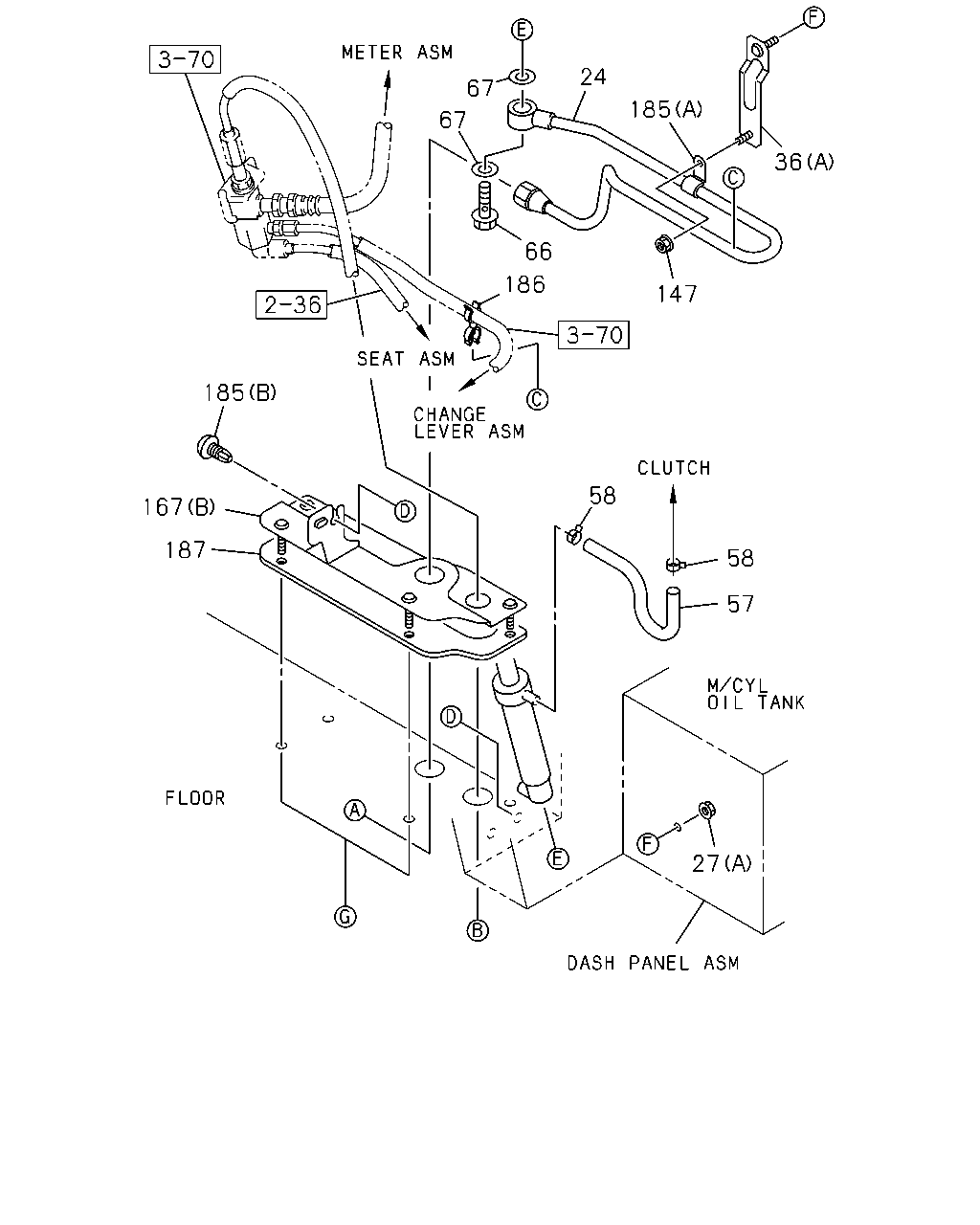

24 67 185 67 36 66 186 147 185 58 167 187 58 57 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	PIPE ASM; CLU,M/CYL TO UNION L=628	1-47428-381-1	01	1	9603-9904	●
24	PIPE ASM; CLU,M/CYL TO UNION L=628	1-47428-381-1	01	1	9905-	●	●
27	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	9603-9904	●
27	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	9905-	●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9603-9904	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9905-	●	●
27	NUT; BRKT (D) M8 FLANGE	8-94279-517-0	04	1	9603-9611	●
27	NUT; BRKT (D) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	9612-9904	●
27	NUT; BRKT (D) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	9905-	●	●
27	NUT; BRKT (C) M8	9-09110-408-0	02	1	9603-9606	●
27	NUT; BRKT (C) M8 FLANGE	0-91150-108-0	02	1	9607-9904	●
27	NUT; BRKT (C) M8 FLANGE	0-91150-108-0	02	1	9905-	●	●
27	NUT; BRKT L TYPE ENG<90L> (E) M8	9-09110-508-0	01	1	9603-9606	●
27	NUT; BRKT L TYPE ENG<90L> (E) M8 FLANGE	0-91150-108-0	01	1	9607-9904	●
27	NUT; BRKT L TYPE ENG<90L> (E) M8 FLANGE	0-91150-108-0	01	1	9905-	●	●
36	BRACKET; CLIP (A)	1-71117-191-1	01	1	9603-9904	●
36	BRACKET; CLIP (A)	1-71117-191-1	01	1	9905-	●	●
36	BRACKET; CLIP L TYPE ENG<90L> (B) L=50	1-47475-299-2	01	1	9908-	●	●
57	HOSE; CLU M/CYL TO OIL TANK	1-47427-312-0	01	1	9603-9904	●
57	HOSE; CLU M/CYL TO OIL TANK	1-47427-312-0	01	1	9905-	●	●
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	9603-9904	●
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	9905-	●	●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	9603-9904	●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	9905-	●	●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	9603-9904	●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	9905-	●	●
147	NUT; CLIP FIX M8 FLANGE	8-94279-517-0	01	1	9603-9611	●
147	NUT; CLIP FIX M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	9612-9904	●
147	NUT; CLIP FIX M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	9905-	●	●
147	NUT; CLIP FIX M8 FLANGE	0-91150-208-0	01	1	9705-9904	●	●
147	NUT; CLIP FIX M8 FLANGE	0-91150-208-0	01	1	9905-	●
167	BRACKET; UNION (B)	1-71117-207-1	01	1	9603-9904	●
167	BRACKET; UNION (B)	1-71117-207-1	01	1	9905-	●	●
167	BRACKET; UNION (A)	1-71907-376-1	01	1	9603-9904	●
167	BRACKET; UNION (A)	1-71907-376-1	01	1	9905-	●	●
185	CLIP; BRKT (B) D8X13.5	1-09987-248-1	01	1	9603-9904	●
185	CLIP; BRKT (B) D8X13.5	1-09987-248-1	01	1	9905-	●	●
185	CLIP; BRKT (A) ID=9 L=20	9-09545-108-0	01	1	9603-9904	●
185	CLIP; BRKT (A) ID=9 L=20	9-09545-108-0	01	1	9905-	●	●
186	HOLDER; CLIP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.3 & 8.3	8-94426-175-0	01	1	9603-9904	●
186	HOLDER; CLIP ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.3 & 8.3	8-94426-175-0	01	1	9905-	●
187	SEAL; BRKT	1-71117-209-2	01	1	9603-9904	●
187	SEAL; BRKT	1-71117-209-2	01	1	9905-	●	●

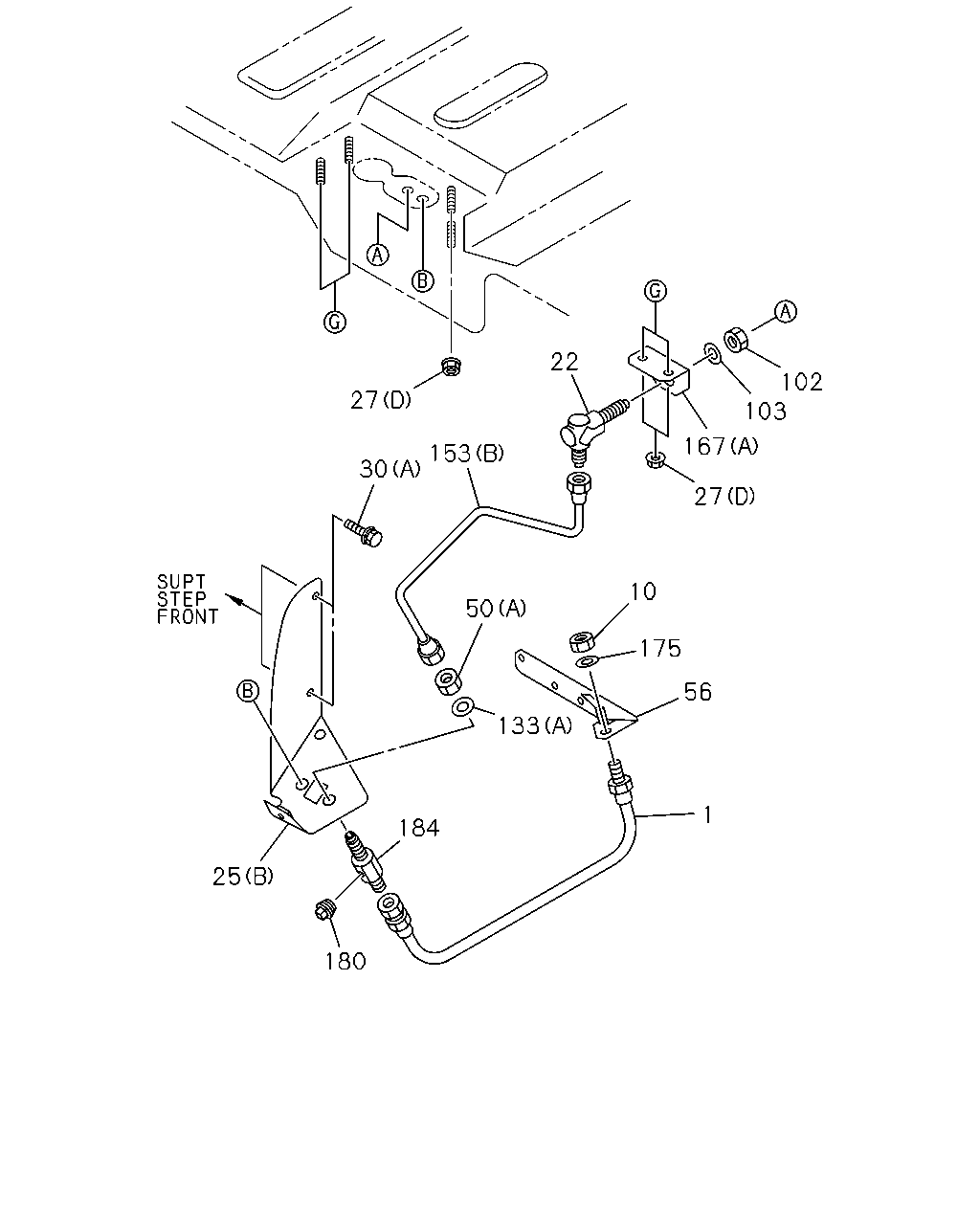

22 102 103 27 167 153 30 27 10 50 175 56 133 1 184 25 180

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,CLU CONT L=520	1-09364-948-0	01	1	9603-9904	●
1	HOSE; FLEX,CLU CONT L=520	1-09364-948-1	01	1	9905-	●	●
10	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9603-9904	●
10	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9905-	●	●
22	UNION; CLU PIPE M14	9-09225-208-1	01	1	9603-9904	●
22	UNION; CLU PIPE M14	9-09225-208-1	01	1	9905-	●	●
25	BRACKET; OIL PIPE (A)	1-47477-748-0	01	1	9603-9702	●
25	BRACKET; OIL PIPE (A)	1-47477-935-1	01	1	9703-9904	●
25	BRACKET; OIL PIPE (A)	1-47477-935-2	01	1	9905-	●	●
25	BRACKET; OIL PIPE (B)	1-71907-377-3	01	1	9603-9904	●
25	BRACKET; OIL PIPE (B)	1-71907-377-3	01	1	9905-	●	●
25	BRACKET; OIL PIPE (D)	1-47477-498-1	01	1	9603-9906	●
25	BRACKET; OIL PIPE (D)	1-47477-498-1	01	1	9907-	●	●
25	BRACKET; OIL PIPE (C)	1-47477-499-1	01	1	9603-9906	●
25	BRACKET; OIL PIPE (C)	1-47477-499-1	01	1	9907-	●	●
25	BRACKET; OIL PIPE (E)	1-47478-406-0	01	1	9905-9906	●
25	BRACKET; OIL PIPE (E)	1-47478-406-0	01	1	9907-	●	●
25	BRACKET; OIL PIPE L TYPE ENG<90L> (F) L=50	1-47475-299-2	01	1	9603-9904	●
25	BRACKET; OIL PIPE L TYPE ENG<90L> (F) L=50	1-47475-299-2	01	1	9905-	●	●
25	BRACKET; OIL PIPE L TYPE ENG<90L> (E)	1-47475-881-0	01	1	9603-9904	●
25	BRACKET; OIL PIPE L TYPE ENG<90L> (E)	1-47475-881-0	01	1	9905-	●	●
27	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	9603-9904	●
27	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	9905-	●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9603-9904	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9905-	●	●
27	NUT; BRKT (D) M8 FLANGE	8-94279-517-0	04	1	9603-9611	●
27	NUT; BRKT (D) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	9612-9904	●
27	NUT; BRKT (D) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	9905-	●	●
27	NUT; BRKT (C) M8	9-09110-408-0	02	1	9603-9606	●
27	NUT; BRKT (C) M8 FLANGE	0-91150-108-0	02	1	9607-9904	●
27	NUT; BRKT (C) M8 FLANGE	0-91150-108-0	02	1	9905-	●	●
27	NUT; BRKT L TYPE ENG<90L> (E) M8	9-09110-508-0	01	1	9603-9606	●
27	NUT; BRKT L TYPE ENG<90L> (E) M8 FLANGE	0-91150-108-0	01	1	9607-9904	●
27	NUT; BRKT L TYPE ENG<90L> (E) M8 FLANGE	0-91150-108-0	01	1	9905-	●	●
30	BOLT; BRKT (C) M8X30 FLANGE	0-28080-830-0	02	1	9603-9606	●
30	BOLT; BRKT (C) M8X35 FLANGE	0-28680-835-0	02	1	9607-9904	●
30	BOLT; BRKT (C) M8X35 FLANGE	0-28680-835-0	02	1	9905-	●	●
30	BOLT; BRKT (A) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9603-9904	●
30	BOLT; BRKT (A) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9905-	●	●
30	BOLT; BRKT L TYPE ENG<90L> (B) M8X25 FLANGE	0-28080-825-0	01	1	9603-9606	●
30	BOLT; BRKT L TYPE ENG<90L> (B) M8X30 FLANGE	0-28680-830-0	01	1	9607-9904	●
30	BOLT; BRKT L TYPE ENG<90L> (B) M8X30 FLANGE	0-28680-830-0	01	1	9905-	●	●
50	NUT; UNION (A) M14	9-99111-414-0	01	1	9603-9904	●
50	NUT; UNION (A) M14	9-99111-414-0	01	1	9905-	●	●
50	NUT; UNION (B) M10 H=8	1-09400-029-0	01	1	9603-9606	●
50	NUT; UNION (B) M12	9-09840-280-0	01	1	9607-9906	●
50	NUT; UNION (B) M12	9-09840-280-0	01	1	9907-	●	●
50	NUT; UNION (C) M12 FLANGE	0-91150-212-0	01	1	9905-9905	●
50	NUT; UNION L TYPE ENG<90L> (C) M12 FLANGE	0-91150-212-0	01	1	9906-	●	●
56	BRACKET; FLEX HOSE	1-47477-603-1	01	1	9603-9904	●
56	BRACKET; FLEX HOSE	1-47477-603-1	01	1	9905-	●	●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9603-9904	●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9905-	●	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9603-9904	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9905-	●	●
133	WASHER; LK,UNION (A) ID=14.2	9-09150-514-0	01	1	9603-9904	●
133	WASHER; LK,UNION (A) ID=14.2	9-09150-514-0	01	1	9905-	●	●
133	WASHER; LK,UNION (B) ID=20.2	9-09150-520-0	01	1	9603-9810	●
153	PIPE ASM; CLU,UNION TO FLEX (B) L=490	1-47428-363-0	01	1	9603-9904	●
153	PIPE ASM; CLU,UNION TO FLEX (B) L=490	1-47428-363-0	01	1	9905-	●	●
153	PIPE ASM; CLU,UNION TO FLEX L TYPE ENG<90L> (A) L=1283 SERVICED BY L=1400	1-47426-389-0	01	1	9603-9603	●
153	PIPE ASM; CLU,UNION TO FLEX L TYPE ENG<90L> (A) L=1250 SERVICED BY L=1400	1-47426-389-0	01	1	9604-9904	●
153	PIPE ASM; CLU,UNION TO FLEX L TYPE ENG<90L> (A) L=1021	1-49164-666-0	01	1	9908-	●	●
153	PIPE ASM; CLU,UNION TO FLEX V TYPE ENG<91L> (A) L=1806 SERVICED BY L=1950	1-47426-393-0	01	1	9603-9603	●
153	PIPE ASM; CLU,UNION TO FLEX V TYPE ENG<91L> (A) L=1776 SERVICED BY L=1800	1-47426-392-0	01	1	9604-9904	●
153	PIPE ASM; CLU,UNION TO FLEX V TYPE ENG<91L> (A) L=897	1-49164-397-0	01	1	9905-9907	●	●
153	PIPE ASM; CLU,UNION TO FLEX V TYPE ENG<91L> (A) L=1453 SERVICED BY L=1550	1-47426-390-0	01	1	9908-	●	●
167	BRACKET; UNION (B)	1-71117-207-1	01	1	9603-9904	●
167	BRACKET; UNION (B)	1-71117-207-1	01	1	9905-	●	●
167	BRACKET; UNION (A)	1-71907-376-1	01	1	9603-9904	●
167	BRACKET; UNION (A)	1-71907-376-1	01	1	9905-	●	●
175	WASER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9603-9904	●
175	WASER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9905-	●	●
180	PLUG; PIPE	9-09204-510-0	01	1	9603-9904	●
180	PLUG; PIPE	9-09204-510-0	01	1	9905-	●	●
184	UNION; FLEX HOSE 3WAY	1-09656-679-0	01	1	9603-9904	●
184	UNION; FLEX HOSE 3WAY	1-09656-679-0	01	1	9905-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
