◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11161 - FSR(SOUTH AFRICA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-43 - SIDE TRIM ▶
6-43 — SIDE TRIM (#55597) — 37 parça

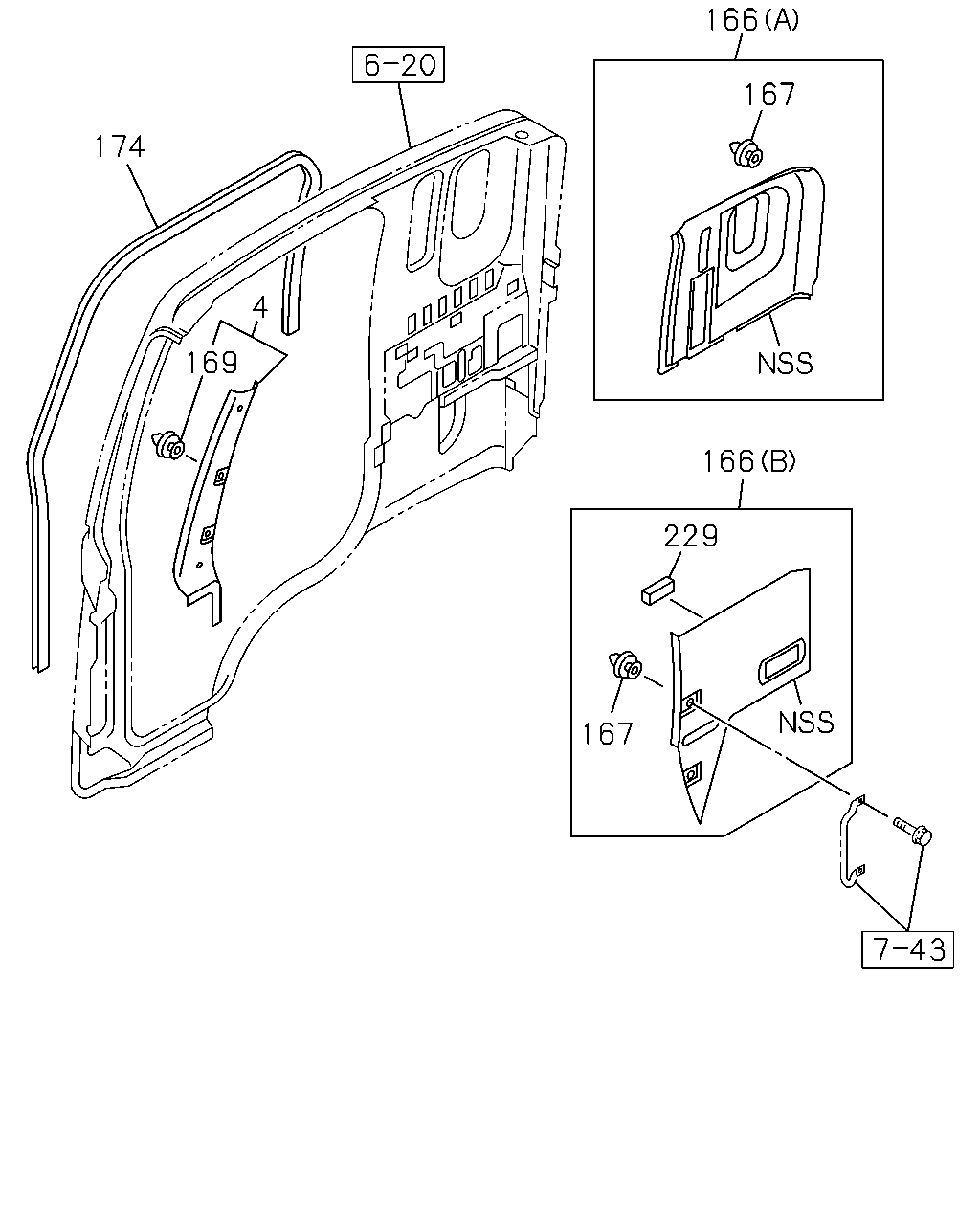

çizim 162403
166 167 174 4 169 166 229 167
BalonParca AdiParca NoAdetTipApplied Date A B
4 COVER; TRIM,FRT SIDE
DARK GRAY 		8-97407-416-1 01 1 1001- ● ●
4 COVER; TRIM,FRT SIDE
DARK GRAY 		8-97407-415-1 01 1 1001- ● ●
166 TRIM; RR PILLAR
(B) GRAY 		8-97407-460-1 01 1 1001- ●
166 TRIM; RR PILLAR
(A) DARK GRAY 		8-97415-651-0 01 1 1001- ●
166 TRIM; RR PILLAR
(A) DARK GRAY 		8-97415-652-0 01 1 1001- ●
166 TRIM; RR PILLAR
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (B) GRAY 		8-97414-300-0 01 1 1001- ●
166 TRIM; RR PILLAR
EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (B) GRAY 		8-97407-459-1 01 1 1001- ●
167 CLIP; TRIM,RR PILLAR 8-98059-610-0 12 1 1001- ●
167 CLIP; TRIM,RR PILLAR 8-98059-610-0 04 1 1001- ●
169 CLIP; TRIM COVER,FRT PILLAR
OD=7.9 BLACK SOU 		8-94279-974-1 04 1 1001- ● ●
174 FINISHER; BODY SIDE 8-98155-183-0 01 1 1001-1509 ●
174 FINISHER; BODY SIDE 8-98249-513-0 01 1 1510- ●
174 FINISHER; BODY SIDE 8-98155-184-0 01 1 1001-1509 ●
174 FINISHER; BODY SIDE 8-98249-514-0 01 1 1510- ●
174 FINISHER; BODY SIDE
L=3159 		8-98154-667-0 01 1 1001-1509 ●
174 FINISHER; BODY SIDE 8-98245-048-1 01 1 1510- ●
174 FINISHER; BODY SIDE
L=3159 		8-98154-668-0 01 1 1001-1509 ●
174 FINISHER; BODY SIDE 8-98245-049-1 01 1 1510- ●
229 SEAL 8-98080-972-0 02 1 1001- ●
229 SEAL
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> 		8-98092-662-0 01 1 1001- ●
229 SEAL
EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> 		8-98080-972-0 02 1 1001- ●

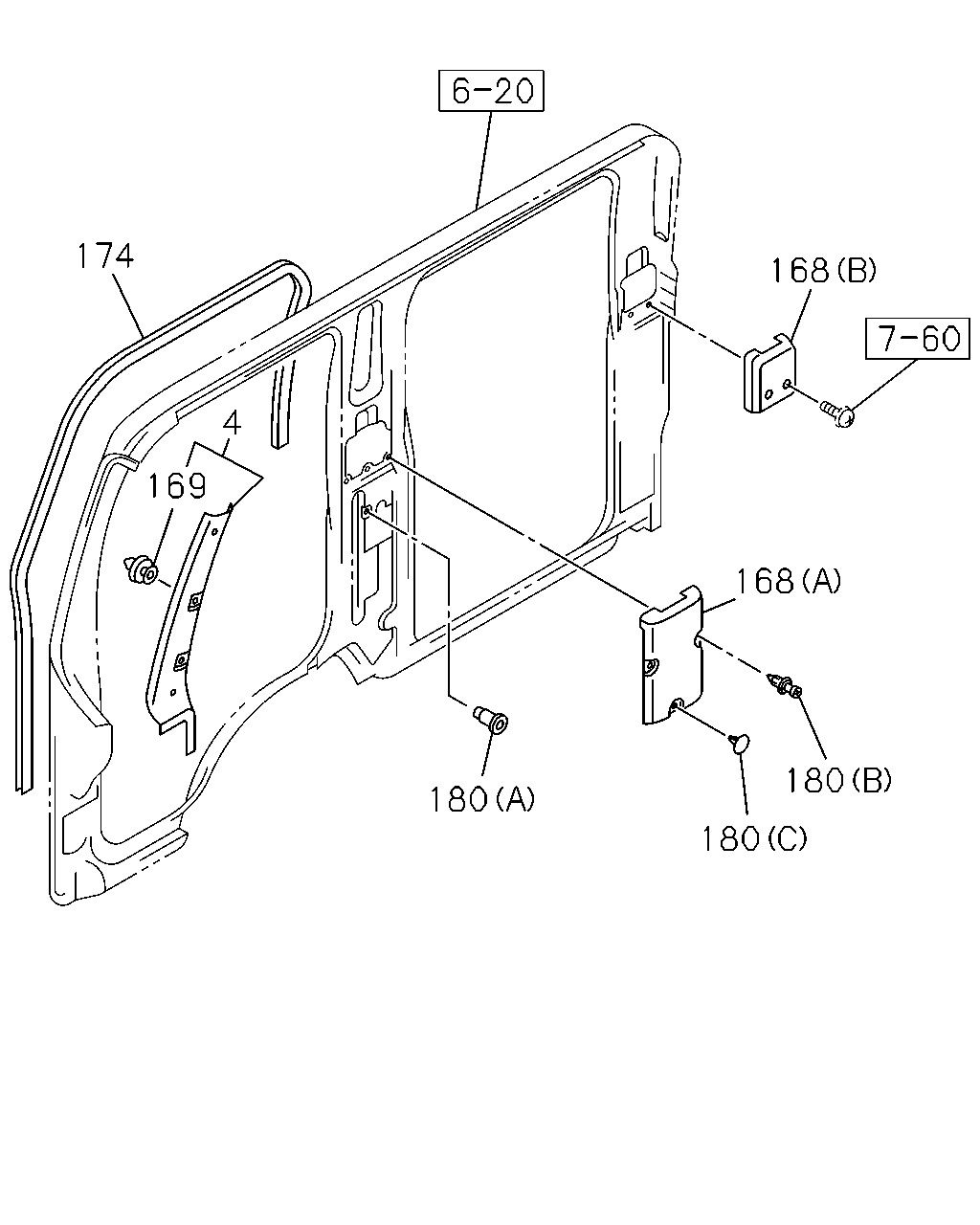

çizim 162565
174 168 4 169 168 180 180 180
BalonParca AdiParca NoAdetTipApplied Date A B
4 COVER; TRIM,FRT SIDE
DARK GRAY 		8-97407-416-1 01 1 1001- ● ●
4 COVER; TRIM,FRT SIDE
DARK GRAY 		8-97407-415-1 01 1 1001- ● ●
168 COVER; SEAT BELT RETRACTOR
(A) GRAY 		8-97405-191-2 02 1 1001- ●
168 COVER; SEAT BELT RETRACTOR
(B) GRAY 		8-97405-192-3 02 1 1001- ●
169 CLIP; TRIM COVER,FRT PILLAR
OD=7.9 BLACK SOU 		8-94279-974-1 04 1 1001- ● ●
174 FINISHER; BODY SIDE 8-98155-183-0 01 1 1001-1509 ●
174 FINISHER; BODY SIDE 8-98249-513-0 01 1 1510- ●
174 FINISHER; BODY SIDE 8-98155-184-0 01 1 1001-1509 ●
174 FINISHER; BODY SIDE 8-98249-514-0 01 1 1510- ●
174 FINISHER; BODY SIDE
L=3159 		8-98154-667-0 01 1 1001-1509 ●
174 FINISHER; BODY SIDE 8-98245-048-1 01 1 1510- ●
174 FINISHER; BODY SIDE
L=3159 		8-98154-668-0 01 1 1001-1509 ●
174 FINISHER; BODY SIDE 8-98245-049-1 01 1 1510- ●
180 FASTENER; COVER
(A) 		8-97319-495-0 02 1 1001- ●
180 FASTENER; COVER
(B) GRAY 		8-97405-246-0 04 1 1001- ●
180 FASTENER; COVER
(C) GRAY 		8-97405-247-0 02 1 1001- ●
