◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11161 - FSR(SOUTH AFRICA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-35 - FRONT DOOR TRIM ▶
6-35 — FRONT DOOR TRIM (#55596) — 32 parça

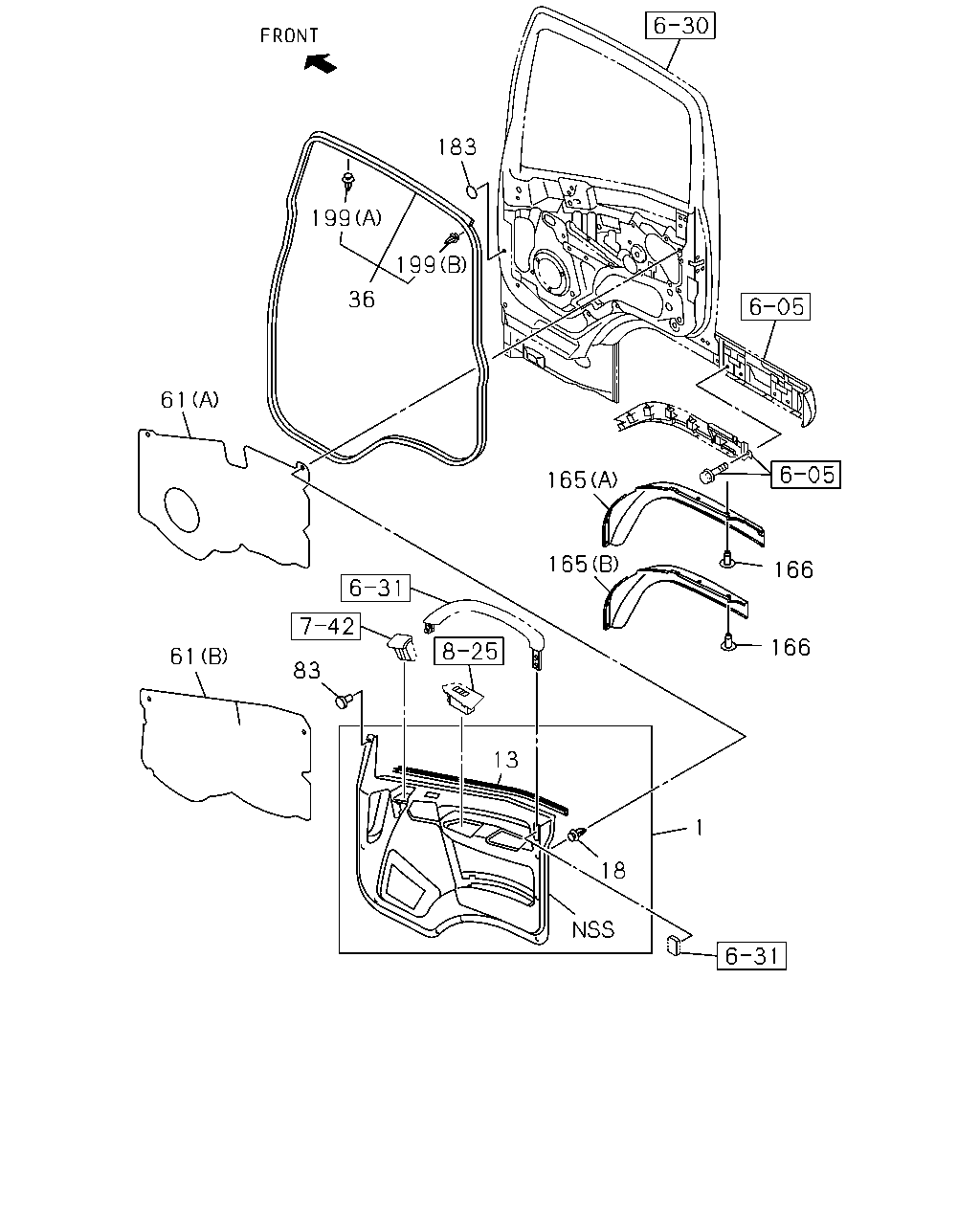

çizim 162401
183 199 199 36 61 165 165 166 166 61 83 13 1 18
BalonParca AdiParca NoAdetTipApplied Date A B
1 PAD; TRIM,FRT DOOR
POWER WINDOW FRT DOOR<A32> GRAY 		8-97405-306-6 01 1 1001- ●
1 PAD; TRIM,FRT DOOR
POWER WINDOW FRT DOOR<A32> GRAY 		8-97405-304-6 01 1 1001- ●
1 PAD; TRIM,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> GRAY 		8-97405-307-6 01 1 1001- ●
1 PAD; TRIM,FRT DOOR
GRAY 		8-97405-307-6 01 1 1001- ●
1 PAD; TRIM,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> GRAY 		8-97405-305-6 01 1 1001- ●
1 PAD; TRIM,FRT DOOR
GRAY 		8-97405-305-6 01 1 1001- ●
13 SEAL; DOOR TRIM 8-98029-202-1 01 1 1001- ● ●
13 SEAL; DOOR TRIM 8-98029-201-1 01 1 1001- ● ●
18 CLIP; DOOR PAD 8-98004-025-0 07 1 1001- ● ●
18 CLIP; DOOR PAD 8-98004-025-0 07 1 1001- ●
36 SEAL; DOOR,MAIN,CAB SIDE 8-98029-198-3 01 1 1001-1009 ● ●
36 SEAL; DOOR,MAIN,CAB SIDE 8-98077-429-0 01 1 1010- ● ●
36 SEAL; DOOR,MAIN,CAB SIDE 8-98029-199-3 01 1 1001- ● ●
61 SEAL; WATER,DOOR PAD
2-SPEAKER SYSTEM BASE<U95> (A) 		8-98029-395-2 01 1 1001- ● ●
61 SEAL; WATER,DOOR PAD
2-SPEAKER SYSTEM BASE<U95> (A) 		8-98029-394-2 01 1 1001- ● ●
61 SEAL; WATER,DOOR PAD
EXC. 2-SPEAKER SYSTEM BASE<U95> (B) 		8-98029-396-0 02 1 1001- ● ●
83 CLIP; DOOR TRIM
GRAY 		8-97405-308-0 02 1 1001- ● ●
165 LINER; DOOR LWR
(A) 		8-98038-286-1 01 1 1001-1412 ●
165 LINER; DOOR LWR
(A) 		8-98299-436-0 01 1 1501- ●
165 LINER; DOOR LWR
(A) 		8-98038-285-1 01 1 1001-1412 ●
165 LINER; DOOR LWR
(A) 		8-98299-434-0 01 1 1501- ●
165 LINER; DOOR LWR
(B) 		8-97584-591-0 01 1 1001- ●
165 LINER; DOOR LWR
(B) 		8-97584-590-0 01 1 1001- ●
166 PLUG; HOLE
D8X13.5 SOU 		1-09987-248-1 10 1 1001- ●
166 PLUG; HOLE
D8X13.5 SOU 		1-09987-248-1 08 1 1001- ●
183 SEAL; LOCATION HOLE
OD=25 BLACK SOU 		1-76798-019-0 02 1 1001- ● ●
199 CLIP; SEAL
(A) NATURAL 		8-98062-270-0 40 1 1001-1009 ● ●
199 CLIP; SEAL
(A) NATURAL 		8-98062-270-0 40 1 1001-1009 ● ●
199 CLIP; SEAL
(A) NATURAL 		8-98062-270-0 80 1 1010- ● ●
199 CLIP; SEAL
(B) RED 		8-98062-271-0 01 1 1001-1009 ● ●
199 CLIP; SEAL
(B) RED 		8-98062-271-0 01 1 1001-1009 ● ●
199 CLIP; SEAL
(B) RED 		8-98062-271-0 02 1 1010- ● ●
