2-05A — CLUTCH PIPING (#5559) — 249 parça

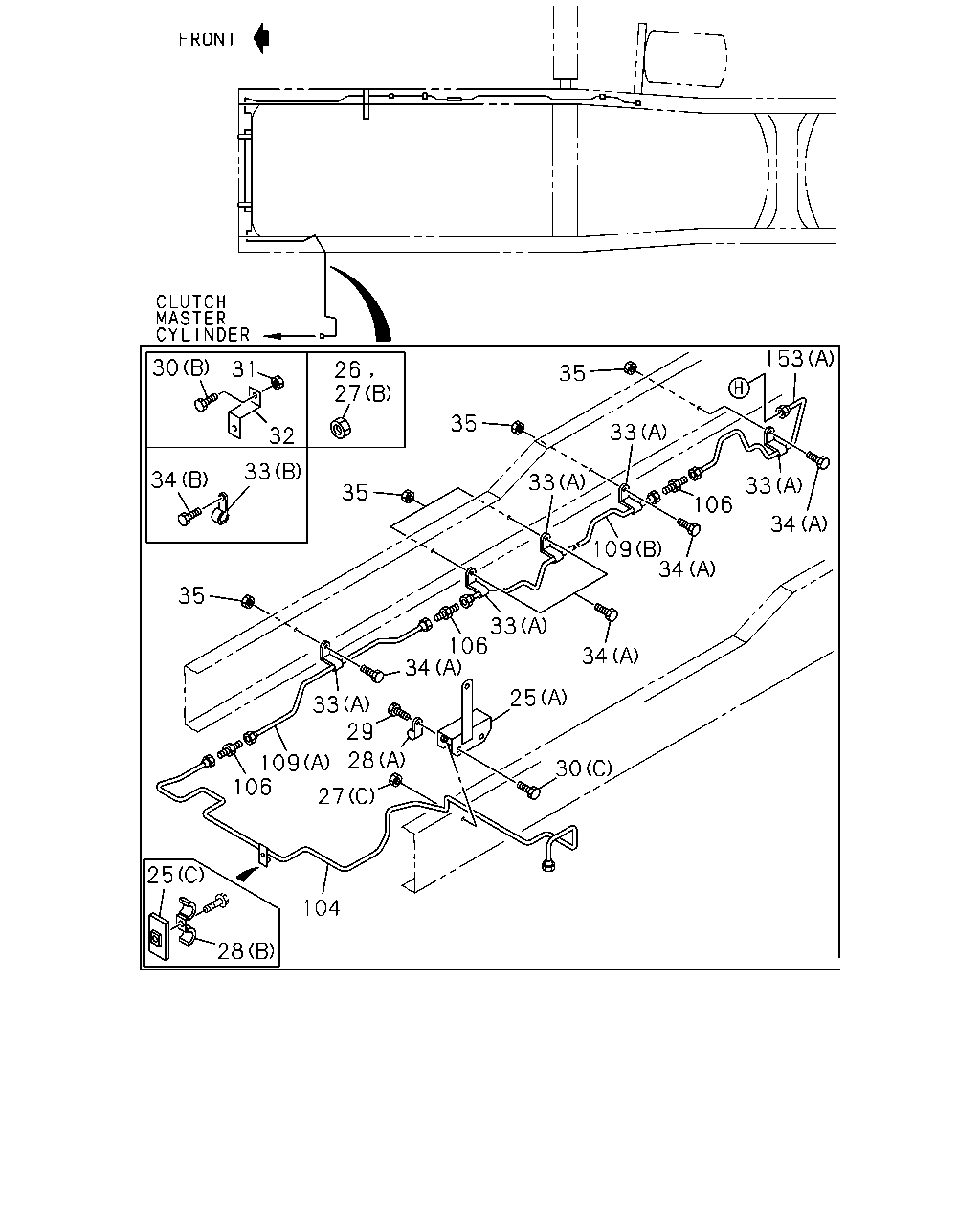

153 30 31 26 27 35 33 35 32 33 33 34 33 35 106 34 109 34 35 33 106 34 34 25 33 29 28 109 106 30 27 25 104 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
25	BRACKET; OIL PIPE (A)	1-47477-748-0	01	1	9603-9702	●	●
25	BRACKET; OIL PIPE (A)	1-47477-935-1	01	1	9703-9904	●	●
25	BRACKET; OIL PIPE (A)	1-47477-935-2	01	1	9905-	●	●
25	BRACKET; OIL PIPE (B)	1-71907-377-3	01	1	9603-9904	●	●
25	BRACKET; OIL PIPE (B)	1-71907-377-3	01	1	9905-	●	●
25	BRACKET; OIL PIPE L TYPE ENG<90L> (C) L=50	1-47475-299-2	02	1	9905-	●
26	NUT; CLIP,OIL PIPE V TYPE ENG<91L> M8 FLANGE	0-91150-108-0	01	1	0003-	●	●
26	NUT; CLIP,OIL PIPE L TYPE ENG<90L> M8 FLANGE	0-91150-108-0	02	1	0003-	●
27	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	9603-9904	●	●
27	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	9905-	●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9603-9904	●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9905-	●	●
27	NUT; BRKT (D) M8 FLANGE	8-94279-517-0	04	1	9603-9611	●	●
27	NUT; BRKT (D) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	9612-9904	●	●
27	NUT; BRKT (D) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	9905-	●	●
27	NUT; BRKT (C) M8	9-09110-408-0	02	1	9603-9606	●	●
27	NUT; BRKT (C) M8 FLANGE	0-91150-108-0	02	1	9607-9904	●	●
27	NUT; BRKT (C) M8 FLANGE	0-91150-108-0	02	1	9905-	●	●
28	CLIP; OIL PIPE (A) ID=9 L=20	9-09524-835-0	01	1	9603-9904	●	●
28	CLIP; OIL PIPE (A) ID=9 L=20	9-09524-835-0	01	1	9905-	●	●
28	CLIP; OIL PIPE L TYPE ENG<90L> (B) ID=16 & 9 L=21 & 18	1-09700-676-0	02	1	9905-	●
29	BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28080-820-0	01	1	9603-9606	●	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	01	1	9607-9904	●	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	01	1	9905-	●	●
29	BOLT; CLIP,OIL PIPE L TYPE ENG<90L> M8X20 FLANGE	0-28680-820-0	02	1	0003-	●
29	BOLT; CLIP,OIL PIPE V TYPE ENG<91L> M8X20 FLANGE	0-28680-820-0	01	1	0003-	●	●
30	BOLT; BRKT (C) M8X30 FLANGE	0-28080-830-0	02	1	9603-9606	●	●
30	BOLT; BRKT (C) M8X35 FLANGE	0-28680-835-0	02	1	9607-9904	●	●
30	BOLT; BRKT (C) M8X35 FLANGE	0-28680-835-0	02	1	9905-	●	●
30	BOLT; BRKT (A) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9603-9904	●	●
30	BOLT; BRKT (A) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9905-	●	●
30	BOLT; BRKT L TYPE ENG<90L> (B) M8X25 FLANGE	0-28080-825-0	01	1	9603-9606	●
30	BOLT; BRKT L TYPE ENG<90L> (B) M8X30 FLANGE	0-28680-830-0	01	1	9607-9904	●
30	BOLT; BRKT L TYPE ENG<90L> (B) M8X30 FLANGE	0-28680-830-0	01	1	9905-	●	●
31	NUT; BRKT L TYPE ENG<90L> M8	9-09110-508-0	01	1	9603-9606	●
31	NUT; BRKT L TYPE ENG<90L> M8 FLANGE	0-91150-108-0	01	1	9607-	●
32	BRACKET; CLIP OIL PIPE L TYPE ENG<90L>	1-47475-881-0	01	1	9603-9904	●
32	BRACKET; CLIP OIL PIPE L TYPE ENG<90L>	1-47477-235-0	01	1	9905-	●
33	CLIP; OIL PIPE L TYPE ENG<90L> (B) ID=9 L=20	9-09524-835-0	01	1	9603-	●
33	CLIP; OIL PIPE V TYPE ENG<91L> (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9603-9904	●	●
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9905-9907	●	●
33	CLIP; OIL PIPE V TYPE ENG<91L> (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9905-9907	●	●
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9908-	●	●
33	CLIP; OIL PIPE V TYPE ENG<91L> (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9908-	●	●
33	CLIP; OIL PIPE V TYPE ENG<91L> (A) ID=8 H=20 L=20	1-09700-604-0	03	1	9603-9904	●	●
33	CLIP; OIL PIPE V TYPE ENG<91L> (A) ID=8 H=20 L=20	1-09700-604-0	03	1	9905-	●	●
33	CLIP; OIL PIPE L TYPE ENG<90L> (A) ID=8 H=20 L=20	1-09700-604-0	02	1	9603-9904	●
33	CLIP; OIL PIPE L TYPE ENG<90L> (A) ID=8 H=20 L=20	1-09700-604-0	02	1	9905-9907	●
33	CLIP; OIL PIPE L TYPE ENG<90L> (A) ID=8 H=20 L=20	1-09700-604-0	02	1	9908-	●
34	BOLT; PIPE CLIP L TYPE ENG<90L> (B) M8X16 FLANGE	0-28080-816-0	01	1	9603-9606	●
34	BOLT; PIPE CLIP L TYPE ENG<90L> (B) M8X20 FLANGE	0-28680-820-0	01	1	9607-9904	●
34	BOLT; PIPE CLIP L TYPE ENG<90L> (B) M8X30 FLANGE	0-28680-830-0	02	1	9905-9907	●
34	BOLT; PIPE CLIP L TYPE ENG<90L> (B) M8X30 FLANGE	0-28680-830-0	02	1	9908-	●
34	BOLT; PIPE CLIP V TYPE ENG<91L> (A) M8X25 FLANGE	0-28080-825-0	01	1	9603-9606	●	●
34	BOLT; PIPE CLIP V TYPE ENG<91L> (A) M8X30 FLANGE	0-28680-830-0	01	1	9607-9904	●	●
34	BOLT; PIPE CLIP V TYPE ENG<91L> (A) M8X25 FLANGE	0-28080-825-0	03	1	9603-9606	●	●
34	BOLT; PIPE CLIP V TYPE ENG<91L> (A) M8X30 FLANGE	0-28680-830-0	03	1	9607-9904	●	●
34	BOLT; PIPE CLIP V TYPE ENG<91L> (A) M8X30 FLANGE	0-28680-830-0	03	1	9905-	●	●
34	BOLT; PIPE CLIP L TYPE ENG<90L> (A) M8X25 FLANGE	0-28080-825-0	02	1	9603-9606	●
34	BOLT; PIPE CLIP L TYPE ENG<90L> (A) M8X30 FLANGE	0-28680-830-0	02	1	9607-9904	●
34	BOLT; PIPE CLIP (A) M8X30 FLANGE	0-28680-830-0	01	1	9905-9907	●	●
34	BOLT; PIPE CLIP V TYPE ENG<91L> (A) M8X30 FLANGE	0-28680-830-0	01	1	9905-9907	●	●
34	BOLT; PIPE CLIP (A) M8X30 FLANGE	0-28680-830-0	01	1	9908-	●	●
34	BOLT; PIPE CLIP V TYPE ENG<91L> (A) M8X30 FLANGE	0-28680-830-0	01	1	9908-	●	●
35	NUT; PIPE CLIP L TYPE ENG<90L> M8	9-09110-508-0	02	1	9603-9606	●
35	NUT; PIPE CLIP L TYPE ENG<90L> M8 FLANGE	0-91150-108-0	02	1	9607-9904	●
35	NUT; PIPE CLIP V TYPE ENG<91L> M8	9-09110-508-0	03	1	9603-9606	●	●
35	NUT; PIPE CLIP V TYPE ENG<91L> M8 FLANGE	0-91150-108-0	03	1	9607-9904	●	●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	03	1	9905-	●	●
35	NUT; PIPE CLIP V TYPE ENG<91L> M8	9-09110-508-0	01	1	9603-9606	●	●
35	NUT; PIPE CLIP V TYPE ENG<91L> M8 FLANGE	0-91150-108-0	01	1	9607-9904	●	●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	01	1	9905-9907	●	●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	01	1	9905-9907	●	●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	01	1	9908-	●	●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	01	1	9908-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L TYPE ENG<90L> L=2316 SERVICED BY L=2400	1-47426-395-0	01	1	9603-9904	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L TYPE ENG<90L> L=2284 SERVICED BY L=2400	1-47426-395-0	01	1	9905-	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR V TYPE ENG<91L> L=2275 SERVICED BY L=2400	1-47426-395-0	01	1	9603-	●	●
106	UNION; OIL PIPE M14 STRAIGHT	9-09223-008-1	01	1	9603-	●	●
106	UNION; OIL PIPE M14 STRAIGHT	9-09223-008-1	01	1	9603-	●	●
106	UNION; OIL PIPE M14 STRAIGHT	9-09223-008-1	01	1	9603-	●	●
109	PIPE; AIR,UNION TO UNION V TYPE ENG<91L> (A) L=1031 SERVICED BY L=1100	1-47426-387-0	01	1	9603-	●	●
109	PIPE; AIR,UNION TO UNION L TYPE ENG<90L> (A) L=1015 SERVICED BY L=1100	1-47426-387-0	01	1	9905-	●
109	PIPE; AIR,UNION TO UNION V TYPE ENG<91L> (B) L=969 SERVICED BY L=970	1-47426-385-0	01	1	9603-	●	●
153	PIPE ASM; CLU,UNION TO FLEX (B) L=490	1-47428-363-0	01	1	9603-9904	●	●
153	PIPE ASM; CLU,UNION TO FLEX (B) L=490	1-47428-363-0	01	1	9905-	●	●
153	PIPE ASM; CLU,UNION TO FLEX L TYPE ENG<90L> (A) L=1830 SERVICED BY L=1950	1-47426-393-0	01	1	9603-	●
153	PIPE ASM; CLU,UNION TO FLEX V TYPE ENG<91L> (A) L=547 SERVICED BY L=550	1-47426-377-0	01	1	9603-	●	●

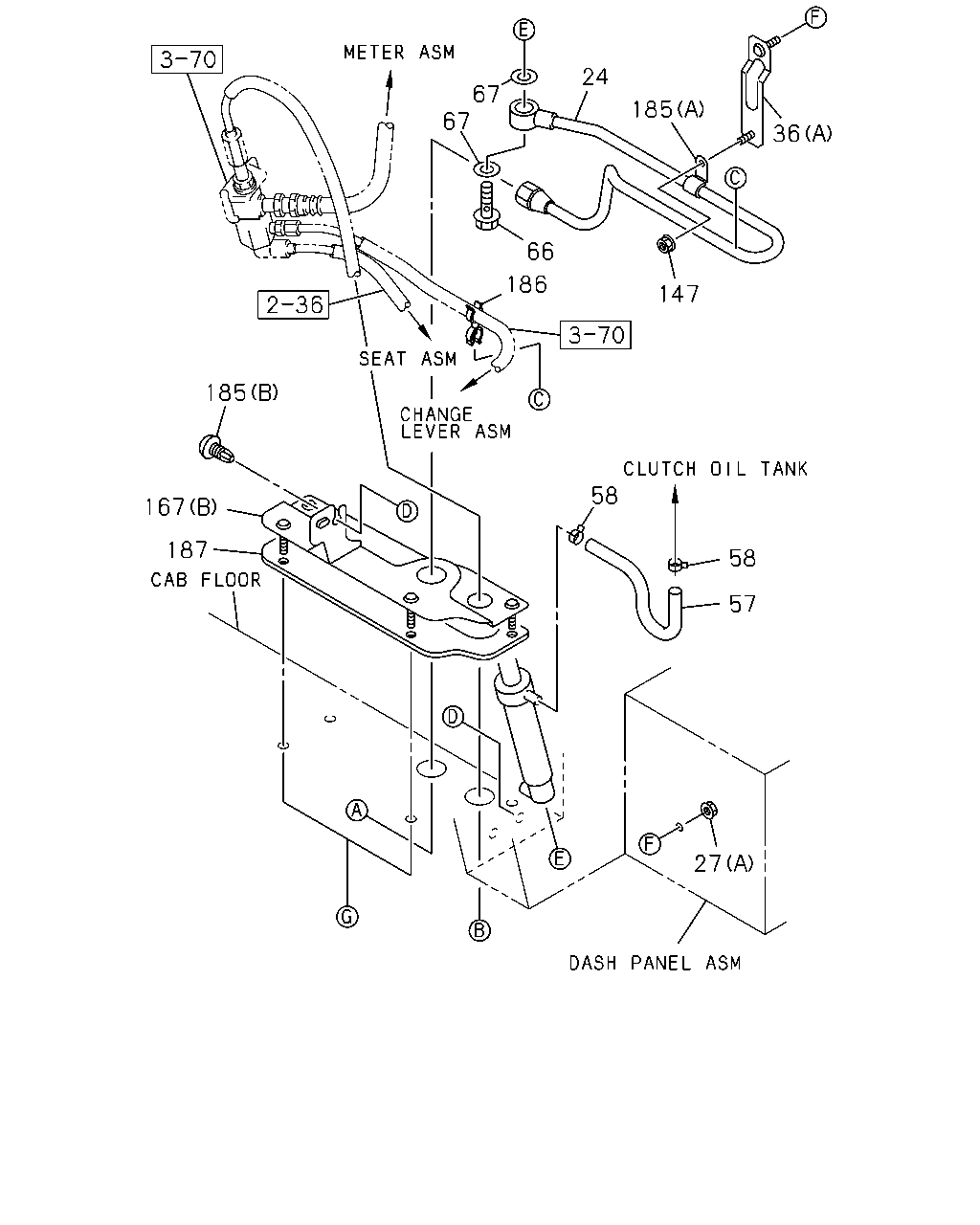

24 67 67 185 36 66 186 147 185 58 167 187 58 57 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	PIPE ASM; CLU,M/CYL TO UNION L=621	1-47428-362-1	01	1	9603-	●	●
27	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	9603-9904	●	●
27	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	9905-	●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9603-9904	●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9905-	●	●
27	NUT; BRKT (D) M8 FLANGE	8-94279-517-0	04	1	9603-9611	●	●
27	NUT; BRKT (D) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	9612-9904	●	●
27	NUT; BRKT (D) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	9905-	●	●
27	NUT; BRKT (C) M8	9-09110-408-0	02	1	9603-9606	●	●
27	NUT; BRKT (C) M8 FLANGE	0-91150-108-0	02	1	9607-9904	●	●
27	NUT; BRKT (C) M8 FLANGE	0-91150-108-0	02	1	9905-	●	●
36	BRACKET; CLIP (A)	1-71117-191-1	01	1	9603-9904	●	●
36	BRACKET; CLIP (A)	1-71117-191-1	01	1	9905-	●	●
57	HOSE; CLU M/CYL TO OIL TANK	1-47427-312-0	01	1	9603-9904	●	●
57	HOSE; CLU M/CYL TO OIL TANK	1-47427-312-0	01	1	9905-	●	●
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	9603-9904	●	●
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	9905-	●	●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	9603-9904	●	●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	9905-	●	●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	9603-9904	●	●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	9905-	●	●
147	NUT; CLIP FIX M8 FLANGE	8-94279-517-0	01	1	9603-9611	●	●
147	NUT; CLIP FIX M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	9612-9904	●	●
147	NUT; CLIP FIX M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	9905-	●	●
167	BRACKET; UNION (B)	1-71117-207-1	01	1	9603-9904	●	●
167	BRACKET; UNION (B)	1-71117-207-1	01	1	9905-	●	●
167	BRACKET; UNION (A)	1-71907-376-1	01	1	9603-9904	●	●
167	BRACKET; UNION (A)	1-71907-376-1	01	1	9905-	●	●
185	CLIP; BRKT (B) D8X13.5	1-09987-248-1	01	1	9603-9904	●	●
185	CLIP; BRKT (B) D8X13.5	1-09987-248-1	01	1	9905-	●	●
185	CLIP; BRKT (A) ID=9 L=20	9-09545-108-0	01	1	9603-9904	●	●
185	CLIP; BRKT (A) ID=9 L=20	9-09545-108-0	01	1	9905-	●	●
186	HOLDER; CLIP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.3 & 8.3	8-94426-175-0	01	1	9603-9904	●	●
186	HOLDER; CLIP ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.3 & 8.3	8-94426-175-0	01	1	9905-	●	●
187	SEAL; BRKT	1-71117-209-2	01	1	9603-9904	●	●
187	SEAL; BRKT	1-71117-209-2	01	1	9905-	●	●

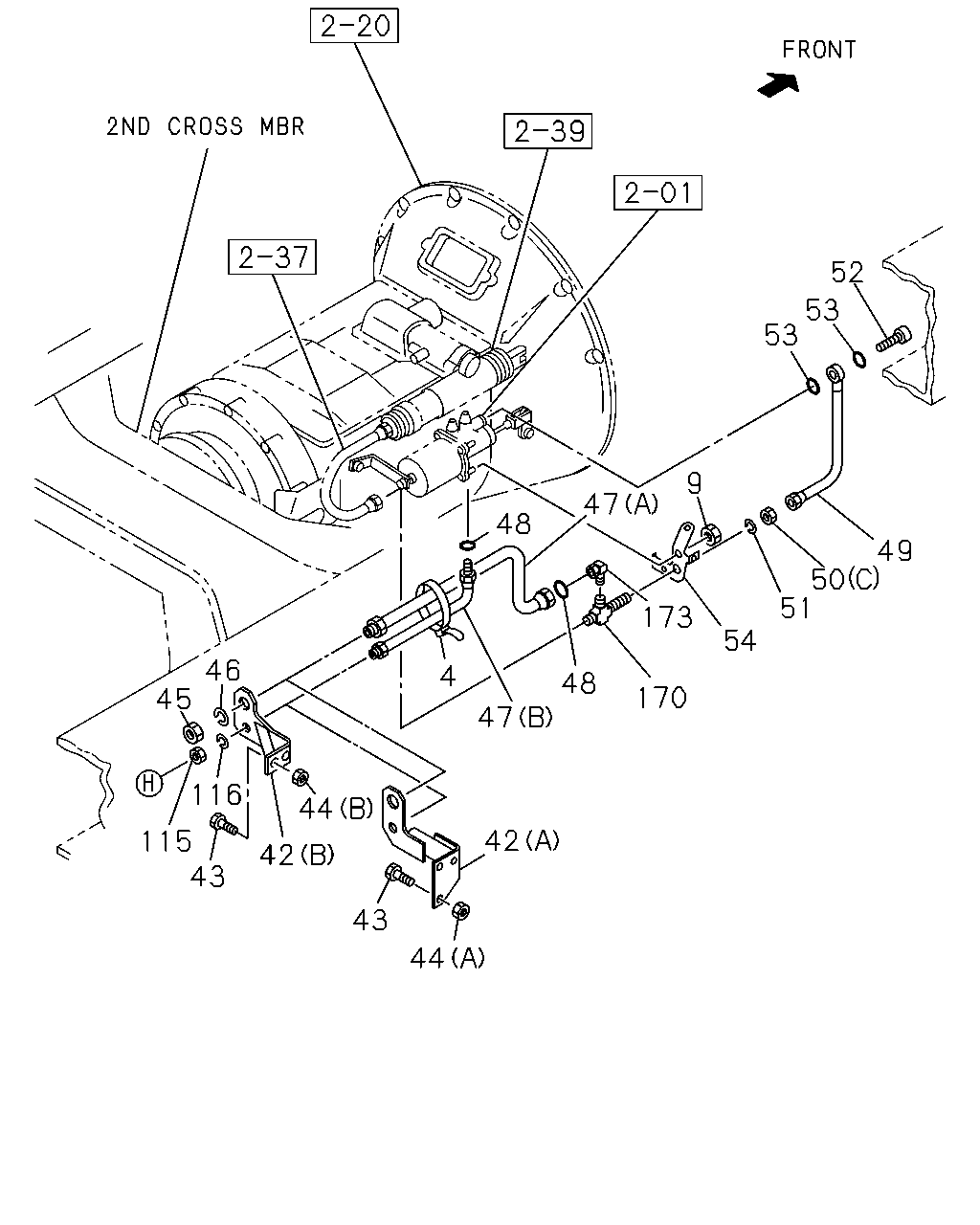

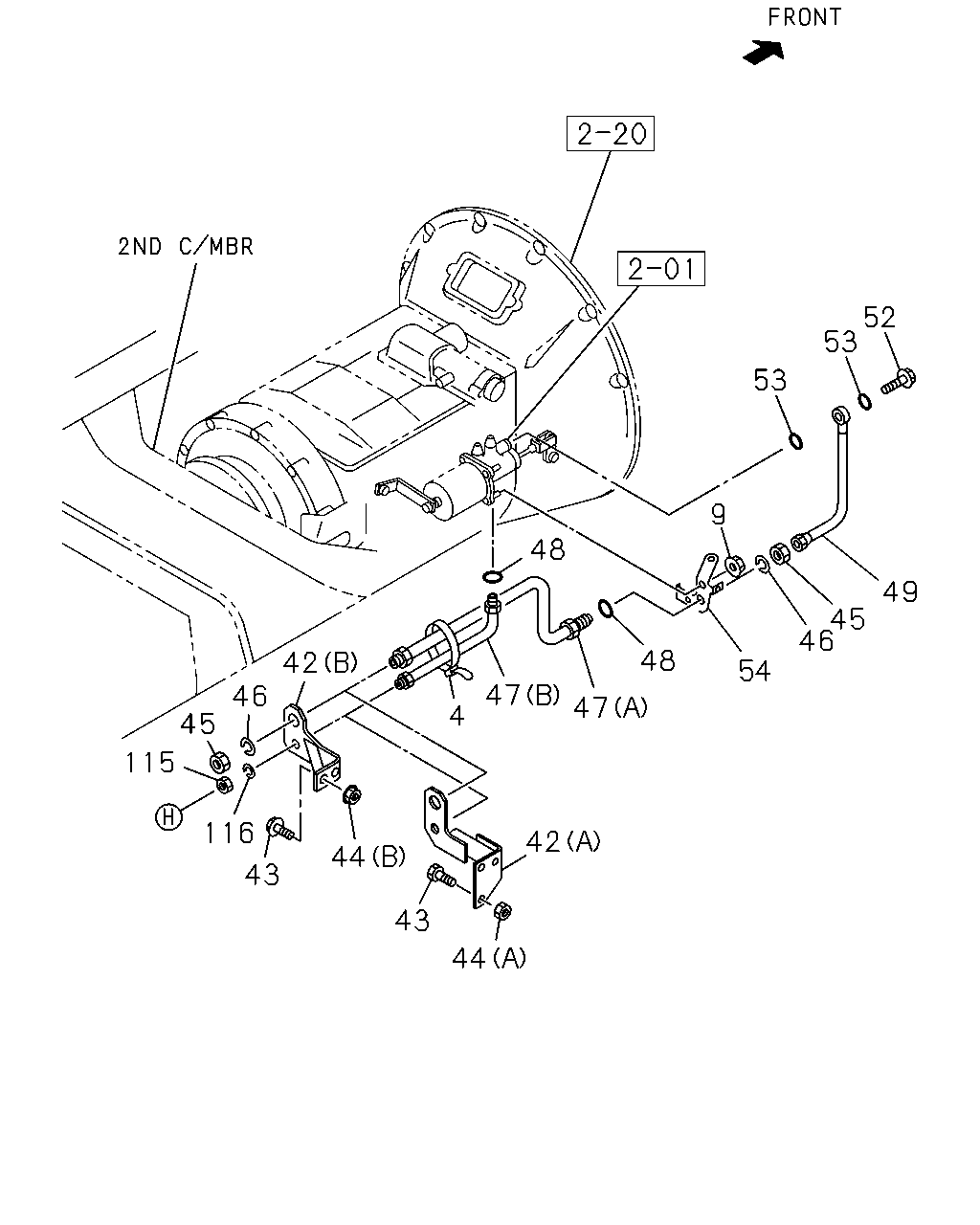

52 53 53 9 47 48 49 50 51 173 54 46 4 48 47 170 45 44 116 42 115 43 42 43 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	CLIP; FLEX HOSE,CLU CONT L=140	5-09707-031-0	01	1	9603-9605	●	●
9	NUT; BRKT,FLEX HOSE M10 FLANGE	0-91150-210-0	02	1	9603-	●	●
42	BRACKET; FLEX HOSE,CLU CONT L TYPE ENG<90L> (A)	1-47477-414-0	01	1	9603-	●
42	BRACKET; FLEX HOSE,CLU CONT V TYPE ENG<91L> (B)	1-47477-546-1	01	1	9603-	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER L TYPE ENG<90L> M10X25 FLANGE	0-28081-025-0	02	1	9603-9606	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28680-830-0	02	1	9607-9904	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER L TYPE ENG<90L> M10X30 FLANGE	0-28681-030-0	02	1	9905-	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER V TYPE ENG<91L> M8X25 FLANGE	0-28080-825-0	02	1	9603-9904	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER V TYPE ENG<91L> M8X30 FLANGE	0-28680-830-0	02	1	9905-	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER L TYPE ENG<90L> (A) M10	9-09110-510-0	02	1	9603-9606	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER L TYPE ENG<90L> (A) M10 FLANGE	0-91150-210-0	02	1	9607-	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER V TYPE ENG<91L> (B) M8	9-09110-508-0	02	1	9603-9606	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER V TYPE ENG<91L> (B) M8 FLANGE	0-91150-108-0	02	1	9607-9904	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER V TYPE ENG<91L> (B) M8 FLANGE	0-91150-108-0	02	1	9905-0102	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER V TYPE ENG<91L> (B) M8 FLANGE	0-91150-108-0	02	1	0103-	●	●
45	NUT; FLEX HOSE,CLU CONT ASSISTER SHIFT CONTROL<WX8> M20	9-99111-420-0	01	1	9603-	●	●
45	NUT; FLEX HOSE,CLU CONT EXC. ASSISTER SHIFT CONTROL<WX8> M20	9-99111-420-0	02	1	9603-	●	●
46	WASHER; LK,FLEX HOSE,CLU CONT ASSISTER SHIFT CONTROL<WX8> ID=20.2	9-09150-520-0	01	1	9603-	●	●
46	WASHER; LK,FLEX HOSE,CLU CONT EXC. ASSISTER SHIFT CONTROL<WX8> ID=20.2	9-09150-520-0	02	1	9603-	●	●
47	HOSE; FLEX,CLU CONT (B) L=550	1-09364-434-0	01	1	9603-	●	●
47	HOSE; FLEX,CLU CONT ASSISTER SHIFT CONTROL<WX8> (A) L=500	0-07806-500-1	01	1	9603-	●	●
47	HOSE; FLEX,CLU CONT EXC. ASSISTER SHIFT CONTROL<WX8> (A) L=600	0-07706-600-0	01	1	9603-	●	●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	02	1	9603-	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER L=293	1-49114-730-1	01	1	9603-9608	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER L=293	1-49117-734-0	01	1	9609-	●	●
50	NUT; UNION (A) M14	9-99111-414-0	01	1	9603-9904	●	●
50	NUT; UNION (A) M14	9-99111-414-0	01	1	9905-	●	●
50	NUT; UNION ASSISTER SHIFT CONTROL<WX8> (C) M20	9-99111-420-0	01	1	9603-	●	●
51	WASHER; LK ASSISTER SHIFT CONTROL<WX8> ID=20.2	9-09150-520-0	01	1	9603-	●	●
52	BOLT; EYE,AIR PIPE M14X27 FLANGE	1-09675-086-0	01	1	9603-	●	●
53	GASKET; JOINT BOLT ID=14.2 OD=19.2	1-09630-085-0	02	1	9603-	●	●
54	BRACKET; AIR,FLEX HOSE	1-47477-284-1	01	1	9603-	●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9603-9904	●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9905-	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9603-9904	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9905-	●	●
170	UNION; AIR PIPE ASSISTER SHIFT CONTROL<WX8>	1-09656-640-0	01	1	9603-	●	●
173	CONNECTOR ASSISTER SHIFT CONTROL<WX8> M20 & PT1/4 ELBOW	1-09660-681-0	01	1	9603-	●	●

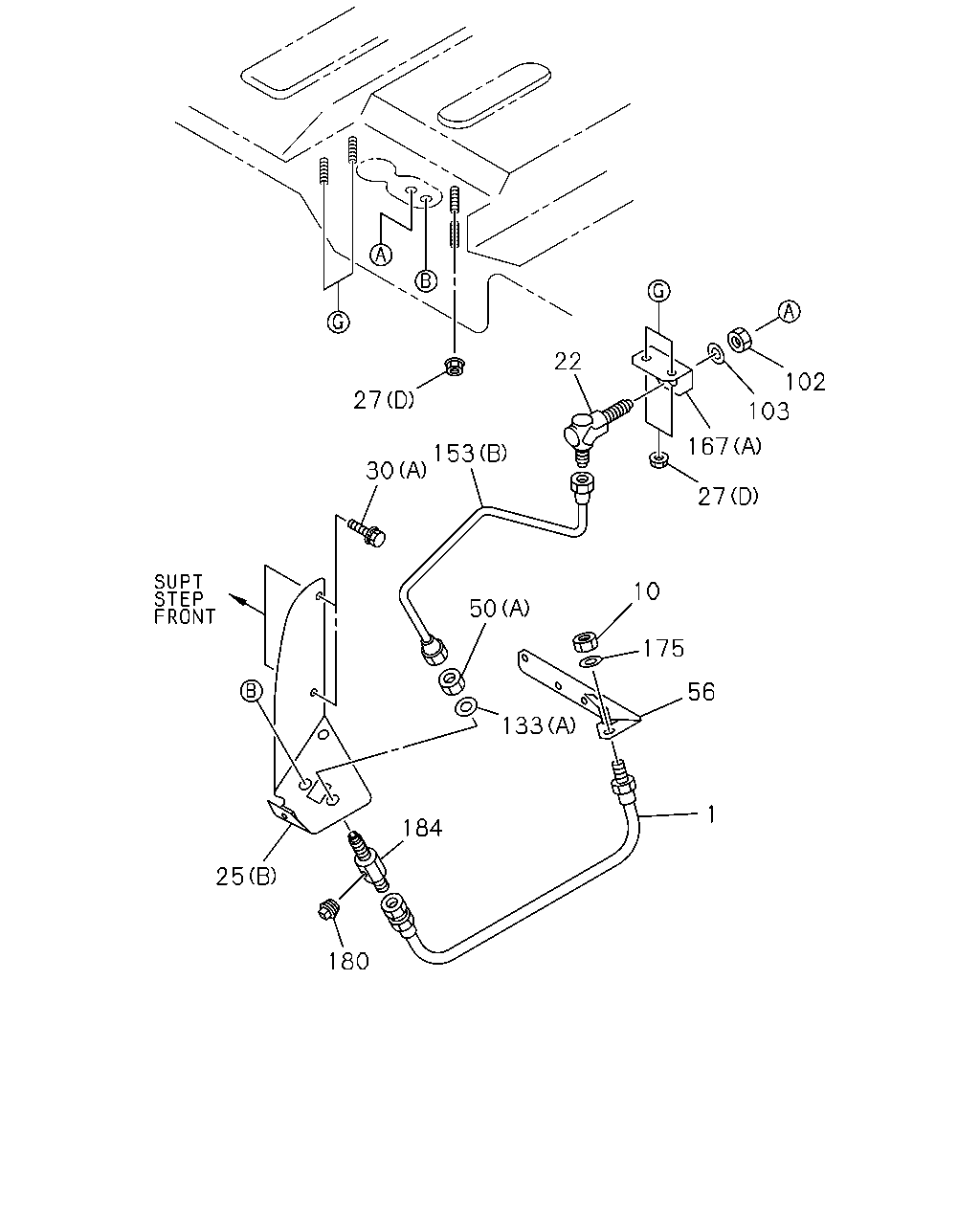

22 102 103 27 167 153 30 27 10 50 175 56 133 1 184 25 180

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,CLU CONT L=520	1-09364-948-0	01	1	9603-9904	●	●
1	HOSE; FLEX,CLU CONT L=520	1-09364-948-1	01	1	9905-	●	●
10	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9603-9904	●	●
10	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9905-	●	●
22	UNION; CLU PIPE M14	9-09225-208-1	01	1	9603-9904	●	●
22	UNION; CLU PIPE M14	9-09225-208-1	01	1	9905-	●	●
25	BRACKET; OIL PIPE (A)	1-47477-748-0	01	1	9603-9702	●	●
25	BRACKET; OIL PIPE (A)	1-47477-935-1	01	1	9703-9904	●	●
25	BRACKET; OIL PIPE (A)	1-47477-935-2	01	1	9905-	●	●
25	BRACKET; OIL PIPE (B)	1-71907-377-3	01	1	9603-9904	●	●
25	BRACKET; OIL PIPE (B)	1-71907-377-3	01	1	9905-	●	●
25	BRACKET; OIL PIPE L TYPE ENG<90L> (C) L=50	1-47475-299-2	02	1	9905-	●
27	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	9603-9904	●	●
27	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	9905-	●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9603-9904	●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9905-	●	●
27	NUT; BRKT (D) M8 FLANGE	8-94279-517-0	04	1	9603-9611	●	●
27	NUT; BRKT (D) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	9612-9904	●	●
27	NUT; BRKT (D) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	9905-	●	●
27	NUT; BRKT (C) M8	9-09110-408-0	02	1	9603-9606	●	●
27	NUT; BRKT (C) M8 FLANGE	0-91150-108-0	02	1	9607-9904	●	●
27	NUT; BRKT (C) M8 FLANGE	0-91150-108-0	02	1	9905-	●	●
30	BOLT; BRKT (C) M8X30 FLANGE	0-28080-830-0	02	1	9603-9606	●	●
30	BOLT; BRKT (C) M8X35 FLANGE	0-28680-835-0	02	1	9607-9904	●	●
30	BOLT; BRKT (C) M8X35 FLANGE	0-28680-835-0	02	1	9905-	●	●
30	BOLT; BRKT (A) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9603-9904	●	●
30	BOLT; BRKT (A) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9905-	●	●
30	BOLT; BRKT L TYPE ENG<90L> (B) M8X25 FLANGE	0-28080-825-0	01	1	9603-9606	●
30	BOLT; BRKT L TYPE ENG<90L> (B) M8X30 FLANGE	0-28680-830-0	01	1	9607-9904	●
30	BOLT; BRKT L TYPE ENG<90L> (B) M8X30 FLANGE	0-28680-830-0	01	1	9905-	●	●
50	NUT; UNION (A) M14	9-99111-414-0	01	1	9603-9904	●	●
50	NUT; UNION (A) M14	9-99111-414-0	01	1	9905-	●	●
50	NUT; UNION ASSISTER SHIFT CONTROL<WX8> (C) M20	9-99111-420-0	01	1	9603-	●	●
56	BRACKET; FLEX HOSE	1-47477-603-1	01	1	9603-9904	●	●
56	BRACKET; FLEX HOSE	1-47477-603-1	01	1	9905-	●	●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9603-9904	●	●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9905-	●	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9603-9904	●	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9905-	●	●
133	WASHER; LK,UNION (A) ID=14.2	9-09150-514-0	01	1	9603-9904	●	●
133	WASHER; LK,UNION (A) ID=14.2	9-09150-514-0	01	1	9905-	●	●
153	PIPE ASM; CLU,UNION TO FLEX (B) L=490	1-47428-363-0	01	1	9603-9904	●	●
153	PIPE ASM; CLU,UNION TO FLEX (B) L=490	1-47428-363-0	01	1	9905-	●	●
153	PIPE ASM; CLU,UNION TO FLEX L TYPE ENG<90L> (A) L=1830 SERVICED BY L=1950	1-47426-393-0	01	1	9603-	●
153	PIPE ASM; CLU,UNION TO FLEX V TYPE ENG<91L> (A) L=547 SERVICED BY L=550	1-47426-377-0	01	1	9603-	●	●
167	BRACKET; UNION (B)	1-71117-207-1	01	1	9603-9904	●	●
167	BRACKET; UNION (B)	1-71117-207-1	01	1	9905-	●	●
167	BRACKET; UNION (A)	1-71907-376-1	01	1	9603-9904	●	●
167	BRACKET; UNION (A)	1-71907-376-1	01	1	9905-	●	●
175	WASER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9603-9904	●	●
175	WASER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9905-	●	●
180	PLUG; PIPE	9-09204-510-0	01	1	9603-9904	●	●
180	PLUG; PIPE	9-09204-510-0	01	1	9905-	●	●
184	UNION; FLEX HOSE 3WAY	1-09656-679-0	01	1	9603-9904	●	●
184	UNION; FLEX HOSE 3WAY	1-09656-679-0	01	1	9905-	●	●

52 53 53 9 48 49 45 46 48 42 54 46 47 47 4 45 115 116 42 44 43 43 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	CLIP; FLEX HOSE,CLU CONT L=140	5-09707-031-0	01	1	9603-9605	●	●
9	NUT; BRKT,FLEX HOSE M10 FLANGE	0-91150-210-0	02	1	9603-	●	●
42	BRACKET; FLEX HOSE,CLU CONT L TYPE ENG<90L> (A)	1-47477-414-0	01	1	9603-	●
42	BRACKET; FLEX HOSE,CLU CONT V TYPE ENG<91L> (B)	1-47477-546-1	01	1	9603-	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER L TYPE ENG<90L> M10X25 FLANGE	0-28081-025-0	02	1	9603-9606	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28680-830-0	02	1	9607-9904	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER L TYPE ENG<90L> M10X30 FLANGE	0-28681-030-0	02	1	9905-	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER V TYPE ENG<91L> M8X25 FLANGE	0-28080-825-0	02	1	9603-9904	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER V TYPE ENG<91L> M8X30 FLANGE	0-28680-830-0	02	1	9905-	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER L TYPE ENG<90L> (A) M10	9-09110-510-0	02	1	9603-9606	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER L TYPE ENG<90L> (A) M10 FLANGE	0-91150-210-0	02	1	9607-	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER V TYPE ENG<91L> (B) M8	9-09110-508-0	02	1	9603-9606	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER V TYPE ENG<91L> (B) M8 FLANGE	0-91150-108-0	02	1	9607-9904	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER V TYPE ENG<91L> (B) M8 FLANGE	0-91150-108-0	02	1	9905-0102	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER V TYPE ENG<91L> (B) M8 FLANGE	0-91150-108-0	02	1	0103-	●	●
45	NUT; FLEX HOSE,CLU CONT ASSISTER SHIFT CONTROL<WX8> M20	9-99111-420-0	01	1	9603-	●	●
45	NUT; FLEX HOSE,CLU CONT EXC. ASSISTER SHIFT CONTROL<WX8> M20	9-99111-420-0	02	1	9603-	●	●
46	WASHER; LK,FLEX HOSE,CLU CONT ASSISTER SHIFT CONTROL<WX8> ID=20.2	9-09150-520-0	01	1	9603-	●	●
46	WASHER; LK,FLEX HOSE,CLU CONT EXC. ASSISTER SHIFT CONTROL<WX8> ID=20.2	9-09150-520-0	02	1	9603-	●	●
47	HOSE; FLEX,CLU CONT (B) L=550	1-09364-434-0	01	1	9603-	●	●
47	HOSE; FLEX,CLU CONT ASSISTER SHIFT CONTROL<WX8> (A) L=500	0-07806-500-1	01	1	9603-	●	●
47	HOSE; FLEX,CLU CONT EXC. ASSISTER SHIFT CONTROL<WX8> (A) L=600	0-07706-600-0	01	1	9603-	●	●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	02	1	9603-	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER L=293	1-49114-730-1	01	1	9603-9608	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER L=293	1-49117-734-0	01	1	9609-	●	●
52	BOLT; EYE,AIR PIPE M14X27 FLANGE	1-09675-086-0	01	1	9603-	●	●
53	GASKET; JOINT BOLT ID=14.2 OD=19.2	1-09630-085-0	02	1	9603-	●	●
54	BRACKET; AIR,FLEX HOSE	1-47477-284-1	01	1	9603-	●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9603-9904	●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9905-	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9603-9904	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9905-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
