Sayfa 5-30 - Isuzu EPC

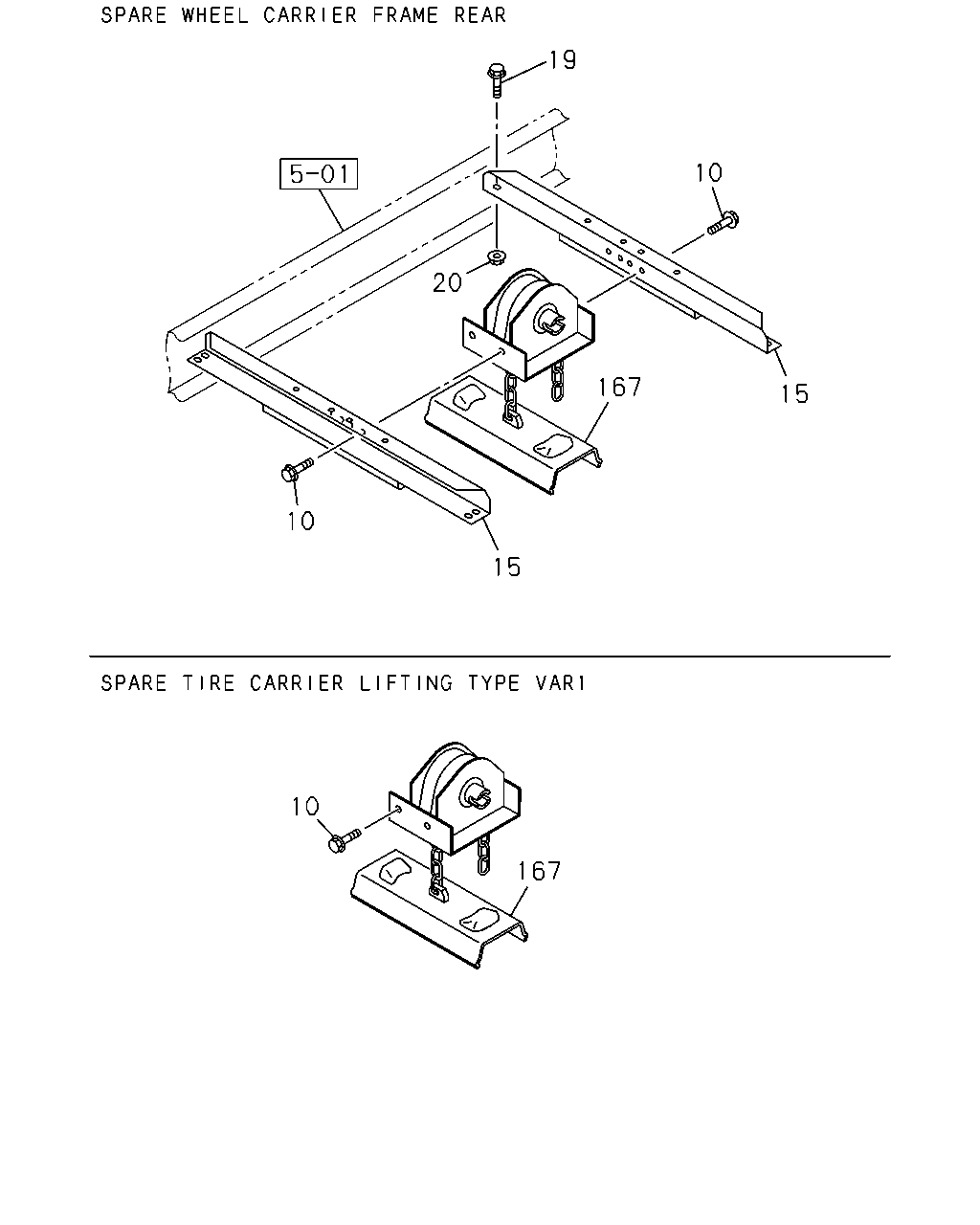

5-30 — SPARE TIRE CARRIER AND COVER (#55587) — 5 parça

19 10 20 167 15 10 15 10 167

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
10	BOLT; TIRE HANGER SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> M10X20 FLANGE	0-28651-020-0	04	1	1001-	●	●
15	MEMBER; CROSS,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10>	1-53631-461-0	02	1	1001-	●	●
19	BOLT; C/MBR SPARE WHEEL CARRIER FRAME REAR<P10> M10X25 FLANGE	0-28051-025-0	08	1	1001-	●	●
20	NUT; C/MBR SPARE WHEEL CARRIER FRAME REAR<P10> M10 FLANGE SOU	0-91180-210-0	08	1	1001-	●	●
167	HANGER; TIRE SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8>	8-98139-250-1	01	1	1001-	●	●
