5-10 — CAB MOUNTING; FRAME SIDE (#55582) — 114 parça

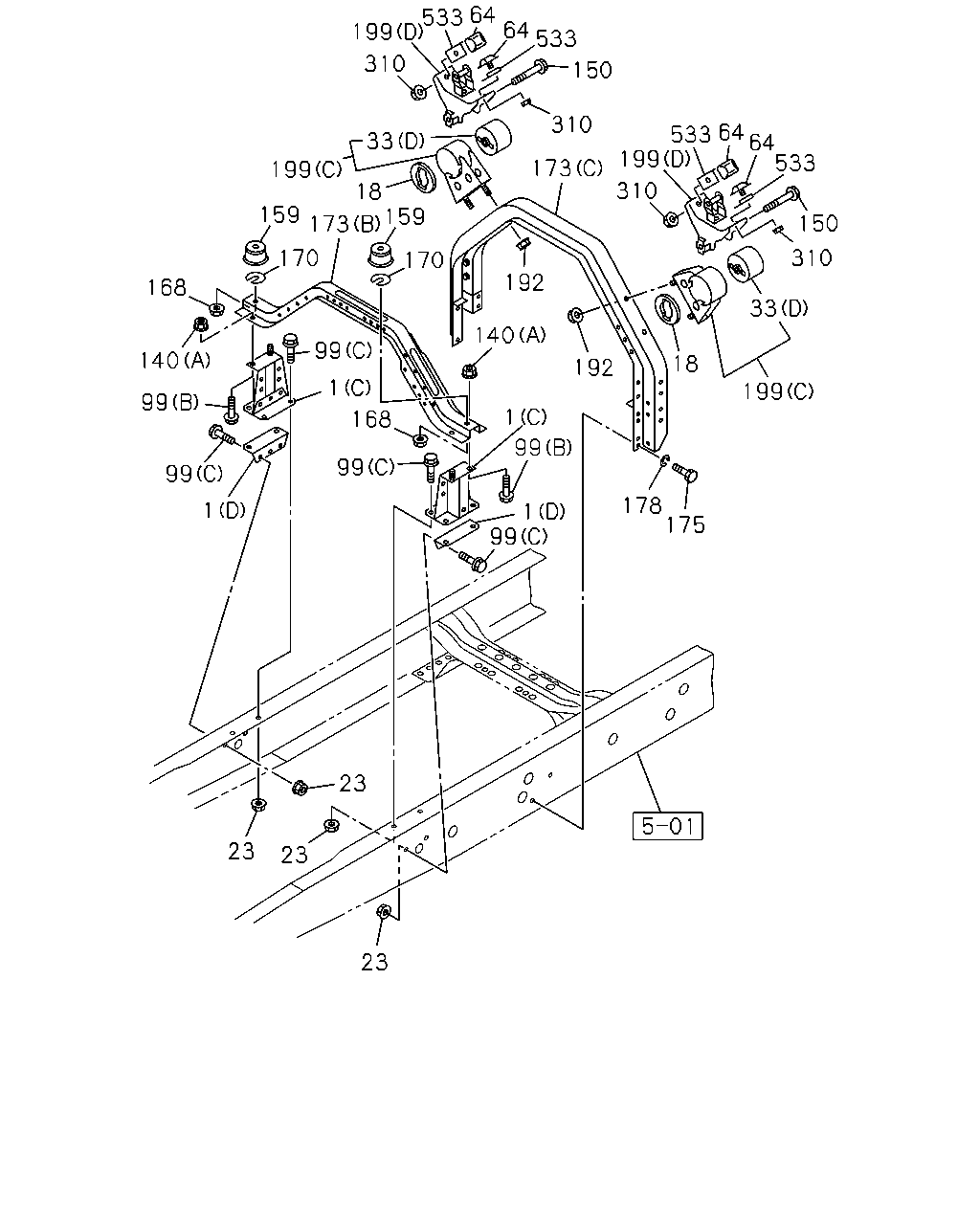

533 64 199 64 533 310 150 310 533 64 64 199 533 33 173 199 310 18 159 173 159 150 310 170 170 192 168 33 99 140 140 18 192 1 199 99 1 168 99 99 99 178 175 1 1 99 23 23 23 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BRACKET; CAB MTG 4HK1-TCS ENG(RJS) (A)	8-98010-746-2	01	1	1012-	●
1	BRACKET; CAB MTG 4HK1-TCS ENG(RJS) (A)	8-98010-747-2	01	1	1012-	●
1	BRACKET; CAB MTG (A)	8-98010-749-3	01	1	1001-1011	●
1	BRACKET; CAB MTG 6HK1-TCN ENG(82L) (A)	8-98010-749-3	01	1	1012-	●
1	BRACKET; CAB MTG (A)	8-98010-748-2	01	1	1001-1011	●
1	BRACKET; CAB MTG 6HK1-TCN ENG(82L) (A)	8-98010-748-2	01	1	1012-	●
1	BRACKET; CAB MTG (C)	8-98065-059-0	02	1	1001-		●
1	BRACKET; CAB MTG (D)	8-98094-593-0	02	1	1001-		●
1	BRACKET; CAB MTG (B)	8-98017-666-2	01	1	1001-		●
1	BRACKET; CAB MTG (B)	8-98017-665-2	01	1	1001-		●
18	PLATE; MTG BRKT FIX	8-98096-159-0	02	1	1001-		●
23	NUT; MTG BRKT M12 FLANGE SOU	0-91180-212-0	12	1	1001-		●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT (A)	8-98010-759-2	02	1	1001-	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT (B)	8-98013-932-2	02	1	1001-	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT (C)	8-98013-933-1	01	1	1001-		●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT (C)	8-98013-933-1	01	1	1001-		●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT (D)	8-98013-934-1	02	1	1001-		●
64	RUBBER; CUSHION	8-97113-340-0	04	1	1001-	●	●
99	BOLT; BRKT (A) M10X30 FLANGE SOU	0-28661-030-0	02	1	1001-	●
99	BOLT; BRKT (B) M12X25 FLANGE	0-28051-225-0	02	1	1001-		●
99	BOLT; BRKT (C) M12X35 FLANGE	0-28061-235-0	12	1	1001-		●
140	NUT; BRKT (A) M12 FLANGE SOU	0-91180-212-0	04	1	1001-		●
140	NUT; BRKT (B) M14 FLANGE SOU	0-91180-214-0	08	1	1001-		●
150	BOLT; CAB MTG RR M14X100	0-10956-400-0	02	1	1001-	●	●
159	RUBBER; CUSHION,CAB MTG	9-54347-160-1	02	1	1001-		●
168	NUT; CUSHION RUBBER,BODY MTG M12 FLANGE SOU	0-91180-212-0	06	1	1001-		●
170	SHIM; CUSHION RUBBER T=1.6	9-54347-136-1	AR	1	1001-		●
173	MEMBER; CAB MTG RR 4HK1-TCS ENG(RJS) (A)	8-98010-768-4	01	1	1012-	●
173	MEMBER; CAB MTG RR (A)	8-98150-944-0	01	1	1001-1011	●
173	MEMBER; CAB MTG RR 6HK1-TCN ENG(82L) (A)	8-98150-944-0	01	1	1012-	●
173	MEMBER; CAB MTG RR (B)	1-53454-568-1	01	1	1001-		●
173	MEMBER; CAB MTG RR (C)	8-98065-092-4	01	1	1001-		●
175	BOLT; MEMBER TO FRAME M12X35 SOU	0-20951-235-0	08	1	1001-	●	●
178	WASHER; LK,MEMBER ID=12.2 SOU	0-91510-612-0	08	1	1001-	●	●
192	NUT; BRKT FIX M12 FLANGE SOU	0-91180-212-0	04	1	1001-	●	●
199	BRACKET; CAB RR MTG (A)	8-98010-769-2	02	1	1001-	●
199	BRACKET; CAB RR MTG (B)	8-98023-692-0	02	1	1001-	●
199	BRACKET; CAB RR MTG (C)	8-98044-033-1	02	1	1001-		●
199	BRACKET; CAB RR MTG (D)	8-98095-166-0	02	1	1001-		●
310	NUT; CUSHION M8 FLANGE SOU	0-91180-108-0	04	1	1001-	●	●
533	SPACER; MTG RUBBER	8-98077-323-0	04	1	1001-		●

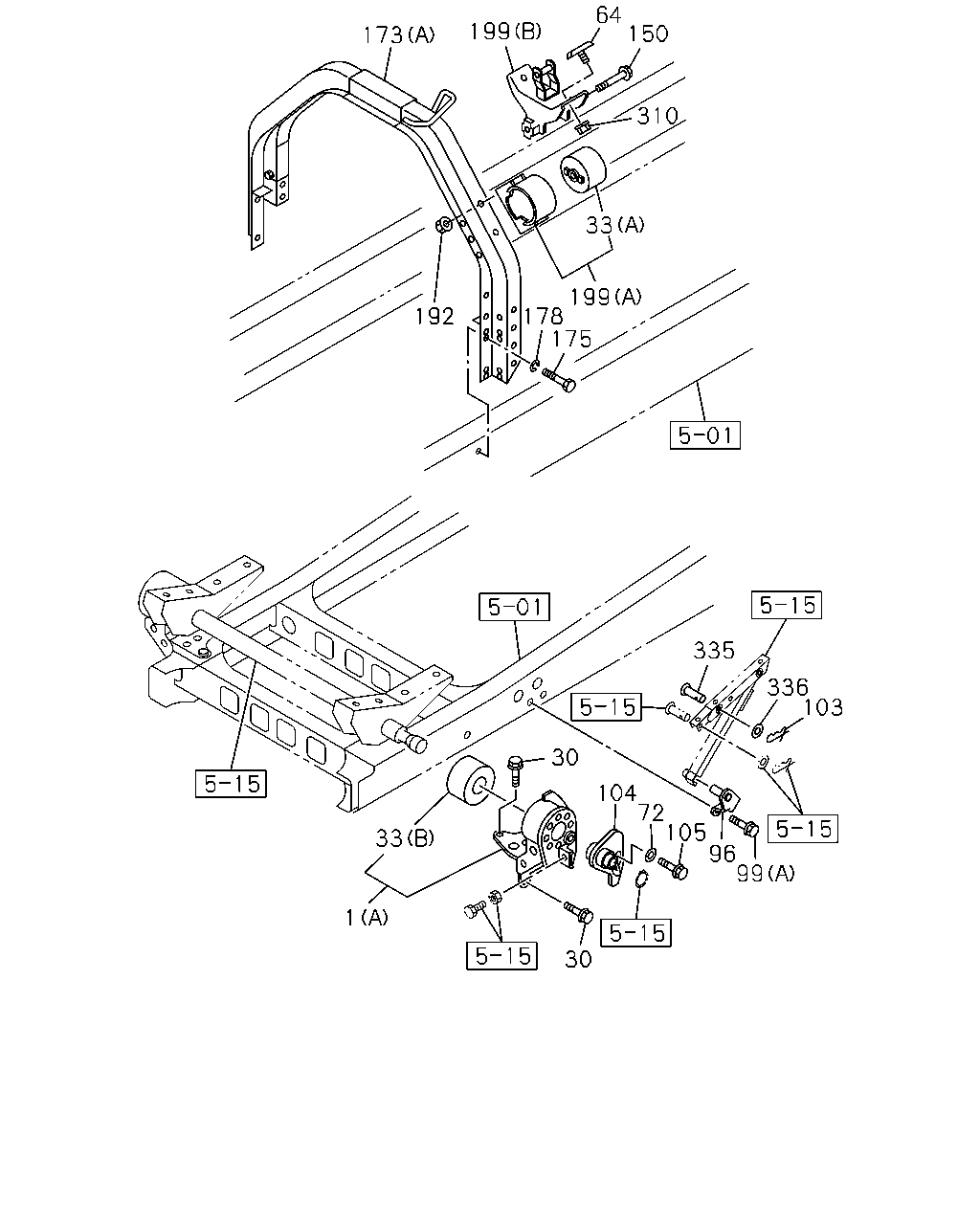

64 150 199 173 310 33 199 178 175 192 335 336 103 30 104 72 105 96 99 33 1 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BRACKET; CAB MTG 4HK1-TCS ENG(RJS) (A)	8-98010-746-2	01	1	1012-	●
1	BRACKET; CAB MTG 4HK1-TCS ENG(RJS) (A)	8-98010-747-2	01	1	1012-	●
1	BRACKET; CAB MTG (A)	8-98010-749-3	01	1	1001-1011	●
1	BRACKET; CAB MTG 6HK1-TCN ENG(82L) (A)	8-98010-749-3	01	1	1012-	●
1	BRACKET; CAB MTG (A)	8-98010-748-2	01	1	1001-1011	●
1	BRACKET; CAB MTG 6HK1-TCN ENG(82L) (A)	8-98010-748-2	01	1	1012-	●
1	BRACKET; CAB MTG (C)	8-98065-059-0	02	1	1001-		●
1	BRACKET; CAB MTG (D)	8-98094-593-0	02	1	1001-		●
1	BRACKET; CAB MTG (B)	8-98017-666-2	01	1	1001-		●
1	BRACKET; CAB MTG (B)	8-98017-665-2	01	1	1001-		●
30	BOLT; CAB FRT FOOT M14X45 FLANGE	0-28861-445-0	10	1	1001-	●	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT (A)	8-98010-759-2	02	1	1001-	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT (B)	8-98013-932-2	02	1	1001-	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT (C)	8-98013-933-1	01	1	1001-		●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT (C)	8-98013-933-1	01	1	1001-		●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT (D)	8-98013-934-1	02	1	1001-		●
64	RUBBER; CUSHION	8-97113-340-0	04	1	1001-	●	●
72	WASHER; PL,BRKT TO FRAME ID=15 OD=36	0-91614-714-0	01	1	1001-	●
96	BRACKET; CAB STAY SOU	1-62500-628-0	01	1	1001-	●
99	BOLT; BRKT (A) M10X30 FLANGE SOU	0-28661-030-0	02	1	1001-	●
99	BOLT; BRKT (B) M12X25 FLANGE	0-28051-225-0	02	1	1001-		●
99	BOLT; BRKT (C) M12X35 FLANGE	0-28061-235-0	12	1	1001-		●
103	PIN; SPLIT,CAB STAY L=32.6	8-98062-280-0	01	1	1001-	●
104	BRACKET; CAB FRAME,CAB FRT MTG	8-98010-753-3	01	1	1001-1511	●
104	BRACKET; CAB FRAME,CAB FRT MTG	8-98330-224-0	01	1	1512-	●
105	BOLT; BRKT TO CAB FRAME M14X35 FLANGE	0-28661-435-0	01	1	1001-	●
150	BOLT; CAB MTG RR M14X100	0-10956-400-0	02	1	1001-	●	●
173	MEMBER; CAB MTG RR 4HK1-TCS ENG(RJS) (A)	8-98010-768-4	01	1	1012-	●
173	MEMBER; CAB MTG RR (A)	8-98150-944-0	01	1	1001-1011	●
173	MEMBER; CAB MTG RR 6HK1-TCN ENG(82L) (A)	8-98150-944-0	01	1	1012-	●
173	MEMBER; CAB MTG RR (B)	1-53454-568-1	01	1	1001-		●
173	MEMBER; CAB MTG RR (C)	8-98065-092-4	01	1	1001-		●
175	BOLT; MEMBER TO FRAME M12X35 SOU	0-20951-235-0	08	1	1001-	●	●
178	WASHER; LK,MEMBER ID=12.2 SOU	0-91510-612-0	08	1	1001-	●	●
192	NUT; BRKT FIX M12 FLANGE SOU	0-91180-212-0	04	1	1001-	●	●
199	BRACKET; CAB RR MTG (A)	8-98010-769-2	02	1	1001-	●
199	BRACKET; CAB RR MTG (B)	8-98023-692-0	02	1	1001-	●
199	BRACKET; CAB RR MTG (C)	8-98044-033-1	02	1	1001-		●
199	BRACKET; CAB RR MTG (D)	8-98095-166-0	02	1	1001-		●
310	NUT; CUSHION M8 FLANGE SOU	0-91180-108-0	04	1	1001-	●	●
335	PIN; ADJ,STAY LOCK OD=10 L=48 SOU	1-09744-107-0	01	1	1001-	●
336	WASHER; PL,STAY LOCK ID=10.5 T=2.0 SOU	1-09985-183-0	01	1	1001-	●

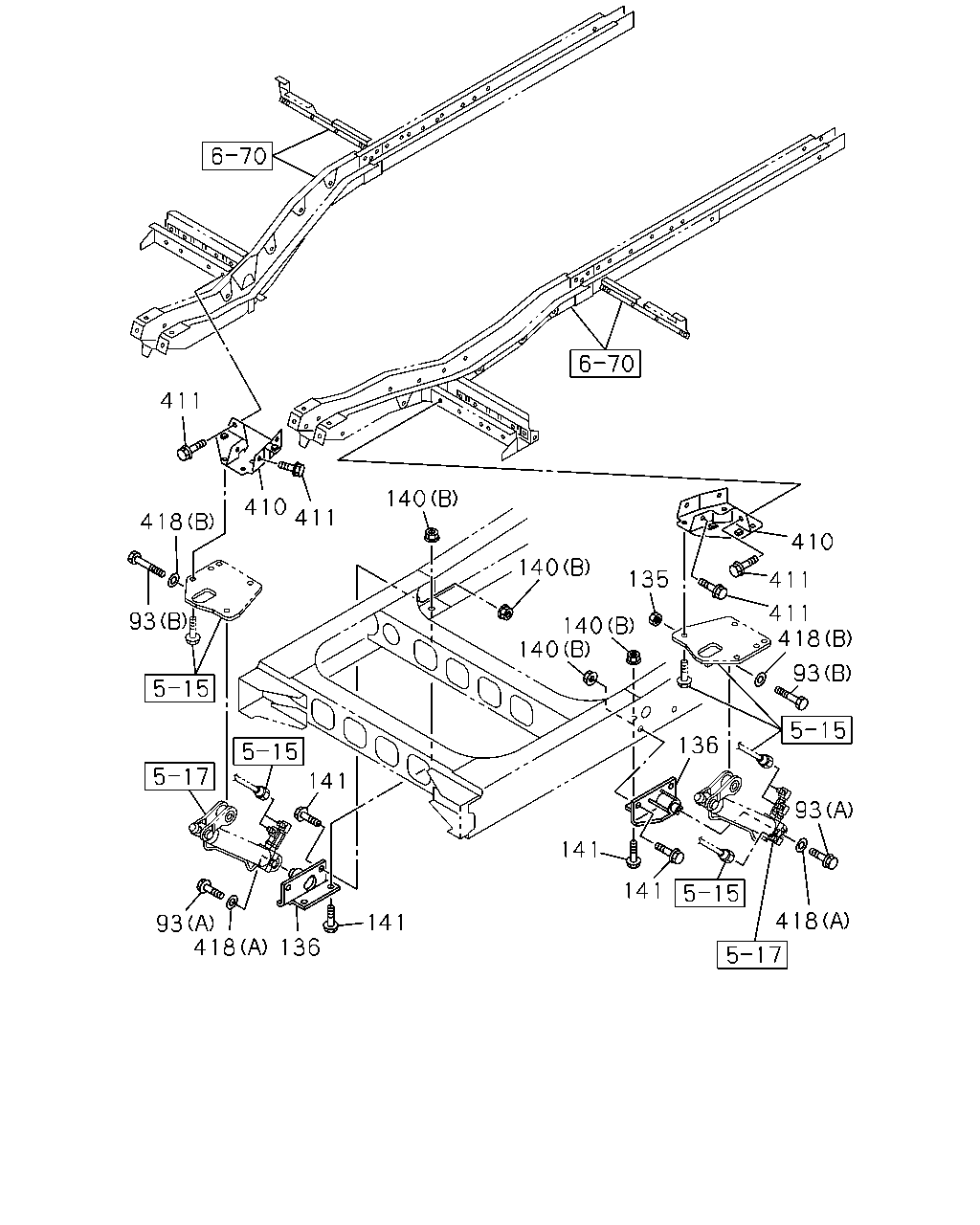

411 140 410 411 418 410 140 135 411 411 418 93 140 140 93 136 141 93 141 141 418 141 93 418 136

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B
93	BOLT; PIN (A) M10X20 FLANGE	0-28651-020-0	02	1	1001-	●
93	BOLT; PIN (B) M14X70 FLANGE	0-29261-470-0	02	1	1001-	●
135	NUT; PIN M14 SOU	0-91110-514-0	01	1	1001-	●
136	BRACKET; OIL CYL	8-98096-333-1	01	1	1001-	●
136	BRACKET; OIL CYL	8-98096-334-1	01	1	1001-	●
140	NUT; BRKT (A) M12 FLANGE SOU	0-91180-212-0	04	1	1001-	●
140	NUT; BRKT (B) M14 FLANGE SOU	0-91180-214-0	08	1	1001-	●
141	BOLT; BRKT M14X40 FLANGE	0-28661-440-0	08	1	1001-1502	●
141	BOLT; BRKT M14X35 FLANGE	0-28861-435-0	08	1	1503-	●
410	REINFORCEMENT; CAB TILT	8-97588-837-5	01	1	1001-	●
410	REINFORCEMENT; CAB TILT	8-97614-237-4	01	1	1001-	●
411	BOLT; REINFORCEMENT M8X20 FLANGE	0-28650-820-0	08	1	1001-	●
418	WASHER; PL,PIN (B) ID=15	0-91610-514-0	02	1	1001-	●
418	WASHER; PL,PIN (A) ID=10.5 OD=32	0-91614-810-0	02	1	1001-	●

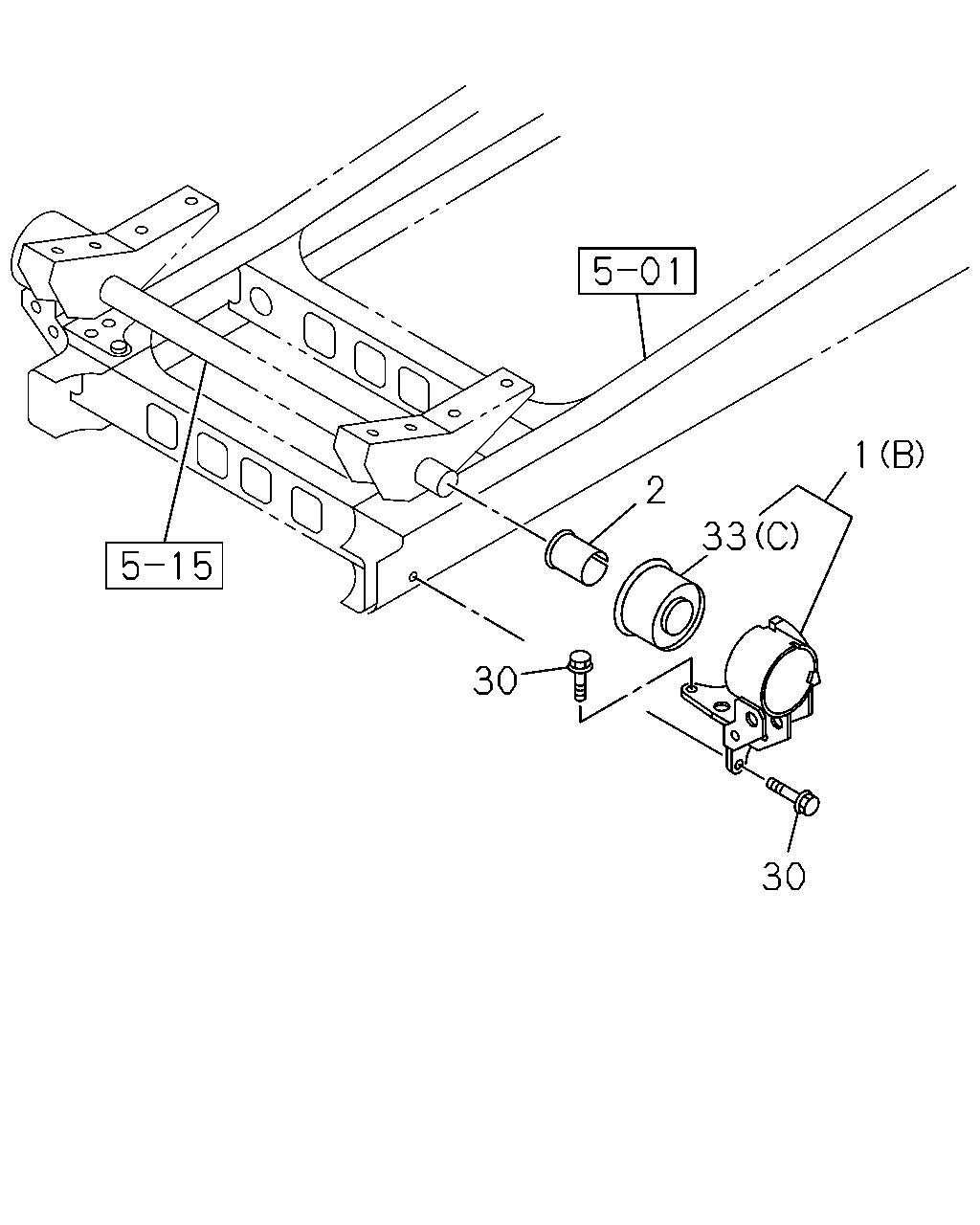

1 2 33 30 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BRACKET; CAB MTG 4HK1-TCS ENG(RJS) (A)	8-98010-746-2	01	1	1012-	●
1	BRACKET; CAB MTG 4HK1-TCS ENG(RJS) (A)	8-98010-747-2	01	1	1012-	●
1	BRACKET; CAB MTG (A)	8-98010-749-3	01	1	1001-1011	●
1	BRACKET; CAB MTG 6HK1-TCN ENG(82L) (A)	8-98010-749-3	01	1	1012-	●
1	BRACKET; CAB MTG (A)	8-98010-748-2	01	1	1001-1011	●
1	BRACKET; CAB MTG 6HK1-TCN ENG(82L) (A)	8-98010-748-2	01	1	1012-	●
1	BRACKET; CAB MTG (C)	8-98065-059-0	02	1	1001-		●
1	BRACKET; CAB MTG (D)	8-98094-593-0	02	1	1001-		●
1	BRACKET; CAB MTG (B)	8-98017-666-2	01	1	1001-		●
1	BRACKET; CAB MTG (B)	8-98017-665-2	01	1	1001-		●
2	BUSHING; TORSION BAR	8-98010-767-0	02	1	1001-		●
30	BOLT; CAB FRT FOOT M14X45 FLANGE	0-28861-445-0	10	1	1001-	●	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT (A)	8-98010-759-2	02	1	1001-	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT (B)	8-98013-932-2	02	1	1001-	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT (C)	8-98013-933-1	01	1	1001-		●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT (C)	8-98013-933-1	01	1	1001-		●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT (D)	8-98013-934-1	02	1	1001-		●
