◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11161 - FSR(SOUTH AFRICA) ▶ 5 - Frame, Cab Mounting ▶ 5-01 - FRAME AND OTHER PARTS ▶
5-01 — FRAME AND OTHER PARTS (#55581) — 78 parça

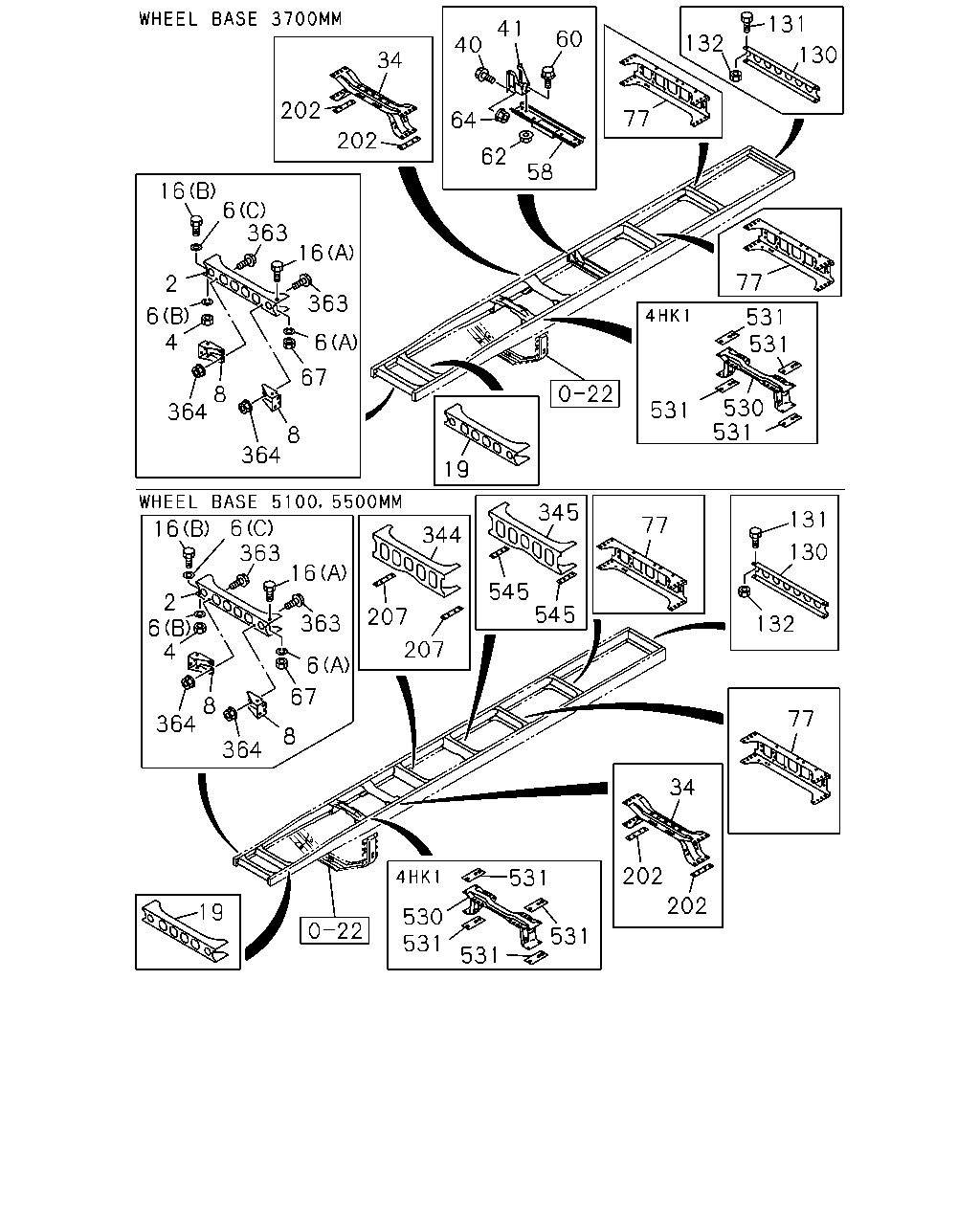

çizim 162367
131 41 60 132 40 130 34 202 77 64 62 58 16 6 363 16 77 2 363 6 4 531 531 6 67 530 531 8 364 531 8 364 19 6 363 345 131 77 16 344 130 16 545 545 2 6 4 207 363 132 207 6 67 8 364 77 8 364 34 202 531 202 19 530 531 531 531 202
BalonParca AdiParca NoAdetTipApplied Date A B C
2 MEMBER; CROSS,1ST 8-97615-669-3 01 1 1001- ● ● ●
4 NUT; 1ST C/MBR TO S/MBR
M14 SOU 		0-91110-514-0 02 1 1001- ● ● ●
6 WASHER; LK,1ST C/MBR
(A) ID=12.2 SOU 		0-91510-512-0 02 1 1001- ● ● ●
6 WASHER; LK,1ST C/MBR
(B) ID=14.2 SOU 		0-91510-814-0 02 1 1001- ● ● ●
6 WASHER; LK,1ST C/MBR
(C) ID=15 SOU 		8-98010-627-1 02 1 1001- ● ● ●
8 GUSSET; 1ST C/MBR
4HK1-TCS ENG(RJS) 		8-97609-578-2 01 1 1012-1109 ● ●
8 GUSSET; 1ST C/MBR
4HK1-TCS ENG(RJS) 		8-97609-578-2 01 1 1110- ● ●
8 GUSSET; 1ST C/MBR
4HK1-TCS ENG(RJS) 		8-97609-579-3 01 1 1012-1109 ● ●
8 GUSSET; 1ST C/MBR
4HK1-TCS ENG(RJS) 		8-97609-579-3 01 1 1110- ● ●
8 GUSSET; 1ST C/MBR 8-97609-760-2 01 1 1001-1011 ● ● ●
8 GUSSET; 1ST C/MBR
6HK1-TCN ENG(82L) 		8-97609-760-2 01 1 1012-1109 ● ●
8 GUSSET; 1ST C/MBR 8-97609-760-2 01 1 1012-1109 ●
8 GUSSET; 1ST C/MBR
6HK1-TCN ENG(82L) 		8-97609-760-3 01 1 1110- ● ●
8 GUSSET; 1ST C/MBR 8-97609-760-3 01 1 1110- ●
8 GUSSET; 1ST C/MBR 8-97609-759-1 01 1 1001-1011 ● ● ●
8 GUSSET; 1ST C/MBR
6HK1-TCN ENG(82L) 		8-97609-759-1 01 1 1012-1109 ● ●
8 GUSSET; 1ST C/MBR 8-97609-759-1 01 1 1012-1109 ●
8 GUSSET; 1ST C/MBR
6HK1-TCN ENG(82L) 		8-97609-759-2 01 1 1110- ● ●
8 GUSSET; 1ST C/MBR 8-97609-759-2 01 1 1110- ●
16 BOLT; 1ST C/MBR TO S/MBR
(A) M12X30 SOU 		0-20851-230-0 02 1 1001- ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
(B) M14X40 		0-20851-440-0 02 1 1001- ● ● ●
19 MEMBER; CROSS,2ND 8-97615-670-4 01 1 1001- ● ● ●
34 MEMBER; CROSS,3RD
4HK1-TCS ENG(RJS) SOU 		8-97609-501-2 01 1 1012- ● ●
34 MEMBER; CROSS,3RD
SOU 		8-97609-755-0 01 1 1001-1011 ● ● ●
34 MEMBER; CROSS,3RD
6HK1-TCN ENG(82L) SOU 		8-97609-755-0 01 1 1012- ● ●
34 MEMBER; CROSS,3RD
SOU 		8-97609-755-0 01 1 1012- ●
40 BOLT; BRKT TO FRAME
M10X30 FLANGE SOU 		0-28651-030-0 08 1 1001- ●
41 BRACKET; CENTER BRG,FRAME SIDE
SOU 		8-97615-974-2 01 1 1001-1109 ●
41 BRACKET; CENTER BRG,FRAME SIDE
SOU 		8-97615-974-2 01 1 1110- ●
41 BRACKET; CENTER BRG,FRAME SIDE
SOU 		8-97615-973-2 01 1 1001-1109 ●
41 BRACKET; CENTER BRG,FRAME SIDE
SOU 		8-97615-973-2 01 1 1110- ●
58 MEMBER; CENTER BRG 8-97629-975-0 01 1 1001- ●
60 BOLT; MBR
M10X25 FLANGE SOU 		0-28651-025-0 08 1 1001- ●
62 NUT; MBR
M10 FLANGE SOU 		0-91180-110-0 08 1 1001- ●
64 NUT; BRKT TO FRAME
M10 FLANGE SOU 		0-91180-110-0 08 1 1001- ●
67 NUT; C/MBR
M12 SOU 		0-91110-512-0 02 1 1001- ● ● ●
77 MEMBER; CROSS,TRUNNION RR 8-97609-481-4 02 1 1001- ● ● ●
130 MEMBER; CROSS,END 8-97609-470-0 01 1 1001- ● ● ●
131 BOLT; END C/MBR
M10X25 W/LK WASHER SOU 		0-50541-025-0 04 1 1001- ● ● ●
132 NUT; END C/MBR
M10 SOU 		0-91110-510-0 04 1 1001- ● ● ●
202 SPACER; 3RD C/MBR
4HK1-TCS ENG(RJS) SOU 		8-97609-756-1 02 1 1012- ● ●
202 SPACER; 3RD C/MBR
SOU 		8-97609-757-0 02 1 1001-1011 ● ● ●
202 SPACER; 3RD C/MBR
6HK1-TCN ENG(82L) SOU 		8-97609-757-0 02 1 1012- ● ●
202 SPACER; 3RD C/MBR
SOU 		8-97609-757-0 02 1 1012- ●
207 SPACER; 4TH C/MBR
SOU 		8-97609-758-0 02 1 1001- ● ●
344 MEMBER; CROSS,4TH 8-97609-473-2 01 1 1001- ● ●
345 MEMBER; CROSS,5TH 8-97609-473-2 01 1 1001- ● ●
363 BOLT; GUSSET
M12X25 FLANGE 		0-28661-225-0 04 1 1001- ● ● ●
364 NUT; GUSSET
M12 FLANGE SOU 		0-91180-212-0 04 1 1001- ● ● ●
530 MEMBER; CROSS,T/M
4HK1-TCS ENG(RJS) 		8-97609-809-3 01 1 1012- ● ●
531 SPACER; C/MBR,T/M
4HK1-TCS ENG(RJS) 		8-97616-461-1 02 1 1012- ● ●
545 SPACER; 5TH C/MBR
SOU 		8-97609-758-0 02 1 1001- ● ●

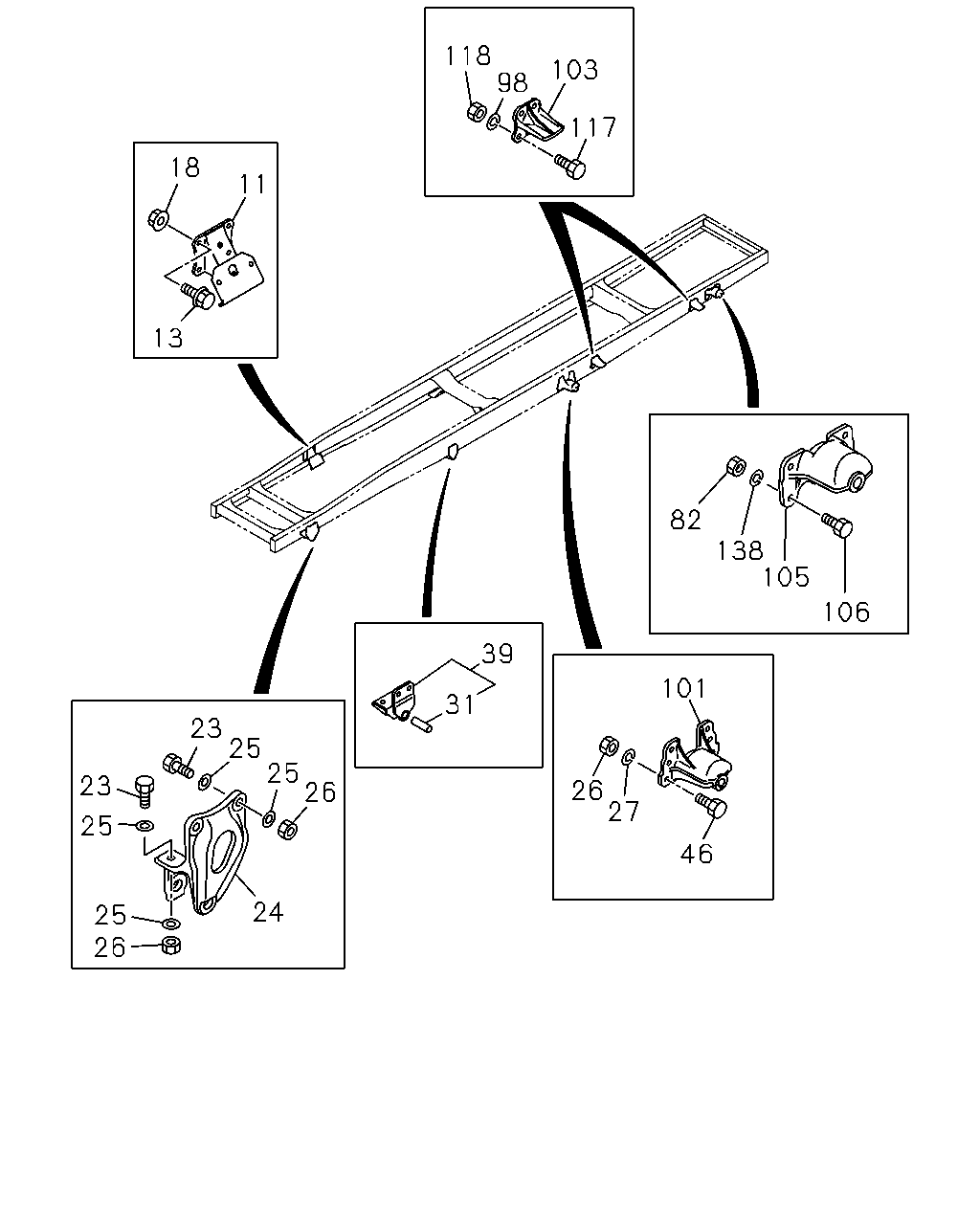

çizim 162369
118 98 103 117 18 11 13 82 138 105 106 39 101 31 23 25 25 26 23 26 27 25 46 24 25 26
BalonParca AdiParca NoAdetTipApplied Date A B C
11 BRACKET; ENG MTG
4HK1-TCS ENG(RJS) 		8-97604-129-0 02 1 1012- ● ●
11 BRACKET; ENG MTG 8-97609-502-0 02 1 1001-1011 ● ● ●
11 BRACKET; ENG MTG
6HK1-TCN ENG(82L) 		8-97609-502-0 02 1 1012- ● ●
11 BRACKET; ENG MTG 8-97609-502-0 02 1 1012- ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE SOU 		0-28661-235-0 08 1 1001- ● ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE SOU 		0-91180-212-0 08 1 1001- ● ● ●
23 BOLT; BRKT,SPR
M14X50 SOU 		0-20951-450-0 08 1 1001- ● ● ●
24 BRACKET; FRT SPR,FRT 8-98018-983-0 01 1 1001-1109 ● ● ●
24 BRACKET; FRT SPR,FRT 8-98018-983-0 01 1 1110- ● ● ●
24 BRACKET; FRT SPR,FRT 8-98018-984-0 01 1 1001-1109 ● ● ●
24 BRACKET; FRT SPR,FRT 8-98018-984-0 01 1 1110- ● ● ●
25 WASHER; PL,BRKT
ID=15 SOU 		8-98010-627-1 16 1 1001- ● ● ●
26 NUT; BRKT,SPR
M14 SOU 		0-91110-514-0 20 1 1001- ● ● ●
27 WASHER; LK,BRKT,FRT SPR
ID=14.2 SOU 		0-91510-614-0 12 1 1001- ● ● ●
31 BUSHING; FRT SPR,RR
ID=25 SOU 		8-98082-176-0 02 1 1001- ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-126-2 02 1 1001- ● ● ●
46 BOLT; BRKT FIX
M14X50 SOU 		0-20951-450-0 12 1 1001- ● ● ●
82 NUT; BRKT
M14 SOU 		0-91110-514-0 10 1 1001- ● ● ●
98 WASHER; LK,STOPPER
ID=14.2 SOU 		0-91510-614-0 16 1 1001- ● ● ●
101 BRACKET; RR SPR,FRT 1-53353-090-4 02 1 1001- ● ● ●
103 STOPPER; SUB SPR 1-53356-059-1 04 1 1001- ● ● ●
105 BRACKET; RR SPR,RR
SOU 		1-53354-074-0 02 1 1001- ● ● ●
106 BOLT; BRKT
M14X50 SOU 		0-20951-450-0 10 1 1001- ● ● ●
117 BOLT; STOPPER
M14X50 SOU 		0-20951-450-0 16 1 1001- ● ● ●
118 NUT; STOPPER
M14 SOU 		0-91110-514-0 16 1 1001- ● ● ●
138 WASHER; LK,BRKT
ID=14.2 SOU 		0-91510-614-0 10 1 1001- ● ● ●
