Sayfa 4-35 - Isuzu EPC

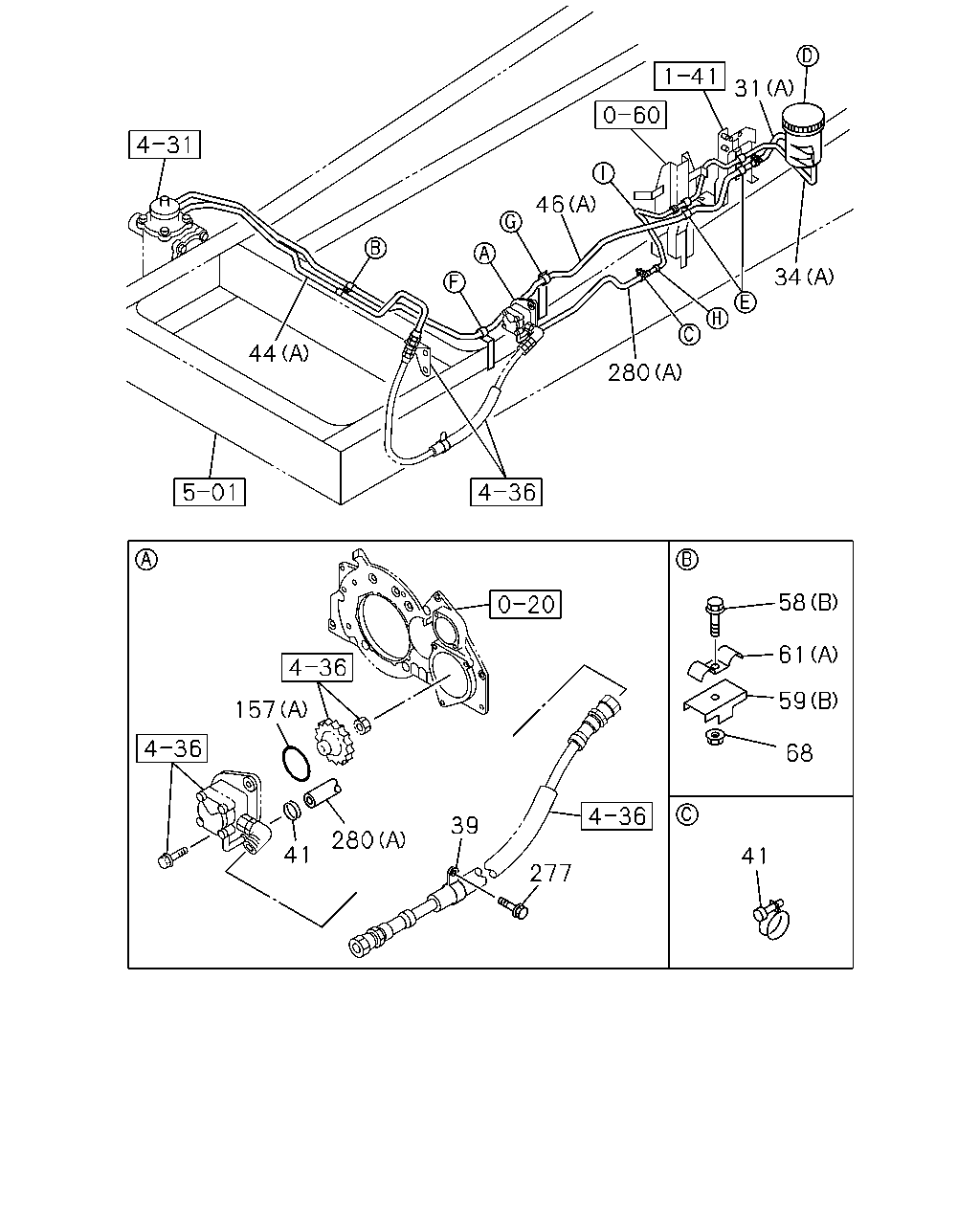

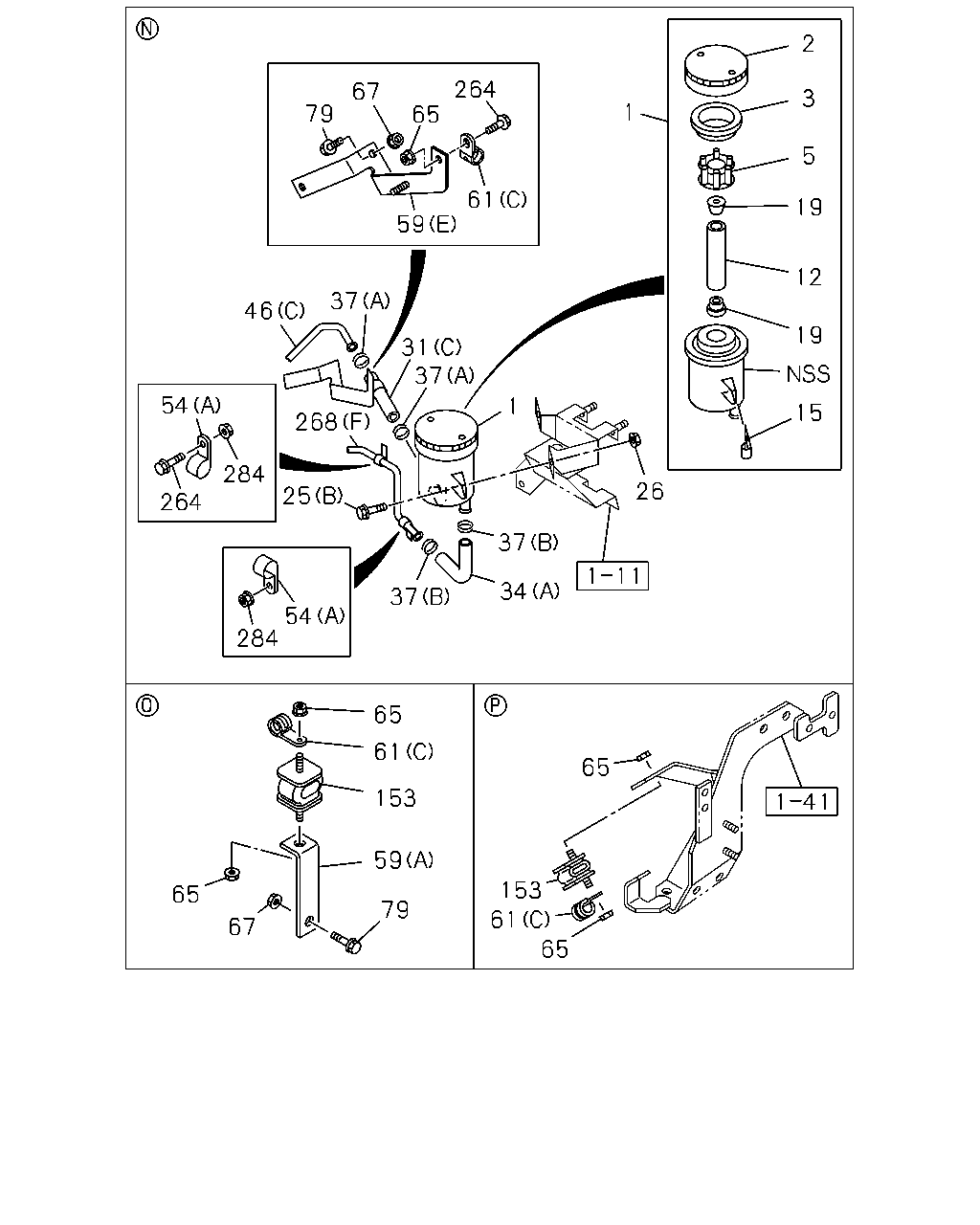

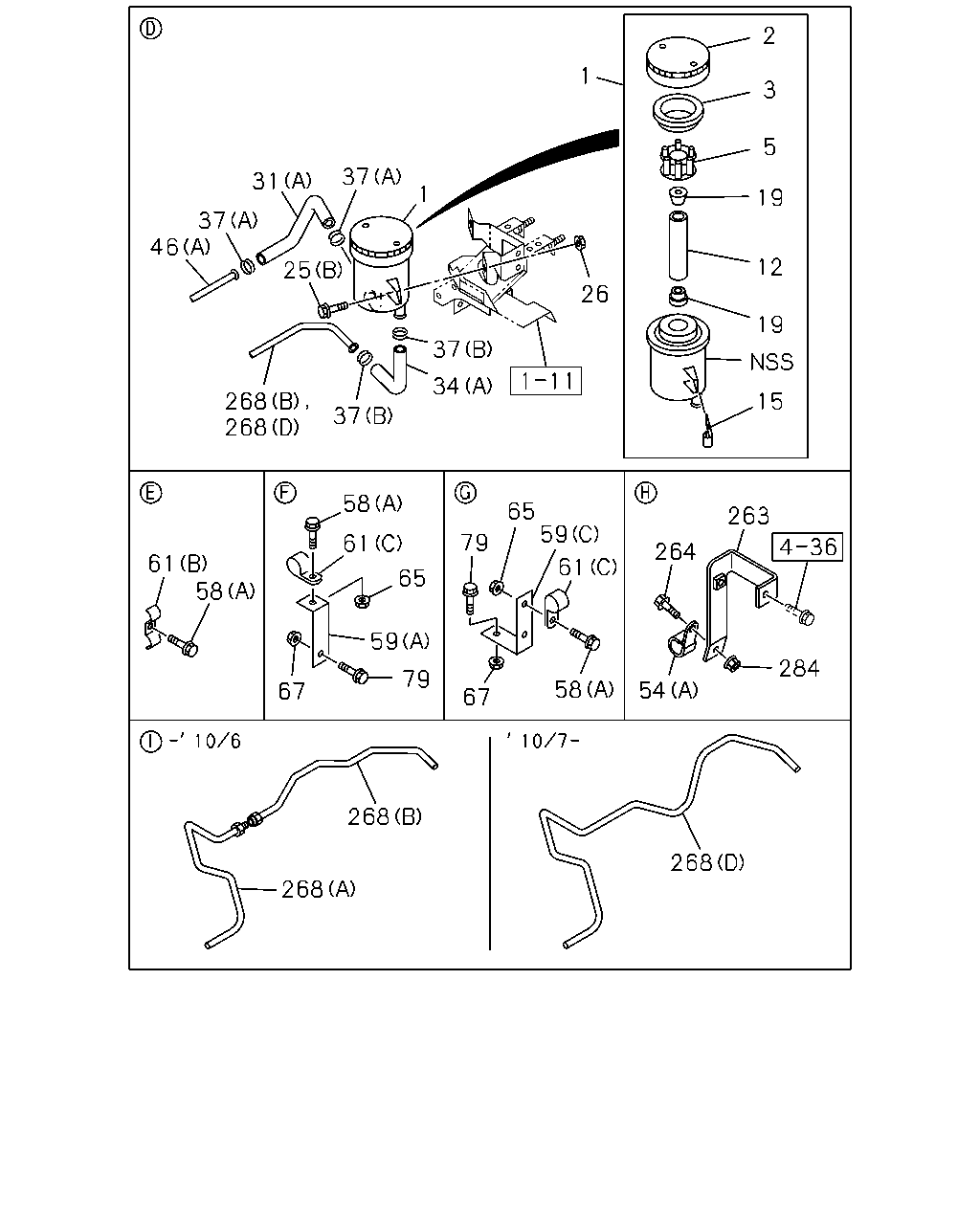

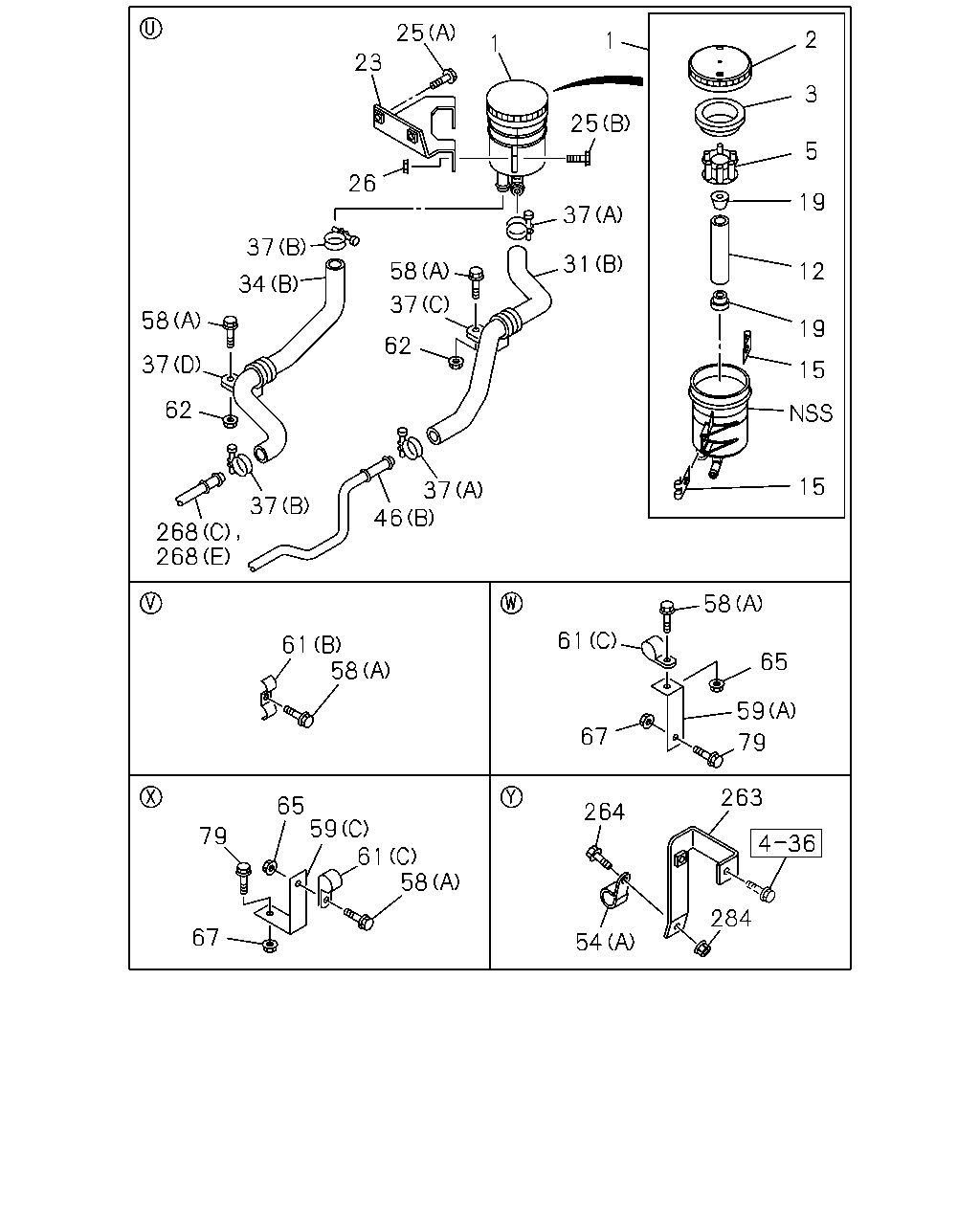

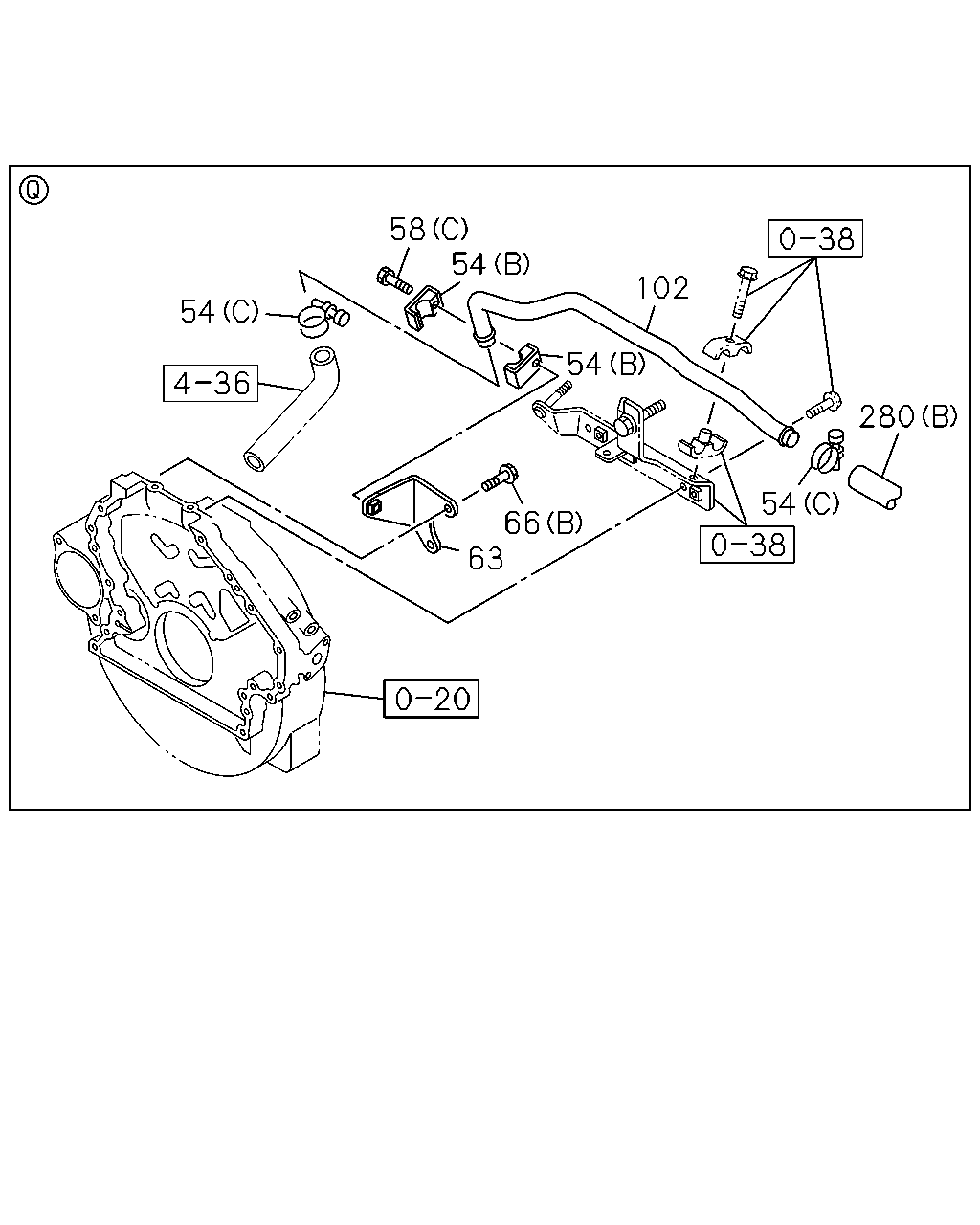

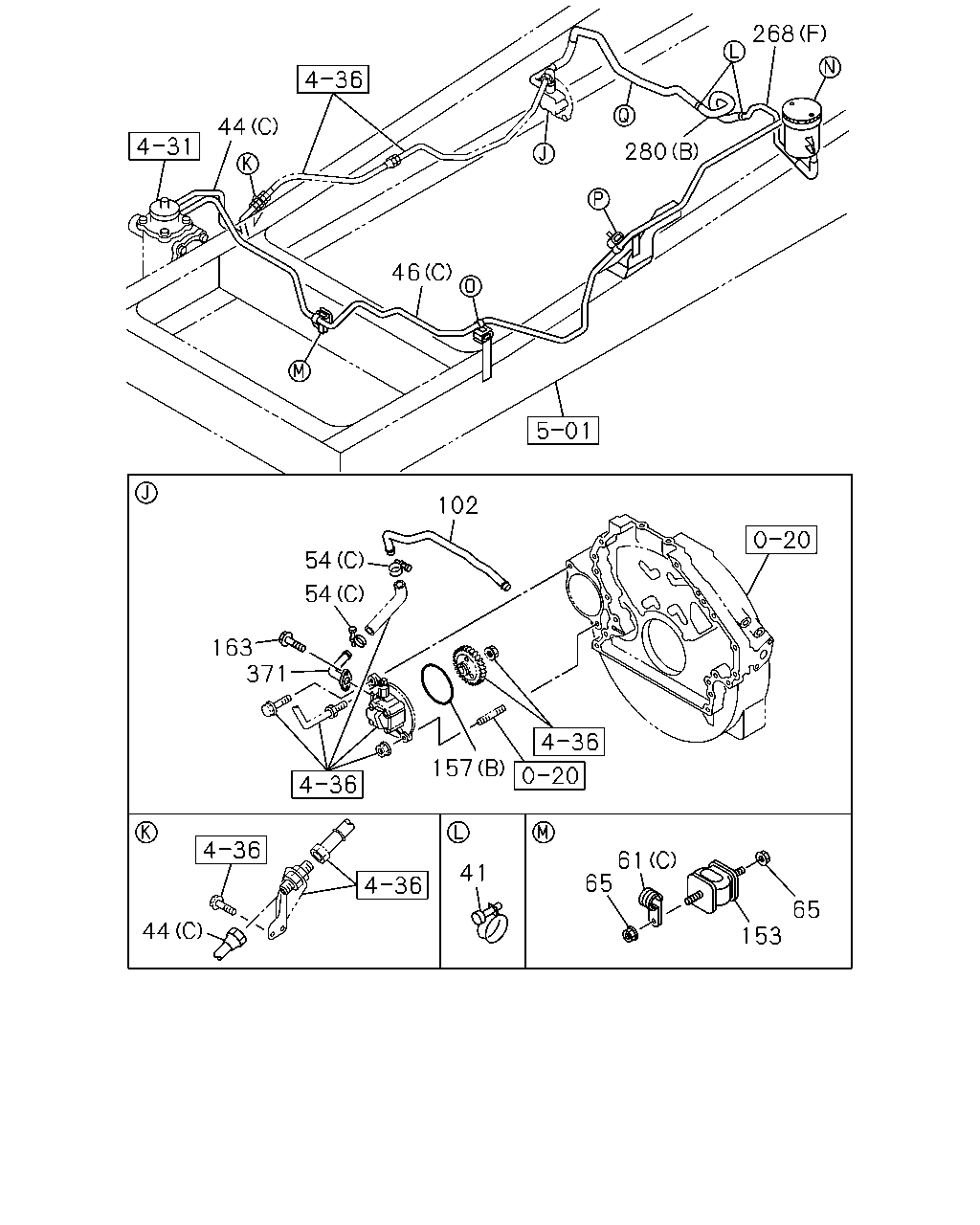

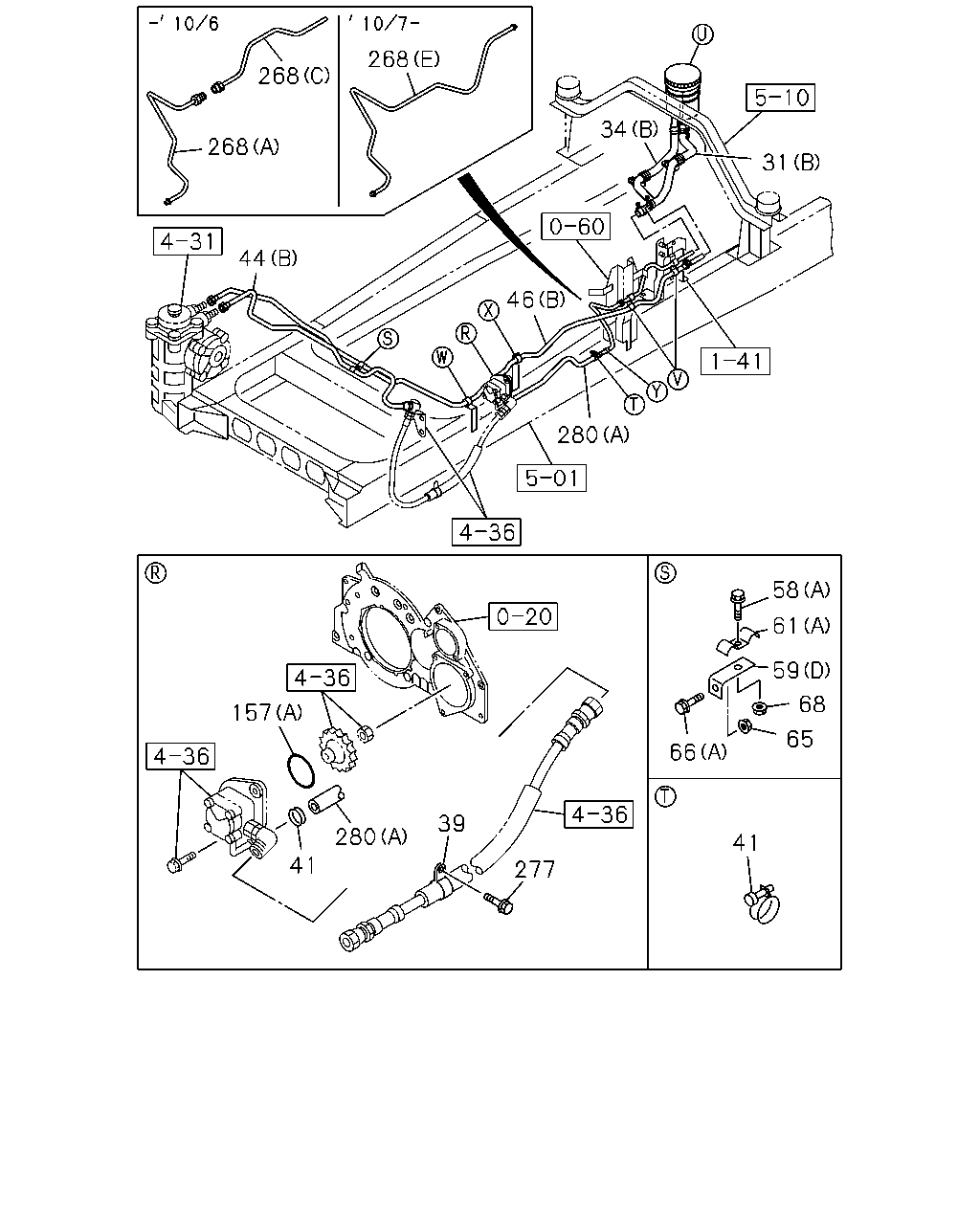

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#55572) — 454 parça

268 44 280 46 102 54 54 163 371 157 61 65 41 65 44 153

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	1001-	●	●
44	PIPE; OIL,P/S UNIT TO NIPPLE 4HK1-TCS ENG(RJS) (C)	8-98077-661-0	01	1	1012-	●
44	PIPE; OIL,P/S UNIT TO NIPPLE (A)	8-98099-152-0	01	1	1001-1011	●
44	PIPE; OIL,P/S UNIT TO NIPPLE 6HK1-TCN ENG(82L) (A)	8-98099-152-0	01	1	1012-	●
44	PIPE; OIL,P/S UNIT TO NIPPLE (B)	8-98114-409-0	01	1	1001-		●
46	PIPE; OIL,P/S UNIT TO OIL TANK 4HK1-TCS ENG(RJS) (C) L=2912	8-98080-645-0	01	1	1012-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK (A) L=2747	8-98099-153-0	01	1	1001-1011	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HK1-TCN ENG(82L) (A) L=2747	8-98099-153-0	01	1	1012-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK (B) L=2804	8-98114-408-0	01	1	1001-		●
54	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (A) ID=19 L=20	0-95235-836-0	02	1	1012-	●
54	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (B) ID=17 L=17	1-09701-284-0	04	1	1012-	●
54	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (C) ID=32	1-09704-085-0	02	1	1012-	●
54	CLIP; OIL PIPE (A) ID=19 L=20	0-95235-836-0	01	1	1001-1011	●	●
54	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (A) ID=19 L=20	0-95235-836-0	01	1	1012-	●
54	CLIP; OIL PIPE (A) ID=19 L=20	0-95235-836-0	01	1	1012-		●
61	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (C) ID=16 L=20	0-95235-536-0	04	1	1012-	●
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-536-0	02	1	1001-1011	●	●
61	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (C) ID=16 L=20	0-95235-536-0	02	1	1012-	●
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-536-0	02	1	1012-		●
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1001-1011	●	●
61	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1012-	●
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1012-		●
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1001-1011	●	●
61	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1012-	●
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1012-		●
65	NUT; BRKT 4HK1-TCS ENG(RJS) M8 FLANGE SOU	0-91180-108-0	07	1	1012-	●
65	NUT; BRKT M8 FLANGE SOU	0-91180-108-0	02	1	1001-1011	●	●
65	NUT; BRKT 6HK1-TCN ENG(82L) M8 FLANGE SOU	0-91180-108-0	02	1	1012-	●
65	NUT; BRKT M8 FLANGE SOU	0-91180-108-0	02	1	1012-		●
65	NUT; BRKT M8 FLANGE SOU	0-91180-108-0	01	1	1001-		●
102	PIPE; SUCTION,P/S 4HK1-TCS ENG(RJS)	8-98080-186-2	01	1	1012-	●
153	RUBBER; CUSHION,POWER STRG PIPE 4HK1-TCS ENG(RJS) SOU	8-94158-156-1	03	1	1012-	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 4HK1-TCS ENG(RJS) (B) ID=105.6	8-97386-295-0	01	1	1012-	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=96.4	1-09623-467-0	01	1	1001-1011	●	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 6HK1-TCN ENG(82L). (A) ID=96.4	1-09623-467-0	01	1	1012-	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=96.4	1-09623-467-0	01	1	1012-		●
163	BOLT; OIL PIPE 4HK1-TCS ENG(RJS) M8X16 FLANGE SOU	0-28050-816-0	02	1	1012-	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 4HK1-TCS ENG(RJS) (F)	8-98165-444-0	01	1	1012-	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (B)	8-98082-961-0	01	1	1001-1006	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (D)	8-98154-041-0	01	1	1007-1011	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6HK1-TCN ENG(82L) (D)	8-98154-041-0	01	1	1012-	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (A)	8-98082-962-0	01	1	1001-1006	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (C)	8-98101-858-0	01	1	1001-1006		●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (E)	8-98154-046-0	01	1	1007-		●
280	HOSE; P/S OIL PUMP,INL 4HK1-TCS ENG(RJS) (B)	8-98165-266-1	01	1	1012-	●
280	HOSE; P/S OIL PUMP,INL (A)	8-98094-167-0	01	1	1001-1011	●	●
280	HOSE; P/S OIL PUMP,INL 6HK1-TCN ENG(82L) (A)	8-98094-167-0	01	1	1012-	●
280	HOSE; P/S OIL PUMP,INL (A)	8-98094-167-0	01	1	1012-		●
371	PIPE; OIL,INLET 4HK1-TCS ENG(RJS)	8-98072-089-1	01	1	1012-	●

2 264 67 3 1 79 65 5 61 19 59 12 37 46 19 31 37 54 1 15 268 284 26 25 264 37 34 37 54 284 65 61 65 153 59 153 65 79 61 67 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S	1-21210-238-1	01	1	1001-1006	●	●
1	TANK ASM; OIL,P/S	8-98166-928-0	01	1	1007-	●	●
2	CAP; OIL TANK,P/S	1-21241-004-4	01	1	1001-1006	●	●
2	CAP; OIL TANK,P/S	8-98166-876-0	01	1	1007-	●	●
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	1001-	●	●
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	1001-	●	●
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-011-0	01	1	1001-	●	●
15	PLATE; FILTER,OIL TANK	1-21249-016-0	02	1	1001-	●	●
19	SEAT; OIL TANK	1-21249-004-0	02	1	1001-	●	●
25	BOLT; OIL TANK BRKT (B) M8X25 FLANGE SOU	0-28650-825-0	02	1	1001-	●	●
25	BOLT; OIL TANK BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	1001-		●
26	NUT; OIL TANK TO BRKT M8 FLANGE SOU	0-91180-108-0	02	1	1001-	●	●
31	HOSE; P/S OIL TANK,INL 4HK1-TCS ENG(RJS) (C)	0-09814-080-0	01	1	1012-	●
31	HOSE; P/S OIL TANK,INL (A)	8-98093-500-0	01	1	1001-1011	●
31	HOSE; P/S OIL TANK,INL 6HK1-TCN ENG(82L) (A)	8-98093-500-0	01	1	1012-	●
31	HOSE; P/S OIL TANK,INL (B)	8-98101-814-0	01	1	1001-		●
34	HOSE; P/S OIL TANK,OUTLET (A)	8-98021-827-0	01	1	1001-	●
34	HOSE; P/S OIL TANK,OUTLET (B)	8-98101-815-0	01	1	1001-		●
37	CLIP; HOSE,P/S (A) ID=26	1-09704-082-0	02	1	1001-1011	●	●
37	CLIP; HOSE,P/S (A) ID=26	1-09704-082-0	02	1	1012-	●
37	CLIP; HOSE,P/S 6HK1-TCN ENG(82L) (A) ID=26	1-09704-082-0	02	1	1012-		●
37	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	02	1	1001-	●	●
37	CLIP; HOSE,P/S (C) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1001-		●
37	CLIP; HOSE,P/S (D) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1001-		●
46	PIPE; OIL,P/S UNIT TO OIL TANK 4HK1-TCS ENG(RJS) (C) L=2912	8-98080-645-0	01	1	1012-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK (A) L=2747	8-98099-153-0	01	1	1001-1011	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HK1-TCN ENG(82L) (A) L=2747	8-98099-153-0	01	1	1012-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK (B) L=2804	8-98114-408-0	01	1	1001-		●
54	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (A) ID=19 L=20	0-95235-836-0	02	1	1012-	●
54	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (B) ID=17 L=17	1-09701-284-0	04	1	1012-	●
54	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (C) ID=32	1-09704-085-0	02	1	1012-	●
54	CLIP; OIL PIPE (A) ID=19 L=20	0-95235-836-0	01	1	1001-1011	●	●
54	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (A) ID=19 L=20	0-95235-836-0	01	1	1012-	●
54	CLIP; OIL PIPE (A) ID=19 L=20	0-95235-836-0	01	1	1012-		●
59	BRACKET; CLIP,OIL PIPE 4HK1-TCS ENG(RJS) (E)	8-98064-809-1	01	1	1012-	●
59	BRACKET; CLIP,OIL PIPE (B)	1-47475-427-1	01	1	1001-1011	●
59	BRACKET; CLIP,OIL PIPE 6HK1-TCN ENG(82L) (B)	1-47475-427-1	01	1	1012-	●
59	BRACKET; CLIP,OIL PIPE (C)	1-21464-481-0	01	1	1001-1011	●	●
59	BRACKET; CLIP,OIL PIPE 6HK1-TCN ENG(82L) (C)	1-21464-481-0	01	1	1012-	●
59	BRACKET; CLIP,OIL PIPE (C)	1-21464-481-0	01	1	1012-		●
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	1001-	●	●
59	BRACKET; CLIP,OIL PIPE (D)	1-47471-051-0	01	1	1001-		●
61	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (C) ID=16 L=20	0-95235-536-0	04	1	1012-	●
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-536-0	02	1	1001-1011	●	●
61	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (C) ID=16 L=20	0-95235-536-0	02	1	1012-	●
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-536-0	02	1	1012-		●
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1001-1011	●	●
61	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1012-	●
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1012-		●
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1001-1011	●	●
61	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1012-	●
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1012-		●
65	NUT; BRKT 4HK1-TCS ENG(RJS) M8 FLANGE SOU	0-91180-108-0	07	1	1012-	●
65	NUT; BRKT M8 FLANGE SOU	0-91180-108-0	02	1	1001-1011	●	●
65	NUT; BRKT 6HK1-TCN ENG(82L) M8 FLANGE SOU	0-91180-108-0	02	1	1012-	●
65	NUT; BRKT M8 FLANGE SOU	0-91180-108-0	02	1	1012-		●
65	NUT; BRKT M8 FLANGE SOU	0-91180-108-0	01	1	1001-		●
67	NUT; BRKT M8 FLANGE SOU	0-91180-108-0	01	1	1001-	●	●
79	BOLT; BRKT M8X25 FLANGE SOU	0-28650-825-0	02	1	1001-	●	●
153	RUBBER; CUSHION,POWER STRG PIPE 4HK1-TCS ENG(RJS) SOU	8-94158-156-1	03	1	1012-	●
264	BOLT; PIPE BRKT M8X20 FLANGE	0-28650-820-0	01	1	1001-	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 4HK1-TCS ENG(RJS) (F)	8-98165-444-0	01	1	1012-	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (B)	8-98082-961-0	01	1	1001-1006	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (D)	8-98154-041-0	01	1	1007-1011	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6HK1-TCN ENG(82L) (D)	8-98154-041-0	01	1	1012-	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (A)	8-98082-962-0	01	1	1001-1006	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (C)	8-98101-858-0	01	1	1001-1006		●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (E)	8-98154-046-0	01	1	1007-		●
284	NUT; PIPE 4HK1-TCS ENG(RJS) M8 FLANGE SOU	0-91180-108-0	02	1	1012-	●
284	NUT; PIPE M8 FLANGE SOU	0-91180-108-0	01	1	1001-1011	●	●
284	NUT; PIPE 6HK1-TCN ENG(82L) M8 FLANGE SOU	0-91180-108-0	01	1	1012-	●
284	NUT; PIPE M8 FLANGE SOU	0-91180-108-0	01	1	1012-		●

2 1 3 5 37 31 1 19 37 46 25 12 26 19 37 34 268 268 15 37 58 65 59 79 61 264 61 58 61 65 59 284 79 58 54 67 67 268 268 268 263

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S	1-21210-238-1	01	1	1001-1006	●	●
1	TANK ASM; OIL,P/S	8-98166-928-0	01	1	1007-	●	●
2	CAP; OIL TANK,P/S	1-21241-004-4	01	1	1001-1006	●	●
2	CAP; OIL TANK,P/S	8-98166-876-0	01	1	1007-	●	●
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	1001-	●	●
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	1001-	●	●
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-011-0	01	1	1001-	●	●
15	PLATE; FILTER,OIL TANK	1-21249-016-0	02	1	1001-	●	●
19	SEAT; OIL TANK	1-21249-004-0	02	1	1001-	●	●
25	BOLT; OIL TANK BRKT (B) M8X25 FLANGE SOU	0-28650-825-0	02	1	1001-	●	●
25	BOLT; OIL TANK BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	1001-		●
26	NUT; OIL TANK TO BRKT M8 FLANGE SOU	0-91180-108-0	02	1	1001-	●	●
31	HOSE; P/S OIL TANK,INL 4HK1-TCS ENG(RJS) (C)	0-09814-080-0	01	1	1012-	●
31	HOSE; P/S OIL TANK,INL (A)	8-98093-500-0	01	1	1001-1011	●
31	HOSE; P/S OIL TANK,INL 6HK1-TCN ENG(82L) (A)	8-98093-500-0	01	1	1012-	●
31	HOSE; P/S OIL TANK,INL (B)	8-98101-814-0	01	1	1001-		●
34	HOSE; P/S OIL TANK,OUTLET (A)	8-98021-827-0	01	1	1001-	●
34	HOSE; P/S OIL TANK,OUTLET (B)	8-98101-815-0	01	1	1001-		●
37	CLIP; HOSE,P/S (A) ID=26	1-09704-082-0	02	1	1001-1011	●	●
37	CLIP; HOSE,P/S (A) ID=26	1-09704-082-0	02	1	1012-	●
37	CLIP; HOSE,P/S 6HK1-TCN ENG(82L) (A) ID=26	1-09704-082-0	02	1	1012-		●
37	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	02	1	1001-	●	●
37	CLIP; HOSE,P/S (C) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1001-		●
37	CLIP; HOSE,P/S (D) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1001-		●
46	PIPE; OIL,P/S UNIT TO OIL TANK 4HK1-TCS ENG(RJS) (C) L=2912	8-98080-645-0	01	1	1012-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK (A) L=2747	8-98099-153-0	01	1	1001-1011	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HK1-TCN ENG(82L) (A) L=2747	8-98099-153-0	01	1	1012-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK (B) L=2804	8-98114-408-0	01	1	1001-		●
54	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (A) ID=19 L=20	0-95235-836-0	02	1	1012-	●
54	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (B) ID=17 L=17	1-09701-284-0	04	1	1012-	●
54	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (C) ID=32	1-09704-085-0	02	1	1012-	●
54	CLIP; OIL PIPE (A) ID=19 L=20	0-95235-836-0	01	1	1001-1011	●	●
54	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (A) ID=19 L=20	0-95235-836-0	01	1	1012-	●
54	CLIP; OIL PIPE (A) ID=19 L=20	0-95235-836-0	01	1	1012-		●
58	BOLT; CLIP 4HK1-TCS ENG(RJS) (A) M8X20 FLANGE	0-28650-820-0	01	1	1012-	●
58	BOLT; CLIP 4HK1-TCS ENG(RJS) (C) M8X45 FLANGE SOU	0-28050-845-0	02	1	1012-	●
58	BOLT; CLIP (B) M8X40 FLANGE SOU	0-28650-840-0	01	1	1001-1011	●
58	BOLT; CLIP 6HK1-TCN ENG(82L) (B) M8X40 FLANGE SOU	0-28650-840-0	01	1	1012-	●
58	BOLT; CLIP (A) M8X16 FLANGE SOU	0-28050-816-0	02	1	1001-1011	●	●
58	BOLT; CLIP 6HK1-TCN ENG(82L) (A) M8X16 FLANGE SOU	0-28050-816-0	02	1	1012-	●
58	BOLT; CLIP (A) M8X16 FLANGE SOU	0-28050-816-0	02	1	1012-		●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	1001-1011	●	●
58	BOLT; CLIP 6HK1-TCN ENG(82L) (A) M8X20 FLANGE	0-28650-820-0	02	1	1012-	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	1012-		●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	03	1	1001-		●
59	BRACKET; CLIP,OIL PIPE 4HK1-TCS ENG(RJS) (E)	8-98064-809-1	01	1	1012-	●
59	BRACKET; CLIP,OIL PIPE (B)	1-47475-427-1	01	1	1001-1011	●
59	BRACKET; CLIP,OIL PIPE 6HK1-TCN ENG(82L) (B)	1-47475-427-1	01	1	1012-	●
59	BRACKET; CLIP,OIL PIPE (C)	1-21464-481-0	01	1	1001-1011	●	●
59	BRACKET; CLIP,OIL PIPE 6HK1-TCN ENG(82L) (C)	1-21464-481-0	01	1	1012-	●
59	BRACKET; CLIP,OIL PIPE (C)	1-21464-481-0	01	1	1012-		●
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	1001-	●	●
59	BRACKET; CLIP,OIL PIPE (D)	1-47471-051-0	01	1	1001-		●
61	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (C) ID=16 L=20	0-95235-536-0	04	1	1012-	●
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-536-0	02	1	1001-1011	●	●
61	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (C) ID=16 L=20	0-95235-536-0	02	1	1012-	●
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-536-0	02	1	1012-		●
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1001-1011	●	●
61	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1012-	●
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1012-		●
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1001-1011	●	●
61	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1012-	●
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1012-		●
65	NUT; BRKT 4HK1-TCS ENG(RJS) M8 FLANGE SOU	0-91180-108-0	07	1	1012-	●
65	NUT; BRKT M8 FLANGE SOU	0-91180-108-0	02	1	1001-1011	●	●
65	NUT; BRKT 6HK1-TCN ENG(82L) M8 FLANGE SOU	0-91180-108-0	02	1	1012-	●
65	NUT; BRKT M8 FLANGE SOU	0-91180-108-0	02	1	1012-		●
65	NUT; BRKT M8 FLANGE SOU	0-91180-108-0	01	1	1001-		●
67	NUT; BRKT M8 FLANGE SOU	0-91180-108-0	01	1	1001-	●	●
79	BOLT; BRKT M8X25 FLANGE SOU	0-28650-825-0	02	1	1001-	●	●
263	BRACKET; P/S PIPE	8-98079-444-0	01	1	1001-1011	●	●
263	BRACKET; P/S PIPE 6HK1-TCN ENG(82L)	8-98079-444-0	01	1	1012-	●
263	BRACKET; P/S PIPE	8-98079-444-0	01	1	1012-		●
264	BOLT; PIPE BRKT M8X20 FLANGE	0-28650-820-0	01	1	1001-	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 4HK1-TCS ENG(RJS) (F)	8-98165-444-0	01	1	1012-	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (B)	8-98082-961-0	01	1	1001-1006	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (D)	8-98154-041-0	01	1	1007-1011	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6HK1-TCN ENG(82L) (D)	8-98154-041-0	01	1	1012-	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (A)	8-98082-962-0	01	1	1001-1006	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (C)	8-98101-858-0	01	1	1001-1006		●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (E)	8-98154-046-0	01	1	1007-		●
284	NUT; PIPE 4HK1-TCS ENG(RJS) M8 FLANGE SOU	0-91180-108-0	02	1	1012-	●
284	NUT; PIPE M8 FLANGE SOU	0-91180-108-0	01	1	1001-1011	●	●
284	NUT; PIPE 6HK1-TCN ENG(82L) M8 FLANGE SOU	0-91180-108-0	01	1	1012-	●
284	NUT; PIPE M8 FLANGE SOU	0-91180-108-0	01	1	1012-		●

25 2 1 1 23 3 25 5 26 19 37 37 31 58 12 34 37 58 19 62 37 15 62 15 37 46 37 268 268 58 61 61 58 65 59 67 79 263 65 59 61 58 264 79 284 67 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S	1-21210-238-1	01	1	1001-1006	●	●
1	TANK ASM; OIL,P/S	8-98166-928-0	01	1	1007-	●	●
2	CAP; OIL TANK,P/S	1-21241-004-4	01	1	1001-1006	●	●
2	CAP; OIL TANK,P/S	8-98166-876-0	01	1	1007-	●	●
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	1001-	●	●
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	1001-	●	●
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-011-0	01	1	1001-	●	●
15	PLATE; FILTER,OIL TANK	1-21249-016-0	02	1	1001-	●	●
19	SEAT; OIL TANK	1-21249-004-0	02	1	1001-	●	●
23	BRACKET; OIL TANK,P/S	8-98125-268-0	01	1	1001-		●
25	BOLT; OIL TANK BRKT (B) M8X25 FLANGE SOU	0-28650-825-0	02	1	1001-	●	●
25	BOLT; OIL TANK BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	1001-		●
26	NUT; OIL TANK TO BRKT M8 FLANGE SOU	0-91180-108-0	02	1	1001-	●	●
31	HOSE; P/S OIL TANK,INL 4HK1-TCS ENG(RJS) (C)	0-09814-080-0	01	1	1012-	●
31	HOSE; P/S OIL TANK,INL (A)	8-98093-500-0	01	1	1001-1011	●
31	HOSE; P/S OIL TANK,INL 6HK1-TCN ENG(82L) (A)	8-98093-500-0	01	1	1012-	●
31	HOSE; P/S OIL TANK,INL (B)	8-98101-814-0	01	1	1001-		●
34	HOSE; P/S OIL TANK,OUTLET (A)	8-98021-827-0	01	1	1001-	●
34	HOSE; P/S OIL TANK,OUTLET (B)	8-98101-815-0	01	1	1001-		●
37	CLIP; HOSE,P/S (A) ID=26	1-09704-082-0	02	1	1001-1011	●	●
37	CLIP; HOSE,P/S (A) ID=26	1-09704-082-0	02	1	1012-	●
37	CLIP; HOSE,P/S 6HK1-TCN ENG(82L) (A) ID=26	1-09704-082-0	02	1	1012-		●
37	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	02	1	1001-	●	●
37	CLIP; HOSE,P/S (C) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1001-		●
37	CLIP; HOSE,P/S (D) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1001-		●
46	PIPE; OIL,P/S UNIT TO OIL TANK 4HK1-TCS ENG(RJS) (C) L=2912	8-98080-645-0	01	1	1012-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK (A) L=2747	8-98099-153-0	01	1	1001-1011	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HK1-TCN ENG(82L) (A) L=2747	8-98099-153-0	01	1	1012-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK (B) L=2804	8-98114-408-0	01	1	1001-		●
54	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (A) ID=19 L=20	0-95235-836-0	02	1	1012-	●
54	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (B) ID=17 L=17	1-09701-284-0	04	1	1012-	●
54	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (C) ID=32	1-09704-085-0	02	1	1012-	●
54	CLIP; OIL PIPE (A) ID=19 L=20	0-95235-836-0	01	1	1001-1011	●	●
54	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (A) ID=19 L=20	0-95235-836-0	01	1	1012-	●
54	CLIP; OIL PIPE (A) ID=19 L=20	0-95235-836-0	01	1	1012-		●
58	BOLT; CLIP 4HK1-TCS ENG(RJS) (A) M8X20 FLANGE	0-28650-820-0	01	1	1012-	●
58	BOLT; CLIP 4HK1-TCS ENG(RJS) (C) M8X45 FLANGE SOU	0-28050-845-0	02	1	1012-	●
58	BOLT; CLIP (B) M8X40 FLANGE SOU	0-28650-840-0	01	1	1001-1011	●
58	BOLT; CLIP 6HK1-TCN ENG(82L) (B) M8X40 FLANGE SOU	0-28650-840-0	01	1	1012-	●
58	BOLT; CLIP (A) M8X16 FLANGE SOU	0-28050-816-0	02	1	1001-1011	●	●
58	BOLT; CLIP 6HK1-TCN ENG(82L) (A) M8X16 FLANGE SOU	0-28050-816-0	02	1	1012-	●
58	BOLT; CLIP (A) M8X16 FLANGE SOU	0-28050-816-0	02	1	1012-		●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	1001-1011	●	●
58	BOLT; CLIP 6HK1-TCN ENG(82L) (A) M8X20 FLANGE	0-28650-820-0	02	1	1012-	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	1012-		●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	03	1	1001-		●
59	BRACKET; CLIP,OIL PIPE 4HK1-TCS ENG(RJS) (E)	8-98064-809-1	01	1	1012-	●
59	BRACKET; CLIP,OIL PIPE (B)	1-47475-427-1	01	1	1001-1011	●
59	BRACKET; CLIP,OIL PIPE 6HK1-TCN ENG(82L) (B)	1-47475-427-1	01	1	1012-	●
59	BRACKET; CLIP,OIL PIPE (C)	1-21464-481-0	01	1	1001-1011	●	●
59	BRACKET; CLIP,OIL PIPE 6HK1-TCN ENG(82L) (C)	1-21464-481-0	01	1	1012-	●
59	BRACKET; CLIP,OIL PIPE (C)	1-21464-481-0	01	1	1012-		●
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	1001-	●	●
59	BRACKET; CLIP,OIL PIPE (D)	1-47471-051-0	01	1	1001-		●
61	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (C) ID=16 L=20	0-95235-536-0	04	1	1012-	●
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-536-0	02	1	1001-1011	●	●
61	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (C) ID=16 L=20	0-95235-536-0	02	1	1012-	●
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-536-0	02	1	1012-		●
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1001-1011	●	●
61	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1012-	●
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1012-		●
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1001-1011	●	●
61	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1012-	●
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1012-		●
62	NUT; CLIP FIX M8 FLANGE SOU	0-91180-108-0	02	1	1001-		●
65	NUT; BRKT 4HK1-TCS ENG(RJS) M8 FLANGE SOU	0-91180-108-0	07	1	1012-	●
65	NUT; BRKT M8 FLANGE SOU	0-91180-108-0	02	1	1001-1011	●	●
65	NUT; BRKT 6HK1-TCN ENG(82L) M8 FLANGE SOU	0-91180-108-0	02	1	1012-	●
65	NUT; BRKT M8 FLANGE SOU	0-91180-108-0	02	1	1012-		●
65	NUT; BRKT M8 FLANGE SOU	0-91180-108-0	01	1	1001-		●
67	NUT; BRKT M8 FLANGE SOU	0-91180-108-0	01	1	1001-	●	●
79	BOLT; BRKT M8X25 FLANGE SOU	0-28650-825-0	02	1	1001-	●	●
263	BRACKET; P/S PIPE	8-98079-444-0	01	1	1001-1011	●	●
263	BRACKET; P/S PIPE 6HK1-TCN ENG(82L)	8-98079-444-0	01	1	1012-	●
263	BRACKET; P/S PIPE	8-98079-444-0	01	1	1012-		●
264	BOLT; PIPE BRKT M8X20 FLANGE	0-28650-820-0	01	1	1001-	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 4HK1-TCS ENG(RJS) (F)	8-98165-444-0	01	1	1012-	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (B)	8-98082-961-0	01	1	1001-1006	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (D)	8-98154-041-0	01	1	1007-1011	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6HK1-TCN ENG(82L) (D)	8-98154-041-0	01	1	1012-	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (A)	8-98082-962-0	01	1	1001-1006	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (C)	8-98101-858-0	01	1	1001-1006		●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (E)	8-98154-046-0	01	1	1007-		●
284	NUT; PIPE 4HK1-TCS ENG(RJS) M8 FLANGE SOU	0-91180-108-0	02	1	1012-	●
284	NUT; PIPE M8 FLANGE SOU	0-91180-108-0	01	1	1001-1011	●	●
284	NUT; PIPE 6HK1-TCN ENG(82L) M8 FLANGE SOU	0-91180-108-0	01	1	1012-	●
284	NUT; PIPE M8 FLANGE SOU	0-91180-108-0	01	1	1012-		●

58 54 102 54 54 280 54 66 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
54	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (A) ID=19 L=20	0-95235-836-0	02	1	1012-	●
54	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (B) ID=17 L=17	1-09701-284-0	04	1	1012-	●
54	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (C) ID=32	1-09704-085-0	02	1	1012-	●
54	CLIP; OIL PIPE (A) ID=19 L=20	0-95235-836-0	01	1	1001-1011	●	●
54	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (A) ID=19 L=20	0-95235-836-0	01	1	1012-	●
54	CLIP; OIL PIPE (A) ID=19 L=20	0-95235-836-0	01	1	1012-		●
58	BOLT; CLIP 4HK1-TCS ENG(RJS) (A) M8X20 FLANGE	0-28650-820-0	01	1	1012-	●
58	BOLT; CLIP 4HK1-TCS ENG(RJS) (C) M8X45 FLANGE SOU	0-28050-845-0	02	1	1012-	●
58	BOLT; CLIP (B) M8X40 FLANGE SOU	0-28650-840-0	01	1	1001-1011	●
58	BOLT; CLIP 6HK1-TCN ENG(82L) (B) M8X40 FLANGE SOU	0-28650-840-0	01	1	1012-	●
58	BOLT; CLIP (A) M8X16 FLANGE SOU	0-28050-816-0	02	1	1001-1011	●	●
58	BOLT; CLIP 6HK1-TCN ENG(82L) (A) M8X16 FLANGE SOU	0-28050-816-0	02	1	1012-	●
58	BOLT; CLIP (A) M8X16 FLANGE SOU	0-28050-816-0	02	1	1012-		●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	1001-1011	●	●
58	BOLT; CLIP 6HK1-TCN ENG(82L) (A) M8X20 FLANGE	0-28650-820-0	02	1	1012-	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	1012-		●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	03	1	1001-		●
63	BRACKET; CLIP,P/S 4HK1-TCS ENG(RJS)	8-97375-107-0	01	1	1012-	●
66	BOLT; BRKT,OIL PIPE 4HK1-TCS ENG(RJS) (B) M8X16 FLANGE SOU	0-28050-816-0	02	1	1012-	●
66	BOLT; BRKT,OIL PIPE (A) M8X20 FLANGE	0-28650-820-0	01	1	1001-		●
102	PIPE; SUCTION,P/S 4HK1-TCS ENG(RJS)	8-98080-186-2	01	1	1012-	●
280	HOSE; P/S OIL PUMP,INL 4HK1-TCS ENG(RJS) (B)	8-98165-266-1	01	1	1012-	●
280	HOSE; P/S OIL PUMP,INL (A)	8-98094-167-0	01	1	1001-1011	●	●
280	HOSE; P/S OIL PUMP,INL 6HK1-TCN ENG(82L) (A)	8-98094-167-0	01	1	1012-	●
280	HOSE; P/S OIL PUMP,INL (A)	8-98094-167-0	01	1	1012-		●

268 268 34 268 31 44 46 280 58 61 59 68 157 65 66 39 280 41 41 277

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
31	HOSE; P/S OIL TANK,INL 4HK1-TCS ENG(RJS) (C)	0-09814-080-0	01	1	1012-	●
31	HOSE; P/S OIL TANK,INL (A)	8-98093-500-0	01	1	1001-1011	●
31	HOSE; P/S OIL TANK,INL 6HK1-TCN ENG(82L) (A)	8-98093-500-0	01	1	1012-	●
31	HOSE; P/S OIL TANK,INL (B)	8-98101-814-0	01	1	1001-		●
34	HOSE; P/S OIL TANK,OUTLET (A)	8-98021-827-0	01	1	1001-	●
34	HOSE; P/S OIL TANK,OUTLET (B)	8-98101-815-0	01	1	1001-		●
39	CLIP; FLEX HOSE ID=40	8-94226-553-0	01	1	1001-1011	●	●
39	CLIP; FLEX HOSE 6HK1-TCN ENG(82L) ID=40	8-94226-553-0	01	1	1012-	●
39	CLIP; FLEX HOSE ID=40	8-94226-553-0	01	1	1012-		●
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	1001-	●	●
44	PIPE; OIL,P/S UNIT TO NIPPLE 4HK1-TCS ENG(RJS) (C)	8-98077-661-0	01	1	1012-	●
44	PIPE; OIL,P/S UNIT TO NIPPLE (A)	8-98099-152-0	01	1	1001-1011	●
44	PIPE; OIL,P/S UNIT TO NIPPLE 6HK1-TCN ENG(82L) (A)	8-98099-152-0	01	1	1012-	●
44	PIPE; OIL,P/S UNIT TO NIPPLE (B)	8-98114-409-0	01	1	1001-		●
46	PIPE; OIL,P/S UNIT TO OIL TANK 4HK1-TCS ENG(RJS) (C) L=2912	8-98080-645-0	01	1	1012-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK (A) L=2747	8-98099-153-0	01	1	1001-1011	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HK1-TCN ENG(82L) (A) L=2747	8-98099-153-0	01	1	1012-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK (B) L=2804	8-98114-408-0	01	1	1001-		●
58	BOLT; CLIP 4HK1-TCS ENG(RJS) (A) M8X20 FLANGE	0-28650-820-0	01	1	1012-	●
58	BOLT; CLIP 4HK1-TCS ENG(RJS) (C) M8X45 FLANGE SOU	0-28050-845-0	02	1	1012-	●
58	BOLT; CLIP (B) M8X40 FLANGE SOU	0-28650-840-0	01	1	1001-1011	●
58	BOLT; CLIP 6HK1-TCN ENG(82L) (B) M8X40 FLANGE SOU	0-28650-840-0	01	1	1012-	●
58	BOLT; CLIP (A) M8X16 FLANGE SOU	0-28050-816-0	02	1	1001-1011	●	●
58	BOLT; CLIP 6HK1-TCN ENG(82L) (A) M8X16 FLANGE SOU	0-28050-816-0	02	1	1012-	●
58	BOLT; CLIP (A) M8X16 FLANGE SOU	0-28050-816-0	02	1	1012-		●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	1001-1011	●	●
58	BOLT; CLIP 6HK1-TCN ENG(82L) (A) M8X20 FLANGE	0-28650-820-0	02	1	1012-	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	1012-		●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	03	1	1001-		●
59	BRACKET; CLIP,OIL PIPE 4HK1-TCS ENG(RJS) (E)	8-98064-809-1	01	1	1012-	●
59	BRACKET; CLIP,OIL PIPE (B)	1-47475-427-1	01	1	1001-1011	●
59	BRACKET; CLIP,OIL PIPE 6HK1-TCN ENG(82L) (B)	1-47475-427-1	01	1	1012-	●
59	BRACKET; CLIP,OIL PIPE (C)	1-21464-481-0	01	1	1001-1011	●	●
59	BRACKET; CLIP,OIL PIPE 6HK1-TCN ENG(82L) (C)	1-21464-481-0	01	1	1012-	●
59	BRACKET; CLIP,OIL PIPE (C)	1-21464-481-0	01	1	1012-		●
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	1001-	●	●
59	BRACKET; CLIP,OIL PIPE (D)	1-47471-051-0	01	1	1001-		●
61	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (C) ID=16 L=20	0-95235-536-0	04	1	1012-	●
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-536-0	02	1	1001-1011	●	●
61	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (C) ID=16 L=20	0-95235-536-0	02	1	1012-	●
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-536-0	02	1	1012-		●
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1001-1011	●	●
61	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1012-	●
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1012-		●
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1001-1011	●	●
61	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1012-	●
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1012-		●
65	NUT; BRKT 4HK1-TCS ENG(RJS) M8 FLANGE SOU	0-91180-108-0	07	1	1012-	●
65	NUT; BRKT M8 FLANGE SOU	0-91180-108-0	02	1	1001-1011	●	●
65	NUT; BRKT 6HK1-TCN ENG(82L) M8 FLANGE SOU	0-91180-108-0	02	1	1012-	●
65	NUT; BRKT M8 FLANGE SOU	0-91180-108-0	02	1	1012-		●
65	NUT; BRKT M8 FLANGE SOU	0-91180-108-0	01	1	1001-		●
66	BOLT; BRKT,OIL PIPE 4HK1-TCS ENG(RJS) (B) M8X16 FLANGE SOU	0-28050-816-0	02	1	1012-	●
66	BOLT; BRKT,OIL PIPE (A) M8X20 FLANGE	0-28650-820-0	01	1	1001-		●
68	NUT; CLIP,OIL PIPE M8 FLANGE SOU	0-91180-108-0	01	1	1001-1011	●	●
68	NUT; CLIP,OIL PIPE 6HK1-TCN ENG(82L) M8 FLANGE SOU	0-91180-108-0	01	1	1012-	●
68	NUT; CLIP,OIL PIPE M8 FLANGE SOU	0-91180-108-0	01	1	1012-		●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 4HK1-TCS ENG(RJS) (B) ID=105.6	8-97386-295-0	01	1	1012-	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=96.4	1-09623-467-0	01	1	1001-1011	●	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 6HK1-TCN ENG(82L). (A) ID=96.4	1-09623-467-0	01	1	1012-	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=96.4	1-09623-467-0	01	1	1012-		●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 4HK1-TCS ENG(RJS) (F)	8-98165-444-0	01	1	1012-	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (B)	8-98082-961-0	01	1	1001-1006	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (D)	8-98154-041-0	01	1	1007-1011	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6HK1-TCN ENG(82L) (D)	8-98154-041-0	01	1	1012-	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (A)	8-98082-962-0	01	1	1001-1006	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (C)	8-98101-858-0	01	1	1001-1006		●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (E)	8-98154-046-0	01	1	1007-		●
277	BOLT; HOSE CLIP M8X16 FLANGE SOU	0-28050-816-0	01	1	1001-1011	●	●
277	BOLT; HOSE CLIP 6HK1-TCN ENG(82L) M8X16 FLANGE SOU	0-28050-816-0	01	1	1012-	●
277	BOLT; HOSE CLIP M8X16 FLANGE SOU	0-28050-816-0	01	1	1012-		●
280	HOSE; P/S OIL PUMP,INL 4HK1-TCS ENG(RJS) (B)	8-98165-266-1	01	1	1012-	●
280	HOSE; P/S OIL PUMP,INL (A)	8-98094-167-0	01	1	1001-1011	●	●
280	HOSE; P/S OIL PUMP,INL 6HK1-TCN ENG(82L) (A)	8-98094-167-0	01	1	1012-	●
280	HOSE; P/S OIL PUMP,INL (A)	8-98094-167-0	01	1	1012-		●

31 46 34 44 280 58 61 59 157 68 39 280 41 41 277

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
31	HOSE; P/S OIL TANK,INL 4HK1-TCS ENG(RJS) (C)	0-09814-080-0	01	1	1012-	●
31	HOSE; P/S OIL TANK,INL (A)	8-98093-500-0	01	1	1001-1011	●
31	HOSE; P/S OIL TANK,INL 6HK1-TCN ENG(82L) (A)	8-98093-500-0	01	1	1012-	●
31	HOSE; P/S OIL TANK,INL (B)	8-98101-814-0	01	1	1001-		●
34	HOSE; P/S OIL TANK,OUTLET (A)	8-98021-827-0	01	1	1001-	●
34	HOSE; P/S OIL TANK,OUTLET (B)	8-98101-815-0	01	1	1001-		●
39	CLIP; FLEX HOSE ID=40	8-94226-553-0	01	1	1001-1011	●	●
39	CLIP; FLEX HOSE 6HK1-TCN ENG(82L) ID=40	8-94226-553-0	01	1	1012-	●
39	CLIP; FLEX HOSE ID=40	8-94226-553-0	01	1	1012-		●
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	1001-	●	●
44	PIPE; OIL,P/S UNIT TO NIPPLE 4HK1-TCS ENG(RJS) (C)	8-98077-661-0	01	1	1012-	●
44	PIPE; OIL,P/S UNIT TO NIPPLE (A)	8-98099-152-0	01	1	1001-1011	●
44	PIPE; OIL,P/S UNIT TO NIPPLE 6HK1-TCN ENG(82L) (A)	8-98099-152-0	01	1	1012-	●
44	PIPE; OIL,P/S UNIT TO NIPPLE (B)	8-98114-409-0	01	1	1001-		●
46	PIPE; OIL,P/S UNIT TO OIL TANK 4HK1-TCS ENG(RJS) (C) L=2912	8-98080-645-0	01	1	1012-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK (A) L=2747	8-98099-153-0	01	1	1001-1011	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HK1-TCN ENG(82L) (A) L=2747	8-98099-153-0	01	1	1012-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK (B) L=2804	8-98114-408-0	01	1	1001-		●
58	BOLT; CLIP 4HK1-TCS ENG(RJS) (A) M8X20 FLANGE	0-28650-820-0	01	1	1012-	●
58	BOLT; CLIP 4HK1-TCS ENG(RJS) (C) M8X45 FLANGE SOU	0-28050-845-0	02	1	1012-	●
58	BOLT; CLIP (B) M8X40 FLANGE SOU	0-28650-840-0	01	1	1001-1011	●
58	BOLT; CLIP 6HK1-TCN ENG(82L) (B) M8X40 FLANGE SOU	0-28650-840-0	01	1	1012-	●
58	BOLT; CLIP (A) M8X16 FLANGE SOU	0-28050-816-0	02	1	1001-1011	●	●
58	BOLT; CLIP 6HK1-TCN ENG(82L) (A) M8X16 FLANGE SOU	0-28050-816-0	02	1	1012-	●
58	BOLT; CLIP (A) M8X16 FLANGE SOU	0-28050-816-0	02	1	1012-		●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	1001-1011	●	●
58	BOLT; CLIP 6HK1-TCN ENG(82L) (A) M8X20 FLANGE	0-28650-820-0	02	1	1012-	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	1012-		●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	03	1	1001-		●
59	BRACKET; CLIP,OIL PIPE 4HK1-TCS ENG(RJS) (E)	8-98064-809-1	01	1	1012-	●
59	BRACKET; CLIP,OIL PIPE (B)	1-47475-427-1	01	1	1001-1011	●
59	BRACKET; CLIP,OIL PIPE 6HK1-TCN ENG(82L) (B)	1-47475-427-1	01	1	1012-	●
59	BRACKET; CLIP,OIL PIPE (C)	1-21464-481-0	01	1	1001-1011	●	●
59	BRACKET; CLIP,OIL PIPE 6HK1-TCN ENG(82L) (C)	1-21464-481-0	01	1	1012-	●
59	BRACKET; CLIP,OIL PIPE (C)	1-21464-481-0	01	1	1012-		●
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	1001-	●	●
59	BRACKET; CLIP,OIL PIPE (D)	1-47471-051-0	01	1	1001-		●
61	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (C) ID=16 L=20	0-95235-536-0	04	1	1012-	●
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-536-0	02	1	1001-1011	●	●
61	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (C) ID=16 L=20	0-95235-536-0	02	1	1012-	●
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-536-0	02	1	1012-		●
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1001-1011	●	●
61	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1012-	●
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1012-		●
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1001-1011	●	●
61	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1012-	●
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1012-		●
68	NUT; CLIP,OIL PIPE M8 FLANGE SOU	0-91180-108-0	01	1	1001-1011	●	●
68	NUT; CLIP,OIL PIPE 6HK1-TCN ENG(82L) M8 FLANGE SOU	0-91180-108-0	01	1	1012-	●
68	NUT; CLIP,OIL PIPE M8 FLANGE SOU	0-91180-108-0	01	1	1012-		●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 4HK1-TCS ENG(RJS) (B) ID=105.6	8-97386-295-0	01	1	1012-	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=96.4	1-09623-467-0	01	1	1001-1011	●	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 6HK1-TCN ENG(82L). (A) ID=96.4	1-09623-467-0	01	1	1012-	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=96.4	1-09623-467-0	01	1	1012-		●
277	BOLT; HOSE CLIP M8X16 FLANGE SOU	0-28050-816-0	01	1	1001-1011	●	●
277	BOLT; HOSE CLIP 6HK1-TCN ENG(82L) M8X16 FLANGE SOU	0-28050-816-0	01	1	1012-	●
277	BOLT; HOSE CLIP M8X16 FLANGE SOU	0-28050-816-0	01	1	1012-		●
280	HOSE; P/S OIL PUMP,INL 4HK1-TCS ENG(RJS) (B)	8-98165-266-1	01	1	1012-	●
280	HOSE; P/S OIL PUMP,INL (A)	8-98094-167-0	01	1	1001-1011	●	●
280	HOSE; P/S OIL PUMP,INL 6HK1-TCN ENG(82L) (A)	8-98094-167-0	01	1	1012-	●
280	HOSE; P/S OIL PUMP,INL (A)	8-98094-167-0	01	1	1012-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
