◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11161 - FSR(SOUTH AFRICA) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-01 - PROPELLER SHAFT ▶
4-01 — PROPELLER SHAFT (#55564) — 225 parça
çizim 162477
74 8 9 1 57 128 106 225 56 9 8 104 56 57 74 9 17 14 19
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHAFT; PROP
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) (B) L=789 		8-98069-581-0 01 1 1012- ●
1 SHAFT; PROP
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) (B) L=1179 		8-98069-574-0 01 1 1012- ●
1 SHAFT; PROP
4HK1-TCS ENG(RJS) (A) L=931 		8-98069-695-0 01 1 1012- ●
1 SHAFT; PROP
(A) L=721 		8-98069-696-0 01 1 1001-1011 ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) (A) L=721 		8-98069-696-0 01 1 1012- ●
1 SHAFT; PROP
MLD6W M/T(Y2C) (B) L=759 		8-98069-568-0 01 1 1001-1105 ●
1 SHAFT; PROP
MLD6W M/T(Y2C) (B) L=759 		8-98069-568-0 01 1 1106-1109 ●
1 SHAFT; PROP
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=759 		8-98069-568-0 01 1 1106-1109 ●
1 SHAFT; PROP
MLD6W M/T(Y2C) (B) L=759 		8-98069-568-0 01 1 1110- ●
1 SHAFT; PROP
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=759 		8-98069-568-0 01 1 1110- ● ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) (B) L=649 		8-98069-608-0 01 1 1001-1011 ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) (B) L=649 		8-98069-608-0 01 1 1012-1109 ●
1 SHAFT; PROP
MZX6P M/T(RSW) (B) L=649 		8-98069-608-0 01 1 1012-1109 ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=649 		8-98069-608-0 01 1 1110- ●
1 SHAFT; PROP
(C) L=574 		8-98069-603-0 01 1 1001-1109 ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=574 		8-98069-603-0 01 1 1110- ●
1 SHAFT; PROP
(C) L=574 		8-98069-603-0 01 1 1110- ●
1 SHAFT; PROP
MLD6W M/T(Y2C) (B) L=949 		8-98110-584-0 01 1 1001- ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) (B) L=839 		8-98069-569-0 01 1 1001-1011 ●
1 SHAFT; PROP
(B) L=839 		8-98069-569-0 01 1 1001-1011 ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) (B) L=839 		8-98069-569-0 01 1 1012-1105 ●
1 SHAFT; PROP
MZX6P M/T(RSW) (B) L=839 		8-98069-569-0 01 1 1012-1105 ●
1 SHAFT; PROP
(B) L=839 		8-98069-569-0 01 1 1012-1105 ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) (B) L=839 		8-98069-569-0 01 1 1106-1109 ●
1 SHAFT; PROP
MZX6P M/T(RSW) (B) L=839 		8-98069-569-0 01 1 1106-1109 ●
1 SHAFT; PROP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=839 		8-98069-569-0 01 1 1106-1109 ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=839 		8-98069-569-0 01 1 1110- ● ●
1 SHAFT; PROP
(A) L=1271 		8-98069-657-0 01 1 1001- ● ●
1 SHAFT; PROP
(C) L=974 		8-98069-610-0 01 1 1001- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 01 1 1001- ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 01 1 1001- ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 02 1 1001- ● ● ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-1 01 1 1001- ● ● ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-1 01 1 1001- ● ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-1 02 1 1001- ● ● ●
14 COVER; DUST,SPIDER 8-98020-800-0 04 1 1001- ● ● ●
14 COVER; DUST,SPIDER 8-98020-800-0 04 1 1001- ● ●
14 COVER; DUST,SPIDER 8-98020-800-0 08 1 1001- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1001- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1001- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 1001- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1001- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1001- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 1001- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1001- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1001- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 1001- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1001- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1001- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 1001- ● ● ●
56 NUT; YOKE
M14 SOU 		0-91110-514-0 08 1 1001- ● ● ●
57 WASHER; LK,YOKE
ID=14.2 SOU 		0-91510-614-0 08 1 1001- ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 08 1 1001- ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 1001- ● ●
104 PLUG; SLEEVE YOKE 1-09600-064-0 01 1 1001- ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
M6 STRAIGHT SOU 		0-90301-406-0 01 1 1001- ● ● ●
128 SEAL; SLEEVE 1-37247-024-0 01 1 1001- ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=254 		8-98020-885-0 01 1 1001- ● ● ●

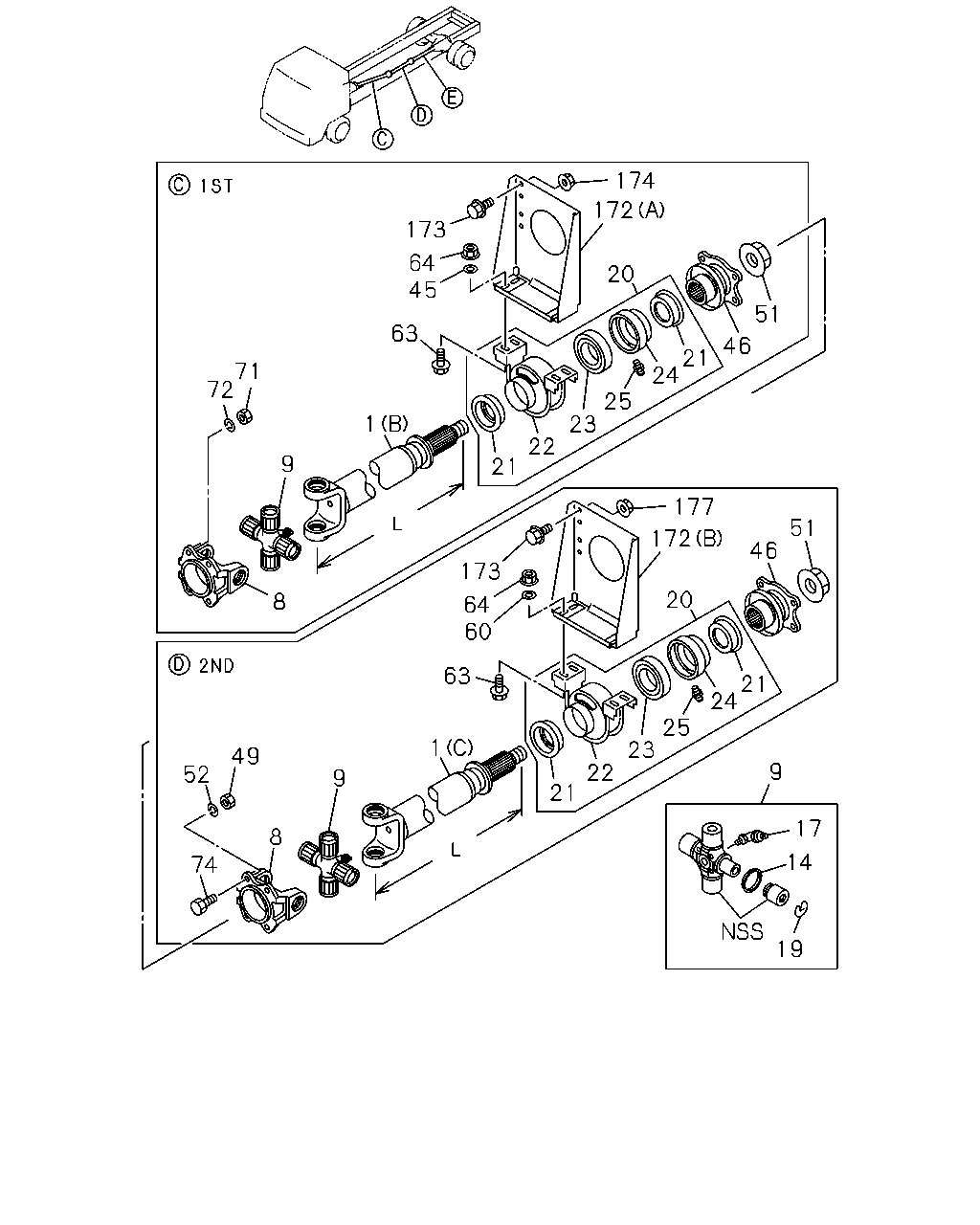

çizim 162497
174 172 173 64 45 20 51 63 46 21 24 71 72 25 23 1 22 9 21 177 51 172 46 173 20 8 64 60 63 21 24 25 23 1 49 9 22 52 9 21 17 8 74 14 19
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHAFT; PROP
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) (B) L=789 		8-98069-581-0 01 1 1012- ●
1 SHAFT; PROP
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) (B) L=1179 		8-98069-574-0 01 1 1012- ●
1 SHAFT; PROP
4HK1-TCS ENG(RJS) (A) L=931 		8-98069-695-0 01 1 1012- ●
1 SHAFT; PROP
(A) L=721 		8-98069-696-0 01 1 1001-1011 ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) (A) L=721 		8-98069-696-0 01 1 1012- ●
1 SHAFT; PROP
MLD6W M/T(Y2C) (B) L=759 		8-98069-568-0 01 1 1001-1105 ●
1 SHAFT; PROP
MLD6W M/T(Y2C) (B) L=759 		8-98069-568-0 01 1 1106-1109 ●
1 SHAFT; PROP
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=759 		8-98069-568-0 01 1 1106-1109 ●
1 SHAFT; PROP
MLD6W M/T(Y2C) (B) L=759 		8-98069-568-0 01 1 1110- ●
1 SHAFT; PROP
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=759 		8-98069-568-0 01 1 1110- ● ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) (B) L=649 		8-98069-608-0 01 1 1001-1011 ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) (B) L=649 		8-98069-608-0 01 1 1012-1109 ●
1 SHAFT; PROP
MZX6P M/T(RSW) (B) L=649 		8-98069-608-0 01 1 1012-1109 ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=649 		8-98069-608-0 01 1 1110- ●
1 SHAFT; PROP
(C) L=574 		8-98069-603-0 01 1 1001-1109 ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=574 		8-98069-603-0 01 1 1110- ●
1 SHAFT; PROP
(C) L=574 		8-98069-603-0 01 1 1110- ●
1 SHAFT; PROP
MLD6W M/T(Y2C) (B) L=949 		8-98110-584-0 01 1 1001- ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) (B) L=839 		8-98069-569-0 01 1 1001-1011 ●
1 SHAFT; PROP
(B) L=839 		8-98069-569-0 01 1 1001-1011 ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) (B) L=839 		8-98069-569-0 01 1 1012-1105 ●
1 SHAFT; PROP
MZX6P M/T(RSW) (B) L=839 		8-98069-569-0 01 1 1012-1105 ●
1 SHAFT; PROP
(B) L=839 		8-98069-569-0 01 1 1012-1105 ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) (B) L=839 		8-98069-569-0 01 1 1106-1109 ●
1 SHAFT; PROP
MZX6P M/T(RSW) (B) L=839 		8-98069-569-0 01 1 1106-1109 ●
1 SHAFT; PROP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=839 		8-98069-569-0 01 1 1106-1109 ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=839 		8-98069-569-0 01 1 1110- ● ●
1 SHAFT; PROP
(A) L=1271 		8-98069-657-0 01 1 1001- ● ●
1 SHAFT; PROP
(C) L=974 		8-98069-610-0 01 1 1001- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 01 1 1001- ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 01 1 1001- ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 02 1 1001- ● ● ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-1 01 1 1001- ● ● ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-1 01 1 1001- ● ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-1 02 1 1001- ● ● ●
14 COVER; DUST,SPIDER 8-98020-800-0 04 1 1001- ● ● ●
14 COVER; DUST,SPIDER 8-98020-800-0 04 1 1001- ● ●
14 COVER; DUST,SPIDER 8-98020-800-0 08 1 1001- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1001- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1001- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 1001- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1001- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1001- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 1001- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1001- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1001- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 1001- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1001- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1001- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 1001- ● ● ●
20 BEARING ASM; CTR,PROP SHAFT 8-98020-881-0 01 1 1001- ● ● ●
20 BEARING ASM; CTR,PROP SHAFT 8-98020-881-0 01 1 1001- ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 1001- ● ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 1001- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 1001- ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 1001- ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 1001- ● ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 1001- ● ●
24 RETAINER; CENTER BRG,1ST 8-98020-882-0 01 1 1001- ● ● ●
24 RETAINER; CENTER BRG,1ST 8-98020-882-0 01 1 1001- ● ●
25 NIPPLE; GREASE,CENTER BRG 8-98020-889-0 01 1 1001- ● ● ●
25 NIPPLE; GREASE,CENTER BRG 8-98020-889-0 01 1 1001- ● ●
45 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		0-91614-610-0 04 1 1001- ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 8-98020-815-0 01 1 1001- ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 8-98020-815-0 01 1 1001- ● ●
49 NUT; YOKE
M14 SOU 		0-91110-514-0 04 1 1001- ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 1001- ● ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 1001- ● ●
52 WASHER; LK,YOKE
ID=14.2 SOU 		0-91510-614-0 04 1 1001- ● ●
60 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		0-91614-610-0 04 1 1001- ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE SOU 		0-28651-035-0 04 1 1001- ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE SOU 		0-28651-035-0 04 1 1001- ● ●
64 NUT; RET TO BRKT
M10 FLANGE SOU 		0-91180-210-0 04 1 1001- ● ● ●
64 NUT; RET TO BRKT
M10 FLANGE SOU 		0-91180-210-0 04 1 1001- ● ●
71 NUT; YOKE
M14 SOU 		0-91110-514-0 04 1 1001- ● ● ●
72 WASHER; LK,YOKE
ID=14.2 SOU 		0-91510-614-0 04 1 1001- ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 08 1 1001- ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 1001- ● ●
172 BRACKET; CENTER BRG
(B) 		1-37515-120-0 01 1 1001- ●
172 BRACKET; CENTER BRG
(A) 		8-98044-076-0 01 1 1001- ●
172 BRACKET; CENTER BRG
(B) 		1-37515-121-0 01 1 1001- ●
172 BRACKET; CENTER BRG
(A) 		1-37515-122-0 01 1 1001- ●
173 BOLT; BRKT
M10X25 FLANGE SOU 		0-28651-025-0 04 1 1001- ● ●
173 BOLT; BRKT
M10X25 FLANGE SOU 		0-28651-025-0 04 1 1001- ● ●
174 NUT; BRKT
M10 FLANGE SOU 		0-91180-210-0 04 1 1001- ● ●
177 NUT
M10 FLANGE SOU 		0-91180-210-0 04 1 1001- ● ●

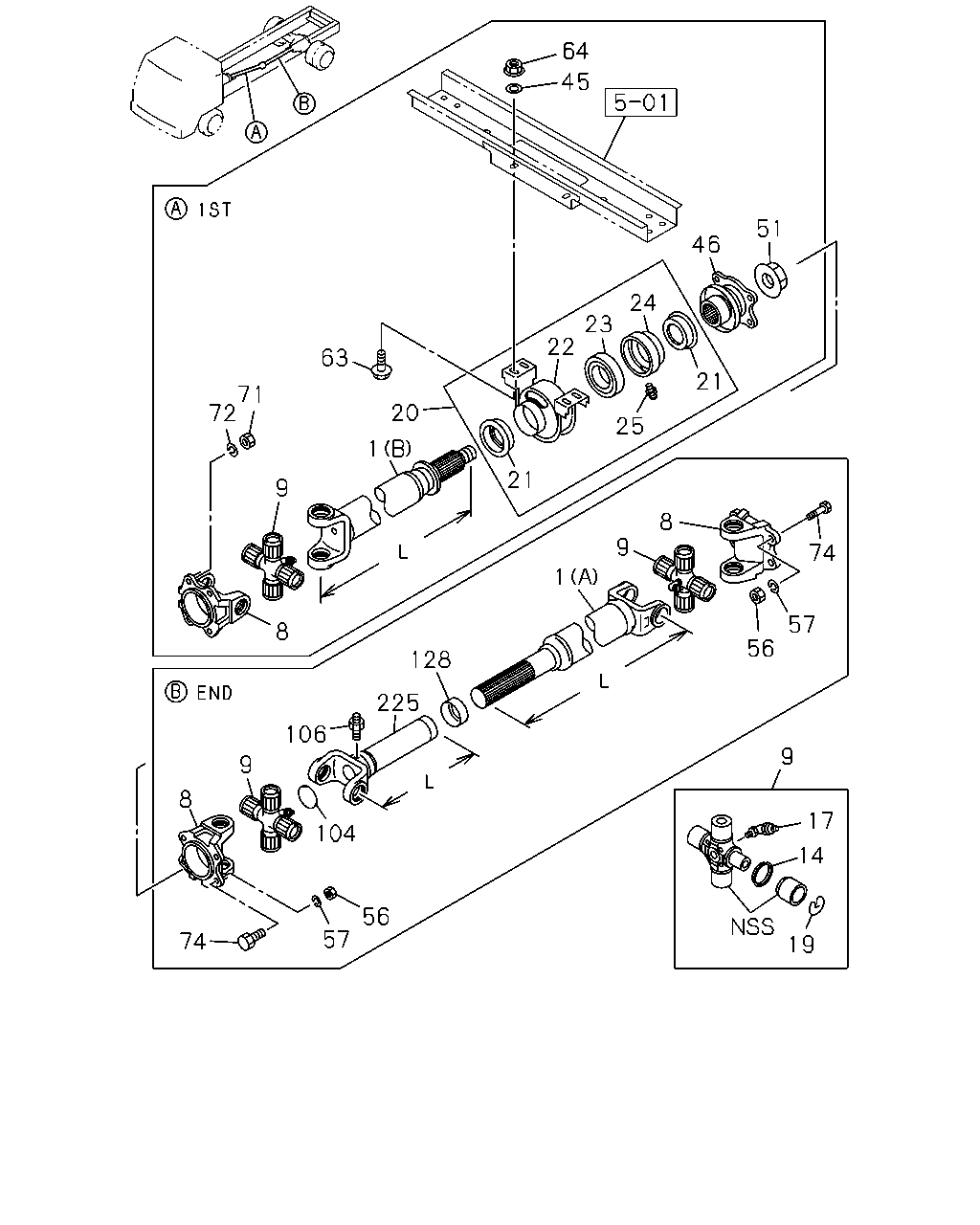

çizim 162500
64 45 51 46 24 23 22 63 21 71 72 20 25 1 21 9 8 9 74 1 57 8 56 128 225 106 9 9 8 17 104 14 56 57 74 19
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHAFT; PROP
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) (B) L=789 		8-98069-581-0 01 1 1012- ●
1 SHAFT; PROP
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) (B) L=1179 		8-98069-574-0 01 1 1012- ●
1 SHAFT; PROP
4HK1-TCS ENG(RJS) (A) L=931 		8-98069-695-0 01 1 1012- ●
1 SHAFT; PROP
(A) L=721 		8-98069-696-0 01 1 1001-1011 ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) (A) L=721 		8-98069-696-0 01 1 1012- ●
1 SHAFT; PROP
MLD6W M/T(Y2C) (B) L=759 		8-98069-568-0 01 1 1001-1105 ●
1 SHAFT; PROP
MLD6W M/T(Y2C) (B) L=759 		8-98069-568-0 01 1 1106-1109 ●
1 SHAFT; PROP
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=759 		8-98069-568-0 01 1 1106-1109 ●
1 SHAFT; PROP
MLD6W M/T(Y2C) (B) L=759 		8-98069-568-0 01 1 1110- ●
1 SHAFT; PROP
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=759 		8-98069-568-0 01 1 1110- ● ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) (B) L=649 		8-98069-608-0 01 1 1001-1011 ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) (B) L=649 		8-98069-608-0 01 1 1012-1109 ●
1 SHAFT; PROP
MZX6P M/T(RSW) (B) L=649 		8-98069-608-0 01 1 1012-1109 ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=649 		8-98069-608-0 01 1 1110- ●
1 SHAFT; PROP
(C) L=574 		8-98069-603-0 01 1 1001-1109 ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=574 		8-98069-603-0 01 1 1110- ●
1 SHAFT; PROP
(C) L=574 		8-98069-603-0 01 1 1110- ●
1 SHAFT; PROP
MLD6W M/T(Y2C) (B) L=949 		8-98110-584-0 01 1 1001- ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) (B) L=839 		8-98069-569-0 01 1 1001-1011 ●
1 SHAFT; PROP
(B) L=839 		8-98069-569-0 01 1 1001-1011 ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) (B) L=839 		8-98069-569-0 01 1 1012-1105 ●
1 SHAFT; PROP
MZX6P M/T(RSW) (B) L=839 		8-98069-569-0 01 1 1012-1105 ●
1 SHAFT; PROP
(B) L=839 		8-98069-569-0 01 1 1012-1105 ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) (B) L=839 		8-98069-569-0 01 1 1106-1109 ●
1 SHAFT; PROP
MZX6P M/T(RSW) (B) L=839 		8-98069-569-0 01 1 1106-1109 ●
1 SHAFT; PROP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=839 		8-98069-569-0 01 1 1106-1109 ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=839 		8-98069-569-0 01 1 1110- ● ●
1 SHAFT; PROP
(A) L=1271 		8-98069-657-0 01 1 1001- ● ●
1 SHAFT; PROP
(C) L=974 		8-98069-610-0 01 1 1001- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 01 1 1001- ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 01 1 1001- ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 02 1 1001- ● ● ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-1 01 1 1001- ● ● ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-1 01 1 1001- ● ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-1 02 1 1001- ● ● ●
14 COVER; DUST,SPIDER 8-98020-800-0 04 1 1001- ● ● ●
14 COVER; DUST,SPIDER 8-98020-800-0 04 1 1001- ● ●
14 COVER; DUST,SPIDER 8-98020-800-0 08 1 1001- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1001- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1001- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 1001- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1001- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1001- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 1001- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1001- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1001- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 1001- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1001- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1001- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 1001- ● ● ●
20 BEARING ASM; CTR,PROP SHAFT 8-98020-881-0 01 1 1001- ● ● ●
20 BEARING ASM; CTR,PROP SHAFT 8-98020-881-0 01 1 1001- ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 1001- ● ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 1001- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 1001- ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 1001- ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 1001- ● ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 1001- ● ●
24 RETAINER; CENTER BRG,1ST 8-98020-882-0 01 1 1001- ● ● ●
24 RETAINER; CENTER BRG,1ST 8-98020-882-0 01 1 1001- ● ●
25 NIPPLE; GREASE,CENTER BRG 8-98020-889-0 01 1 1001- ● ● ●
25 NIPPLE; GREASE,CENTER BRG 8-98020-889-0 01 1 1001- ● ●
45 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		0-91614-610-0 04 1 1001- ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 8-98020-815-0 01 1 1001- ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 8-98020-815-0 01 1 1001- ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 1001- ● ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 1001- ● ●
56 NUT; YOKE
M14 SOU 		0-91110-514-0 08 1 1001- ● ● ●
57 WASHER; LK,YOKE
ID=14.2 SOU 		0-91510-614-0 08 1 1001- ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE SOU 		0-28651-035-0 04 1 1001- ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE SOU 		0-28651-035-0 04 1 1001- ● ●
64 NUT; RET TO BRKT
M10 FLANGE SOU 		0-91180-210-0 04 1 1001- ● ● ●
64 NUT; RET TO BRKT
M10 FLANGE SOU 		0-91180-210-0 04 1 1001- ● ●
71 NUT; YOKE
M14 SOU 		0-91110-514-0 04 1 1001- ● ● ●
72 WASHER; LK,YOKE
ID=14.2 SOU 		0-91510-614-0 04 1 1001- ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 08 1 1001- ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 1001- ● ●
104 PLUG; SLEEVE YOKE 1-09600-064-0 01 1 1001- ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
M6 STRAIGHT SOU 		0-90301-406-0 01 1 1001- ● ● ●
128 SEAL; SLEEVE 1-37247-024-0 01 1 1001- ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=254 		8-98020-885-0 01 1 1001- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
