3-77 — BRAKE PIPING; AIR,REAR (#55562) — 88 parça

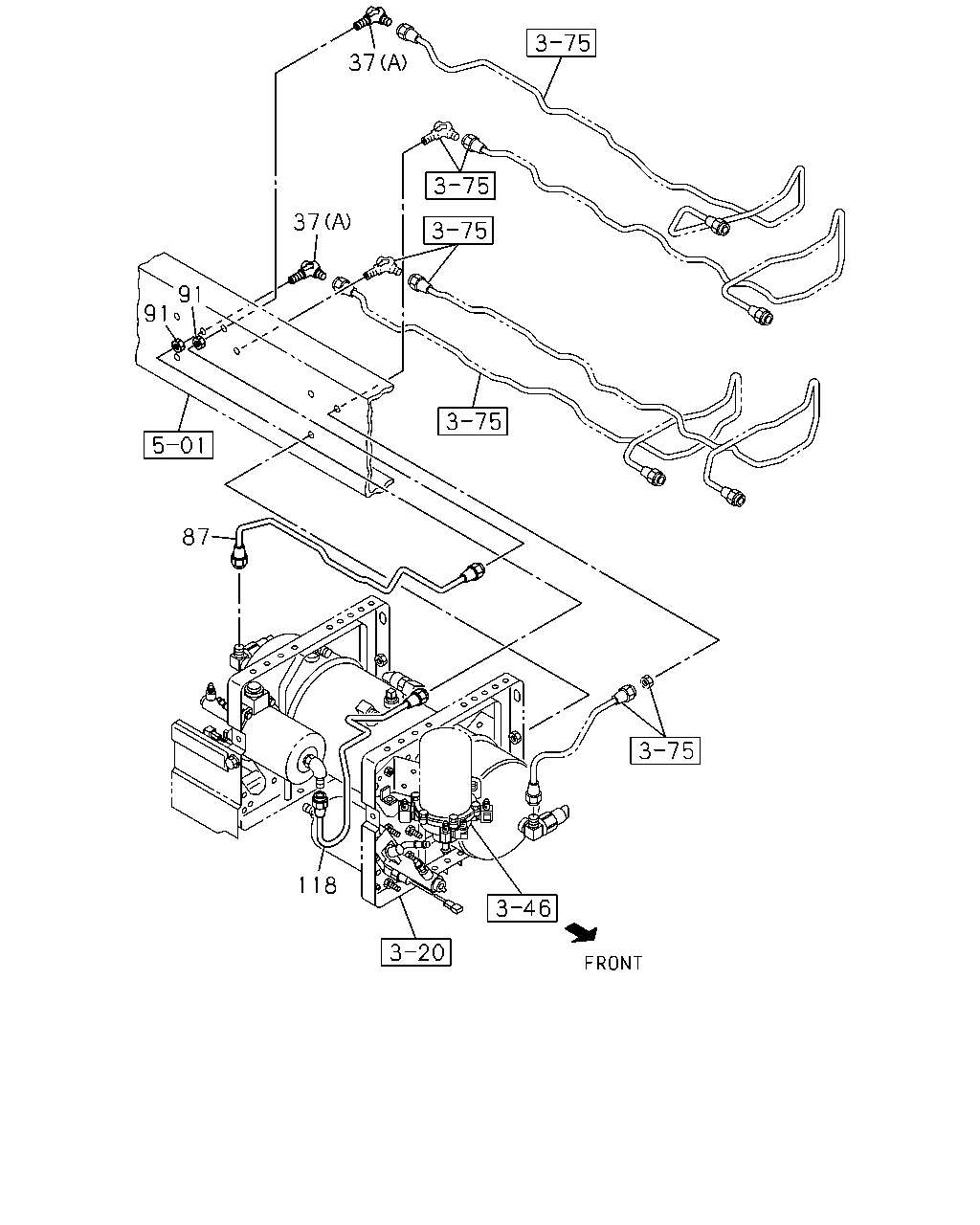

çizim 162716
37 37 91 91 87 118
BalonParca AdiParca NoAdetTipApplied Date A B
37 UNION; AIR PIPE
(B) M16 L=74 		0-92123-310-0 01 1 1001- ● ●
37 UNION; AIR PIPE
(A) M16 ELBOW 		0-92135-210-0 02 1 1001- ● ●
87 PIPE; AIR,AIR TANK TO UNION
L=700 SERVICED BY L=700 		1-47428-870-0 01 1 1001- ●
87 PIPE; AIR,AIR TANK TO UNION
L=834 SERVICED BY L=900 		1-47428-873-0 01 1 1001- ●
91 NUT; PIPE UNION
M16 SOU 		0-91111-516-0 02 1 1001- ● ●
118 PIPE; AIR,UNION TO AIR MASTER
EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) L=830 SERVICED BY L=900 		1-47428-873-0 01 1 1001- ●
118 PIPE; AIR,UNION TO AIR MASTER
EXC. H.S.A SYSTEM<6EP> L=510 SERVICED BY L=550 		1-47428-867-0 01 1 1001- ●

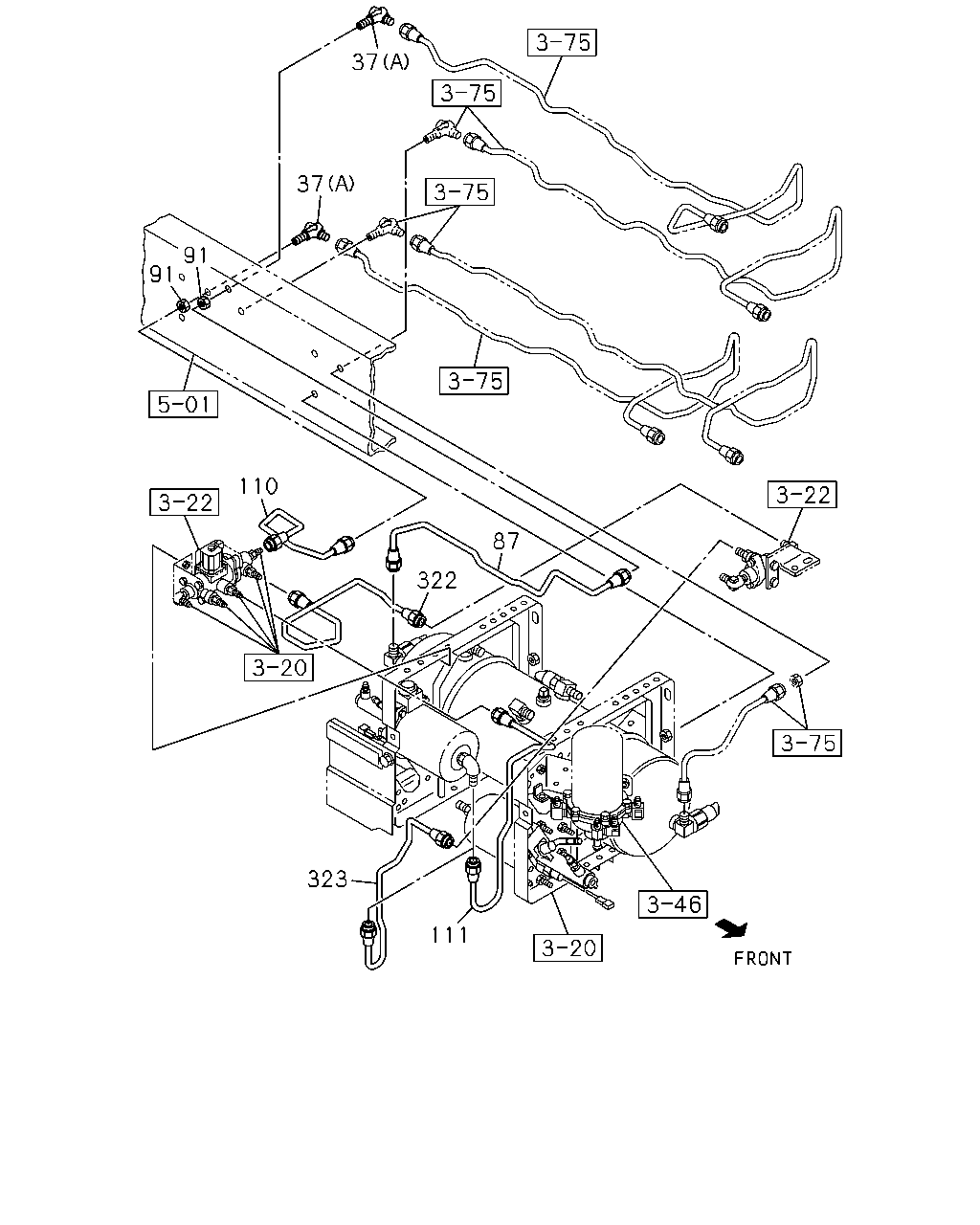

çizim 162724
37 37 91 91 110 87 322 323 111
BalonParca AdiParca NoAdetTipApplied Date A B
37 UNION; AIR PIPE
(B) M16 L=74 		0-92123-310-0 01 1 1001- ● ●
37 UNION; AIR PIPE
(A) M16 ELBOW 		0-92135-210-0 02 1 1001- ● ●
87 PIPE; AIR,AIR TANK TO UNION
L=700 SERVICED BY L=700 		1-47428-870-0 01 1 1001- ●
87 PIPE; AIR,AIR TANK TO UNION
L=834 SERVICED BY L=900 		1-47428-873-0 01 1 1001- ●
91 NUT; PIPE UNION
M16 SOU 		0-91111-516-0 02 1 1001- ● ●
110 PIPE; AIR,UNION TO VLV
H.S.A SYSTEM<6EP> L=473 		8-98067-756-0 01 1 1001- ●
110 PIPE; AIR,UNION TO VLV
H.S.A SYSTEM<6EP> L=474 		8-98101-772-0 01 1 1001- ●
111 PIPE; AIR,VLV TO AIR MASTER
H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) L=554 SERVICED BY L=600 		1-47428-868-0 01 1 1001- ●
111 PIPE; AIR,VLV TO AIR MASTER
H.S.A SYSTEM<6EP> L=374 		8-98098-449-0 01 1 1001- ●
322 PIPE; AIR,HSA VLV TO DBL CHK VLV
THROTTLE CONTROL SYSTEM(6XH) L=673 SERVICED BY L=700 		1-47428-870-0 01 1 1001- ●
323 PIPE; AIR,DBL CHK VLV
THROTTLE CONTROL SYSTEM(6XH) L=574 SERVICED BY L=600 		1-47428-868-0 01 1 1001- ●

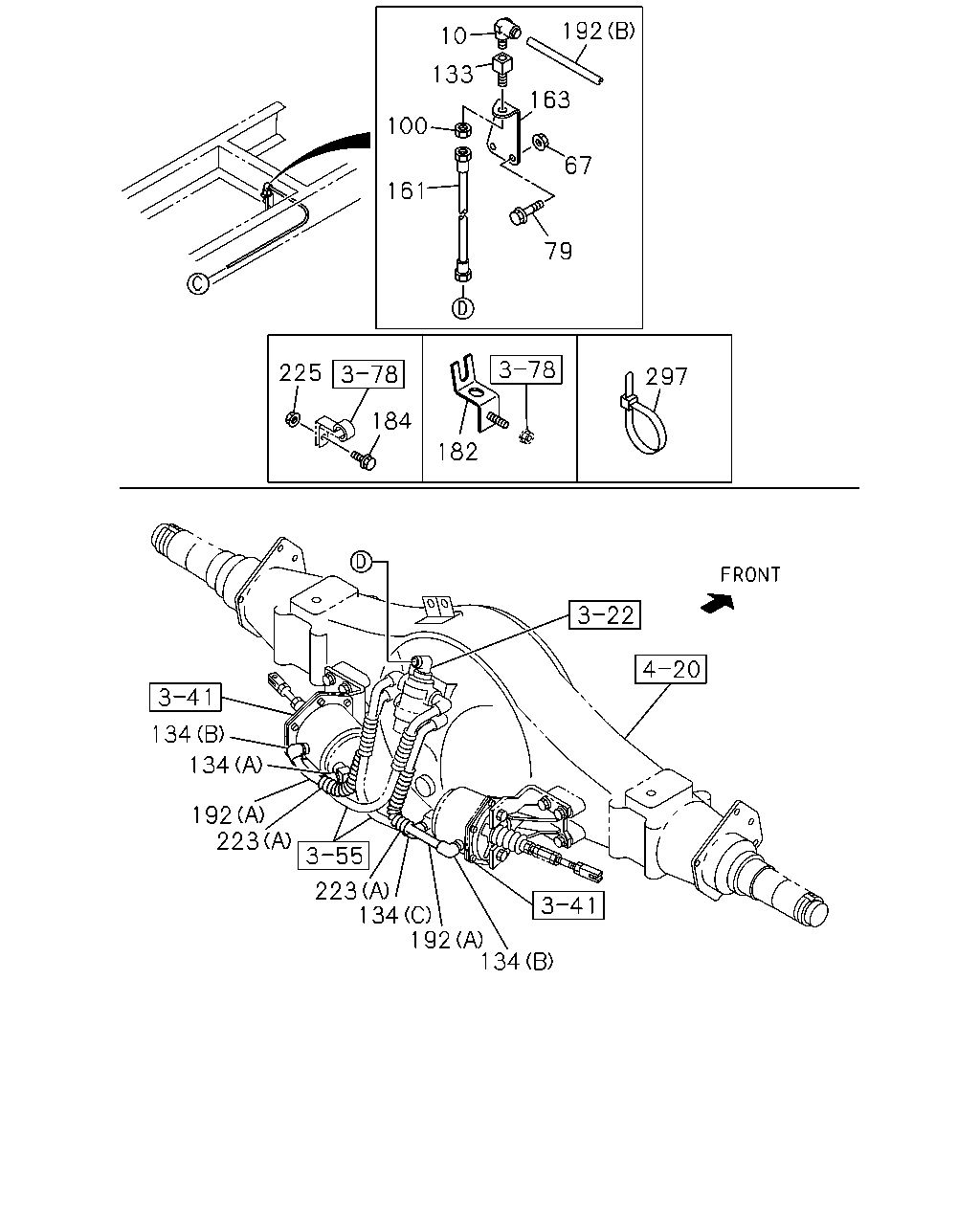

çizim 162726
10 192 133 100 161 67 163 79 297 182 184 225 134 192 134 223 223 192 134 134
BalonParca AdiParca NoAdetTipApplied Date A B
10 CONNECTOR; FLEX HOSE
DIN8 & R3/8 ELBOW SOU 		1-09660-957-0 01 1 1001- ● ●
67 NUT; HOSE BRKT
M8 FLANGE SOU 		0-91180-108-0 02 1 1001- ● ●
79 BOLT; HOSE BRKT
M8X25 FLANGE SOU 		0-28650-825-0 02 1 1001- ● ●
100 NUT; UNION
M16 SOU 		0-91111-516-0 01 1 1001- ● ●
133 UNION; NIPPLE 1-09654-258-2 01 1 1001-1111 ● ●
133 UNION; NIPPLE
PT3/8 & M16 STRAIGHT 		8-98202-001-0 01 1 1112- ● ●
134 CONNECTOR
(C) DIN12 & R3/8 & RC1/4 3WAY 		1-09660-845-0 01 1 1001- ● ●
134 CONNECTOR
(A) DIN12 & R3/8 ELBOW SOU 		1-09660-959-0 01 1 1001- ● ●
134 CONNECTOR
(B) DIN6 & R3/8 ELBOW 		1-09661-234-0 02 1 1001- ● ●
161 HOSE; FLEX,QUICK RELEASE VLV
L=460 		1-09363-963-0 01 1 1001- ● ●
163 BRACKET; FLEX HOSE 8-98044-842-0 01 1 1001- ● ●
182 BRACKET; TUBE CLIP
WHEEL BASE 5100MM(51W) 		8-98096-272-0 01 1 1001- ●
182 BRACKET; TUBE CLIP 8-98096-272-0 01 1 1001- ●
184 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1001- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 1001- ● ●
192 TUBE; NYLON
(B) SERVICED BY L=12000 OD=8 		1-87411-010-0 AR 1 1001- ● ●
192 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1001- ● ●
192 TUBE; NYLON
(B) SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 1001- ● ●
192 TUBE; NYLON
(B) SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 1001- ● ●
223 TUBE; CORRUGATE
(A) SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 1001- ● ●
223 TUBE; CORRUGATE
(B) SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 1001- ● ●
223 TUBE; CORRUGATE
(B) SERVICED BY L=6000 ID=15 		1-87411-037-0 AR 1 1001- ● ●
225 NUT; TUBE CLIP
M8 FLANGE SOU 		0-91180-108-0 01 1 1001- ● ●
297 CLIP; BAND
L=350 		1-09707-183-0 02 1 1001-1109 ●
297 CLIP; BAND
4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) L=350 		1-09707-183-0 09 1 1012-1109 ●
297 CLIP; BAND
WHEEL BASE 3700MM(37W) L=350 		1-09707-183-0 09 1 1110- ●
297 CLIP; BAND
4HK1-TCS ENG(RJS) WHEEL BASE 5100MM(51W) L=350 		1-09707-183-0 13 1 1012-1109 ●
297 CLIP; BAND
WHEEL BASE 5100MM(51W) L=350 		1-09707-183-0 13 1 1110- ●
297 CLIP; BAND
WHEEL BASE 3700MM(37W) L=350 		1-09707-183-0 05 1 1001-1011 ●
297 CLIP; BAND
6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) L=350 		1-09707-183-0 05 1 1012-1109 ●
297 CLIP; BAND
WHEEL BASE 5100MM(51W) L=350 		1-09707-183-0 11 1 1001-1011 ●
297 CLIP; BAND
6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) L=350 		1-09707-183-0 11 1 1012-1109 ●
297 CLIP; BAND
L=350 		1-09707-183-0 12 1 1001-1109 ●
297 CLIP; BAND
L=350 		1-09707-183-0 14 1 1110- ●
çizim 162728
318 97 144 98 37 192 223
BalonParca AdiParca NoAdetTipApplied Date A B
37 UNION; AIR PIPE
(B) M16 L=74 		0-92123-310-0 01 1 1001- ● ●
37 UNION; AIR PIPE
(A) M16 ELBOW 		0-92135-210-0 02 1 1001- ● ●
97 UNION; AIR PIPE
M16 STRAIGHT L=42 		0-92123-010-0 01 1 1001- ● ●
98 NUT; PIPE UNION
M16 SOU 		0-91111-516-0 01 1 1001- ● ●
144 PIPE; AIR,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) L=990 SERVICED BY L=1000 		1-47428-874-0 01 1 1012- ●
144 PIPE; AIR,UNION TO UNION
WHEEL BASE 3700MM(37W) L=909 SERVICED BY L=1000 		1-47428-874-0 01 1 1001-1011 ●
144 PIPE; AIR,UNION TO UNION
6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) L=909 SERVICED BY L=1000 		1-47428-874-0 01 1 1012- ●
144 PIPE; AIR,UNION TO UNION
WHEEL BASE 5100MM(51W) L=1408 SERVICED BY L=1550 		1-47428-879-0 01 1 1001- ●
144 PIPE; AIR,UNION TO UNION
L=1419 SERVICED BY L=1550 		1-47428-879-0 01 1 1001-1206 ●
144 PIPE; AIR,UNION TO UNION
L=1416 SERVICED BY L=1550 		1-47428-879-0 01 1 1207- ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 1001- ● ●
192 TUBE; NYLON
(B) SERVICED BY L=12000 OD=8 		1-87411-010-0 AR 1 1001- ● ●
192 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1001- ● ●
192 TUBE; NYLON
(B) SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 1001- ● ●
192 TUBE; NYLON
(B) SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 1001- ● ●
223 TUBE; CORRUGATE
(A) SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 1001- ● ●
223 TUBE; CORRUGATE
(B) SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 1001- ● ●
223 TUBE; CORRUGATE
(B) SERVICED BY L=6000 ID=15 		1-87411-037-0 AR 1 1001- ● ●
318 PIPE; AIR,UNION TO AIR TANK
WHEEL BASE 3700MM(37W) L=593 SERVICED BY L=600 		1-47428-868-0 01 1 1001- ●
318 PIPE; AIR,UNION TO AIR TANK
WHEEL BASE 5100MM(51W) L=1458 SERVICED BY L=1550 		1-47428-879-0 01 1 1001- ●
318 PIPE; AIR,UNION TO AIR TANK
L=1856 SERVICED BY L=1783 		1-47428-881-0 01 1 1001- ●

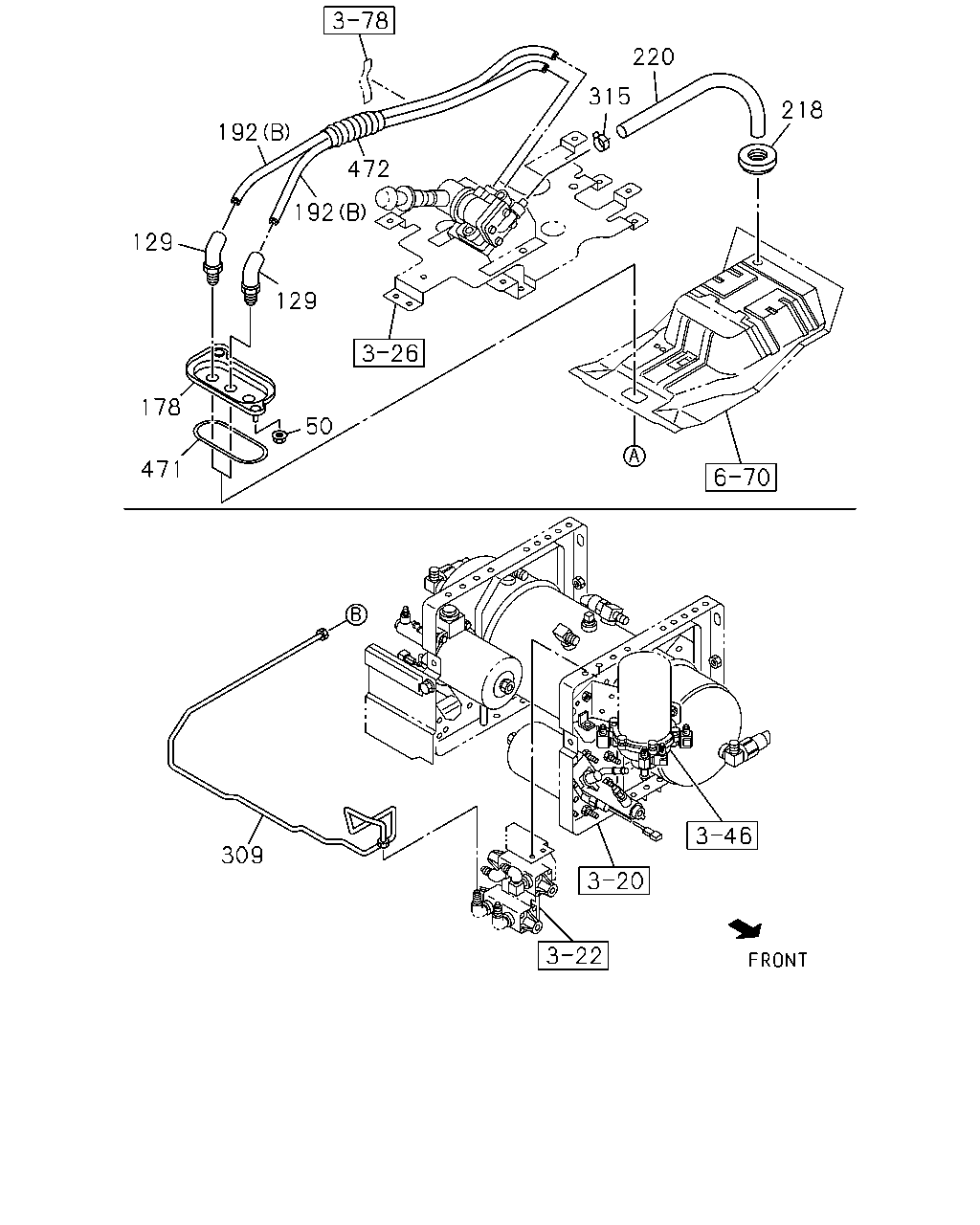

çizim 162730
192 129 178 471 50 129 192 472 315 220 218 309
BalonParca AdiParca NoAdetTipApplied Date A B
50 NUT; UNION BRKT
M8 FLANGE SOU 		0-91180-108-0 02 1 1001- ● ●
129 CONNECTOR; NYLON TUBE
DIN13 & M18 ELBOW 		8-97611-963-1 02 1 1001- ● ●
178 BRACKET; UNION 8-98017-054-1 01 1 1001- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 1001- ● ●
192 TUBE; NYLON
(B) SERVICED BY L=12000 OD=8 		1-87411-010-0 AR 1 1001- ● ●
192 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1001- ● ●
192 TUBE; NYLON
(B) SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 1001- ● ●
192 TUBE; NYLON
(B) SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 1001- ● ●
218 GROMMET; VINYL HOSE
OD=24 SOU 		9-61166-007-0 01 1 1001- ● ●
220 HOSE; VINYL,EXH,PARKING BRK VLV
L=260 ID=9.5 SERVICED BY L=10000 SOU 		9-09914-701-0 01 1 1001- ● ●
309 PIPE; AIR,MPV TO UNION
L=1428 SERVICED BY L=1550 		1-47428-879-0 01 1 1001- ●
309 PIPE; AIR,MPV TO UNION
L=1743 SERVICED BY L=1783 		1-47428-881-0 01 1 1001- ●
315 CLIP
ID=14 SOU 		8-94238-572-0 01 1 1001- ● ●
471 SEAL; BRKT
SOU 		1-79738-832-0 01 1 1001- ● ●
472 TUBE; SPUTTER 8-98067-708-0 01 1 1001- ● ●
