3-75 — BRAKE PIPING; AIR,FRONT (#55561) — 89 parça

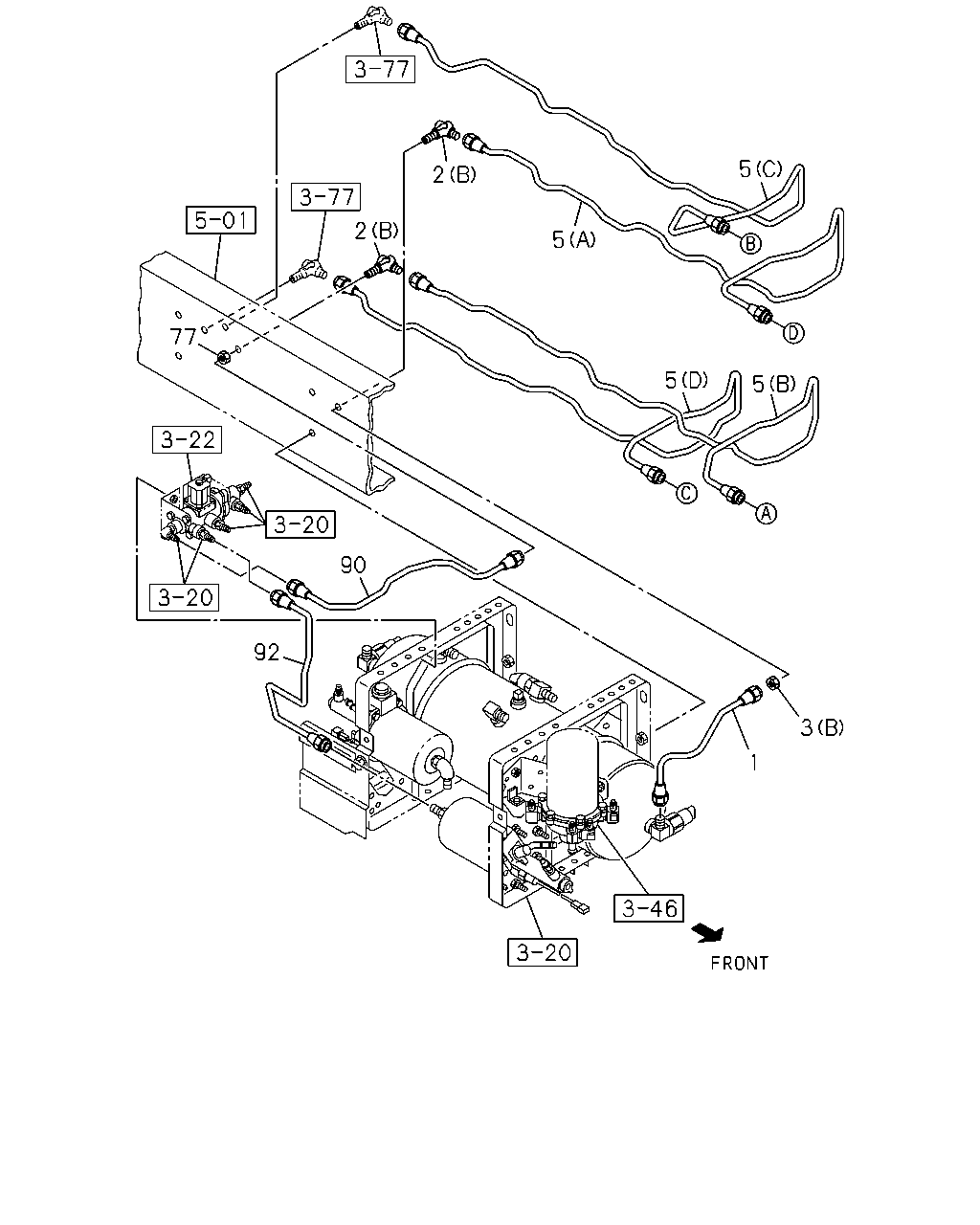

çizim 162480
5 2 2 5 77 5 5 90 92 3 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 PIPE; AIR,AIR TANK TO UNION
L=290 		8-98044-172-0 01 1 1001- ●
1 PIPE; AIR,AIR TANK TO UNION
L=347 		8-98101-769-0 01 1 1001- ●
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 02 1 1001- ● ●
2 UNION; AIR PIPE
(A) SOU 		8-98057-394-1 01 1 1001- ● ●
3 NUT; PIPE UNION
(B) M16 SOU 		0-91111-516-0 01 1 1001- ● ●
3 NUT; PIPE UNION
(A) M8 FLANGE SOU 		0-91180-108-0 01 1 1001- ● ●
5 PIPE; AIR,UNION TO UNION
4HK1-TCS ENG(RJS) (D) L=2894 SERVICED BY L=2900 		1-47428-885-0 01 1 1012-1012 ●
5 PIPE; AIR,UNION TO UNION
4HK1-TCS ENG(RJS) (D) L=2807 SERVICED BY L=2900 		1-47428-885-0 01 1 1012- ●
5 PIPE; AIR,UNION TO UNION
4HK1-TCS ENG(RJS) (A) L=2504 SERVICED BY L=2600 		1-47428-884-0 01 1 1012-1012 ●
5 PIPE; AIR,UNION TO UNION
4HK1-TCS ENG(RJS) (A) L=2506 SERVICED BY L=2600 		1-47428-884-0 01 1 1012- ●
5 PIPE; AIR,UNION TO UNION
4HK1-TCS ENG(RJS) (B) L=2965 SERVICED BY L=3300 		1-47428-886-0 01 1 1012-1012 ●
5 PIPE; AIR,UNION TO UNION
4HK1-TCS ENG(RJS) (B) L=2969 SERVICED BY L=3300 		1-47428-886-0 01 1 1012- ●
5 PIPE; AIR,UNION TO UNION
4HK1-TCS ENG(RJS) (C) L=2786 		8-98169-180-0 01 1 1012-1012 ●
5 PIPE; AIR,UNION TO UNION
4HK1-TCS ENG(RJS) (C) L=2915 SERVICED BY L=3300 		1-47428-886-0 01 1 1012- ●
5 PIPE; AIR,UNION TO UNION
6HK1-TCN ENG(82L) (A) L=2486 SERVICED BY L=2500 		1-47428-883-0 01 1 1001- ●
5 PIPE; AIR,UNION TO UNION
6HK1-TCN ENG(82L) (C) L=2788 SERVICED BY L=2900 		1-47428-885-0 01 1 1001- ●
5 PIPE; AIR,UNION TO UNION
6HK1-TCN ENG(82L) (B) L=2946 SERVICED BY L=3300 		1-47428-886-0 01 1 1001- ●
5 PIPE; AIR,UNION TO UNION
6HK1-TCN ENG(82L) (D) L=2910 SERVICED BY L=3300 		1-47428-886-0 01 1 1001- ●
5 PIPE; AIR,UNION TO UNION
(A) L=2157 SERVICED BY L=2500 		1-47428-883-0 01 1 1001-1203 ●
5 PIPE; AIR,UNION TO UNION
(A) L=2157 SERVICED BY L=2500 		1-47428-883-0 01 1 1204- ●
5 PIPE; AIR,UNION TO UNION
(B) L=2382 SERVICED BY L=2500 		1-47428-883-0 01 1 1001-1203 ●
5 PIPE; AIR,UNION TO UNION
(B) L=2375 SERVICED BY L=2500 		1-47428-883-0 01 1 1204- ●
5 PIPE; AIR,UNION TO UNION
(D) L=2509 SERVICED BY L=2600 		1-47428-884-0 01 1 1001-1203 ●
5 PIPE; AIR,UNION TO UNION
(D) L=2509 		8-98210-099-0 01 1 1204- ●
5 PIPE; AIR,UNION TO UNION
(C) L=2513 		8-98103-314-1 01 1 1001-1203 ●
5 PIPE; AIR,UNION TO UNION
(C) L=2515 		8-98210-102-0 01 1 1204- ●
77 NUT; PIPE UNION
M16 SOU 		0-91111-516-0 01 1 1001- ● ●
90 PIPE; AIR,UNION TO HSA VLV
H.S.A SYSTEM<6EP> L=493 		8-98077-878-0 01 1 1001- ●
90 PIPE; AIR,UNION TO HSA VLV
H.S.A SYSTEM<6EP> L=781 SERVICED BY L=800 		1-47428-872-0 01 1 1001- ●
92 PIPE; AIR,HSA VLV TO AIR MASTER
H.S.A SYSTEM<6EP> L=513 SERVICED BY L=550 		1-47428-867-0 01 1 1001- ●
92 PIPE; AIR,HSA VLV TO AIR MASTER
H.S.A SYSTEM<6EP> L=511 SERVICED BY L=550 		1-47428-867-0 01 1 1001- ●

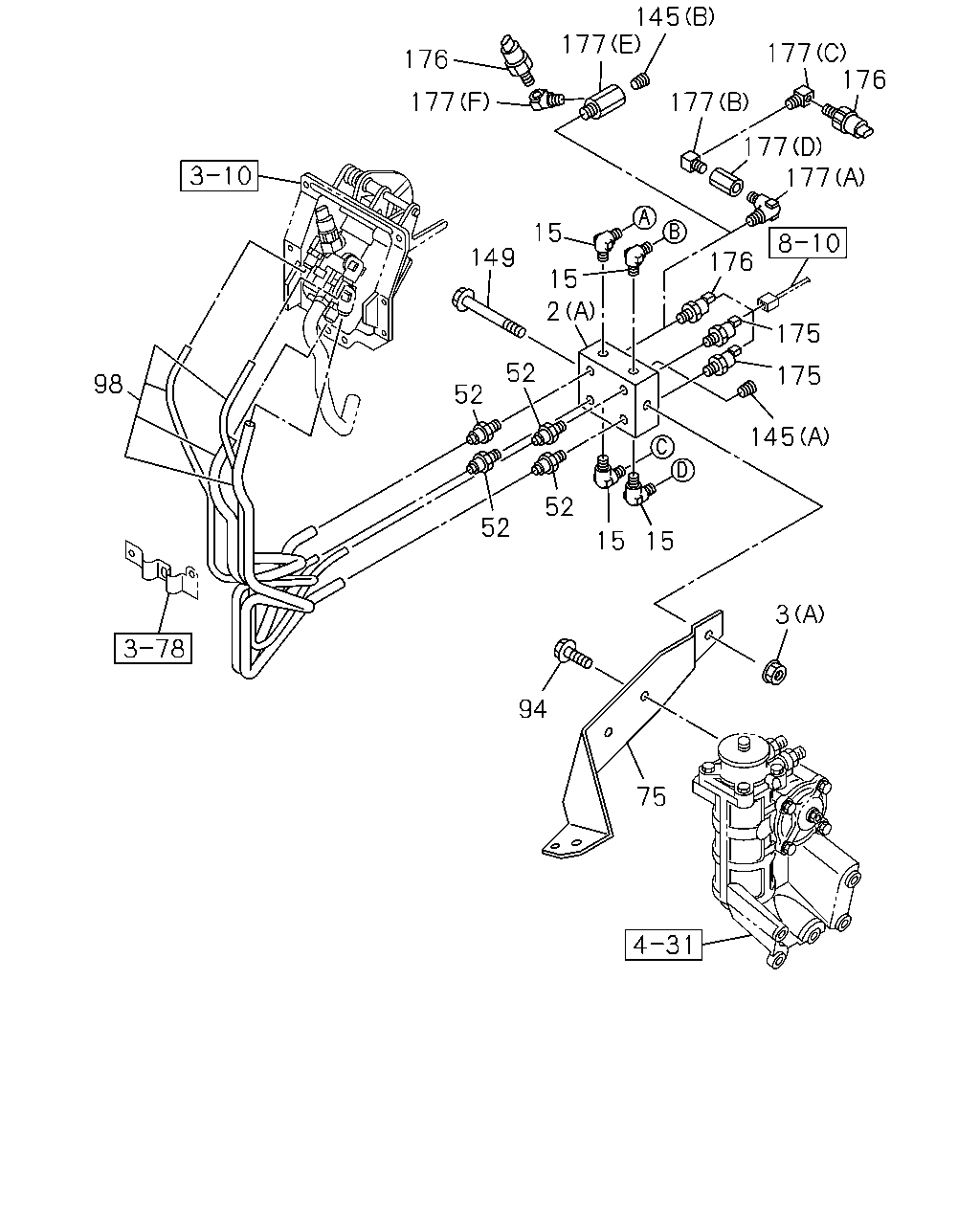

çizim 162506
145 177 177 176 176 177 177 177 177 15 149 176 15 2 175 52 175 98 52 145 52 52 15 15 3 94 75
BalonParca AdiParca NoAdetTipApplied Date A B
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 02 1 1001- ● ●
2 UNION; AIR PIPE
(A) SOU 		8-98057-394-1 01 1 1001- ● ●
3 NUT; PIPE UNION
(B) M16 SOU 		0-91111-516-0 01 1 1001- ● ●
3 NUT; PIPE UNION
(A) M8 FLANGE SOU 		0-91180-108-0 01 1 1001- ● ●
15 CONNECTOR; AIR PIPE
M16 & PT1/4 ELBOW SOU 		0-92134-310-0 04 1 1001- ● ●
52 CONNECTOR; NYLON TUBE
DIN12 & R1/4 STRAIGHT 		1-09660-967-0 04 1 1001- ● ●
75 BRACKET; UNION 8-98066-785-0 01 1 1001- ● ●
94 BOLT; BRKT
M10X20 FLANGE 		0-28151-020-0 02 1 1001- ● ●
98 TUBE; NYLON
4HK1-TCS ENG(RJS) 		8-98079-175-0 01 1 1012- ●
98 TUBE; NYLON 8-98079-179-0 01 1 1001-1011 ● ●
98 TUBE; NYLON
6HK1-TCN ENG(82L) 		8-98079-179-0 01 1 1012- ●
98 TUBE; NYLON 8-98079-179-0 01 1 1012- ●
145 PLUG
H.S.A SYSTEM<6EP> (B) PT1/2 		9-09204-521-0 01 1 1008- ● ●
145 PLUG
(A) PT1/4 		9-99204-513-0 01 1 1001-1105 ● ●
145 PLUG
(A) PT1/4 		9-99204-513-0 01 1 1106-1109 ●
145 PLUG
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) PT1/4 		9-99204-513-0 01 1 1106-1109 ●
145 PLUG
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) PT1/4 		9-99204-513-0 01 1 1110- ● ●
149 BOLT; UNION
M8X100 FLANGE 		0-28050-800-0 01 1 1001- ● ●
175 SENSOR; AIR PRESS
THREAD R1/4 		1-80220-023-1 02 1 1001- ● ●
176 SWITCH; AIR PRESS
TRANSMISSION CONTROL-SMOOTHER(8GF) STAMP 2.2 		8-98010-858-0 01 1 1106-1109 ●
176 SWITCH; AIR PRESS
TRANSMISSION CONTROL-SMOOTHER(8GF) STAMP 2.2 		8-98010-858-0 01 1 1110- ● ●
176 SWITCH; AIR PRESS
H.S.A SYSTEM<6EP> STAMP 0.7 		8-97622-710-0 01 1 1001- ● ●
176 SWITCH; AIR PRESS
EXC. H.S.A SYSTEM<6EP> STAMP 0.3 		8-98010-857-0 01 1 1001- ● ●
177 CONNECTOR
H.S.A SYSTEM<6EP> (A) 		1-09650-433-0 01 1 1001-1007 ● ●
177 CONNECTOR
H.S.A SYSTEM<6EP> (E) 		8-98134-010-0 01 1 1008- ● ●
177 CONNECTOR
H.S.A SYSTEM<6EP> (B) PT3/8 ELBOW SOU 		1-09660-696-0 01 1 1001-1007 ● ●
177 CONNECTOR
H.S.A SYSTEM<6EP> (F) PT1/4 & PT1/4 2WAY SOU 		1-09660-693-0 01 1 1008- ● ●
177 CONNECTOR
H.S.A SYSTEM<6EP> (C) PT1/4 & PT3/8 2WAY SOU 		1-09660-809-0 01 1 1001-1007 ● ●
177 CONNECTOR
H.S.A SYSTEM<6EP> (D) 		1-09660-881-0 01 1 1001-1007 ● ●

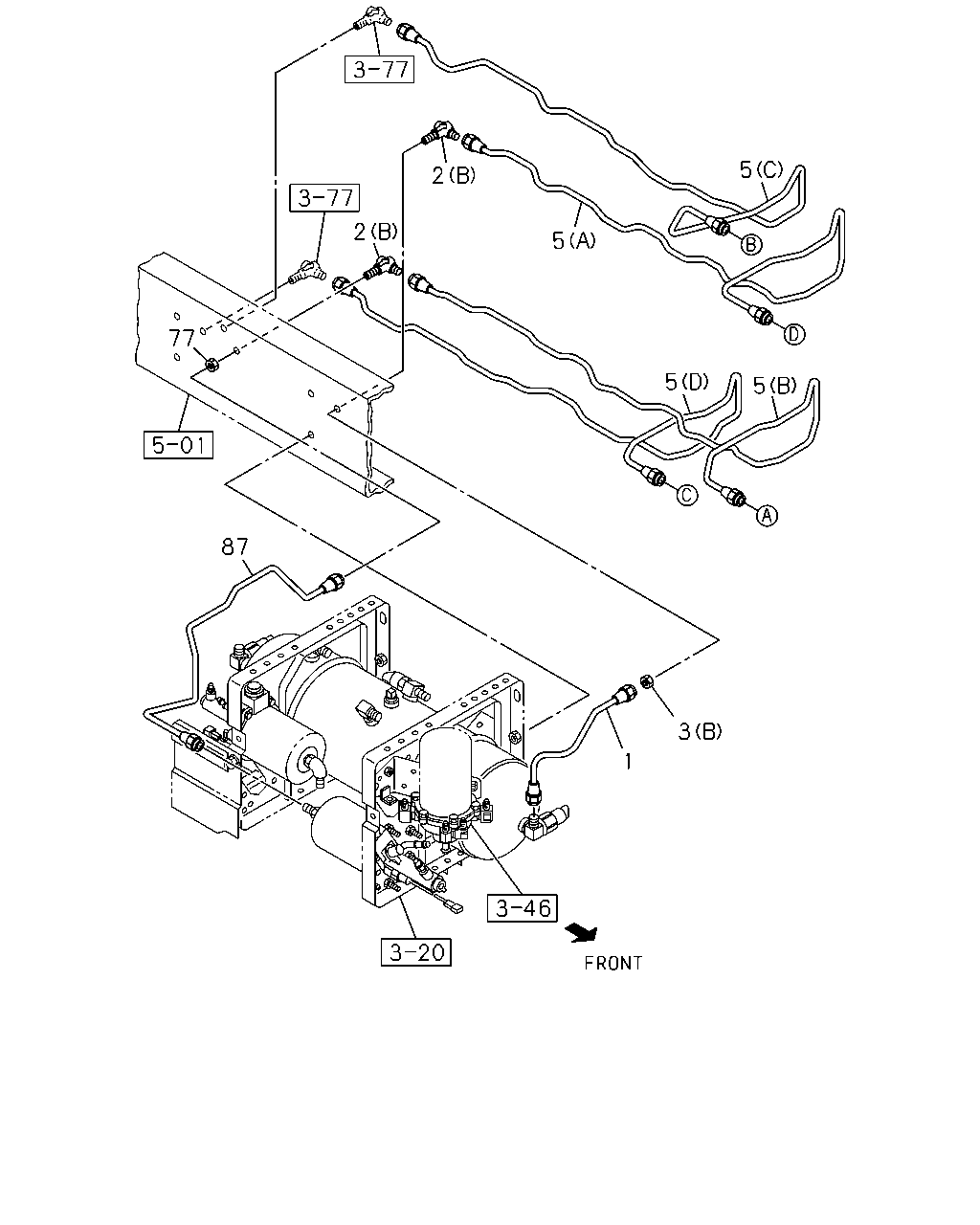

çizim 162546
5 2 2 5 77 5 5 87 3 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 PIPE; AIR,AIR TANK TO UNION
L=290 		8-98044-172-0 01 1 1001- ●
1 PIPE; AIR,AIR TANK TO UNION
L=347 		8-98101-769-0 01 1 1001- ●
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 02 1 1001- ● ●
2 UNION; AIR PIPE
(A) SOU 		8-98057-394-1 01 1 1001- ● ●
3 NUT; PIPE UNION
(B) M16 SOU 		0-91111-516-0 01 1 1001- ● ●
3 NUT; PIPE UNION
(A) M8 FLANGE SOU 		0-91180-108-0 01 1 1001- ● ●
5 PIPE; AIR,UNION TO UNION
4HK1-TCS ENG(RJS) (D) L=2894 SERVICED BY L=2900 		1-47428-885-0 01 1 1012-1012 ●
5 PIPE; AIR,UNION TO UNION
4HK1-TCS ENG(RJS) (D) L=2807 SERVICED BY L=2900 		1-47428-885-0 01 1 1012- ●
5 PIPE; AIR,UNION TO UNION
4HK1-TCS ENG(RJS) (A) L=2504 SERVICED BY L=2600 		1-47428-884-0 01 1 1012-1012 ●
5 PIPE; AIR,UNION TO UNION
4HK1-TCS ENG(RJS) (A) L=2506 SERVICED BY L=2600 		1-47428-884-0 01 1 1012- ●
5 PIPE; AIR,UNION TO UNION
4HK1-TCS ENG(RJS) (B) L=2965 SERVICED BY L=3300 		1-47428-886-0 01 1 1012-1012 ●
5 PIPE; AIR,UNION TO UNION
4HK1-TCS ENG(RJS) (B) L=2969 SERVICED BY L=3300 		1-47428-886-0 01 1 1012- ●
5 PIPE; AIR,UNION TO UNION
4HK1-TCS ENG(RJS) (C) L=2786 		8-98169-180-0 01 1 1012-1012 ●
5 PIPE; AIR,UNION TO UNION
4HK1-TCS ENG(RJS) (C) L=2915 SERVICED BY L=3300 		1-47428-886-0 01 1 1012- ●
5 PIPE; AIR,UNION TO UNION
6HK1-TCN ENG(82L) (A) L=2486 SERVICED BY L=2500 		1-47428-883-0 01 1 1001- ●
5 PIPE; AIR,UNION TO UNION
6HK1-TCN ENG(82L) (C) L=2788 SERVICED BY L=2900 		1-47428-885-0 01 1 1001- ●
5 PIPE; AIR,UNION TO UNION
6HK1-TCN ENG(82L) (B) L=2946 SERVICED BY L=3300 		1-47428-886-0 01 1 1001- ●
5 PIPE; AIR,UNION TO UNION
6HK1-TCN ENG(82L) (D) L=2910 SERVICED BY L=3300 		1-47428-886-0 01 1 1001- ●
5 PIPE; AIR,UNION TO UNION
(A) L=2157 SERVICED BY L=2500 		1-47428-883-0 01 1 1001-1203 ●
5 PIPE; AIR,UNION TO UNION
(A) L=2157 SERVICED BY L=2500 		1-47428-883-0 01 1 1204- ●
5 PIPE; AIR,UNION TO UNION
(B) L=2382 SERVICED BY L=2500 		1-47428-883-0 01 1 1001-1203 ●
5 PIPE; AIR,UNION TO UNION
(B) L=2375 SERVICED BY L=2500 		1-47428-883-0 01 1 1204- ●
5 PIPE; AIR,UNION TO UNION
(D) L=2509 SERVICED BY L=2600 		1-47428-884-0 01 1 1001-1203 ●
5 PIPE; AIR,UNION TO UNION
(D) L=2509 		8-98210-099-0 01 1 1204- ●
5 PIPE; AIR,UNION TO UNION
(C) L=2513 		8-98103-314-1 01 1 1001-1203 ●
5 PIPE; AIR,UNION TO UNION
(C) L=2515 		8-98210-102-0 01 1 1204- ●
77 NUT; PIPE UNION
M16 SOU 		0-91111-516-0 01 1 1001- ● ●
87 PIPE; AIR,UNION TO AIR MASTER
EXC. H.S.A SYSTEM<6EP> L=798 SERVICED BY L=800 		1-47428-872-0 01 1 1001- ●
87 PIPE; AIR,UNION TO AIR MASTER
EXC. H.S.A SYSTEM<6EP> L=1115 SERVICED BY L=1250 		1-47428-791-0 01 1 1001- ●
