◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11161 - FSR(SOUTH AFRICA) ▶ 3 - Brakes, Brake System ▶ 3-70 - BRAKE PIPING; AIR,AIR MASTER ▶
3-70 — BRAKE PIPING; AIR,AIR MASTER (#55560) — 369 parça

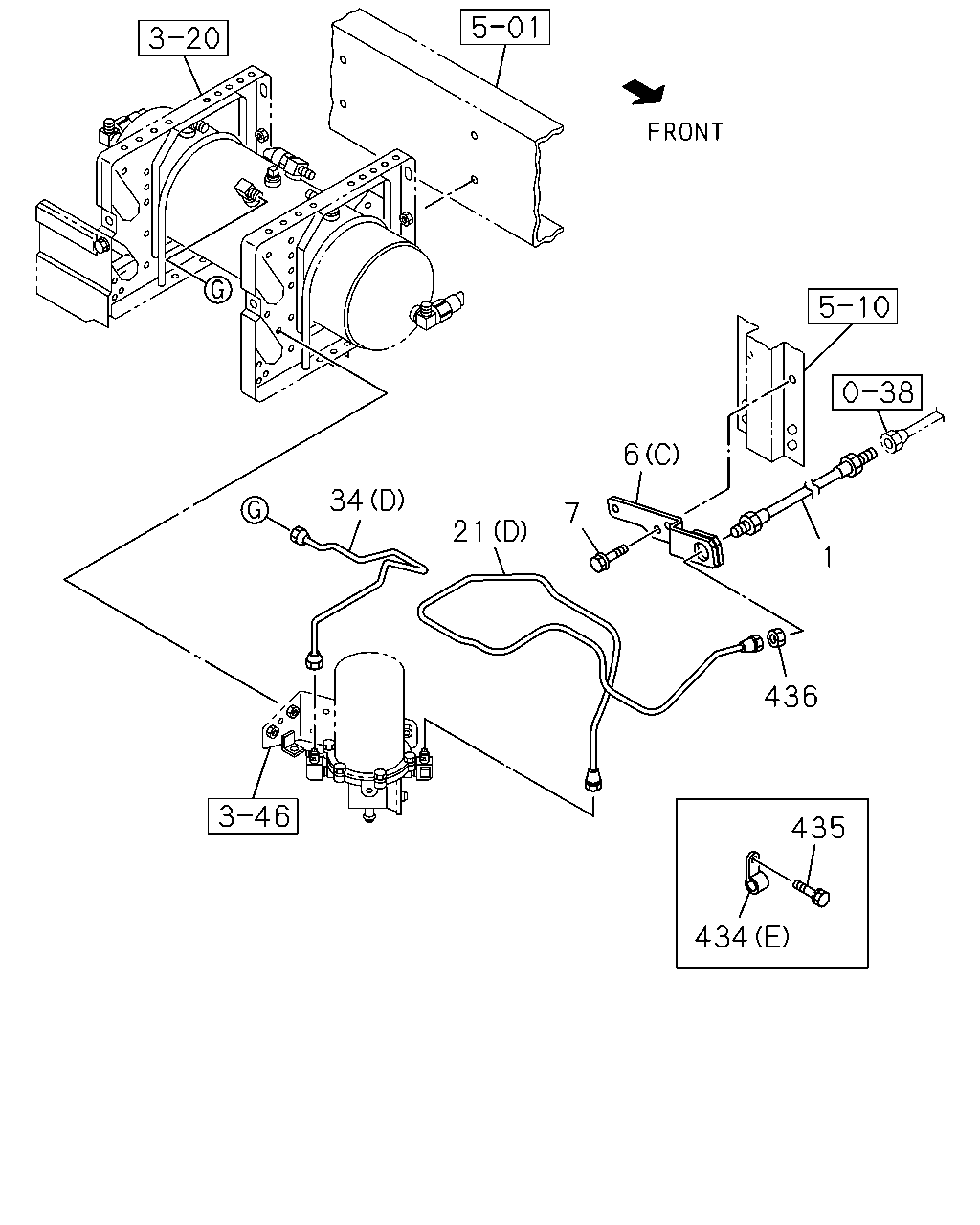

çizim 162501
6 34 7 21 1 436 435 434
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,AIR TANK
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> 		1-09363-958-0 01 1 1108- ●
1 HOSE; FLEX,AIR TANK
4HK1-TCS ENG(RJS) 		1-09363-913-0 01 1 1012- ●
1 HOSE; FLEX,AIR TANK
6HK1-TCN ENG(82L) L=310 		8-97607-730-0 01 1 1001-1107 ●
1 HOSE; FLEX,AIR TANK
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> L=310 		8-97607-730-0 01 1 1108- ●
1 HOSE; FLEX,AIR TANK
6HK1-TCN ENG(82L) 		8-98079-973-0 01 1 1001- ●
6 BRACKET; FLEX HOSE,AIR TANK
4HK1-TCS ENG(RJS) (C) 		8-98119-929-0 01 1 1012- ●
6 BRACKET; FLEX HOSE,AIR TANK
6HK1-TCN ENG(82L) (A) 		8-98133-392-0 01 1 1001-1107 ●
6 BRACKET; FLEX HOSE,AIR TANK
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (A) 		8-98133-392-0 01 1 1108- ●
6 BRACKET; FLEX HOSE,AIR TANK
6HK1-TCN ENG(82L) (B) 		8-98079-987-1 01 1 1001-1107 ●
6 BRACKET; FLEX HOSE,AIR TANK
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) 		8-98079-987-1 01 1 1108- ●
6 BRACKET; FLEX HOSE,AIR TANK
6HK1-TCN ENG(82L) (B) 		8-98079-987-1 01 1 1108- ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
4HK1-TCS ENG(RJS) M8X25 FLANGE SOU 		0-28650-825-0 02 1 1012- ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28650-830-0 02 1 1001-1011 ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
6HK1-TCN ENG(82L) M8X30 FLANGE 		0-28650-830-0 02 1 1012- ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28650-830-0 02 1 1012- ●
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (E) L=1816 		8-98083-100-0 01 1 1108- ●
21 PIPE; AIR,UNION TO AIR DRYER
4HK1-TCS ENG(RJS) (D) L=1965 		8-98162-112-0 01 1 1012-1201 ●
21 PIPE; AIR,UNION TO AIR DRYER
4HK1-TCS ENG(RJS) (D) L=2032 		8-98187-598-0 01 1 1202- ●
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCN ENG(82L) AIR DRYER<PS7> (B) L=503 		8-98133-371-0 01 1 1001-1107 ●
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B) L=503 		8-98133-371-0 01 1 1108- ●
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCN ENG(82L) EXC. AIR DRYER<PS7> (A) L=496 		8-98133-372-0 01 1 1001-1107 ●
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (A) L=496 		8-98133-372-0 01 1 1108- ●
21 PIPE; AIR,UNION TO AIR DRYER
(C) L=1701 		8-98101-764-0 01 1 1001- ●
34 PIPE; AIR
4HK1-TCS ENG(RJS) (D) L=673 SERVICED BY L=700 		1-49115-481-0 01 1 1012-1107 ●
34 PIPE; AIR
4HK1-TCS ENG(RJS) (D) L=673 SERVICED BY L=700 		1-49115-481-0 01 1 1108- ●
34 PIPE; AIR
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (D) L=673 SERVICED BY L=700 		1-49115-481-0 01 1 1108- ●
34 PIPE; AIR
6HK1-TCN ENG(82L) AIR DRYER<PS7> (B) L=669 SERVICED BY L=700 		1-49115-481-0 01 1 1001-1107 ●
34 PIPE; AIR
6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B) L=669 SERVICED BY L=700 		1-49115-481-0 01 1 1108- ●
34 PIPE; AIR
6HK1-TCN ENG(82L) EXC. AIR DRYER<PS7> (A) L=457 		8-98133-390-0 01 1 1001-1107 ●
34 PIPE; AIR
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (A) L=457 		8-98133-390-0 01 1 1108- ●
34 PIPE; AIR
(C) L=1135 SERVICED BY L=1200 		1-49115-487-0 01 1 1001- ●
434 CLIP
(A) L=350 		1-09707-183-0 12 1 1110- ●
434 CLIP
4HK1-TCS ENG(RJS) (E) ID=16 L=20 		0-95235-536-0 02 1 1012- ●
434 CLIP
4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) (A) L=350 		1-09707-183-0 05 1 1012- ●
434 CLIP
4HK1-TCS ENG(RJS) WHEEL BASE 5100MM(51W) (A) L=350 		1-09707-183-0 04 1 1012- ●
434 CLIP
6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) (A) L=350 		1-09707-183-0 04 1 1012- ●
434 CLIP
6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) (A) L=350 		1-09707-183-0 04 1 1001-1011 ●
434 CLIP
4HK1-TCS ENG(RJS) (A) L=350 		1-09707-183-0 09 1 1012- ●
434 CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (C) ID=7 L=20 		0-95234-635-0 01 1 1001- ●
434 CLIP
(C) ID=7 L=20 		0-95234-635-0 01 1 1001- ●
434 CLIP
6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) (A) L=350 		1-09707-183-0 03 1 1001-1008 ●
434 CLIP
6HK1-TCN ENG(82L) (A) L=350 		1-09707-183-0 03 1 1001-1008 ●
434 CLIP
WHEEL BASE 5100MM(51W) (A) L=350 		1-09707-183-0 03 1 1009-1011 ●
434 CLIP
(A) L=350 		1-09707-183-0 03 1 1009-1011 ●
434 CLIP
6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) (A) L=350 		1-09707-183-0 03 1 1012- ●
434 CLIP
(A) L=350 		1-09707-183-0 03 1 1012- ●
434 CLIP
(A) L=350 		1-09707-183-0 01 1 1001-1008 ● ●
434 CLIP
(A) L=350 		1-09707-183-0 01 1 1009-1109 ● ●
434 CLIP
6HK1-TCN ENG(82L) (A) L=350 		1-09707-183-0 01 1 1009-1109 ●
434 CLIP
6HK1-TCN ENG(82L) (A) L=350 		1-09707-183-0 13 1 1110- ●
434 CLIP
6HK1-TCN ENG(82L) (A) L=350 		1-09707-183-0 12 1 1001-1109 ● ●
434 CLIP
(A) L=350 		1-09707-183-0 01 1 1110- ● ●
434 CLIP
6HK1-TCN ENG(82L) (B) ID=10 & 15 		1-09709-279-1 01 1 1001-1011 ● ●
434 CLIP
(B) ID=10 & 15 		1-09709-279-1 01 1 1012- ● ●
434 CLIP
6HK1-TCN ENG(82L) (D) ID=15 H=24 L=20 		1-09700-606-0 02 1 1001-1107 ●
434 CLIP
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (D) ID=15 H=24 L=20 		1-09700-606-0 02 1 1108- ●
434 CLIP
6HK1-TCN ENG(82L) (D) ID=15 H=24 L=20 		1-09700-606-0 02 1 1108- ●
435 BOLT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE 		0-28650-820-0 01 1 1001- ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1001- ●
435 BOLT; CLIP
6HK1-TCN ENG(82L) M8X25 FLANGE SOU 		0-28650-825-0 02 1 1001-1011 ●
435 BOLT; CLIP
4HK1-TCS ENG(RJS) M8X25 FLANGE SOU 		0-28650-825-0 02 1 1012-1107 ●
435 BOLT; CLIP
6HK1-TCN ENG(82L) M8X25 FLANGE SOU 		0-28650-825-0 02 1 1012-1107 ●
435 BOLT; CLIP
4HK1-TCS ENG(RJS) M8X25 FLANGE SOU 		0-28650-825-0 02 1 1108- ●
435 BOLT; CLIP
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> M8X25 FLANGE SOU 		0-28650-825-0 02 1 1108- ●
435 BOLT; CLIP
6HK1-TCN ENG(82L) M8X25 FLANGE SOU 		0-28650-825-0 02 1 1108- ●
436 NUT; CLIP
4HK1-TCS ENG(RJS) M22 		0-91111-522-0 01 1 1012- ●
436 NUT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE SOU 		0-91180-108-0 01 1 1001- ●
436 NUT; CLIP
M8 FLANGE SOU 		0-91180-108-0 01 1 1001- ●

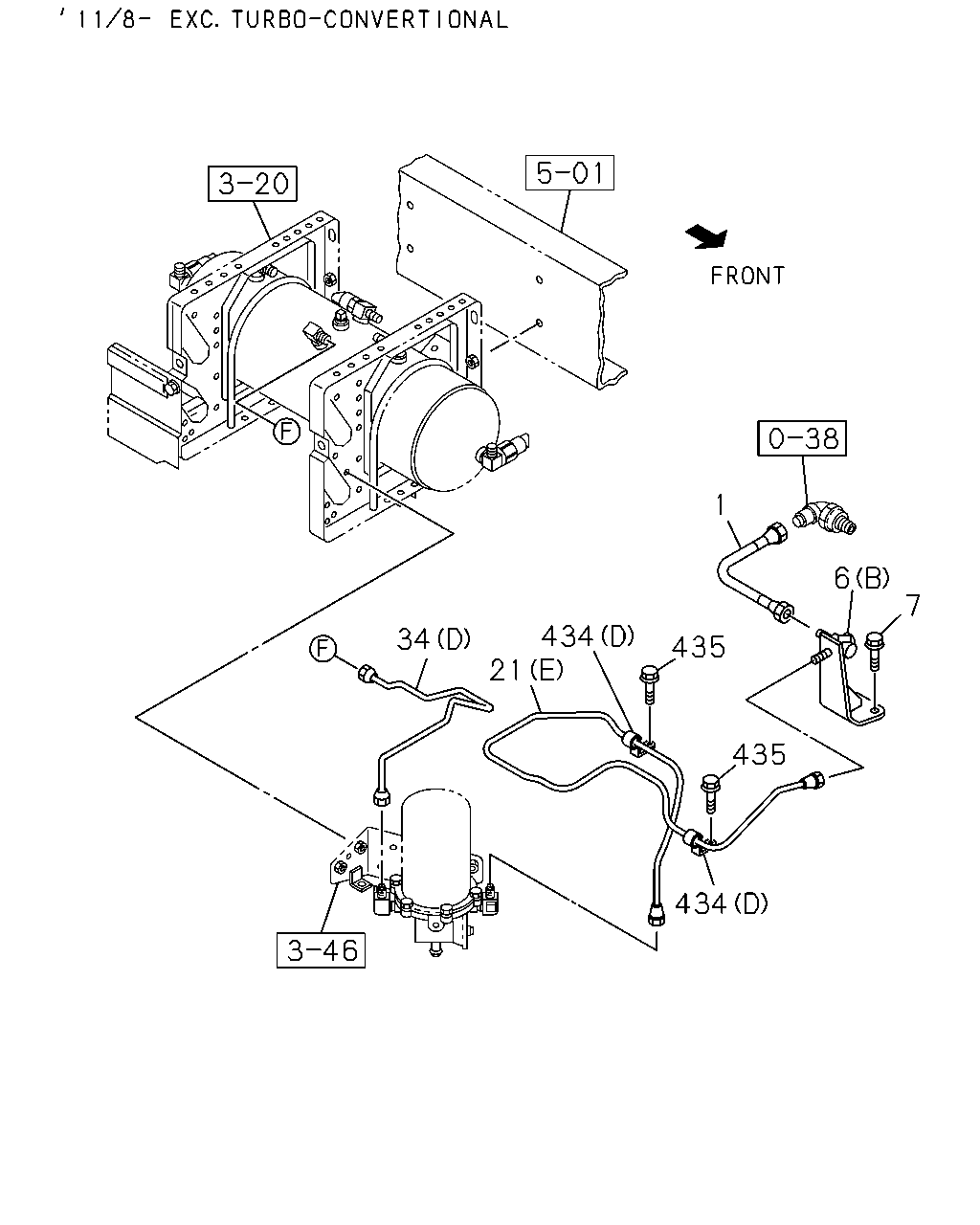

çizim 162735
1 6 7 434 21 34 435 435 434
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,AIR TANK
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> 		1-09363-958-0 01 1 1108- ●
1 HOSE; FLEX,AIR TANK
4HK1-TCS ENG(RJS) 		1-09363-913-0 01 1 1012- ●
1 HOSE; FLEX,AIR TANK
6HK1-TCN ENG(82L) L=310 		8-97607-730-0 01 1 1001-1107 ●
1 HOSE; FLEX,AIR TANK
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> L=310 		8-97607-730-0 01 1 1108- ●
1 HOSE; FLEX,AIR TANK
6HK1-TCN ENG(82L) 		8-98079-973-0 01 1 1001- ●
6 BRACKET; FLEX HOSE,AIR TANK
4HK1-TCS ENG(RJS) (C) 		8-98119-929-0 01 1 1012- ●
6 BRACKET; FLEX HOSE,AIR TANK
6HK1-TCN ENG(82L) (A) 		8-98133-392-0 01 1 1001-1107 ●
6 BRACKET; FLEX HOSE,AIR TANK
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (A) 		8-98133-392-0 01 1 1108- ●
6 BRACKET; FLEX HOSE,AIR TANK
6HK1-TCN ENG(82L) (B) 		8-98079-987-1 01 1 1001-1107 ●
6 BRACKET; FLEX HOSE,AIR TANK
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) 		8-98079-987-1 01 1 1108- ●
6 BRACKET; FLEX HOSE,AIR TANK
6HK1-TCN ENG(82L) (B) 		8-98079-987-1 01 1 1108- ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
4HK1-TCS ENG(RJS) M8X25 FLANGE SOU 		0-28650-825-0 02 1 1012- ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28650-830-0 02 1 1001-1011 ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
6HK1-TCN ENG(82L) M8X30 FLANGE 		0-28650-830-0 02 1 1012- ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28650-830-0 02 1 1012- ●
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (E) L=1816 		8-98083-100-0 01 1 1108- ●
21 PIPE; AIR,UNION TO AIR DRYER
4HK1-TCS ENG(RJS) (D) L=1965 		8-98162-112-0 01 1 1012-1201 ●
21 PIPE; AIR,UNION TO AIR DRYER
4HK1-TCS ENG(RJS) (D) L=2032 		8-98187-598-0 01 1 1202- ●
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCN ENG(82L) AIR DRYER<PS7> (B) L=503 		8-98133-371-0 01 1 1001-1107 ●
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B) L=503 		8-98133-371-0 01 1 1108- ●
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCN ENG(82L) EXC. AIR DRYER<PS7> (A) L=496 		8-98133-372-0 01 1 1001-1107 ●
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (A) L=496 		8-98133-372-0 01 1 1108- ●
21 PIPE; AIR,UNION TO AIR DRYER
(C) L=1701 		8-98101-764-0 01 1 1001- ●
34 PIPE; AIR
4HK1-TCS ENG(RJS) (D) L=673 SERVICED BY L=700 		1-49115-481-0 01 1 1012-1107 ●
34 PIPE; AIR
4HK1-TCS ENG(RJS) (D) L=673 SERVICED BY L=700 		1-49115-481-0 01 1 1108- ●
34 PIPE; AIR
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (D) L=673 SERVICED BY L=700 		1-49115-481-0 01 1 1108- ●
34 PIPE; AIR
6HK1-TCN ENG(82L) AIR DRYER<PS7> (B) L=669 SERVICED BY L=700 		1-49115-481-0 01 1 1001-1107 ●
34 PIPE; AIR
6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B) L=669 SERVICED BY L=700 		1-49115-481-0 01 1 1108- ●
34 PIPE; AIR
6HK1-TCN ENG(82L) EXC. AIR DRYER<PS7> (A) L=457 		8-98133-390-0 01 1 1001-1107 ●
34 PIPE; AIR
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (A) L=457 		8-98133-390-0 01 1 1108- ●
34 PIPE; AIR
(C) L=1135 SERVICED BY L=1200 		1-49115-487-0 01 1 1001- ●
434 CLIP
(A) L=350 		1-09707-183-0 12 1 1110- ●
434 CLIP
4HK1-TCS ENG(RJS) (E) ID=16 L=20 		0-95235-536-0 02 1 1012- ●
434 CLIP
4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) (A) L=350 		1-09707-183-0 05 1 1012- ●
434 CLIP
4HK1-TCS ENG(RJS) WHEEL BASE 5100MM(51W) (A) L=350 		1-09707-183-0 04 1 1012- ●
434 CLIP
6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) (A) L=350 		1-09707-183-0 04 1 1012- ●
434 CLIP
6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) (A) L=350 		1-09707-183-0 04 1 1001-1011 ●
434 CLIP
4HK1-TCS ENG(RJS) (A) L=350 		1-09707-183-0 09 1 1012- ●
434 CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (C) ID=7 L=20 		0-95234-635-0 01 1 1001- ●
434 CLIP
(C) ID=7 L=20 		0-95234-635-0 01 1 1001- ●
434 CLIP
6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) (A) L=350 		1-09707-183-0 03 1 1001-1008 ●
434 CLIP
6HK1-TCN ENG(82L) (A) L=350 		1-09707-183-0 03 1 1001-1008 ●
434 CLIP
WHEEL BASE 5100MM(51W) (A) L=350 		1-09707-183-0 03 1 1009-1011 ●
434 CLIP
(A) L=350 		1-09707-183-0 03 1 1009-1011 ●
434 CLIP
6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) (A) L=350 		1-09707-183-0 03 1 1012- ●
434 CLIP
(A) L=350 		1-09707-183-0 03 1 1012- ●
434 CLIP
(A) L=350 		1-09707-183-0 01 1 1001-1008 ● ●
434 CLIP
(A) L=350 		1-09707-183-0 01 1 1009-1109 ● ●
434 CLIP
6HK1-TCN ENG(82L) (A) L=350 		1-09707-183-0 01 1 1009-1109 ●
434 CLIP
6HK1-TCN ENG(82L) (A) L=350 		1-09707-183-0 13 1 1110- ●
434 CLIP
6HK1-TCN ENG(82L) (A) L=350 		1-09707-183-0 12 1 1001-1109 ● ●
434 CLIP
(A) L=350 		1-09707-183-0 01 1 1110- ● ●
434 CLIP
6HK1-TCN ENG(82L) (B) ID=10 & 15 		1-09709-279-1 01 1 1001-1011 ● ●
434 CLIP
(B) ID=10 & 15 		1-09709-279-1 01 1 1012- ● ●
434 CLIP
6HK1-TCN ENG(82L) (D) ID=15 H=24 L=20 		1-09700-606-0 02 1 1001-1107 ●
434 CLIP
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (D) ID=15 H=24 L=20 		1-09700-606-0 02 1 1108- ●
434 CLIP
6HK1-TCN ENG(82L) (D) ID=15 H=24 L=20 		1-09700-606-0 02 1 1108- ●
435 BOLT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE 		0-28650-820-0 01 1 1001- ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1001- ●
435 BOLT; CLIP
6HK1-TCN ENG(82L) M8X25 FLANGE SOU 		0-28650-825-0 02 1 1001-1011 ●
435 BOLT; CLIP
4HK1-TCS ENG(RJS) M8X25 FLANGE SOU 		0-28650-825-0 02 1 1012-1107 ●
435 BOLT; CLIP
6HK1-TCN ENG(82L) M8X25 FLANGE SOU 		0-28650-825-0 02 1 1012-1107 ●
435 BOLT; CLIP
4HK1-TCS ENG(RJS) M8X25 FLANGE SOU 		0-28650-825-0 02 1 1108- ●
435 BOLT; CLIP
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> M8X25 FLANGE SOU 		0-28650-825-0 02 1 1108- ●
435 BOLT; CLIP
6HK1-TCN ENG(82L) M8X25 FLANGE SOU 		0-28650-825-0 02 1 1108- ●

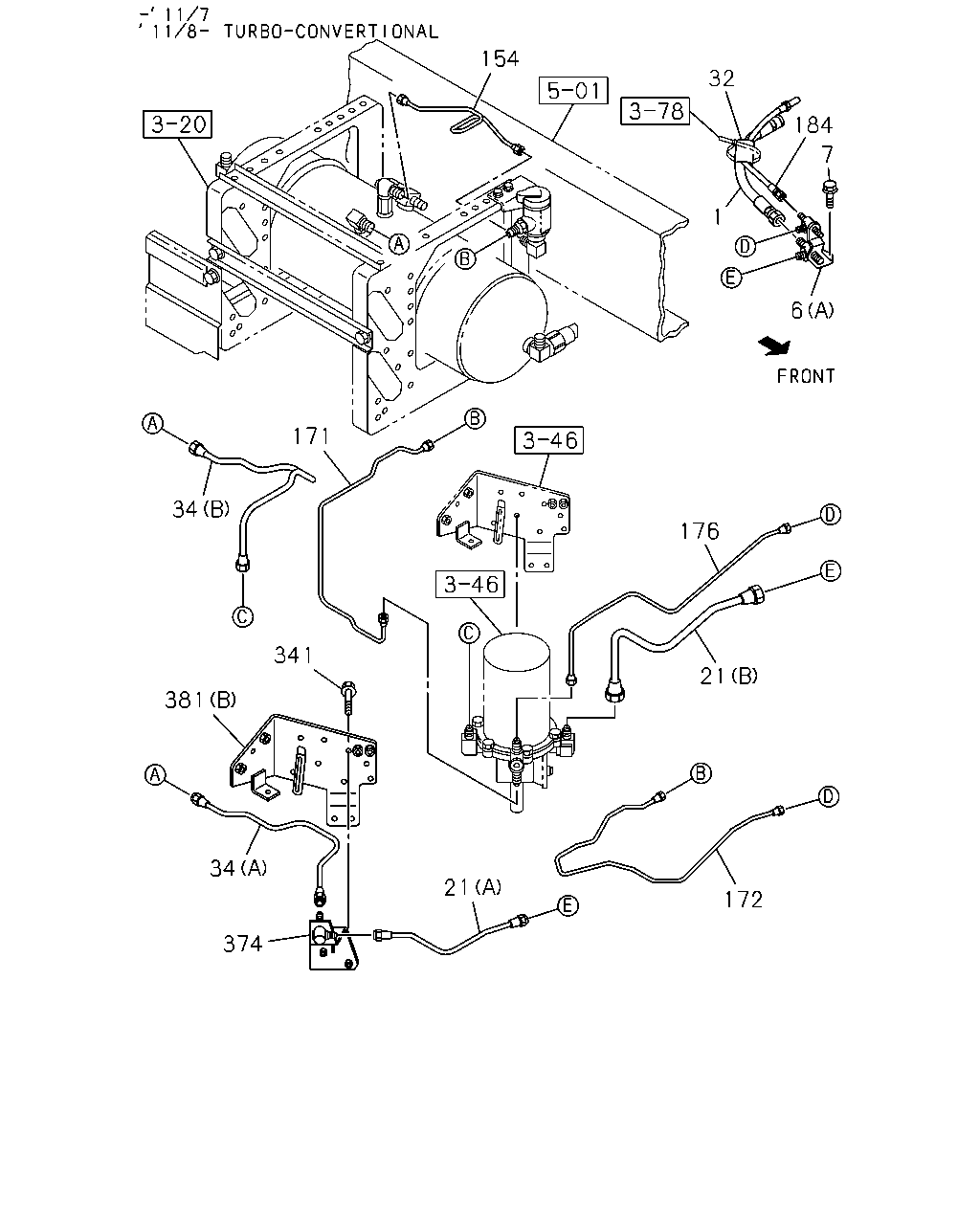

çizim 162740
154 32 184 7 1 6 171 34 176 341 21 381 34 21 172 374
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,AIR TANK
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> 		1-09363-958-0 01 1 1108- ●
1 HOSE; FLEX,AIR TANK
4HK1-TCS ENG(RJS) 		1-09363-913-0 01 1 1012- ●
1 HOSE; FLEX,AIR TANK
6HK1-TCN ENG(82L) L=310 		8-97607-730-0 01 1 1001-1107 ●
1 HOSE; FLEX,AIR TANK
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> L=310 		8-97607-730-0 01 1 1108- ●
1 HOSE; FLEX,AIR TANK
6HK1-TCN ENG(82L) 		8-98079-973-0 01 1 1001- ●
6 BRACKET; FLEX HOSE,AIR TANK
4HK1-TCS ENG(RJS) (C) 		8-98119-929-0 01 1 1012- ●
6 BRACKET; FLEX HOSE,AIR TANK
6HK1-TCN ENG(82L) (A) 		8-98133-392-0 01 1 1001-1107 ●
6 BRACKET; FLEX HOSE,AIR TANK
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (A) 		8-98133-392-0 01 1 1108- ●
6 BRACKET; FLEX HOSE,AIR TANK
6HK1-TCN ENG(82L) (B) 		8-98079-987-1 01 1 1001-1107 ●
6 BRACKET; FLEX HOSE,AIR TANK
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) 		8-98079-987-1 01 1 1108- ●
6 BRACKET; FLEX HOSE,AIR TANK
6HK1-TCN ENG(82L) (B) 		8-98079-987-1 01 1 1108- ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
4HK1-TCS ENG(RJS) M8X25 FLANGE SOU 		0-28650-825-0 02 1 1012- ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28650-830-0 02 1 1001-1011 ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
6HK1-TCN ENG(82L) M8X30 FLANGE 		0-28650-830-0 02 1 1012- ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28650-830-0 02 1 1012- ●
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (E) L=1816 		8-98083-100-0 01 1 1108- ●
21 PIPE; AIR,UNION TO AIR DRYER
4HK1-TCS ENG(RJS) (D) L=1965 		8-98162-112-0 01 1 1012-1201 ●
21 PIPE; AIR,UNION TO AIR DRYER
4HK1-TCS ENG(RJS) (D) L=2032 		8-98187-598-0 01 1 1202- ●
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCN ENG(82L) AIR DRYER<PS7> (B) L=503 		8-98133-371-0 01 1 1001-1107 ●
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B) L=503 		8-98133-371-0 01 1 1108- ●
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCN ENG(82L) EXC. AIR DRYER<PS7> (A) L=496 		8-98133-372-0 01 1 1001-1107 ●
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (A) L=496 		8-98133-372-0 01 1 1108- ●
21 PIPE; AIR,UNION TO AIR DRYER
(C) L=1701 		8-98101-764-0 01 1 1001- ●
32 SLEEVE; RUBBER,AIR PIPE
6HK1-TCN ENG(82L) ID=32 OD=36 L=50 		1-09337-023-0 01 1 1001-1107 ●
32 SLEEVE; RUBBER,AIR PIPE
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> ID=32 OD=36 L=50 		1-09337-023-0 01 1 1108- ●
34 PIPE; AIR
4HK1-TCS ENG(RJS) (D) L=673 SERVICED BY L=700 		1-49115-481-0 01 1 1012-1107 ●
34 PIPE; AIR
4HK1-TCS ENG(RJS) (D) L=673 SERVICED BY L=700 		1-49115-481-0 01 1 1108- ●
34 PIPE; AIR
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (D) L=673 SERVICED BY L=700 		1-49115-481-0 01 1 1108- ●
34 PIPE; AIR
6HK1-TCN ENG(82L) AIR DRYER<PS7> (B) L=669 SERVICED BY L=700 		1-49115-481-0 01 1 1001-1107 ●
34 PIPE; AIR
6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B) L=669 SERVICED BY L=700 		1-49115-481-0 01 1 1108- ●
34 PIPE; AIR
6HK1-TCN ENG(82L) EXC. AIR DRYER<PS7> (A) L=457 		8-98133-390-0 01 1 1001-1107 ●
34 PIPE; AIR
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (A) L=457 		8-98133-390-0 01 1 1108- ●
34 PIPE; AIR
(C) L=1135 SERVICED BY L=1200 		1-49115-487-0 01 1 1001- ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HK1-TCN ENG(82L) 		8-98133-361-0 01 1 1001-1008 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HK1-TCN ENG(82L) 		8-98167-336-0 01 1 1009-1107 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> 		8-98167-336-0 01 1 1108- ●
171 PIPE; AIR,GOV TO AIR DRYER
6HK1-TCN ENG(82L) AIR DRYER<PS7> L=811 SERVICED BY L=900 		1-47428-813-0 01 1 1001-1107 ●
171 PIPE; AIR,GOV TO AIR DRYER
6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> L=811 SERVICED BY L=900 		1-47428-813-0 01 1 1108- ●
172 PIPE; AIR,GOV TO UNION
6HK1-TCN ENG(82L) EXC. AIR DRYER<PS7> 		8-98133-363-0 01 1 1001-1107 ●
172 PIPE; AIR,GOV TO UNION
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> 		8-98133-363-0 01 1 1108- ●
176 PIPE; AIR,AIR DRYER TO UNION
6HK1-TCN ENG(82L) AIR DRYER<PS7> L=708 SERVICED BY L=800 		1-47428-812-0 01 1 1001-1107 ●
176 PIPE; AIR,AIR DRYER TO UNION
6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> L=708 SERVICED BY L=800 		1-47428-812-0 01 1 1108- ●
184 HOSE; FLEX,AIR GOV
6HK1-TCN ENG(82L) L=340 		1-09363-622-0 01 1 1001-1107 ●
184 HOSE; FLEX,AIR GOV
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> L=340 		1-09363-622-0 01 1 1108- ●
341 BOLT; BRKT
EXC. AIR DRYER<PS7> M8X20 FLANGE 		0-28650-820-0 02 1 1001-1005 ●
341 BOLT; BRKT
EXC. AIR DRYER<PS7> M8X20 FLANGE 		0-28650-820-0 02 1 1006-1011 ●
341 BOLT; BRKT
6HK1-TCN ENG(82L) EXC. AIR DRYER<PS7> M8X20 FLANGE 		0-28650-820-0 02 1 1012-1107 ●
341 BOLT; BRKT
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> M8X20 FLANGE 		0-28650-820-0 02 1 1108- ●
374 CONNECTOR
EXC. AIR DRYER<PS7> 		8-98135-407-0 01 1 1001-1005 ●
374 CONNECTOR
EXC. AIR DRYER<PS7> 		8-98135-407-0 01 1 1006-1011 ●
374 CONNECTOR
6HK1-TCN ENG(82L) EXC. AIR DRYER<PS7> 		8-98135-407-0 01 1 1012-1107 ●
374 CONNECTOR
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> 		8-98135-407-0 01 1 1108- ●
381 BRACKET
EXC. AIR DRYER<PS7> (B) SOU 		8-98044-548-4 01 1 1001-1005 ●
381 BRACKET
EXC. AIR DRYER<PS7> (B) SOU 		8-98044-548-4 01 1 1006-1011 ●
381 BRACKET
6HK1-TCN ENG(82L) EXC. AIR DRYER<PS7> (B) SOU 		8-98044-548-4 01 1 1012-1107 ●
381 BRACKET
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (B) SOU 		8-98044-548-4 01 1 1108- ●
381 BRACKET
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (A) SOU 		8-98119-700-0 01 1 1001- ●
381 BRACKET
EXC. PTO CONTROL<SV6> (C) SOU 		8-98155-158-0 01 1 1001- ●

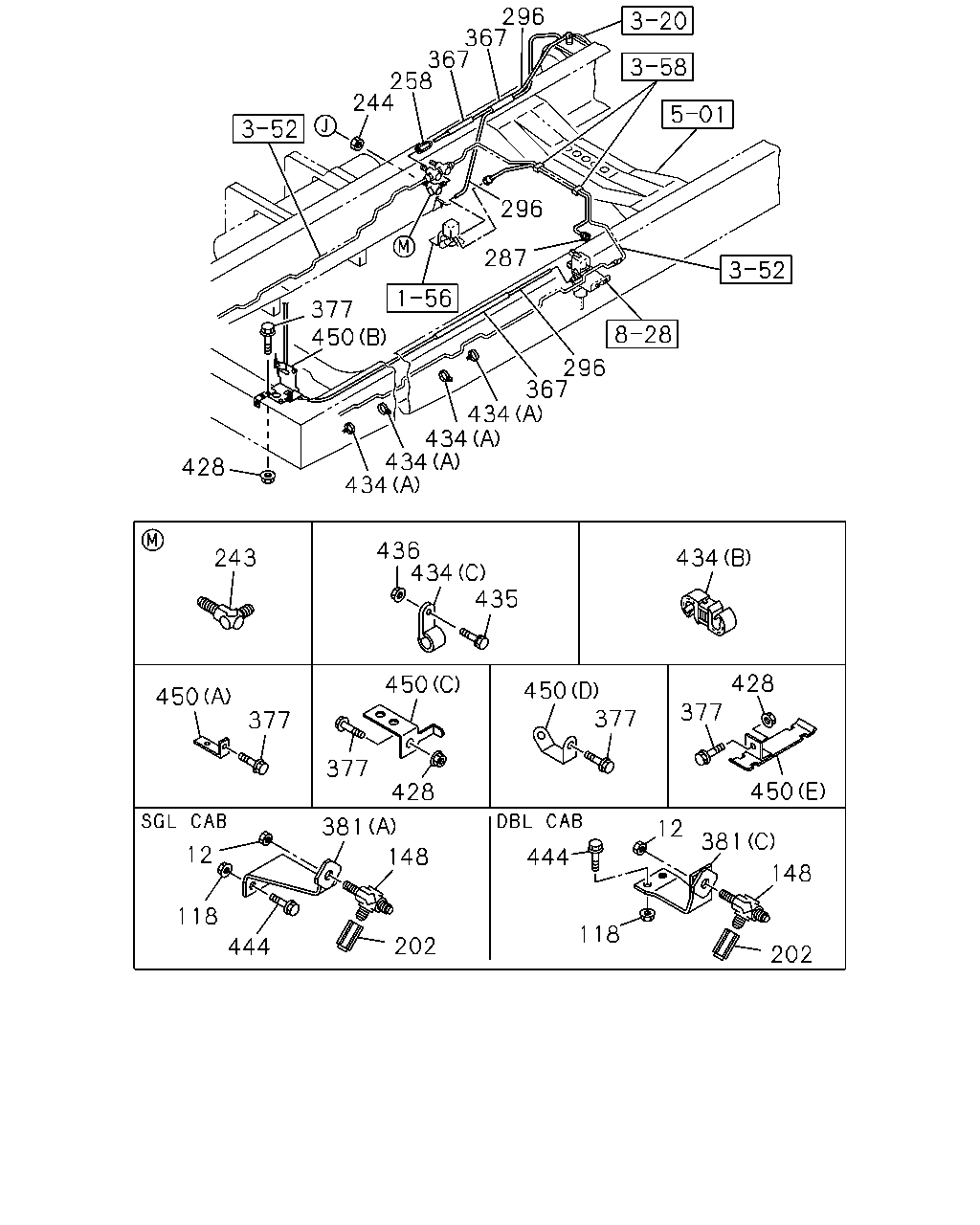

çizim 162822
296 367 367 258 244 296 287 377 450 296 367 434 434 434 434 428 436 434 435 243 434 428 377 450 450 377 450 377 377 450 428 381 12 381 12 148 444 148 118 118 202 444 202
BalonParca AdiParca NoAdetTipApplied Date A B
12 NUT; UNION
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> M12 		0-91111-512-0 01 1 1001- ●
12 NUT; UNION
EXC. PTO CONTROL<SV6> M12 		0-91111-512-0 01 1 1001- ●
118 NUT; UNION
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> M10 FLANGE SOU 		0-91180-210-0 02 1 1001- ●
118 NUT; UNION
EXC. PTO CONTROL<SV6> M8 FLANGE SOU 		0-91180-108-0 02 1 1001- ●
148 CONNECTOR; UNION
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> M12 2WAY SOU 		1-09654-059-2 01 1 1001- ●
148 CONNECTOR; UNION
EXC. PTO CONTROL<SV6> M12 2WAY SOU 		1-09654-059-2 01 1 1001- ●
202 ADAPTER
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1001- ●
202 ADAPTER
EXC. PTO CONTROL<SV6> DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1001- ●
243 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 01 1 1001- ● ●
244 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 1001- ● ●
258 CONNECTOR; NYLON TUBE
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1001- ● ●
287 PIPE; AIR,MAG VLV
4HK1-TCS ENG(RJS) PTO CONTROL<SV6> L=830 SERVICED BY L=900 		1-47428-813-0 01 1 1012- ●
287 PIPE; AIR,MAG VLV
4HK1-TCS ENG(RJS) EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> L=830 SERVICED BY L=900 		1-47428-813-0 01 1 1012- ●
287 PIPE; AIR,MAG VLV
6HK1-TCN ENG(82L) PTO CONTROL<SV6> L=908 SERVICED BY L=1000 		1-47428-814-0 01 1 1001-1011 ●
287 PIPE; AIR,MAG VLV
6HK1-TCN ENG(82L) EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> L=908 SERVICED BY L=1000 		1-47428-814-0 01 1 1001-1011 ●
287 PIPE; AIR,MAG VLV
6HK1-TCN ENG(82L) L=908 SERVICED BY L=1000 		1-47428-814-0 01 1 1001-1011 ●
287 PIPE; AIR,MAG VLV
6HK1-TCN ENG(82L) PTO CONTROL<SV6> L=908 SERVICED BY L=1000 		1-47428-814-0 01 1 1012- ●
287 PIPE; AIR,MAG VLV
6HK1-TCN ENG(82L) EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> L=908 SERVICED BY L=1000 		1-47428-814-0 01 1 1012- ●
287 PIPE; AIR,MAG VLV
L=908 SERVICED BY L=1000 		1-47428-814-0 01 1 1012- ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 1001- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1001- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=4000 ID=7 		1-87411-017-0 AR 1 1001- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 1001- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=15 		1-87411-025-0 AR 1 1001- ● ●
377 BOLT; BRKT FIX
4HK1-TCS ENG(RJS) M10X30 FLANGE SOU 		0-28651-030-0 04 1 1012- ●
377 BOLT; BRKT FIX
6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) M8X25 FLANGE SOU 		0-28650-825-0 01 1 1001-1008 ●
377 BOLT; BRKT FIX
WHEEL BASE 3700MM(37W) M8X25 FLANGE SOU 		0-28650-825-0 01 1 1009- ●
377 BOLT; BRKT FIX
6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) M10X30 FLANGE SOU 		0-28651-030-0 01 1 1001-1008 ●
377 BOLT; BRKT FIX
WHEEL BASE 3700MM(37W) M10X30 FLANGE SOU 		0-28651-030-0 01 1 1009- ●
377 BOLT; BRKT FIX
WHEEL BASE 5100MM(51W) M10X30 FLANGE SOU 		0-28651-030-0 02 1 1001- ●
377 BOLT; BRKT FIX
M10X30 FLANGE SOU 		0-28651-030-0 02 1 1001- ●
377 BOLT; BRKT FIX
M8X25 FLANGE SOU 		0-28650-825-0 03 1 1001- ● ●
377 BOLT; BRKT FIX
6HK1-TCN ENG(82L) M10X30 FLANGE SOU 		0-28651-030-0 03 1 1001-1011 ● ●
377 BOLT; BRKT FIX
6HK1-TCN ENG(82L) M10X30 FLANGE SOU 		0-28651-030-0 03 1 1012- ●
377 BOLT; BRKT FIX
4HK1-TCS ENG(RJS) MLD6W M/T(Y2C) M10X30 FLANGE SOU 		0-28651-030-0 03 1 1012- ●
377 BOLT; BRKT FIX
M10X30 FLANGE SOU 		0-28651-030-0 03 1 1012- ●
381 BRACKET
EXC. AIR DRYER<PS7> (B) SOU 		8-98044-548-4 01 1 1001-1005 ●
381 BRACKET
EXC. AIR DRYER<PS7> (B) SOU 		8-98044-548-4 01 1 1006-1011 ●
381 BRACKET
6HK1-TCN ENG(82L) EXC. AIR DRYER<PS7> (B) SOU 		8-98044-548-4 01 1 1012-1107 ●
381 BRACKET
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (B) SOU 		8-98044-548-4 01 1 1108- ●
381 BRACKET
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (A) SOU 		8-98119-700-0 01 1 1001- ●
381 BRACKET
EXC. PTO CONTROL<SV6> (C) SOU 		8-98155-158-0 01 1 1001- ●
428 NUT; BRKT
6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) M10 FLANGE SOU 		0-91180-210-0 01 1 1001-1008 ●
428 NUT; BRKT
WHEEL BASE 3700MM(37W) M10 FLANGE SOU 		0-91180-210-0 01 1 1009- ●
428 NUT; BRKT
WHEEL BASE 5100MM(51W) M10 FLANGE SOU 		0-91180-210-0 02 1 1001- ●
428 NUT; BRKT
M10 FLANGE SOU 		0-91180-210-0 02 1 1001- ●
428 NUT; BRKT
M8 FLANGE SOU 		0-91180-108-0 01 1 1001- ● ●
434 CLIP
(A) L=350 		1-09707-183-0 12 1 1110- ●
434 CLIP
4HK1-TCS ENG(RJS) (E) ID=16 L=20 		0-95235-536-0 02 1 1012- ●
434 CLIP
4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) (A) L=350 		1-09707-183-0 05 1 1012- ●
434 CLIP
4HK1-TCS ENG(RJS) WHEEL BASE 5100MM(51W) (A) L=350 		1-09707-183-0 04 1 1012- ●
434 CLIP
6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) (A) L=350 		1-09707-183-0 04 1 1012- ●
434 CLIP
6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) (A) L=350 		1-09707-183-0 04 1 1001-1011 ●
434 CLIP
4HK1-TCS ENG(RJS) (A) L=350 		1-09707-183-0 09 1 1012- ●
434 CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (C) ID=7 L=20 		0-95234-635-0 01 1 1001- ●
434 CLIP
(C) ID=7 L=20 		0-95234-635-0 01 1 1001- ●
434 CLIP
6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) (A) L=350 		1-09707-183-0 03 1 1001-1008 ●
434 CLIP
6HK1-TCN ENG(82L) (A) L=350 		1-09707-183-0 03 1 1001-1008 ●
434 CLIP
WHEEL BASE 5100MM(51W) (A) L=350 		1-09707-183-0 03 1 1009-1011 ●
434 CLIP
(A) L=350 		1-09707-183-0 03 1 1009-1011 ●
434 CLIP
6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) (A) L=350 		1-09707-183-0 03 1 1012- ●
434 CLIP
(A) L=350 		1-09707-183-0 03 1 1012- ●
434 CLIP
(A) L=350 		1-09707-183-0 01 1 1001-1008 ● ●
434 CLIP
(A) L=350 		1-09707-183-0 01 1 1009-1109 ● ●
434 CLIP
6HK1-TCN ENG(82L) (A) L=350 		1-09707-183-0 01 1 1009-1109 ●
434 CLIP
6HK1-TCN ENG(82L) (A) L=350 		1-09707-183-0 13 1 1110- ●
434 CLIP
6HK1-TCN ENG(82L) (A) L=350 		1-09707-183-0 12 1 1001-1109 ● ●
434 CLIP
(A) L=350 		1-09707-183-0 01 1 1110- ● ●
434 CLIP
6HK1-TCN ENG(82L) (B) ID=10 & 15 		1-09709-279-1 01 1 1001-1011 ● ●
434 CLIP
(B) ID=10 & 15 		1-09709-279-1 01 1 1012- ● ●
434 CLIP
6HK1-TCN ENG(82L) (D) ID=15 H=24 L=20 		1-09700-606-0 02 1 1001-1107 ●
434 CLIP
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (D) ID=15 H=24 L=20 		1-09700-606-0 02 1 1108- ●
434 CLIP
6HK1-TCN ENG(82L) (D) ID=15 H=24 L=20 		1-09700-606-0 02 1 1108- ●
435 BOLT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE 		0-28650-820-0 01 1 1001- ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1001- ●
435 BOLT; CLIP
6HK1-TCN ENG(82L) M8X25 FLANGE SOU 		0-28650-825-0 02 1 1001-1011 ●
435 BOLT; CLIP
4HK1-TCS ENG(RJS) M8X25 FLANGE SOU 		0-28650-825-0 02 1 1012-1107 ●
435 BOLT; CLIP
6HK1-TCN ENG(82L) M8X25 FLANGE SOU 		0-28650-825-0 02 1 1012-1107 ●
435 BOLT; CLIP
4HK1-TCS ENG(RJS) M8X25 FLANGE SOU 		0-28650-825-0 02 1 1108- ●
435 BOLT; CLIP
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> M8X25 FLANGE SOU 		0-28650-825-0 02 1 1108- ●
435 BOLT; CLIP
6HK1-TCN ENG(82L) M8X25 FLANGE SOU 		0-28650-825-0 02 1 1108- ●
436 NUT; CLIP
4HK1-TCS ENG(RJS) M22 		0-91111-522-0 01 1 1012- ●
436 NUT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE SOU 		0-91180-108-0 01 1 1001- ●
436 NUT; CLIP
M8 FLANGE SOU 		0-91180-108-0 01 1 1001- ●
444 BOLT; UNION
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> M10X30 FLANGE SOU 		0-28651-030-0 02 1 1001- ●
444 BOLT; UNION
EXC. PTO CONTROL<SV6> M8X30 FLANGE 		0-28650-830-0 02 1 1001- ●
450 BRACKET; CLIP
4HK1-TCS ENG(RJS) (D) 		8-98117-686-0 04 1 1012- ●
450 BRACKET; CLIP
4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) (E) 		8-98173-173-0 01 1 1012- ●
450 BRACKET; CLIP
6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) (C) 		8-98100-216-1 01 1 1001-1008 ●
450 BRACKET; CLIP
WHEEL BASE 3700MM(37W) (C) 		8-98100-216-1 01 1 1009- ●
450 BRACKET; CLIP
6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) (E) 		8-98116-680-0 01 1 1001- ●
450 BRACKET; CLIP
WHEEL BASE 5100MM(51W) (C) 		8-98100-216-1 02 1 1001- ●
450 BRACKET; CLIP
(C) 		8-98100-216-1 02 1 1001- ●
450 BRACKET; CLIP
(A) 		1-47477-694-0 01 1 1001- ● ●
450 BRACKET; CLIP
(B) 		8-98070-479-0 01 1 1001- ● ●
450 BRACKET; CLIP
6HK1-TCN ENG(82L) (D) 		8-98117-686-0 03 1 1001-1011 ● ●
450 BRACKET; CLIP
6HK1-TCN ENG(82L) (D) 		8-98117-686-0 03 1 1012- ●
450 BRACKET; CLIP
4HK1-TCS ENG(RJS) MLD6W M/T(Y2C) (D) 		8-98117-686-0 03 1 1012- ●
450 BRACKET; CLIP
(D) 		8-98117-686-0 03 1 1012- ●

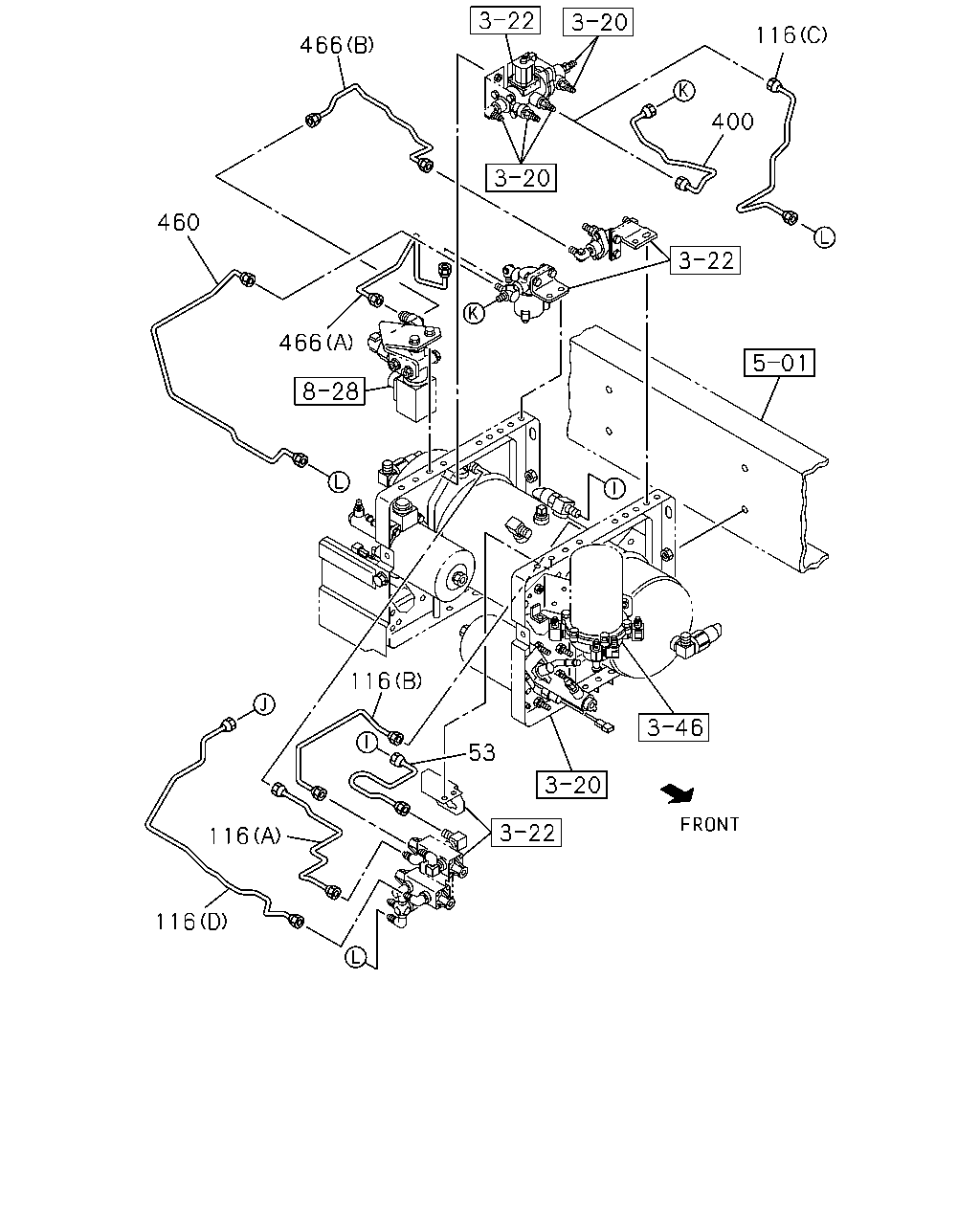

çizim 162839
116 466 400 460 466 116 53 116 116
BalonParca AdiParca NoAdetTipApplied Date A B
53 PIPE; AIR,AIR TANK TO VALVE 8-98061-086-0 01 1 1001- ●
53 PIPE; AIR,AIR TANK TO VALVE 8-98114-754-0 01 1 1001- ●
116 PIPE; AIR,PROTECTION VLV
(D) L=987 SERVICED BY L=1000 		1-47428-814-0 01 1 1001- ●
116 PIPE; AIR,PROTECTION VLV
(A) L=510 SERVICED BY L=550 		1-47428-867-0 01 1 1001- ●
116 PIPE; AIR,PROTECTION VLV
(B) L=382 		8-98077-880-0 01 1 1001- ●
116 PIPE; AIR,PROTECTION VLV
H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) (C) L=519 SERVICED BY L=550 		1-47428-808-0 01 1 1001- ●
116 PIPE; AIR,PROTECTION VLV
(D) L=1291 SERVICED BY L=1370 		1-47428-818-0 01 1 1001- ●
116 PIPE; AIR,PROTECTION VLV
(A) 		8-98101-767-0 01 1 1001- ●
116 PIPE; AIR,PROTECTION VLV
(B) 		8-98101-768-0 01 1 1001- ●
116 PIPE; AIR,PROTECTION VLV
H.S.A SYSTEM<6EP> (C) L=524 SERVICED BY L=550 		1-47428-808-0 01 1 1001- ●
400 PIPE; AIR,HSA VLV
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) L=467 		8-98066-848-0 01 1 1001- ●
460 PIPE; AIR,PROTECTION VALVE
THROTTLE CONTROL SYSTEM(6XH) 		8-98066-846-0 01 1 1001- ●
466 PIPE; AIR,ASR
THROTTLE CONTROL SYSTEM(6XH) (B) L=756 SERVICED BY L=800 		1-47428-872-0 01 1 1001- ●
466 PIPE; AIR,ASR
THROTTLE CONTROL SYSTEM(6XH) (A) L=492 		8-98077-879-0 01 1 1001- ●

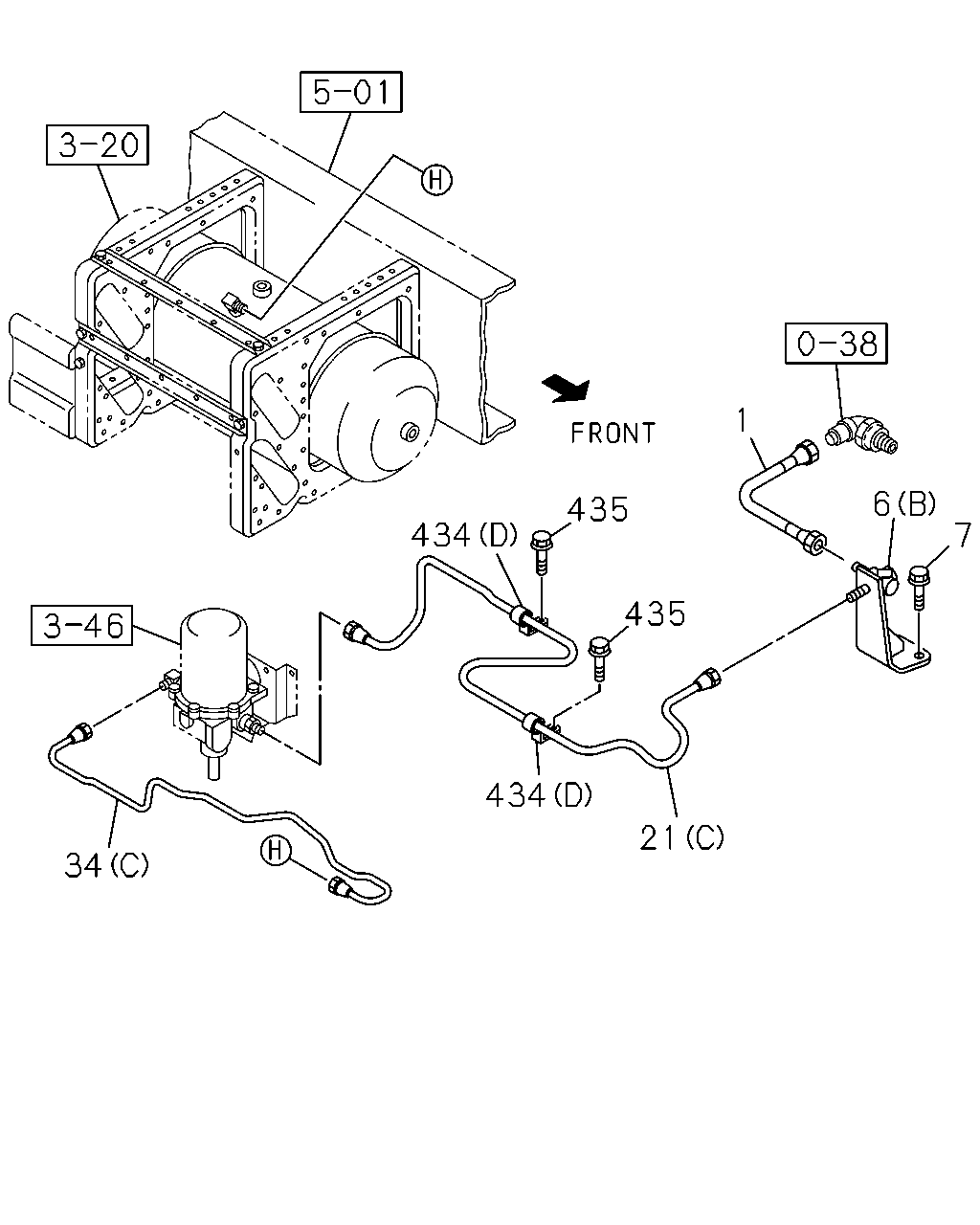

çizim 162865
1 6 435 434 7 435 434 21 34
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,AIR TANK
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> 		1-09363-958-0 01 1 1108- ●
1 HOSE; FLEX,AIR TANK
4HK1-TCS ENG(RJS) 		1-09363-913-0 01 1 1012- ●
1 HOSE; FLEX,AIR TANK
6HK1-TCN ENG(82L) L=310 		8-97607-730-0 01 1 1001-1107 ●
1 HOSE; FLEX,AIR TANK
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> L=310 		8-97607-730-0 01 1 1108- ●
1 HOSE; FLEX,AIR TANK
6HK1-TCN ENG(82L) 		8-98079-973-0 01 1 1001- ●
6 BRACKET; FLEX HOSE,AIR TANK
4HK1-TCS ENG(RJS) (C) 		8-98119-929-0 01 1 1012- ●
6 BRACKET; FLEX HOSE,AIR TANK
6HK1-TCN ENG(82L) (A) 		8-98133-392-0 01 1 1001-1107 ●
6 BRACKET; FLEX HOSE,AIR TANK
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (A) 		8-98133-392-0 01 1 1108- ●
6 BRACKET; FLEX HOSE,AIR TANK
6HK1-TCN ENG(82L) (B) 		8-98079-987-1 01 1 1001-1107 ●
6 BRACKET; FLEX HOSE,AIR TANK
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) 		8-98079-987-1 01 1 1108- ●
6 BRACKET; FLEX HOSE,AIR TANK
6HK1-TCN ENG(82L) (B) 		8-98079-987-1 01 1 1108- ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
4HK1-TCS ENG(RJS) M8X25 FLANGE SOU 		0-28650-825-0 02 1 1012- ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28650-830-0 02 1 1001-1011 ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
6HK1-TCN ENG(82L) M8X30 FLANGE 		0-28650-830-0 02 1 1012- ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28650-830-0 02 1 1012- ●
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (E) L=1816 		8-98083-100-0 01 1 1108- ●
21 PIPE; AIR,UNION TO AIR DRYER
4HK1-TCS ENG(RJS) (D) L=1965 		8-98162-112-0 01 1 1012-1201 ●
21 PIPE; AIR,UNION TO AIR DRYER
4HK1-TCS ENG(RJS) (D) L=2032 		8-98187-598-0 01 1 1202- ●
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCN ENG(82L) AIR DRYER<PS7> (B) L=503 		8-98133-371-0 01 1 1001-1107 ●
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B) L=503 		8-98133-371-0 01 1 1108- ●
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCN ENG(82L) EXC. AIR DRYER<PS7> (A) L=496 		8-98133-372-0 01 1 1001-1107 ●
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (A) L=496 		8-98133-372-0 01 1 1108- ●
21 PIPE; AIR,UNION TO AIR DRYER
(C) L=1701 		8-98101-764-0 01 1 1001- ●
34 PIPE; AIR
4HK1-TCS ENG(RJS) (D) L=673 SERVICED BY L=700 		1-49115-481-0 01 1 1012-1107 ●
34 PIPE; AIR
4HK1-TCS ENG(RJS) (D) L=673 SERVICED BY L=700 		1-49115-481-0 01 1 1108- ●
34 PIPE; AIR
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (D) L=673 SERVICED BY L=700 		1-49115-481-0 01 1 1108- ●
34 PIPE; AIR
6HK1-TCN ENG(82L) AIR DRYER<PS7> (B) L=669 SERVICED BY L=700 		1-49115-481-0 01 1 1001-1107 ●
34 PIPE; AIR
6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B) L=669 SERVICED BY L=700 		1-49115-481-0 01 1 1108- ●
34 PIPE; AIR
6HK1-TCN ENG(82L) EXC. AIR DRYER<PS7> (A) L=457 		8-98133-390-0 01 1 1001-1107 ●
34 PIPE; AIR
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (A) L=457 		8-98133-390-0 01 1 1108- ●
34 PIPE; AIR
(C) L=1135 SERVICED BY L=1200 		1-49115-487-0 01 1 1001- ●
434 CLIP
(A) L=350 		1-09707-183-0 12 1 1110- ●
434 CLIP
4HK1-TCS ENG(RJS) (E) ID=16 L=20 		0-95235-536-0 02 1 1012- ●
434 CLIP
4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) (A) L=350 		1-09707-183-0 05 1 1012- ●
434 CLIP
4HK1-TCS ENG(RJS) WHEEL BASE 5100MM(51W) (A) L=350 		1-09707-183-0 04 1 1012- ●
434 CLIP
6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) (A) L=350 		1-09707-183-0 04 1 1012- ●
434 CLIP
6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) (A) L=350 		1-09707-183-0 04 1 1001-1011 ●
434 CLIP
4HK1-TCS ENG(RJS) (A) L=350 		1-09707-183-0 09 1 1012- ●
434 CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (C) ID=7 L=20 		0-95234-635-0 01 1 1001- ●
434 CLIP
(C) ID=7 L=20 		0-95234-635-0 01 1 1001- ●
434 CLIP
6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) (A) L=350 		1-09707-183-0 03 1 1001-1008 ●
434 CLIP
6HK1-TCN ENG(82L) (A) L=350 		1-09707-183-0 03 1 1001-1008 ●
434 CLIP
WHEEL BASE 5100MM(51W) (A) L=350 		1-09707-183-0 03 1 1009-1011 ●
434 CLIP
(A) L=350 		1-09707-183-0 03 1 1009-1011 ●
434 CLIP
6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) (A) L=350 		1-09707-183-0 03 1 1012- ●
434 CLIP
(A) L=350 		1-09707-183-0 03 1 1012- ●
434 CLIP
(A) L=350 		1-09707-183-0 01 1 1001-1008 ● ●
434 CLIP
(A) L=350 		1-09707-183-0 01 1 1009-1109 ● ●
434 CLIP
6HK1-TCN ENG(82L) (A) L=350 		1-09707-183-0 01 1 1009-1109 ●
434 CLIP
6HK1-TCN ENG(82L) (A) L=350 		1-09707-183-0 13 1 1110- ●
434 CLIP
6HK1-TCN ENG(82L) (A) L=350 		1-09707-183-0 12 1 1001-1109 ● ●
434 CLIP
(A) L=350 		1-09707-183-0 01 1 1110- ● ●
434 CLIP
6HK1-TCN ENG(82L) (B) ID=10 & 15 		1-09709-279-1 01 1 1001-1011 ● ●
434 CLIP
(B) ID=10 & 15 		1-09709-279-1 01 1 1012- ● ●
434 CLIP
6HK1-TCN ENG(82L) (D) ID=15 H=24 L=20 		1-09700-606-0 02 1 1001-1107 ●
434 CLIP
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (D) ID=15 H=24 L=20 		1-09700-606-0 02 1 1108- ●
434 CLIP
6HK1-TCN ENG(82L) (D) ID=15 H=24 L=20 		1-09700-606-0 02 1 1108- ●
435 BOLT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE 		0-28650-820-0 01 1 1001- ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1001- ●
435 BOLT; CLIP
6HK1-TCN ENG(82L) M8X25 FLANGE SOU 		0-28650-825-0 02 1 1001-1011 ●
435 BOLT; CLIP
4HK1-TCS ENG(RJS) M8X25 FLANGE SOU 		0-28650-825-0 02 1 1012-1107 ●
435 BOLT; CLIP
6HK1-TCN ENG(82L) M8X25 FLANGE SOU 		0-28650-825-0 02 1 1012-1107 ●
435 BOLT; CLIP
4HK1-TCS ENG(RJS) M8X25 FLANGE SOU 		0-28650-825-0 02 1 1108- ●
435 BOLT; CLIP
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> M8X25 FLANGE SOU 		0-28650-825-0 02 1 1108- ●
435 BOLT; CLIP
6HK1-TCN ENG(82L) M8X25 FLANGE SOU 		0-28650-825-0 02 1 1108- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
