3-58 — FIXING PARTS; OIL PIPING
(#55559) — 23 parça
Tümü
A - FCR5MS
B - FCR5WS
◀

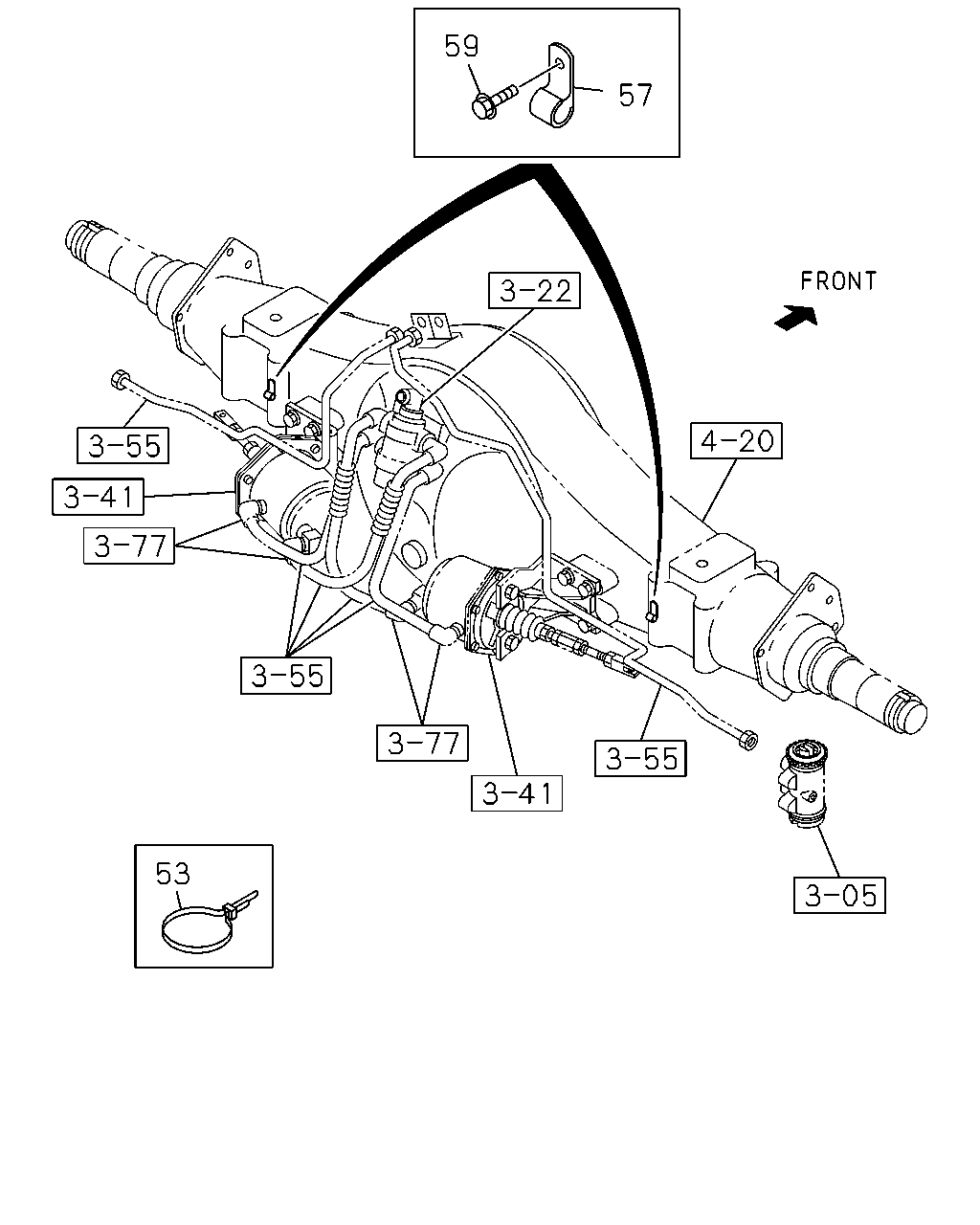

[358A] REAR AXLE SIDE (3 parça)

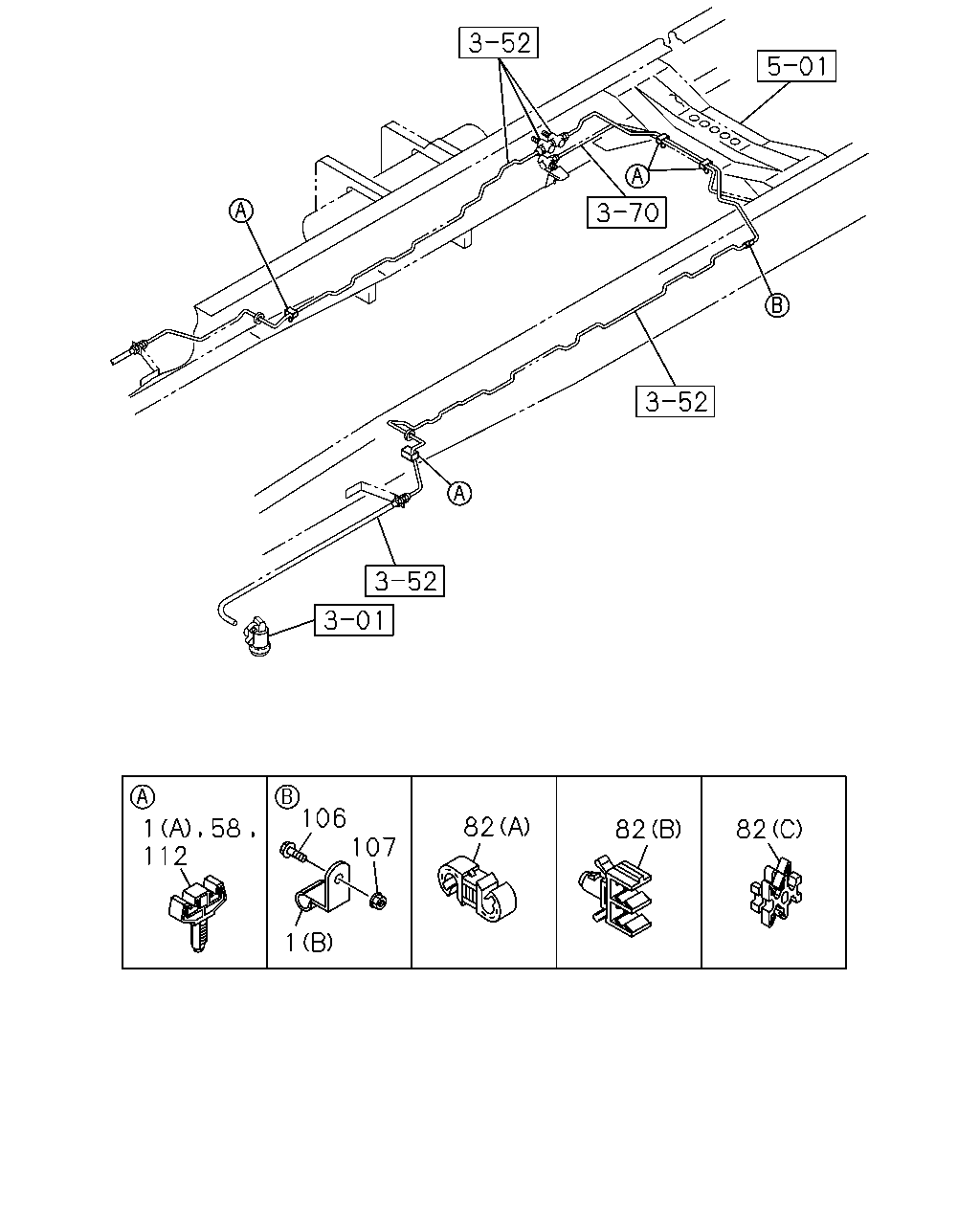

[358A] FRAME SIDE (20 parça)
▶
59
57
53
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
53
CLIP; UNION
L=250
1-09707-126-0
05
1
1001-
●
●
57
CLIP; BRK PIPE,RR AXLE
ID=7 L=20
0-95234-635-0
02
1
1001-
●
●
59
BOLT; BRK PIPE,RR AXLE
M8X10 FLANGE
0-28050-810-0
02
1
1001-
●
●
106
107
82
112
82
82
1
1
58
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
CLIP; OIL PIPE TO BODY
4HK1-TCS ENG(RJS) (B) ID=6 H=20 L=20
8-98040-714-0
04
1
1110-
●
1
CLIP; OIL PIPE TO BODY
6HK1-TCN ENG(82L) (A)
8-98012-254-1
07
1
1001-1109
●
1
CLIP; OIL PIPE TO BODY
(A)
8-98012-254-1
07
1
1110-
●
1
CLIP; OIL PIPE TO BODY
6HK1-TCN ENG(82L) (B) ID=6 H=20 L=20
8-98040-714-0
05
1
1001-
●
●
1
CLIP; OIL PIPE TO BODY
6HK1-TCN ENG(82L) (A)
8-98012-254-1
08
1
1001-1011
●
1
CLIP; OIL PIPE TO BODY
(A)
8-98012-254-1
08
1
1012-
●
58
CLIP; OIL PIPE
8-98012-254-1
05
1
1001-
●
●
82
CLIP; OIL PIPE
(A) ID=4.76 & 10.0
1-09709-305-0
01
1
1001-
●
●
82
CLIP; OIL PIPE
(A) ID=4.76 & 10.0
1-09709-305-0
01
1
1001-
●
82
CLIP; OIL PIPE
(C) ID=4.7X4
1-09701-304-0
03
1
1001-
●
●
82
CLIP; OIL PIPE
(A) ID=4.76 & 6.35
1-09709-304-0
03
1
1001-
●
●
82
CLIP; OIL PIPE
(B) ID=4.8X2
8-94316-410-0
01
1
1001-
●
●
82
CLIP; OIL PIPE
(A) ID=4.76 & 10.0
1-09709-305-0
03
1
1001-
●
106
BOLT; CLIP,OIL PIPE
4HK1-TCS ENG(RJS) M8X25 FLANGE SOU
0-28650-825-0
04
1
1110-
●
106
BOLT; CLIP,OIL PIPE
6HK1-TCN ENG(82L) M8X25 FLANGE SOU
0-28650-825-0
05
1
1001-
●
●
107
NUT; CLIP,OIL PIPE
4HK1-TCS ENG(RJS) M8 FLANGE SOU
0-91180-108-0
04
1
1110-
●
107
NUT; CLIP,OIL PIPE
6HK1-TCN ENG(82L) M8 FLANGE SOU
0-91180-108-0
05
1
1001-
●
●
112
CLIP; OIL PIPE
WHEEL BASE 3700MM(37W)
8-98012-254-1
02
1
1001-
●
112
CLIP; OIL PIPE
WHEEL BASE 5100MM(51W)
8-98012-254-1
06
1
1001-
●
112
CLIP; OIL PIPE
8-98012-254-1
08
1
1001-
●
