◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11161 - FSR(SOUTH AFRICA) ▶ 3 - Brakes, Brake System ▶ 3-55 - BRAKE PIPING; OIL,REAR ▶
3-55 — BRAKE PIPING; OIL,REAR (#55558) — 55 parça

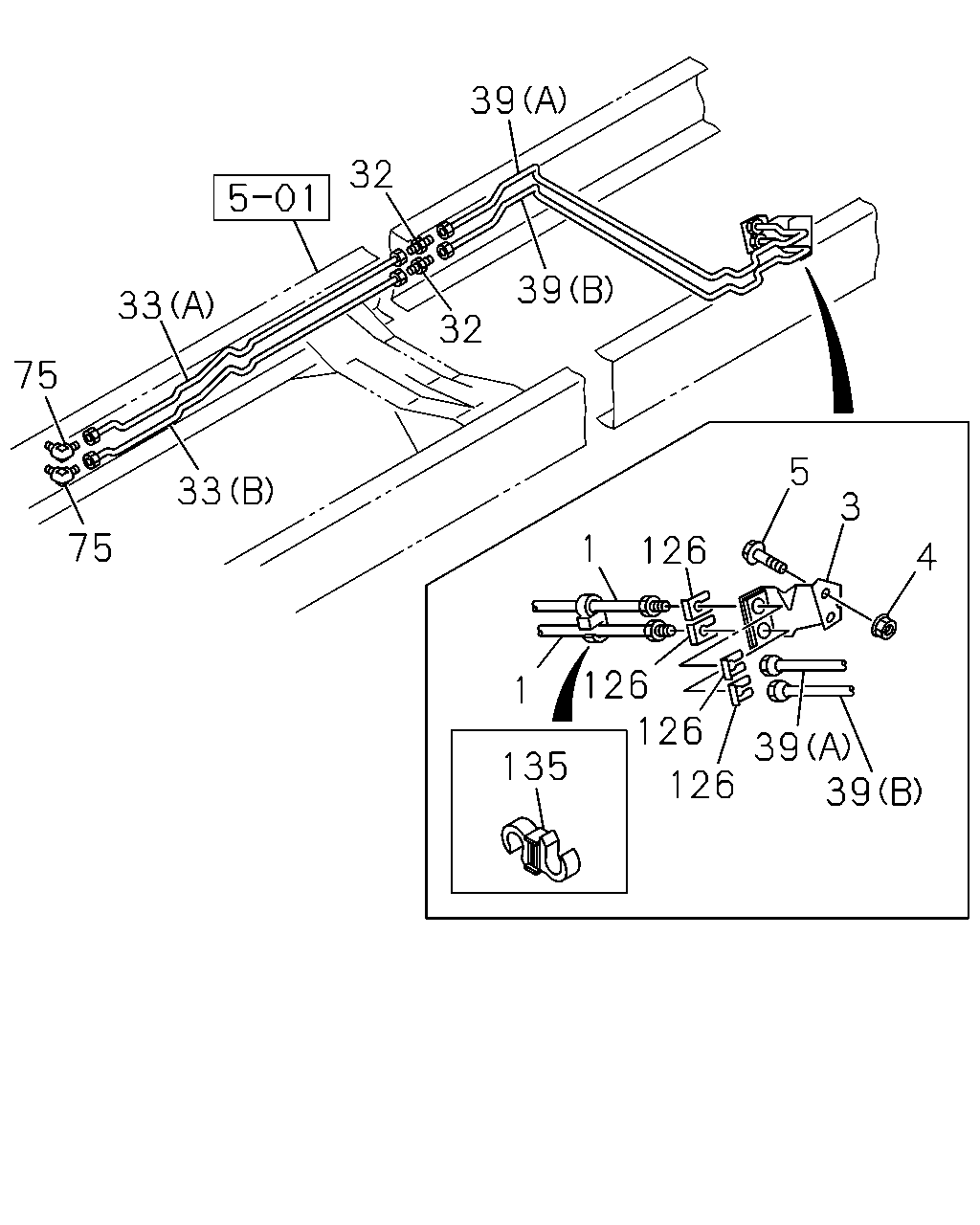

çizim 162721
39 32 39 33 32 75 5 33 3 75 1 126 4 126 126 1 39 39 135 126
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,RR BRK
L=350 		8-97138-885-0 02 1 1001- ● ●
3 BRACKET; FLEX HOSE,RR BRK 8-98065-999-2 01 1 1001- ● ●
4 NUT; BRKT,FLEX HOSE,RR BRK
M8 FLANGE SOU 		0-91180-108-0 02 1 1001- ● ●
5 BOLT; BRKT,FLEX HOSE,RR BRK
M8X30 FLANGE 		0-28650-830-0 02 1 1001- ● ●
32 UNION; OIL PIPE
M10 STRAIGHT 		0-92107-005-0 02 1 1001- ● ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) (A) LH L=1071 		8-98173-019-0 01 1 1012- ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) (B) RH L=997 		8-98173-020-0 01 1 1012- ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 5100MM(51W) (A) LH L=2356 		8-98173-023-0 01 1 1012- ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 5100MM(51W) (B) RH L=2297 		8-98173-024-0 01 1 1012- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) (A) LH L=1099 		8-98123-538-0 01 1 1001-1011 ●
33 PIPE; OIL,UNION TO UNION
6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) (A) LH L=1099 		8-98123-538-0 01 1 1012- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) (B) RH L=1073 		8-98123-537-0 01 1 1001-1011 ●
33 PIPE; OIL,UNION TO UNION
6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) (B) RH L=1073 		8-98123-537-0 01 1 1012- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5100MM(51W) (A) LH L=2410 		8-98123-542-0 01 1 1001-1011 ●
33 PIPE; OIL,UNION TO UNION
6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) (A) LH L=2410 		8-98123-542-0 01 1 1012- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5100MM(51W) (B) RH L=2392 		8-98123-541-0 01 1 1001-1011 ●
33 PIPE; OIL,UNION TO UNION
6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) (B) RH L=2392 		8-98123-541-0 01 1 1012- ●
33 PIPE; OIL,UNION TO UNION
(A) LH 		8-98113-314-0 01 1 1001- ●
33 PIPE; OIL,UNION TO UNION
(B) RH 		8-98113-315-0 01 1 1001- ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
(B) RH L=1772 		8-98106-486-0 01 1 1001- ● ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
(A) LH L=1710 		8-98106-485-0 01 1 1001- ● ●
75 UNION; OIL PIPE
M10X2 ELBOW 		8-98018-438-0 02 1 1001- ● ●
126 CLIP; FLEX HOSE 8-97360-054-0 04 1 1001- ● ●
135 CLIP; FLEX HOSE
ID=10 & 10 		1-09709-277-1 01 1 1001- ● ●

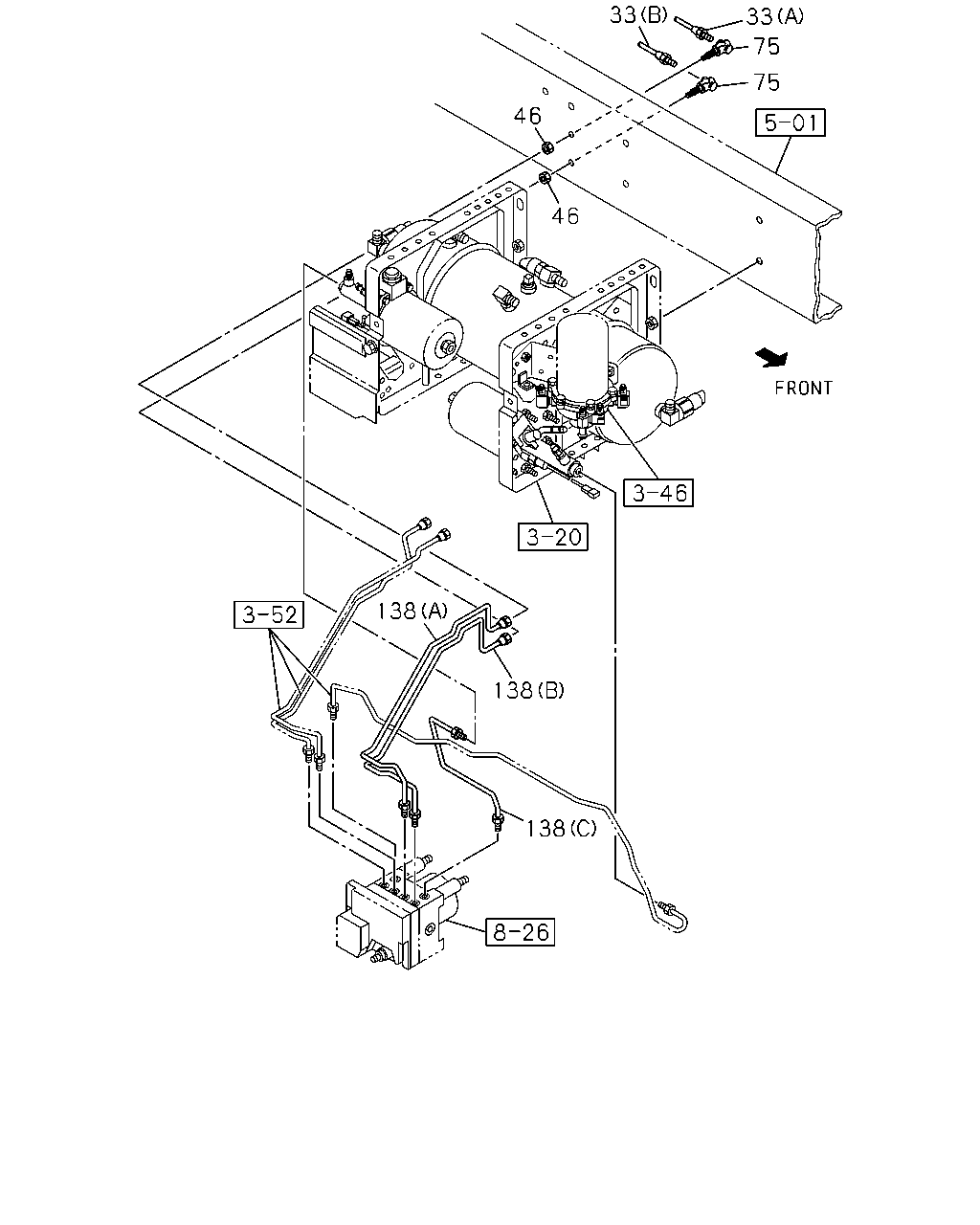

çizim 162738
33 33 75 75 46 46 138 138 138
BalonParca AdiParca NoAdetTipApplied Date A B
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) (A) LH L=1071 		8-98173-019-0 01 1 1012- ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) (B) RH L=997 		8-98173-020-0 01 1 1012- ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 5100MM(51W) (A) LH L=2356 		8-98173-023-0 01 1 1012- ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 5100MM(51W) (B) RH L=2297 		8-98173-024-0 01 1 1012- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) (A) LH L=1099 		8-98123-538-0 01 1 1001-1011 ●
33 PIPE; OIL,UNION TO UNION
6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) (A) LH L=1099 		8-98123-538-0 01 1 1012- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) (B) RH L=1073 		8-98123-537-0 01 1 1001-1011 ●
33 PIPE; OIL,UNION TO UNION
6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) (B) RH L=1073 		8-98123-537-0 01 1 1012- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5100MM(51W) (A) LH L=2410 		8-98123-542-0 01 1 1001-1011 ●
33 PIPE; OIL,UNION TO UNION
6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) (A) LH L=2410 		8-98123-542-0 01 1 1012- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5100MM(51W) (B) RH L=2392 		8-98123-541-0 01 1 1001-1011 ●
33 PIPE; OIL,UNION TO UNION
6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) (B) RH L=2392 		8-98123-541-0 01 1 1012- ●
33 PIPE; OIL,UNION TO UNION
(A) LH 		8-98113-314-0 01 1 1001- ●
33 PIPE; OIL,UNION TO UNION
(B) RH 		8-98113-315-0 01 1 1001- ●
46 NUT; UNION,OIL PIPE
M10 H=8 SOU 		1-09400-029-0 02 1 1001- ● ●
75 UNION; OIL PIPE
M10X2 ELBOW 		8-98018-438-0 02 1 1001- ● ●
138 PIPE; HYDRAULIC UNIT
(B) L=681 		8-98101-777-0 01 1 1001- ●
138 PIPE; HYDRAULIC UNIT
(A) L=618 		8-98101-778-0 01 1 1001- ●
138 PIPE; HYDRAULIC UNIT
4HK1-TCS ENG(RJS) (A) LH L=733 		8-98169-366-0 01 1 1012- ●
138 PIPE; HYDRAULIC UNIT
4HK1-TCS ENG(RJS) (B) RH L=781 		8-98169-367-0 01 1 1012- ●
138 PIPE; HYDRAULIC UNIT
(A) LH L=657 		8-98012-129-0 01 1 1001-1011 ●
138 PIPE; HYDRAULIC UNIT
6HK1-TCN ENG(82L) (A) LH L=657 		8-98012-129-0 01 1 1012- ●
138 PIPE; HYDRAULIC UNIT
(B) RH L=703 		8-98012-146-0 01 1 1001-1011 ●
138 PIPE; HYDRAULIC UNIT
6HK1-TCN ENG(82L) (B) RH L=703 		8-98012-146-0 01 1 1012- ●
138 PIPE; HYDRAULIC UNIT
(C) L=296 		8-98066-107-0 01 1 1001- ● ●

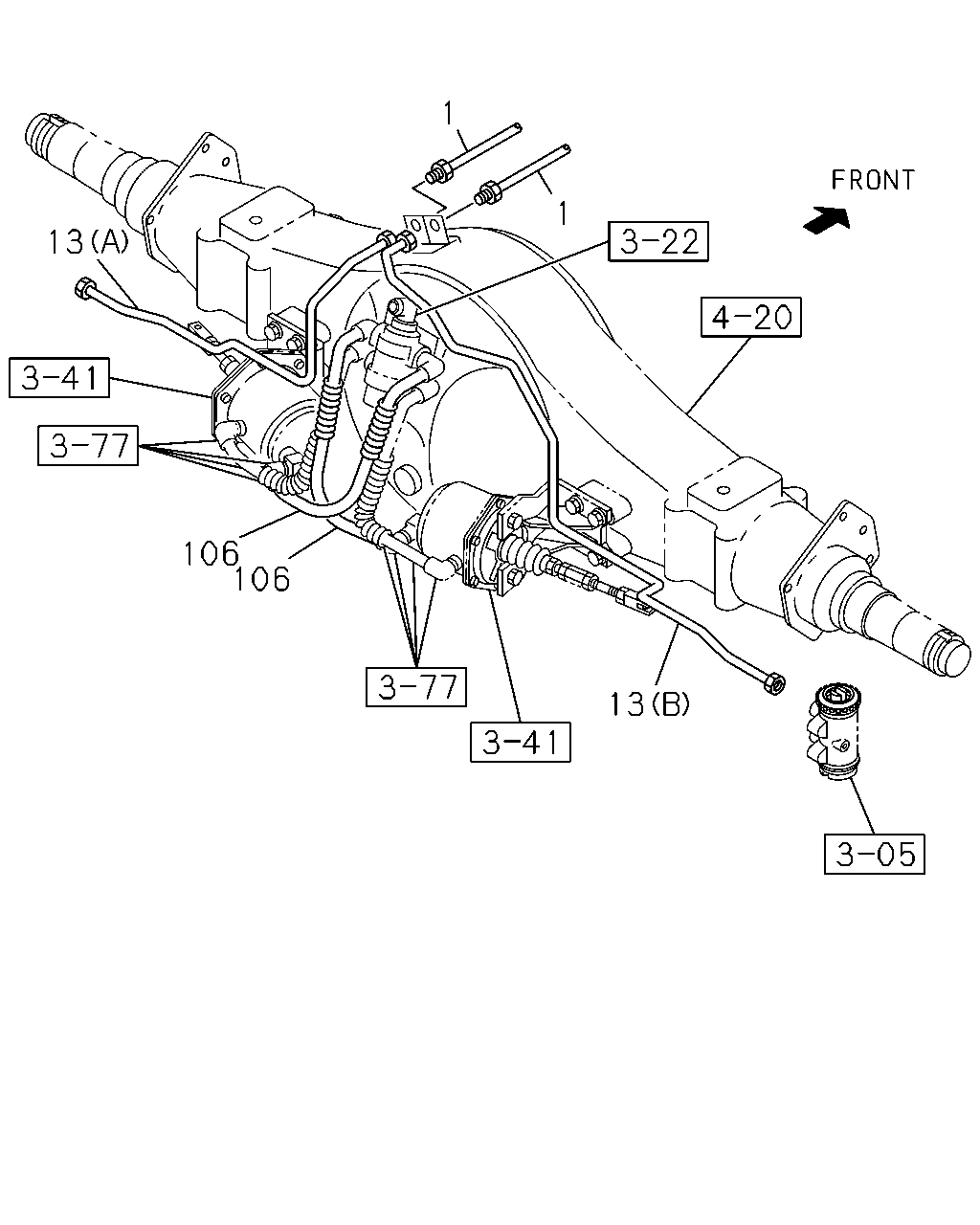

çizim 162739
13 1 1 13 106 106
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,RR BRK
L=350 		8-97138-885-0 02 1 1001- ● ●
13 PIPE; BRK,RR AXLE
(A) LH 		8-98066-083-0 01 1 1001-1302 ● ●
13 PIPE; BRK,RR AXLE
(A) LH 		8-98207-114-0 01 1 1303- ● ●
13 PIPE; BRK,RR AXLE
(B) RH 		8-98066-082-1 01 1 1001-1302 ● ●
13 PIPE; BRK,RR AXLE
(B) RH 		8-98207-113-0 01 1 1303- ● ●
106 TUBE; NYLON 8-98061-971-0 02 1 1001- ● ●
