◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11161 - FSR(SOUTH AFRICA) ▶ 3 - Brakes, Brake System ▶ 3-46 - AIR DRYER ▶
3-46 — AIR DRYER (#55556) — 804 parça

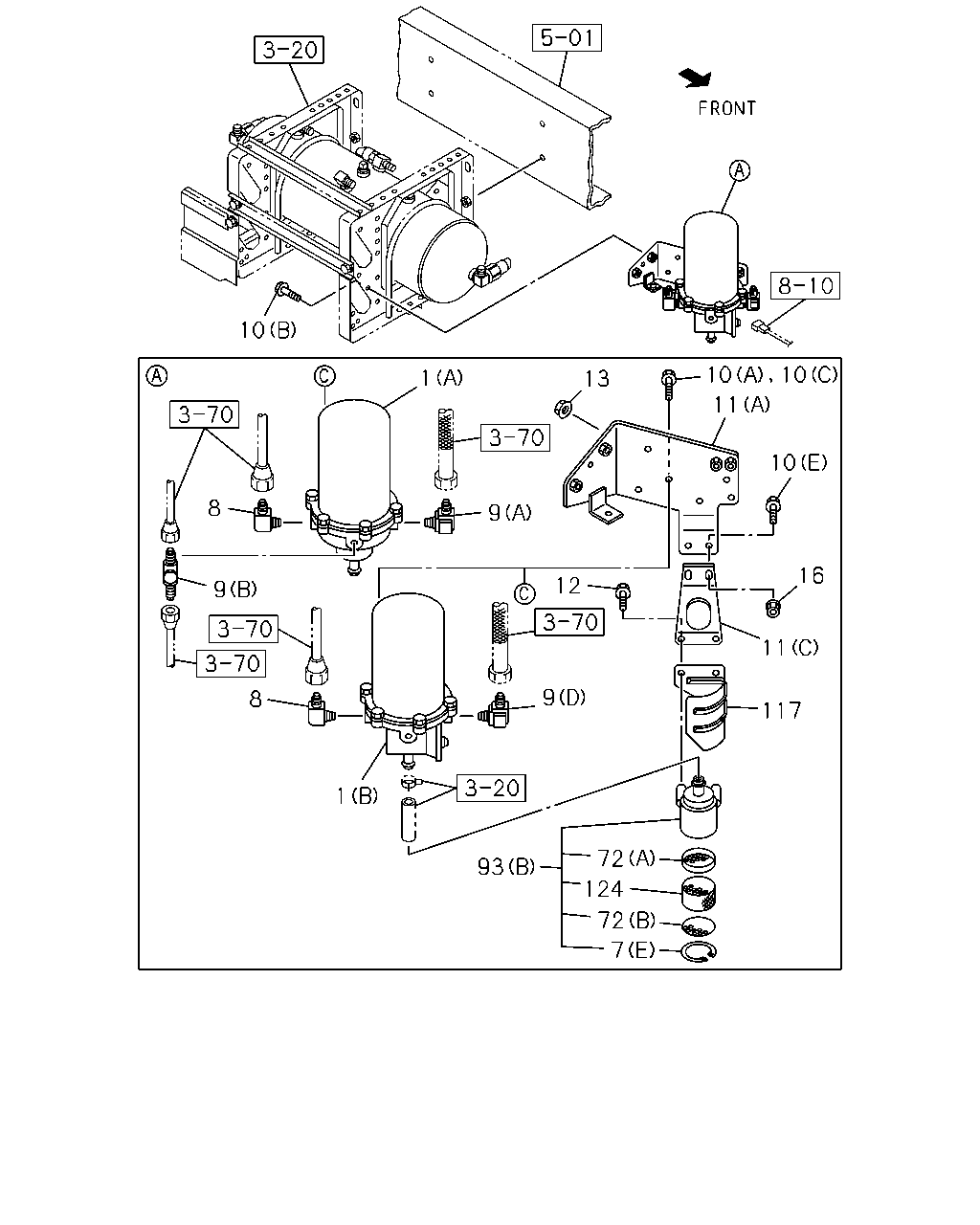

çizim 162447
10 10 10 1 13 11 10 8 9 16 12 9 11 9 8 117 1 72 93 124 72 7
BalonParca AdiParca NoAdetTipApplied Date A B
1 DRYER; AIR
AIR DRYER<PS7> (A) 		1-48190-210-1 01 1 1001-1005 ●
1 DRYER; AIR
6HK1-TCN ENG(82L) AIR DRYER<PS7> (A) 		1-48190-210-1 01 1 1006-1107 ●
1 DRYER; AIR
6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) 		1-48190-210-1 01 1 1108- ●
1 DRYER; AIR
(B) 		1-48190-370-2 01 1 1001-1011 ●
1 DRYER; AIR
4HK1-TCS ENG(RJS) (B) 		1-48190-370-2 01 1 1012-1107 ●
1 DRYER; AIR
(B) 		1-48190-370-2 01 1 1012-1107 ●
1 DRYER; AIR
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) 		1-48190-370-2 01 1 1108-1109 ●
1 DRYER; AIR
4HK1-TCS ENG(RJS) (B) 		1-48190-370-2 01 1 1108-1109 ●
1 DRYER; AIR
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) 		1-48190-370-2 01 1 1108-1109 ●
1 DRYER; AIR
6HK1-TCN ENG(82L) (B) 		1-48190-370-2 01 1 1108-1109 ●
1 DRYER; AIR
4HK1-TCS ENG(RJS) (B) 		1-48190-370-2 01 1 1110-1211 ●
1 DRYER; AIR
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) 		1-48190-370-2 01 1 1110-1211 ●
1 DRYER; AIR
6HK1-TCN ENG(82L) (B) 		1-48190-370-2 01 1 1110-1211 ●
1 DRYER; AIR
4HK1-TCS ENG(RJS) (B) 		8-98225-285-0 01 1 1212- ●
1 DRYER; AIR
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) 		8-98225-285-0 01 1 1212- ●
1 DRYER; AIR
6HK1-TCN ENG(82L) (B) 		8-98225-285-0 01 1 1212- ●
7 RING; SNAP,AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (E) 		1-47769-017-0 01 1 1108-1109 ●
7 RING; SNAP,AIR DRYER
AIR DRYER<PS7> (A) SOU 		1-48199-403-0 01 1 1001-1005 ●
7 RING; SNAP,AIR DRYER
6HK1-TCN ENG(82L) AIR DRYER<PS7> (A) SOU 		1-48199-403-0 01 1 1006-1107 ●
7 RING; SNAP,AIR DRYER
6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) SOU 		1-48199-403-0 01 1 1108- ●
7 RING; SNAP,AIR DRYER
(C) SOU 		1-48199-520-0 02 1 1001-1011 ●
7 RING; SNAP,AIR DRYER
4HK1-TCS ENG(RJS) (C) SOU 		1-48199-520-0 02 1 1012-1107 ●
7 RING; SNAP,AIR DRYER
(C) SOU 		1-48199-520-0 02 1 1012-1107 ●
7 RING; SNAP,AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (C) SOU 		1-48199-520-0 02 1 1108-1109 ●
7 RING; SNAP,AIR DRYER
4HK1-TCS ENG(RJS) (C) SOU 		1-48199-520-0 02 1 1108-1109 ●
7 RING; SNAP,AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (C) SOU 		1-48199-520-0 02 1 1108-1109 ●
7 RING; SNAP,AIR DRYER
6HK1-TCN ENG(82L) (C) SOU 		1-48199-520-0 02 1 1108-1109 ●
7 RING; SNAP,AIR DRYER
4HK1-TCS ENG(RJS) (C) SOU 		1-48199-520-0 02 1 1110- ●
7 RING; SNAP,AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (C) SOU 		1-48199-520-0 02 1 1110- ●
7 RING; SNAP,AIR DRYER
6HK1-TCN ENG(82L) (C) SOU 		1-48199-520-0 02 1 1110- ●
7 RING; SNAP,AIR DRYER
(B) SOU 		1-48199-529-0 01 1 1001-1011 ●
7 RING; SNAP,AIR DRYER
4HK1-TCS ENG(RJS) (B) SOU 		1-48199-529-0 01 1 1012-1107 ●
7 RING; SNAP,AIR DRYER
(B) SOU 		1-48199-529-0 01 1 1012-1107 ●
7 RING; SNAP,AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) SOU 		1-48199-529-0 01 1 1108-1109 ●
7 RING; SNAP,AIR DRYER
4HK1-TCS ENG(RJS) (B) SOU 		1-48199-529-0 01 1 1108-1109 ●
7 RING; SNAP,AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) SOU 		1-48199-529-0 01 1 1108-1109 ●
7 RING; SNAP,AIR DRYER
6HK1-TCN ENG(82L) (B) SOU 		1-48199-529-0 01 1 1108-1109 ●
7 RING; SNAP,AIR DRYER
4HK1-TCS ENG(RJS) (B) SOU 		1-48199-529-0 01 1 1110- ●
7 RING; SNAP,AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) SOU 		1-48199-529-0 01 1 1110- ●
7 RING; SNAP,AIR DRYER
6HK1-TCN ENG(82L) (B) SOU 		1-48199-529-0 01 1 1110- ●
7 RING; SNAP,AIR DRYER
(D) SOU 		1-48199-579-0 01 1 1001-1011 ●
7 RING; SNAP,AIR DRYER
4HK1-TCS ENG(RJS) (D) SOU 		1-48199-579-0 01 1 1012-1107 ●
7 RING; SNAP,AIR DRYER
(D) SOU 		1-48199-579-0 01 1 1012-1107 ●
7 RING; SNAP,AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (D) SOU 		1-48199-579-0 01 1 1108-1109 ●
7 RING; SNAP,AIR DRYER
4HK1-TCS ENG(RJS) (D) SOU 		1-48199-579-0 01 1 1108-1109 ●
7 RING; SNAP,AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (D) SOU 		1-48199-579-0 01 1 1108-1109 ●
7 RING; SNAP,AIR DRYER
6HK1-TCN ENG(82L) (D) SOU 		1-48199-579-0 01 1 1108-1109 ●
7 RING; SNAP,AIR DRYER
4HK1-TCS ENG(RJS) (D) SOU 		1-48199-579-0 01 1 1110- ●
7 RING; SNAP,AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (D) SOU 		1-48199-579-0 01 1 1110- ●
7 RING; SNAP,AIR DRYER
6HK1-TCN ENG(82L) (D) SOU 		1-48199-579-0 01 1 1110- ●
8 CONNECTOR; OUT,AIR DRYER
AIR DRYER<PS7> M20 & PT1/2 ELBOW SOU 		1-09650-443-0 01 1 1001-1011 ●
8 CONNECTOR; OUT,AIR DRYER
M20 & PT1/2 ELBOW SOU 		1-09650-443-0 01 1 1001-1011 ●
8 CONNECTOR; OUT,AIR DRYER
6HK1-TCN ENG(82L) AIR DRYER<PS7> M20 & PT1/2 ELBOW SOU 		1-09650-443-0 01 1 1012-1107 ●
8 CONNECTOR; OUT,AIR DRYER
4HK1-TCS ENG(RJS) M20 & PT1/2 ELBOW SOU 		1-09650-443-0 01 1 1012-1107 ●
8 CONNECTOR; OUT,AIR DRYER
M20 & PT1/2 ELBOW SOU 		1-09650-443-0 01 1 1012-1107 ●
8 CONNECTOR; OUT,AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> M20 & PT1/2 ELBOW SOU 		1-09650-443-0 01 1 1108-1109 ●
8 CONNECTOR; OUT,AIR DRYER
4HK1-TCS ENG(RJS) M20 & PT1/2 ELBOW SOU 		1-09650-443-0 01 1 1108-1109 ●
8 CONNECTOR; OUT,AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> M20 & PT1/2 ELBOW SOU 		1-09650-443-0 01 1 1108-1109 ●
8 CONNECTOR; OUT,AIR DRYER
6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> M20 & PT1/2 ELBOW SOU 		1-09650-443-0 01 1 1108-1109 ●
8 CONNECTOR; OUT,AIR DRYER
6HK1-TCN ENG(82L) M20 & PT1/2 ELBOW SOU 		1-09650-443-0 01 1 1108-1109 ●
8 CONNECTOR; OUT,AIR DRYER
4HK1-TCS ENG(RJS) M20 & PT1/2 ELBOW SOU 		1-09650-443-0 01 1 1110- ●
8 CONNECTOR; OUT,AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> M20 & PT1/2 ELBOW SOU 		1-09650-443-0 01 1 1110- ●
8 CONNECTOR; OUT,AIR DRYER
6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> M20 & PT1/2 ELBOW SOU 		1-09650-443-0 01 1 1110- ●
8 CONNECTOR; OUT,AIR DRYER
6HK1-TCN ENG(82L) M20 & PT1/2 ELBOW SOU 		1-09650-443-0 01 1 1110- ●
9 CONNECTOR; PIPE,AIR DRYER
4HK1-TCS ENG(RJS) (D) M22 & PT1/2 ELBOW 		0-92134-315-0 01 1 1012-1107 ●
9 CONNECTOR; PIPE,AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (D) M22 & PT1/2 ELBOW 		0-92134-315-0 01 1 1108-1109 ●
9 CONNECTOR; PIPE,AIR DRYER
4HK1-TCS ENG(RJS) (D) M22 & PT1/2 ELBOW 		0-92134-315-0 01 1 1108-1109 ●
9 CONNECTOR; PIPE,AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (D) M22 & PT1/2 ELBOW 		0-92134-315-0 01 1 1108-1109 ●
9 CONNECTOR; PIPE,AIR DRYER
4HK1-TCS ENG(RJS) (D) M22 & PT1/2 ELBOW 		0-92134-315-0 01 1 1110- ●
9 CONNECTOR; PIPE,AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (D) M22 & PT1/2 ELBOW 		0-92134-315-0 01 1 1110- ●
9 CONNECTOR; PIPE,AIR DRYER
AIR DRYER<PS7> (B) M12X2 & PT1/4 3WAY SOU 		1-09656-229-1 01 1 1001-1005 ●
9 CONNECTOR; PIPE,AIR DRYER
6HK1-TCN ENG(82L) AIR DRYER<PS7> (B) M12X2 & PT1/4 3WAY SOU 		1-09656-229-1 01 1 1006-1107 ●
9 CONNECTOR; PIPE,AIR DRYER
6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B) M12X2 & PT1/4 3WAY SOU 		1-09656-229-1 01 1 1108- ●
9 CONNECTOR; PIPE,AIR DRYER
AIR DRYER<PS7> (A) M22 & R1/2 W/VALVE 		1-48320-026-2 01 1 1001-1005 ●
9 CONNECTOR; PIPE,AIR DRYER
6HK1-TCN ENG(82L) AIR DRYER<PS7> (A) M22 & R1/2 W/VALVE 		1-48320-026-2 01 1 1006-1107 ●
9 CONNECTOR; PIPE,AIR DRYER
6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) M22 & R1/2 W/VALVE 		1-48320-026-2 01 1 1108- ●
9 CONNECTOR; PIPE,AIR DRYER
(C) M22 & PT1/2 FLARE 		0-92121-815-0 01 1 1001-1107 ●
9 CONNECTOR; PIPE,AIR DRYER
6HK1-TCN ENG(82L) (C) M22 & PT1/2 FLARE 		0-92121-815-0 01 1 1108- ●
10 BOLT; AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (E) M8X25 W/LK&PL WASHER 		1-09980-548-0 02 1 1108-1109 ●
10 BOLT; AIR DRYER
(B) M8X20 FLANGE 		0-28050-820-0 02 1 1001- ●
10 BOLT; AIR DRYER
AIR DRYER<PS7> (A) M10X20 FLANGE 		0-28051-020-0 03 1 1001-1005 ●
10 BOLT; AIR DRYER
6HK1-TCN ENG(82L) AIR DRYER<PS7> (A) M10X20 FLANGE 		0-28051-020-0 03 1 1006-1107 ●
10 BOLT; AIR DRYER
6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) M10X20 FLANGE 		0-28051-020-0 03 1 1108- ●
10 BOLT; AIR DRYER
(D) M8X30 FLANGE 		0-28050-830-0 02 1 1001- ●
10 BOLT; AIR DRYER
(C) M10X25 FLANGE 		0-28051-025-0 03 1 1001-1011 ●
10 BOLT; AIR DRYER
4HK1-TCS ENG(RJS) (C) M10X25 FLANGE 		0-28051-025-0 03 1 1012-1107 ●
10 BOLT; AIR DRYER
(C) M10X25 FLANGE 		0-28051-025-0 03 1 1012-1107 ●
10 BOLT; AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (C) M10X25 FLANGE 		0-28051-025-0 03 1 1108-1109 ●
10 BOLT; AIR DRYER
4HK1-TCS ENG(RJS) (C) M10X25 FLANGE 		0-28051-025-0 03 1 1108-1109 ●
10 BOLT; AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (C) M10X25 FLANGE 		0-28051-025-0 03 1 1108-1109 ●
10 BOLT; AIR DRYER
6HK1-TCN ENG(82L) (C) M10X25 FLANGE 		0-28051-025-0 03 1 1108-1109 ●
10 BOLT; AIR DRYER
4HK1-TCS ENG(RJS) (C) M10X25 FLANGE 		0-28051-025-0 03 1 1110- ●
10 BOLT; AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (C) M10X25 FLANGE 		0-28051-025-0 03 1 1110- ●
10 BOLT; AIR DRYER
6HK1-TCN ENG(82L) (C) M10X25 FLANGE 		0-28051-025-0 03 1 1110- ●
11 BRACKET; AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (C) 		8-98039-092-0 01 1 1108-1109 ●
11 BRACKET; AIR DRYER
AIR DRYER<PS7> (A) SOU 		8-98044-548-4 01 1 1001-1011 ●
11 BRACKET; AIR DRYER
6HK1-TCN ENG(82L) AIR DRYER<PS7> (A) SOU 		8-98044-548-4 01 1 1012-1107 ●
11 BRACKET; AIR DRYER
4HK1-TCS ENG(RJS) (A) SOU 		8-98044-548-4 01 1 1012-1107 ●
11 BRACKET; AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) SOU 		8-98044-548-4 01 1 1108-1109 ●
11 BRACKET; AIR DRYER
4HK1-TCS ENG(RJS) (A) SOU 		8-98044-548-4 01 1 1108-1109 ●
11 BRACKET; AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) SOU 		8-98044-548-4 01 1 1108-1109 ●
11 BRACKET; AIR DRYER
6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) SOU 		8-98044-548-4 01 1 1108-1109 ●
11 BRACKET; AIR DRYER
4HK1-TCS ENG(RJS) (A) SOU 		8-98044-548-4 01 1 1110- ●
11 BRACKET; AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) SOU 		8-98044-548-4 01 1 1110- ●
11 BRACKET; AIR DRYER
6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) SOU 		8-98044-548-4 01 1 1110- ●
11 BRACKET; AIR DRYER
(B) 		8-98081-476-0 01 1 1001-1107 ●
11 BRACKET; AIR DRYER
6HK1-TCN ENG(82L) (A) 		8-98081-476-0 01 1 1108- ●
12 BOLT; BRKT
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> M8X20 FLANGE 		0-28650-820-0 02 1 1108-1109 ●
13 NUT; AIR DRYER
M8 FLANGE SOU 		0-91180-108-0 02 1 1001- ●
13 NUT; AIR DRYER
M8 FLANGE SOU 		0-91180-108-0 04 1 1001- ●
16 NUT; BRKT
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> M8 FLANGE SOU 		0-91180-108-0 02 1 1108-1109 ●
72 PLATE; FILTER,AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) 		1-48199-585-0 01 1 1108-1109 ●
72 PLATE; FILTER,AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) 		1-48199-602-0 01 1 1108-1109 ●
93 SILENCER; AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) 		1-48199-581-0 01 1 1108-1109 ●
93 SILENCER; AIR DRYER
(A) SOU 		1-48199-619-0 01 1 1001-1011 ●
93 SILENCER; AIR DRYER
4HK1-TCS ENG(RJS) (A) SOU 		1-48199-619-0 01 1 1012-1107 ●
93 SILENCER; AIR DRYER
(A) SOU 		1-48199-619-0 01 1 1012-1107 ●
93 SILENCER; AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) SOU 		1-48199-619-0 01 1 1108-1109 ●
93 SILENCER; AIR DRYER
4HK1-TCS ENG(RJS) (A) SOU 		1-48199-619-0 01 1 1108-1109 ●
93 SILENCER; AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) SOU 		1-48199-619-0 01 1 1108-1109 ●
93 SILENCER; AIR DRYER
6HK1-TCN ENG(82L) (A) SOU 		1-48199-619-0 01 1 1108-1109 ●
93 SILENCER; AIR DRYER
4HK1-TCS ENG(RJS) (A) SOU 		1-48199-619-0 01 1 1110- ●
93 SILENCER; AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) SOU 		1-48199-619-0 01 1 1110- ●
93 SILENCER; AIR DRYER
6HK1-TCN ENG(82L) (A) SOU 		1-48199-619-0 01 1 1110- ●
117 COVER; SILENCER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> 		8-98065-972-1 01 1 1108-1109 ●
124 FILTER; SILENCER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> 		1-48199-465-0 01 1 1108-1109 ●

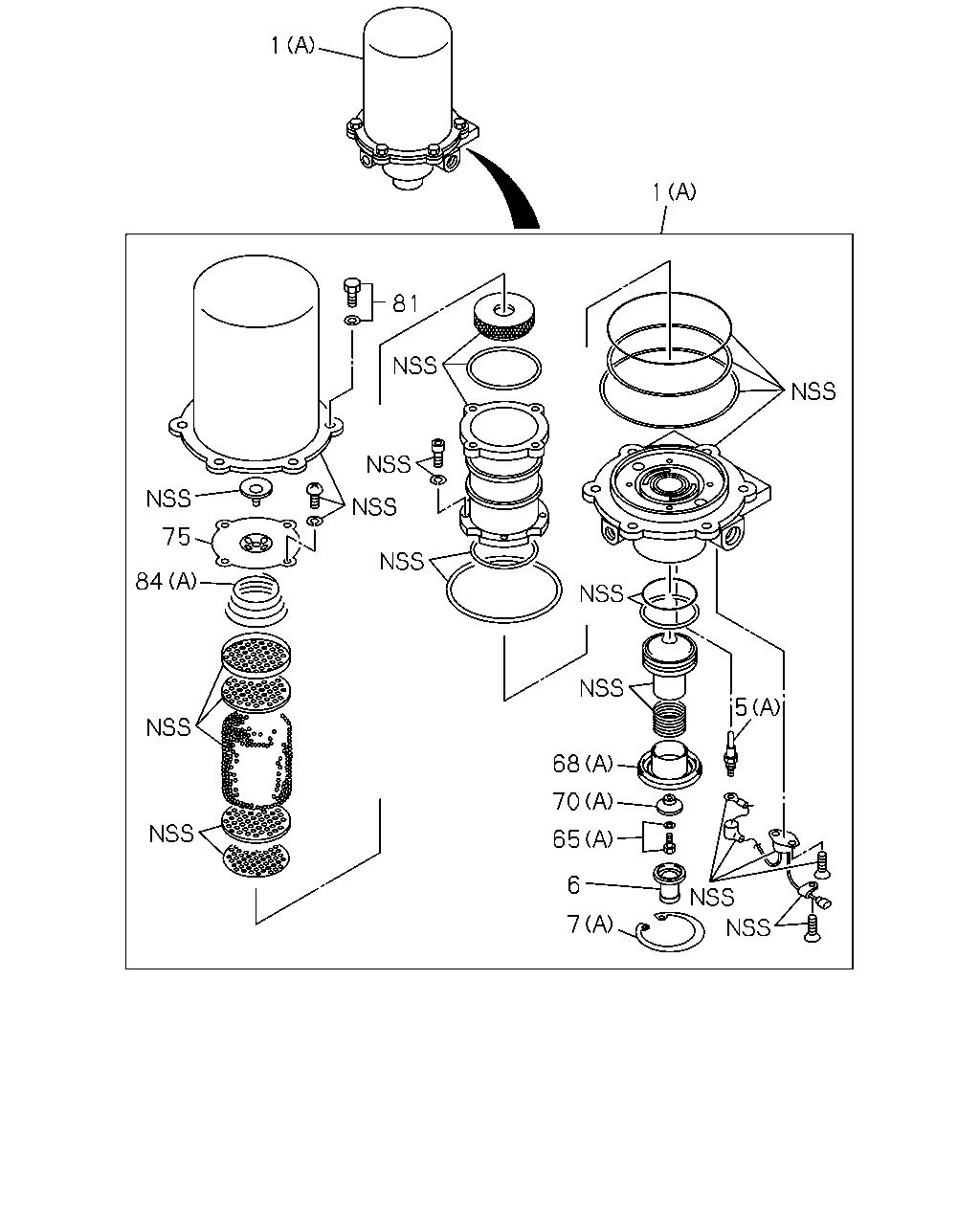

çizim 162449
1 1 81 75 84 5 68 70 65 6 7
BalonParca AdiParca NoAdetTipApplied Date A B
1 DRYER; AIR
AIR DRYER<PS7> (A) 		1-48190-210-1 01 1 1001-1005 ●

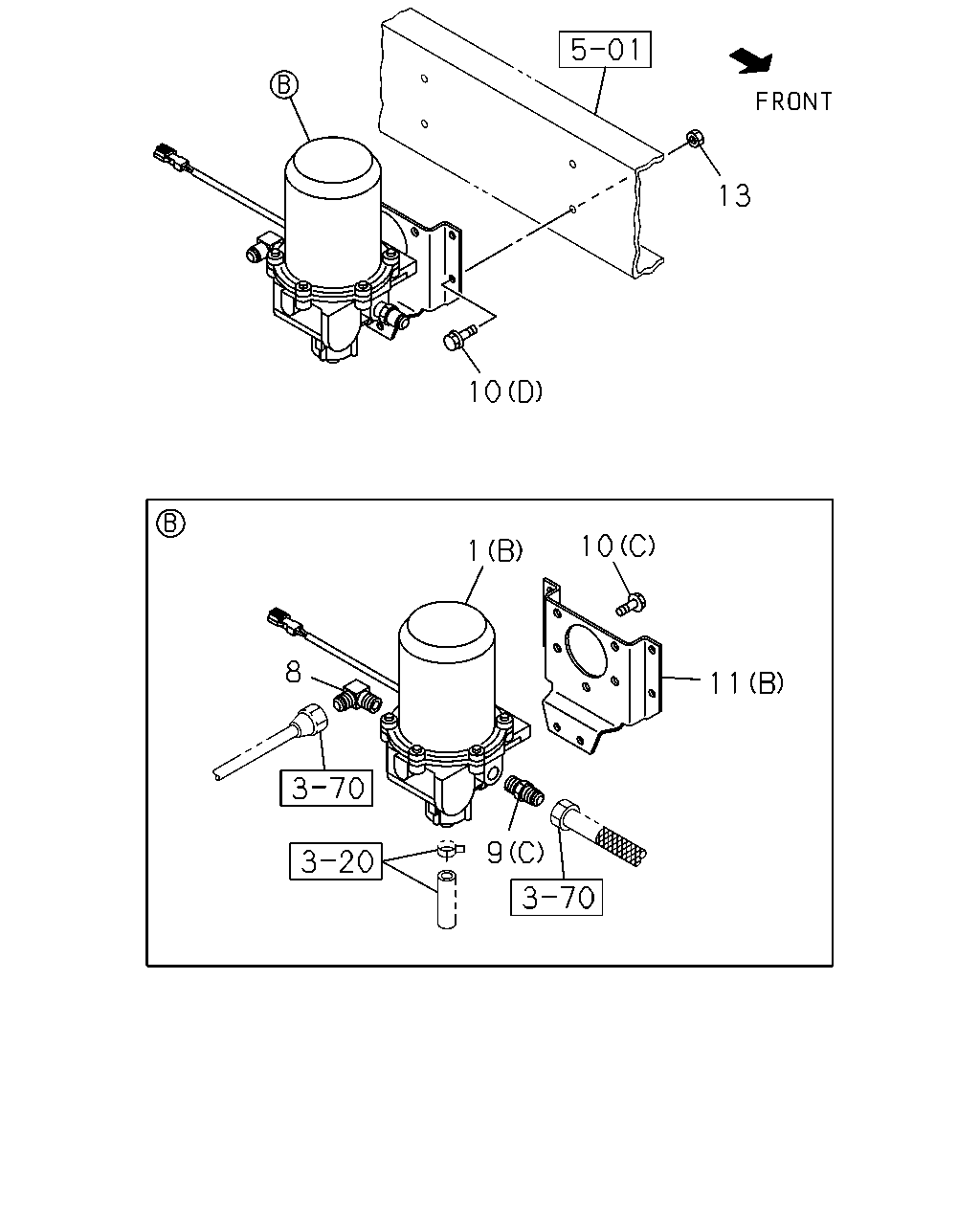

1 DRYER; AIR
6HK1-TCN ENG(82L) AIR DRYER<PS7> (A) 		1-48190-210-1 01 1 1006-1107 ●
1 DRYER; AIR
6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) 		1-48190-210-1 01 1 1108- ●
1 DRYER; AIR
(B) 		1-48190-370-2 01 1 1001-1011 ●
1 DRYER; AIR
4HK1-TCS ENG(RJS) (B) 		1-48190-370-2 01 1 1012-1107 ●
1 DRYER; AIR
(B) 		1-48190-370-2 01 1 1012-1107 ●
1 DRYER; AIR
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) 		1-48190-370-2 01 1 1108-1109 ●
1 DRYER; AIR
4HK1-TCS ENG(RJS) (B) 		1-48190-370-2 01 1 1108-1109 ●
1 DRYER; AIR
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) 		1-48190-370-2 01 1 1108-1109 ●
1 DRYER; AIR
6HK1-TCN ENG(82L) (B) 		1-48190-370-2 01 1 1108-1109 ●
1 DRYER; AIR
4HK1-TCS ENG(RJS) (B) 		1-48190-370-2 01 1 1110-1211 ●
1 DRYER; AIR
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) 		1-48190-370-2 01 1 1110-1211 ●
1 DRYER; AIR
6HK1-TCN ENG(82L) (B) 		1-48190-370-2 01 1 1110-1211 ●
1 DRYER; AIR
4HK1-TCS ENG(RJS) (B) 		8-98225-285-0 01 1 1212- ●
1 DRYER; AIR
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) 		8-98225-285-0 01 1 1212- ●
1 DRYER; AIR
6HK1-TCN ENG(82L) (B) 		8-98225-285-0 01 1 1212- ●

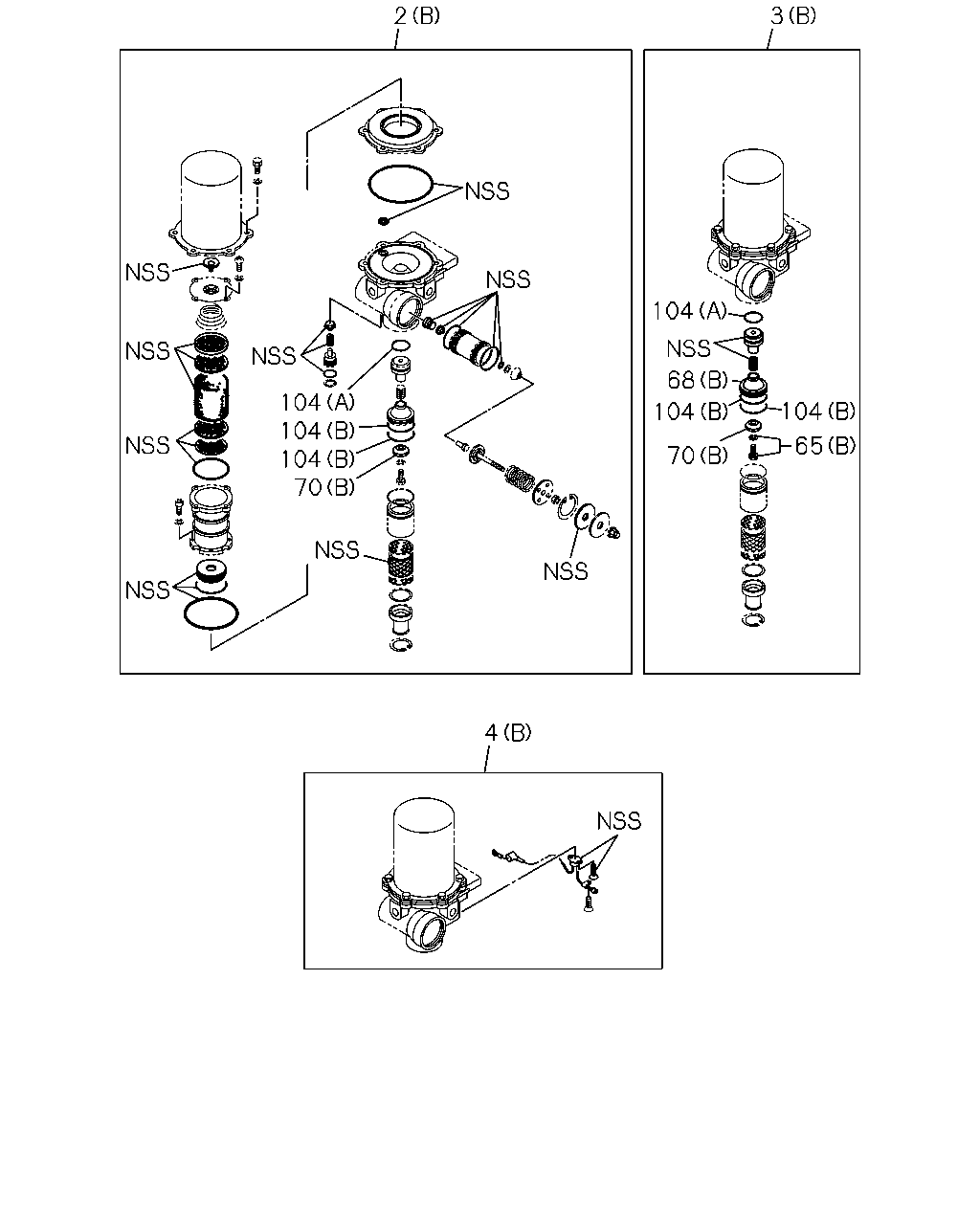

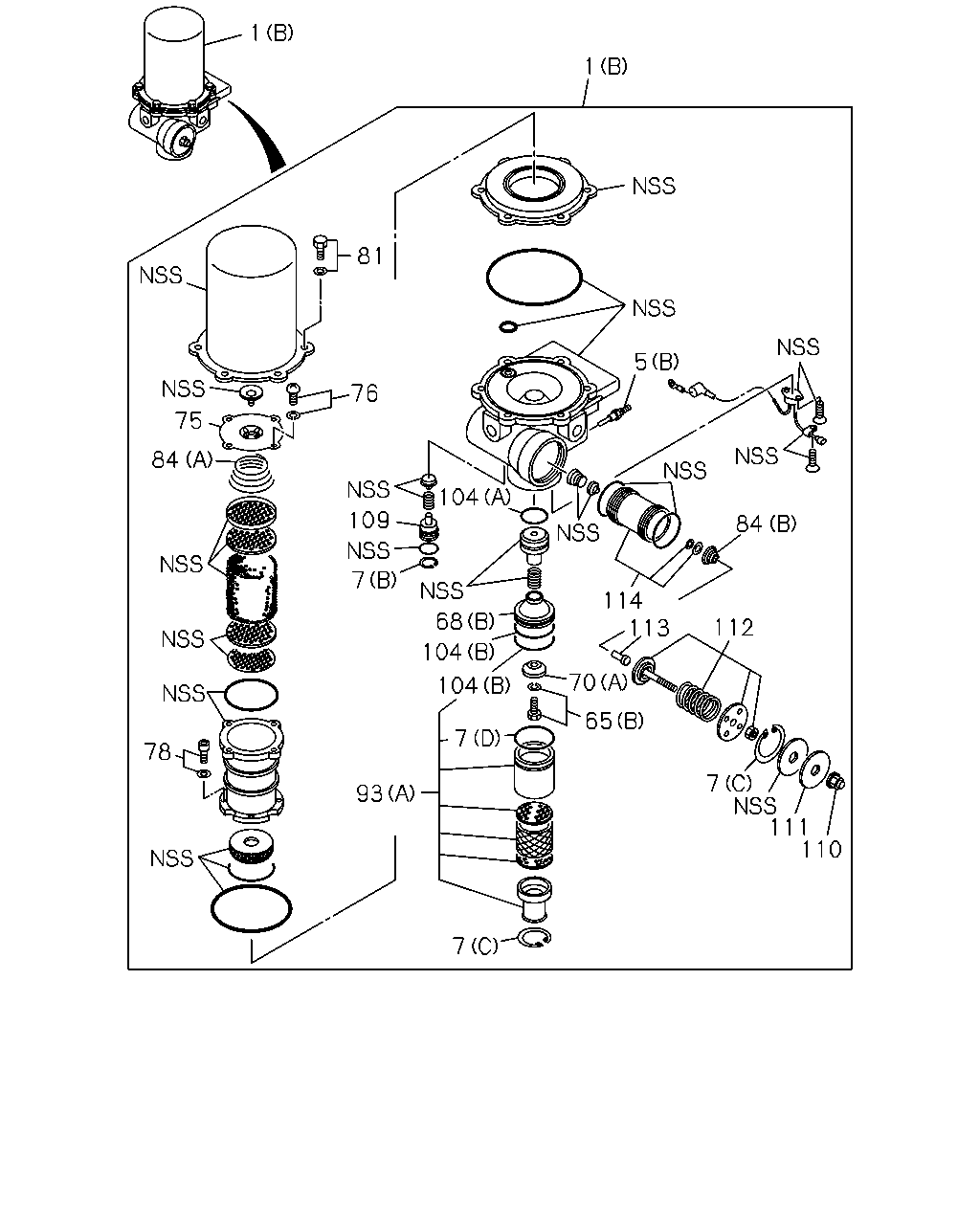

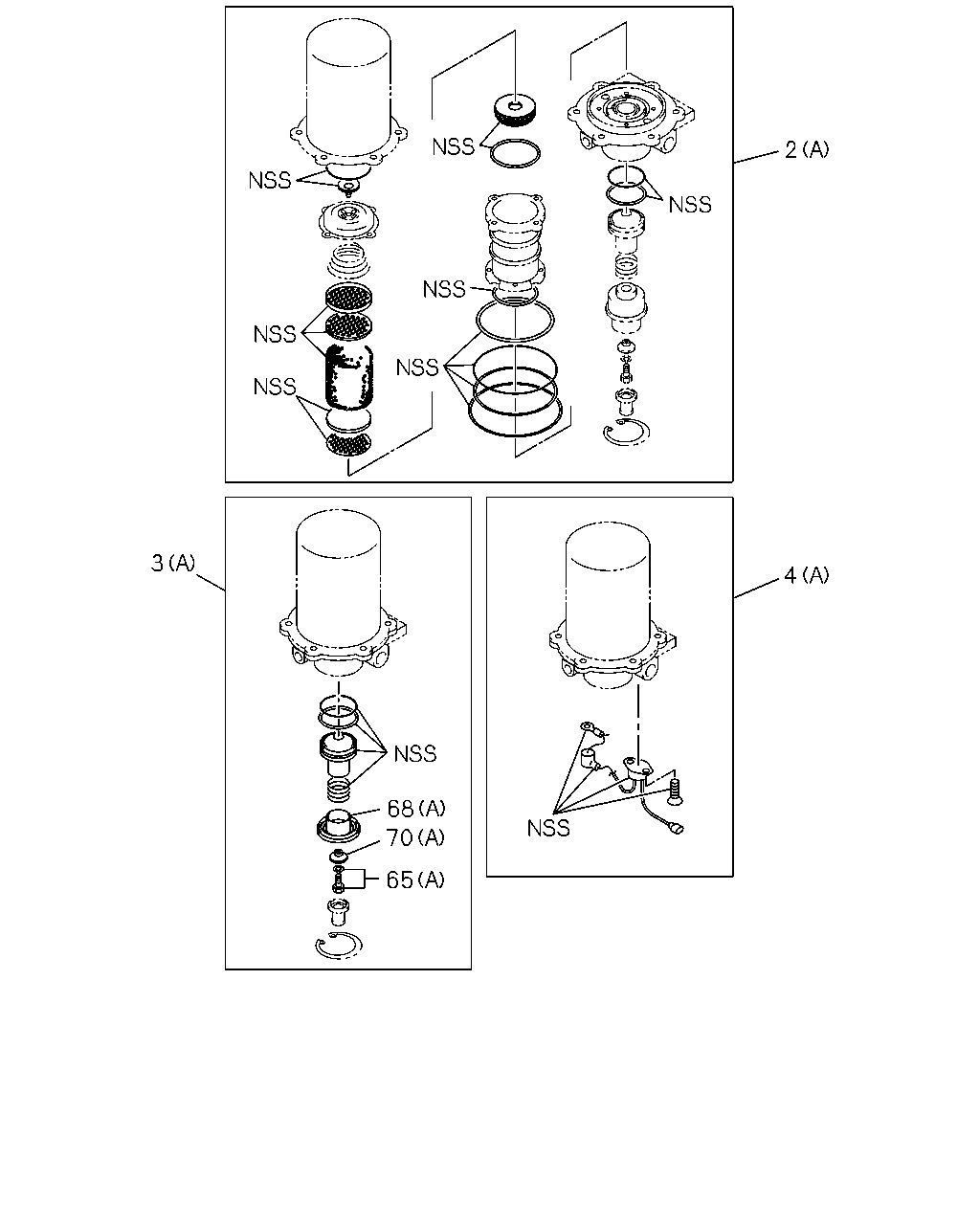

5 HEATER ASM; AIR DRYER
AIR DRYER<PS7> (A) SOU 		1-48199-085-0 01 1 1001-1005 ●
5 HEATER ASM; AIR DRYER
6HK1-TCN ENG(82L) AIR DRYER<PS7> (A) SOU 		1-48199-085-0 01 1 1006-1107 ●
5 HEATER ASM; AIR DRYER
6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) SOU 		1-48199-085-0 01 1 1108- ●
5 HEATER ASM; AIR DRYER
(B) SOU 		1-48199-530-0 01 1 1001-1011 ●
5 HEATER ASM; AIR DRYER
4HK1-TCS ENG(RJS) (B) SOU 		1-48199-530-0 01 1 1012-1107 ●
5 HEATER ASM; AIR DRYER
(B) SOU 		1-48199-530-0 01 1 1012-1107 ●
5 HEATER ASM; AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) SOU 		1-48199-530-0 01 1 1108-1109 ●
5 HEATER ASM; AIR DRYER
4HK1-TCS ENG(RJS) (B) SOU 		1-48199-530-0 01 1 1108-1109 ●
5 HEATER ASM; AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) SOU 		1-48199-530-0 01 1 1108-1109 ●
5 HEATER ASM; AIR DRYER
6HK1-TCN ENG(82L) (B) SOU 		1-48199-530-0 01 1 1108-1109 ●
5 HEATER ASM; AIR DRYER
4HK1-TCS ENG(RJS) (B) SOU 		1-48199-530-0 01 1 1110- ●
5 HEATER ASM; AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) SOU 		1-48199-530-0 01 1 1110- ●
5 HEATER ASM; AIR DRYER
6HK1-TCN ENG(82L) (B) SOU 		1-48199-530-0 01 1 1110- ●
6 COVER; EXH,AIR DRYER
AIR DRYER<PS7> SOU 		1-48199-404-0 01 1 1001-1005 ●
6 COVER; EXH,AIR DRYER
6HK1-TCN ENG(82L) AIR DRYER<PS7> SOU 		1-48199-404-0 01 1 1006-1107 ●
6 COVER; EXH,AIR DRYER
6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> SOU 		1-48199-404-0 01 1 1108- ●
7 RING; SNAP,AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (E) 		1-47769-017-0 01 1 1108-1109 ●
7 RING; SNAP,AIR DRYER
AIR DRYER<PS7> (A) SOU 		1-48199-403-0 01 1 1001-1005 ●
7 RING; SNAP,AIR DRYER
6HK1-TCN ENG(82L) AIR DRYER<PS7> (A) SOU 		1-48199-403-0 01 1 1006-1107 ●
7 RING; SNAP,AIR DRYER
6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) SOU 		1-48199-403-0 01 1 1108- ●
7 RING; SNAP,AIR DRYER
(C) SOU 		1-48199-520-0 02 1 1001-1011 ●
7 RING; SNAP,AIR DRYER
4HK1-TCS ENG(RJS) (C) SOU 		1-48199-520-0 02 1 1012-1107 ●
7 RING; SNAP,AIR DRYER
(C) SOU 		1-48199-520-0 02 1 1012-1107 ●
7 RING; SNAP,AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (C) SOU 		1-48199-520-0 02 1 1108-1109 ●
7 RING; SNAP,AIR DRYER
4HK1-TCS ENG(RJS) (C) SOU 		1-48199-520-0 02 1 1108-1109 ●
7 RING; SNAP,AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (C) SOU 		1-48199-520-0 02 1 1108-1109 ●
7 RING; SNAP,AIR DRYER
6HK1-TCN ENG(82L) (C) SOU 		1-48199-520-0 02 1 1108-1109 ●
7 RING; SNAP,AIR DRYER
4HK1-TCS ENG(RJS) (C) SOU 		1-48199-520-0 02 1 1110- ●
7 RING; SNAP,AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (C) SOU 		1-48199-520-0 02 1 1110- ●
7 RING; SNAP,AIR DRYER
6HK1-TCN ENG(82L) (C) SOU 		1-48199-520-0 02 1 1110- ●
7 RING; SNAP,AIR DRYER
(B) SOU 		1-48199-529-0 01 1 1001-1011 ●
7 RING; SNAP,AIR DRYER
4HK1-TCS ENG(RJS) (B) SOU 		1-48199-529-0 01 1 1012-1107 ●
7 RING; SNAP,AIR DRYER
(B) SOU 		1-48199-529-0 01 1 1012-1107 ●
7 RING; SNAP,AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) SOU 		1-48199-529-0 01 1 1108-1109 ●
7 RING; SNAP,AIR DRYER
4HK1-TCS ENG(RJS) (B) SOU 		1-48199-529-0 01 1 1108-1109 ●
7 RING; SNAP,AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) SOU 		1-48199-529-0 01 1 1108-1109 ●
7 RING; SNAP,AIR DRYER
6HK1-TCN ENG(82L) (B) SOU 		1-48199-529-0 01 1 1108-1109 ●
7 RING; SNAP,AIR DRYER
4HK1-TCS ENG(RJS) (B) SOU 		1-48199-529-0 01 1 1110- ●
7 RING; SNAP,AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) SOU 		1-48199-529-0 01 1 1110- ●
7 RING; SNAP,AIR DRYER
6HK1-TCN ENG(82L) (B) SOU 		1-48199-529-0 01 1 1110- ●
7 RING; SNAP,AIR DRYER
(D) SOU 		1-48199-579-0 01 1 1001-1011 ●
7 RING; SNAP,AIR DRYER
4HK1-TCS ENG(RJS) (D) SOU 		1-48199-579-0 01 1 1012-1107 ●
7 RING; SNAP,AIR DRYER
(D) SOU 		1-48199-579-0 01 1 1012-1107 ●
7 RING; SNAP,AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (D) SOU 		1-48199-579-0 01 1 1108-1109 ●
7 RING; SNAP,AIR DRYER
4HK1-TCS ENG(RJS) (D) SOU 		1-48199-579-0 01 1 1108-1109 ●
7 RING; SNAP,AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (D) SOU 		1-48199-579-0 01 1 1108-1109 ●
7 RING; SNAP,AIR DRYER
6HK1-TCN ENG(82L) (D) SOU 		1-48199-579-0 01 1 1108-1109 ●
7 RING; SNAP,AIR DRYER
4HK1-TCS ENG(RJS) (D) SOU 		1-48199-579-0 01 1 1110- ●
7 RING; SNAP,AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (D) SOU 		1-48199-579-0 01 1 1110- ●
7 RING; SNAP,AIR DRYER
6HK1-TCN ENG(82L) (D) SOU 		1-48199-579-0 01 1 1110- ●
65 BOLT; PURGE VLV
AIR DRYER<PS7> (A) SOU 		1-48199-393-0 01 1 1001-1005 ●
65 BOLT; PURGE VLV
6HK1-TCN ENG(82L) AIR DRYER<PS7> (A) SOU 		1-48199-393-0 01 1 1006-1107 ●
65 BOLT; PURGE VLV
6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) SOU 		1-48199-393-0 01 1 1108- ●
65 BOLT; PURGE VLV
(B) SOU 		1-48199-517-0 01 1 1001-1011 ●
65 BOLT; PURGE VLV
4HK1-TCS ENG(RJS) (B) SOU 		1-48199-517-0 01 1 1012-1107 ●
65 BOLT; PURGE VLV
(B) SOU 		1-48199-517-0 01 1 1012-1107 ●
65 BOLT; PURGE VLV
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) SOU 		1-48199-517-0 01 1 1108-1109 ●
65 BOLT; PURGE VLV
4HK1-TCS ENG(RJS) (B) SOU 		1-48199-517-0 01 1 1108-1109 ●
65 BOLT; PURGE VLV
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) SOU 		1-48199-517-0 01 1 1108-1109 ●
65 BOLT; PURGE VLV
6HK1-TCN ENG(82L) (B) SOU 		1-48199-517-0 01 1 1108-1109 ●
65 BOLT; PURGE VLV
4HK1-TCS ENG(RJS) (B) SOU 		1-48199-517-0 01 1 1110- ●
65 BOLT; PURGE VLV
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) SOU 		1-48199-517-0 01 1 1110- ●
65 BOLT; PURGE VLV
6HK1-TCN ENG(82L) (B) SOU 		1-48199-517-0 01 1 1110- ●
68 BODY; VALVE
AIR DRYER<PS7> (A) SOU 		1-48199-408-0 01 1 1001-1005 ●
68 BODY; VALVE
6HK1-TCN ENG(82L) AIR DRYER<PS7> (A) SOU 		1-48199-408-0 01 1 1006-1107 ●
68 BODY; VALVE
6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) SOU 		1-48199-408-0 01 1 1108- ●
68 BODY; VALVE
(B) SOU 		1-48199-515-0 01 1 1001-1011 ●
68 BODY; VALVE
4HK1-TCS ENG(RJS) (B) SOU 		1-48199-515-0 01 1 1012-1107 ●
68 BODY; VALVE
(B) SOU 		1-48199-515-0 01 1 1012-1107 ●
68 BODY; VALVE
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) SOU 		1-48199-515-0 01 1 1108-1109 ●
68 BODY; VALVE
4HK1-TCS ENG(RJS) (B) SOU 		1-48199-515-0 01 1 1108-1109 ●
68 BODY; VALVE
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) SOU 		1-48199-515-0 01 1 1108-1109 ●
68 BODY; VALVE
6HK1-TCN ENG(82L) (B) SOU 		1-48199-515-0 01 1 1108-1109 ●
68 BODY; VALVE
4HK1-TCS ENG(RJS) (B) SOU 		1-48199-515-0 01 1 1110- ●
68 BODY; VALVE
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) SOU 		1-48199-515-0 01 1 1110- ●
68 BODY; VALVE
6HK1-TCN ENG(82L) (B) SOU 		1-48199-515-0 01 1 1110- ●
70 VALVE; AIR DRYER
AIR DRYER<PS7> (A) SOU 		1-48199-105-0 01 1 1001-1005 ●
70 VALVE; AIR DRYER
6HK1-TCN ENG(82L) AIR DRYER<PS7> (A) SOU 		1-48199-105-0 01 1 1006-1107 ●
70 VALVE; AIR DRYER
6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) SOU 		1-48199-105-0 01 1 1108- ●
70 VALVE; AIR DRYER
(B) SOU 		1-48199-504-0 01 1 1001-1011 ●
70 VALVE; AIR DRYER
4HK1-TCS ENG(RJS) (B) SOU 		1-48199-504-0 01 1 1012-1107 ●
70 VALVE; AIR DRYER
(B) SOU 		1-48199-504-0 01 1 1012-1107 ●
70 VALVE; AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) SOU 		1-48199-504-0 01 1 1108-1109 ●
70 VALVE; AIR DRYER
4HK1-TCS ENG(RJS) (B) SOU 		1-48199-504-0 01 1 1108-1109 ●
70 VALVE; AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) SOU 		1-48199-504-0 01 1 1108-1109 ●
70 VALVE; AIR DRYER
6HK1-TCN ENG(82L) (B) SOU 		1-48199-504-0 01 1 1108-1109 ●
70 VALVE; AIR DRYER
4HK1-TCS ENG(RJS) (B) SOU 		1-48199-504-0 01 1 1110- ●
70 VALVE; AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) SOU 		1-48199-504-0 01 1 1110- ●
70 VALVE; AIR DRYER
6HK1-TCN ENG(82L) (B) SOU 		1-48199-504-0 01 1 1110- ●
75 COVER; CASE,AIR DRYER
AIR DRYER<PS7> SOU 		1-48199-427-0 01 1 1001-1011 ●
75 COVER; CASE,AIR DRYER
SOU 		1-48199-427-0 01 1 1001-1011 ●
75 COVER; CASE,AIR DRYER
6HK1-TCN ENG(82L) AIR DRYER<PS7> SOU 		1-48199-427-0 01 1 1012-1107 ●
75 COVER; CASE,AIR DRYER
4HK1-TCS ENG(RJS) SOU 		1-48199-427-0 01 1 1012-1107 ●
75 COVER; CASE,AIR DRYER
SOU 		1-48199-427-0 01 1 1012-1107 ●
75 COVER; CASE,AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> SOU 		1-48199-427-0 01 1 1108-1109 ●
75 COVER; CASE,AIR DRYER
4HK1-TCS ENG(RJS) SOU 		1-48199-427-0 01 1 1108-1109 ●
75 COVER; CASE,AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> SOU 		1-48199-427-0 01 1 1108-1109 ●
75 COVER; CASE,AIR DRYER
6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> SOU 		1-48199-427-0 01 1 1108-1109 ●
75 COVER; CASE,AIR DRYER
6HK1-TCN ENG(82L) SOU 		1-48199-427-0 01 1 1108-1109 ●
75 COVER; CASE,AIR DRYER
4HK1-TCS ENG(RJS) SOU 		1-48199-427-0 01 1 1110- ●
75 COVER; CASE,AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> SOU 		1-48199-427-0 01 1 1110- ●
75 COVER; CASE,AIR DRYER
6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> SOU 		1-48199-427-0 01 1 1110- ●
75 COVER; CASE,AIR DRYER
6HK1-TCN ENG(82L) SOU 		1-48199-427-0 01 1 1110- ●
81 BOLT; CASE,AIR DRYER
AIR DRYER<PS7> SOU 		1-48199-436-0 06 1 1001-1011 ●
81 BOLT; CASE,AIR DRYER
SOU 		1-48199-436-0 06 1 1001-1011 ●
81 BOLT; CASE,AIR DRYER
6HK1-TCN ENG(82L) AIR DRYER<PS7> SOU 		1-48199-436-0 06 1 1012-1107 ●
81 BOLT; CASE,AIR DRYER
4HK1-TCS ENG(RJS) SOU 		1-48199-436-0 06 1 1012-1107 ●
81 BOLT; CASE,AIR DRYER
SOU 		1-48199-436-0 06 1 1012-1107 ●
81 BOLT; CASE,AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> SOU 		1-48199-436-0 06 1 1108-1109 ●
81 BOLT; CASE,AIR DRYER
4HK1-TCS ENG(RJS) SOU 		1-48199-436-0 06 1 1108-1109 ●
81 BOLT; CASE,AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> SOU 		1-48199-436-0 06 1 1108-1109 ●
81 BOLT; CASE,AIR DRYER
6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> SOU 		1-48199-436-0 06 1 1108-1109 ●
81 BOLT; CASE,AIR DRYER
6HK1-TCN ENG(82L) SOU 		1-48199-436-0 06 1 1108-1109 ●
81 BOLT; CASE,AIR DRYER
4HK1-TCS ENG(RJS) SOU 		1-48199-436-0 06 1 1110- ●
81 BOLT; CASE,AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> SOU 		1-48199-436-0 06 1 1110- ●
81 BOLT; CASE,AIR DRYER
6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> SOU 		1-48199-436-0 06 1 1110- ●
81 BOLT; CASE,AIR DRYER
6HK1-TCN ENG(82L) SOU 		1-48199-436-0 06 1 1110- ●
84 SPRING; AIR DRYER
AIR DRYER<PS7> (A) SOU 		1-48199-425-0 01 1 1001-1011 ●
84 SPRING; AIR DRYER
(A) SOU 		1-48199-425-0 01 1 1001-1011 ●
84 SPRING; AIR DRYER
6HK1-TCN ENG(82L) AIR DRYER<PS7> (A) SOU 		1-48199-425-0 01 1 1012-1107 ●
84 SPRING; AIR DRYER
4HK1-TCS ENG(RJS) (A) SOU 		1-48199-425-0 01 1 1012-1107 ●
84 SPRING; AIR DRYER
(A) SOU 		1-48199-425-0 01 1 1012-1107 ●
84 SPRING; AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) SOU 		1-48199-425-0 01 1 1108-1109 ●
84 SPRING; AIR DRYER
4HK1-TCS ENG(RJS) (A) SOU 		1-48199-425-0 01 1 1108-1109 ●
84 SPRING; AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) SOU 		1-48199-425-0 01 1 1108-1109 ●
84 SPRING; AIR DRYER
6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) SOU 		1-48199-425-0 01 1 1108-1109 ●
84 SPRING; AIR DRYER
6HK1-TCN ENG(82L) (A) SOU 		1-48199-425-0 01 1 1108-1109 ●
84 SPRING; AIR DRYER
4HK1-TCS ENG(RJS) (A) SOU 		1-48199-425-0 01 1 1110- ●
84 SPRING; AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) SOU 		1-48199-425-0 01 1 1110- ●
84 SPRING; AIR DRYER
6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) SOU 		1-48199-425-0 01 1 1110- ●
84 SPRING; AIR DRYER
6HK1-TCN ENG(82L) (A) SOU 		1-48199-425-0 01 1 1110- ●
84 SPRING; AIR DRYER
(B) SOU 		1-48199-523-0 01 1 1001-1011 ●
84 SPRING; AIR DRYER
4HK1-TCS ENG(RJS) (B) SOU 		1-48199-523-0 01 1 1012-1107 ●
84 SPRING; AIR DRYER
(B) SOU 		1-48199-523-0 01 1 1012-1107 ●
84 SPRING; AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) SOU 		1-48199-523-0 01 1 1108-1109 ●
84 SPRING; AIR DRYER
4HK1-TCS ENG(RJS) (B) SOU 		1-48199-523-0 01 1 1108-1109 ●
84 SPRING; AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) SOU 		1-48199-523-0 01 1 1108-1109 ●
84 SPRING; AIR DRYER
6HK1-TCN ENG(82L) (B) SOU 		1-48199-523-0 01 1 1108-1109 ●
84 SPRING; AIR DRYER
4HK1-TCS ENG(RJS) (B) SOU 		1-48199-523-0 01 1 1110- ●
84 SPRING; AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) SOU 		1-48199-523-0 01 1 1110- ●
84 SPRING; AIR DRYER
6HK1-TCN ENG(82L) (B) SOU 		1-48199-523-0 01 1 1110- ●
çizim 162456
2 3 4 68 70 65
BalonParca AdiParca NoAdetTipApplied Date A B
2 REPAIR KIT; AIR DRYER
AIR DRYER<PS7> (A) SOU 		1-85576-217-0 01 1 1001-1005 ●
2 REPAIR KIT; AIR DRYER
6HK1-TCN ENG(82L) AIR DRYER<PS7> (A) SOU 		1-85576-217-0 01 1 1006-1107 ●
2 REPAIR KIT; AIR DRYER
6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) SOU 		1-85576-217-0 01 1 1108- ●
2 REPAIR KIT; AIR DRYER
(B) SOU 		1-85576-457-0 01 1 1001-1011 ●
2 REPAIR KIT; AIR DRYER
4HK1-TCS ENG(RJS) (B) SOU 		1-85576-457-0 01 1 1012-1107 ●
2 REPAIR KIT; AIR DRYER
(B) SOU 		1-85576-457-0 01 1 1012-1107 ●
2 REPAIR KIT; AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) SOU 		1-85576-457-0 01 1 1108-1109 ●
2 REPAIR KIT; AIR DRYER
4HK1-TCS ENG(RJS) (B) SOU 		1-85576-457-0 01 1 1108-1109 ●
2 REPAIR KIT; AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) SOU 		1-85576-457-0 01 1 1108-1109 ●
2 REPAIR KIT; AIR DRYER
6HK1-TCN ENG(82L) (B) SOU 		1-85576-457-0 01 1 1108-1109 ●
2 REPAIR KIT; AIR DRYER
4HK1-TCS ENG(RJS) (B) SOU 		1-85576-457-0 01 1 1110-1211 ●
2 REPAIR KIT; AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) SOU 		1-85576-457-0 01 1 1110-1211 ●
2 REPAIR KIT; AIR DRYER
6HK1-TCN ENG(82L) (B) SOU 		1-85576-457-0 01 1 1110-1211 ●
2 REPAIR KIT; AIR DRYER
4HK1-TCS ENG(RJS) (B) SOU 		8-98226-323-0 01 1 1212- ●
2 REPAIR KIT; AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) SOU 		8-98226-323-0 01 1 1212- ●
2 REPAIR KIT; AIR DRYER
6HK1-TCN ENG(82L) (B) SOU 		8-98226-323-0 01 1 1212- ●
3 PISTON KIT; AIR DRYER
AIR DRYER<PS7> (A) SOU 		1-85576-193-0 01 1 1001-1005 ●
3 PISTON KIT; AIR DRYER
6HK1-TCN ENG(82L) AIR DRYER<PS7> (A) SOU 		1-85576-193-0 01 1 1006-1107 ●
3 PISTON KIT; AIR DRYER
6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) SOU 		1-85576-193-0 01 1 1108- ●
3 PISTON KIT; AIR DRYER
(B) SOU 		1-85576-383-0 01 1 1001-1011 ●
3 PISTON KIT; AIR DRYER
4HK1-TCS ENG(RJS) (B) SOU 		1-85576-383-0 01 1 1012-1107 ●
3 PISTON KIT; AIR DRYER
(B) SOU 		1-85576-383-0 01 1 1012-1107 ●
3 PISTON KIT; AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) SOU 		1-85576-383-0 01 1 1108-1109 ●
3 PISTON KIT; AIR DRYER
4HK1-TCS ENG(RJS) (B) SOU 		1-85576-383-0 01 1 1108-1109 ●
3 PISTON KIT; AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) SOU 		1-85576-383-0 01 1 1108-1109 ●
3 PISTON KIT; AIR DRYER
6HK1-TCN ENG(82L) (B) SOU 		1-85576-383-0 01 1 1108-1109 ●
3 PISTON KIT; AIR DRYER
4HK1-TCS ENG(RJS) (B) SOU 		1-85576-383-0 01 1 1110-1211 ●
3 PISTON KIT; AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) SOU 		1-85576-383-0 01 1 1110-1211 ●
3 PISTON KIT; AIR DRYER
6HK1-TCN ENG(82L) (B) SOU 		1-85576-383-0 01 1 1110-1211 ●
3 PISTON KIT; AIR DRYER
4HK1-TCS ENG(RJS) (B) SOU 		8-98226-322-0 01 1 1212- ●
3 PISTON KIT; AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) SOU 		8-98226-322-0 01 1 1212- ●
3 PISTON KIT; AIR DRYER
6HK1-TCN ENG(82L) (B) SOU 		8-98226-322-0 01 1 1212- ●
4 THERMOSTAT KIT; AIR DRYER
AIR DRYER<PS7> (A) SOU 		1-85576-218-0 01 1 1001-1005 ●
4 THERMOSTAT KIT; AIR DRYER
6HK1-TCN ENG(82L) AIR DRYER<PS7> (A) SOU 		1-85576-218-0 01 1 1006-1107 ●
4 THERMOSTAT KIT; AIR DRYER
6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) SOU 		1-85576-218-0 01 1 1108- ●
4 THERMOSTAT KIT; AIR DRYER
(B) SOU 		1-85576-443-0 01 1 1001-1011 ●
4 THERMOSTAT KIT; AIR DRYER
4HK1-TCS ENG(RJS) (B) SOU 		1-85576-443-0 01 1 1012-1107 ●
4 THERMOSTAT KIT; AIR DRYER
(B) SOU 		1-85576-443-0 01 1 1012-1107 ●
4 THERMOSTAT KIT; AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) SOU 		1-85576-443-0 01 1 1108-1109 ●
4 THERMOSTAT KIT; AIR DRYER
4HK1-TCS ENG(RJS) (B) SOU 		1-85576-443-0 01 1 1108-1109 ●
4 THERMOSTAT KIT; AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) SOU 		1-85576-443-0 01 1 1108-1109 ●
4 THERMOSTAT KIT; AIR DRYER
6HK1-TCN ENG(82L) (B) SOU 		1-85576-443-0 01 1 1108-1109 ●
4 THERMOSTAT KIT; AIR DRYER
4HK1-TCS ENG(RJS) (B) SOU 		1-85576-443-0 01 1 1110- ●
4 THERMOSTAT KIT; AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) SOU 		1-85576-443-0 01 1 1110- ●
4 THERMOSTAT KIT; AIR DRYER
6HK1-TCN ENG(82L) (B) SOU 		1-85576-443-0 01 1 1110- ●
65 BOLT; PURGE VLV
AIR DRYER<PS7> (A) SOU 		1-48199-393-0 01 1 1001-1005 ●
65 BOLT; PURGE VLV
6HK1-TCN ENG(82L) AIR DRYER<PS7> (A) SOU 		1-48199-393-0 01 1 1006-1107 ●
65 BOLT; PURGE VLV
6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) SOU 		1-48199-393-0 01 1 1108- ●
65 BOLT; PURGE VLV
(B) SOU 		1-48199-517-0 01 1 1001-1011 ●
65 BOLT; PURGE VLV
4HK1-TCS ENG(RJS) (B) SOU 		1-48199-517-0 01 1 1012-1107 ●
65 BOLT; PURGE VLV
(B) SOU 		1-48199-517-0 01 1 1012-1107 ●
65 BOLT; PURGE VLV
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) SOU 		1-48199-517-0 01 1 1108-1109 ●
65 BOLT; PURGE VLV
4HK1-TCS ENG(RJS) (B) SOU 		1-48199-517-0 01 1 1108-1109 ●
65 BOLT; PURGE VLV
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) SOU 		1-48199-517-0 01 1 1108-1109 ●
65 BOLT; PURGE VLV
6HK1-TCN ENG(82L) (B) SOU 		1-48199-517-0 01 1 1108-1109 ●
65 BOLT; PURGE VLV
4HK1-TCS ENG(RJS) (B) SOU 		1-48199-517-0 01 1 1110- ●
65 BOLT; PURGE VLV
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) SOU 		1-48199-517-0 01 1 1110- ●
65 BOLT; PURGE VLV
6HK1-TCN ENG(82L) (B) SOU 		1-48199-517-0 01 1 1110- ●
68 BODY; VALVE
AIR DRYER<PS7> (A) SOU 		1-48199-408-0 01 1 1001-1005 ●
68 BODY; VALVE
6HK1-TCN ENG(82L) AIR DRYER<PS7> (A) SOU 		1-48199-408-0 01 1 1006-1107 ●
68 BODY; VALVE
6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) SOU 		1-48199-408-0 01 1 1108- ●
68 BODY; VALVE
(B) SOU 		1-48199-515-0 01 1 1001-1011 ●
68 BODY; VALVE
4HK1-TCS ENG(RJS) (B) SOU 		1-48199-515-0 01 1 1012-1107 ●
68 BODY; VALVE
(B) SOU 		1-48199-515-0 01 1 1012-1107 ●
68 BODY; VALVE
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) SOU 		1-48199-515-0 01 1 1108-1109 ●
68 BODY; VALVE
4HK1-TCS ENG(RJS) (B) SOU 		1-48199-515-0 01 1 1108-1109 ●
68 BODY; VALVE
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) SOU 		1-48199-515-0 01 1 1108-1109 ●
68 BODY; VALVE
6HK1-TCN ENG(82L) (B) SOU 		1-48199-515-0 01 1 1108-1109 ●
68 BODY; VALVE
4HK1-TCS ENG(RJS) (B) SOU 		1-48199-515-0 01 1 1110- ●
68 BODY; VALVE
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) SOU 		1-48199-515-0 01 1 1110- ●
68 BODY; VALVE
6HK1-TCN ENG(82L) (B) SOU 		1-48199-515-0 01 1 1110- ●
70 VALVE; AIR DRYER
AIR DRYER<PS7> (A) SOU 		1-48199-105-0 01 1 1001-1005 ●
70 VALVE; AIR DRYER
6HK1-TCN ENG(82L) AIR DRYER<PS7> (A) SOU 		1-48199-105-0 01 1 1006-1107 ●
70 VALVE; AIR DRYER
6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) SOU 		1-48199-105-0 01 1 1108- ●
70 VALVE; AIR DRYER
(B) SOU 		1-48199-504-0 01 1 1001-1011 ●
70 VALVE; AIR DRYER
4HK1-TCS ENG(RJS) (B) SOU 		1-48199-504-0 01 1 1012-1107 ●
70 VALVE; AIR DRYER
(B) SOU 		1-48199-504-0 01 1 1012-1107 ●
70 VALVE; AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) SOU 		1-48199-504-0 01 1 1108-1109 ●
70 VALVE; AIR DRYER
4HK1-TCS ENG(RJS) (B) SOU 		1-48199-504-0 01 1 1108-1109 ●
70 VALVE; AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) SOU 		1-48199-504-0 01 1 1108-1109 ●
70 VALVE; AIR DRYER
6HK1-TCN ENG(82L) (B) SOU 		1-48199-504-0 01 1 1108-1109 ●
70 VALVE; AIR DRYER
4HK1-TCS ENG(RJS) (B) SOU 		1-48199-504-0 01 1 1110- ●
70 VALVE; AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) SOU 		1-48199-504-0 01 1 1110- ●
70 VALVE; AIR DRYER
6HK1-TCN ENG(82L) (B) SOU 		1-48199-504-0 01 1 1110- ●
çizim 162491
13 10 10 1 8 11 9
BalonParca AdiParca NoAdetTipApplied Date A B
1 DRYER; AIR
AIR DRYER<PS7> (A) 		1-48190-210-1 01 1 1001-1005 ●
1 DRYER; AIR
6HK1-TCN ENG(82L) AIR DRYER<PS7> (A) 		1-48190-210-1 01 1 1006-1107 ●
1 DRYER; AIR
6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) 		1-48190-210-1 01 1 1108- ●
1 DRYER; AIR
(B) 		1-48190-370-2 01 1 1001-1011 ●
1 DRYER; AIR
4HK1-TCS ENG(RJS) (B) 		1-48190-370-2 01 1 1012-1107 ●
1 DRYER; AIR
(B) 		1-48190-370-2 01 1 1012-1107 ●
1 DRYER; AIR
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) 		1-48190-370-2 01 1 1108-1109 ●
1 DRYER; AIR
4HK1-TCS ENG(RJS) (B) 		1-48190-370-2 01 1 1108-1109 ●
1 DRYER; AIR
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) 		1-48190-370-2 01 1 1108-1109 ●
1 DRYER; AIR
6HK1-TCN ENG(82L) (B) 		1-48190-370-2 01 1 1108-1109 ●
1 DRYER; AIR
4HK1-TCS ENG(RJS) (B) 		1-48190-370-2 01 1 1110-1211 ●
1 DRYER; AIR
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) 		1-48190-370-2 01 1 1110-1211 ●
1 DRYER; AIR
6HK1-TCN ENG(82L) (B) 		1-48190-370-2 01 1 1110-1211 ●
1 DRYER; AIR
4HK1-TCS ENG(RJS) (B) 		8-98225-285-0 01 1 1212- ●
1 DRYER; AIR
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) 		8-98225-285-0 01 1 1212- ●
1 DRYER; AIR
6HK1-TCN ENG(82L) (B) 		8-98225-285-0 01 1 1212- ●
8 CONNECTOR; OUT,AIR DRYER
AIR DRYER<PS7> M20 & PT1/2 ELBOW SOU 		1-09650-443-0 01 1 1001-1011 ●
8 CONNECTOR; OUT,AIR DRYER
M20 & PT1/2 ELBOW SOU 		1-09650-443-0 01 1 1001-1011 ●
8 CONNECTOR; OUT,AIR DRYER
6HK1-TCN ENG(82L) AIR DRYER<PS7> M20 & PT1/2 ELBOW SOU 		1-09650-443-0 01 1 1012-1107 ●
8 CONNECTOR; OUT,AIR DRYER
4HK1-TCS ENG(RJS) M20 & PT1/2 ELBOW SOU 		1-09650-443-0 01 1 1012-1107 ●
8 CONNECTOR; OUT,AIR DRYER
M20 & PT1/2 ELBOW SOU 		1-09650-443-0 01 1 1012-1107 ●
8 CONNECTOR; OUT,AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> M20 & PT1/2 ELBOW SOU 		1-09650-443-0 01 1 1108-1109 ●
8 CONNECTOR; OUT,AIR DRYER
4HK1-TCS ENG(RJS) M20 & PT1/2 ELBOW SOU 		1-09650-443-0 01 1 1108-1109 ●
8 CONNECTOR; OUT,AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> M20 & PT1/2 ELBOW SOU 		1-09650-443-0 01 1 1108-1109 ●
8 CONNECTOR; OUT,AIR DRYER
6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> M20 & PT1/2 ELBOW SOU 		1-09650-443-0 01 1 1108-1109 ●
8 CONNECTOR; OUT,AIR DRYER
6HK1-TCN ENG(82L) M20 & PT1/2 ELBOW SOU 		1-09650-443-0 01 1 1108-1109 ●
8 CONNECTOR; OUT,AIR DRYER
4HK1-TCS ENG(RJS) M20 & PT1/2 ELBOW SOU 		1-09650-443-0 01 1 1110- ●
8 CONNECTOR; OUT,AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> M20 & PT1/2 ELBOW SOU 		1-09650-443-0 01 1 1110- ●
8 CONNECTOR; OUT,AIR DRYER
6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> M20 & PT1/2 ELBOW SOU 		1-09650-443-0 01 1 1110- ●
8 CONNECTOR; OUT,AIR DRYER
6HK1-TCN ENG(82L) M20 & PT1/2 ELBOW SOU 		1-09650-443-0 01 1 1110- ●
9 CONNECTOR; PIPE,AIR DRYER
4HK1-TCS ENG(RJS) (D) M22 & PT1/2 ELBOW 		0-92134-315-0 01 1 1012-1107 ●
9 CONNECTOR; PIPE,AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (D) M22 & PT1/2 ELBOW 		0-92134-315-0 01 1 1108-1109 ●
9 CONNECTOR; PIPE,AIR DRYER
4HK1-TCS ENG(RJS) (D) M22 & PT1/2 ELBOW 		0-92134-315-0 01 1 1108-1109 ●
9 CONNECTOR; PIPE,AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (D) M22 & PT1/2 ELBOW 		0-92134-315-0 01 1 1108-1109 ●
9 CONNECTOR; PIPE,AIR DRYER
4HK1-TCS ENG(RJS) (D) M22 & PT1/2 ELBOW 		0-92134-315-0 01 1 1110- ●
9 CONNECTOR; PIPE,AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (D) M22 & PT1/2 ELBOW 		0-92134-315-0 01 1 1110- ●
9 CONNECTOR; PIPE,AIR DRYER
AIR DRYER<PS7> (B) M12X2 & PT1/4 3WAY SOU 		1-09656-229-1 01 1 1001-1005 ●
9 CONNECTOR; PIPE,AIR DRYER
6HK1-TCN ENG(82L) AIR DRYER<PS7> (B) M12X2 & PT1/4 3WAY SOU 		1-09656-229-1 01 1 1006-1107 ●
9 CONNECTOR; PIPE,AIR DRYER
6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B) M12X2 & PT1/4 3WAY SOU 		1-09656-229-1 01 1 1108- ●
9 CONNECTOR; PIPE,AIR DRYER
AIR DRYER<PS7> (A) M22 & R1/2 W/VALVE 		1-48320-026-2 01 1 1001-1005 ●
9 CONNECTOR; PIPE,AIR DRYER
6HK1-TCN ENG(82L) AIR DRYER<PS7> (A) M22 & R1/2 W/VALVE 		1-48320-026-2 01 1 1006-1107 ●
9 CONNECTOR; PIPE,AIR DRYER
6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) M22 & R1/2 W/VALVE 		1-48320-026-2 01 1 1108- ●
9 CONNECTOR; PIPE,AIR DRYER
(C) M22 & PT1/2 FLARE 		0-92121-815-0 01 1 1001-1107 ●
9 CONNECTOR; PIPE,AIR DRYER
6HK1-TCN ENG(82L) (C) M22 & PT1/2 FLARE 		0-92121-815-0 01 1 1108- ●
10 BOLT; AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (E) M8X25 W/LK&PL WASHER 		1-09980-548-0 02 1 1108-1109 ●
10 BOLT; AIR DRYER
(B) M8X20 FLANGE 		0-28050-820-0 02 1 1001- ●
10 BOLT; AIR DRYER
AIR DRYER<PS7> (A) M10X20 FLANGE 		0-28051-020-0 03 1 1001-1005 ●
10 BOLT; AIR DRYER
6HK1-TCN ENG(82L) AIR DRYER<PS7> (A) M10X20 FLANGE 		0-28051-020-0 03 1 1006-1107 ●
10 BOLT; AIR DRYER
6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) M10X20 FLANGE 		0-28051-020-0 03 1 1108- ●
10 BOLT; AIR DRYER
(D) M8X30 FLANGE 		0-28050-830-0 02 1 1001- ●
10 BOLT; AIR DRYER
(C) M10X25 FLANGE 		0-28051-025-0 03 1 1001-1011 ●
10 BOLT; AIR DRYER
4HK1-TCS ENG(RJS) (C) M10X25 FLANGE 		0-28051-025-0 03 1 1012-1107 ●
10 BOLT; AIR DRYER
(C) M10X25 FLANGE 		0-28051-025-0 03 1 1012-1107 ●
10 BOLT; AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (C) M10X25 FLANGE 		0-28051-025-0 03 1 1108-1109 ●
10 BOLT; AIR DRYER
4HK1-TCS ENG(RJS) (C) M10X25 FLANGE 		0-28051-025-0 03 1 1108-1109 ●
10 BOLT; AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (C) M10X25 FLANGE 		0-28051-025-0 03 1 1108-1109 ●
10 BOLT; AIR DRYER
6HK1-TCN ENG(82L) (C) M10X25 FLANGE 		0-28051-025-0 03 1 1108-1109 ●
10 BOLT; AIR DRYER
4HK1-TCS ENG(RJS) (C) M10X25 FLANGE 		0-28051-025-0 03 1 1110- ●
10 BOLT; AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (C) M10X25 FLANGE 		0-28051-025-0 03 1 1110- ●
10 BOLT; AIR DRYER
6HK1-TCN ENG(82L) (C) M10X25 FLANGE 		0-28051-025-0 03 1 1110- ●
11 BRACKET; AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (C) 		8-98039-092-0 01 1 1108-1109 ●
11 BRACKET; AIR DRYER
AIR DRYER<PS7> (A) SOU 		8-98044-548-4 01 1 1001-1011 ●
11 BRACKET; AIR DRYER
6HK1-TCN ENG(82L) AIR DRYER<PS7> (A) SOU 		8-98044-548-4 01 1 1012-1107 ●
11 BRACKET; AIR DRYER
4HK1-TCS ENG(RJS) (A) SOU 		8-98044-548-4 01 1 1012-1107 ●
11 BRACKET; AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) SOU 		8-98044-548-4 01 1 1108-1109 ●
11 BRACKET; AIR DRYER
4HK1-TCS ENG(RJS) (A) SOU 		8-98044-548-4 01 1 1108-1109 ●
11 BRACKET; AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) SOU 		8-98044-548-4 01 1 1108-1109 ●
11 BRACKET; AIR DRYER
6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) SOU 		8-98044-548-4 01 1 1108-1109 ●
11 BRACKET; AIR DRYER
4HK1-TCS ENG(RJS) (A) SOU 		8-98044-548-4 01 1 1110- ●
11 BRACKET; AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) SOU 		8-98044-548-4 01 1 1110- ●
11 BRACKET; AIR DRYER
6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) SOU 		8-98044-548-4 01 1 1110- ●
11 BRACKET; AIR DRYER
(B) 		8-98081-476-0 01 1 1001-1107 ●
11 BRACKET; AIR DRYER
6HK1-TCN ENG(82L) (A) 		8-98081-476-0 01 1 1108- ●
13 NUT; AIR DRYER
M8 FLANGE SOU 		0-91180-108-0 02 1 1001- ●
13 NUT; AIR DRYER
M8 FLANGE SOU 		0-91180-108-0 04 1 1001- ●
çizim 162714
1 1 81 5 76 75 84 78 109 7 68 104 104 7 93 70 7 7 111 110 112 113 114 84 104
BalonParca AdiParca NoAdetTipApplied Date A B
1 DRYER; AIR
AIR DRYER<PS7> (A) 		1-48190-210-1 01 1 1001-1005 ●
1 DRYER; AIR
6HK1-TCN ENG(82L) AIR DRYER<PS7> (A) 		1-48190-210-1 01 1 1006-1107 ●
1 DRYER; AIR
6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) 		1-48190-210-1 01 1 1108- ●
1 DRYER; AIR
(B) 		1-48190-370-2 01 1 1001-1011 ●
1 DRYER; AIR
4HK1-TCS ENG(RJS) (B) 		1-48190-370-2 01 1 1012-1107 ●
1 DRYER; AIR
(B) 		1-48190-370-2 01 1 1012-1107 ●
1 DRYER; AIR
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) 		1-48190-370-2 01 1 1108-1109 ●
1 DRYER; AIR
4HK1-TCS ENG(RJS) (B) 		1-48190-370-2 01 1 1108-1109 ●
1 DRYER; AIR
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) 		1-48190-370-2 01 1 1108-1109 ●
1 DRYER; AIR
6HK1-TCN ENG(82L) (B) 		1-48190-370-2 01 1 1108-1109 ●
1 DRYER; AIR
4HK1-TCS ENG(RJS) (B) 		1-48190-370-2 01 1 1110-1211 ●
1 DRYER; AIR
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) 		1-48190-370-2 01 1 1110-1211 ●
1 DRYER; AIR
6HK1-TCN ENG(82L) (B) 		1-48190-370-2 01 1 1110-1211 ●
1 DRYER; AIR
4HK1-TCS ENG(RJS) (B) 		8-98225-285-0 01 1 1212- ●
1 DRYER; AIR
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) 		8-98225-285-0 01 1 1212- ●
1 DRYER; AIR
6HK1-TCN ENG(82L) (B) 		8-98225-285-0 01 1 1212- ●
5 HEATER ASM; AIR DRYER
AIR DRYER<PS7> (A) SOU 		1-48199-085-0 01 1 1001-1005 ●
5 HEATER ASM; AIR DRYER
6HK1-TCN ENG(82L) AIR DRYER<PS7> (A) SOU 		1-48199-085-0 01 1 1006-1107 ●
5 HEATER ASM; AIR DRYER
6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) SOU 		1-48199-085-0 01 1 1108- ●
5 HEATER ASM; AIR DRYER
(B) SOU 		1-48199-530-0 01 1 1001-1011 ●
5 HEATER ASM; AIR DRYER
4HK1-TCS ENG(RJS) (B) SOU 		1-48199-530-0 01 1 1012-1107 ●
5 HEATER ASM; AIR DRYER
(B) SOU 		1-48199-530-0 01 1 1012-1107 ●
5 HEATER ASM; AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) SOU 		1-48199-530-0 01 1 1108-1109 ●
5 HEATER ASM; AIR DRYER
4HK1-TCS ENG(RJS) (B) SOU 		1-48199-530-0 01 1 1108-1109 ●
5 HEATER ASM; AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) SOU 		1-48199-530-0 01 1 1108-1109 ●
5 HEATER ASM; AIR DRYER
6HK1-TCN ENG(82L) (B) SOU 		1-48199-530-0 01 1 1108-1109 ●
5 HEATER ASM; AIR DRYER
4HK1-TCS ENG(RJS) (B) SOU 		1-48199-530-0 01 1 1110- ●
5 HEATER ASM; AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) SOU 		1-48199-530-0 01 1 1110- ●
5 HEATER ASM; AIR DRYER
6HK1-TCN ENG(82L) (B) SOU 		1-48199-530-0 01 1 1110- ●
7 RING; SNAP,AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (E) 		1-47769-017-0 01 1 1108-1109 ●
7 RING; SNAP,AIR DRYER
AIR DRYER<PS7> (A) SOU 		1-48199-403-0 01 1 1001-1005 ●
7 RING; SNAP,AIR DRYER
6HK1-TCN ENG(82L) AIR DRYER<PS7> (A) SOU 		1-48199-403-0 01 1 1006-1107 ●
7 RING; SNAP,AIR DRYER
6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) SOU 		1-48199-403-0 01 1 1108- ●
7 RING; SNAP,AIR DRYER
(C) SOU 		1-48199-520-0 02 1 1001-1011 ●
7 RING; SNAP,AIR DRYER
4HK1-TCS ENG(RJS) (C) SOU 		1-48199-520-0 02 1 1012-1107 ●
7 RING; SNAP,AIR DRYER
(C) SOU 		1-48199-520-0 02 1 1012-1107 ●
7 RING; SNAP,AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (C) SOU 		1-48199-520-0 02 1 1108-1109 ●
7 RING; SNAP,AIR DRYER
4HK1-TCS ENG(RJS) (C) SOU 		1-48199-520-0 02 1 1108-1109 ●
7 RING; SNAP,AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (C) SOU 		1-48199-520-0 02 1 1108-1109 ●
7 RING; SNAP,AIR DRYER
6HK1-TCN ENG(82L) (C) SOU 		1-48199-520-0 02 1 1108-1109 ●
7 RING; SNAP,AIR DRYER
4HK1-TCS ENG(RJS) (C) SOU 		1-48199-520-0 02 1 1110- ●
7 RING; SNAP,AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (C) SOU 		1-48199-520-0 02 1 1110- ●
7 RING; SNAP,AIR DRYER
6HK1-TCN ENG(82L) (C) SOU 		1-48199-520-0 02 1 1110- ●
7 RING; SNAP,AIR DRYER
(B) SOU 		1-48199-529-0 01 1 1001-1011 ●
7 RING; SNAP,AIR DRYER
4HK1-TCS ENG(RJS) (B) SOU 		1-48199-529-0 01 1 1012-1107 ●
7 RING; SNAP,AIR DRYER
(B) SOU 		1-48199-529-0 01 1 1012-1107 ●
7 RING; SNAP,AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) SOU 		1-48199-529-0 01 1 1108-1109 ●
7 RING; SNAP,AIR DRYER
4HK1-TCS ENG(RJS) (B) SOU 		1-48199-529-0 01 1 1108-1109 ●
7 RING; SNAP,AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) SOU 		1-48199-529-0 01 1 1108-1109 ●
7 RING; SNAP,AIR DRYER
6HK1-TCN ENG(82L) (B) SOU 		1-48199-529-0 01 1 1108-1109 ●
7 RING; SNAP,AIR DRYER
4HK1-TCS ENG(RJS) (B) SOU 		1-48199-529-0 01 1 1110- ●
7 RING; SNAP,AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) SOU 		1-48199-529-0 01 1 1110- ●
7 RING; SNAP,AIR DRYER
6HK1-TCN ENG(82L) (B) SOU 		1-48199-529-0 01 1 1110- ●
7 RING; SNAP,AIR DRYER
(D) SOU 		1-48199-579-0 01 1 1001-1011 ●
7 RING; SNAP,AIR DRYER
4HK1-TCS ENG(RJS) (D) SOU 		1-48199-579-0 01 1 1012-1107 ●
7 RING; SNAP,AIR DRYER
(D) SOU 		1-48199-579-0 01 1 1012-1107 ●
7 RING; SNAP,AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (D) SOU 		1-48199-579-0 01 1 1108-1109 ●
7 RING; SNAP,AIR DRYER
4HK1-TCS ENG(RJS) (D) SOU 		1-48199-579-0 01 1 1108-1109 ●
7 RING; SNAP,AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (D) SOU 		1-48199-579-0 01 1 1108-1109 ●
7 RING; SNAP,AIR DRYER
6HK1-TCN ENG(82L) (D) SOU 		1-48199-579-0 01 1 1108-1109 ●
7 RING; SNAP,AIR DRYER
4HK1-TCS ENG(RJS) (D) SOU 		1-48199-579-0 01 1 1110- ●
7 RING; SNAP,AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (D) SOU 		1-48199-579-0 01 1 1110- ●
7 RING; SNAP,AIR DRYER
6HK1-TCN ENG(82L) (D) SOU 		1-48199-579-0 01 1 1110- ●
68 BODY; VALVE
AIR DRYER<PS7> (A) SOU 		1-48199-408-0 01 1 1001-1005 ●
68 BODY; VALVE
6HK1-TCN ENG(82L) AIR DRYER<PS7> (A) SOU 		1-48199-408-0 01 1 1006-1107 ●
68 BODY; VALVE
6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) SOU 		1-48199-408-0 01 1 1108- ●
68 BODY; VALVE
(B) SOU 		1-48199-515-0 01 1 1001-1011 ●
68 BODY; VALVE
4HK1-TCS ENG(RJS) (B) SOU 		1-48199-515-0 01 1 1012-1107 ●
68 BODY; VALVE
(B) SOU 		1-48199-515-0 01 1 1012-1107 ●
68 BODY; VALVE
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) SOU 		1-48199-515-0 01 1 1108-1109 ●
68 BODY; VALVE
4HK1-TCS ENG(RJS) (B) SOU 		1-48199-515-0 01 1 1108-1109 ●
68 BODY; VALVE
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) SOU 		1-48199-515-0 01 1 1108-1109 ●
68 BODY; VALVE
6HK1-TCN ENG(82L) (B) SOU 		1-48199-515-0 01 1 1108-1109 ●
68 BODY; VALVE
4HK1-TCS ENG(RJS) (B) SOU 		1-48199-515-0 01 1 1110- ●
68 BODY; VALVE
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) SOU 		1-48199-515-0 01 1 1110- ●
68 BODY; VALVE
6HK1-TCN ENG(82L) (B) SOU 		1-48199-515-0 01 1 1110- ●
70 VALVE; AIR DRYER
AIR DRYER<PS7> (A) SOU 		1-48199-105-0 01 1 1001-1005 ●
70 VALVE; AIR DRYER
6HK1-TCN ENG(82L) AIR DRYER<PS7> (A) SOU 		1-48199-105-0 01 1 1006-1107 ●
70 VALVE; AIR DRYER
6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) SOU 		1-48199-105-0 01 1 1108- ●
70 VALVE; AIR DRYER
(B) SOU 		1-48199-504-0 01 1 1001-1011 ●
70 VALVE; AIR DRYER
4HK1-TCS ENG(RJS) (B) SOU 		1-48199-504-0 01 1 1012-1107 ●
70 VALVE; AIR DRYER
(B) SOU 		1-48199-504-0 01 1 1012-1107 ●
70 VALVE; AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) SOU 		1-48199-504-0 01 1 1108-1109 ●
70 VALVE; AIR DRYER
4HK1-TCS ENG(RJS) (B) SOU 		1-48199-504-0 01 1 1108-1109 ●
70 VALVE; AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) SOU 		1-48199-504-0 01 1 1108-1109 ●
70 VALVE; AIR DRYER
6HK1-TCN ENG(82L) (B) SOU 		1-48199-504-0 01 1 1108-1109 ●
70 VALVE; AIR DRYER
4HK1-TCS ENG(RJS) (B) SOU 		1-48199-504-0 01 1 1110- ●
70 VALVE; AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) SOU 		1-48199-504-0 01 1 1110- ●
70 VALVE; AIR DRYER
6HK1-TCN ENG(82L) (B) SOU 		1-48199-504-0 01 1 1110- ●
75 COVER; CASE,AIR DRYER
AIR DRYER<PS7> SOU 		1-48199-427-0 01 1 1001-1011 ●
75 COVER; CASE,AIR DRYER
SOU 		1-48199-427-0 01 1 1001-1011 ●
75 COVER; CASE,AIR DRYER
6HK1-TCN ENG(82L) AIR DRYER<PS7> SOU 		1-48199-427-0 01 1 1012-1107 ●
75 COVER; CASE,AIR DRYER
4HK1-TCS ENG(RJS) SOU 		1-48199-427-0 01 1 1012-1107 ●
75 COVER; CASE,AIR DRYER
SOU 		1-48199-427-0 01 1 1012-1107 ●
75 COVER; CASE,AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> SOU 		1-48199-427-0 01 1 1108-1109 ●
75 COVER; CASE,AIR DRYER
4HK1-TCS ENG(RJS) SOU 		1-48199-427-0 01 1 1108-1109 ●
75 COVER; CASE,AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> SOU 		1-48199-427-0 01 1 1108-1109 ●
75 COVER; CASE,AIR DRYER
6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> SOU 		1-48199-427-0 01 1 1108-1109 ●
75 COVER; CASE,AIR DRYER
6HK1-TCN ENG(82L) SOU 		1-48199-427-0 01 1 1108-1109 ●
75 COVER; CASE,AIR DRYER
4HK1-TCS ENG(RJS) SOU 		1-48199-427-0 01 1 1110- ●
75 COVER; CASE,AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> SOU 		1-48199-427-0 01 1 1110- ●
75 COVER; CASE,AIR DRYER
6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> SOU 		1-48199-427-0 01 1 1110- ●
75 COVER; CASE,AIR DRYER
6HK1-TCN ENG(82L) SOU 		1-48199-427-0 01 1 1110- ●
76 BOLT; COVER,AIR DRYER
SOU 		1-48199-412-0 04 1 1001-1011 ●
76 BOLT; COVER,AIR DRYER
4HK1-TCS ENG(RJS) SOU 		1-48199-412-0 04 1 1012-1107 ●
76 BOLT; COVER,AIR DRYER
SOU 		1-48199-412-0 04 1 1012-1107 ●
76 BOLT; COVER,AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> SOU 		1-48199-412-0 04 1 1108-1109 ●
76 BOLT; COVER,AIR DRYER
4HK1-TCS ENG(RJS) SOU 		1-48199-412-0 04 1 1108-1109 ●
76 BOLT; COVER,AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> SOU 		1-48199-412-0 04 1 1108-1109 ●
76 BOLT; COVER,AIR DRYER
6HK1-TCN ENG(82L) SOU 		1-48199-412-0 04 1 1108-1109 ●
76 BOLT; COVER,AIR DRYER
4HK1-TCS ENG(RJS) SOU 		1-48199-412-0 04 1 1110- ●
76 BOLT; COVER,AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> SOU 		1-48199-412-0 04 1 1110- ●
76 BOLT; COVER,AIR DRYER
6HK1-TCN ENG(82L) SOU 		1-48199-412-0 04 1 1110- ●
78 BOLT; OIL FILTER,AIR DRYER
SOU 		1-48199-417-0 04 1 1001-1011 ●
78 BOLT; OIL FILTER,AIR DRYER
4HK1-TCS ENG(RJS) SOU 		1-48199-417-0 04 1 1012-1107 ●
78 BOLT; OIL FILTER,AIR DRYER
SOU 		1-48199-417-0 04 1 1012-1107 ●
78 BOLT; OIL FILTER,AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> SOU 		1-48199-417-0 04 1 1108-1109 ●
78 BOLT; OIL FILTER,AIR DRYER
4HK1-TCS ENG(RJS) SOU 		1-48199-417-0 04 1 1108-1109 ●
78 BOLT; OIL FILTER,AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> SOU 		1-48199-417-0 04 1 1108-1109 ●
78 BOLT; OIL FILTER,AIR DRYER
6HK1-TCN ENG(82L) SOU 		1-48199-417-0 04 1 1108-1109 ●
78 BOLT; OIL FILTER,AIR DRYER
4HK1-TCS ENG(RJS) SOU 		1-48199-417-0 04 1 1110- ●
78 BOLT; OIL FILTER,AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> SOU 		1-48199-417-0 04 1 1110- ●
78 BOLT; OIL FILTER,AIR DRYER
6HK1-TCN ENG(82L) SOU 		1-48199-417-0 04 1 1110- ●
81 BOLT; CASE,AIR DRYER
AIR DRYER<PS7> SOU 		1-48199-436-0 06 1 1001-1011 ●
81 BOLT; CASE,AIR DRYER
SOU 		1-48199-436-0 06 1 1001-1011 ●
81 BOLT; CASE,AIR DRYER
6HK1-TCN ENG(82L) AIR DRYER<PS7> SOU 		1-48199-436-0 06 1 1012-1107 ●
81 BOLT; CASE,AIR DRYER
4HK1-TCS ENG(RJS) SOU 		1-48199-436-0 06 1 1012-1107 ●
81 BOLT; CASE,AIR DRYER
SOU 		1-48199-436-0 06 1 1012-1107 ●
81 BOLT; CASE,AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> SOU 		1-48199-436-0 06 1 1108-1109 ●
81 BOLT; CASE,AIR DRYER
4HK1-TCS ENG(RJS) SOU 		1-48199-436-0 06 1 1108-1109 ●
81 BOLT; CASE,AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> SOU 		1-48199-436-0 06 1 1108-1109 ●
81 BOLT; CASE,AIR DRYER
6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> SOU 		1-48199-436-0 06 1 1108-1109 ●
81 BOLT; CASE,AIR DRYER
6HK1-TCN ENG(82L) SOU 		1-48199-436-0 06 1 1108-1109 ●
81 BOLT; CASE,AIR DRYER
4HK1-TCS ENG(RJS) SOU 		1-48199-436-0 06 1 1110- ●
81 BOLT; CASE,AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> SOU 		1-48199-436-0 06 1 1110- ●
81 BOLT; CASE,AIR DRYER
6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> SOU 		1-48199-436-0 06 1 1110- ●
81 BOLT; CASE,AIR DRYER
6HK1-TCN ENG(82L) SOU 		1-48199-436-0 06 1 1110- ●
84 SPRING; AIR DRYER
AIR DRYER<PS7> (A) SOU 		1-48199-425-0 01 1 1001-1011 ●
84 SPRING; AIR DRYER
(A) SOU 		1-48199-425-0 01 1 1001-1011 ●
84 SPRING; AIR DRYER
6HK1-TCN ENG(82L) AIR DRYER<PS7> (A) SOU 		1-48199-425-0 01 1 1012-1107 ●
84 SPRING; AIR DRYER
4HK1-TCS ENG(RJS) (A) SOU 		1-48199-425-0 01 1 1012-1107 ●
84 SPRING; AIR DRYER
(A) SOU 		1-48199-425-0 01 1 1012-1107 ●
84 SPRING; AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) SOU 		1-48199-425-0 01 1 1108-1109 ●
84 SPRING; AIR DRYER
4HK1-TCS ENG(RJS) (A) SOU 		1-48199-425-0 01 1 1108-1109 ●
84 SPRING; AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) SOU 		1-48199-425-0 01 1 1108-1109 ●
84 SPRING; AIR DRYER
6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) SOU 		1-48199-425-0 01 1 1108-1109 ●
84 SPRING; AIR DRYER
6HK1-TCN ENG(82L) (A) SOU 		1-48199-425-0 01 1 1108-1109 ●
84 SPRING; AIR DRYER
4HK1-TCS ENG(RJS) (A) SOU 		1-48199-425-0 01 1 1110- ●
84 SPRING; AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) SOU 		1-48199-425-0 01 1 1110- ●
84 SPRING; AIR DRYER
6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) SOU 		1-48199-425-0 01 1 1110- ●
84 SPRING; AIR DRYER
6HK1-TCN ENG(82L) (A) SOU 		1-48199-425-0 01 1 1110- ●
84 SPRING; AIR DRYER
(B) SOU 		1-48199-523-0 01 1 1001-1011 ●
84 SPRING; AIR DRYER
4HK1-TCS ENG(RJS) (B) SOU 		1-48199-523-0 01 1 1012-1107 ●
84 SPRING; AIR DRYER
(B) SOU 		1-48199-523-0 01 1 1012-1107 ●
84 SPRING; AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) SOU 		1-48199-523-0 01 1 1108-1109 ●
84 SPRING; AIR DRYER
4HK1-TCS ENG(RJS) (B) SOU 		1-48199-523-0 01 1 1108-1109 ●
84 SPRING; AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) SOU 		1-48199-523-0 01 1 1108-1109 ●
84 SPRING; AIR DRYER
6HK1-TCN ENG(82L) (B) SOU 		1-48199-523-0 01 1 1108-1109 ●
84 SPRING; AIR DRYER
4HK1-TCS ENG(RJS) (B) SOU 		1-48199-523-0 01 1 1110- ●
84 SPRING; AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) SOU 		1-48199-523-0 01 1 1110- ●
84 SPRING; AIR DRYER
6HK1-TCN ENG(82L) (B) SOU 		1-48199-523-0 01 1 1110- ●
93 SILENCER; AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) 		1-48199-581-0 01 1 1108-1109 ●
93 SILENCER; AIR DRYER
(A) SOU 		1-48199-619-0 01 1 1001-1011 ●
93 SILENCER; AIR DRYER
4HK1-TCS ENG(RJS) (A) SOU 		1-48199-619-0 01 1 1012-1107 ●
93 SILENCER; AIR DRYER
(A) SOU 		1-48199-619-0 01 1 1012-1107 ●
93 SILENCER; AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) SOU 		1-48199-619-0 01 1 1108-1109 ●
93 SILENCER; AIR DRYER
4HK1-TCS ENG(RJS) (A) SOU 		1-48199-619-0 01 1 1108-1109 ●
93 SILENCER; AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) SOU 		1-48199-619-0 01 1 1108-1109 ●
93 SILENCER; AIR DRYER
6HK1-TCN ENG(82L) (A) SOU 		1-48199-619-0 01 1 1108-1109 ●
93 SILENCER; AIR DRYER
4HK1-TCS ENG(RJS) (A) SOU 		1-48199-619-0 01 1 1110- ●
93 SILENCER; AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) SOU 		1-48199-619-0 01 1 1110- ●
93 SILENCER; AIR DRYER
6HK1-TCN ENG(82L) (A) SOU 		1-48199-619-0 01 1 1110- ●
104 GASKET
(A) SOU 		1-48199-495-0 01 1 1001-1011 ●
104 GASKET
4HK1-TCS ENG(RJS) (A) SOU 		1-48199-495-0 01 1 1012-1107 ●
104 GASKET
(A) SOU 		1-48199-495-0 01 1 1012-1107 ●
104 GASKET
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) SOU 		1-48199-495-0 01 1 1108-1109 ●
104 GASKET
4HK1-TCS ENG(RJS) (A) SOU 		1-48199-495-0 01 1 1108-1109 ●
104 GASKET
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) SOU 		1-48199-495-0 01 1 1108-1109 ●
104 GASKET
6HK1-TCN ENG(82L) (A) SOU 		1-48199-495-0 01 1 1108-1109 ●
104 GASKET
4HK1-TCS ENG(RJS) (A) SOU 		1-48199-495-0 01 1 1110-1211 ●
104 GASKET
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) SOU 		1-48199-495-0 01 1 1110-1211 ●
104 GASKET
6HK1-TCN ENG(82L) (A) SOU 		1-48199-495-0 01 1 1110-1211 ●
104 GASKET
4HK1-TCS ENG(RJS) (A) SOU 		8-98226-321-0 01 1 1212- ●
104 GASKET
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) SOU 		8-98226-321-0 01 1 1212- ●
104 GASKET
6HK1-TCN ENG(82L) (A) SOU 		8-98226-321-0 01 1 1212- ●
104 GASKET
(B) SOU 		1-48199-496-0 02 1 1001-1011 ●
104 GASKET
4HK1-TCS ENG(RJS) (B) SOU 		1-48199-496-0 02 1 1012-1107 ●
104 GASKET
(B) SOU 		1-48199-496-0 02 1 1012-1107 ●
104 GASKET
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) SOU 		1-48199-496-0 02 1 1108-1109 ●
104 GASKET
4HK1-TCS ENG(RJS) (B) SOU 		1-48199-496-0 02 1 1108-1109 ●
104 GASKET
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) SOU 		1-48199-496-0 02 1 1108-1109 ●
104 GASKET
6HK1-TCN ENG(82L) (B) SOU 		1-48199-496-0 02 1 1108-1109 ●
104 GASKET
4HK1-TCS ENG(RJS) (B) SOU 		1-48199-496-0 02 1 1110- ●
104 GASKET
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) SOU 		1-48199-496-0 02 1 1110- ●
104 GASKET
6HK1-TCN ENG(82L) (B) SOU 		1-48199-496-0 02 1 1110- ●
109 STOPPER; CHECK VALVE
SOU 		1-48199-539-0 01 1 1001-1011 ●
109 STOPPER; CHECK VALVE
4HK1-TCS ENG(RJS) SOU 		1-48199-539-0 01 1 1012-1107 ●
109 STOPPER; CHECK VALVE
SOU 		1-48199-539-0 01 1 1012-1107 ●
109 STOPPER; CHECK VALVE
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> SOU 		1-48199-539-0 01 1 1108-1109 ●
109 STOPPER; CHECK VALVE
4HK1-TCS ENG(RJS) SOU 		1-48199-539-0 01 1 1108-1109 ●
109 STOPPER; CHECK VALVE
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> SOU 		1-48199-539-0 01 1 1108-1109 ●
109 STOPPER; CHECK VALVE
6HK1-TCN ENG(82L) SOU 		1-48199-539-0 01 1 1108-1109 ●
109 STOPPER; CHECK VALVE
4HK1-TCS ENG(RJS) SOU 		1-48199-539-0 01 1 1110- ●
109 STOPPER; CHECK VALVE
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> SOU 		1-48199-539-0 01 1 1110- ●
109 STOPPER; CHECK VALVE
6HK1-TCN ENG(82L) SOU 		1-48199-539-0 01 1 1110- ●
110 NUT; CAP
SOU 		1-48199-527-0 01 1 1001-1011 ●
110 NUT; CAP
4HK1-TCS ENG(RJS) SOU 		1-48199-527-0 01 1 1012-1107 ●
110 NUT; CAP
SOU 		1-48199-527-0 01 1 1012-1107 ●
110 NUT; CAP
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> SOU 		1-48199-527-0 01 1 1108-1109 ●
110 NUT; CAP
4HK1-TCS ENG(RJS) SOU 		1-48199-527-0 01 1 1108-1109 ●
110 NUT; CAP
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> SOU 		1-48199-527-0 01 1 1108-1109 ●
110 NUT; CAP
6HK1-TCN ENG(82L) SOU 		1-48199-527-0 01 1 1108-1109 ●
110 NUT; CAP
4HK1-TCS ENG(RJS) SOU 		1-48199-527-0 01 1 1110- ●
110 NUT; CAP
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> SOU 		1-48199-527-0 01 1 1110- ●
110 NUT; CAP
6HK1-TCN ENG(82L) SOU 		1-48199-527-0 01 1 1110- ●
111 PLATE; GOVERNOR
SOU 		1-48199-526-0 01 1 1001-1011 ●
111 PLATE; GOVERNOR
4HK1-TCS ENG(RJS) SOU 		1-48199-526-0 01 1 1012-1107 ●
111 PLATE; GOVERNOR
SOU 		1-48199-526-0 01 1 1012-1107 ●
111 PLATE; GOVERNOR
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> SOU 		1-48199-526-0 01 1 1108-1109 ●
111 PLATE; GOVERNOR
4HK1-TCS ENG(RJS) SOU 		1-48199-526-0 01 1 1108-1109 ●
111 PLATE; GOVERNOR
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> SOU 		1-48199-526-0 01 1 1108-1109 ●
111 PLATE; GOVERNOR
6HK1-TCN ENG(82L) SOU 		1-48199-526-0 01 1 1108-1109 ●
111 PLATE; GOVERNOR
4HK1-TCS ENG(RJS) SOU 		1-48199-526-0 01 1 1110- ●
111 PLATE; GOVERNOR
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> SOU 		1-48199-526-0 01 1 1110- ●
111 PLATE; GOVERNOR
6HK1-TCN ENG(82L) SOU 		1-48199-526-0 01 1 1110- ●
112 SCREW & SPRING ASM; AIR DRYER
SOU 		1-48199-524-0 01 1 1001-1011 ●
112 SCREW & SPRING ASM; AIR DRYER
4HK1-TCS ENG(RJS) SOU 		1-48199-524-0 01 1 1012-1107 ●
112 SCREW & SPRING ASM; AIR DRYER
SOU 		1-48199-524-0 01 1 1012-1107 ●
112 SCREW & SPRING ASM; AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> SOU 		1-48199-524-0 01 1 1108-1109 ●
112 SCREW & SPRING ASM; AIR DRYER
4HK1-TCS ENG(RJS) SOU 		1-48199-524-0 01 1 1108-1109 ●
112 SCREW & SPRING ASM; AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> SOU 		1-48199-524-0 01 1 1108-1109 ●
112 SCREW & SPRING ASM; AIR DRYER
6HK1-TCN ENG(82L) SOU 		1-48199-524-0 01 1 1108-1109 ●
112 SCREW & SPRING ASM; AIR DRYER
4HK1-TCS ENG(RJS) SOU 		1-48199-524-0 01 1 1110- ●
112 SCREW & SPRING ASM; AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> SOU 		1-48199-524-0 01 1 1110- ●
112 SCREW & SPRING ASM; AIR DRYER
6HK1-TCN ENG(82L) SOU 		1-48199-524-0 01 1 1110- ●
113 STEM; EXHAUST
SOU 		1-48199-522-0 01 1 1001-1011 ●
113 STEM; EXHAUST
4HK1-TCS ENG(RJS) SOU 		1-48199-522-0 01 1 1012-1107 ●
113 STEM; EXHAUST
SOU 		1-48199-522-0 01 1 1012-1107 ●
113 STEM; EXHAUST
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> SOU 		1-48199-522-0 01 1 1108-1109 ●
113 STEM; EXHAUST
4HK1-TCS ENG(RJS) SOU 		1-48199-522-0 01 1 1108-1109 ●
113 STEM; EXHAUST
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> SOU 		1-48199-522-0 01 1 1108-1109 ●
113 STEM; EXHAUST
6HK1-TCN ENG(82L) SOU 		1-48199-522-0 01 1 1108-1109 ●
113 STEM; EXHAUST
4HK1-TCS ENG(RJS) SOU 		1-48199-522-0 01 1 1110- ●
113 STEM; EXHAUST
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> SOU 		1-48199-522-0 01 1 1110- ●
113 STEM; EXHAUST
6HK1-TCN ENG(82L) SOU 		1-48199-522-0 01 1 1110- ●
114 PISTON ASM; GOVERNOR
SOU 		1-48199-521-0 01 1 1001-1011 ●
114 PISTON ASM; GOVERNOR
4HK1-TCS ENG(RJS) SOU 		1-48199-521-0 01 1 1012-1107 ●
114 PISTON ASM; GOVERNOR
SOU 		1-48199-521-0 01 1 1012-1107 ●
114 PISTON ASM; GOVERNOR
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> SOU 		1-48199-521-0 01 1 1108-1109 ●
114 PISTON ASM; GOVERNOR
4HK1-TCS ENG(RJS) SOU 		1-48199-521-0 01 1 1108-1109 ●
114 PISTON ASM; GOVERNOR
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> SOU 		1-48199-521-0 01 1 1108-1109 ●
114 PISTON ASM; GOVERNOR
6HK1-TCN ENG(82L) SOU 		1-48199-521-0 01 1 1108-1109 ●
114 PISTON ASM; GOVERNOR
4HK1-TCS ENG(RJS) SOU 		1-48199-521-0 01 1 1110- ●
114 PISTON ASM; GOVERNOR
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> SOU 		1-48199-521-0 01 1 1110- ●
114 PISTON ASM; GOVERNOR
6HK1-TCN ENG(82L) SOU 		1-48199-521-0 01 1 1110- ●
çizim 162732
3 2 104 104 104 70 4 65 104 70 104 68 104
BalonParca AdiParca NoAdetTipApplied Date A B
2 REPAIR KIT; AIR DRYER
AIR DRYER<PS7> (A) SOU 		1-85576-217-0 01 1 1001-1005 ●
2 REPAIR KIT; AIR DRYER
6HK1-TCN ENG(82L) AIR DRYER<PS7> (A) SOU 		1-85576-217-0 01 1 1006-1107 ●
2 REPAIR KIT; AIR DRYER
6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) SOU 		1-85576-217-0 01 1 1108- ●
2 REPAIR KIT; AIR DRYER
(B) SOU 		1-85576-457-0 01 1 1001-1011 ●
2 REPAIR KIT; AIR DRYER
4HK1-TCS ENG(RJS) (B) SOU 		1-85576-457-0 01 1 1012-1107 ●
2 REPAIR KIT; AIR DRYER
(B) SOU 		1-85576-457-0 01 1 1012-1107 ●
2 REPAIR KIT; AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) SOU 		1-85576-457-0 01 1 1108-1109 ●
2 REPAIR KIT; AIR DRYER
4HK1-TCS ENG(RJS) (B) SOU 		1-85576-457-0 01 1 1108-1109 ●
2 REPAIR KIT; AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) SOU 		1-85576-457-0 01 1 1108-1109 ●
2 REPAIR KIT; AIR DRYER
6HK1-TCN ENG(82L) (B) SOU 		1-85576-457-0 01 1 1108-1109 ●
2 REPAIR KIT; AIR DRYER
4HK1-TCS ENG(RJS) (B) SOU 		1-85576-457-0 01 1 1110-1211 ●
2 REPAIR KIT; AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) SOU 		1-85576-457-0 01 1 1110-1211 ●
2 REPAIR KIT; AIR DRYER
6HK1-TCN ENG(82L) (B) SOU 		1-85576-457-0 01 1 1110-1211 ●
2 REPAIR KIT; AIR DRYER
4HK1-TCS ENG(RJS) (B) SOU 		8-98226-323-0 01 1 1212- ●
2 REPAIR KIT; AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) SOU 		8-98226-323-0 01 1 1212- ●
2 REPAIR KIT; AIR DRYER
6HK1-TCN ENG(82L) (B) SOU 		8-98226-323-0 01 1 1212- ●
3 PISTON KIT; AIR DRYER
AIR DRYER<PS7> (A) SOU 		1-85576-193-0 01 1 1001-1005 ●
3 PISTON KIT; AIR DRYER
6HK1-TCN ENG(82L) AIR DRYER<PS7> (A) SOU 		1-85576-193-0 01 1 1006-1107 ●
3 PISTON KIT; AIR DRYER
6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) SOU 		1-85576-193-0 01 1 1108- ●
3 PISTON KIT; AIR DRYER
(B) SOU 		1-85576-383-0 01 1 1001-1011 ●
3 PISTON KIT; AIR DRYER
4HK1-TCS ENG(RJS) (B) SOU 		1-85576-383-0 01 1 1012-1107 ●
3 PISTON KIT; AIR DRYER
(B) SOU 		1-85576-383-0 01 1 1012-1107 ●
3 PISTON KIT; AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) SOU 		1-85576-383-0 01 1 1108-1109 ●
3 PISTON KIT; AIR DRYER
4HK1-TCS ENG(RJS) (B) SOU 		1-85576-383-0 01 1 1108-1109 ●
3 PISTON KIT; AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) SOU 		1-85576-383-0 01 1 1108-1109 ●
3 PISTON KIT; AIR DRYER
6HK1-TCN ENG(82L) (B) SOU 		1-85576-383-0 01 1 1108-1109 ●
3 PISTON KIT; AIR DRYER
4HK1-TCS ENG(RJS) (B) SOU 		1-85576-383-0 01 1 1110-1211 ●
3 PISTON KIT; AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) SOU 		1-85576-383-0 01 1 1110-1211 ●
3 PISTON KIT; AIR DRYER
6HK1-TCN ENG(82L) (B) SOU 		1-85576-383-0 01 1 1110-1211 ●
3 PISTON KIT; AIR DRYER
4HK1-TCS ENG(RJS) (B) SOU 		8-98226-322-0 01 1 1212- ●
3 PISTON KIT; AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) SOU 		8-98226-322-0 01 1 1212- ●
3 PISTON KIT; AIR DRYER
6HK1-TCN ENG(82L) (B) SOU 		8-98226-322-0 01 1 1212- ●
4 THERMOSTAT KIT; AIR DRYER
AIR DRYER<PS7> (A) SOU 		1-85576-218-0 01 1 1001-1005 ●
4 THERMOSTAT KIT; AIR DRYER
6HK1-TCN ENG(82L) AIR DRYER<PS7> (A) SOU 		1-85576-218-0 01 1 1006-1107 ●
4 THERMOSTAT KIT; AIR DRYER
6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) SOU 		1-85576-218-0 01 1 1108- ●
4 THERMOSTAT KIT; AIR DRYER
(B) SOU 		1-85576-443-0 01 1 1001-1011 ●
4 THERMOSTAT KIT; AIR DRYER
4HK1-TCS ENG(RJS) (B) SOU 		1-85576-443-0 01 1 1012-1107 ●
4 THERMOSTAT KIT; AIR DRYER
(B) SOU 		1-85576-443-0 01 1 1012-1107 ●
4 THERMOSTAT KIT; AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) SOU 		1-85576-443-0 01 1 1108-1109 ●
4 THERMOSTAT KIT; AIR DRYER
4HK1-TCS ENG(RJS) (B) SOU 		1-85576-443-0 01 1 1108-1109 ●
4 THERMOSTAT KIT; AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) SOU 		1-85576-443-0 01 1 1108-1109 ●
4 THERMOSTAT KIT; AIR DRYER
6HK1-TCN ENG(82L) (B) SOU 		1-85576-443-0 01 1 1108-1109 ●
4 THERMOSTAT KIT; AIR DRYER
4HK1-TCS ENG(RJS) (B) SOU 		1-85576-443-0 01 1 1110- ●
4 THERMOSTAT KIT; AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) SOU 		1-85576-443-0 01 1 1110- ●
4 THERMOSTAT KIT; AIR DRYER
6HK1-TCN ENG(82L) (B) SOU 		1-85576-443-0 01 1 1110- ●
65 BOLT; PURGE VLV
AIR DRYER<PS7> (A) SOU 		1-48199-393-0 01 1 1001-1005 ●
65 BOLT; PURGE VLV
6HK1-TCN ENG(82L) AIR DRYER<PS7> (A) SOU 		1-48199-393-0 01 1 1006-1107 ●
65 BOLT; PURGE VLV
6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) SOU 		1-48199-393-0 01 1 1108- ●
65 BOLT; PURGE VLV
(B) SOU 		1-48199-517-0 01 1 1001-1011 ●
65 BOLT; PURGE VLV
4HK1-TCS ENG(RJS) (B) SOU 		1-48199-517-0 01 1 1012-1107 ●
65 BOLT; PURGE VLV
(B) SOU 		1-48199-517-0 01 1 1012-1107 ●
65 BOLT; PURGE VLV
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) SOU 		1-48199-517-0 01 1 1108-1109 ●
65 BOLT; PURGE VLV
4HK1-TCS ENG(RJS) (B) SOU 		1-48199-517-0 01 1 1108-1109 ●
65 BOLT; PURGE VLV
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) SOU 		1-48199-517-0 01 1 1108-1109 ●
65 BOLT; PURGE VLV
6HK1-TCN ENG(82L) (B) SOU 		1-48199-517-0 01 1 1108-1109 ●
65 BOLT; PURGE VLV
4HK1-TCS ENG(RJS) (B) SOU 		1-48199-517-0 01 1 1110- ●
65 BOLT; PURGE VLV
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) SOU 		1-48199-517-0 01 1 1110- ●
65 BOLT; PURGE VLV
6HK1-TCN ENG(82L) (B) SOU 		1-48199-517-0 01 1 1110- ●
68 BODY; VALVE
AIR DRYER<PS7> (A) SOU 		1-48199-408-0 01 1 1001-1005 ●
68 BODY; VALVE
6HK1-TCN ENG(82L) AIR DRYER<PS7> (A) SOU 		1-48199-408-0 01 1 1006-1107 ●
68 BODY; VALVE
6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) SOU 		1-48199-408-0 01 1 1108- ●
68 BODY; VALVE
(B) SOU 		1-48199-515-0 01 1 1001-1011 ●
68 BODY; VALVE
4HK1-TCS ENG(RJS) (B) SOU 		1-48199-515-0 01 1 1012-1107 ●
68 BODY; VALVE
(B) SOU 		1-48199-515-0 01 1 1012-1107 ●
68 BODY; VALVE
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) SOU 		1-48199-515-0 01 1 1108-1109 ●
68 BODY; VALVE
4HK1-TCS ENG(RJS) (B) SOU 		1-48199-515-0 01 1 1108-1109 ●
68 BODY; VALVE
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) SOU 		1-48199-515-0 01 1 1108-1109 ●
68 BODY; VALVE
6HK1-TCN ENG(82L) (B) SOU 		1-48199-515-0 01 1 1108-1109 ●
68 BODY; VALVE
4HK1-TCS ENG(RJS) (B) SOU 		1-48199-515-0 01 1 1110- ●
68 BODY; VALVE
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) SOU 		1-48199-515-0 01 1 1110- ●
68 BODY; VALVE
6HK1-TCN ENG(82L) (B) SOU 		1-48199-515-0 01 1 1110- ●
70 VALVE; AIR DRYER
AIR DRYER<PS7> (A) SOU 		1-48199-105-0 01 1 1001-1005 ●
70 VALVE; AIR DRYER
6HK1-TCN ENG(82L) AIR DRYER<PS7> (A) SOU 		1-48199-105-0 01 1 1006-1107 ●
70 VALVE; AIR DRYER
6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) SOU 		1-48199-105-0 01 1 1108- ●
70 VALVE; AIR DRYER
(B) SOU 		1-48199-504-0 01 1 1001-1011 ●
70 VALVE; AIR DRYER
4HK1-TCS ENG(RJS) (B) SOU 		1-48199-504-0 01 1 1012-1107 ●
70 VALVE; AIR DRYER
(B) SOU 		1-48199-504-0 01 1 1012-1107 ●
70 VALVE; AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) SOU 		1-48199-504-0 01 1 1108-1109 ●
70 VALVE; AIR DRYER
4HK1-TCS ENG(RJS) (B) SOU 		1-48199-504-0 01 1 1108-1109 ●
70 VALVE; AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) SOU 		1-48199-504-0 01 1 1108-1109 ●
70 VALVE; AIR DRYER
6HK1-TCN ENG(82L) (B) SOU 		1-48199-504-0 01 1 1108-1109 ●
70 VALVE; AIR DRYER
4HK1-TCS ENG(RJS) (B) SOU 		1-48199-504-0 01 1 1110- ●
70 VALVE; AIR DRYER
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) SOU 		1-48199-504-0 01 1 1110- ●
70 VALVE; AIR DRYER
6HK1-TCN ENG(82L) (B) SOU 		1-48199-504-0 01 1 1110- ●
104 GASKET
(A) SOU 		1-48199-495-0 01 1 1001-1011 ●
104 GASKET
4HK1-TCS ENG(RJS) (A) SOU 		1-48199-495-0 01 1 1012-1107 ●
104 GASKET
(A) SOU 		1-48199-495-0 01 1 1012-1107 ●
104 GASKET
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) SOU 		1-48199-495-0 01 1 1108-1109 ●
104 GASKET
4HK1-TCS ENG(RJS) (A) SOU 		1-48199-495-0 01 1 1108-1109 ●
104 GASKET
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) SOU 		1-48199-495-0 01 1 1108-1109 ●
104 GASKET
6HK1-TCN ENG(82L) (A) SOU 		1-48199-495-0 01 1 1108-1109 ●
104 GASKET
4HK1-TCS ENG(RJS) (A) SOU 		1-48199-495-0 01 1 1110-1211 ●
104 GASKET
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) SOU 		1-48199-495-0 01 1 1110-1211 ●
104 GASKET
6HK1-TCN ENG(82L) (A) SOU 		1-48199-495-0 01 1 1110-1211 ●
104 GASKET
4HK1-TCS ENG(RJS) (A) SOU 		8-98226-321-0 01 1 1212- ●
104 GASKET
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) SOU 		8-98226-321-0 01 1 1212- ●
104 GASKET
6HK1-TCN ENG(82L) (A) SOU 		8-98226-321-0 01 1 1212- ●
104 GASKET
(B) SOU 		1-48199-496-0 02 1 1001-1011 ●
104 GASKET
4HK1-TCS ENG(RJS) (B) SOU 		1-48199-496-0 02 1 1012-1107 ●
104 GASKET
(B) SOU 		1-48199-496-0 02 1 1012-1107 ●
104 GASKET
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) SOU 		1-48199-496-0 02 1 1108-1109 ●
104 GASKET
4HK1-TCS ENG(RJS) (B) SOU 		1-48199-496-0 02 1 1108-1109 ●
104 GASKET
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) SOU 		1-48199-496-0 02 1 1108-1109 ●
104 GASKET
6HK1-TCN ENG(82L) (B) SOU 		1-48199-496-0 02 1 1108-1109 ●
104 GASKET
4HK1-TCS ENG(RJS) (B) SOU 		1-48199-496-0 02 1 1110- ●
104 GASKET
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) SOU 		1-48199-496-0 02 1 1110- ●
104 GASKET
6HK1-TCN ENG(82L) (B) SOU 		1-48199-496-0 02 1 1110- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
