3-22 — AIR CONTROL PARTS (#55551) — 140 parça

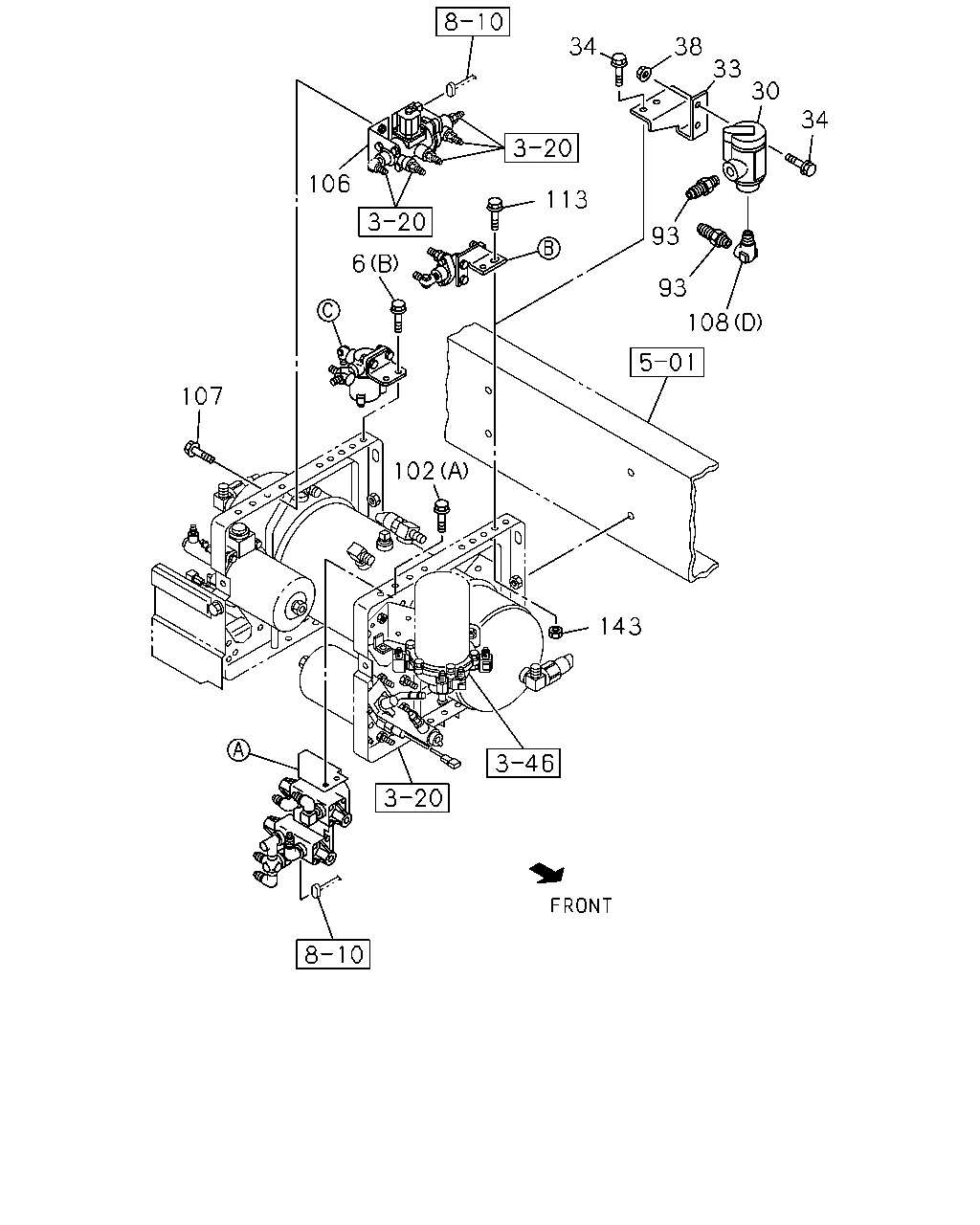

34 38 33 30 34 106 113 93 6 93 108 107 102 143

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	BOLT; VLV THROTTLE CONTROL SYSTEM(6XH) (A) M8X16 FLANGE SOU	0-28050-816-0	02	1	1001-	●
6	BOLT; VLV THROTTLE CONTROL SYSTEM(6XH) (B) M8X25 FLANGE SOU	0-28650-825-0	02	1	1001-	●
30	GOVERNOR; AIR CONT	1-48350-093-2	01	1	1001-1011	●
30	GOVERNOR; AIR CONT 6HK1-TCN ENG(82L)	1-48350-093-2	01	1	1012-1107	●
30	GOVERNOR; AIR CONT 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T>	1-48350-093-2	01	1	1108-	●
33	BRACKET; GOV,AIR CONT	8-98133-401-0	01	1	1001-1011	●
33	BRACKET; GOV,AIR CONT 6HK1-TCN ENG(82L)	8-98133-401-0	01	1	1012-1107	●
33	BRACKET; GOV,AIR CONT 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T>	8-98133-401-0	01	1	1108-	●
34	BOLT; BRKT,GOV M8X25 FLANGE SOU	0-28650-825-0	02	1	1001-1005	●
34	BOLT; BRKT,GOV M8X25 FLANGE SOU	0-28650-825-0	02	1	1001-1005	●
34	BOLT; BRKT,GOV M8X25 FLANGE SOU	0-28650-825-0	02	1	1006-1011	●	●
34	BOLT; BRKT,GOV 6HK1-TCN ENG(82L) M8X25 FLANGE SOU	0-28650-825-0	02	1	1012-1107	●
34	BOLT; BRKT,GOV M8X25 FLANGE SOU	0-28650-825-0	02	1	1012-1107	●
34	BOLT; BRKT,GOV 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> M8X25 FLANGE SOU	0-28650-825-0	02	1	1108-	●
34	BOLT; BRKT,GOV 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> M8X25 FLANGE SOU	0-28650-825-0	02	1	1108-	●
38	NUT; BRKT,GOV M8 FLANGE SOU	0-91180-108-0	02	1	1001-1011	●
38	NUT; BRKT,GOV 6HK1-TCN ENG(82L) M8 FLANGE SOU	0-91180-108-0	02	1	1012-1107	●
38	NUT; BRKT,GOV 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> M8 FLANGE SOU	0-91180-108-0	02	1	1108-	●
93	CONNECTOR; GOV M12 & PT1/4 STRAIGHT SOU	1-09650-074-1	02	1	1001-1011	●
93	CONNECTOR; GOV 6HK1-TCN ENG(82L) M12 & PT1/4 STRAIGHT SOU	1-09650-074-1	02	1	1012-1107	●
93	CONNECTOR; GOV 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> M12 & PT1/4 STRAIGHT SOU	1-09650-074-1	02	1	1108-	●
102	BOLT; PROTECTION VALVE (B) M8X16 FLANGE SOU	0-28050-816-0	02	1	1001-	●	●
102	BOLT; PROTECTION VALVE (A) M8X20 FLANGE	0-28650-820-0	02	1	1001-	●	●
106	VALVE; HSA H.S.A SYSTEM<6EP>	1-46362-123-1	01	1	1001-	●	●
107	BOLT; VLV H.S.A SYSTEM<6EP> M8X20 FLANGE	0-28650-820-0	03	1	1001-	●	●
108	CONNECTOR; ELBOW 4HK1-TCS ENG(RJS) (E) DIN9 & RC3/8 & M20 3WAY SOU	8-98031-239-0	01	1	1012-1311	●
108	CONNECTOR; ELBOW 4HK1-TCS ENG(RJS) H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) (F)	8-98035-011-0	01	1	1012-1311	●
108	CONNECTOR; ELBOW 4HK1-TCS ENG(RJS) THROTTLE CONTROL SYSTEM(6XH) (F)	8-98035-011-0	01	1	1012-1311	●
108	CONNECTOR; ELBOW 4HK1-TCS ENG(RJS) EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (G) DIN6 & PT1/4 & M12 3WAY SOU	1-09656-698-0	01	1	1012-1311	●
108	CONNECTOR; ELBOW (D) PT1/4 & PT1/4 2WAY SOU	1-09660-693-0	01	1	1001-1011	●
108	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) (D) PT1/4 & PT1/4 2WAY SOU	1-09660-693-0	01	1	1012-1107	●
108	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (D) PT1/4 & PT1/4 2WAY SOU	1-09660-693-0	01	1	1108-	●
108	CONNECTOR; ELBOW H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) (C) M12 & PT1/4 ELBOW SOU	1-09650-430-0	01	1	1001-1011	●
108	CONNECTOR; ELBOW H.S.A SYSTEM<6EP> (C) M12 & PT1/4 ELBOW SOU	1-09650-430-0	01	1	1001-1011		●
108	CONNECTOR; ELBOW H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) (C) M12 & PT1/4 ELBOW SOU	1-09650-430-0	01	1	1012-1311	●
108	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) H.S.A SYSTEM<6EP> (C) M12 & PT1/4 ELBOW SOU	1-09650-430-0	01	1	1012-1311		●
108	CONNECTOR; ELBOW H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) (C) M12 & PT1/4 ELBOW SOU	1-09650-430-0	01	1	1312-	●
108	CONNECTOR; ELBOW H.S.A SYSTEM<6EP> (C) M12 & PT1/4 ELBOW SOU	1-09650-430-0	01	1	1312-		●
108	CONNECTOR; ELBOW THROTTLE CONTROL SYSTEM(6XH) (B) M16 & PT1/4 ELBOW SOU	0-92134-310-0	02	1	1001-	●
108	CONNECTOR; ELBOW (B) M16 & PT1/4 ELBOW SOU	0-92134-310-0	01	1	1001-1011	●	●
108	CONNECTOR; ELBOW THROTTLE CONTROL SYSTEM(6XH) (B) M16 & PT1/4 ELBOW SOU	0-92134-310-0	01	1	1012-1311	●
108	CONNECTOR; ELBOW EXC. THROTTLE CONTROL SYSTEM(6XH) (B) M16 & PT1/4 ELBOW SOU	0-92134-310-0	01	1	1012-1311	●
108	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) (B) M16 & PT1/4 ELBOW SOU	0-92134-310-0	01	1	1012-1311		●
108	CONNECTOR; ELBOW (B) M16 & PT1/4 ELBOW SOU	0-92134-310-0	01	1	1312-	●	●
108	CONNECTOR; ELBOW (A) M16 & PT3/8 ELBOW SOU	1-09650-438-0	02	1	1001-	●	●
113	BOLT; VLV THROTTLE CONTROL SYSTEM(6XH) M8X20 FLANGE	0-28650-820-0	02	1	1001-	●
143	NUT; VLV THROTTLE CONTROL SYSTEM(6XH) M8 FLANGE SOU	0-91180-108-0	02	1	1001-	●

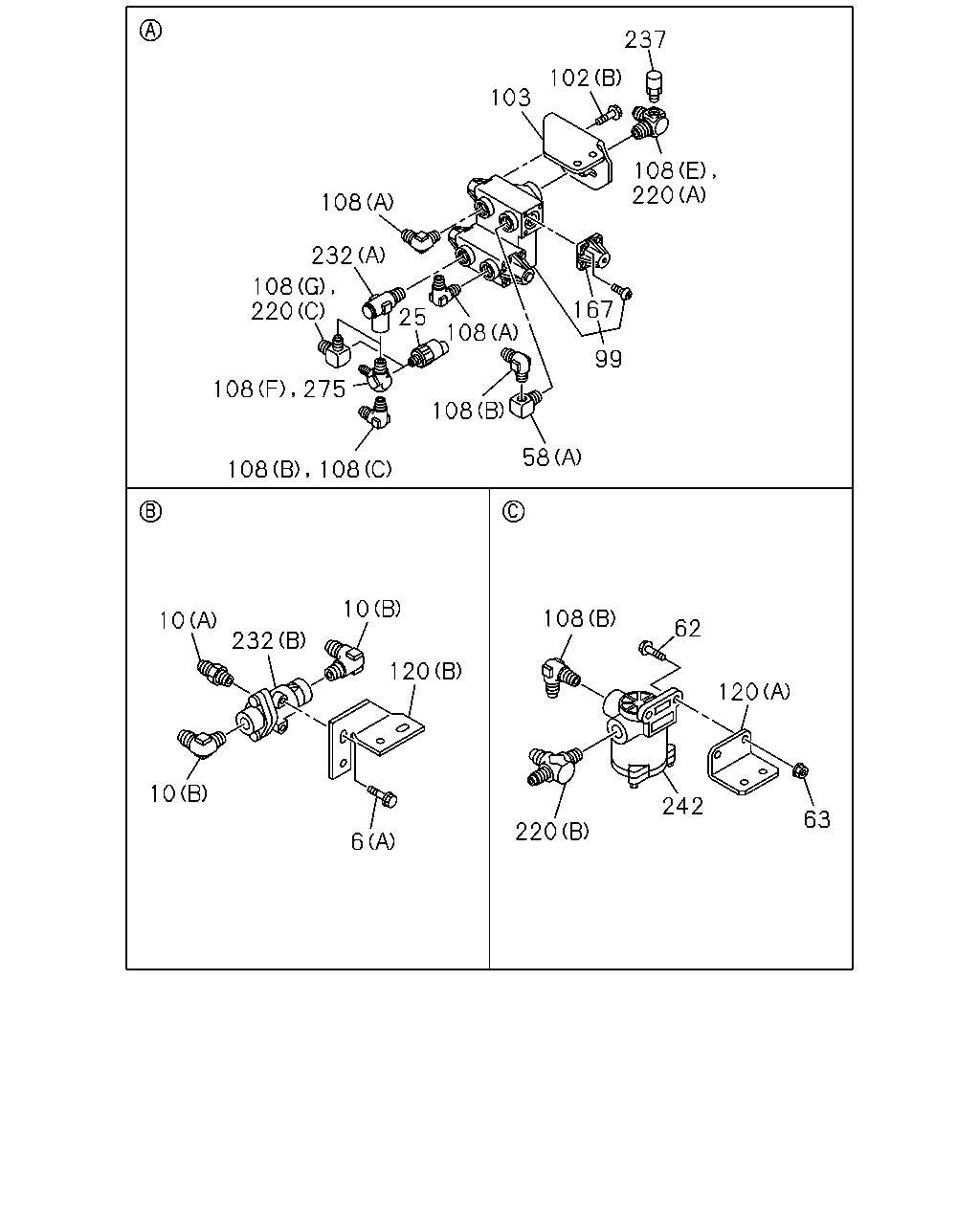

237 102 103 108 220 167 99 58 108 108 25 232 108 108 220 108 275 108 108 10 232 10 120 6 10 108 62 120 63 242 220

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	BOLT; VLV THROTTLE CONTROL SYSTEM(6XH) (A) M8X16 FLANGE SOU	0-28050-816-0	02	1	1001-	●
6	BOLT; VLV THROTTLE CONTROL SYSTEM(6XH) (B) M8X25 FLANGE SOU	0-28650-825-0	02	1	1001-	●
10	CONNECTOR THROTTLE CONTROL SYSTEM(6XH) (A) M16 & PT3/8 STRAIGHT SOU	1-09650-179-1	01	1	1001-	●
10	CONNECTOR THROTTLE CONTROL SYSTEM(6XH) (B) M16 & PT3/8 ELBOW SOU	1-09650-438-0	02	1	1001-	●
25	SWITCH; PRESSURE STAMP 5.5 SOU	8-97609-249-0	01	1	1001-	●	●
58	ADAPTER (A) PT1/4 & PT3/8 2WAY SOU	1-09660-809-0	01	1	1001-	●	●
58	ADAPTER (B) DIN7 & DIN9 ADAPTOR	1-09661-815-0	02	1	1001-	●	●
62	BOLT; BRKT FIX THROTTLE CONTROL SYSTEM(6XH) M8X30 FLANGE	0-28650-830-0	02	1	1001-	●
63	NUT; BRKT FIX THROTTLE CONTROL SYSTEM(6XH) M8 FLANGE SOU	0-91180-108-0	02	1	1001-	●
99	VALVE; PROTECTION SOU	1-48110-290-3	01	1	1001-	●	●
102	BOLT; PROTECTION VALVE (B) M8X16 FLANGE SOU	0-28050-816-0	02	1	1001-	●	●
102	BOLT; PROTECTION VALVE (A) M8X20 FLANGE	0-28650-820-0	02	1	1001-	●	●
103	BRACKET; PROTECTION VALVE 4HK1-TCS ENG(RJS)	8-98162-113-1	01	1	1012-1311	●
103	BRACKET; PROTECTION VALVE SOU	8-98221-293-0	01	1	1312-	●	●
103	BRACKET; PROTECTION VALVE SOU	8-98034-985-1	01	1	1001-1011	●	●
103	BRACKET; PROTECTION VALVE 6HK1-TCN ENG(82L) SOU	8-98034-985-1	01	1	1012-1311	●	●
108	CONNECTOR; ELBOW 4HK1-TCS ENG(RJS) (E) DIN9 & RC3/8 & M20 3WAY SOU	8-98031-239-0	01	1	1012-1311	●
108	CONNECTOR; ELBOW 4HK1-TCS ENG(RJS) H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) (F)	8-98035-011-0	01	1	1012-1311	●
108	CONNECTOR; ELBOW 4HK1-TCS ENG(RJS) THROTTLE CONTROL SYSTEM(6XH) (F)	8-98035-011-0	01	1	1012-1311	●
108	CONNECTOR; ELBOW 4HK1-TCS ENG(RJS) EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (G) DIN6 & PT1/4 & M12 3WAY SOU	1-09656-698-0	01	1	1012-1311	●
108	CONNECTOR; ELBOW (D) PT1/4 & PT1/4 2WAY SOU	1-09660-693-0	01	1	1001-1011	●
108	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) (D) PT1/4 & PT1/4 2WAY SOU	1-09660-693-0	01	1	1012-1107	●
108	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (D) PT1/4 & PT1/4 2WAY SOU	1-09660-693-0	01	1	1108-	●
108	CONNECTOR; ELBOW H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) (C) M12 & PT1/4 ELBOW SOU	1-09650-430-0	01	1	1001-1011	●
108	CONNECTOR; ELBOW H.S.A SYSTEM<6EP> (C) M12 & PT1/4 ELBOW SOU	1-09650-430-0	01	1	1001-1011		●
108	CONNECTOR; ELBOW H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) (C) M12 & PT1/4 ELBOW SOU	1-09650-430-0	01	1	1012-1311	●
108	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) H.S.A SYSTEM<6EP> (C) M12 & PT1/4 ELBOW SOU	1-09650-430-0	01	1	1012-1311		●
108	CONNECTOR; ELBOW H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) (C) M12 & PT1/4 ELBOW SOU	1-09650-430-0	01	1	1312-	●
108	CONNECTOR; ELBOW H.S.A SYSTEM<6EP> (C) M12 & PT1/4 ELBOW SOU	1-09650-430-0	01	1	1312-		●
108	CONNECTOR; ELBOW THROTTLE CONTROL SYSTEM(6XH) (B) M16 & PT1/4 ELBOW SOU	0-92134-310-0	02	1	1001-	●
108	CONNECTOR; ELBOW (B) M16 & PT1/4 ELBOW SOU	0-92134-310-0	01	1	1001-1011	●	●
108	CONNECTOR; ELBOW THROTTLE CONTROL SYSTEM(6XH) (B) M16 & PT1/4 ELBOW SOU	0-92134-310-0	01	1	1012-1311	●
108	CONNECTOR; ELBOW EXC. THROTTLE CONTROL SYSTEM(6XH) (B) M16 & PT1/4 ELBOW SOU	0-92134-310-0	01	1	1012-1311	●
108	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) (B) M16 & PT1/4 ELBOW SOU	0-92134-310-0	01	1	1012-1311		●
108	CONNECTOR; ELBOW (B) M16 & PT1/4 ELBOW SOU	0-92134-310-0	01	1	1312-	●	●
108	CONNECTOR; ELBOW (A) M16 & PT3/8 ELBOW SOU	1-09650-438-0	02	1	1001-	●	●
120	BRACKET; VLV THROTTLE CONTROL SYSTEM(6XH) (A)	1-48316-012-0	01	1	1001-	●
120	BRACKET; VLV THROTTLE CONTROL SYSTEM(6XH) (B)	8-98050-131-0	01	1	1001-	●
167	COVER; VALVE SOU	1-48119-625-0	04	1	1001-	●	●
220	CONNECTOR; 3WAY EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (C) DIN6 & PT1/4 & M12 3WAY SOU	1-09656-698-0	01	1	1001-1011	●
220	CONNECTOR; 3WAY EXC. H.S.A SYSTEM<6EP> (C) DIN6 & PT1/4 & M12 3WAY SOU	1-09656-698-0	01	1	1001-1011		●
220	CONNECTOR; 3WAY 6HK1-TCN ENG(82L) EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (C) DIN6 & PT1/4 & M12 3WAY SOU	1-09656-698-0	01	1	1012-1311	●
220	CONNECTOR; 3WAY 6HK1-TCN ENG(82L) EXC. H.S.A SYSTEM<6EP> (C) DIN6 & PT1/4 & M12 3WAY SOU	1-09656-698-0	01	1	1012-1311		●
220	CONNECTOR; 3WAY EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (C) DIN6 & PT1/4 & M12 3WAY SOU	1-09656-698-0	01	1	1312-	●
220	CONNECTOR; 3WAY EXC. H.S.A SYSTEM<6EP> (C) DIN6 & PT1/4 & M12 3WAY SOU	1-09656-698-0	01	1	1312-		●
220	CONNECTOR; 3WAY THROTTLE CONTROL SYSTEM(6XH) (B) PT1/4 & M12 & M16 3WAY SOU	1-09656-331-1	01	1	1001-	●
220	CONNECTOR; 3WAY (A) DIN9 & RC3/8 & M20 3WAY SOU	8-98031-239-0	01	1	1001-1011	●	●
220	CONNECTOR; 3WAY 6HK1-TCN ENG(82L) (A) DIN9 & RC3/8 & M20 3WAY SOU	8-98031-239-0	01	1	1012-1311	●	●
220	CONNECTOR; 3WAY (A) DIN9 & RC3/8 & M20 3WAY SOU	8-98031-239-0	01	1	1312-	●	●
232	VALVE; CHECK THROTTLE CONTROL SYSTEM(6XH) (B)	1-48410-531-1	01	1	1001-	●
232	VALVE; CHECK (A) DIN18 & R3/8 & RC3/8 3WAY SOU	8-98032-527-0	01	1	1001-	●	●
237	VALVE; SAFETY	1-48320-012-2	01	1	1001-	●	●
242	VALVE; REGULATION THROTTLE CONTROL SYSTEM(6XH)	1-48410-723-0	01	1	1001-	●
275	CONNECTOR; 4WAY H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH)	8-98035-011-0	01	1	1001-1011	●
275	CONNECTOR; 4WAY THROTTLE CONTROL SYSTEM(6XH)	8-98035-011-0	01	1	1001-1011	●
275	CONNECTOR; 4WAY H.S.A SYSTEM<6EP>	8-98035-011-0	01	1	1001-1011		●
275	CONNECTOR; 4WAY 6HK1-TCN ENG(82L) H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH)	8-98035-011-0	01	1	1012-1311	●
275	CONNECTOR; 4WAY 6HK1-TCN ENG(82L) THROTTLE CONTROL SYSTEM(6XH)	8-98035-011-0	01	1	1012-1311	●
275	CONNECTOR; 4WAY 6HK1-TCN ENG(82L) H.S.A SYSTEM<6EP>	8-98035-011-0	01	1	1012-1311		●
275	CONNECTOR; 4WAY H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH)	8-98035-011-0	01	1	1312-	●
275	CONNECTOR; 4WAY THROTTLE CONTROL SYSTEM(6XH)	8-98035-011-0	01	1	1312-	●
275	CONNECTOR; 4WAY H.S.A SYSTEM<6EP>	8-98035-011-0	01	1	1312-		●

259

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	259	REPAIR KIT; VALVE THROTTLE CONTROL SYSTEM(6XH) W/GREASE	1-85576-381-0	01	1	1001-	●

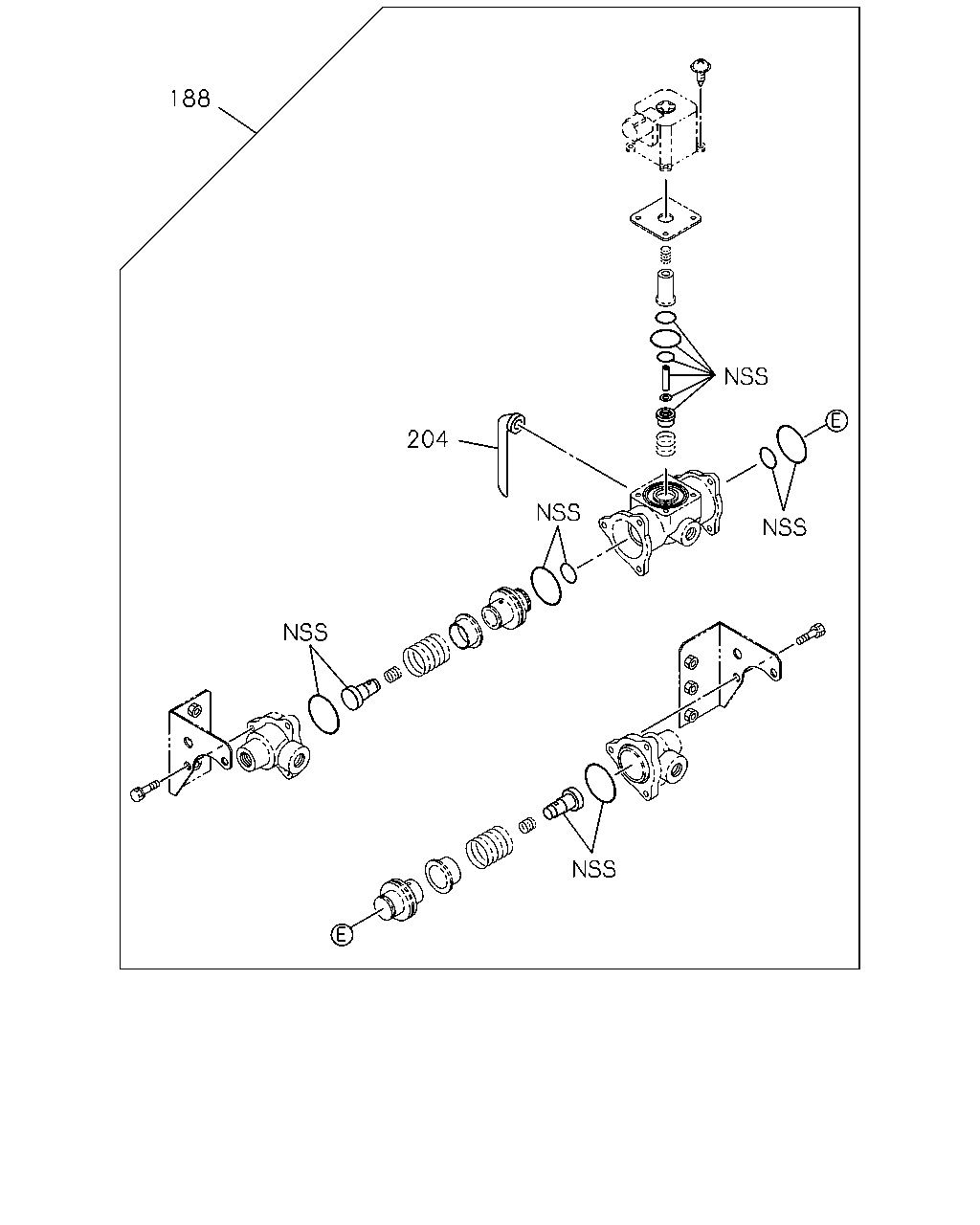

188 204

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	188	REPAIR KIT; HSA VLV H.S.A SYSTEM<6EP>	1-85576-304-1	01	1	1001-	●	●
	204	PIPE ASM; HSA VLV H.S.A SYSTEM<6EP>	1-46366-194-0	01	1	1001-	●	●

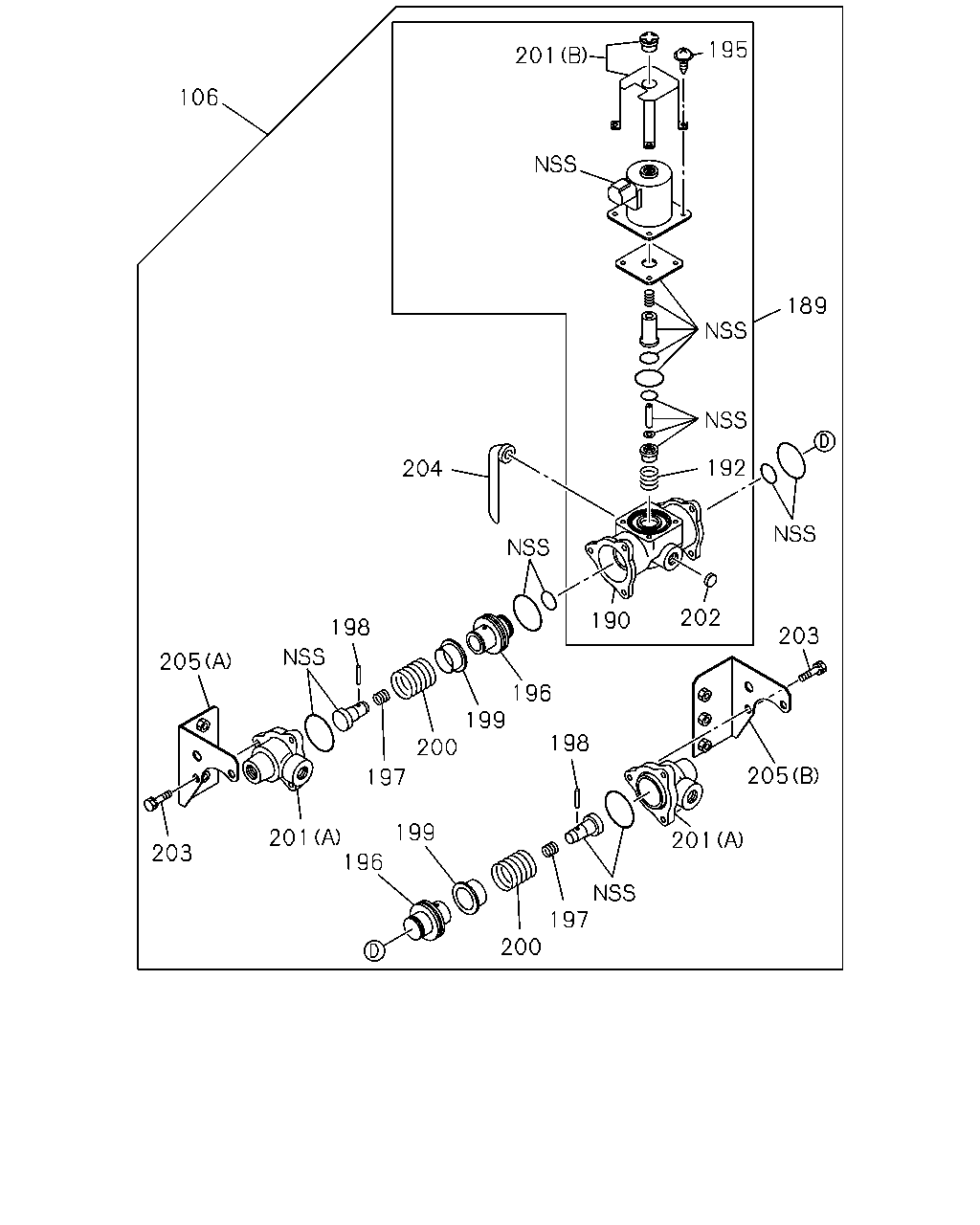

195 201 106 189 192 204 202 190 198 203 205 196 199 200 198 205 197 201 199 201 196 203 197 200

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
106	VALVE; HSA H.S.A SYSTEM<6EP>	1-46362-123-1	01	1	1001-	●	●
189	VALVE ASM; SOLENOID,HSA VLV H.S.A SYSTEM<6EP>	1-46366-247-0	01	1	1001-	●	●
190	BODY; SOLENOID VLV,HSA VLV H.S.A SYSTEM<6EP>	1-46366-234-0	01	1	1001-	●	●
192	SPRING; SOLENOID VLV,HSA VLV H.S.A SYSTEM<6EP>	1-46366-181-0	01	1	1001-	●	●
195	SCREW; SOLENOID VLV,HSA VLV H.S.A SYSTEM<6EP>	1-46366-191-0	04	1	1001-	●	●
196	PISTON; HSA VLV H.S.A SYSTEM<6EP>	1-46366-232-0	02	1	1001-	●	●
197	SPRING; INNER,HSA VLV H.S.A SYSTEM<6EP>	1-46366-161-0	02	1	1001-	●	●
198	PIN; STRAIGHT,HSA VLV H.S.A SYSTEM<6EP>	1-46366-122-0	02	1	1001-	●	●
199	RETAINER; HSA VLV H.S.A SYSTEM<6EP>	1-46366-121-0	02	1	1001-	●	●
200	SPRING; OUTER,HSA VLV H.S.A SYSTEM<6EP>	1-46366-120-0	02	1	1001-	●	●
201	COVER; HSA VLV H.S.A SYSTEM<6EP> (A)	1-46366-118-1	02	1	1001-	●	●
201	COVER; HSA VLV H.S.A SYSTEM<6EP> (B)	1-46366-241-0	01	1	1001-	●	●
202	FILTER; HSA VLV H.S.A SYSTEM<6EP>	1-46366-117-1	02	1	1001-	●	●
203	SCREW; HSA VLV H.S.A SYSTEM<6EP>	1-46366-116-1	06	1	1001-	●	●
204	PIPE ASM; HSA VLV H.S.A SYSTEM<6EP>	1-46366-194-0	01	1	1001-	●	●
205	BRACKET; HSA VLV H.S.A SYSTEM<6EP> (A)	1-46366-149-0	01	1	1001-	●	●
205	BRACKET; HSA VLV H.S.A SYSTEM<6EP> (B)	1-46366-150-0	01	1	1001-	●	●

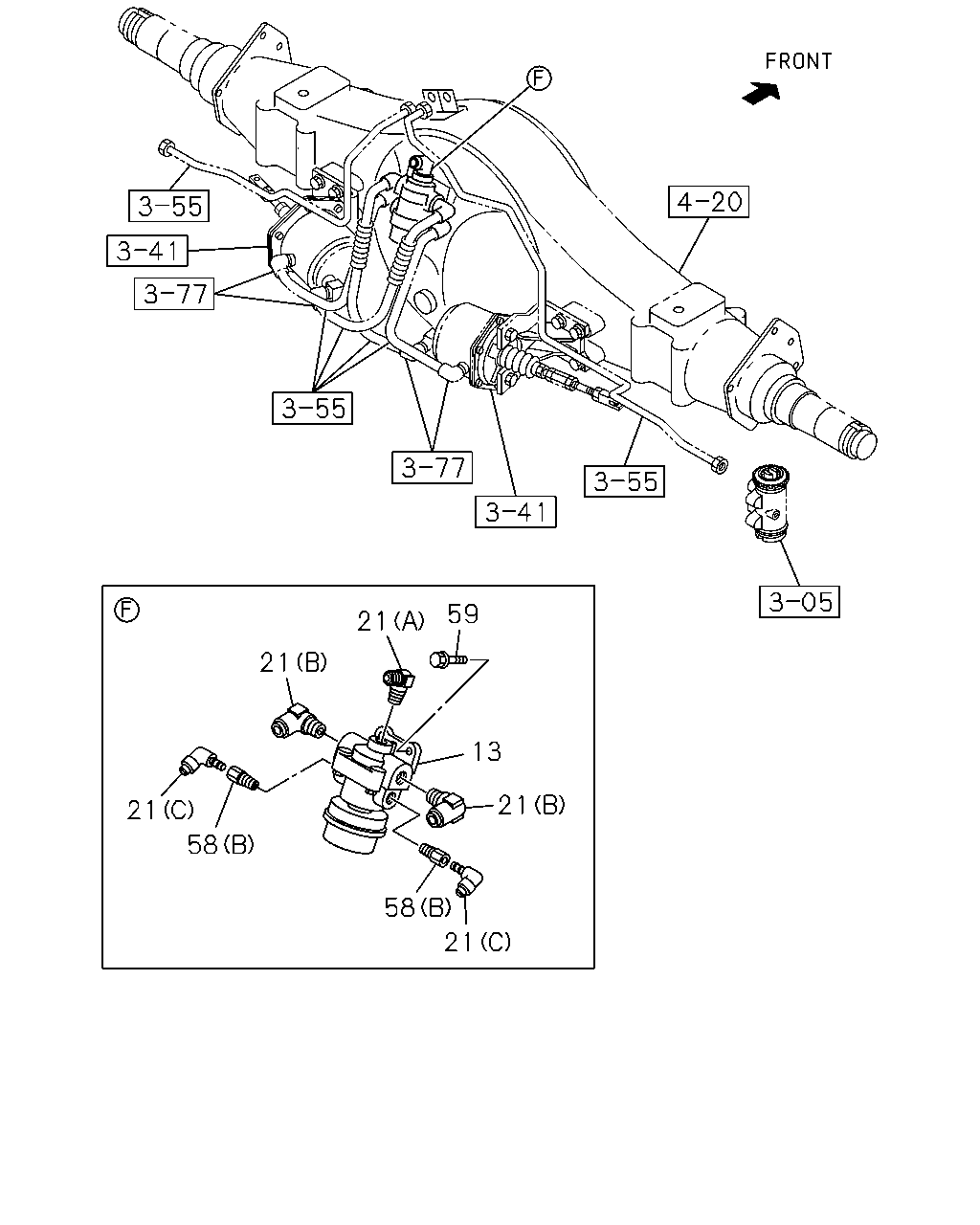

59 21 21 13 21 21 58 58 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	VALVE ASM; QUICK RELEASE	1-48410-783-0	01	1	1001-	●	●
21	CONNECTOR; QUICK RELEASE VLV (A) M16 & PT3/8 ELBOW SOU	1-09650-438-0	01	1	1001-	●	●
21	CONNECTOR; QUICK RELEASE VLV (B) DIN12 & R3/8 ELBOW SOU	1-09660-959-0	02	1	1001-	●	●
21	CONNECTOR; QUICK RELEASE VLV (C) DIN4 & DIN6 SWIVEL CONNECTOR	1-09661-816-0	02	1	1001-	●	●
58	ADAPTER (A) PT1/4 & PT3/8 2WAY SOU	1-09660-809-0	01	1	1001-	●	●
58	ADAPTER (B) DIN7 & DIN9 ADAPTOR	1-09661-815-0	02	1	1001-	●	●
59	BOLT; RELEASE VALVE FIX M8X20 FLANGE	0-28050-820-0	02	1	1001-	●	●

240

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
240	REPAIR KIT; AIR CONT GOV	1-85576-467-0	01	1	1001-1011	●
240	REPAIR KIT; AIR CONT GOV 6HK1-TCN ENG(82L)	1-85576-467-0	01	1	1012-1107	●
240	REPAIR KIT; AIR CONT GOV 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T>	1-85576-467-0	01	1	1108-	●

241

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	241	REPAIR KIT; PROTECTION VALVE SOU	1-85576-451-2	01	1	1001-	●	●
