3-20 — AIR TANK (#55550) — 191 parça

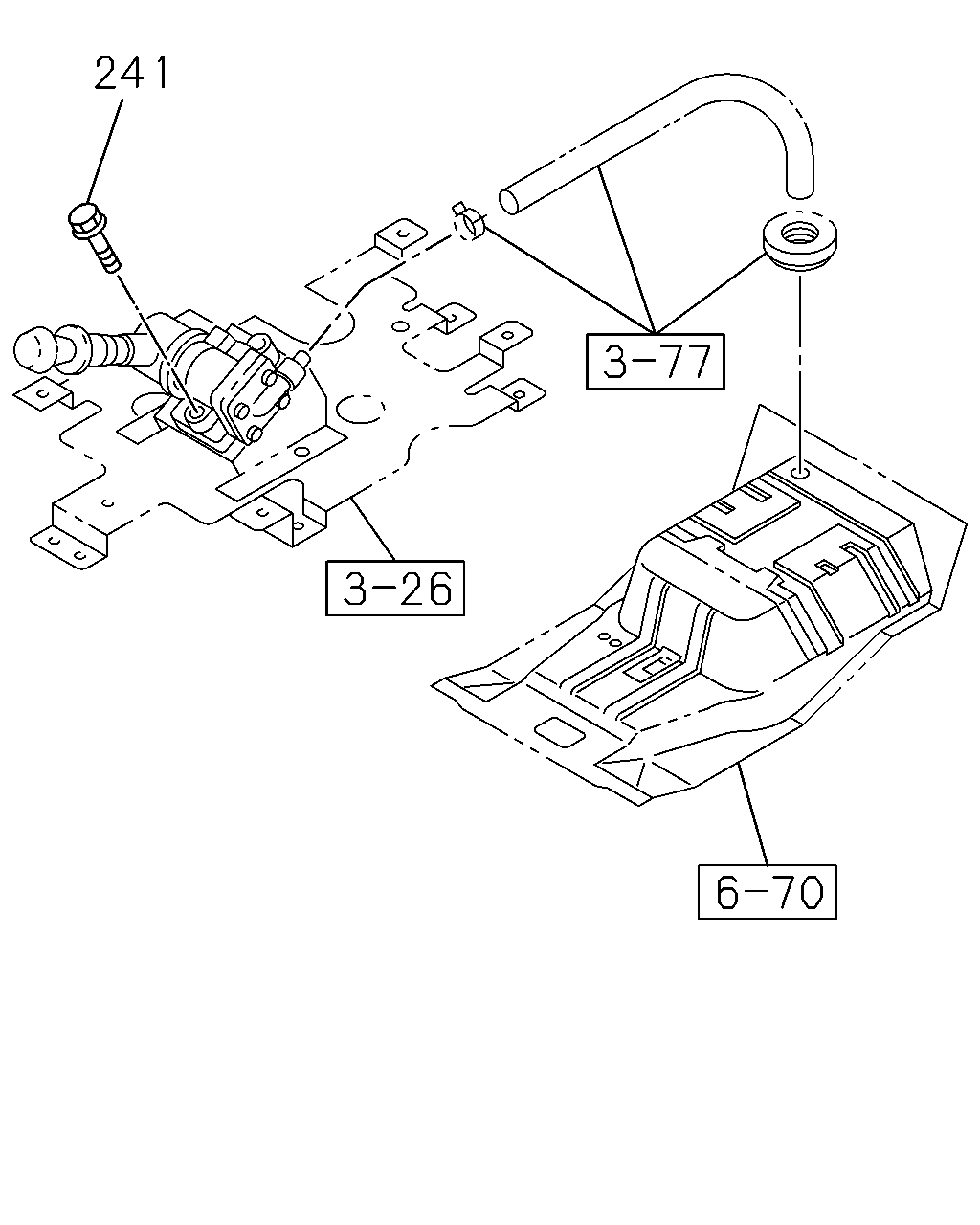

241

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	241	BOLT; SET,CONT VLV M8X70 FLANGE SOU	0-28050-870-0	02	1	1001-	●	●

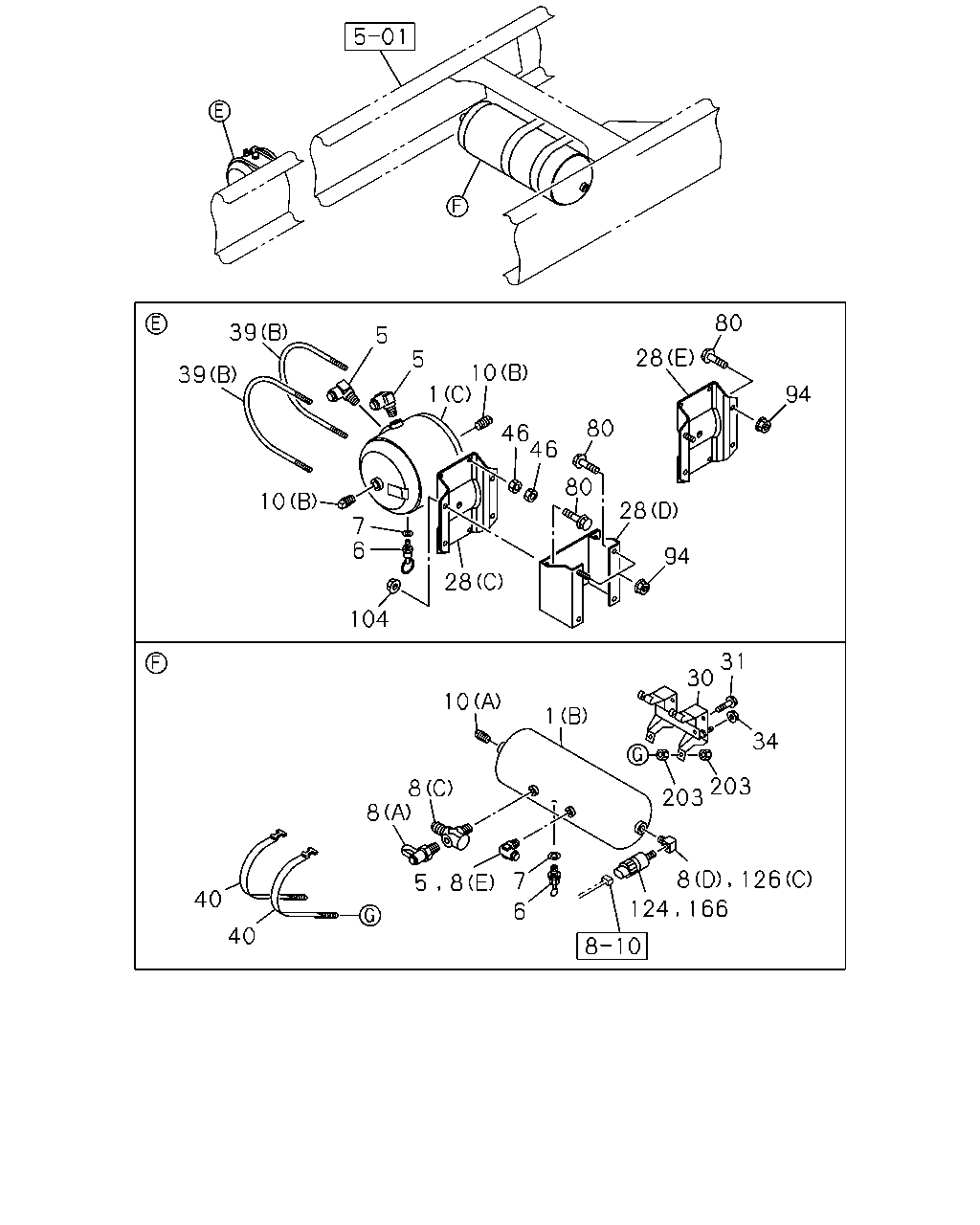

5 80 39 5 28 5 10 1 39 94 80 46 46 80 10 28 7 6 94 28 104 31 30 10 1 34 203 203 8 8 8 126 7 5 8 40 124 166 6 40 8 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; AIR (B)	1-48370-659-0	01	1	1001-1101	●	●
1	TANK ASM; AIR (B)	8-98166-972-0	01	1	1102-	●	●
1	TANK ASM; AIR (A)	8-98018-785-3	01	1	1001-	●	●
1	TANK ASM; AIR (C) SOU	8-98081-870-1	01	1	1001-	●	●
5	UNION; AIR TANK DIN8 & R3/8 ELBOW SOU	1-09660-957-0	02	1	1001-	●	●
5	UNION; AIR TANK DIN8 & R3/8 ELBOW SOU	1-09660-957-0	01	1	1001-1101	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1001-	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1001-	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	03	1	1001-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1001-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1001-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	03	1	1001-	●	●
8	CONNECTOR; AIR TANK (D) PT1/4 & PT3/8 2WAY SOU	1-09660-809-0	01	1	1102-	●	●
8	CONNECTOR; AIR TANK (E) DIN8 & R3/8 ELBOW SOU	1-09660-957-0	01	1	1102-	●	●
8	CONNECTOR; AIR TANK (B) DIN8X2 & PT1/4 3WAY	1-09656-759-0	01	1	1001-	●
8	CONNECTOR; AIR TANK (A) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	02	1	1001-	●
8	CONNECTOR; AIR TANK (C) DIN1/8 & M16X2 3WAY	1-09656-462-1	01	1	1001-	●	●
8	CONNECTOR; AIR TANK (A) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	1001-	●	●
10	PLUG; AIR TANK 4HK1-TCS ENG(RJS) (B) PT3/8	9-09204-517-0	01	1	1012-1101	●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	01	1	1102-1107	●	●
10	PLUG; AIR TANK 4HK1-TCS ENG(RJS) (B) PT3/8	9-09204-517-0	01	1	1102-1107	●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	01	1	1108-	●	●
10	PLUG; AIR TANK 4HK1-TCS ENG(RJS) (B) PT3/8	9-09204-517-0	01	1	1108-	●
10	PLUG; AIR TANK 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) PT3/8	9-09204-517-0	01	1	1108-	●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	02	1	1001-	●	●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	02	1	1001-		●
10	PLUG; AIR TANK (A) PT3/4 SOU	9-09204-526-0	01	1	1001-1101	●	●
28	BRACKET; AIR TANK WHEEL BASE 3700MM(37W) (C) SOU	8-98092-756-1	01	1	1001-	●
28	BRACKET; AIR TANK WHEEL BASE 3700MM(37W) (D) SOU	8-98137-035-0	01	1	1001-	●
28	BRACKET; AIR TANK WHEEL BASE 5100MM(51W) (E) SOU	8-98100-165-3	01	1	1001-	●
28	BRACKET; AIR TANK (E) SOU	8-98100-165-3	01	1	1001-		●
28	BRACKET; AIR TANK (A) SOU	8-98021-918-5	01	1	1001-	●	●
28	BRACKET; AIR TANK (B) SOU	8-98044-509-5	01	1	1001-	●	●
30	BRACKET; AIR TANK,SUB	1-48317-894-1	01	1	1001-	●	●
31	BOLT; BRKT TO FRAME M10X30 FLANGE SOU	0-28651-030-0	02	1	1001-	●	●
34	NUT; BRKT,AIR TANK M10 FLANGE SOU	0-91180-210-0	02	1	1001-	●	●
39	U-BOLT; AIR TANK (A)	8-98022-041-0	02	1	1001-	●
39	U-BOLT; AIR TANK (B) L=210	1-48317-458-1	02	1	1001-	●	●
40	BAND ASM; AIR TANK	1-48317-893-1	02	1	1001-	●	●
46	NUT; U-BOLT M8 SOU	0-91110-508-0	08	1	1001-	●	●
46	NUT; U-BOLT M8 SOU	0-91110-508-0	08	1	1001-	●
80	BOLT; BRKT WHEEL BASE 3700MM(37W) M10X30 FLANGE SOU	0-28651-030-0	04	1	1001-	●
80	BOLT; BRKT M10X30 FLANGE SOU	0-28651-030-0	03	1	1001-	●	●
94	NUT; BRKT FIX M10 FLANGE SOU	0-91180-210-0	04	1	1001-	●	●
94	NUT; BRKT FIX M8 FLANGE SOU	0-91180-108-0	04	1	1001-		●
104	NUT; BRKT WHEEL BASE 3700MM(37W) M10 FLANGE SOU	0-91180-210-0	04	1	1001-1003	●
104	NUT; BRKT WHEEL BASE 3700MM(37W) M10 SOU	0-91110-510-0	04	1	1004-	●
124	SWITCH; AIR PRESSURE STAMP 5.5 SOU	8-97609-249-0	01	1	1102-	●	●
126	CONNECTOR; ELBOW (B) M12 & PT1/4 ELBOW SOU	1-09650-430-0	01	1	1001-1107	●
126	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (B) M12 & PT1/4 ELBOW SOU	1-09650-430-0	01	1	1108-	●
126	CONNECTOR; ELBOW (A) M16 & PT3/8 ELBOW SOU	1-09650-438-0	02	1	1001-	●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY SOU	1-09660-809-0	01	1	1001-1101	●	●
126	CONNECTOR; ELBOW (E) PT3/8X3 3WAY	1-09656-722-0	01	1	1001-		●
126	CONNECTOR; ELBOW (F) PT1/4 & PT1/4 2WAY SOU	1-09660-693-0	01	1	1001-		●
126	CONNECTOR; ELBOW (G) PT1/4 & PT3/8 2WAY SOU	1-09660-809-0	02	1	1001-		●
126	CONNECTOR; ELBOW (D) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	02	1	1001-		●
126	CONNECTOR; ELBOW (I) M16X2 & R3/8 & RC1/4 4WAY ELBOW	8-98061-136-0	01	1	1001-		●
126	CONNECTOR; ELBOW (B) M20 & PT3/4 ELBOW	8-98067-083-1	01	1	1001-		●
126	CONNECTOR; ELBOW (H) M16X2 & PT3/8 3WAY	8-98098-590-0	01	1	1001-		●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK STAMP 5.5 SOU	8-97609-249-0	01	1	1001-1101	●	●
203	NUT M8 SOU	0-91110-508-0	04	1	1001-	●	●

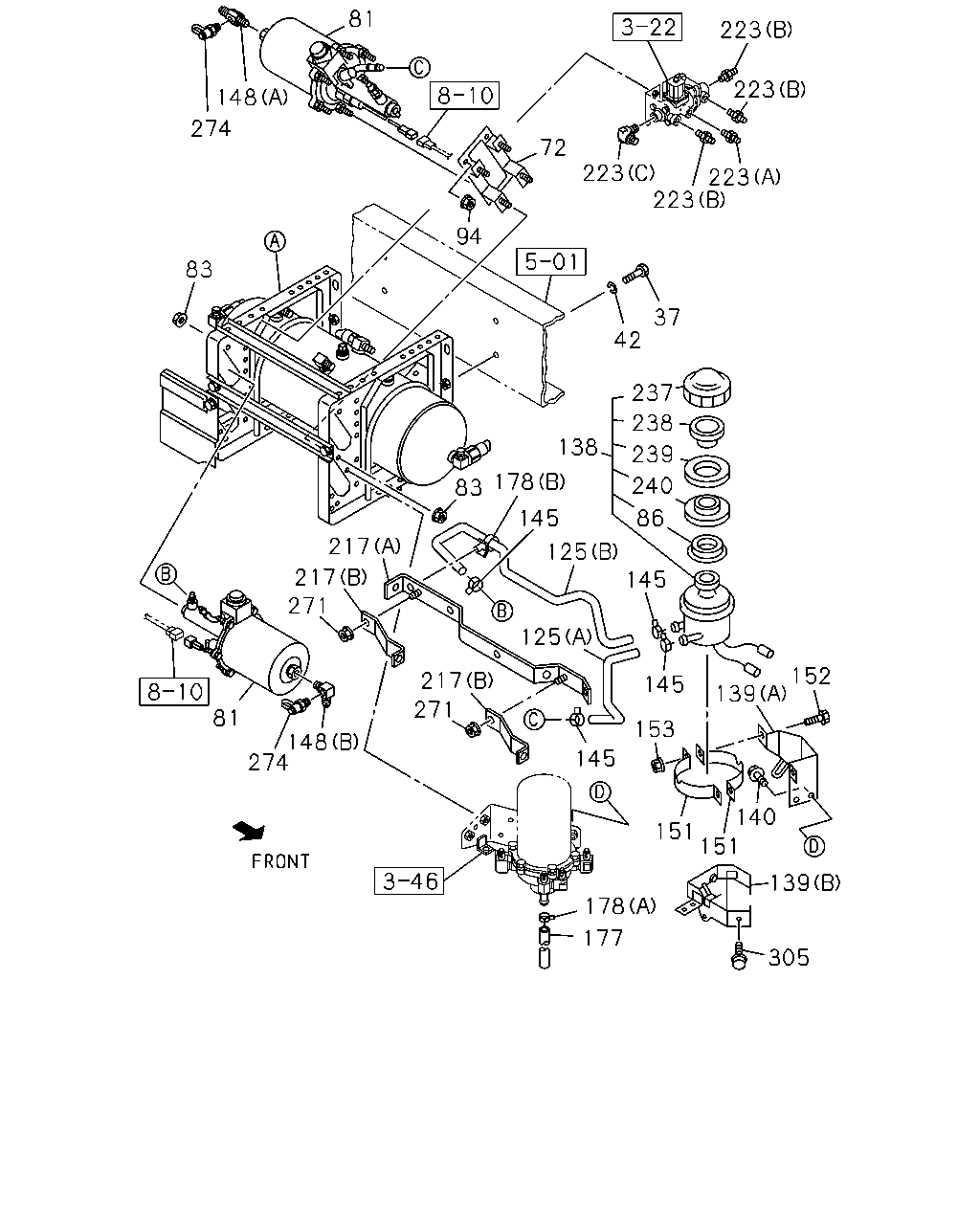

81 223 223 148 274 72 223 223 223 94 83 37 42 237 238 138 239 178 240 83 86 145 217 125 217 145 271 125 152 217 145 139 271 81 153 148 274 145 140 151 151 139 178 177 305

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
37	BOLT; AIR TANK M12X40 FLANGE SOU	0-28651-240-0	04	1	1001-	●	●
42	WASHER; PL ID=12.5 OD=32	0-91614-712-0	04	1	1001-	●	●
72	BRACKET; AIR MASTER	8-98092-021-0	01	1	1001-		●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT.	1-47800-826-0	02	1	1001-	●	●
83	NUT; AIR MASTER M8 FLANGE SOU	0-91180-108-0	09	1	1001-	●	●
86	SEAL; DUST	1-47529-019-0	01	1	1001-	●	●
94	NUT; BRKT FIX M10 FLANGE SOU	0-91180-210-0	04	1	1001-	●	●
94	NUT; BRKT FIX M8 FLANGE SOU	0-91180-108-0	04	1	1001-		●
125	HOSE; OIL TANK TO AIR MASTER (A)	8-98051-217-0	01	1	1001-	●
125	HOSE; OIL TANK TO AIR MASTER (B)	8-98051-218-1	01	1	1001-	●	●
125	HOSE; OIL TANK TO AIR MASTER (A)	8-98060-232-0	01	1	1001-		●
138	TANK ASM; OIL,AIR MASTER	1-47530-186-0	01	1	1001-	●	●
139	BRACKET; OIL TANK (A)	8-98051-105-0	01	1	1001-	●
139	BRACKET; OIL TANK (B)	8-98087-847-0	01	1	1001-		●
140	BOLT; OIL TANK TO BRKT M8X20 FLANGE	0-28650-820-0	02	1	1001-	●
145	CLIP; OIL TANK TO AIR MASTER HOSE ID=14	1-09704-102-0	04	1	1001-	●	●
148	CONNECTOR; AIR MASTER (B) M16 & PT1/4 & PT3/8 3WAY	1-09656-671-0	01	1	1001-	●
148	CONNECTOR; AIR MASTER (A) M16 & PT3/8 STRAIGHT	1-09656-643-1	01	1	1001-	●	●
148	CONNECTOR; AIR MASTER (B) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	01	1	1001-		●
151	BAND; OIL TANK,AIR MASTER	1-47537-056-2	02	1	1001-	●
151	BAND; OIL TANK,AIR MASTER	8-97620-570-0	02	1	1001-		●
152	BOLT; OIL TANK TO BAND M8X20 FLANGE	0-28650-820-0	02	1	1001-	●	●
153	NUT; OIL TANK TO BAND M8 FLANGE SOU	0-91180-108-0	02	1	1001-	●	●
177	HOSE; RUBBER,DRAIN AIR DRYER<PS7> L=60 SERVICED BY L=3000 SOU	0-03566-300-0	01	1	1001-1011	●
177	HOSE; RUBBER,DRAIN L=60 SERVICED BY L=3000 SOU	0-03566-300-0	01	1	1001-1011		●
177	HOSE; RUBBER,DRAIN 6HK1-TCN ENG(82L) AIR DRYER<PS7> L=60 SERVICED BY L=3000 SOU	0-03566-300-0	01	1	1012-1107	●
177	HOSE; RUBBER,DRAIN 4HK1-TCS ENG(RJS) L=60 SERVICED BY L=3000 SOU	0-03566-300-0	01	1	1012-1107	●
177	HOSE; RUBBER,DRAIN L=60 SERVICED BY L=3000 SOU	0-03566-300-0	01	1	1012-1107		●
177	HOSE; RUBBER,DRAIN 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> L=60 SERVICED BY L=3000 SOU	0-03566-300-0	01	1	1108-1109	●
177	HOSE; RUBBER,DRAIN 4HK1-TCS ENG(RJS) L=60 SERVICED BY L=3000 SOU	0-03566-300-0	01	1	1108-1109	●
177	HOSE; RUBBER,DRAIN 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> L=60 SERVICED BY L=3000 SOU	0-03566-300-0	01	1	1108-1109	●
177	HOSE; RUBBER,DRAIN 6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> L=60 SERVICED BY L=3000 SOU	0-03566-300-0	01	1	1108-1109	●
177	HOSE; RUBBER,DRAIN 6HK1-TCN ENG(82L) L=60 SERVICED BY L=3000 SOU	0-03566-300-0	01	1	1108-1109		●
177	HOSE; RUBBER,DRAIN 4HK1-TCS ENG(RJS) L=60 SERVICED BY L=3000 SOU	0-03566-300-0	01	1	1110-	●
177	HOSE; RUBBER,DRAIN 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> L=60 SERVICED BY L=3000 SOU	0-03566-300-0	01	1	1110-	●
177	HOSE; RUBBER,DRAIN 6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> L=60 SERVICED BY L=3000 SOU	0-03566-300-0	01	1	1110-	●
177	HOSE; RUBBER,DRAIN 6HK1-TCN ENG(82L) L=60 SERVICED BY L=3000 SOU	0-03566-300-0	01	1	1110-		●
178	CLIP; HOSE 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=21	8-94242-034-0	02	1	1108-1109	●
178	CLIP; HOSE AIR DRYER<PS7> (A) ID=21	8-94242-034-0	01	1	1001-1011	●
178	CLIP; HOSE (A) ID=21	8-94242-034-0	01	1	1001-1011		●
178	CLIP; HOSE 6HK1-TCN ENG(82L) AIR DRYER<PS7> (A) ID=21	8-94242-034-0	01	1	1012-1107	●
178	CLIP; HOSE 4HK1-TCS ENG(RJS) (A) ID=21	8-94242-034-0	01	1	1012-1107	●
178	CLIP; HOSE (A) ID=21	8-94242-034-0	01	1	1012-1107		●
178	CLIP; HOSE 4HK1-TCS ENG(RJS) (A) ID=21	8-94242-034-0	01	1	1108-	●
178	CLIP; HOSE 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=21	8-94242-034-0	01	1	1108-	●
178	CLIP; HOSE 6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) ID=21	8-94242-034-0	01	1	1108-	●
178	CLIP; HOSE 6HK1-TCN ENG(82L) (A) ID=21	8-94242-034-0	01	1	1108-		●
178	CLIP; HOSE (B) ID=13-18 L=14.5	1-09709-290-0	08	1	1001-	●	●
217	BRACKET; RUBBER HOSE (A)	8-98082-871-0	01	1	1001-	●	●
217	BRACKET; RUBBER HOSE (B)	8-98085-273-1	02	1	1001-	●	●
223	UNION H.S.A SYSTEM<6EP> (A) M12 & PT1/4 STRAIGHT SOU	1-09650-074-1	01	1	1001-	●	●
223	UNION H.S.A SYSTEM<6EP> (B) M16 & PT3/8 STRAIGHT SOU	1-09650-179-1	03	1	1001-	●	●
223	UNION H.S.A SYSTEM<6EP> (C) M16 & PT3/8 ELBOW SOU	1-09650-438-0	01	1	1001-	●	●
237	CAP; OIL TANK	1-47525-030-0	01	1	1001-	●	●
238	PLATE; BAFFLE	1-47529-022-0	01	1	1001-	●	●
239	FILTER; DUST	1-47529-017-0	01	1	1001-	●	●
240	HOLDER; FILTER	1-47529-018-0	01	1	1001-	●	●
271	NUT; BRKT,HOSE M8 FLANGE SOU	0-91180-108-0	02	1	1001-	●
271	NUT; BRKT,HOSE M8 FLANGE SOU	0-91180-108-0	05	1	1001-		●
274	CONNECTOR; VLV R1/4 & M16 TEST CONNECTOR	1-47459-013-1	02	1	1001-	●	●
305	BOLT; BRKT,HOSE M8X16 FLANGE SOU	0-28050-816-0	01	1	1001-		●

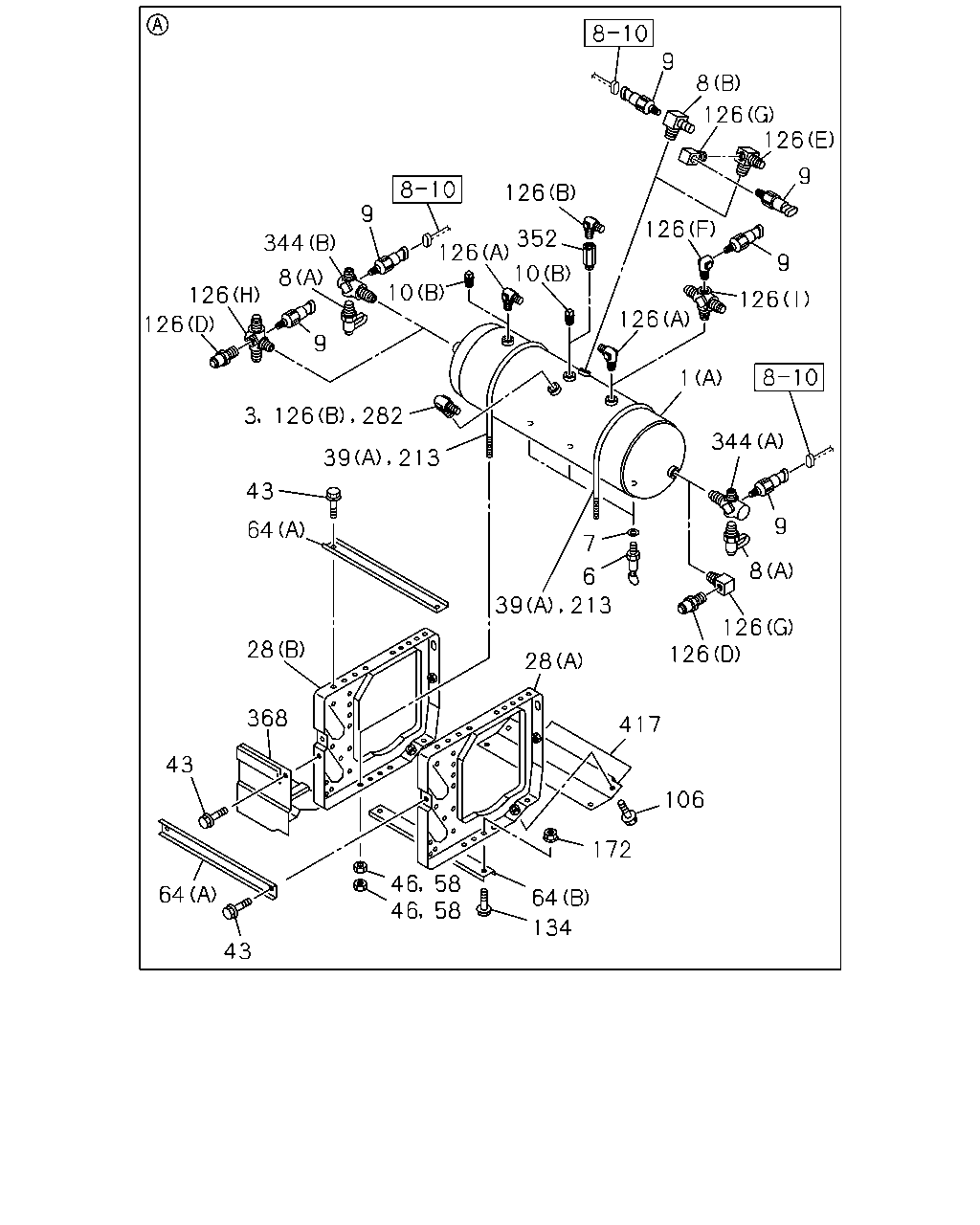

9 8 126 126 9 126 9 126 352 10 126 344 9 8 10 126 126 126 126 9 1 3 344 39 213 43 9 64 7 8 6 39 213 126 126 28 28 368 417 43 106 172 46 46 58 58 64 64 134 43 126 282

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; AIR (B)	1-48370-659-0	01	1	1001-1101	●	●
1	TANK ASM; AIR (B)	8-98166-972-0	01	1	1102-	●	●
1	TANK ASM; AIR (A)	8-98018-785-3	01	1	1001-	●	●
1	TANK ASM; AIR (C) SOU	8-98081-870-1	01	1	1001-	●	●
3	VALVE; CHECK,AIR TANK M20 & PT3/4 ELBOW SOU	1-48410-412-0	01	1	1001-1107	●
3	VALVE; CHECK,AIR TANK 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> M20 & PT3/4 ELBOW SOU	1-48410-412-0	01	1	1108-	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1001-	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1001-	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	03	1	1001-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1001-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1001-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	03	1	1001-	●	●
8	CONNECTOR; AIR TANK (D) PT1/4 & PT3/8 2WAY SOU	1-09660-809-0	01	1	1102-	●	●
8	CONNECTOR; AIR TANK (E) DIN8 & R3/8 ELBOW SOU	1-09660-957-0	01	1	1102-	●	●
8	CONNECTOR; AIR TANK (B) DIN8X2 & PT1/4 3WAY	1-09656-759-0	01	1	1001-	●
8	CONNECTOR; AIR TANK (A) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	02	1	1001-	●
8	CONNECTOR; AIR TANK (C) DIN1/8 & M16X2 3WAY	1-09656-462-1	01	1	1001-	●	●
8	CONNECTOR; AIR TANK (A) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	1001-	●	●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK STAMP 5.5 SOU	8-97609-249-0	03	1	1001-	●	●
10	PLUG; AIR TANK 4HK1-TCS ENG(RJS) (B) PT3/8	9-09204-517-0	01	1	1012-1101	●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	01	1	1102-1107	●	●
10	PLUG; AIR TANK 4HK1-TCS ENG(RJS) (B) PT3/8	9-09204-517-0	01	1	1102-1107	●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	01	1	1108-	●	●
10	PLUG; AIR TANK 4HK1-TCS ENG(RJS) (B) PT3/8	9-09204-517-0	01	1	1108-	●
10	PLUG; AIR TANK 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) PT3/8	9-09204-517-0	01	1	1108-	●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	02	1	1001-	●	●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	02	1	1001-		●
10	PLUG; AIR TANK (A) PT3/4 SOU	9-09204-526-0	01	1	1001-1101	●	●
28	BRACKET; AIR TANK WHEEL BASE 3700MM(37W) (C) SOU	8-98092-756-1	01	1	1001-	●
28	BRACKET; AIR TANK WHEEL BASE 3700MM(37W) (D) SOU	8-98137-035-0	01	1	1001-	●
28	BRACKET; AIR TANK WHEEL BASE 5100MM(51W) (E) SOU	8-98100-165-3	01	1	1001-	●
28	BRACKET; AIR TANK (E) SOU	8-98100-165-3	01	1	1001-		●
28	BRACKET; AIR TANK (A) SOU	8-98021-918-5	01	1	1001-	●	●
28	BRACKET; AIR TANK (B) SOU	8-98044-509-5	01	1	1001-	●	●
39	U-BOLT; AIR TANK (A)	8-98022-041-0	02	1	1001-	●
39	U-BOLT; AIR TANK (B) L=210	1-48317-458-1	02	1	1001-	●	●
43	BOLT; STAY,AIR TANK,MAIN M8X16 FLANGE SOU	0-28050-816-0	06	1	1001-	●
43	BOLT; STAY,AIR TANK,MAIN M8X16 FLANGE SOU	0-28050-816-0	10	1	1001-		●
46	NUT; U-BOLT M8 SOU	0-91110-508-0	08	1	1001-	●	●
46	NUT; U-BOLT M8 SOU	0-91110-508-0	08	1	1001-	●
58	NUT; BAND,AIR TANK M8 SOU	0-91110-508-0	08	1	1001-		●
64	STAY; AIR TANK,MAIN (B)	8-98044-511-2	01	1	1001-	●
64	STAY; AIR TANK,MAIN (A)	8-98044-510-3	02	1	1001-	●	●
64	STAY; AIR TANK,MAIN (B)	8-98101-873-0	01	1	1001-		●
106	BOLT; COVER M8X16 FLANGE SOU	0-28050-816-0	04	1	1001-	●	●
126	CONNECTOR; ELBOW (B) M12 & PT1/4 ELBOW SOU	1-09650-430-0	01	1	1001-1107	●
126	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (B) M12 & PT1/4 ELBOW SOU	1-09650-430-0	01	1	1108-	●
126	CONNECTOR; ELBOW (A) M16 & PT3/8 ELBOW SOU	1-09650-438-0	02	1	1001-	●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY SOU	1-09660-809-0	01	1	1001-1101	●	●
126	CONNECTOR; ELBOW (E) PT3/8X3 3WAY	1-09656-722-0	01	1	1001-		●
126	CONNECTOR; ELBOW (F) PT1/4 & PT1/4 2WAY SOU	1-09660-693-0	01	1	1001-		●
126	CONNECTOR; ELBOW (G) PT1/4 & PT3/8 2WAY SOU	1-09660-809-0	02	1	1001-		●
126	CONNECTOR; ELBOW (D) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	02	1	1001-		●
126	CONNECTOR; ELBOW (I) M16X2 & R3/8 & RC1/4 4WAY ELBOW	8-98061-136-0	01	1	1001-		●
126	CONNECTOR; ELBOW (B) M20 & PT3/4 ELBOW	8-98067-083-1	01	1	1001-		●
126	CONNECTOR; ELBOW (H) M16X2 & PT3/8 3WAY	8-98098-590-0	01	1	1001-		●
134	BOLT; COVER FIX M8X16 FLANGE SOU	0-28050-816-0	04	1	1001-	●
172	NUT; STAY,AIR TANK,MAIN M8 FLANGE SOU	0-91180-108-0	02	1	1001-	●	●
213	BOLT; U AIR TANK	8-98022-041-0	02	1	1001-		●
282	UNION; 2 WAY 4HK1-TCS ENG(RJS) M20 & PT3/4 ELBOW	8-98067-083-1	01	1	1012-1107	●
282	UNION; 2 WAY 4HK1-TCS ENG(RJS) M20 & PT3/4 ELBOW	8-98067-083-1	01	1	1108-	●
282	UNION; 2 WAY 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> M20 & PT3/4 ELBOW	8-98067-083-1	01	1	1108-	●
344	CONNECTOR; 4WAY (B)	1-09656-726-0	01	1	1001-	●
344	CONNECTOR; 4WAY (A)	1-09656-767-0	01	1	1001-	●
352	CONNECTOR; STRAIGHT	8-98133-234-0	01	1	1001-1107	●
352	CONNECTOR; STRAIGHT 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T>	8-98133-234-0	01	1	1108-	●
368	COVER; AIR TANK	8-98061-625-3	01	1	1001-	●	●
417	COVER; HARNESS	8-98111-401-0	01	1	1001-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
