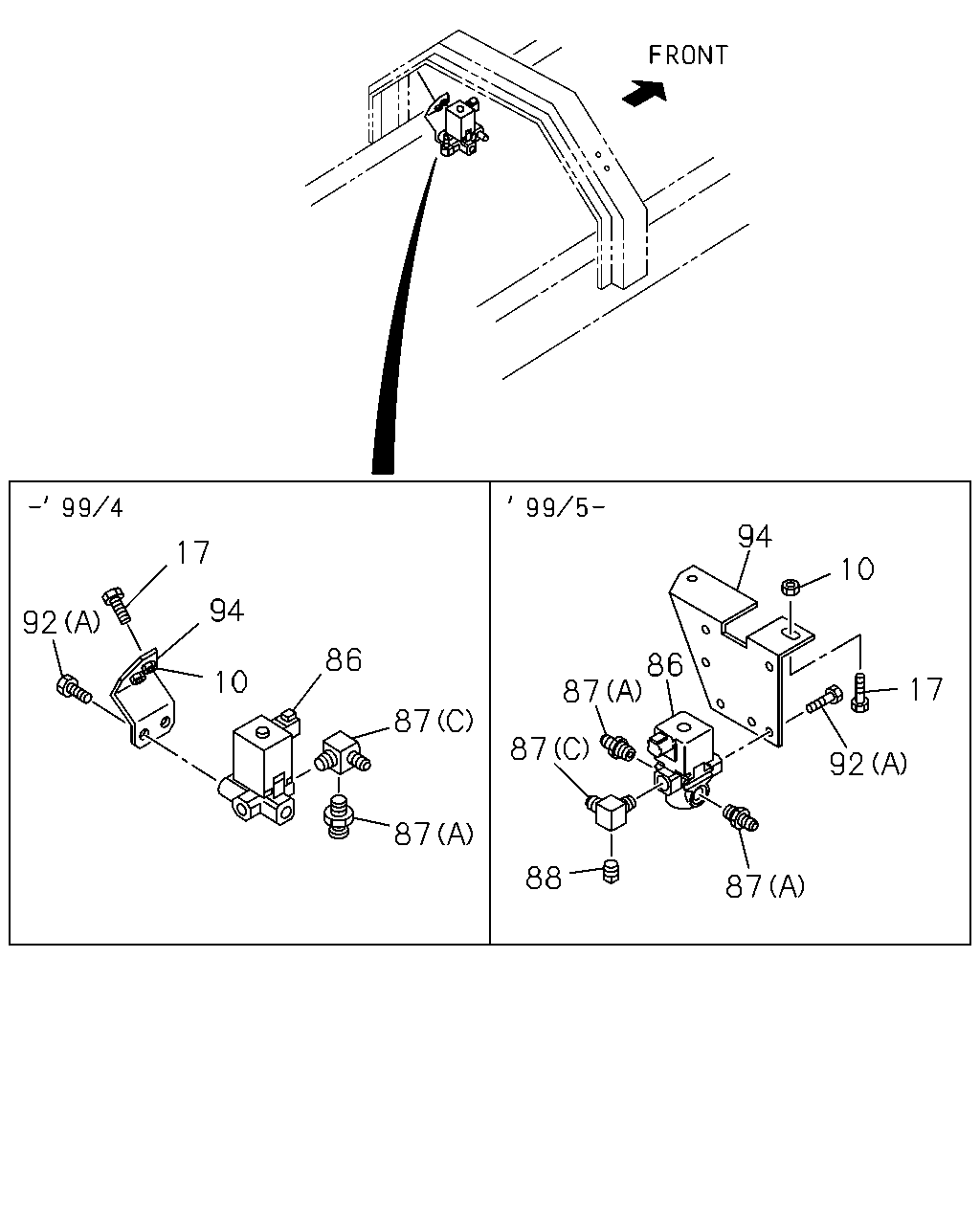

1-56B — EXHAUST BRAKE SYSTEM
(#5555) — 23 parça
Tümü
A - 10PE1S
B - 10PE1N
94
17
10
94
92
86
86
10
17
87
87
87
92
87
88
87
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
10
NUT; BRKT,EXH BRAKE
M8
9-09110-508-0
03
1
9603-9606
●
10
NUT; BRKT,EXH BRAKE
M8 FLANGE
0-91150-108-0
03
1
9607-9904
●
10
NUT; BRKT,EXH BRAKE
M8 FLANGE
0-91150-108-0
02
1
9905-0103
●
●
10
NUT; BRKT,EXH BRAKE
M8 FLANGE
0-91150-108-0
01
1
0104-
●
●
10
NUT; BRKT,EXH BRAKE
M10 FLANGE
0-91150-210-0
01
1
0104-
●
●
17
BOLT; BRKT
M8X20 FLANGE
0-28080-820-0
02
1
9603-9606
●
17
BOLT; BRKT
M8X25 FLANGE
0-28680-825-0
02
1
9607-9904
●
17
BOLT; BRKT
M8X25 FLANGE
0-28680-825-0
02
1
9905-0103
●
●
17
BOLT; BRKT
M8X20 FLANGE
0-28680-820-0
01
1
0104-
●
●
17
BOLT; BRKT
M10X25 FLANGE
0-28681-025-0
01
1
0104-
●
●
86
VALVE; MAG,EXH BRK
1-82563-598-3
01
1
9603-9904
●
86
VALVE; MAG,EXH BRK
1-82563-871-2
01
1
9905-
●
●
87
CONNECTOR
(A) M20 & PT1/4
9-09902-386-0
01
1
9603-9702
●
87
CONNECTOR
(A) M12 & PT1/4 STRAIGHT
1-09650-074-1
01
1
9703-9904
●
87
CONNECTOR
(A) M12 & PT1/4 STRAIGHT
1-09650-074-1
02
1
9905-
●
87
CONNECTOR
(C) PT1/4 & M12 ELBOW
1-09656-665-0
01
1
9603-
●
88
PLUG
PT1/4
9-99204-513-0
01
1
9905-
●
●
92
BOLT; MAG VLV
(A) M8X20 FLANGE
0-28080-820-0
02
1
9603-9606
●
92
BOLT; MAG VLV
(A) M8X25 FLANGE
0-28680-825-0
02
1
9607-9608
●
92
BOLT; MAG VLV
(A) M8X20 FLANGE
0-28680-820-0
02
1
9609-9904
●
92
BOLT; MAG VLV
(A) M8X20 FLANGE
0-28680-820-0
02
1
9905-
●
●
94
BRACKET; MAG VLV,EXH BRAKE
1-82569-153-0
01
1
9603-9904
●
94
BRACKET; MAG VLV,EXH BRAKE
1-82569-277-2
01
1
9905-
●
●
