Sayfa 2-53 - Isuzu EPC

2-53 — TRANSMISSION OIL COOLER SYSTEM (#55542) — 197 parça

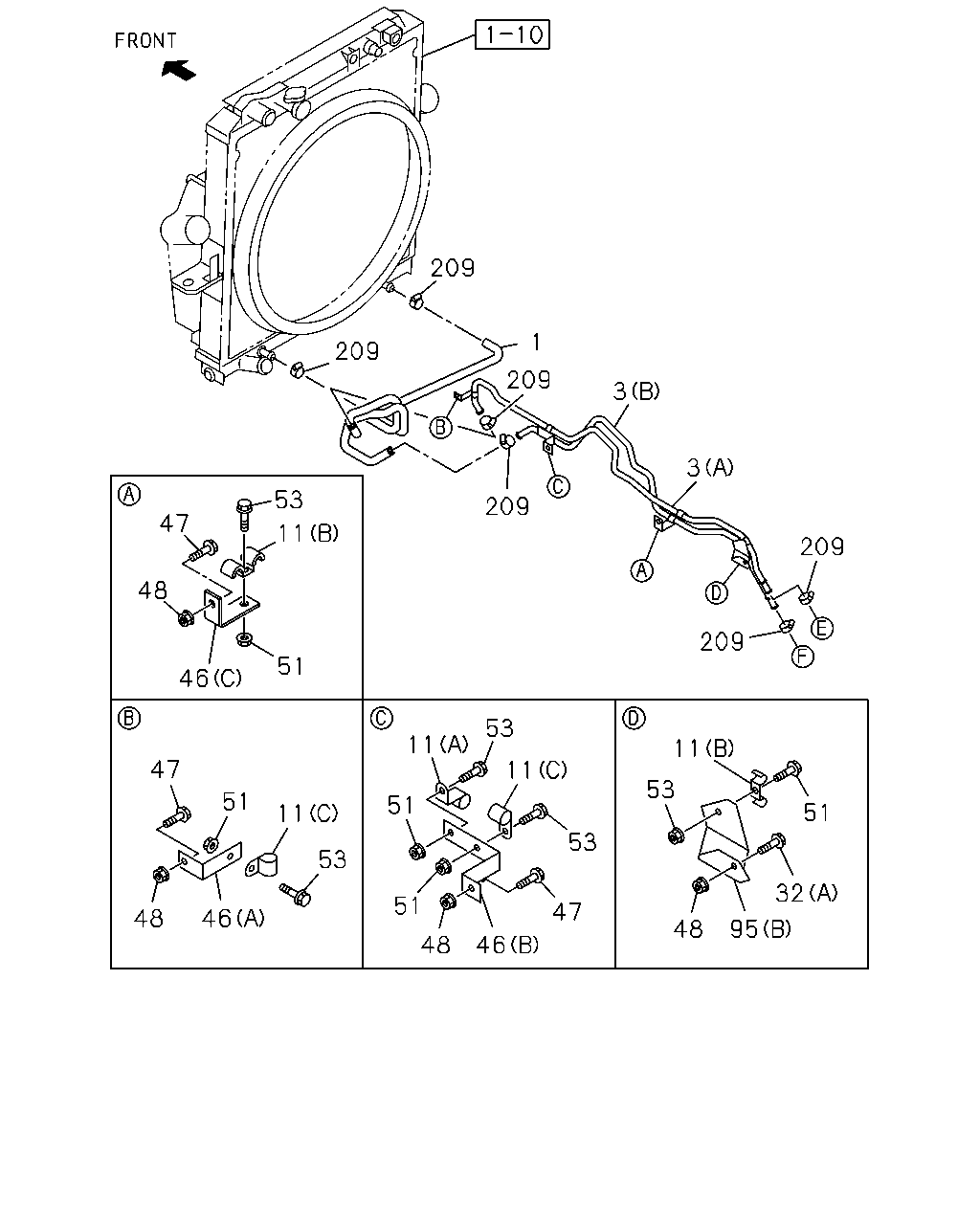

209 1 209 209 3 3 53 209 47 11 209 48 209 51 46 53 11 11 47 11 53 51 51 51 11 53 53 32 51 47 46 48 48 95 48 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; ATF TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98079-911-1	01	1	1106-1109	●
1	HOSE; ATF 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98079-911-1	01	1	1110-	●	●
3	PIPE; OIL,A/T TO OIL COOLER 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=989	8-98065-879-2	01	1	1110-		●
3	PIPE; OIL,A/T TO OIL COOLER 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (D) L=881	8-98065-880-2	01	1	1110-		●
3	PIPE; OIL,A/T TO OIL COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=1144	8-98072-012-0	01	1	1106-1109	●
3	PIPE; OIL,A/T TO OIL COOLER 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=1144	8-98072-012-0	01	1	1110-	●	●
3	PIPE; OIL,A/T TO OIL COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1009	8-98079-824-0	01	1	1106-1109	●
3	PIPE; OIL,A/T TO OIL COOLER 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1009	8-98079-824-0	01	1	1110-	●	●
11	CLIP; PIPE 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	03	1	1110-		●
11	CLIP; PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=11 L=28	0-95235-055-0	02	1	1106-1109	●
11	CLIP; PIPE 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=11 L=28	0-95235-055-0	02	1	1110-	●	●
11	CLIP; PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	02	1	1106-1109	●
11	CLIP; PIPE 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	02	1	1110-	●	●
11	CLIP; PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=11 H=20 L=20	8-98033-780-0	01	1	1106-1109	●
11	CLIP; PIPE 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=11 H=20 L=20	8-98033-780-0	01	1	1110-	●	●
32	BOLT; BRKT 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (C) M8X16 W/LK&PL WASHER SOU	1-09980-498-0	02	1	1110-		●
32	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M8X20 FLANGE	0-28650-820-0	01	1	1106-1109	●
32	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M8X20 FLANGE	0-28650-820-0	01	1	1110-	●	●
32	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X30 FLANGE	0-28650-830-0	01	1	1106-1109	●
32	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X30 FLANGE	0-28650-830-0	01	1	1110-	●	●
46	BRACKET; OIL PIPE 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (E)	8-98045-565-0	01	1	1110-		●
46	BRACKET; OIL PIPE 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98081-044-0	01	1	1110-		●
46	BRACKET; OIL PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	1-47471-051-0	01	1	1106-1109	●
46	BRACKET; OIL PIPE 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	1-47471-051-0	01	1	1110-	●	●
46	BRACKET; OIL PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98050-824-0	01	1	1106-1109	●
46	BRACKET; OIL PIPE 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98050-824-0	01	1	1110-	●	●
46	BRACKET; OIL PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98080-171-0	01	1	1106-1109	●
46	BRACKET; OIL PIPE 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98080-171-0	01	1	1110-	●	●
47	BOLT; BRKT TO FRAME 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) M8X30 FLANGE	0-28650-830-0	02	1	1110-		●
47	BOLT; BRKT TO FRAME TRANSMISSION CONTROL-SMOOTHER(8GF) M8X30 FLANGE	0-28650-830-0	03	1	1106-1109	●
47	BOLT; BRKT TO FRAME 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) M8X30 FLANGE	0-28650-830-0	03	1	1110-	●	●
48	NUT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE SOU	0-91180-108-0	02	1	1106-1109	●
48	NUT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE SOU	0-91180-108-0	02	1	1110-	●	●
51	NUT; CLIP TO BRKT 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE SOU	0-91180-108-0	03	1	1110-		●
51	NUT; CLIP TO BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE SOU	0-91180-108-0	05	1	1106-1109	●
51	NUT; CLIP TO BRKT 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE SOU	0-91180-108-0	05	1	1110-	●	●
53	BOLT; CLIP,FLEX HOSE,A/T 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	01	1	1110-		●
53	BOLT; CLIP,FLEX HOSE,A/T TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	05	1	1106-1109	●
53	BOLT; CLIP,FLEX HOSE,A/T 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	05	1	1110-	●	●
95	BRACKET; CLIP 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98045-564-0	01	1	1110-		●
95	BRACKET; CLIP 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98065-885-0	01	1	1110-		●
95	BRACKET; CLIP 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (E)	8-98065-886-0	01	1	1110-		●
95	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98072-008-0	01	1	1106-1109	●
95	BRACKET; CLIP 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98072-008-0	01	1	1110-	●	●
95	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98072-016-0	01	1	1106-1109	●
95	BRACKET; CLIP 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98072-016-0	01	1	1110-	●	●
209	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) ID=11-17	8-98173-762-0	08	1	1106-1106	●
209	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98192-447-0	08	1	1107-1109	●
209	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98192-447-0	08	1	1110-	●	●

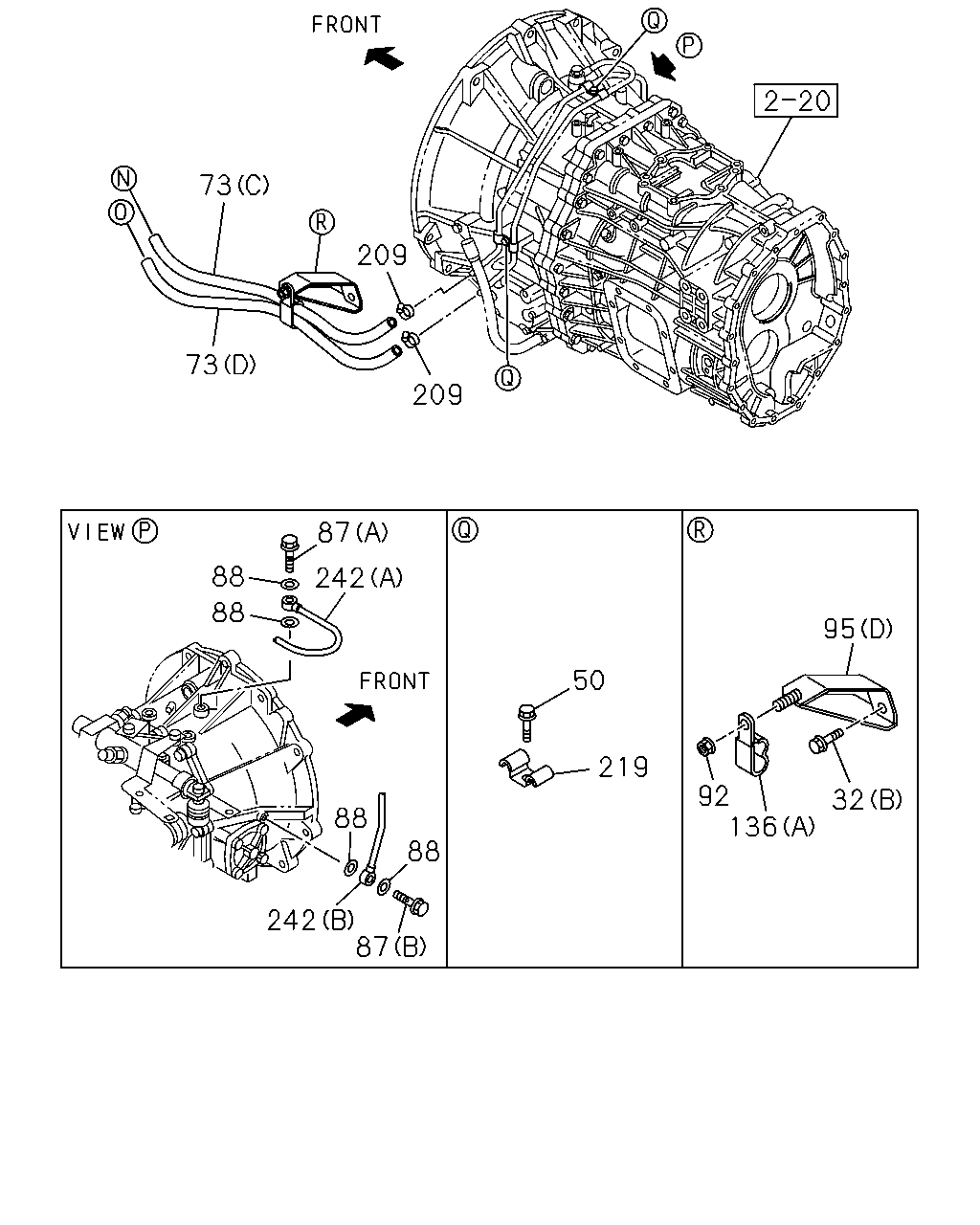

242 73 209 73 242 209 87 88 242 88 95 50 219 92 136 88 32 88 242 87

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
32	BOLT; BRKT 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (C) M8X16 W/LK&PL WASHER SOU	1-09980-498-0	02	1	1110-		●
32	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M8X20 FLANGE	0-28650-820-0	01	1	1106-1109	●
32	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M8X20 FLANGE	0-28650-820-0	01	1	1110-	●	●
32	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X30 FLANGE	0-28650-830-0	01	1	1106-1109	●
32	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X30 FLANGE	0-28650-830-0	01	1	1110-	●	●
50	BOLT; CLIP 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	02	1	1110-	●	●
50	BOLT; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	02	1	1107-1109	●
50	BOLT; CLIP 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	01	1	1110-		●
73	HOSE; FLEX,TRANS 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=380	8-98081-840-0	01	1	1110-		●
73	HOSE; FLEX,TRANS 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (D) L=440	8-98081-849-0	01	1	1110-		●
73	HOSE; FLEX,TRANS TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=480	8-98081-845-0	01	1	1106-1109	●
73	HOSE; FLEX,TRANS 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=480	8-98081-845-0	01	1	1110-	●	●
73	HOSE; FLEX,TRANS TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=500	8-98081-853-0	01	1	1106-1109	●
73	HOSE; FLEX,TRANS 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=500	8-98081-853-0	01	1	1110-	●	●
87	BOLT; EYE TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M14X30 EYE-BOLT	8-98037-827-0	01	1	1107-1109	●
87	BOLT; EYE 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M14X30 EYE-BOLT	8-98037-827-0	01	1	1110-	●	●
87	BOLT; EYE TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M14X35.5 FLANGE	8-98060-612-0	01	1	1107-1109	●
87	BOLT; EYE 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M14X35.5 FLANGE	8-98060-612-0	01	1	1110-	●	●
88	GASKET; EYE BOLT TRANSMISSION CONTROL-SMOOTHER(8GF) ID=14.2 OD=20.0	9-09571-414-0	04	1	1107-1109	●
88	GASKET; EYE BOLT 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) ID=14.2 OD=20.0	9-09571-414-0	04	1	1110-	●	●
92	NUT; CLIP 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE SOU	0-91180-108-0	02	1	1110-		●
92	NUT; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE SOU	0-91180-108-0	01	1	1106-1109	●
92	NUT; CLIP 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE SOU	0-91180-108-0	01	1	1110-	●	●
95	BRACKET; CLIP 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98045-564-0	01	1	1110-		●
95	BRACKET; CLIP 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98065-885-0	01	1	1110-		●
95	BRACKET; CLIP 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (E)	8-98065-886-0	01	1	1110-		●
95	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98072-008-0	01	1	1106-1109	●
95	BRACKET; CLIP 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98072-008-0	01	1	1110-	●	●
95	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98072-016-0	01	1	1106-1109	●
95	BRACKET; CLIP 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98072-016-0	01	1	1110-	●	●
136	CLIP; FLEX HOSE 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98009-406-0	01	1	1110-		●
136	CLIP; FLEX HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98084-148-0	01	1	1106-1109	●
136	CLIP; FLEX HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98084-148-0	01	1	1110-	●	●
209	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) ID=11-17	8-98173-762-0	08	1	1106-1106	●
209	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98192-447-0	08	1	1107-1109	●
209	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98192-447-0	08	1	1110-	●	●
219	CLIP; ATF PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) ID=11 & 11 L=17.5 & 17.5 SOU	1-09700-739-0	02	1	1107-1109	●
219	CLIP; ATF PIPE 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) ID=11 & 11 L=17.5 & 17.5 SOU	1-09700-739-0	02	1	1110-	●	●
242	PIPE; COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98003-674-0	01	1	1107-1109	●
242	PIPE; COOLER 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98003-674-0	01	1	1110-1507	●	●
242	PIPE; COOLER 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98303-637-0	01	1	1508-	●	●
242	PIPE; COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98003-675-0	01	1	1107-1109	●
242	PIPE; COOLER 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98003-675-0	01	1	1110-1507	●	●
242	PIPE; COOLER 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98303-638-0	01	1	1508-	●	●

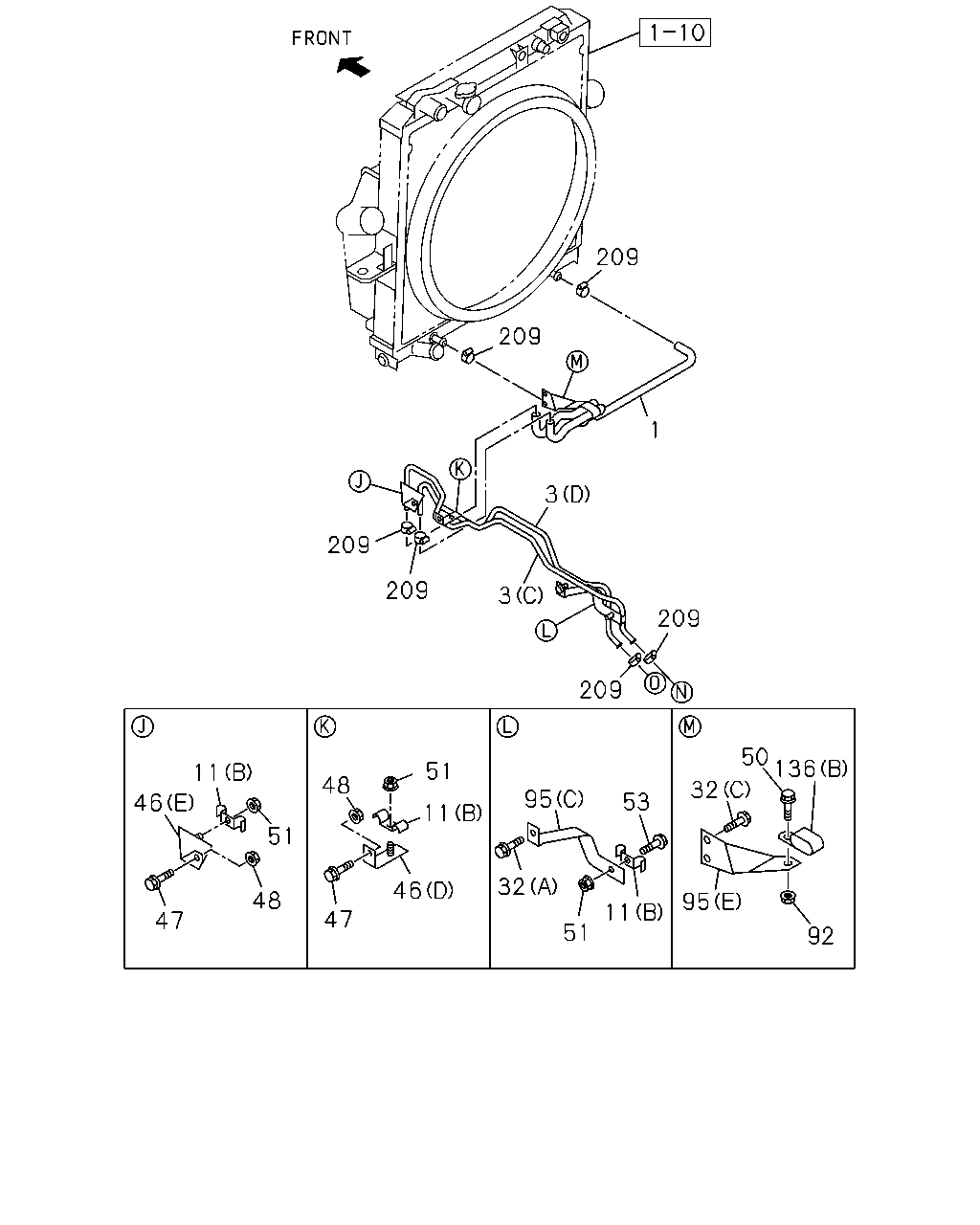

209 209 1 3 209 209 3 209 209 50 136 51 11 48 32 95 53 46 11 51 32 46 48 95 11 47 47 51 92

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; ATF TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98079-911-1	01	1	1106-1109	●
1	HOSE; ATF 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98079-911-1	01	1	1110-	●	●
3	PIPE; OIL,A/T TO OIL COOLER 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=989	8-98065-879-2	01	1	1110-		●
3	PIPE; OIL,A/T TO OIL COOLER 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (D) L=881	8-98065-880-2	01	1	1110-		●
3	PIPE; OIL,A/T TO OIL COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=1144	8-98072-012-0	01	1	1106-1109	●
3	PIPE; OIL,A/T TO OIL COOLER 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=1144	8-98072-012-0	01	1	1110-	●	●
3	PIPE; OIL,A/T TO OIL COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1009	8-98079-824-0	01	1	1106-1109	●
3	PIPE; OIL,A/T TO OIL COOLER 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1009	8-98079-824-0	01	1	1110-	●	●
11	CLIP; PIPE 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	03	1	1110-		●
11	CLIP; PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=11 L=28	0-95235-055-0	02	1	1106-1109	●
11	CLIP; PIPE 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=11 L=28	0-95235-055-0	02	1	1110-	●	●
11	CLIP; PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	02	1	1106-1109	●
11	CLIP; PIPE 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	02	1	1110-	●	●
11	CLIP; PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=11 H=20 L=20	8-98033-780-0	01	1	1106-1109	●
11	CLIP; PIPE 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=11 H=20 L=20	8-98033-780-0	01	1	1110-	●	●
32	BOLT; BRKT 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (C) M8X16 W/LK&PL WASHER SOU	1-09980-498-0	02	1	1110-		●
32	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M8X20 FLANGE	0-28650-820-0	01	1	1106-1109	●
32	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M8X20 FLANGE	0-28650-820-0	01	1	1110-	●	●
32	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X30 FLANGE	0-28650-830-0	01	1	1106-1109	●
32	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X30 FLANGE	0-28650-830-0	01	1	1110-	●	●
46	BRACKET; OIL PIPE 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (E)	8-98045-565-0	01	1	1110-		●
46	BRACKET; OIL PIPE 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98081-044-0	01	1	1110-		●
46	BRACKET; OIL PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	1-47471-051-0	01	1	1106-1109	●
46	BRACKET; OIL PIPE 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	1-47471-051-0	01	1	1110-	●	●
46	BRACKET; OIL PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98050-824-0	01	1	1106-1109	●
46	BRACKET; OIL PIPE 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98050-824-0	01	1	1110-	●	●
46	BRACKET; OIL PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98080-171-0	01	1	1106-1109	●
46	BRACKET; OIL PIPE 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98080-171-0	01	1	1110-	●	●
47	BOLT; BRKT TO FRAME 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) M8X30 FLANGE	0-28650-830-0	02	1	1110-		●
47	BOLT; BRKT TO FRAME TRANSMISSION CONTROL-SMOOTHER(8GF) M8X30 FLANGE	0-28650-830-0	03	1	1106-1109	●
47	BOLT; BRKT TO FRAME 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) M8X30 FLANGE	0-28650-830-0	03	1	1110-	●	●
48	NUT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE SOU	0-91180-108-0	02	1	1106-1109	●
48	NUT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE SOU	0-91180-108-0	02	1	1110-	●	●
50	BOLT; CLIP 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	02	1	1110-	●	●
50	BOLT; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	02	1	1107-1109	●
50	BOLT; CLIP 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	01	1	1110-		●
51	NUT; CLIP TO BRKT 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE SOU	0-91180-108-0	03	1	1110-		●
51	NUT; CLIP TO BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE SOU	0-91180-108-0	05	1	1106-1109	●
51	NUT; CLIP TO BRKT 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE SOU	0-91180-108-0	05	1	1110-	●	●
53	BOLT; CLIP,FLEX HOSE,A/T 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	01	1	1110-		●
53	BOLT; CLIP,FLEX HOSE,A/T TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	05	1	1106-1109	●
53	BOLT; CLIP,FLEX HOSE,A/T 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	05	1	1110-	●	●
92	NUT; CLIP 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE SOU	0-91180-108-0	02	1	1110-		●
92	NUT; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE SOU	0-91180-108-0	01	1	1106-1109	●
92	NUT; CLIP 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE SOU	0-91180-108-0	01	1	1110-	●	●
95	BRACKET; CLIP 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98045-564-0	01	1	1110-		●
95	BRACKET; CLIP 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98065-885-0	01	1	1110-		●
95	BRACKET; CLIP 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (E)	8-98065-886-0	01	1	1110-		●
95	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98072-008-0	01	1	1106-1109	●
95	BRACKET; CLIP 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98072-008-0	01	1	1110-	●	●
95	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98072-016-0	01	1	1106-1109	●
95	BRACKET; CLIP 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98072-016-0	01	1	1110-	●	●
136	CLIP; FLEX HOSE 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98009-406-0	01	1	1110-		●
136	CLIP; FLEX HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98084-148-0	01	1	1106-1109	●
136	CLIP; FLEX HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98084-148-0	01	1	1110-	●	●
209	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) ID=11-17	8-98173-762-0	08	1	1106-1106	●
209	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98192-447-0	08	1	1107-1109	●
209	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98192-447-0	08	1	1110-	●	●

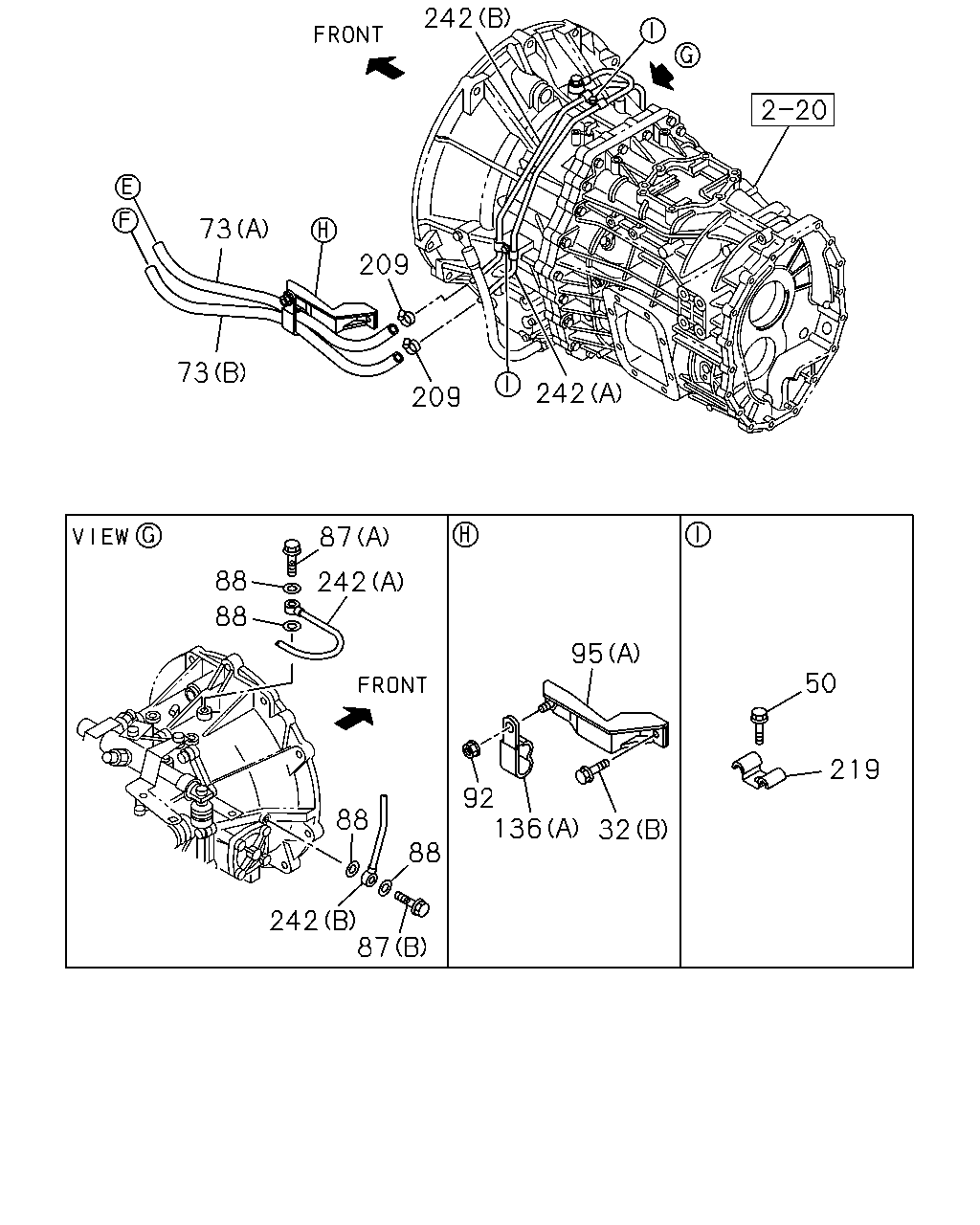

73 209 73 209 87 88 242 88 95 50 219 92 136 32 88 88 242 87

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
32	BOLT; BRKT 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (C) M8X16 W/LK&PL WASHER SOU	1-09980-498-0	02	1	1110-		●
32	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M8X20 FLANGE	0-28650-820-0	01	1	1106-1109	●
32	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M8X20 FLANGE	0-28650-820-0	01	1	1110-	●	●
32	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X30 FLANGE	0-28650-830-0	01	1	1106-1109	●
32	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X30 FLANGE	0-28650-830-0	01	1	1110-	●	●
50	BOLT; CLIP 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	02	1	1110-	●	●
50	BOLT; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	02	1	1107-1109	●
50	BOLT; CLIP 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	01	1	1110-		●
73	HOSE; FLEX,TRANS 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=380	8-98081-840-0	01	1	1110-		●
73	HOSE; FLEX,TRANS 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (D) L=440	8-98081-849-0	01	1	1110-		●
73	HOSE; FLEX,TRANS TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=480	8-98081-845-0	01	1	1106-1109	●
73	HOSE; FLEX,TRANS 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=480	8-98081-845-0	01	1	1110-	●	●
73	HOSE; FLEX,TRANS TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=500	8-98081-853-0	01	1	1106-1109	●
73	HOSE; FLEX,TRANS 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=500	8-98081-853-0	01	1	1110-	●	●
87	BOLT; EYE TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M14X30 EYE-BOLT	8-98037-827-0	01	1	1107-1109	●
87	BOLT; EYE 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M14X30 EYE-BOLT	8-98037-827-0	01	1	1110-	●	●
87	BOLT; EYE TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M14X35.5 FLANGE	8-98060-612-0	01	1	1107-1109	●
87	BOLT; EYE 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M14X35.5 FLANGE	8-98060-612-0	01	1	1110-	●	●
88	GASKET; EYE BOLT TRANSMISSION CONTROL-SMOOTHER(8GF) ID=14.2 OD=20.0	9-09571-414-0	04	1	1107-1109	●
88	GASKET; EYE BOLT 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) ID=14.2 OD=20.0	9-09571-414-0	04	1	1110-	●	●
92	NUT; CLIP 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE SOU	0-91180-108-0	02	1	1110-		●
92	NUT; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE SOU	0-91180-108-0	01	1	1106-1109	●
92	NUT; CLIP 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE SOU	0-91180-108-0	01	1	1110-	●	●
95	BRACKET; CLIP 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98045-564-0	01	1	1110-		●
95	BRACKET; CLIP 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98065-885-0	01	1	1110-		●
95	BRACKET; CLIP 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (E)	8-98065-886-0	01	1	1110-		●
95	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98072-008-0	01	1	1106-1109	●
95	BRACKET; CLIP 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98072-008-0	01	1	1110-	●	●
95	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98072-016-0	01	1	1106-1109	●
95	BRACKET; CLIP 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98072-016-0	01	1	1110-	●	●
136	CLIP; FLEX HOSE 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98009-406-0	01	1	1110-		●
136	CLIP; FLEX HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98084-148-0	01	1	1106-1109	●
136	CLIP; FLEX HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98084-148-0	01	1	1110-	●	●
209	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) ID=11-17	8-98173-762-0	08	1	1106-1106	●
209	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98192-447-0	08	1	1107-1109	●
209	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98192-447-0	08	1	1110-	●	●
219	CLIP; ATF PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) ID=11 & 11 L=17.5 & 17.5 SOU	1-09700-739-0	02	1	1107-1109	●
219	CLIP; ATF PIPE 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) ID=11 & 11 L=17.5 & 17.5 SOU	1-09700-739-0	02	1	1110-	●	●
242	PIPE; COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98003-674-0	01	1	1107-1109	●
242	PIPE; COOLER 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98003-674-0	01	1	1110-1507	●	●
242	PIPE; COOLER 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98303-637-0	01	1	1508-	●	●
242	PIPE; COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98003-675-0	01	1	1107-1109	●
242	PIPE; COOLER 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98003-675-0	01	1	1110-1507	●	●
242	PIPE; COOLER 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98303-638-0	01	1	1508-	●	●

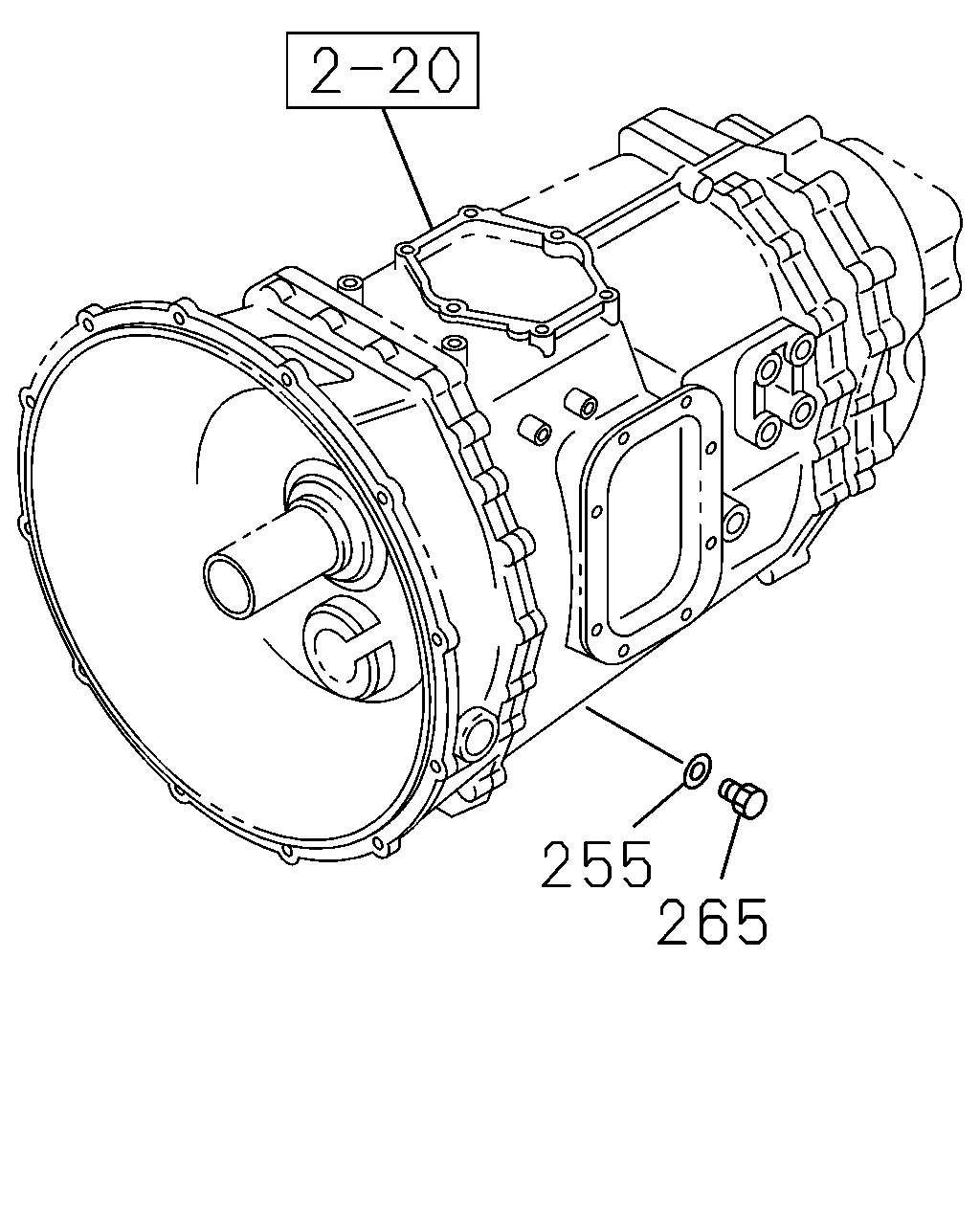

255 265

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	255	GASKET; SENSOR MZW6P M/T(RSZ) ID=12.2	9-09571-412-0	01	1	1405-	●	●
	265	PLUG; HOLE MZW6P M/T(RSZ) M12X9	0-92002-412-0	01	1	1405-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
