Isuzu WW
▶
TRUCKS
▶
EXR
▶
10725 - EXR LHD FUEL TANK 200L+200L/400L
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-56A - EXHAUST BRAKE SYSTEM
▶

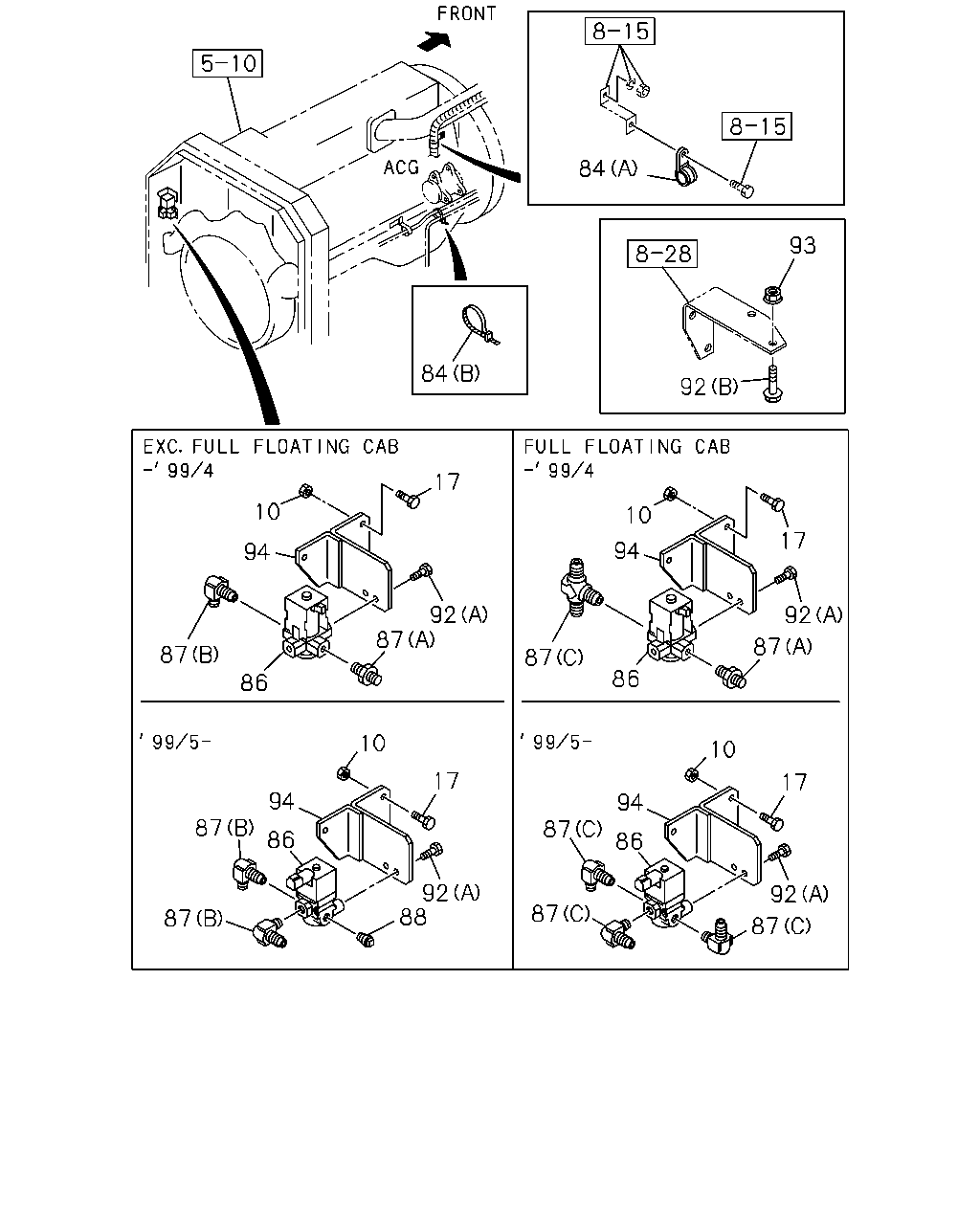

1-56A — EXHAUST BRAKE SYSTEM
(#5554) — 27 parça
Tümü
A - 6WA1 TC-S
B - 6WA1 TC-N
C - 6WA1 TC-C
D - 6WA1 TC-R
84
93
84
92
17
10
10
17
94
94
92
92
87
87
87
87
86
86
10
10
17
17
94
94
87
87
86
86
92
88
92
87
87
87
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
10
NUT; BRKT,EXH BRAKE
M8
9-09110-508-0
03
1
9603-9606
●
10
NUT; BRKT,EXH BRAKE
M8 FLANGE
0-91150-108-0
03
1
9607-9904
●
10
NUT; BRKT,EXH BRAKE
M8 FLANGE
0-91150-108-0
03
1
9905-
●
●
●
17
BOLT; BRKT
M8X20 FLANGE
0-28080-820-0
03
1
9603-9606
●
17
BOLT; BRKT
M8X25 FLANGE
0-28680-825-0
03
1
9607-9904
●
17
BOLT; BRKT
M8X25 FLANGE
0-28680-825-0
03
1
9905-
●
●
●
84
CLIP; HARNESS
(A) ID=26 L=27
1-09701-006-0
01
1
9603-9904
●
84
CLIP; HARNESS
(A) ID=26 L=27
1-09701-006-0
01
1
9905-
●
●
●
84
CLIP; HARNESS
(B) L=140
5-09707-031-1
01
1
9603-9904
●
84
CLIP; HARNESS
(B) L=140
5-09707-031-1
01
1
9905-
●
●
●
86
VALVE; MAG,EXH BRK
1-82563-598-3
01
1
9603-9904
●
86
VALVE; MAG,EXH BRK
1-82563-871-2
01
1
9905-
●
●
●
87
CONNECTOR
(A) M20 & PT1/4
9-09902-386-0
01
1
9603-9702
●
87
CONNECTOR
(A) M12 & PT1/4 STRAIGHT
1-09650-074-1
01
1
9703-9904
●
87
CONNECTOR
FULL FLOATING CAB<W16> (C) M12X2 & PT1/4 3WAY
1-09656-229-1
01
1
9603-9904
●
87
CONNECTOR
FULL FLOATING CAB<W16> (C) M12 & PT1/4 ELBOW
1-09650-430-0
03
1
9905-
●
●
●
87
CONNECTOR
EXC. FULL FLOATING CAB<W16> (B) M12 & PT1/4 ELBOW
1-09650-430-0
01
1
9603-9904
●
87
CONNECTOR
EXC. FULL FLOATING CAB<W16> (B) M12 & PT1/4 ELBOW
1-09650-430-0
02
1
9905-
●
●
●
88
PLUG
EXC. FULL FLOATING CAB<W16> PT1/4
9-99204-513-0
01
1
9905-
●
●
●
92
BOLT; MAG VLV
(A) M8X20 FLANGE
0-28080-820-0
02
1
9603-9606
●
92
BOLT; MAG VLV
(A) M8X25 FLANGE
0-28680-825-0
02
1
9607-9608
●
92
BOLT; MAG VLV
(A) M8X20 FLANGE
0-28680-820-0
02
1
9609-9904
●
92
BOLT; MAG VLV
(A) M8X20 FLANGE
0-28680-820-0
02
1
9905-
●
●
●
92
BOLT; MAG VLV
BRAKE SYSTEM RETARDER<RE2> (B) M8X70 FLANGE
0-28080-870-0
02
1
9905-9907
●
●
●
93
NUT; MAG VLV
BRAKE SYSTEM RETARDER<RE2> M8 FLANGE
0-91150-108-0
02
1
9905-9907
●
●
●
94
BRACKET; MAG VLV,EXH BRAKE
1-82569-173-0
01
1
9603-9904
●
94
BRACKET; MAG VLV,EXH BRAKE
1-82569-273-0
01
1
9905-
●
●
●
