Sayfa 2-37 - Isuzu EPC

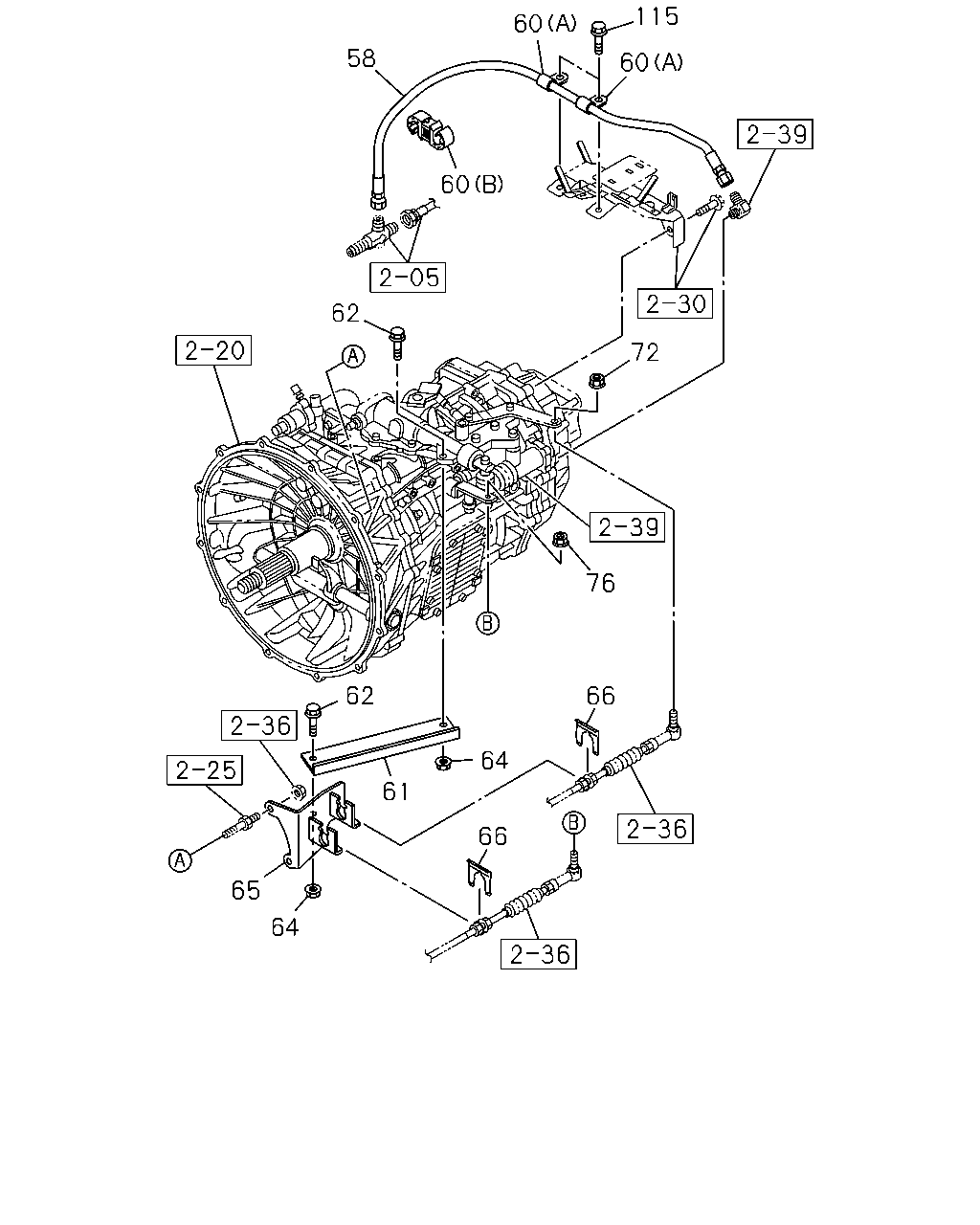

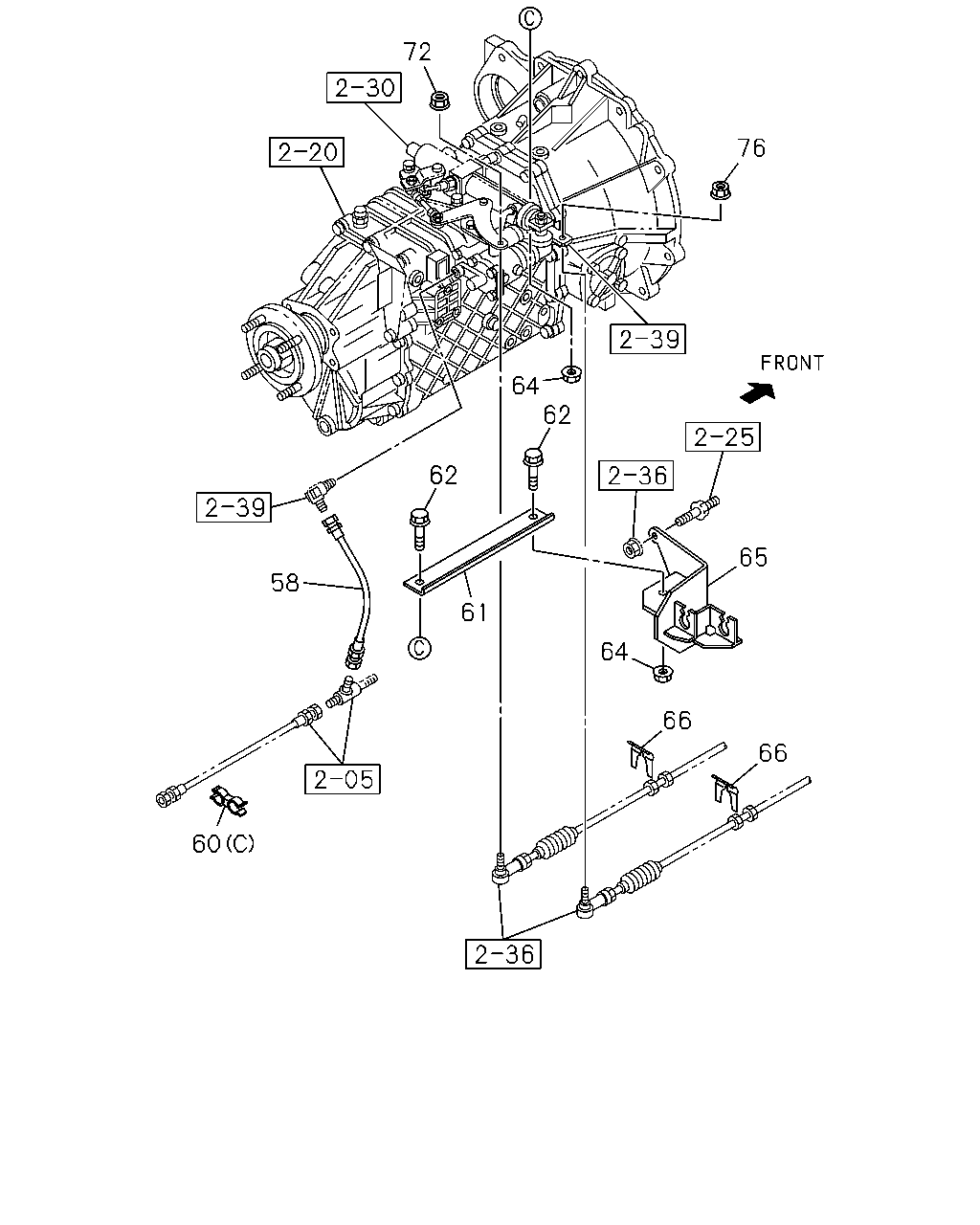

2-37 — MANUAL TRANSMISSION CONT; MISSION SIDE (#55539) — 137 parça

115 60 58 60 60 62 72 76 62 66 64 61 66 65 64

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
58	HOSE; FLEX,POWER ASSISTOR 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> L=290	1-09363-875-0	01	1	1012-	●
58	HOSE; FLEX,POWER ASSISTOR 4HK1-TCS ENG(RJS) MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> L=310	1-09363-713-0	01	1	1012-	●
58	HOSE; FLEX,POWER ASSISTOR 6HK1-TCN ENG(82L) MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> L=740	1-09363-675-0	01	1	1001-	●
58	HOSE; FLEX,POWER ASSISTOR 6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> L=640	1-09363-626-1	01	1	1001-	●
58	HOSE; FLEX,POWER ASSISTOR ASSISTOR SHIFT CONTROL<WX8> L=640	1-09363-626-1	01	1	1001-		●
60	CLIP; FLEX HOSE 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> (C) ID=11.8 & 7.5	1-09709-182-0	01	1	1012-	●
60	CLIP; FLEX HOSE ASSISTOR SHIFT CONTROL<WX8> (A) ID=13 L=20	0-95235-235-0	02	1	1001-1011	●	●
60	CLIP; FLEX HOSE 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (A) ID=13 L=20	0-95235-235-0	02	1	1012-	●
60	CLIP; FLEX HOSE ASSISTOR SHIFT CONTROL<WX8> (A) ID=13 L=20	0-95235-235-0	02	1	1012-		●
60	CLIP; FLEX HOSE ASSISTOR SHIFT CONTROL<WX8> (B) ID=10 & 10	1-09709-277-1	01	1	1001-1011	●	●
60	CLIP; FLEX HOSE 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (B) ID=10 & 10	1-09709-277-1	01	1	1012-	●
60	CLIP; FLEX HOSE ASSISTOR SHIFT CONTROL<WX8> (B) ID=10 & 10	1-09709-277-1	01	1	1012-		●
61	STAY; BRKT,TRANS CONT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8>	8-98165-370-0	01	1	1012-1309	●
61	STAY; BRKT,TRANS CONT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8>	8-98251-404-0	01	1	1310-	●
61	STAY; BRKT,TRANS CONT 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33657-402-0	01	1	1012-	●
61	STAY; BRKT,TRANS CONT 6HK1-TCN ENG(82L) MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33657-349-0	01	1	1001-	●
61	STAY; BRKT,TRANS CONT 6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ)	1-33657-267-0	01	1	1001-1105	●
61	STAY; BRKT,TRANS CONT 6HK1-TCN ENG(82L) MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8>	1-33657-267-0	01	1	1001-1105	●
61	STAY; BRKT,TRANS CONT	1-33657-267-0	01	1	1001-1105		●
61	STAY; BRKT,TRANS CONT 6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ)	1-33657-267-0	01	1	1106-1109	●
61	STAY; BRKT,TRANS CONT 6HK1-TCN ENG(82L) MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8>	1-33657-267-0	01	1	1106-1109	●
61	STAY; BRKT,TRANS CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-33657-267-0	01	1	1106-1109		●
61	STAY; BRKT,TRANS CONT 6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-33657-267-0	01	1	1110-	●
61	STAY; BRKT,TRANS CONT 6HK1-TCN ENG(82L) MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8>	1-33657-267-0	01	1	1110-	●
61	STAY; BRKT,TRANS CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-33657-267-0	01	1	1110-		●
62	BOLT; STAY MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> M10X30 FLANGE SOU	0-28651-030-0	01	1	1001-	●
62	BOLT; STAY MZX6P M/T(RSW),MZW6P M/T(RSZ) M10X30 FLANGE SOU	0-28651-030-0	02	1	1001-1105	●
62	BOLT; STAY MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> M10X30 FLANGE SOU	0-28651-030-0	02	1	1001-1105	●
62	BOLT; STAY M10X30 FLANGE SOU	0-28651-030-0	02	1	1001-1105		●
62	BOLT; STAY MZX6P M/T(RSW),MZW6P M/T(RSZ) M10X30 FLANGE SOU	0-28651-030-0	02	1	1106-1109	●
62	BOLT; STAY MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> M10X30 FLANGE SOU	0-28651-030-0	02	1	1106-1109	●
62	BOLT; STAY TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10X30 FLANGE SOU	0-28651-030-0	02	1	1106-1109		●
62	BOLT; STAY MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10X30 FLANGE SOU	0-28651-030-0	02	1	1110-	●
62	BOLT; STAY MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> M10X30 FLANGE SOU	0-28651-030-0	02	1	1110-	●
62	BOLT; STAY TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10X30 FLANGE SOU	0-28651-030-0	02	1	1110-		●
64	NUT; STAY M10 FLANGE SOU	0-91180-210-0	02	1	1001-1105	●	●
64	NUT; STAY M10 FLANGE SOU	0-91180-210-0	02	1	1106-1109	●
64	NUT; STAY TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10 FLANGE SOU	0-91180-210-0	02	1	1106-1109		●
64	NUT; STAY TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10 FLANGE SOU	0-91180-210-0	02	1	1110-	●	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8>	8-98010-158-1	01	1	1012-	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98050-563-1	01	1	1012-	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT 6HK1-TCN ENG(82L) MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8>	8-98117-611-0	01	1	1001-	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT 6HK1-TCN ENG(82L) MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33657-831-0	01	1	1001-	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT 6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8>	8-98010-159-0	01	1	1001-1105	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT ASSISTOR SHIFT CONTROL<WX8>	8-98010-159-0	01	1	1001-1105		●
65	BRACKET; SHIFT TO SELECT,TRANS CONT 6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8>	8-98010-159-0	01	1	1106-1109	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98010-159-0	01	1	1106-1109		●
65	BRACKET; SHIFT TO SELECT,TRANS CONT 6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98010-159-0	01	1	1110-	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98010-159-0	01	1	1110-		●
65	BRACKET; SHIFT TO SELECT,TRANS CONT 6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98017-428-0	01	1	1001-1105	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98017-428-0	01	1	1001-1105		●
65	BRACKET; SHIFT TO SELECT,TRANS CONT 6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98017-428-0	01	1	1106-1109	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98017-428-0	01	1	1106-1109		●
65	BRACKET; SHIFT TO SELECT,TRANS CONT 6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98017-428-0	01	1	1110-	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98017-428-0	01	1	1110-		●
66	CLIP; SELECT BRKT ID=22.2	1-09701-209-1	02	1	1001-1105	●	●
66	CLIP; SELECT BRKT ID=22.2	1-09701-209-1	02	1	1106-1109	●
66	CLIP; SELECT BRKT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=22.2	1-09701-209-1	02	1	1106-1109		●
66	CLIP; SELECT BRKT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=22.2	1-09701-209-1	02	1	1110-	●	●
72	NUT; TRANS CONT,SELECT M8 FLANGE SOU	1-09440-049-0	01	1	1001-1105	●	●
72	NUT; TRANS CONT,SELECT M8 FLANGE SOU	1-09440-049-0	01	1	1106-1109	●
72	NUT; TRANS CONT,SELECT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE SOU	1-09440-049-0	01	1	1106-1109		●
72	NUT; TRANS CONT,SELECT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE SOU	1-09440-049-0	01	1	1110-	●	●
76	NUT; BALL JOINT,SELECT WIRE M8 FLANGE SOU	1-09440-049-0	01	1	1001-1105	●	●
76	NUT; BALL JOINT,SELECT WIRE M8 FLANGE SOU	1-09440-049-0	01	1	1106-1109	●
76	NUT; BALL JOINT,SELECT WIRE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE SOU	1-09440-049-0	01	1	1106-1109		●
76	NUT; BALL JOINT,SELECT WIRE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE SOU	1-09440-049-0	01	1	1110-	●	●
115	BOLT; CLIP ASSISTOR SHIFT CONTROL<WX8> M8X16 FLANGE SOU	0-28050-816-0	02	1	1001-1011	●	●
115	BOLT; CLIP 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> M8X16 FLANGE SOU	0-28050-816-0	02	1	1012-	●
115	BOLT; CLIP ASSISTOR SHIFT CONTROL<WX8> M8X16 FLANGE SOU	0-28050-816-0	02	1	1012-		●

72 76 64 62 62 65 58 61 64 66 66 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
58	HOSE; FLEX,POWER ASSISTOR 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> L=290	1-09363-875-0	01	1	1012-	●
58	HOSE; FLEX,POWER ASSISTOR 4HK1-TCS ENG(RJS) MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> L=310	1-09363-713-0	01	1	1012-	●
58	HOSE; FLEX,POWER ASSISTOR 6HK1-TCN ENG(82L) MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> L=740	1-09363-675-0	01	1	1001-	●
58	HOSE; FLEX,POWER ASSISTOR 6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> L=640	1-09363-626-1	01	1	1001-	●
58	HOSE; FLEX,POWER ASSISTOR ASSISTOR SHIFT CONTROL<WX8> L=640	1-09363-626-1	01	1	1001-		●
60	CLIP; FLEX HOSE 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> (C) ID=11.8 & 7.5	1-09709-182-0	01	1	1012-	●
60	CLIP; FLEX HOSE ASSISTOR SHIFT CONTROL<WX8> (A) ID=13 L=20	0-95235-235-0	02	1	1001-1011	●	●
60	CLIP; FLEX HOSE 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (A) ID=13 L=20	0-95235-235-0	02	1	1012-	●
60	CLIP; FLEX HOSE ASSISTOR SHIFT CONTROL<WX8> (A) ID=13 L=20	0-95235-235-0	02	1	1012-		●
60	CLIP; FLEX HOSE ASSISTOR SHIFT CONTROL<WX8> (B) ID=10 & 10	1-09709-277-1	01	1	1001-1011	●	●
60	CLIP; FLEX HOSE 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (B) ID=10 & 10	1-09709-277-1	01	1	1012-	●
60	CLIP; FLEX HOSE ASSISTOR SHIFT CONTROL<WX8> (B) ID=10 & 10	1-09709-277-1	01	1	1012-		●
61	STAY; BRKT,TRANS CONT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8>	8-98165-370-0	01	1	1012-1309	●
61	STAY; BRKT,TRANS CONT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8>	8-98251-404-0	01	1	1310-	●
61	STAY; BRKT,TRANS CONT 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33657-402-0	01	1	1012-	●
61	STAY; BRKT,TRANS CONT 6HK1-TCN ENG(82L) MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33657-349-0	01	1	1001-	●
61	STAY; BRKT,TRANS CONT 6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ)	1-33657-267-0	01	1	1001-1105	●
61	STAY; BRKT,TRANS CONT 6HK1-TCN ENG(82L) MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8>	1-33657-267-0	01	1	1001-1105	●
61	STAY; BRKT,TRANS CONT	1-33657-267-0	01	1	1001-1105		●
61	STAY; BRKT,TRANS CONT 6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ)	1-33657-267-0	01	1	1106-1109	●
61	STAY; BRKT,TRANS CONT 6HK1-TCN ENG(82L) MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8>	1-33657-267-0	01	1	1106-1109	●
61	STAY; BRKT,TRANS CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-33657-267-0	01	1	1106-1109		●
61	STAY; BRKT,TRANS CONT 6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-33657-267-0	01	1	1110-	●
61	STAY; BRKT,TRANS CONT 6HK1-TCN ENG(82L) MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8>	1-33657-267-0	01	1	1110-	●
61	STAY; BRKT,TRANS CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-33657-267-0	01	1	1110-		●
62	BOLT; STAY MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> M10X30 FLANGE SOU	0-28651-030-0	01	1	1001-	●
62	BOLT; STAY MZX6P M/T(RSW),MZW6P M/T(RSZ) M10X30 FLANGE SOU	0-28651-030-0	02	1	1001-1105	●
62	BOLT; STAY MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> M10X30 FLANGE SOU	0-28651-030-0	02	1	1001-1105	●
62	BOLT; STAY M10X30 FLANGE SOU	0-28651-030-0	02	1	1001-1105		●
62	BOLT; STAY MZX6P M/T(RSW),MZW6P M/T(RSZ) M10X30 FLANGE SOU	0-28651-030-0	02	1	1106-1109	●
62	BOLT; STAY MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> M10X30 FLANGE SOU	0-28651-030-0	02	1	1106-1109	●
62	BOLT; STAY TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10X30 FLANGE SOU	0-28651-030-0	02	1	1106-1109		●
62	BOLT; STAY MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10X30 FLANGE SOU	0-28651-030-0	02	1	1110-	●
62	BOLT; STAY MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> M10X30 FLANGE SOU	0-28651-030-0	02	1	1110-	●
62	BOLT; STAY TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10X30 FLANGE SOU	0-28651-030-0	02	1	1110-		●
64	NUT; STAY M10 FLANGE SOU	0-91180-210-0	02	1	1001-1105	●	●
64	NUT; STAY M10 FLANGE SOU	0-91180-210-0	02	1	1106-1109	●
64	NUT; STAY TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10 FLANGE SOU	0-91180-210-0	02	1	1106-1109		●
64	NUT; STAY TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10 FLANGE SOU	0-91180-210-0	02	1	1110-	●	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8>	8-98010-158-1	01	1	1012-	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98050-563-1	01	1	1012-	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT 6HK1-TCN ENG(82L) MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8>	8-98117-611-0	01	1	1001-	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT 6HK1-TCN ENG(82L) MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33657-831-0	01	1	1001-	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT 6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8>	8-98010-159-0	01	1	1001-1105	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT ASSISTOR SHIFT CONTROL<WX8>	8-98010-159-0	01	1	1001-1105		●
65	BRACKET; SHIFT TO SELECT,TRANS CONT 6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8>	8-98010-159-0	01	1	1106-1109	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98010-159-0	01	1	1106-1109		●
65	BRACKET; SHIFT TO SELECT,TRANS CONT 6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98010-159-0	01	1	1110-	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98010-159-0	01	1	1110-		●
65	BRACKET; SHIFT TO SELECT,TRANS CONT 6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98017-428-0	01	1	1001-1105	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98017-428-0	01	1	1001-1105		●
65	BRACKET; SHIFT TO SELECT,TRANS CONT 6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98017-428-0	01	1	1106-1109	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98017-428-0	01	1	1106-1109		●
65	BRACKET; SHIFT TO SELECT,TRANS CONT 6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98017-428-0	01	1	1110-	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98017-428-0	01	1	1110-		●
66	CLIP; SELECT BRKT ID=22.2	1-09701-209-1	02	1	1001-1105	●	●
66	CLIP; SELECT BRKT ID=22.2	1-09701-209-1	02	1	1106-1109	●
66	CLIP; SELECT BRKT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=22.2	1-09701-209-1	02	1	1106-1109		●
66	CLIP; SELECT BRKT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=22.2	1-09701-209-1	02	1	1110-	●	●
72	NUT; TRANS CONT,SELECT M8 FLANGE SOU	1-09440-049-0	01	1	1001-1105	●	●
72	NUT; TRANS CONT,SELECT M8 FLANGE SOU	1-09440-049-0	01	1	1106-1109	●
72	NUT; TRANS CONT,SELECT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE SOU	1-09440-049-0	01	1	1106-1109		●
72	NUT; TRANS CONT,SELECT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE SOU	1-09440-049-0	01	1	1110-	●	●
76	NUT; BALL JOINT,SELECT WIRE M8 FLANGE SOU	1-09440-049-0	01	1	1001-1105	●	●
76	NUT; BALL JOINT,SELECT WIRE M8 FLANGE SOU	1-09440-049-0	01	1	1106-1109	●
76	NUT; BALL JOINT,SELECT WIRE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE SOU	1-09440-049-0	01	1	1106-1109		●
76	NUT; BALL JOINT,SELECT WIRE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE SOU	1-09440-049-0	01	1	1110-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
