◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11161 - FSR(SOUTH AFRICA) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-35 - MANUAL TRANSMISSION SHIFT CONTROL LEVER ▶
2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#55537) — 226 parça

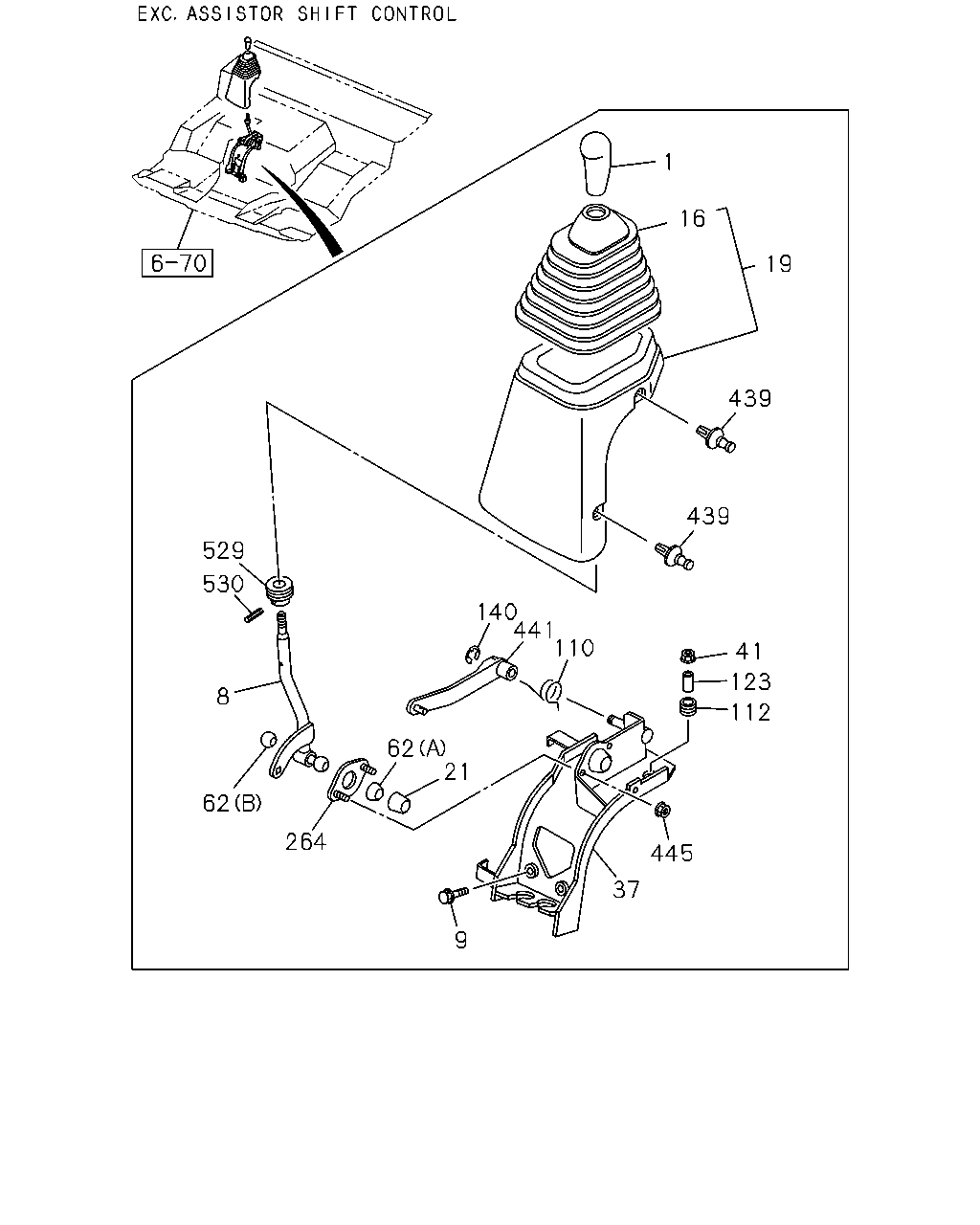

çizim 162410
1 16 19 439 439 529 530 140 441 110 41 123 8 112 62 21 62 264 445 37 9
BalonParca AdiParca NoAdetTipApplied Date A B
1 KNOB; CHANGE LEVER
SOU 		1-33611-070-1 01 1 1001-1105 ● ●
1 KNOB; CHANGE LEVER
SOU 		1-33611-070-1 01 1 1106-1109 ●
1 KNOB; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) SOU 		1-33611-070-1 01 1 1106-1109 ●
1 KNOB; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) SOU 		1-33611-070-1 01 1 1110- ● ●
8 LEVER; CHANGE
TRANSMISSION CONTROL-SMOOTHER(8GF) DARK GRAY 		8-97421-814-0 01 1 1106-1109 ●
8 LEVER; CHANGE
TRANSMISSION CONTROL-SMOOTHER(8GF) DARK GRAY 		8-97421-814-0 01 1 1110-1311 ● ●
8 LEVER; CHANGE
TRANSMISSION CONTROL-SMOOTHER(8GF) DARK GRAY 		8-97429-026-0 01 1 1312-1408 ● ●
8 LEVER; CHANGE
TRANSMISSION CONTROL-SMOOTHER(8GF) DARK GRAY 		8-97465-737-1 01 1 1409- ● ●
8 LEVER; CHANGE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> 		8-98071-282-0 01 1 1001-1112 ● ●
8 LEVER; CHANGE
MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98071-282-0 01 1 1201- ●
8 LEVER; CHANGE
MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98071-282-0 01 1 1201- ●
8 LEVER; CHANGE
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98071-282-0 01 1 1201- ●
8 LEVER; CHANGE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98093-455-0 01 1 1001-1112 ● ●
8 LEVER; CHANGE
MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98093-455-0 01 1 1201- ●
9 BOLT; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE 		0-28650-820-0 02 1 1106-1109 ●
9 BOLT; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE 		0-28650-820-0 02 1 1110- ● ●
9 BOLT; CHANGE LEVER
M8X25 W/WAVE&PL WASHER SOU 		8-94412-342-0 02 1 1001-1105 ● ●
9 BOLT; CHANGE LEVER
M8X25 W/WAVE&PL WASHER SOU 		8-94412-342-0 02 1 1106-1109 ●
9 BOLT; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X25 W/WAVE&PL WASHER SOU 		8-94412-342-0 02 1 1106-1109 ●
9 BOLT; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X25 W/WAVE&PL WASHER SOU 		8-94412-342-0 02 1 1110- ● ●
16 BOOT; CHANGE LEVER
SOU 		1-79998-751-4 01 1 1001-1105 ● ●
16 BOOT; CHANGE LEVER
SOU 		1-79998-751-4 01 1 1106-1109 ●
16 BOOT; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) SOU 		1-79998-751-4 01 1 1106-1109 ●
16 BOOT; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) SOU 		1-79998-751-4 01 1 1110- ● ●
19 COVER; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER(8GF) GRAY 		8-97407-501-0 01 1 1106-1109 ●
19 COVER; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER(8GF) GRAY 		8-97407-501-0 01 1 1110- ● ●
19 COVER; CHANGE LEVER
GRAY 		8-97407-953-0 01 1 1001-1105 ● ●
19 COVER; CHANGE LEVER
GRAY 		8-97407-953-0 01 1 1106-1109 ●
19 COVER; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) GRAY 		8-97407-953-0 01 1 1106-1109 ●
19 COVER; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) GRAY 		8-97407-953-0 01 1 1110- ● ●
21 SEAT; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> SOU 		1-33619-429-0 01 1 1001-1112 ● ●
21 SEAT; CHANGE LEVER
MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> SOU 		1-33619-429-0 01 1 1201- ●
37 BRACKET; CHANGE LEVER SUPPORT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> 		8-98071-281-0 01 1 1001-1112 ● ●
37 BRACKET; CHANGE LEVER SUPPORT
MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98071-281-0 01 1 1201- ●
37 BRACKET; CHANGE LEVER SUPPORT
MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98071-281-0 01 1 1201- ●
37 BRACKET; CHANGE LEVER SUPPORT
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98071-281-0 01 1 1201- ●
37 BRACKET; CHANGE LEVER SUPPORT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98093-443-0 01 1 1001-1112 ● ●
37 BRACKET; CHANGE LEVER SUPPORT
MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98093-443-0 01 1 1201- ●
41 NUT; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER(8GF) M8 W/DISHED WASHER 		8-97329-625-0 04 1 1106-1109 ●
41 NUT; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER(8GF) M8 W/DISHED WASHER 		8-97329-625-0 04 1 1110- ● ●
41 NUT; CHANGE LEVER
M8 W/DISHED WASHER 		8-97329-625-0 02 1 1001- ● ●
62 SEAT; BALL,CHANGE LEVER
(A) SOU 		1-33619-427-0 01 1 1001-1105 ● ●
62 SEAT; BALL,CHANGE LEVER
(A) SOU 		1-33619-427-0 01 1 1106-1109 ●
62 SEAT; BALL,CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) SOU 		1-33619-427-0 01 1 1106-1109 ●
62 SEAT; BALL,CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) SOU 		1-33619-427-0 01 1 1110- ● ●
62 SEAT; BALL,CHANGE LEVER
(B) SOU 		8-97049-147-0 01 1 1001-1105 ● ●
62 SEAT; BALL,CHANGE LEVER
(B) SOU 		8-97049-147-0 01 1 1106-1109 ●
62 SEAT; BALL,CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) SOU 		8-97049-147-0 01 1 1106-1109 ●
62 SEAT; BALL,CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) SOU 		8-97049-147-0 01 1 1110- ● ●
110 SPRING; RETURN,CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> SOU 		1-33619-586-0 01 1 1001-1112 ● ●
110 SPRING; RETURN,CHANGE LEVER
MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) SOU 		1-33619-586-0 01 1 1201- ●
110 SPRING; RETURN,CHANGE LEVER
MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) SOU 		1-33619-586-0 01 1 1201- ●
110 SPRING; RETURN,CHANGE LEVER
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) SOU 		1-33619-586-0 01 1 1201- ●
110 SPRING; RETURN,CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> SOU 		1-33619-435-0 01 1 1001-1112 ● ●
110 SPRING; RETURN,CHANGE LEVER
MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> SOU 		1-33619-435-0 01 1 1201- ●
112 RUBBER; CUSHION
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> SOU 		8-97091-426-0 04 1 1001-1112 ● ●
112 RUBBER; CUSHION
MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) SOU 		8-97091-426-0 04 1 1201- ●
112 RUBBER; CUSHION
MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) SOU 		8-97091-426-0 04 1 1201- ●
112 RUBBER; CUSHION
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) SOU 		8-97091-426-0 04 1 1201- ●
112 RUBBER; CUSHION
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> SOU 		1-33619-442-0 04 1 1001-1112 ● ●
112 RUBBER; CUSHION
MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> SOU 		1-33619-442-0 04 1 1201- ●
123 COLLAR; DIST,CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> SOU 		8-97091-427-0 04 1 1001-1112 ● ●
123 COLLAR; DIST,CHANGE LEVER
MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) SOU 		8-97091-427-0 04 1 1201- ●
123 COLLAR; DIST,CHANGE LEVER
MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) SOU 		8-97091-427-0 04 1 1201- ●
123 COLLAR; DIST,CHANGE LEVER
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) SOU 		8-97091-427-0 04 1 1201- ●
123 COLLAR; DIST,CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> SOU 		1-33619-443-0 04 1 1001-1112 ● ●
123 COLLAR; DIST,CHANGE LEVER
MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> SOU 		1-33619-443-0 04 1 1201- ●
140 RING; SNAP
ID=10 		0-91805-510-0 01 1 1001-1105 ● ●
140 RING; SNAP
ID=10 		0-91805-510-0 01 1 1106-1109 ●
140 RING; SNAP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=10 		0-91805-510-0 01 1 1106-1109 ●
140 RING; SNAP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=10 		0-91805-510-0 01 1 1110- ● ●
264 PLATE; COVER
SOU 		1-33619-430-0 01 1 1001-1105 ● ●
264 PLATE; COVER
SOU 		1-33619-430-0 01 1 1106-1109 ●
264 PLATE; COVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) SOU 		1-33619-430-0 01 1 1106-1109 ●
264 PLATE; COVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) SOU 		1-33619-430-0 01 1 1110- ● ●
439 FASTENER; COVER
GRAY 		8-97407-955-0 04 1 1001- ● ●
441 LEVER; SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> 		8-98071-283-0 01 1 1001-1112 ● ●
441 LEVER; SELECT
MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98071-283-0 01 1 1201- ●
441 LEVER; SELECT
MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98071-283-0 01 1 1201- ●
441 LEVER; SELECT
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98071-283-0 01 1 1201- ●
441 LEVER; SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98093-449-0 01 1 1001-1112 ● ●
441 LEVER; SELECT
MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98093-449-0 01 1 1201- ●
445 NUT; PLATE
M6 FLANGE SOU 		0-91180-106-0 02 1 1001-1105 ● ●
445 NUT; PLATE
M6 FLANGE SOU 		0-91180-106-0 02 1 1106-1109 ●
445 NUT; PLATE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M6 FLANGE SOU 		0-91180-106-0 02 1 1106-1109 ●
445 NUT; PLATE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M6 FLANGE SOU 		0-91180-106-0 02 1 1110- ● ●
529 RING; BOOT
SOU 		1-33619-504-0 01 1 1001-1105 ● ●
529 RING; BOOT
SOU 		1-33619-504-0 01 1 1106-1109 ●
529 RING; BOOT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) SOU 		1-33619-504-0 01 1 1106-1109 ●
529 RING; BOOT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) SOU 		1-33619-504-0 01 1 1110- ● ●
530 PIN; SPRING
SOU 		1-33619-505-0 01 1 1001-1105 ● ●
530 PIN; SPRING
SOU 		1-33619-505-0 01 1 1106-1109 ●
530 PIN; SPRING
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) SOU 		1-33619-505-0 01 1 1106-1109 ●
530 PIN; SPRING
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) SOU 		1-33619-505-0 01 1 1110- ● ●

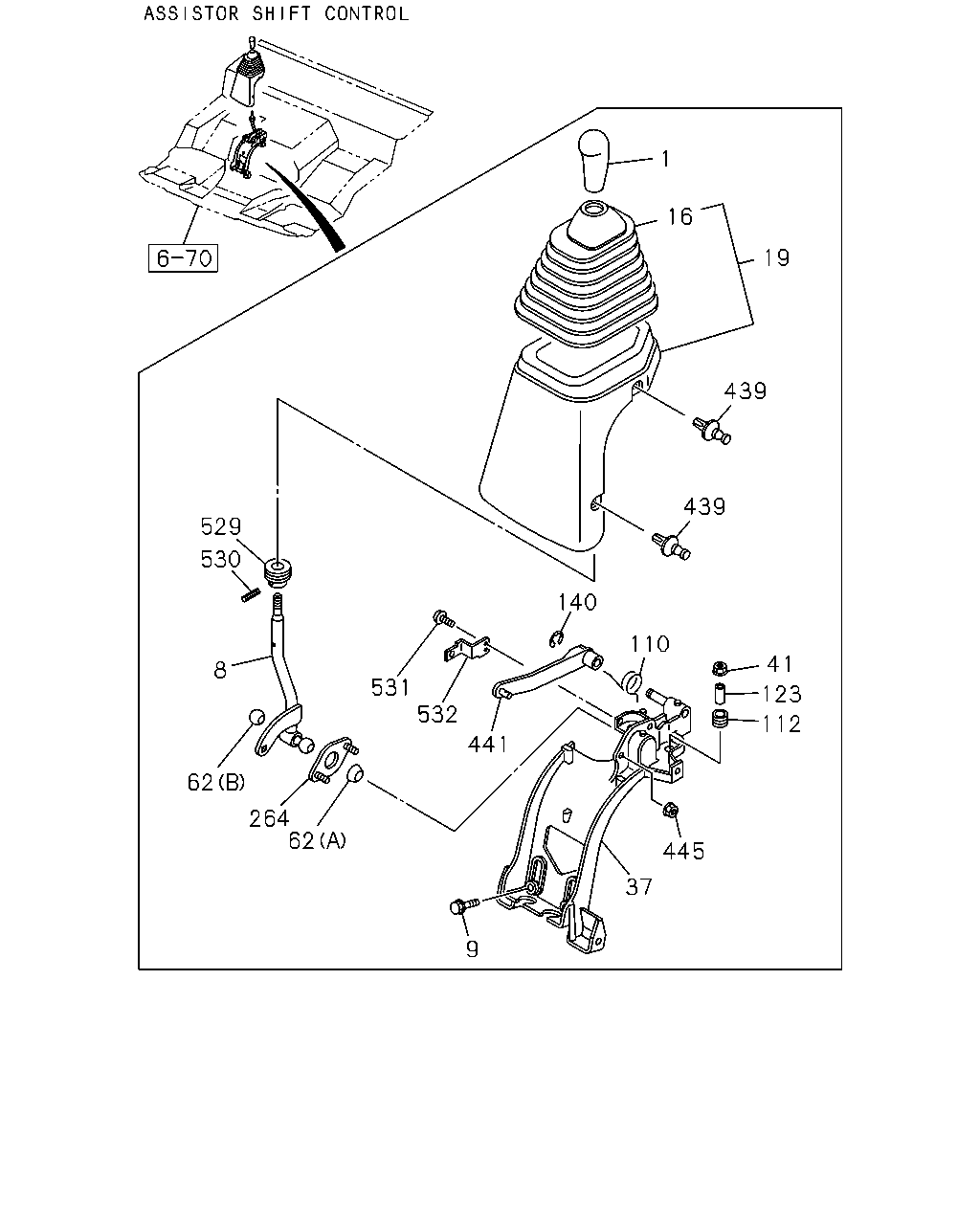

çizim 162471
1 16 19 439 439 529 530 140 110 41 8 531 123 532 112 441 62 264 62 445 37 9
BalonParca AdiParca NoAdetTipApplied Date A B
1 KNOB; CHANGE LEVER
SOU 		1-33611-070-1 01 1 1001-1105 ● ●
1 KNOB; CHANGE LEVER
SOU 		1-33611-070-1 01 1 1106-1109 ●
1 KNOB; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) SOU 		1-33611-070-1 01 1 1106-1109 ●
1 KNOB; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) SOU 		1-33611-070-1 01 1 1110- ● ●
8 LEVER; CHANGE
TRANSMISSION CONTROL-SMOOTHER(8GF) DARK GRAY 		8-97421-814-0 01 1 1106-1109 ●
8 LEVER; CHANGE
TRANSMISSION CONTROL-SMOOTHER(8GF) DARK GRAY 		8-97421-814-0 01 1 1110-1311 ● ●
8 LEVER; CHANGE
TRANSMISSION CONTROL-SMOOTHER(8GF) DARK GRAY 		8-97429-026-0 01 1 1312-1408 ● ●
8 LEVER; CHANGE
TRANSMISSION CONTROL-SMOOTHER(8GF) DARK GRAY 		8-97465-737-1 01 1 1409- ● ●
8 LEVER; CHANGE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> 		8-98071-282-0 01 1 1001-1112 ● ●
8 LEVER; CHANGE
MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98071-282-0 01 1 1201- ●
8 LEVER; CHANGE
MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98071-282-0 01 1 1201- ●
8 LEVER; CHANGE
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98071-282-0 01 1 1201- ●
8 LEVER; CHANGE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98093-455-0 01 1 1001-1112 ● ●
8 LEVER; CHANGE
MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98093-455-0 01 1 1201- ●
9 BOLT; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE 		0-28650-820-0 02 1 1106-1109 ●
9 BOLT; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE 		0-28650-820-0 02 1 1110- ● ●
9 BOLT; CHANGE LEVER
M8X25 W/WAVE&PL WASHER SOU 		8-94412-342-0 02 1 1001-1105 ● ●
9 BOLT; CHANGE LEVER
M8X25 W/WAVE&PL WASHER SOU 		8-94412-342-0 02 1 1106-1109 ●
9 BOLT; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X25 W/WAVE&PL WASHER SOU 		8-94412-342-0 02 1 1106-1109 ●
9 BOLT; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X25 W/WAVE&PL WASHER SOU 		8-94412-342-0 02 1 1110- ● ●
16 BOOT; CHANGE LEVER
SOU 		1-79998-751-4 01 1 1001-1105 ● ●
16 BOOT; CHANGE LEVER
SOU 		1-79998-751-4 01 1 1106-1109 ●
16 BOOT; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) SOU 		1-79998-751-4 01 1 1106-1109 ●
16 BOOT; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) SOU 		1-79998-751-4 01 1 1110- ● ●
19 COVER; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER(8GF) GRAY 		8-97407-501-0 01 1 1106-1109 ●
19 COVER; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER(8GF) GRAY 		8-97407-501-0 01 1 1110- ● ●
19 COVER; CHANGE LEVER
GRAY 		8-97407-953-0 01 1 1001-1105 ● ●
19 COVER; CHANGE LEVER
GRAY 		8-97407-953-0 01 1 1106-1109 ●
19 COVER; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) GRAY 		8-97407-953-0 01 1 1106-1109 ●
19 COVER; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) GRAY 		8-97407-953-0 01 1 1110- ● ●
37 BRACKET; CHANGE LEVER SUPPORT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> 		8-98071-281-0 01 1 1001-1112 ● ●
37 BRACKET; CHANGE LEVER SUPPORT
MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98071-281-0 01 1 1201- ●
37 BRACKET; CHANGE LEVER SUPPORT
MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98071-281-0 01 1 1201- ●
37 BRACKET; CHANGE LEVER SUPPORT
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98071-281-0 01 1 1201- ●
37 BRACKET; CHANGE LEVER SUPPORT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98093-443-0 01 1 1001-1112 ● ●
37 BRACKET; CHANGE LEVER SUPPORT
MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98093-443-0 01 1 1201- ●
41 NUT; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER(8GF) M8 W/DISHED WASHER 		8-97329-625-0 04 1 1106-1109 ●
41 NUT; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER(8GF) M8 W/DISHED WASHER 		8-97329-625-0 04 1 1110- ● ●
41 NUT; CHANGE LEVER
M8 W/DISHED WASHER 		8-97329-625-0 02 1 1001- ● ●
62 SEAT; BALL,CHANGE LEVER
(A) SOU 		1-33619-427-0 01 1 1001-1105 ● ●
62 SEAT; BALL,CHANGE LEVER
(A) SOU 		1-33619-427-0 01 1 1106-1109 ●
62 SEAT; BALL,CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) SOU 		1-33619-427-0 01 1 1106-1109 ●
62 SEAT; BALL,CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) SOU 		1-33619-427-0 01 1 1110- ● ●
62 SEAT; BALL,CHANGE LEVER
(B) SOU 		8-97049-147-0 01 1 1001-1105 ● ●
62 SEAT; BALL,CHANGE LEVER
(B) SOU 		8-97049-147-0 01 1 1106-1109 ●
62 SEAT; BALL,CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) SOU 		8-97049-147-0 01 1 1106-1109 ●
62 SEAT; BALL,CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) SOU 		8-97049-147-0 01 1 1110- ● ●
110 SPRING; RETURN,CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> SOU 		1-33619-586-0 01 1 1001-1112 ● ●
110 SPRING; RETURN,CHANGE LEVER
MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) SOU 		1-33619-586-0 01 1 1201- ●
110 SPRING; RETURN,CHANGE LEVER
MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) SOU 		1-33619-586-0 01 1 1201- ●
110 SPRING; RETURN,CHANGE LEVER
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) SOU 		1-33619-586-0 01 1 1201- ●
110 SPRING; RETURN,CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> SOU 		1-33619-435-0 01 1 1001-1112 ● ●
110 SPRING; RETURN,CHANGE LEVER
MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> SOU 		1-33619-435-0 01 1 1201- ●
112 RUBBER; CUSHION
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> SOU 		8-97091-426-0 04 1 1001-1112 ● ●
112 RUBBER; CUSHION
MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) SOU 		8-97091-426-0 04 1 1201- ●
112 RUBBER; CUSHION
MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) SOU 		8-97091-426-0 04 1 1201- ●
112 RUBBER; CUSHION
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) SOU 		8-97091-426-0 04 1 1201- ●
112 RUBBER; CUSHION
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> SOU 		1-33619-442-0 04 1 1001-1112 ● ●
112 RUBBER; CUSHION
MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> SOU 		1-33619-442-0 04 1 1201- ●
123 COLLAR; DIST,CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> SOU 		8-97091-427-0 04 1 1001-1112 ● ●
123 COLLAR; DIST,CHANGE LEVER
MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) SOU 		8-97091-427-0 04 1 1201- ●
123 COLLAR; DIST,CHANGE LEVER
MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) SOU 		8-97091-427-0 04 1 1201- ●
123 COLLAR; DIST,CHANGE LEVER
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) SOU 		8-97091-427-0 04 1 1201- ●
123 COLLAR; DIST,CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> SOU 		1-33619-443-0 04 1 1001-1112 ● ●
123 COLLAR; DIST,CHANGE LEVER
MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> SOU 		1-33619-443-0 04 1 1201- ●
140 RING; SNAP
ID=10 		0-91805-510-0 01 1 1001-1105 ● ●
140 RING; SNAP
ID=10 		0-91805-510-0 01 1 1106-1109 ●
140 RING; SNAP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=10 		0-91805-510-0 01 1 1106-1109 ●
140 RING; SNAP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=10 		0-91805-510-0 01 1 1110- ● ●
264 PLATE; COVER
SOU 		1-33619-430-0 01 1 1001-1105 ● ●
264 PLATE; COVER
SOU 		1-33619-430-0 01 1 1106-1109 ●
264 PLATE; COVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) SOU 		1-33619-430-0 01 1 1106-1109 ●
264 PLATE; COVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) SOU 		1-33619-430-0 01 1 1110- ● ●
439 FASTENER; COVER
GRAY 		8-97407-955-0 04 1 1001- ● ●
441 LEVER; SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> 		8-98071-283-0 01 1 1001-1112 ● ●
441 LEVER; SELECT
MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98071-283-0 01 1 1201- ●
441 LEVER; SELECT
MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98071-283-0 01 1 1201- ●
441 LEVER; SELECT
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98071-283-0 01 1 1201- ●
441 LEVER; SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98093-449-0 01 1 1001-1112 ● ●
441 LEVER; SELECT
MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98093-449-0 01 1 1201- ●
445 NUT; PLATE
M6 FLANGE SOU 		0-91180-106-0 02 1 1001-1105 ● ●
445 NUT; PLATE
M6 FLANGE SOU 		0-91180-106-0 02 1 1106-1109 ●
445 NUT; PLATE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M6 FLANGE SOU 		0-91180-106-0 02 1 1106-1109 ●
445 NUT; PLATE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M6 FLANGE SOU 		0-91180-106-0 02 1 1110- ● ●
529 RING; BOOT
SOU 		1-33619-504-0 01 1 1001-1105 ● ●
529 RING; BOOT
SOU 		1-33619-504-0 01 1 1106-1109 ●
529 RING; BOOT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) SOU 		1-33619-504-0 01 1 1106-1109 ●
529 RING; BOOT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) SOU 		1-33619-504-0 01 1 1110- ● ●
530 PIN; SPRING
SOU 		1-33619-505-0 01 1 1001-1105 ● ●
530 PIN; SPRING
SOU 		1-33619-505-0 01 1 1106-1109 ●
530 PIN; SPRING
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) SOU 		1-33619-505-0 01 1 1106-1109 ●
530 PIN; SPRING
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) SOU 		1-33619-505-0 01 1 1110- ● ●
531 SCREW; STAY
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> M5X10 W/PL WASHER 		9-03900-510-0 01 1 1001-1112 ● ●
531 SCREW; STAY
MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M5X10 W/PL WASHER 		9-03900-510-0 01 1 1201- ●
531 SCREW; STAY
MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M5X10 W/PL WASHER 		9-03900-510-0 01 1 1201- ●
531 SCREW; STAY
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M5X10 W/PL WASHER 		9-03900-510-0 01 1 1201- ●
532 STAY
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> 		8-98071-284-0 01 1 1001-1112 ● ●
532 STAY
MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98071-284-0 01 1 1201- ●
532 STAY
MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98071-284-0 01 1 1201- ●
532 STAY
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98071-284-0 01 1 1201- ●

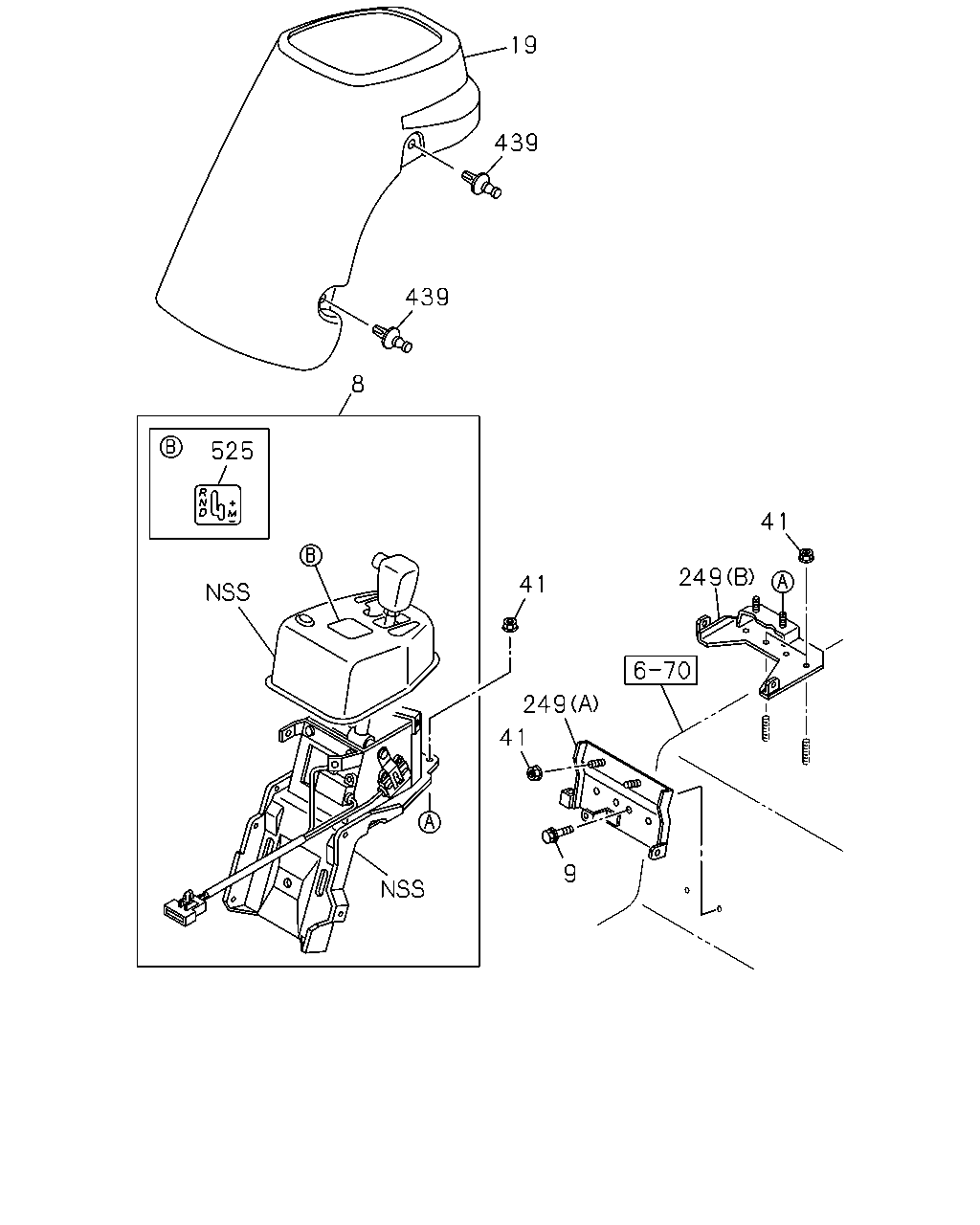

çizim 162821
19 439 439 8 525 41 249 41 249 41 9
BalonParca AdiParca NoAdetTipApplied Date A B
8 LEVER; CHANGE
TRANSMISSION CONTROL-SMOOTHER(8GF) DARK GRAY 		8-97421-814-0 01 1 1106-1109 ●
8 LEVER; CHANGE
TRANSMISSION CONTROL-SMOOTHER(8GF) DARK GRAY 		8-97421-814-0 01 1 1110-1311 ● ●
8 LEVER; CHANGE
TRANSMISSION CONTROL-SMOOTHER(8GF) DARK GRAY 		8-97429-026-0 01 1 1312-1408 ● ●
8 LEVER; CHANGE
TRANSMISSION CONTROL-SMOOTHER(8GF) DARK GRAY 		8-97465-737-1 01 1 1409- ● ●
8 LEVER; CHANGE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> 		8-98071-282-0 01 1 1001-1112 ● ●
8 LEVER; CHANGE
MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98071-282-0 01 1 1201- ●
8 LEVER; CHANGE
MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98071-282-0 01 1 1201- ●
8 LEVER; CHANGE
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98071-282-0 01 1 1201- ●
8 LEVER; CHANGE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98093-455-0 01 1 1001-1112 ● ●
8 LEVER; CHANGE
MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98093-455-0 01 1 1201- ●
9 BOLT; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE 		0-28650-820-0 02 1 1106-1109 ●
9 BOLT; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE 		0-28650-820-0 02 1 1110- ● ●
9 BOLT; CHANGE LEVER
M8X25 W/WAVE&PL WASHER SOU 		8-94412-342-0 02 1 1001-1105 ● ●
9 BOLT; CHANGE LEVER
M8X25 W/WAVE&PL WASHER SOU 		8-94412-342-0 02 1 1106-1109 ●
9 BOLT; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X25 W/WAVE&PL WASHER SOU 		8-94412-342-0 02 1 1106-1109 ●
9 BOLT; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X25 W/WAVE&PL WASHER SOU 		8-94412-342-0 02 1 1110- ● ●
19 COVER; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER(8GF) GRAY 		8-97407-501-0 01 1 1106-1109 ●
19 COVER; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER(8GF) GRAY 		8-97407-501-0 01 1 1110- ● ●
19 COVER; CHANGE LEVER
GRAY 		8-97407-953-0 01 1 1001-1105 ● ●
19 COVER; CHANGE LEVER
GRAY 		8-97407-953-0 01 1 1106-1109 ●
19 COVER; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) GRAY 		8-97407-953-0 01 1 1106-1109 ●
19 COVER; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) GRAY 		8-97407-953-0 01 1 1110- ● ●
41 NUT; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER(8GF) M8 W/DISHED WASHER 		8-97329-625-0 04 1 1106-1109 ●
41 NUT; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER(8GF) M8 W/DISHED WASHER 		8-97329-625-0 04 1 1110- ● ●
41 NUT; CHANGE LEVER
M8 W/DISHED WASHER 		8-97329-625-0 02 1 1001- ● ●
249 BRACKET; COVER
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98016-951-3 01 1 1106-1109 ●
249 BRACKET; COVER
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98016-951-3 01 1 1110- ● ●
249 BRACKET; COVER
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98016-952-3 01 1 1106-1109 ●
249 BRACKET; COVER
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98016-952-3 01 1 1110- ● ●
439 FASTENER; COVER
GRAY 		8-97407-955-0 04 1 1001- ● ●
525 LABEL; SHIFT POSITION
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98048-480-1 01 1 1106-1109 ●
525 LABEL; SHIFT POSITION
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98048-480-1 01 1 1110- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
