◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11161 - FSR(SOUTH AFRICA) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-08 - CLUTCH MASTER CYLINDER ▶
2-08 — CLUTCH MASTER CYLINDER (#55531) — 40 parça

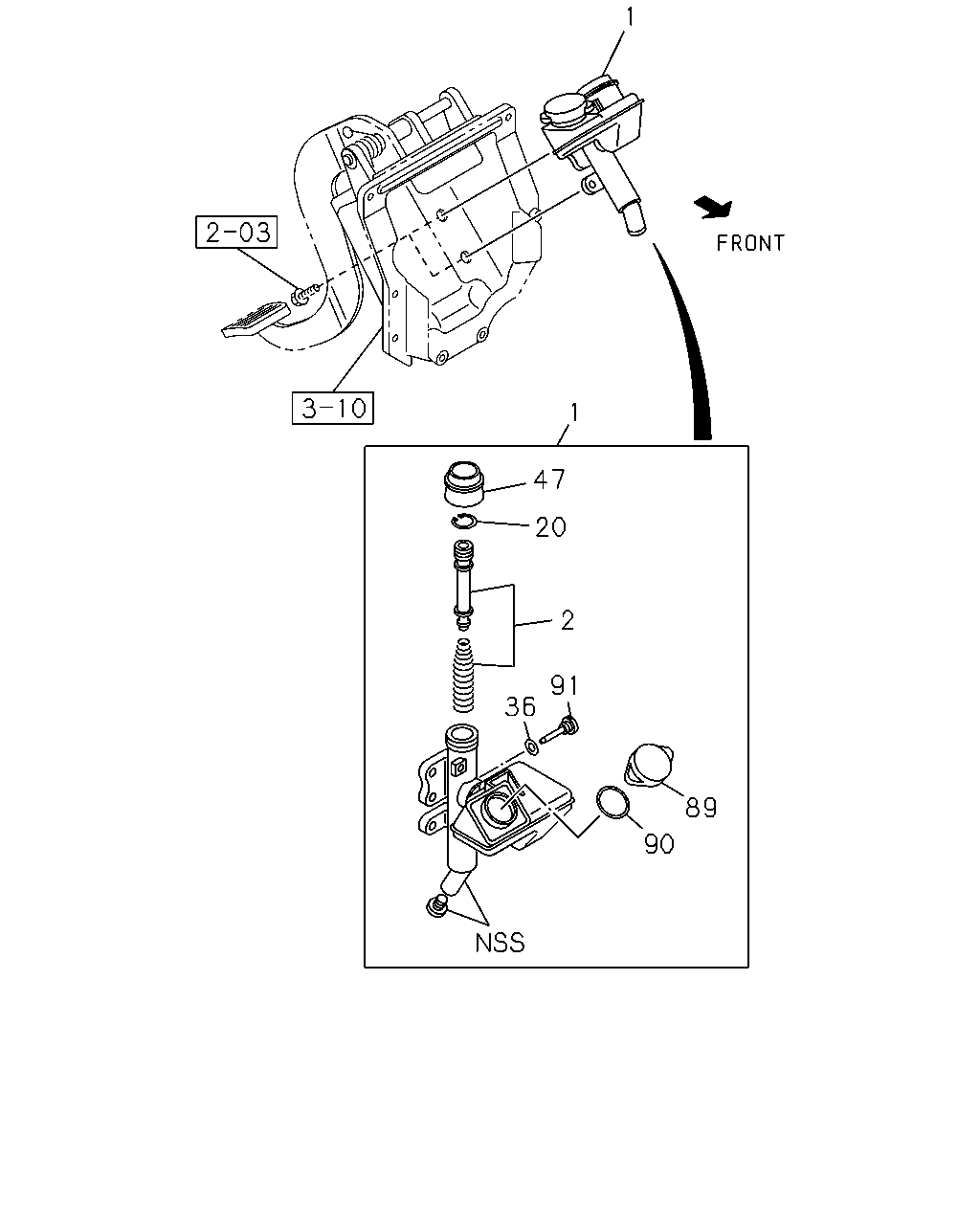

çizim 162392
1 1 47 20 2 91 36 89 90
BalonParca AdiParca NoAdetTipApplied Date A B
1 CYLINDER ASM; CLUTCH MASTER 1-47500-250-2 01 1 1001-1105 ● ●
1 CYLINDER ASM; CLUTCH MASTER 1-47500-250-2 01 1 1106-1109 ●
1 CYLINDER ASM; CLUTCH MASTER
MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		1-47500-250-2 01 1 1106-1109 ●
1 CYLINDER ASM; CLUTCH MASTER
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		1-47500-250-2 01 1 1110- ●
1 CYLINDER ASM; CLUTCH MASTER
MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		1-47500-250-2 01 1 1110- ●
2 REPAIR KIT; CLU M/CYL 1-85576-461-0 01 1 1001-1105 ● ●
2 REPAIR KIT; CLU M/CYL 1-85576-461-0 01 1 1106-1109 ●
2 REPAIR KIT; CLU M/CYL
MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		1-85576-461-0 01 1 1106-1109 ●
2 REPAIR KIT; CLU M/CYL
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		1-85576-461-0 01 1 1110- ●
2 REPAIR KIT; CLU M/CYL
MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		1-85576-461-0 01 1 1110- ●
20 RING; SNAP,BODY 1-47519-013-0 01 1 1001-1105 ● ●
20 RING; SNAP,BODY 1-47519-013-0 01 1 1106-1109 ●
20 RING; SNAP,BODY
MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		1-47519-013-0 01 1 1106-1109 ●
20 RING; SNAP,BODY
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		1-47519-013-0 01 1 1110- ●
20 RING; SNAP,BODY
MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		1-47519-013-0 01 1 1110- ●
36 GASKET; CLU M/CYL 1-47519-014-0 01 1 1001-1105 ● ●
36 GASKET; CLU M/CYL 1-47519-014-0 01 1 1106-1109 ●
36 GASKET; CLU M/CYL
MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		1-47519-014-0 01 1 1106-1109 ●
36 GASKET; CLU M/CYL
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		1-47519-014-0 01 1 1110- ●
36 GASKET; CLU M/CYL
MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		1-47519-014-0 01 1 1110- ●
47 COVER; DUST,PUSH ROD 1-47519-018-0 01 1 1001-1105 ● ●
47 COVER; DUST,PUSH ROD 1-47519-018-0 01 1 1106-1109 ●
47 COVER; DUST,PUSH ROD
MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		1-47519-018-0 01 1 1106-1109 ●
47 COVER; DUST,PUSH ROD
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		1-47519-018-0 01 1 1110- ●
47 COVER; DUST,PUSH ROD
MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		1-47519-018-0 01 1 1110- ●
89 CAP; OIL FILLER,CLU M/CYL 1-47519-017-0 01 1 1001-1105 ● ●
89 CAP; OIL FILLER,CLU M/CYL 1-47519-017-0 01 1 1106-1109 ●
89 CAP; OIL FILLER,CLU M/CYL
MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		1-47519-017-0 01 1 1106-1109 ●
89 CAP; OIL FILLER,CLU M/CYL
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		1-47519-017-0 01 1 1110- ●
89 CAP; OIL FILLER,CLU M/CYL
MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		1-47519-017-0 01 1 1110- ●
90 GASKET; OIL FILLER,CLU M/CYL 1-47519-016-0 01 1 1001-1105 ● ●
90 GASKET; OIL FILLER,CLU M/CYL 1-47519-016-0 01 1 1106-1109 ●
90 GASKET; OIL FILLER,CLU M/CYL
MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		1-47519-016-0 01 1 1106-1109 ●
90 GASKET; OIL FILLER,CLU M/CYL
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		1-47519-016-0 01 1 1110- ●
90 GASKET; OIL FILLER,CLU M/CYL
MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		1-47519-016-0 01 1 1110- ●
91 BOLT; STOPPER 1-47519-015-0 01 1 1001-1105 ● ●
91 BOLT; STOPPER 1-47519-015-0 01 1 1106-1109 ●
91 BOLT; STOPPER
MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		1-47519-015-0 01 1 1106-1109 ●
91 BOLT; STOPPER
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		1-47519-015-0 01 1 1110- ●
91 BOLT; STOPPER
MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		1-47519-015-0 01 1 1110- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
