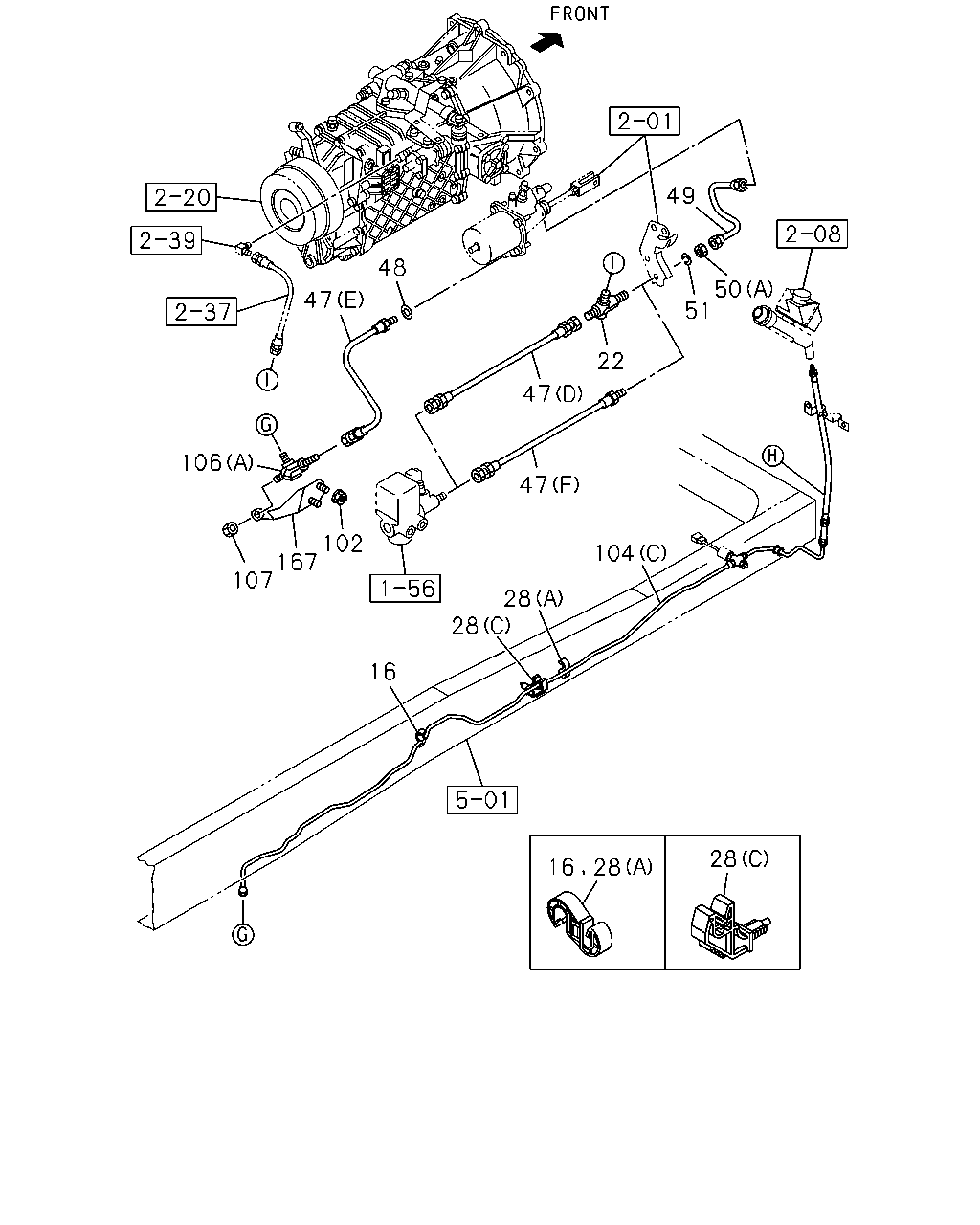

2-05 — CLUTCH PIPING (#55529) — 270 parça

48 28 28 101 50 239 28 104 50 23 104 106 184 52 53 49 53 104 50 47 51 22 47 106 16 47 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	CLIP; FLEX HOSE MLD6W M/T(Y2C) ID=10 & 12	1-09709-278-1	02	1	1001-	●
16	CLIP; FLEX HOSE MZX6P M/T(RSW),MZW6P M/T(RSZ) ID=10 & 12	1-09709-278-1	01	1	1001-1105	●
16	CLIP; FLEX HOSE ID=10 & 12	1-09709-278-1	01	1	1001-1105		●
16	CLIP; FLEX HOSE MZX6P M/T(RSW),MZW6P M/T(RSZ) ID=10 & 12	1-09709-278-1	01	1	1106-1109	●
16	CLIP; FLEX HOSE MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=10 & 12	1-09709-278-1	01	1	1106-1109		●
16	CLIP; FLEX HOSE MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=10 & 12	1-09709-278-1	01	1	1110-	●
16	CLIP; FLEX HOSE MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=10 & 12	1-09709-278-1	01	1	1110-		●
22	UNION; CLU PIPE ASSISTOR SHIFT CONTROL<WX8> M12 3WAY	0-92138-706-0	01	1	1001-	●	●
23	GROMMET; CLU PIPE ID=15 OD=20 T=17.5	1-09332-130-0	01	1	1001-1105	●	●
23	GROMMET; CLU PIPE ID=15 OD=20 T=17.5	1-09332-130-0	01	1	1106-1109	●
23	GROMMET; CLU PIPE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=15 OD=20 T=17.5	1-09332-130-0	01	1	1106-1109		●
23	GROMMET; CLU PIPE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=15 OD=20 T=17.5	1-09332-130-0	01	1	1110-	●	●
28	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (B)	8-98012-254-1	01	1	1001-1109	●
28	CLIP; OIL PIPE 6HK1-TCN ENG(82L) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98012-254-1	01	1	1110-	●
28	CLIP; OIL PIPE (C) ID=6.35	1-09701-247-1	01	1	1001-1105	●	●
28	CLIP; OIL PIPE (C) ID=6.35	1-09701-247-1	01	1	1001-1105	●
28	CLIP; OIL PIPE (C) ID=6.35	1-09701-247-1	01	1	1106-1109	●
28	CLIP; OIL PIPE (C) ID=6.35	1-09701-247-1	01	1	1106-1109	●
28	CLIP; OIL PIPE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=6.35	1-09701-247-1	01	1	1106-1109		●
28	CLIP; OIL PIPE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=6.35	1-09701-247-1	01	1	1110-	●	●
28	CLIP; OIL PIPE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=6.35	1-09701-247-1	01	1	1110-	●
28	CLIP; OIL PIPE (A) ID=6.35 & 10.0	1-09709-274-1	03	1	1001-1105	●	●
28	CLIP; OIL PIPE (A) ID=6.35 & 10.0	1-09709-274-1	03	1	1106-1109	●
28	CLIP; OIL PIPE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=6.35 & 10.0	1-09709-274-1	03	1	1106-1109		●
28	CLIP; OIL PIPE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=6.35 & 10.0	1-09709-274-1	03	1	1110-	●	●
28	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (A) ID=4.76 & 6.35	1-09709-304-0	01	1	1001-1105		●
28	CLIP; OIL PIPE 6HK1-TCN ENG(82L) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=4.76 & 6.35	1-09709-304-0	01	1	1106-		●
28	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (B)	8-98012-254-1	02	1	1001-1105		●
28	CLIP; OIL PIPE 6HK1-TCN ENG(82L) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98012-254-1	02	1	1106-		●
47	HOSE; FLEX,CLU CONT 4HK1-TCS ENG(RJS) (E) L=480	8-98072-349-0	01	1	1012-	●
47	HOSE; FLEX,CLU CONT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> (D) L=660	1-09363-971-0	01	1	1012-	●
47	HOSE; FLEX,CLU CONT 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8> (F) L=740	1-09363-674-0	01	1	1012-	●
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) PTO CONTROL<SV6> ASSISTOR SHIFT CONTROL<WX8> (A) L=540	1-09363-612-1	01	1	1001-1105	●
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (A) L=540	1-09363-612-1	01	1	1001-1105	●
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (A) L=540	1-09363-612-1	01	1	1001-1105		●
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) PTO CONTROL<SV6> ASSISTOR SHIFT CONTROL<WX8> (A) L=540	1-09363-612-1	01	1	1106-1109	●
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (A) L=540	1-09363-612-1	01	1	1106-1109	●
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=540	1-09363-612-1	01	1	1106-1109		●
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) PTO CONTROL<SV6> ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=540	1-09363-612-1	01	1	1110-	●
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=540	1-09363-612-1	01	1	1110-	●
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=540	1-09363-612-1	01	1	1110-		●
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) PTO CONTROL<SV6> EXC. ASSISTOR SHIFT CONTROL<WX8> (C) L=640	1-09363-974-0	01	1	1001-1105	●
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, ASSISTOR SHIFT CONTROL<WX8> (C) L=640	1-09363-974-0	01	1	1001-1105	●
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8> (C) L=640	1-09363-974-0	01	1	1001-1105		●
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) PTO CONTROL<SV6> EXC. ASSISTOR SHIFT CONTROL<WX8> (C) L=640	1-09363-974-0	01	1	1106-1109	●
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, ASSISTOR SHIFT CONTROL<WX8> (C) L=640	1-09363-974-0	01	1	1106-1109	●
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=640	1-09363-974-0	01	1	1106-1109		●
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) PTO CONTROL<SV6> EXC. ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=640	1-09363-974-0	01	1	1110-	●
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=640	1-09363-974-0	01	1	1110-	●
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=640	1-09363-974-0	01	1	1110-		●
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) RIGID SEAT WO/ARM REST<TAZ> ASSISTOR SHIFT CONTROL<WX8> EXC. PTO CONTROL<SV6> (A) L=560	1-09363-914-0	01	1	1001-1109	●
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) RIGID SEAT WO/ARM REST<TAZ> ASSISTOR SHIFT CONTROL<WX8> EXC. PTO CONTROL<SV6>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=560	1-09363-914-0	01	1	1110-	●
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6>,ASSISTOR SHIFT CONTROL<WX8> (C) L=660	1-09363-719-0	01	1	1001-1109	●
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6>,ASSISTOR SHIFT CONTROL<WX8>, TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=660	1-09363-719-0	01	1	1110-	●
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) (B) L=470	8-98072-353-0	01	1	1001-1105	●	●
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) (B) L=470	8-98072-353-0	01	1	1106-1109	●
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=470	8-98072-353-0	01	1	1106-1109		●
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=470	8-98072-353-0	01	1	1110-	●	●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	02	1	1001-1105	●	●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	02	1	1106-1109	●
48	GASKET; FLEX HOSE,CLU CONT EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=10.2 OD=16.0	9-09571-410-0	02	1	1106-1109		●
48	GASKET; FLEX HOSE,CLU CONT EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=10.2 OD=16.0	9-09571-410-0	02	1	1110-	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER 14" CLUTCH(WF6) L=204	1-49117-400-0	01	1	1012-	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER 15" CLUTCH(RE9) L=239	1-49117-401-0	01	1	1001-1105	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER L=239	1-49117-401-0	01	1	1001-1105		●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER 15" CLUTCH(RE9) L=239	1-49117-401-0	01	1	1106-	●	●
50	NUT; UNION (B) M12	0-91111-512-0	01	1	1001-1105	●	●
50	NUT; UNION (B) M12	0-91111-512-0	01	1	1106-1109	●
50	NUT; UNION EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12	0-91111-512-0	01	1	1106-1109		●
50	NUT; UNION EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12	0-91111-512-0	01	1	1110-	●	●
50	NUT; UNION (A) M12	9-09840-280-0	01	1	1001-1105	●	●
50	NUT; UNION (A) M12	9-09840-280-0	01	1	1001-1105	●	●
50	NUT; UNION (A) M12	9-09840-280-0	01	1	1106-1109	●	●
50	NUT; UNION (A) M12	9-09840-280-0	01	1	1106-1109	●
50	NUT; UNION EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12	9-09840-280-0	01	1	1106-1109		●
50	NUT; UNION EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12	9-09840-280-0	01	1	1110-	●	●
50	NUT; UNION EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12	9-09840-280-0	01	1	1110-	●	●
51	WASHER; LK ID=12.2 SOU	0-91510-512-0	01	1	1001-1105	●	●
51	WASHER; LK EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=12.2 SOU	0-91510-512-0	01	1	1106-	●	●
52	BOLT; EYE,AIR PIPE 15" CLUTCH(RE9) M14X27 FLANGE	1-09675-086-0	01	1	1001-1105	●
52	BOLT; EYE,AIR PIPE M14X27 FLANGE	1-09675-086-0	01	1	1001-1105		●
52	BOLT; EYE,AIR PIPE 15" CLUTCH(RE9) M14X27 FLANGE	1-09675-086-0	01	1	1106-	●	●
53	GASKET; JOINT BOLT 15" CLUTCH(RE9) ID=14.2 OD=19.2 SOU	1-09630-085-0	02	1	1001-1105	●
53	GASKET; JOINT BOLT ID=14.2 OD=19.2 SOU	1-09630-085-0	02	1	1001-1105		●
53	GASKET; JOINT BOLT 15" CLUTCH(RE9) ID=14.2 OD=19.2 SOU	1-09630-085-0	02	1	1106-1312	●	●
53	GASKET; JOINT BOLT 15" CLUTCH(RE9) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE 4HK1-TCS ENG(RJS) L=440	8-98072-346-0	01	1	1012-	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE 6HK1-TCN ENG(82L) L=500	8-98072-350-0	01	1	1001-1105	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE 6HK1-TCN ENG(82L) L=500	8-98072-350-0	01	1	1106-1109	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE 6HK1-TCN ENG(82L) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=500	8-98072-350-0	01	1	1106-1109		●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE 6HK1-TCN ENG(82L) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=500	8-98072-350-0	01	1	1110-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 4HK1-TCS ENG(RJS) (C) L=2560 SERVICED BY L=2650	1-47428-743-0	01	1	1012-1012	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 4HK1-TCS ENG(RJS) (C) L=2558 SERVICED BY L=2650	1-47428-743-0	01	1	1012-	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 6HK1-TCN ENG(82L) (A) L=2695	8-98078-148-2	01	1	1001-1109	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 6HK1-TCN ENG(82L) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=2695	8-98078-148-2	01	1	1110-	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR (B) L=336	8-98067-058-0	01	1	1001-1105	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR (B) L=336	8-98067-058-0	01	1	1106-1109	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=336	8-98067-058-0	01	1	1106-1109		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=336	8-98067-058-0	01	1	1110-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 6HK1-TCN ENG(82L) (A) SERVICED BY L=2650	1-47428-743-0	01	1	1001-1105		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 6HK1-TCN ENG(82L) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) SERVICED BY L=2650	1-47428-743-0	01	1	1106-		●
106	UNION; OIL PIPE (A) M12 2WAY SOU	1-09654-059-2	01	1	1001-1105	●	●
106	UNION; OIL PIPE (A) M12 2WAY SOU	1-09654-059-2	01	1	1106-1109	●
106	UNION; OIL PIPE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 2WAY SOU	1-09654-059-2	01	1	1106-1109		●
106	UNION; OIL PIPE 6HK1-TCN ENG(82L) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 2WAY SOU	1-09654-059-2	01	1	1110-	●	●
106	UNION; OIL PIPE 4HK1-TCS ENG(RJS) (A) M12 2WAY SOU	1-09654-059-2	01	1	1110-	●
106	UNION; OIL PIPE H.S.A SYSTEM<6EP> (B) M12 3WAY	8-98051-113-0	01	1	1001-1105	●	●
106	UNION; OIL PIPE H.S.A SYSTEM<6EP> (B) M12 3WAY	8-98051-113-0	01	1	1106-1109	●
106	UNION; OIL PIPE H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12 3WAY	8-98051-113-0	01	1	1106-1109		●
106	UNION; OIL PIPE H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12 3WAY	8-98051-113-0	01	1	1110-	●	●
184	UNION; FLEX HOSE EXC. H.S.A SYSTEM<6EP>	8-98150-865-0	01	1	1001-1105	●	●
184	UNION; FLEX HOSE EXC. H.S.A SYSTEM<6EP>	8-98150-865-0	01	1	1106-1109	●
184	UNION; FLEX HOSE EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98150-865-0	01	1	1106-1109		●
184	UNION; FLEX HOSE EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98150-865-0	01	1	1110-	●	●
239	UNION; CLU HOSE M12 L=66.5	0-92113-306-0	01	1	1001-1105	●	●
239	UNION; CLU HOSE M12 L=66.5	0-92113-306-0	01	1	1106-1109	●
239	UNION; CLU HOSE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M12 L=66.5	0-92113-306-0	01	1	1106-1109		●
239	UNION; CLU HOSE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M12 L=66.5	0-92113-306-0	01	1	1110-	●	●

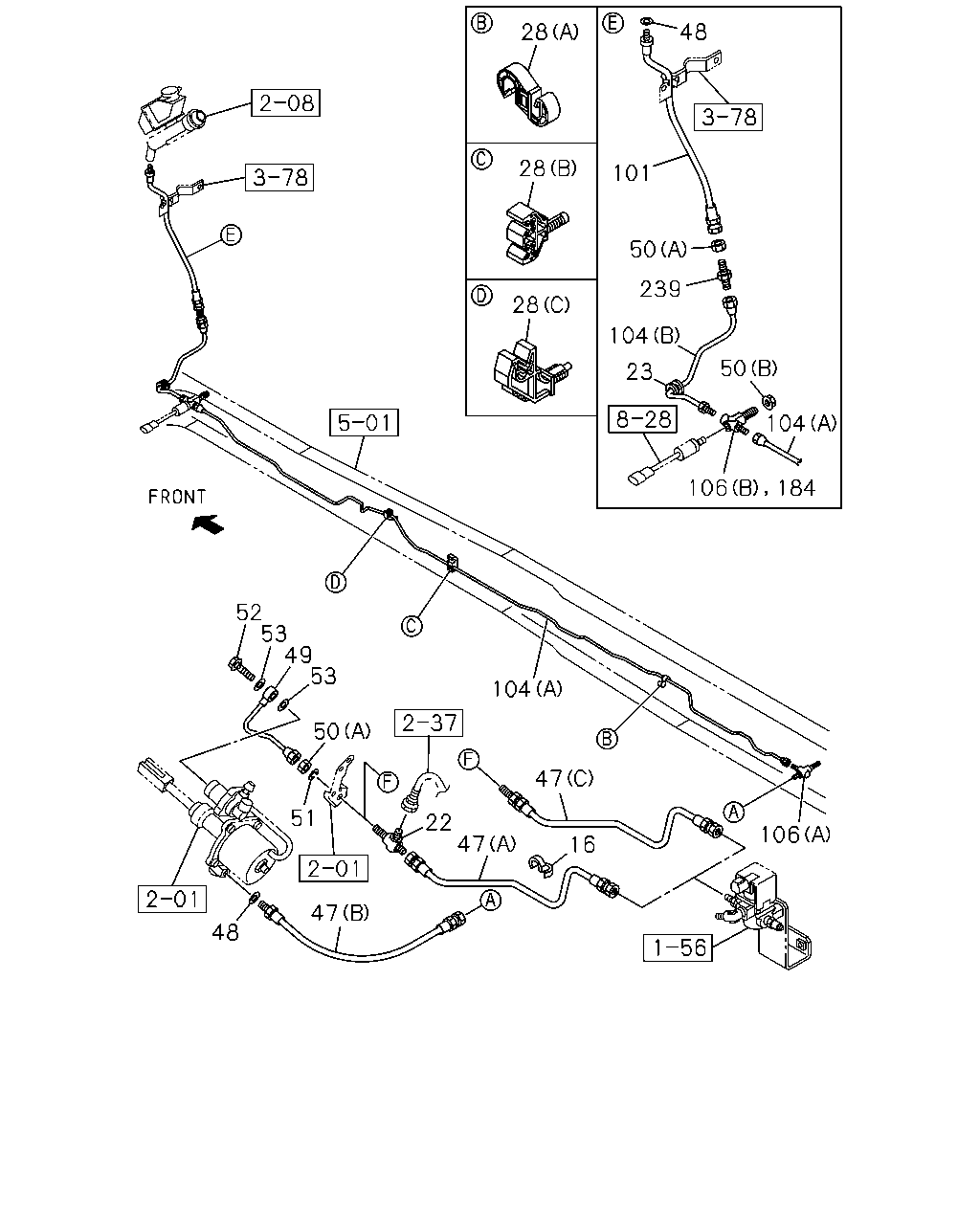

48 101 50 106 184 239 104 23 104 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
23	GROMMET; CLU PIPE ID=15 OD=20 T=17.5	1-09332-130-0	01	1	1001-1105	●	●
23	GROMMET; CLU PIPE ID=15 OD=20 T=17.5	1-09332-130-0	01	1	1106-1109	●
23	GROMMET; CLU PIPE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=15 OD=20 T=17.5	1-09332-130-0	01	1	1106-1109		●
23	GROMMET; CLU PIPE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=15 OD=20 T=17.5	1-09332-130-0	01	1	1110-	●	●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	02	1	1001-1105	●	●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	02	1	1106-1109	●
48	GASKET; FLEX HOSE,CLU CONT EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=10.2 OD=16.0	9-09571-410-0	02	1	1106-1109		●
48	GASKET; FLEX HOSE,CLU CONT EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=10.2 OD=16.0	9-09571-410-0	02	1	1110-	●	●
50	NUT; UNION (B) M12	0-91111-512-0	01	1	1001-1105	●	●
50	NUT; UNION (B) M12	0-91111-512-0	01	1	1106-1109	●
50	NUT; UNION EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12	0-91111-512-0	01	1	1106-1109		●
50	NUT; UNION EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12	0-91111-512-0	01	1	1110-	●	●
50	NUT; UNION (A) M12	9-09840-280-0	01	1	1001-1105	●	●
50	NUT; UNION (A) M12	9-09840-280-0	01	1	1001-1105	●	●
50	NUT; UNION (A) M12	9-09840-280-0	01	1	1106-1109	●	●
50	NUT; UNION (A) M12	9-09840-280-0	01	1	1106-1109	●
50	NUT; UNION EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12	9-09840-280-0	01	1	1106-1109		●
50	NUT; UNION EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12	9-09840-280-0	01	1	1110-	●	●
50	NUT; UNION EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12	9-09840-280-0	01	1	1110-	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE 4HK1-TCS ENG(RJS) L=440	8-98072-346-0	01	1	1012-	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE 6HK1-TCN ENG(82L) L=500	8-98072-350-0	01	1	1001-1105	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE 6HK1-TCN ENG(82L) L=500	8-98072-350-0	01	1	1106-1109	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE 6HK1-TCN ENG(82L) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=500	8-98072-350-0	01	1	1106-1109		●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE 6HK1-TCN ENG(82L) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=500	8-98072-350-0	01	1	1110-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 4HK1-TCS ENG(RJS) (C) L=2560 SERVICED BY L=2650	1-47428-743-0	01	1	1012-1012	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 4HK1-TCS ENG(RJS) (C) L=2558 SERVICED BY L=2650	1-47428-743-0	01	1	1012-	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 6HK1-TCN ENG(82L) (A) L=2695	8-98078-148-2	01	1	1001-1109	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 6HK1-TCN ENG(82L) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=2695	8-98078-148-2	01	1	1110-	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR (B) L=336	8-98067-058-0	01	1	1001-1105	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR (B) L=336	8-98067-058-0	01	1	1106-1109	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=336	8-98067-058-0	01	1	1106-1109		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=336	8-98067-058-0	01	1	1110-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 6HK1-TCN ENG(82L) (A) SERVICED BY L=2650	1-47428-743-0	01	1	1001-1105		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 6HK1-TCN ENG(82L) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) SERVICED BY L=2650	1-47428-743-0	01	1	1106-		●
106	UNION; OIL PIPE (A) M12 2WAY SOU	1-09654-059-2	01	1	1001-1105	●	●
106	UNION; OIL PIPE (A) M12 2WAY SOU	1-09654-059-2	01	1	1106-1109	●
106	UNION; OIL PIPE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 2WAY SOU	1-09654-059-2	01	1	1106-1109		●
106	UNION; OIL PIPE 6HK1-TCN ENG(82L) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 2WAY SOU	1-09654-059-2	01	1	1110-	●	●
106	UNION; OIL PIPE 4HK1-TCS ENG(RJS) (A) M12 2WAY SOU	1-09654-059-2	01	1	1110-	●
106	UNION; OIL PIPE H.S.A SYSTEM<6EP> (B) M12 3WAY	8-98051-113-0	01	1	1001-1105	●	●
106	UNION; OIL PIPE H.S.A SYSTEM<6EP> (B) M12 3WAY	8-98051-113-0	01	1	1106-1109	●
106	UNION; OIL PIPE H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12 3WAY	8-98051-113-0	01	1	1106-1109		●
106	UNION; OIL PIPE H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12 3WAY	8-98051-113-0	01	1	1110-	●	●
184	UNION; FLEX HOSE EXC. H.S.A SYSTEM<6EP>	8-98150-865-0	01	1	1001-1105	●	●
184	UNION; FLEX HOSE EXC. H.S.A SYSTEM<6EP>	8-98150-865-0	01	1	1106-1109	●
184	UNION; FLEX HOSE EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98150-865-0	01	1	1106-1109		●
184	UNION; FLEX HOSE EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98150-865-0	01	1	1110-	●	●
239	UNION; CLU HOSE M12 L=66.5	0-92113-306-0	01	1	1001-1105	●	●
239	UNION; CLU HOSE M12 L=66.5	0-92113-306-0	01	1	1106-1109	●
239	UNION; CLU HOSE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M12 L=66.5	0-92113-306-0	01	1	1106-1109		●
239	UNION; CLU HOSE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M12 L=66.5	0-92113-306-0	01	1	1110-	●	●

49 48 50 51 47 22 47 106 47 102 167 107 104 28 28 16 28 16 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	CLIP; FLEX HOSE MLD6W M/T(Y2C) ID=10 & 12	1-09709-278-1	02	1	1001-	●
16	CLIP; FLEX HOSE MZX6P M/T(RSW),MZW6P M/T(RSZ) ID=10 & 12	1-09709-278-1	01	1	1001-1105	●
16	CLIP; FLEX HOSE ID=10 & 12	1-09709-278-1	01	1	1001-1105		●
16	CLIP; FLEX HOSE MZX6P M/T(RSW),MZW6P M/T(RSZ) ID=10 & 12	1-09709-278-1	01	1	1106-1109	●
16	CLIP; FLEX HOSE MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=10 & 12	1-09709-278-1	01	1	1106-1109		●
16	CLIP; FLEX HOSE MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=10 & 12	1-09709-278-1	01	1	1110-	●
16	CLIP; FLEX HOSE MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=10 & 12	1-09709-278-1	01	1	1110-		●
22	UNION; CLU PIPE ASSISTOR SHIFT CONTROL<WX8> M12 3WAY	0-92138-706-0	01	1	1001-	●	●
28	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (B)	8-98012-254-1	01	1	1001-1109	●
28	CLIP; OIL PIPE 6HK1-TCN ENG(82L) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98012-254-1	01	1	1110-	●
28	CLIP; OIL PIPE (C) ID=6.35	1-09701-247-1	01	1	1001-1105	●	●
28	CLIP; OIL PIPE (C) ID=6.35	1-09701-247-1	01	1	1001-1105	●
28	CLIP; OIL PIPE (C) ID=6.35	1-09701-247-1	01	1	1106-1109	●
28	CLIP; OIL PIPE (C) ID=6.35	1-09701-247-1	01	1	1106-1109	●
28	CLIP; OIL PIPE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=6.35	1-09701-247-1	01	1	1106-1109		●
28	CLIP; OIL PIPE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=6.35	1-09701-247-1	01	1	1110-	●	●
28	CLIP; OIL PIPE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=6.35	1-09701-247-1	01	1	1110-	●
28	CLIP; OIL PIPE (A) ID=6.35 & 10.0	1-09709-274-1	03	1	1001-1105	●	●
28	CLIP; OIL PIPE (A) ID=6.35 & 10.0	1-09709-274-1	03	1	1106-1109	●
28	CLIP; OIL PIPE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=6.35 & 10.0	1-09709-274-1	03	1	1106-1109		●
28	CLIP; OIL PIPE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=6.35 & 10.0	1-09709-274-1	03	1	1110-	●	●
28	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (A) ID=4.76 & 6.35	1-09709-304-0	01	1	1001-1105		●
28	CLIP; OIL PIPE 6HK1-TCN ENG(82L) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=4.76 & 6.35	1-09709-304-0	01	1	1106-		●
28	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (B)	8-98012-254-1	02	1	1001-1105		●
28	CLIP; OIL PIPE 6HK1-TCN ENG(82L) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98012-254-1	02	1	1106-		●
47	HOSE; FLEX,CLU CONT 4HK1-TCS ENG(RJS) (E) L=480	8-98072-349-0	01	1	1012-	●
47	HOSE; FLEX,CLU CONT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> (D) L=660	1-09363-971-0	01	1	1012-	●
47	HOSE; FLEX,CLU CONT 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8> (F) L=740	1-09363-674-0	01	1	1012-	●
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) PTO CONTROL<SV6> ASSISTOR SHIFT CONTROL<WX8> (A) L=540	1-09363-612-1	01	1	1001-1105	●
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (A) L=540	1-09363-612-1	01	1	1001-1105	●
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (A) L=540	1-09363-612-1	01	1	1001-1105		●
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) PTO CONTROL<SV6> ASSISTOR SHIFT CONTROL<WX8> (A) L=540	1-09363-612-1	01	1	1106-1109	●
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (A) L=540	1-09363-612-1	01	1	1106-1109	●
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=540	1-09363-612-1	01	1	1106-1109		●
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) PTO CONTROL<SV6> ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=540	1-09363-612-1	01	1	1110-	●
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=540	1-09363-612-1	01	1	1110-	●
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=540	1-09363-612-1	01	1	1110-		●
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) PTO CONTROL<SV6> EXC. ASSISTOR SHIFT CONTROL<WX8> (C) L=640	1-09363-974-0	01	1	1001-1105	●
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, ASSISTOR SHIFT CONTROL<WX8> (C) L=640	1-09363-974-0	01	1	1001-1105	●
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8> (C) L=640	1-09363-974-0	01	1	1001-1105		●
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) PTO CONTROL<SV6> EXC. ASSISTOR SHIFT CONTROL<WX8> (C) L=640	1-09363-974-0	01	1	1106-1109	●
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, ASSISTOR SHIFT CONTROL<WX8> (C) L=640	1-09363-974-0	01	1	1106-1109	●
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=640	1-09363-974-0	01	1	1106-1109		●
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) PTO CONTROL<SV6> EXC. ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=640	1-09363-974-0	01	1	1110-	●
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=640	1-09363-974-0	01	1	1110-	●
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=640	1-09363-974-0	01	1	1110-		●
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) RIGID SEAT WO/ARM REST<TAZ> ASSISTOR SHIFT CONTROL<WX8> EXC. PTO CONTROL<SV6> (A) L=560	1-09363-914-0	01	1	1001-1109	●
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) RIGID SEAT WO/ARM REST<TAZ> ASSISTOR SHIFT CONTROL<WX8> EXC. PTO CONTROL<SV6>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=560	1-09363-914-0	01	1	1110-	●
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6>,ASSISTOR SHIFT CONTROL<WX8> (C) L=660	1-09363-719-0	01	1	1001-1109	●
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6>,ASSISTOR SHIFT CONTROL<WX8>, TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=660	1-09363-719-0	01	1	1110-	●
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) (B) L=470	8-98072-353-0	01	1	1001-1105	●	●
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) (B) L=470	8-98072-353-0	01	1	1106-1109	●
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=470	8-98072-353-0	01	1	1106-1109		●
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=470	8-98072-353-0	01	1	1110-	●	●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	02	1	1001-1105	●	●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	02	1	1106-1109	●
48	GASKET; FLEX HOSE,CLU CONT EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=10.2 OD=16.0	9-09571-410-0	02	1	1106-1109		●
48	GASKET; FLEX HOSE,CLU CONT EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=10.2 OD=16.0	9-09571-410-0	02	1	1110-	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER 14" CLUTCH(WF6) L=204	1-49117-400-0	01	1	1012-	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER 15" CLUTCH(RE9) L=239	1-49117-401-0	01	1	1001-1105	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER L=239	1-49117-401-0	01	1	1001-1105		●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER 15" CLUTCH(RE9) L=239	1-49117-401-0	01	1	1106-	●	●
50	NUT; UNION (B) M12	0-91111-512-0	01	1	1001-1105	●	●
50	NUT; UNION (B) M12	0-91111-512-0	01	1	1106-1109	●
50	NUT; UNION EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12	0-91111-512-0	01	1	1106-1109		●
50	NUT; UNION EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12	0-91111-512-0	01	1	1110-	●	●
50	NUT; UNION (A) M12	9-09840-280-0	01	1	1001-1105	●	●
50	NUT; UNION (A) M12	9-09840-280-0	01	1	1001-1105	●	●
50	NUT; UNION (A) M12	9-09840-280-0	01	1	1106-1109	●	●
50	NUT; UNION (A) M12	9-09840-280-0	01	1	1106-1109	●
50	NUT; UNION EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12	9-09840-280-0	01	1	1106-1109		●
50	NUT; UNION EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12	9-09840-280-0	01	1	1110-	●	●
50	NUT; UNION EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12	9-09840-280-0	01	1	1110-	●	●
51	WASHER; LK ID=12.2 SOU	0-91510-512-0	01	1	1001-1105	●	●
51	WASHER; LK EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=12.2 SOU	0-91510-512-0	01	1	1106-	●	●
102	NUT; FLEX HOSE,CLU CONT 4HK1-TCS ENG(RJS) M10 FLANGE SOU	0-91180-210-0	02	1	1012-	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 4HK1-TCS ENG(RJS) (C) L=2560 SERVICED BY L=2650	1-47428-743-0	01	1	1012-1012	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 4HK1-TCS ENG(RJS) (C) L=2558 SERVICED BY L=2650	1-47428-743-0	01	1	1012-	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 6HK1-TCN ENG(82L) (A) L=2695	8-98078-148-2	01	1	1001-1109	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 6HK1-TCN ENG(82L) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=2695	8-98078-148-2	01	1	1110-	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR (B) L=336	8-98067-058-0	01	1	1001-1105	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR (B) L=336	8-98067-058-0	01	1	1106-1109	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=336	8-98067-058-0	01	1	1106-1109		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=336	8-98067-058-0	01	1	1110-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 6HK1-TCN ENG(82L) (A) SERVICED BY L=2650	1-47428-743-0	01	1	1001-1105		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 6HK1-TCN ENG(82L) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) SERVICED BY L=2650	1-47428-743-0	01	1	1106-		●
106	UNION; OIL PIPE (A) M12 2WAY SOU	1-09654-059-2	01	1	1001-1105	●	●
106	UNION; OIL PIPE (A) M12 2WAY SOU	1-09654-059-2	01	1	1106-1109	●
106	UNION; OIL PIPE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 2WAY SOU	1-09654-059-2	01	1	1106-1109		●
106	UNION; OIL PIPE 6HK1-TCN ENG(82L) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 2WAY SOU	1-09654-059-2	01	1	1110-	●	●
106	UNION; OIL PIPE 4HK1-TCS ENG(RJS) (A) M12 2WAY SOU	1-09654-059-2	01	1	1110-	●
106	UNION; OIL PIPE H.S.A SYSTEM<6EP> (B) M12 3WAY	8-98051-113-0	01	1	1001-1105	●	●
106	UNION; OIL PIPE H.S.A SYSTEM<6EP> (B) M12 3WAY	8-98051-113-0	01	1	1106-1109	●
106	UNION; OIL PIPE H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12 3WAY	8-98051-113-0	01	1	1106-1109		●
106	UNION; OIL PIPE H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12 3WAY	8-98051-113-0	01	1	1110-	●	●
107	NUT; UNION,OIL PIPE M12	0-91111-512-0	01	1	1001-1105	●	●
107	NUT; UNION,OIL PIPE M12	0-91111-512-0	01	1	1106-1109	●
107	NUT; UNION,OIL PIPE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M12	0-91111-512-0	01	1	1106-1109		●
107	NUT; UNION,OIL PIPE 6HK1-TCN ENG(82L) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M12	0-91111-512-0	01	1	1110-	●	●
107	NUT; UNION,OIL PIPE 4HK1-TCS ENG(RJS) M12	0-91111-512-0	01	1	1110-	●
167	BRACKET; UNION 4HK1-TCS ENG(RJS)	8-98078-090-1	01	1	1012-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
